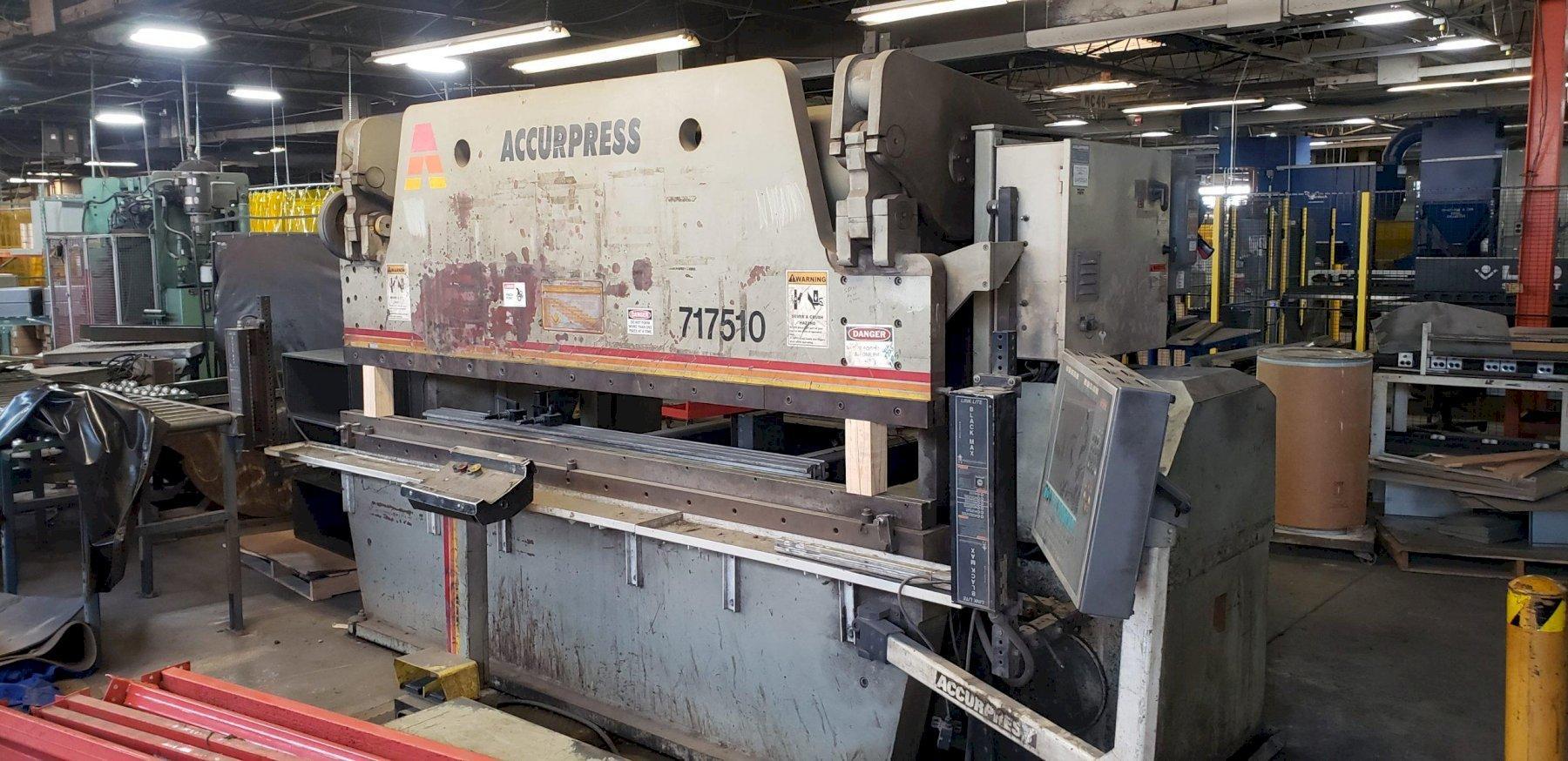

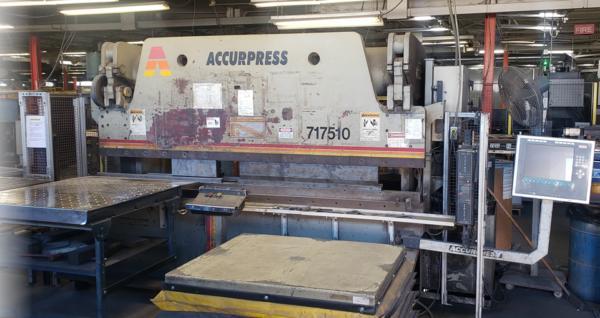

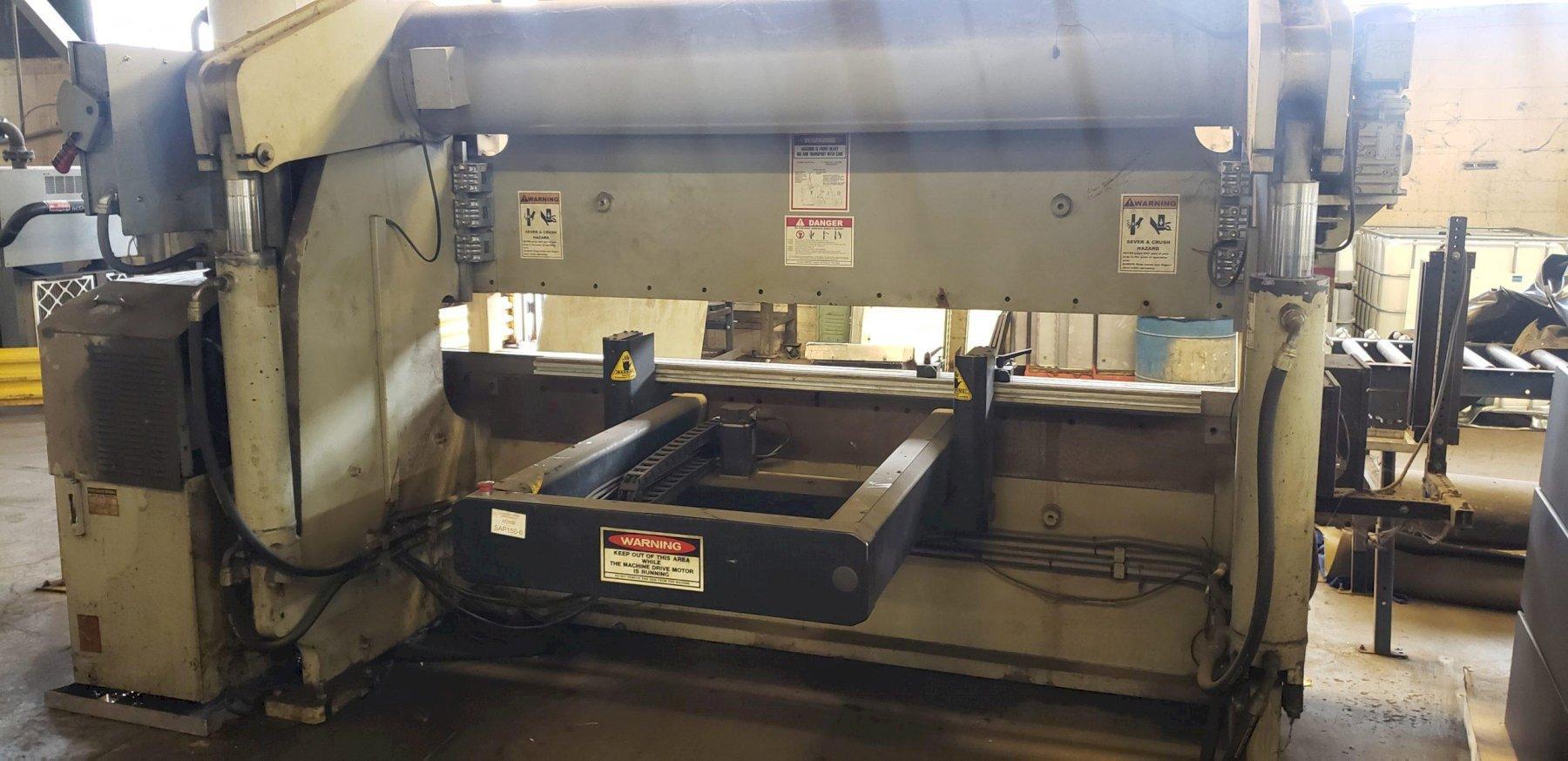

1999 Accurpress 717510 Press Brake (#4639)

Manufacturer

Stock

None

Model

None listed

Dealer Location

Florida

Spec Sheet



175 Ton X 10′ CNC Press Brake with ETS 3000 CNC Graphical Controller Programmable Y, X and R Axis. Includes operator Workstation with Integrated Footpedals and Light Curtains
GENERAL SPECIFICATIONS
Tonnage: 175 Ton
Overall Length Of Bed And Ram: 122”
Distance Between Housings: 8’ 6”
Capacity: 175 Tons
Open Height: 14″
Closed Height: 6″
Throat: 10″
Bed Height: 34″
Ram Stroke: 0” To 8″
Approach Speed: 90 IPM
Pressing Speed: 17 IPM
Return Speed: 180 IPM
Motor: 20 HP / 1760 RPM
Volts: 230 / 460
Phase: 3
Cycles: 60
Amps: 52 / 26
Approximate Dimensions: 178″ X 66″ X 94″ High
Approximate Weight: 24,000 LBS

INCLUDES: ETS 3000 CNC Graphical Controller Programmable Y, X and R Axis. Includes operator Workstation with Integrated Footpedals and Light Curtains.


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
