1980 Cincinnati 350FM-16 Hydraulic Press Brake (#4663)

Manufacturer

Category

Brakes (including Press Brakes)

Type

PRESS BRAKES

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

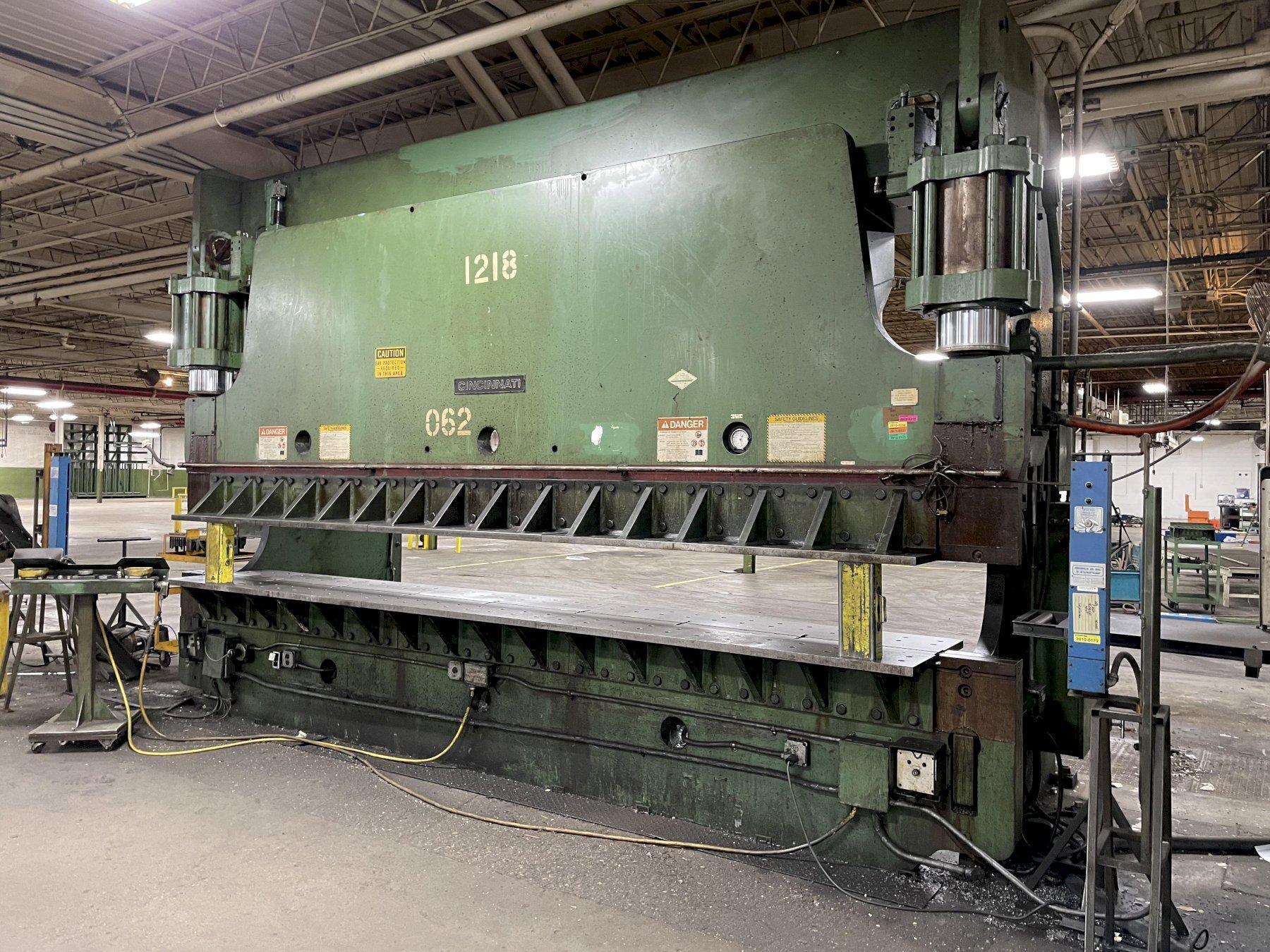

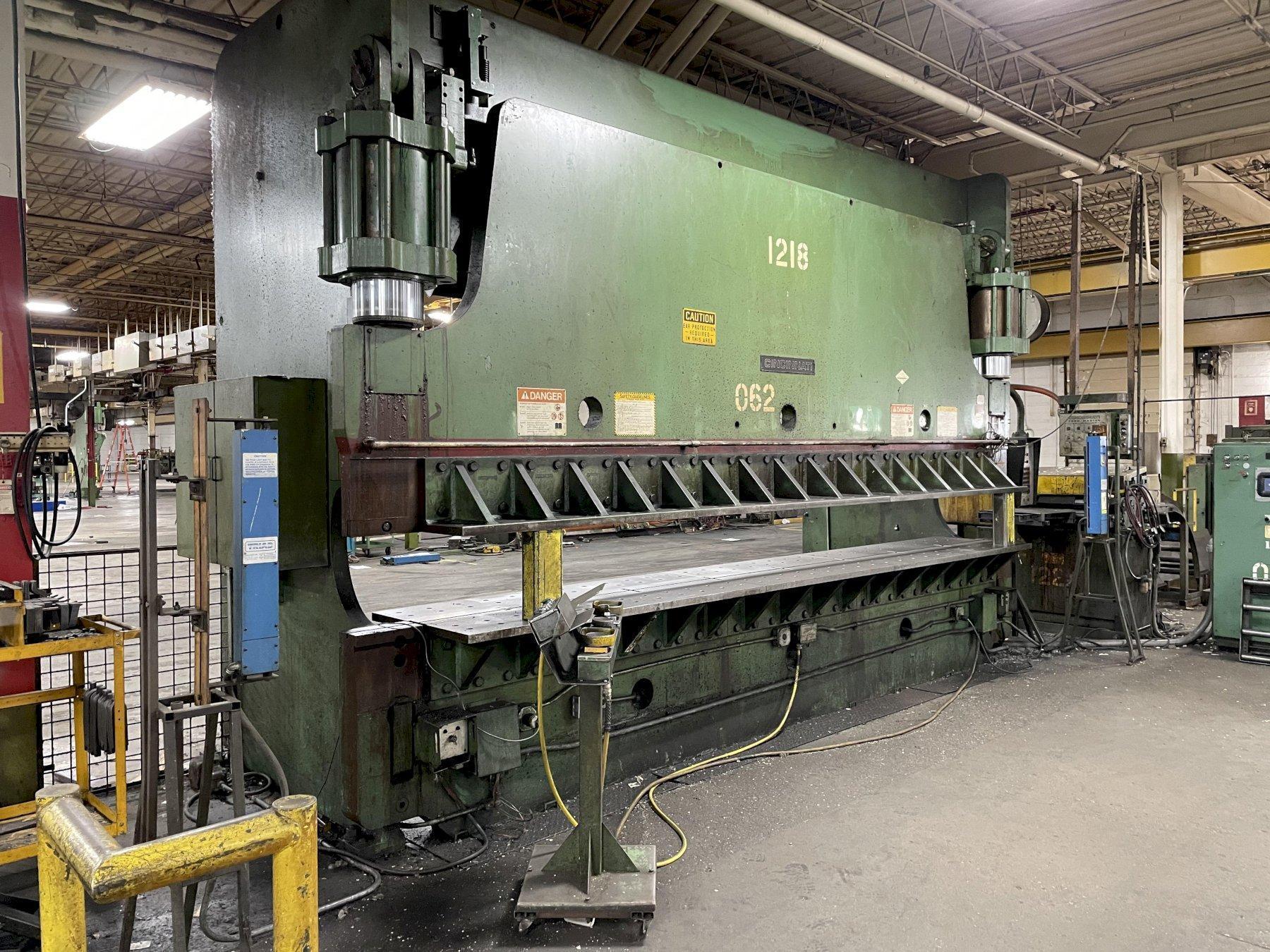

350 Ton X 18' Hydraulic Press Brake with Dual Palm Buttons Controls, Top Rail Die Clamps, Light Curtains, Electric Foot Pedal and E-Stop Button

GENERAL SPECIFICATIONS
Distance Between Housing: 16' 9"
Stroke Of Ram: 12"
Open Height: 20"
Closed Height: 8"
Throat: 18"

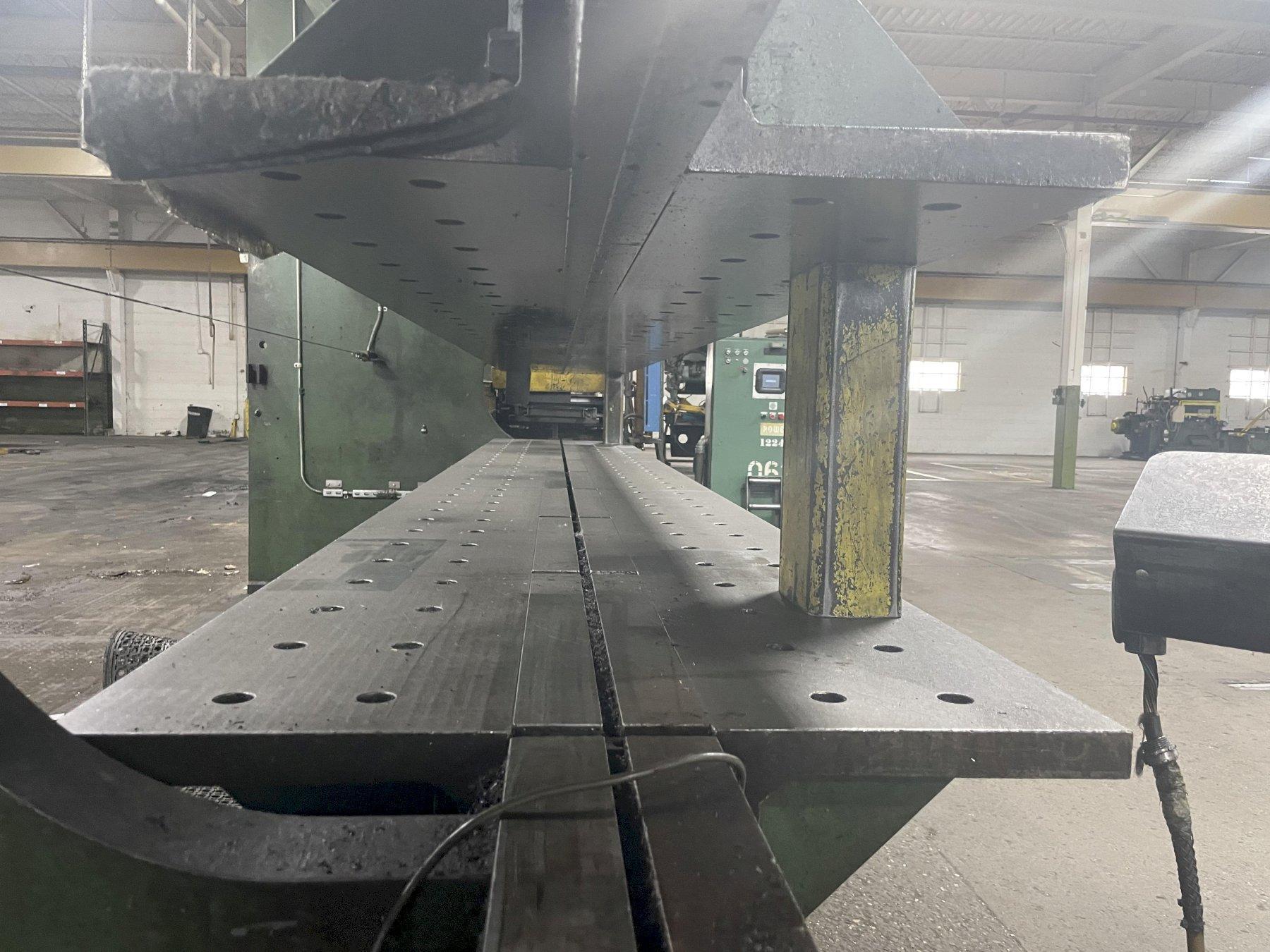

Top & Bottom Flanges: Bolt On, Removable
Top Flanges: 16' Long X 27" Wide
Bottom Flanges: 16' Long X 30" Wide
Ram Speeds: 64 IPM Fast Press
Ram Speeds: 27 IPM Pressing
Ram Speeds: 51 IPM Return
Motor: 40 HP

INCLUDES: Dual Palm Buttons Controls, Top Rail Die Clamps, Light Curtains, Electric Foot Pedal, E-Stop Button and Removable Flange Plates


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
