230 Ton Cincinnati Autoform, 12' OA, 10'6" BH, Cinc. PC Control (2015), Crowning, Upper/Lower Hyd. Clamping, #32155

Manufacturer

CINCINNATI

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, HYDRAULIC (Inch/Ton)

Stock

32155

Model

230 AF x 10

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32155

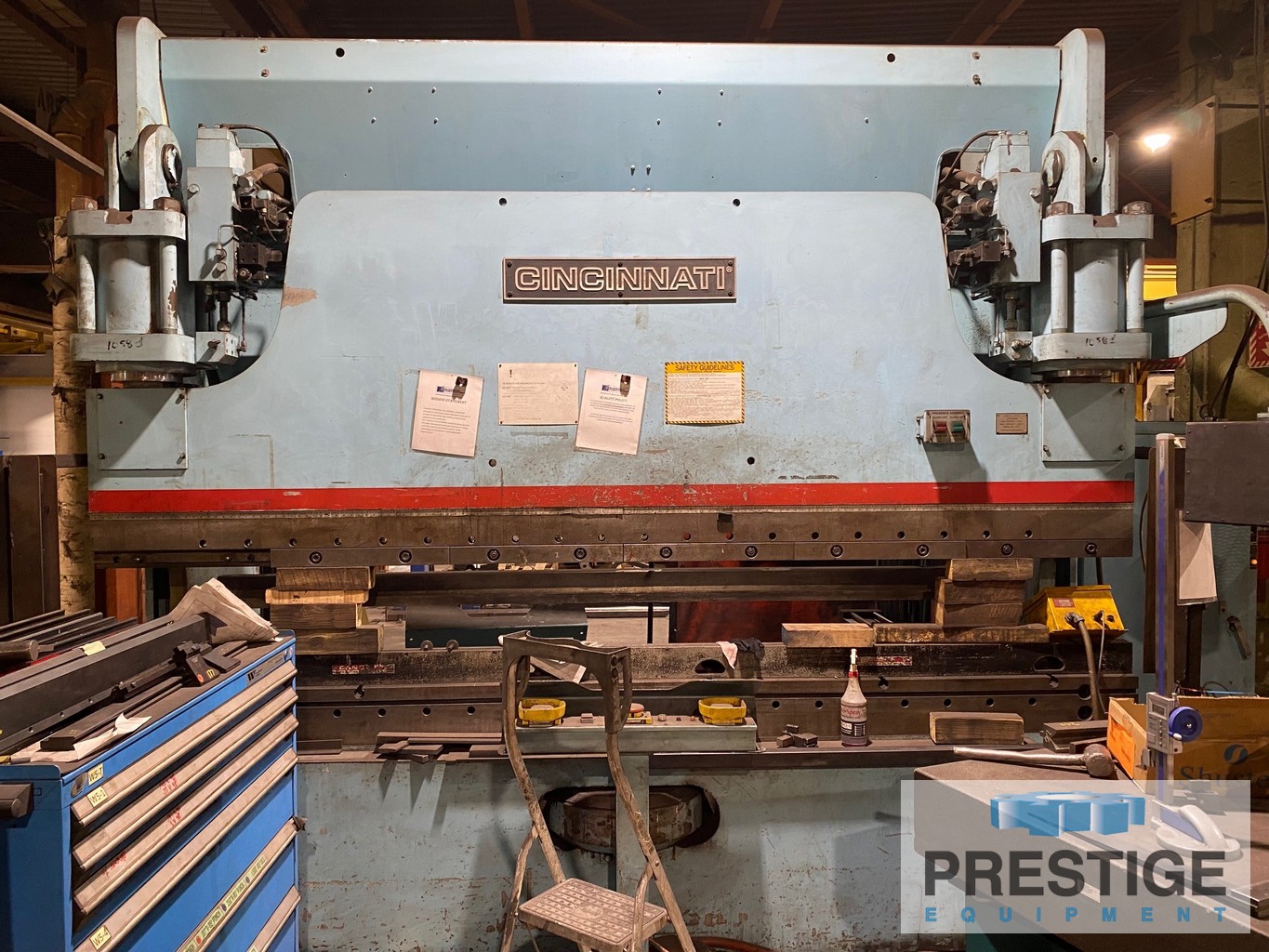

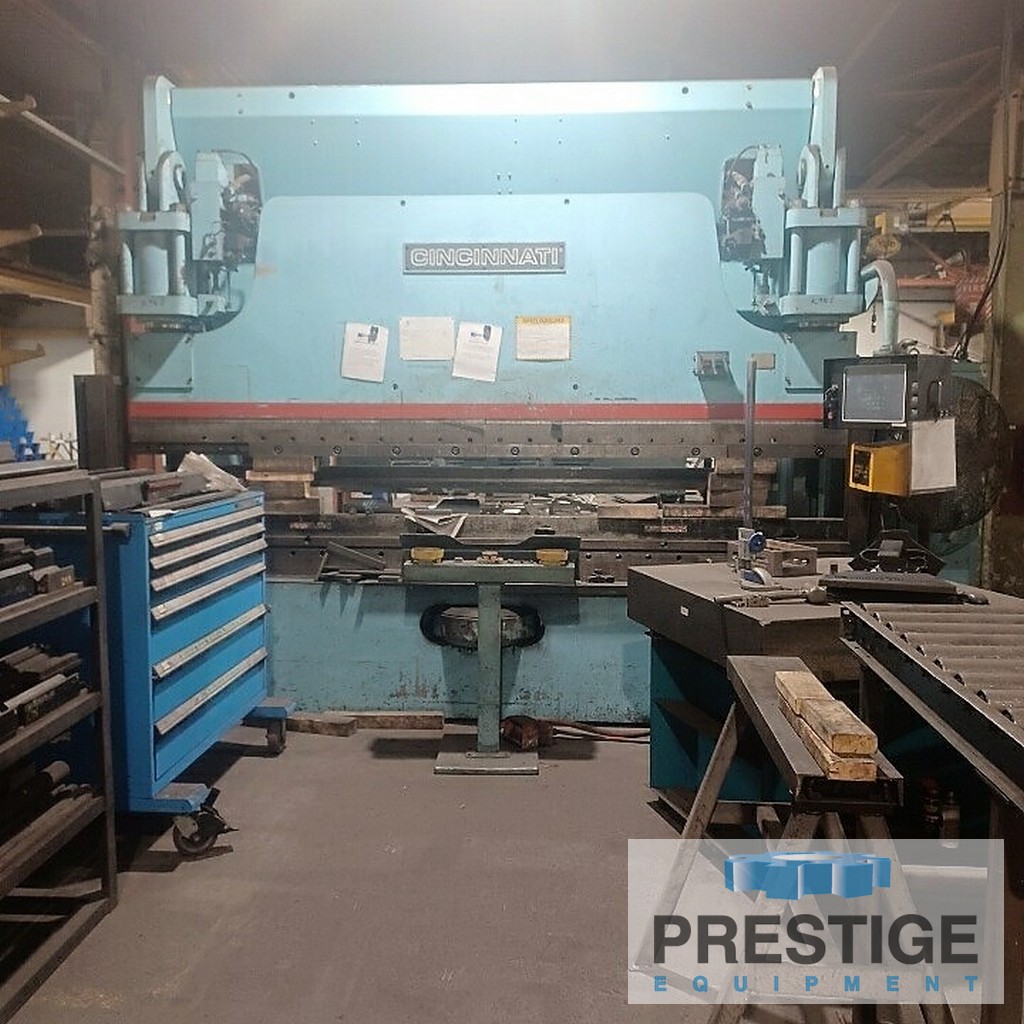

Cincinnati 230 Ton AF x 12 CNC Hydraulic Press Brake

FEATURES:
Cincinnati PC Generation 5 CNC Control (New 2015)
24" Heavy Duty Back Gauge
"Auto Crown" Bed Deflection Compensation Option
Hydraulic Upper and Lower Clamping

CAPACITY:
Maximum Tonnage Capacity ............. 230 Ton
Overall Length Of Bed & Ram .......... 12'
Distance Between Housings ............ 10'6"
Throat Depth ......................... 8"
Bending Capacity (3" Vee Die) ........ 3/8" X 8'3"
Stroke Length ........................ 10"
Open Height .......................... 17"
Shut Height .......................... 7"
Main Motor ........................... 25 HP
Approx. Dimensions: (L x W x H) ...... 197" x 84" x 127"
Approx. Weight ....................... 30,200 Lbs.

EQUIPPED WITH:

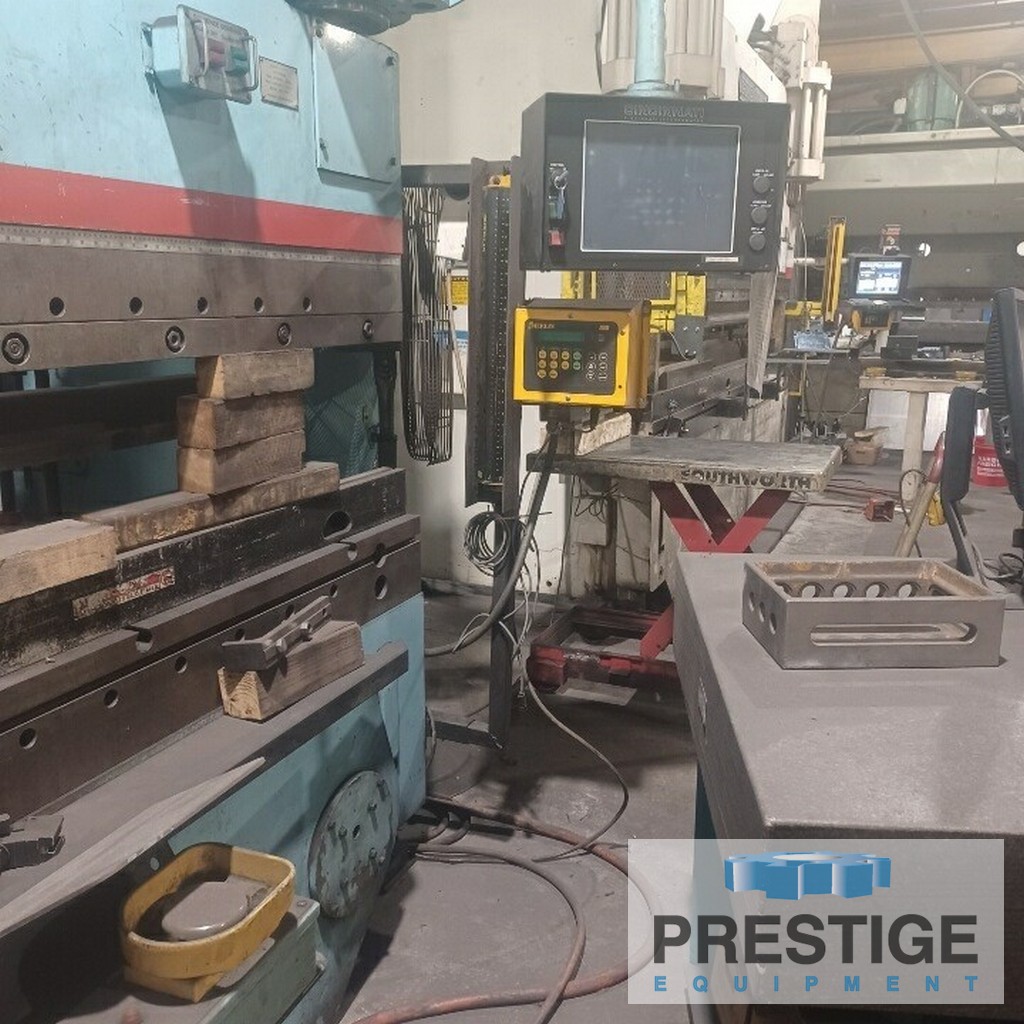

Cincinnati PC Generation 5 CNC Control (New 2015)
24" Heavy Duty Back Gauge
"Auto Crown" Bed Deflection Compensation Option
Hydraulic Upper and Lower Clamping
12' Lower Die Holder
Bed Machined And Drilled For Angles
Electric Foot Switch

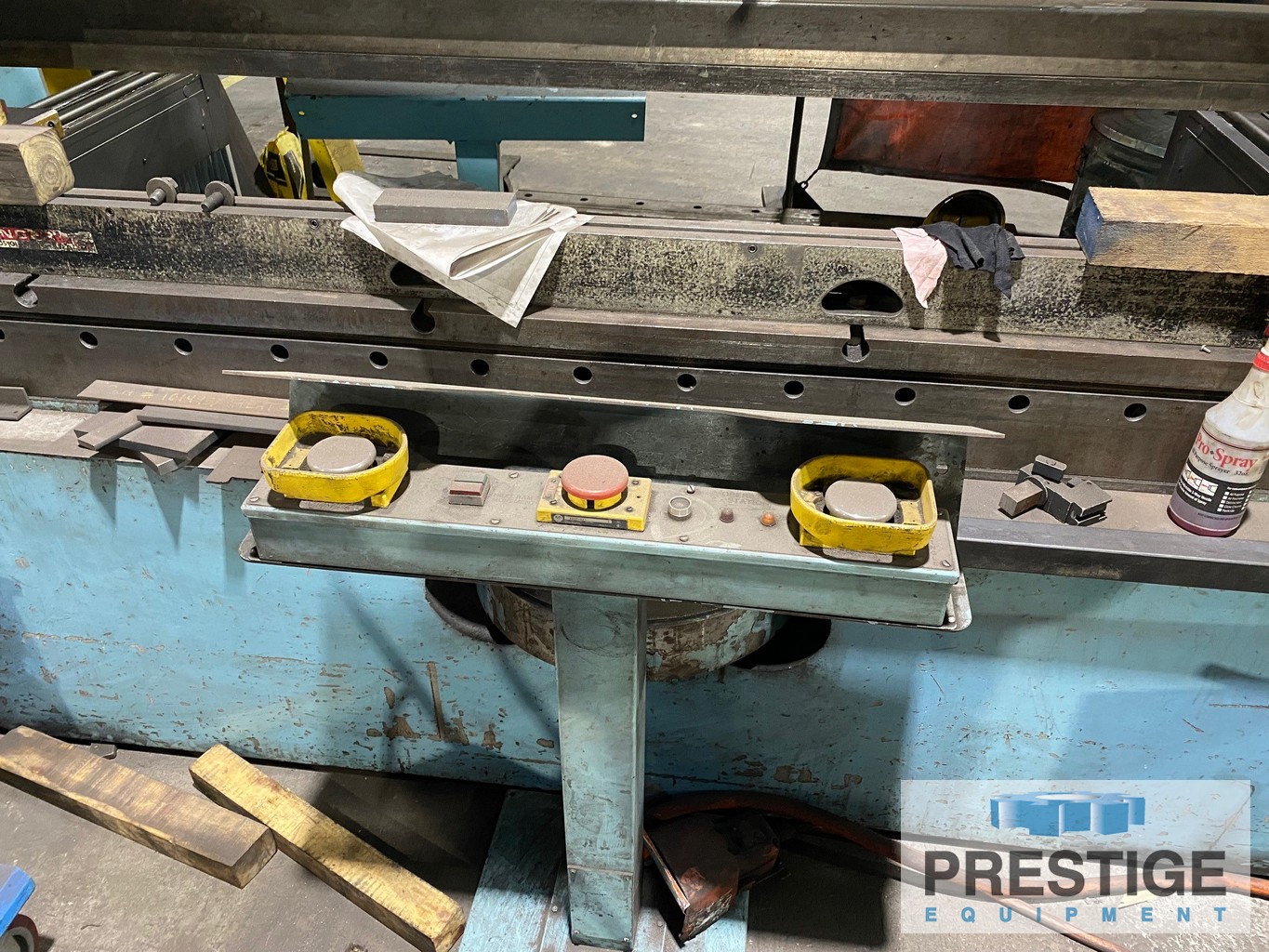

Palm Button Pedestal Station
Electric Foot Switch
Merlin Light Curtains
Flush Floor Machine
