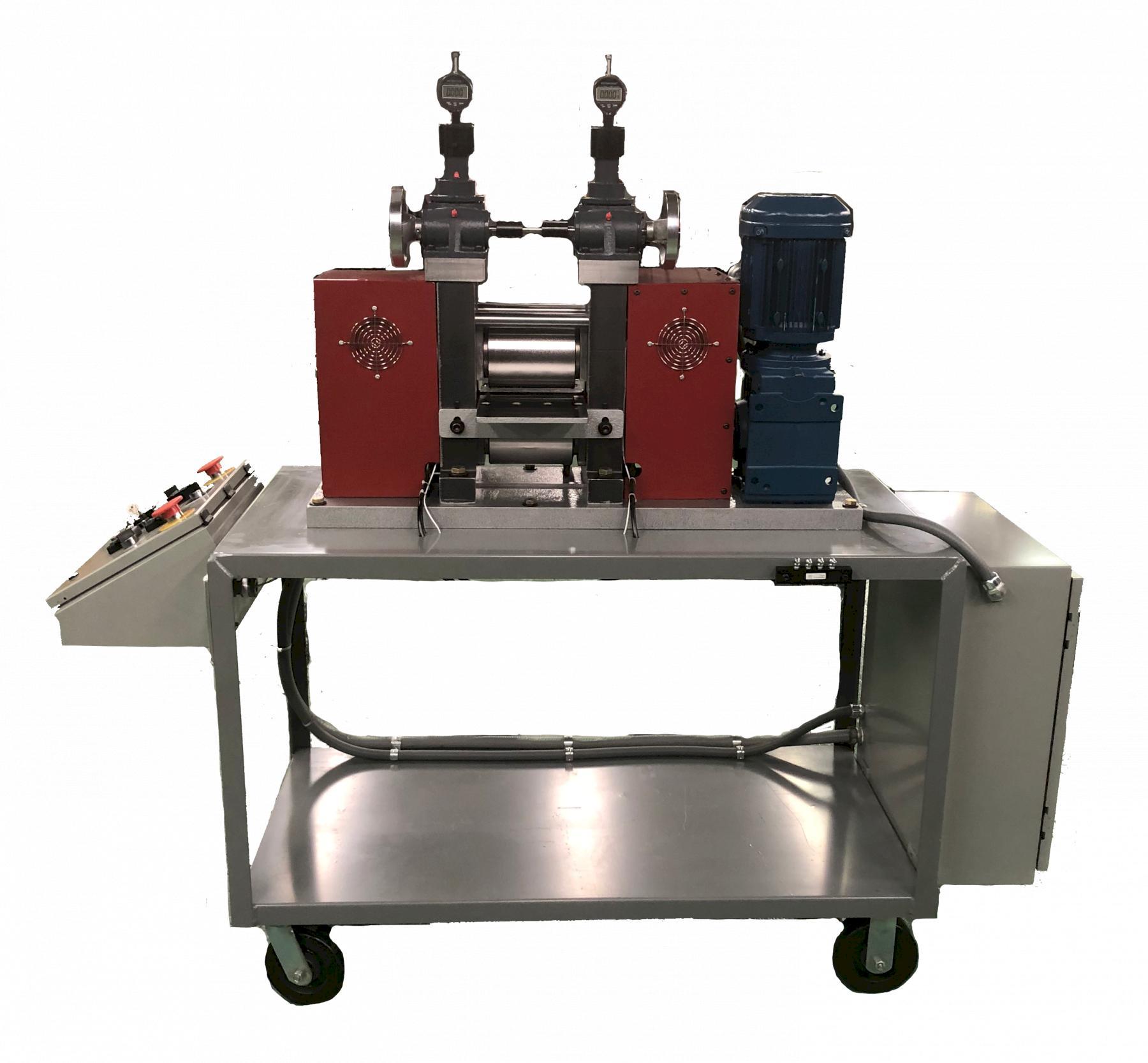

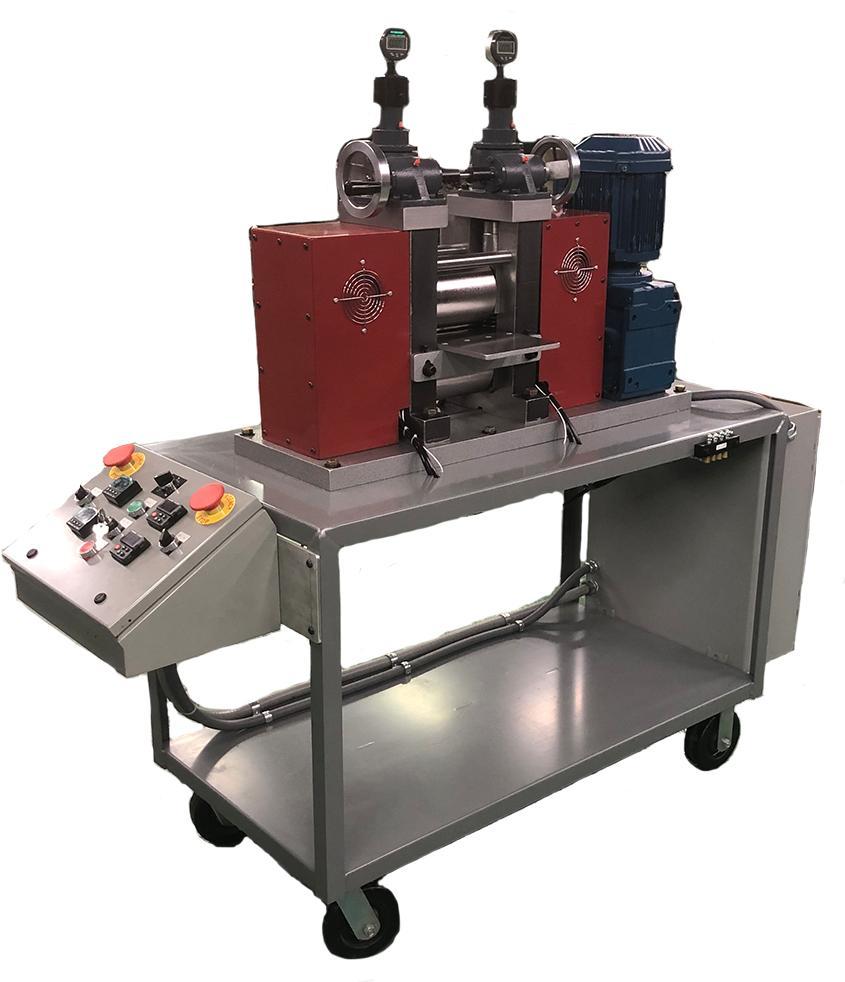

New IRM Model #5060 5" X 6" 2Hi Hot Lab Rolling Mill

Manufacturer

IRM

Category

Rolling Mills

Type

ROLLING MILLS, 3-HI

Stock

3

Model

5060H

Dealer Location

Rhode Island

Request a Quote
View Contact Information

Spec Sheet

ROLL DIAMETER - 5.000 inches
ROLL WIDTH - 6.000 inches
ROLL MATERIAL - D2
ROLL HARDNESS - APPROXIMATELY 60 - 62 ROCKWELL C
ROLL FINISH - SATIN 2RA
ROLL ADJUSTMENT - ROLL GAP IS ADJUSTABLE SIMULTANEOUSLY OR INDEPENDENTLY. DIGITAL INDICATORS WILL BE INSTALLED TO READ ROLL GAP IN THOUSANDTHS OF AN INCH OR MM.
MILL SEPARATING FORCE - APPROXIMATELY 40,000 LBS
MILL POWER - 2HP AC GEARMOTOR
MILL VOLTAGE - 220V
MILL PHASE - THREE PHASE
MILL SPEED - 0 - 17 RPM
MILL CONTROLLER - VARIABLE SPEED AC INVERTER

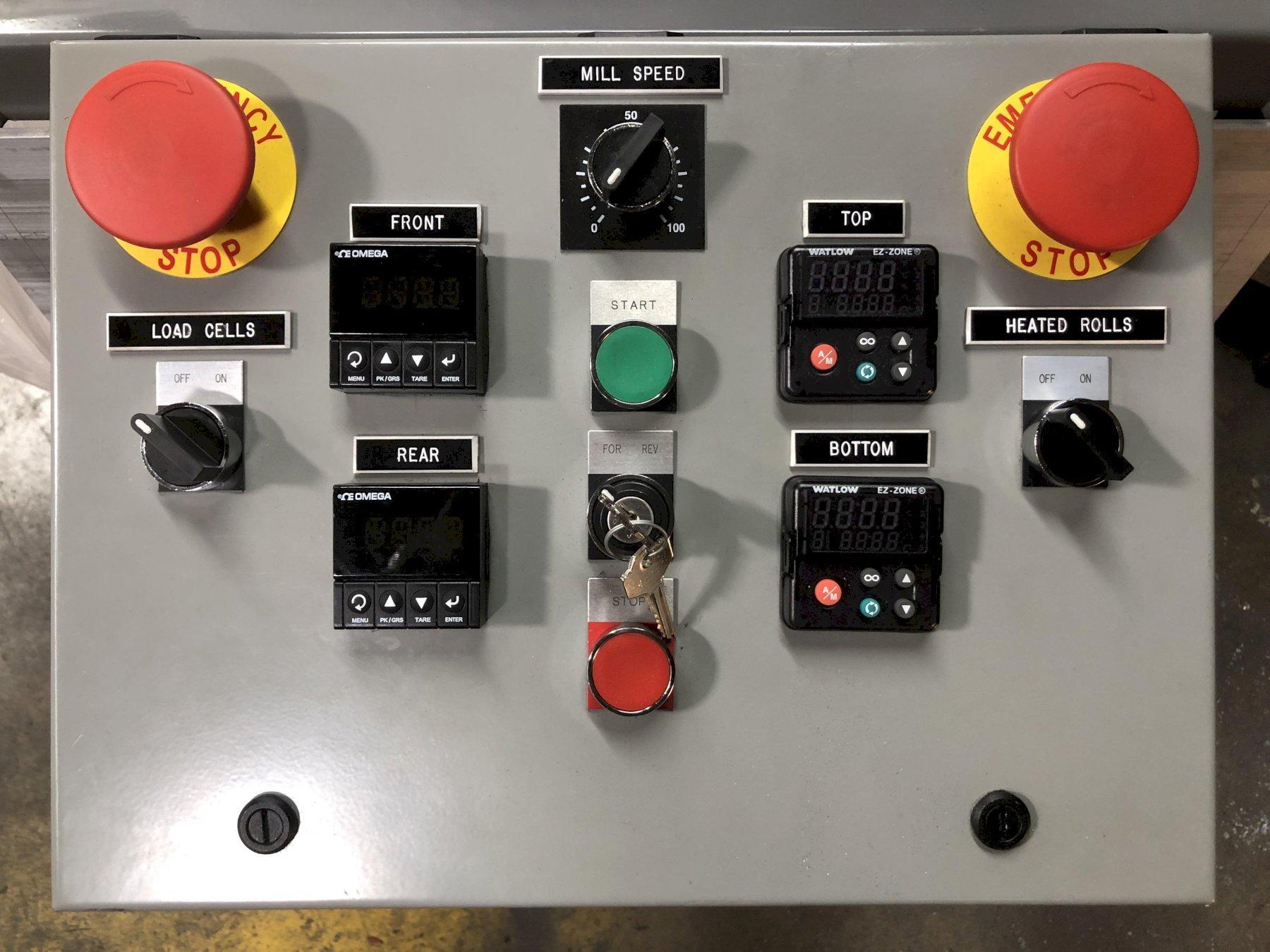

MILL OPERATOR CONTROLS - WILL BE CENTRALLY LOCATED
MILL FUNCTIONS - START, STOP, FORWARD, REVERSE, E-STOPS, AND SPEED POT
MILL TABLES - WILL BE INSTALLED ON THE ENTRY AND EXIT OF THE MILL
MILL GUARDING - ALL MOVING PARTS WILL BE GUARDED
MILL DIMENSIONS - APPROXIMATELY 66" L X 24" W X 60" H
MILL WEIGHT - APPROXIMATELY 1,000 LBS


HEATED ROLL PACKAGE:
MAX ROLL TEMPERATURE 450°F. EACH ROLL WILL BE BORED TO ACCEPT CARTRIDGE HEATERS. EACH ROLL WILL BE CONTROLLED BY A DIGITAL HEAT CONTROLLER LOCATED IN CENTRAL OPERATING STATION WITH J TYPE THERMOCOUPLES INSTALLED.
LOAD CELL PACKAGE:
20,000 LBS LOAD CELLS WILL BE INSTALLED INTO EACH HEAD. TWO DIGITAL READOUT METERS WILL BE LOCATED IN A CENTRAL OPERATING STATION.
