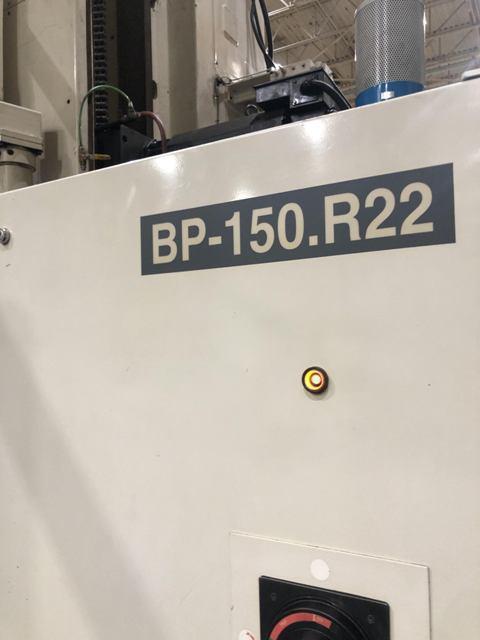

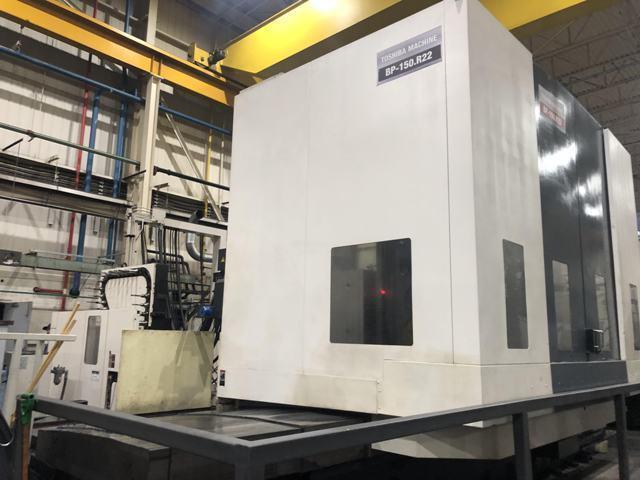

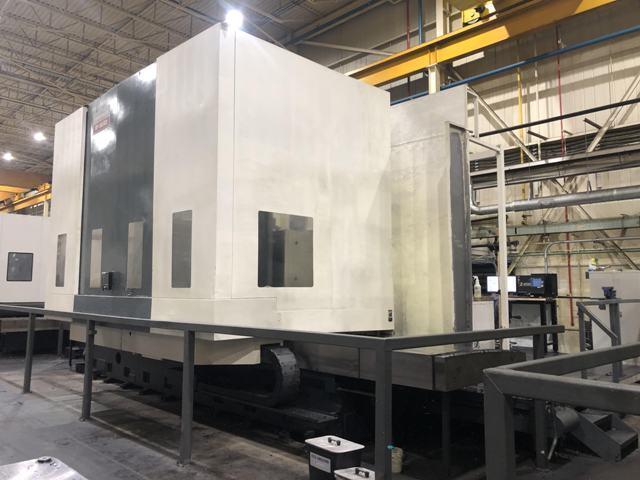

2014 Toshiba BP-150.R22 Horizontal Boring Mill (#4875)

Stock

None

Model

None listed

Dealer Location

Florida

Spec Sheet

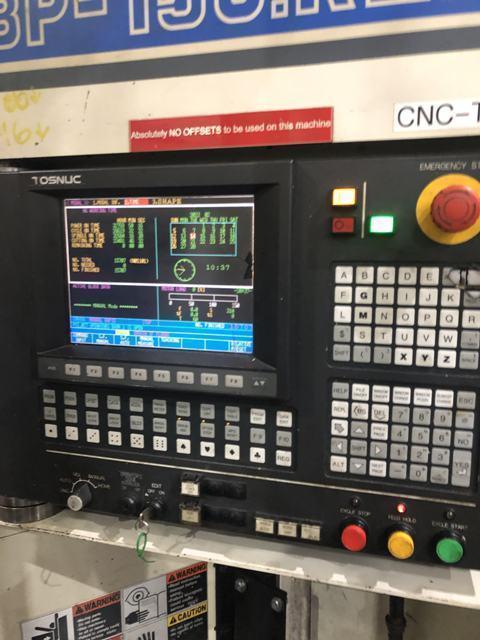

160” X 100” X 60” Horizontal Boring Mill with Tosnuc 999 CNC Control, 1200 Meters Part Program Storage, B - Axis Table (360,000 Positions), Chip / Air Blower, Chip Conveyor, Coolant Through Spindle and Full Factory Enclosure.

GENERAL SPECIFICATIONS
Rotary Table Size:                    70.8” X 86.6”

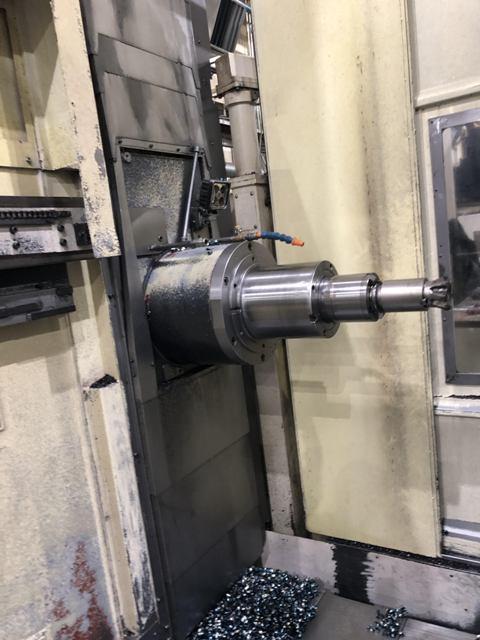

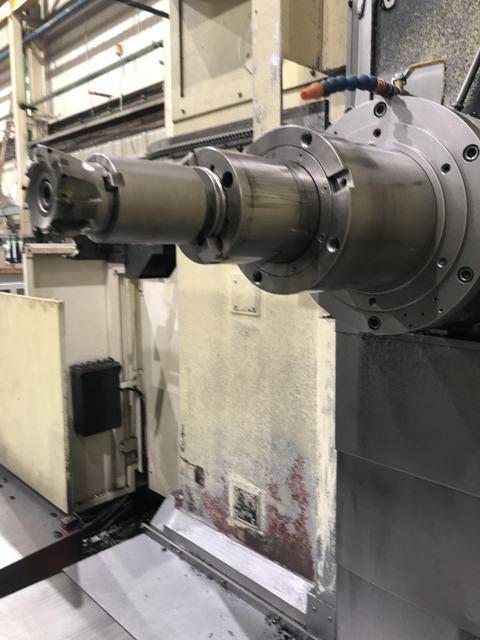

Spindle Diamter:                    5.9”
Spindle Taper:                    #50
X - Axis Travel:                    160”
Y - Axis Travel:                    100”
Z - Axis Travel:                    60”
W - Axis Travel:                    28”
B - Axis Travel Contouring:                .001 (360,000)
Cutting Feed Rate:                    .04 - 235 IPM
Rapid Feed Rate:                    393 IPM

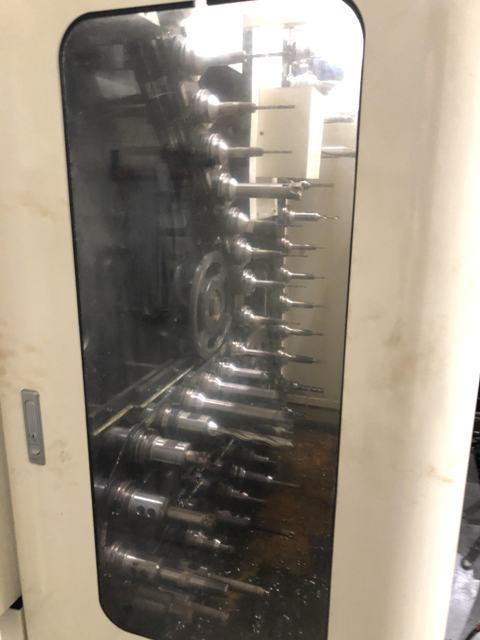

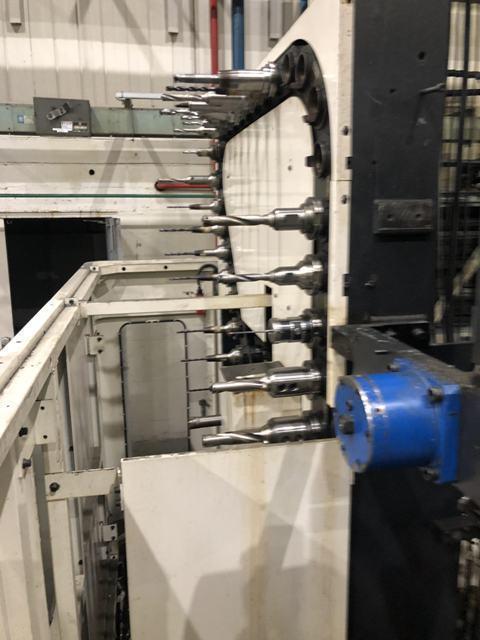

Tool Changer Capacity:                60 ATC
Max Tool Diameter:                    4.9” / 9.4”
Max Tool Length:                    15.75”
Max Tool Weight:                    55 LBS
Machine Weight:                    96,800

INCLUDES: Tosnuc 999 CNC Control, 1200 Meters Part Program Storage, B - Axis Table (360,000 Positions), Chip / Air Blower, Chip Conveyor, Coolant Through Spindle and Full Factory Enclosure.


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
