5.12" Kuraki KBT 13EA, 60 ATC, X-157", Y-90.5", Z-51". B-Axis Rotary Table, 4,000 RPM, Fanuc 16i-MB, 2003, #32598

Manufacturer

KURAKI

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

32598

Model

KBT-13EA

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32598
Kuraki KBT 13EA 5.12" CNC Table Type Horizontal Boring Mill

FEATURES:

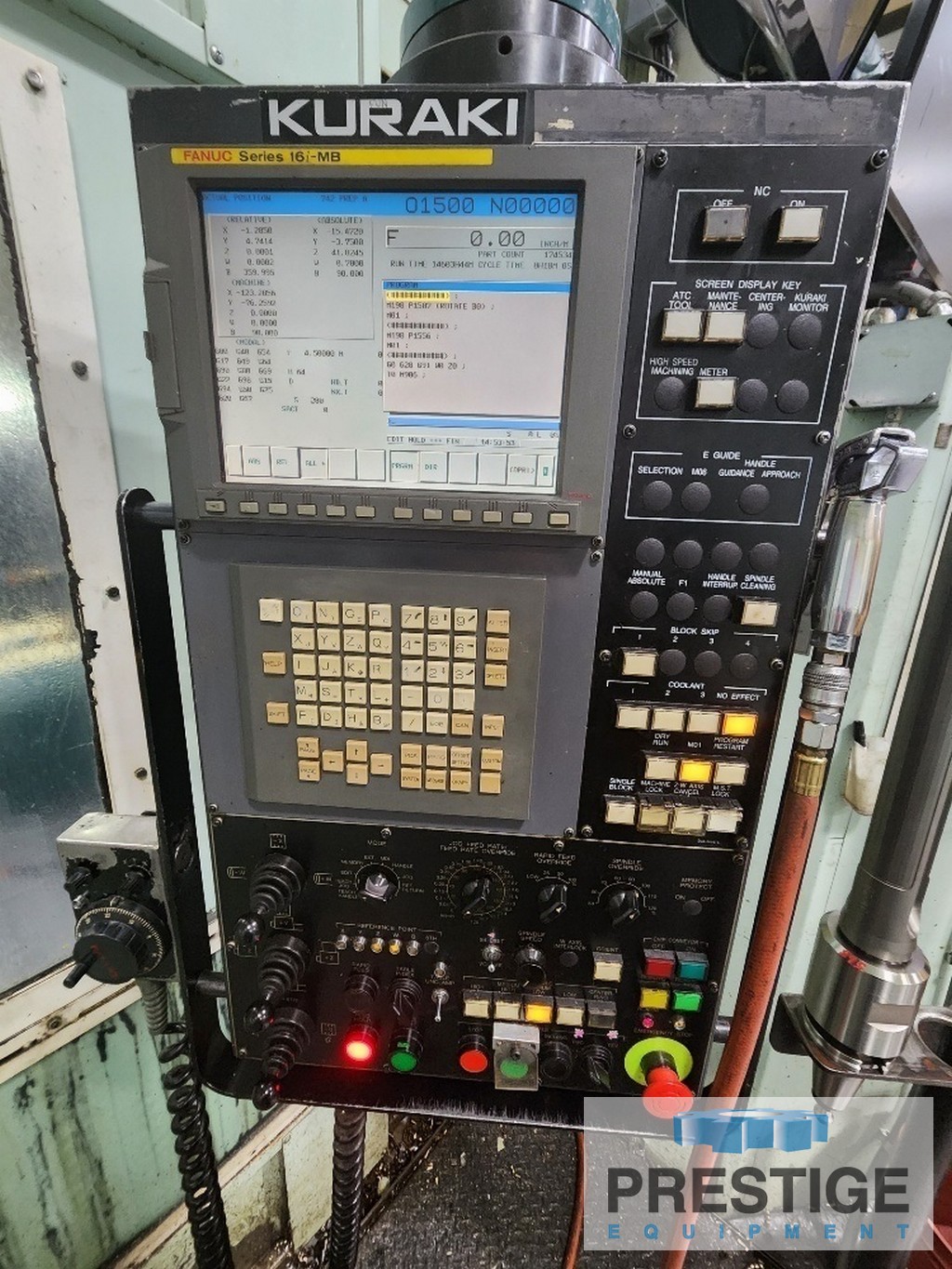

Fanuc 16i-MB CNC Control

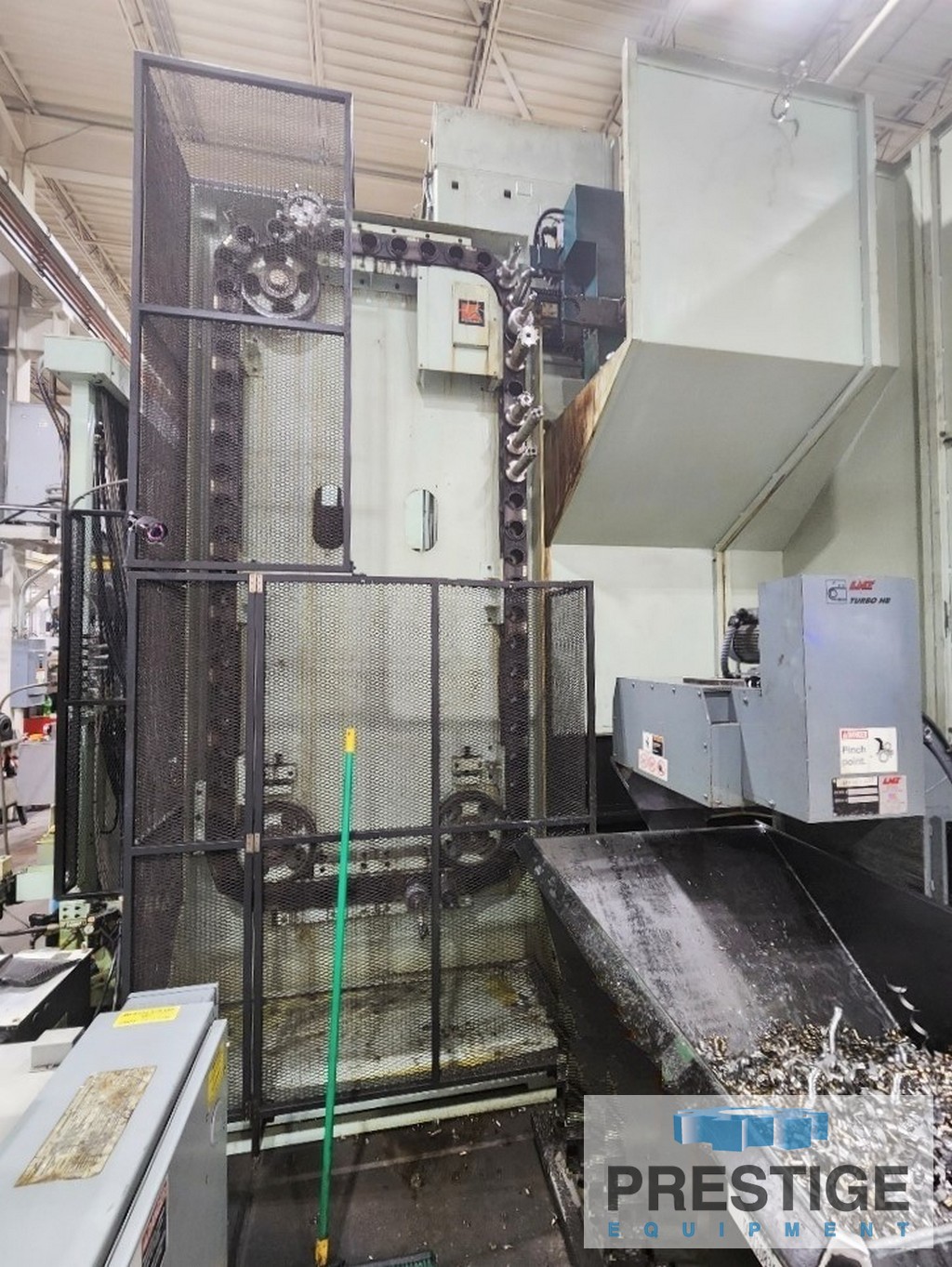

60-Station Automatic Tool Changer

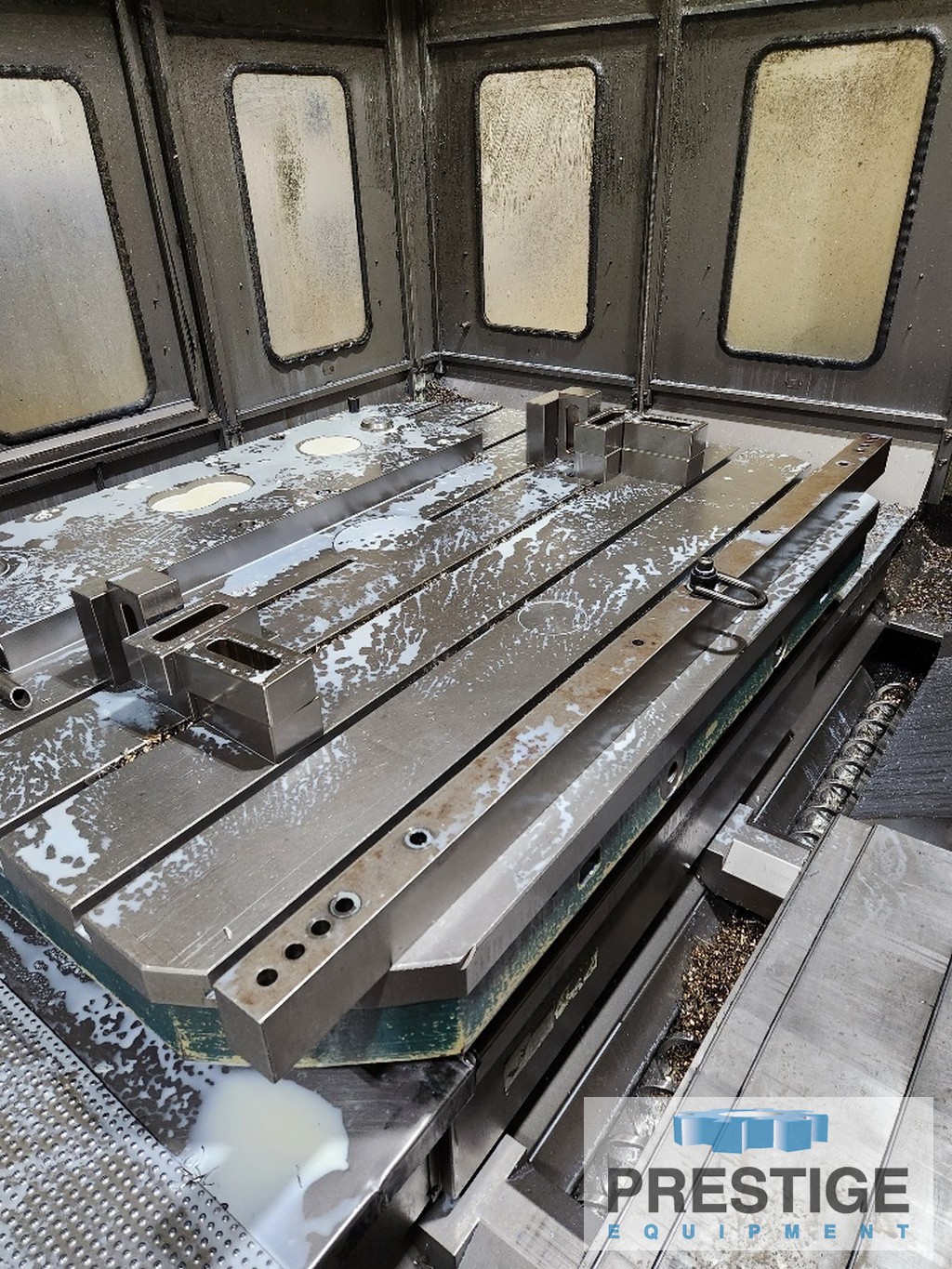

70.87" x 86.61" Built In B-Axis Rotary Table
Chip Blaster coolant through the spindle

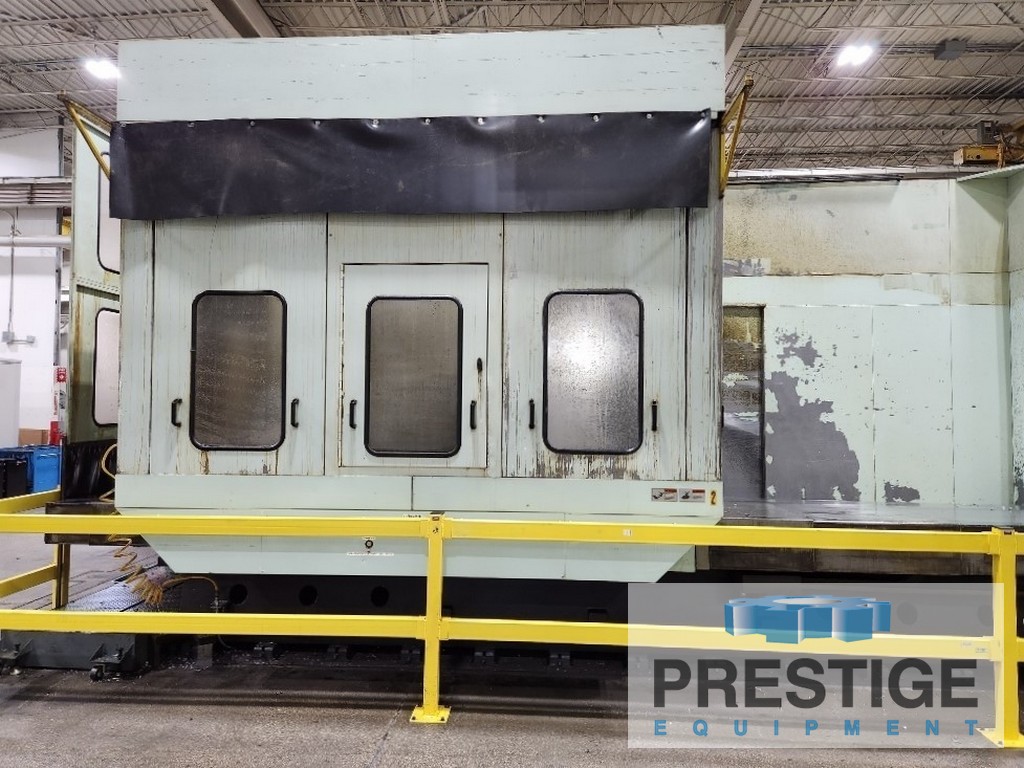

Full Chip & Splash Enclosure
Telescoping Steel Way Covers
Chip Conveyor

CAPACITY:

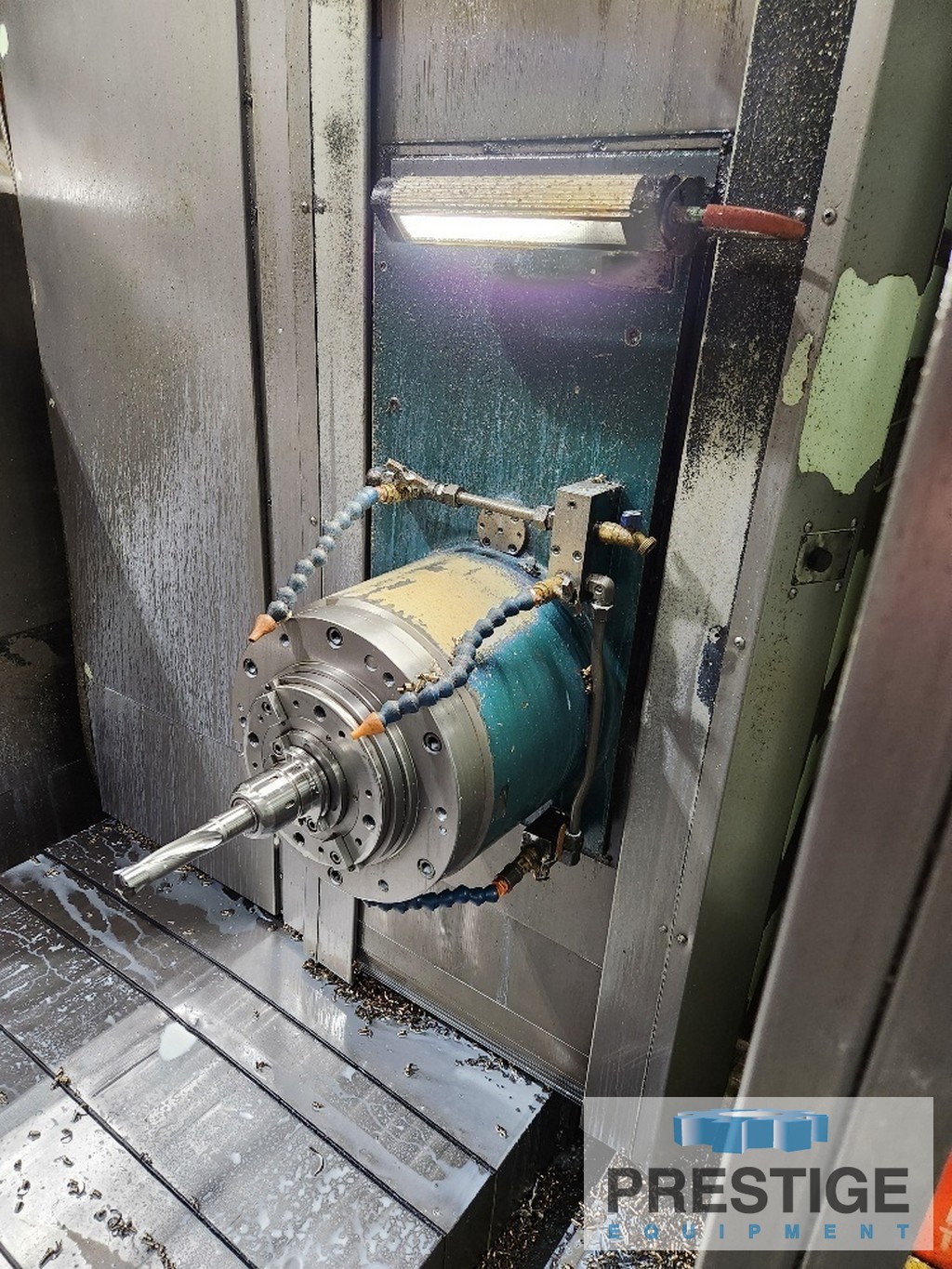

Spindle Diameter ...................... 5.12"
Spindle Taper ......................... BT-50
Vertical Head Travel, Y-Axis .......... 90.55"
Table Travel, X-Axis .................. 157.48"
Spindle Travel, W-Axis ................ 25.59"
Column Cross Travel, Z-Axis ........... 51.18"
Table Size ............................ 70.87" x 86.61"
Table Load Capacity ................... 44,000 LBS
Rotary Table, B-Axis .................. 0.001 Degrees
Spindle Speeds ........................ 5-4000 RPM
Speed Motor ........................... 60 HP
Feeds ................................. .04 - 157.48 IPM
Rapid Traverse, X,Y,Z, Axes ........... 393.70 IPM
Rapid Traverse, W-Axis ................ 236.22 IPM
Floor Space ........................... 268.9" x 267.72"
Machine Height ........................ 188.9"
Machine Weight ........................ 81,400 lbs

EQUIPPED WITH:
Fanuc 16i-MB CNC Control
60-Station Automatic Tool Changer
70.87" x 86.61" Built In B-Axis Rotary Table
Chip Blaster coolant through the spindle
Full Chip & Splash Enclosure
Telescoping Steel Way Covers
Chip Conveyor
Inspect under power in Midwest plant.
