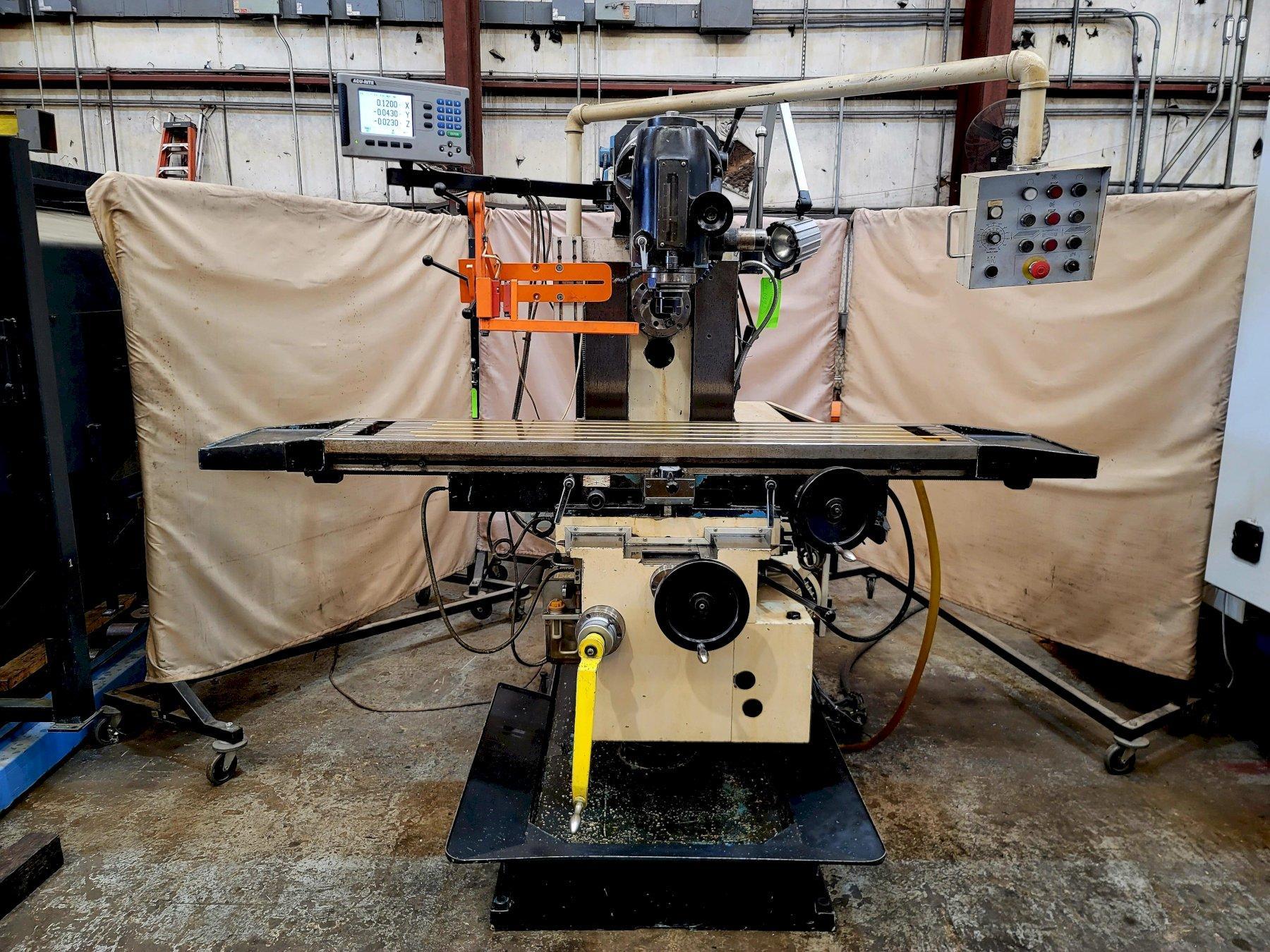

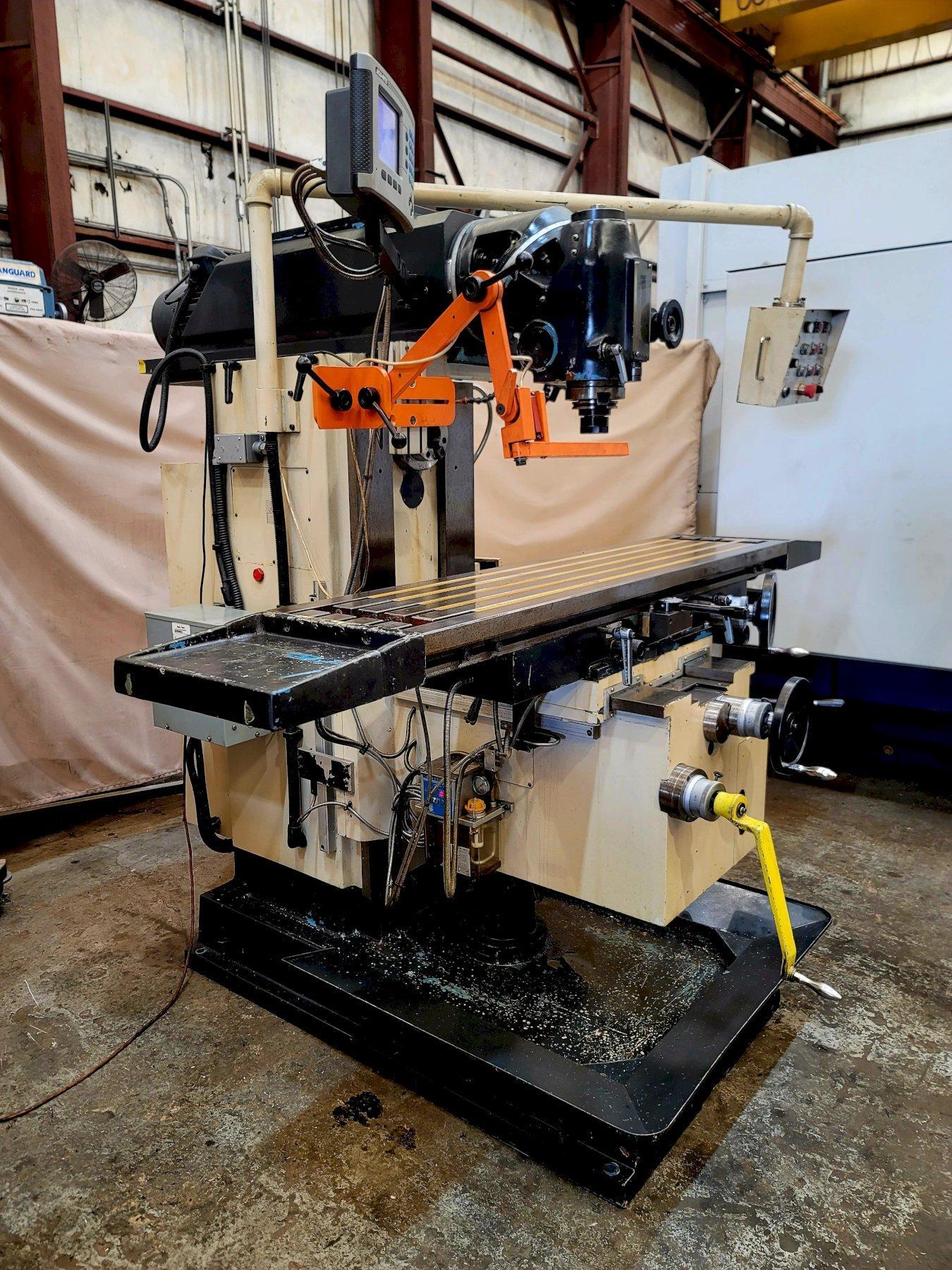

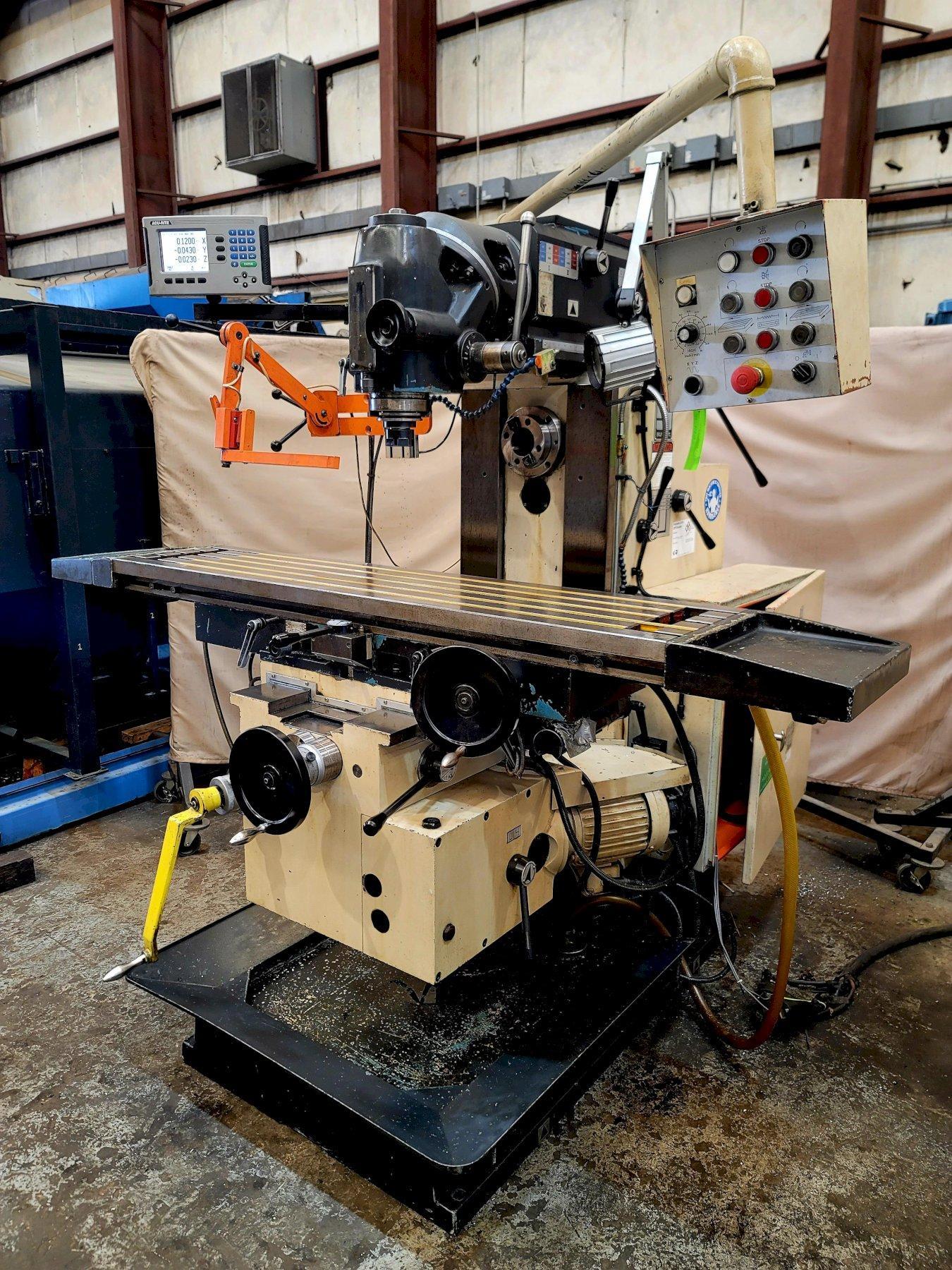

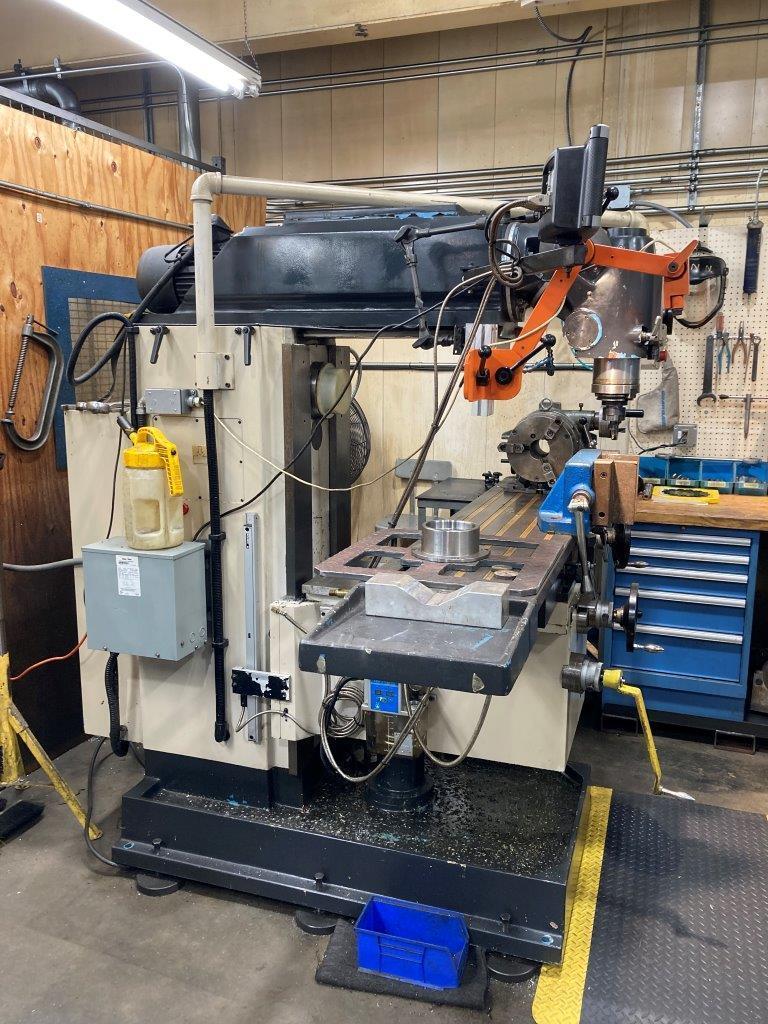

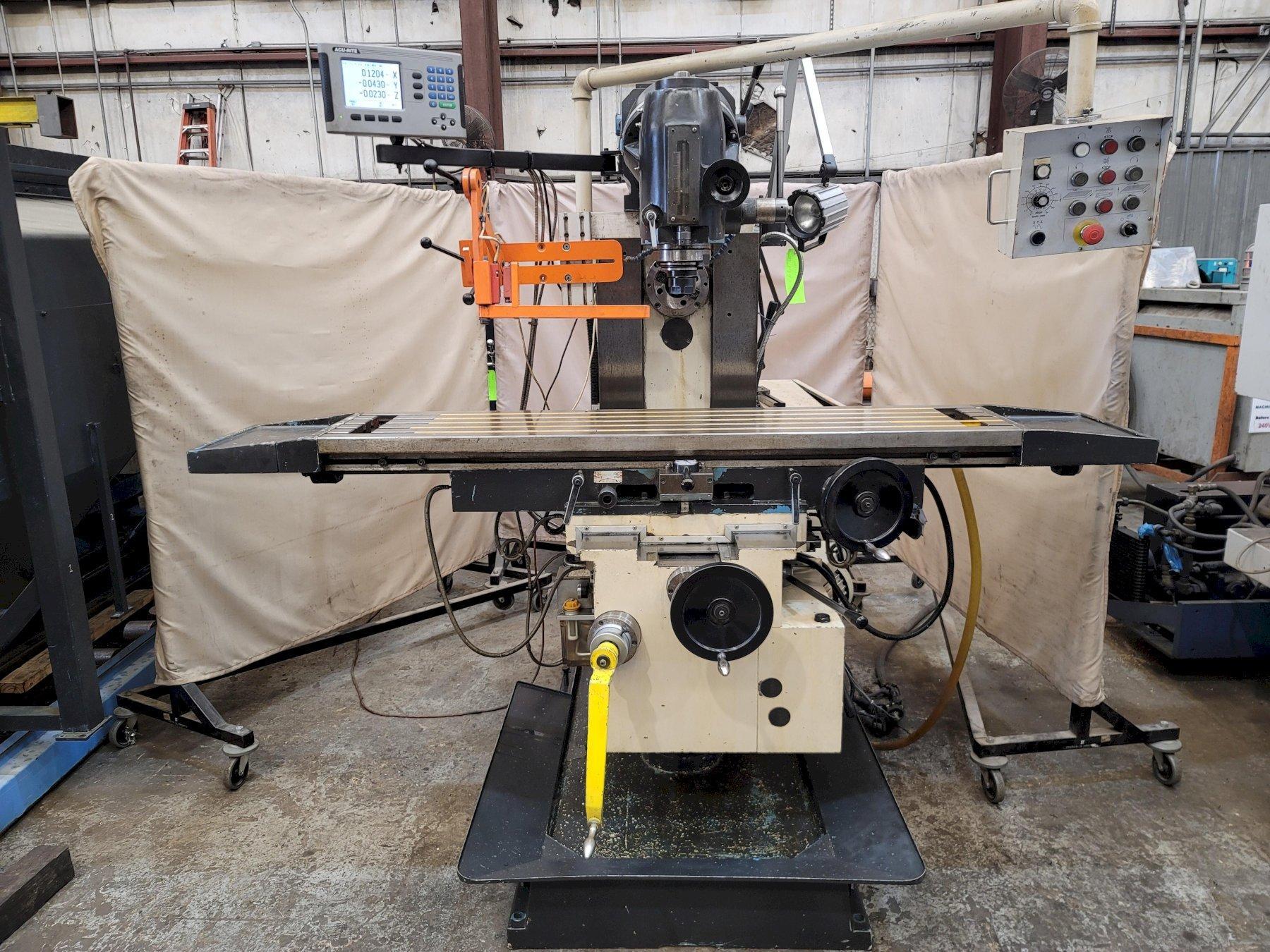

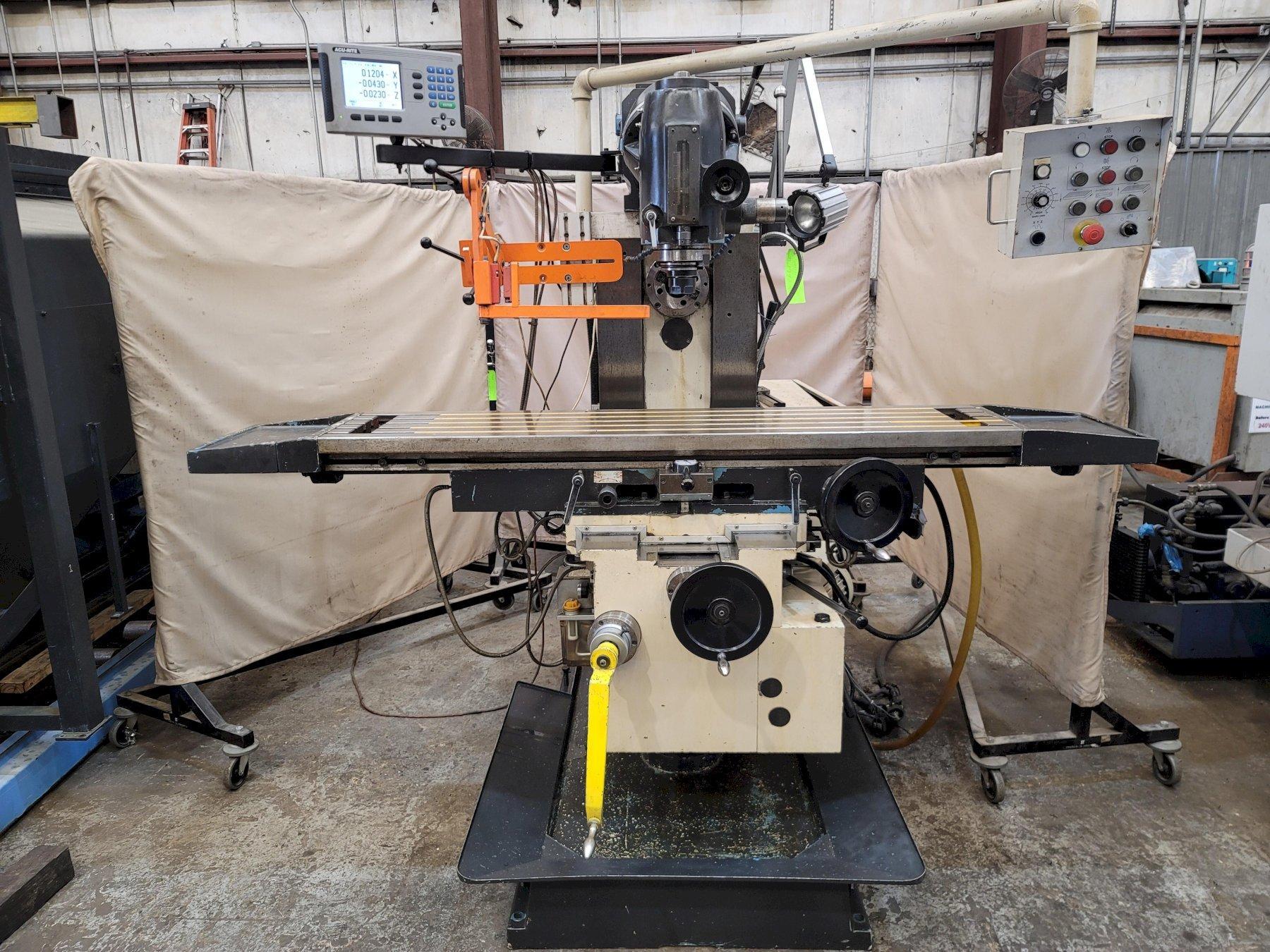

Used, Summit Universal Milling Machine

Manufacturer

SUMMIT

Category

Milling Machines

Type

MILLERS, UNIVERSAL

Stock

19923

Model

3UH-POA-Q

Dealer Location

Texas

Request a Quote
View Contact Information

Spec Sheet

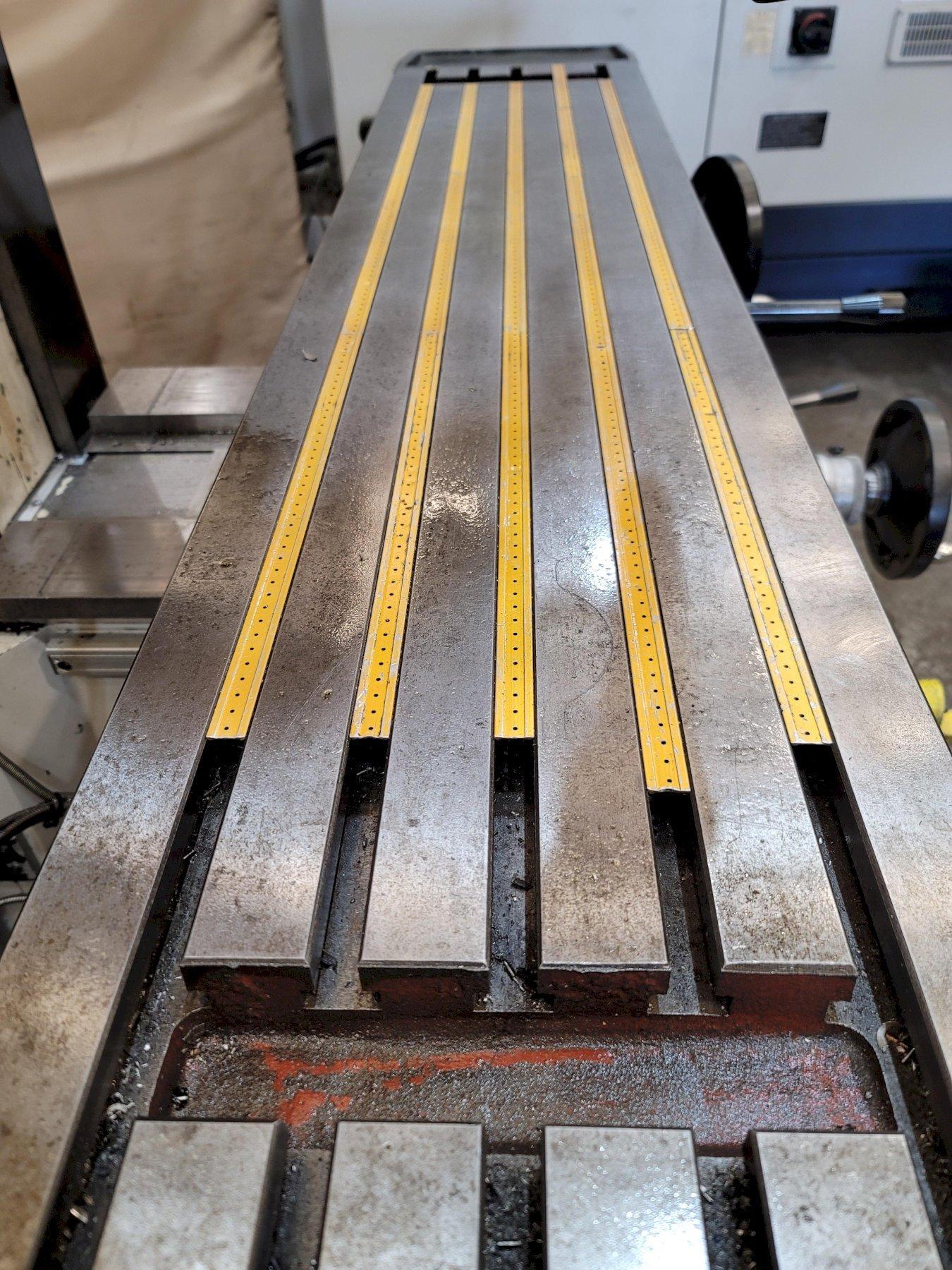

Table Size: 13.7" x 59"
Table Swivel: +/- 45 °
Table Longitudinal Travel: 46"
Table Cross Travel: 15.75"

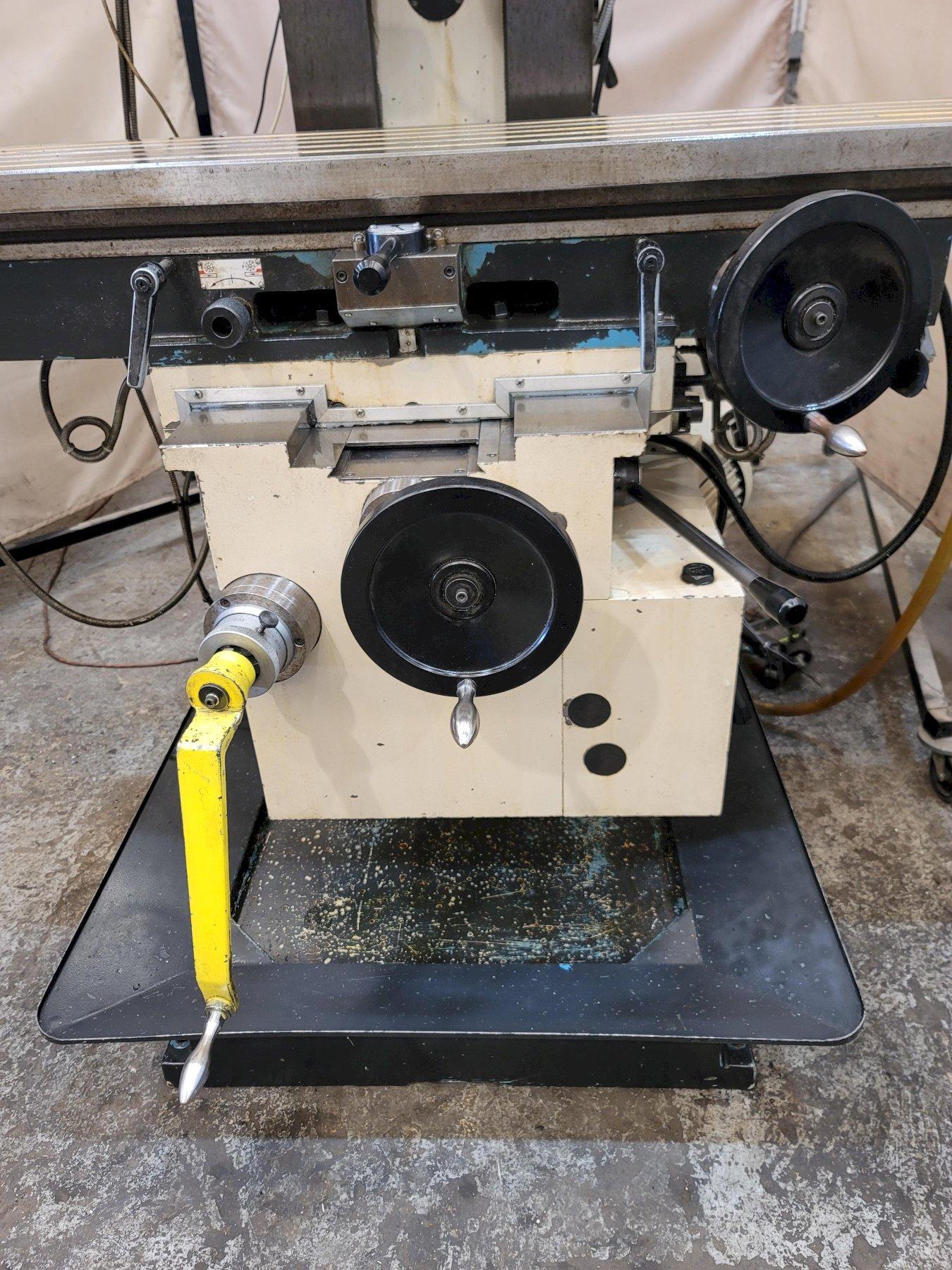

Knee Vertical Travel: 20"
Ram Travel:
Column to Table Center: 7" - 22.75"

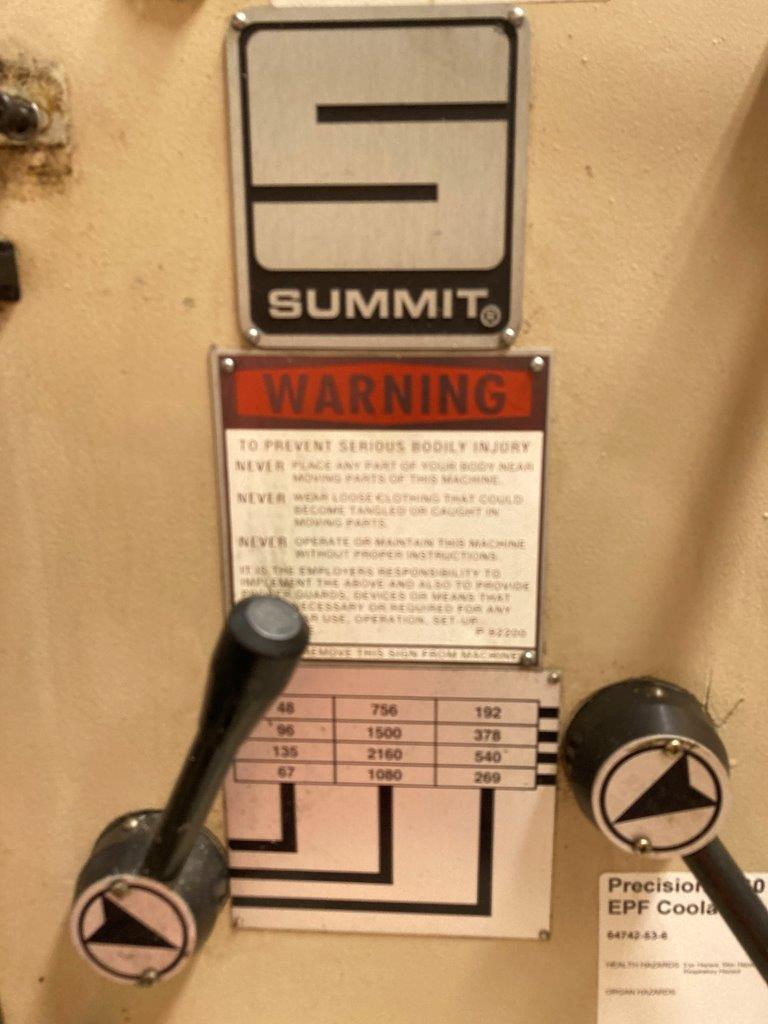

Horizontal Spindle Speeds: (12) 48 -2160 RPM

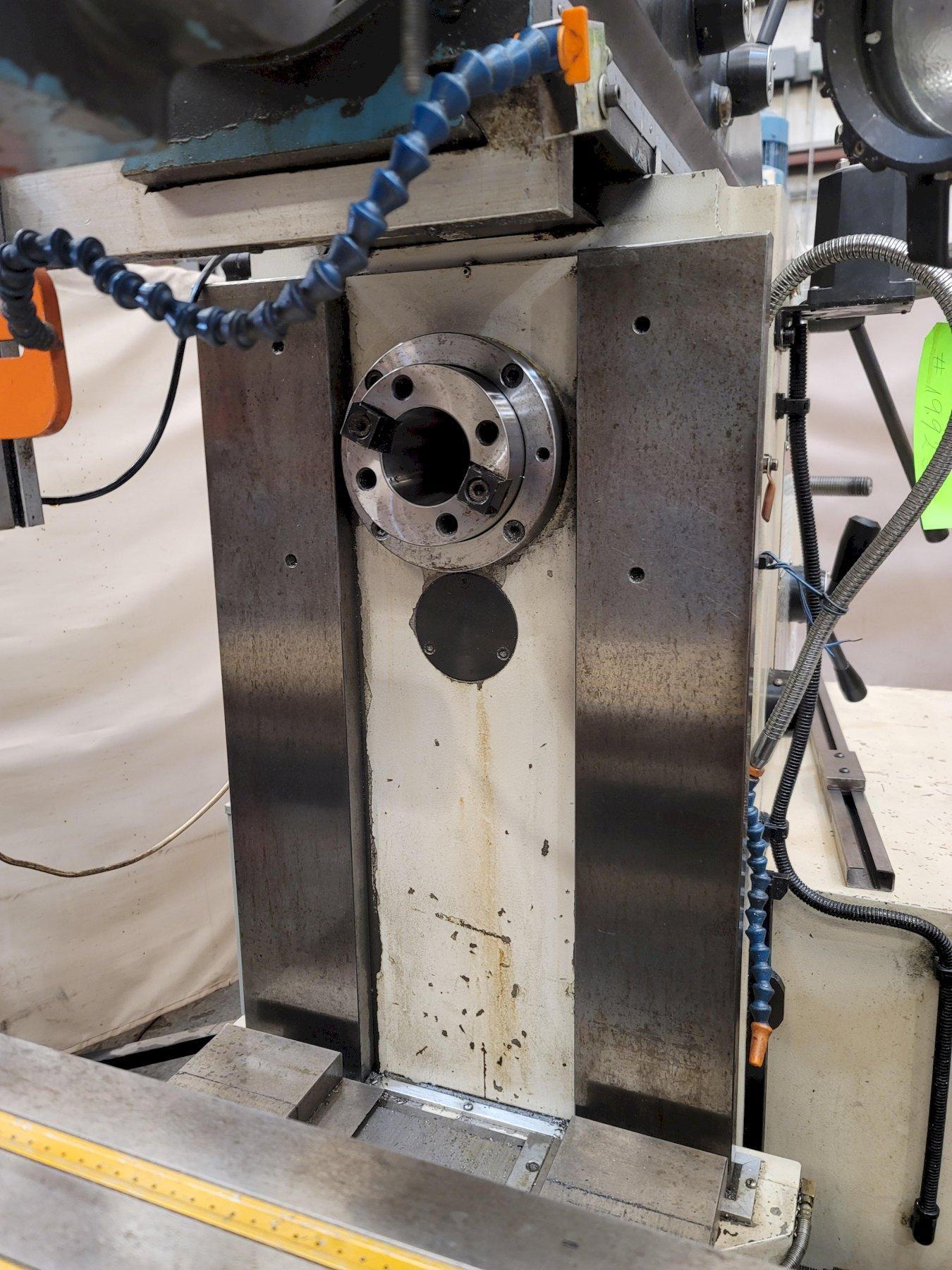

Horizontal Spindle Taper: #50
Vertical Spindle Speeds: (12) 45 - 1960 RPM
Vertical Spindle Taper: #50
Longitudinal Feeds: 0.4 - 47 IPM (Inf. Var.)
Cross Feeds: 0.4 - 47 IPM (Inf. Var.)
Vertical Feeds: 0.2 - 23 IPM (Inf. Var.)
Rapid Traverse: 47 IPM
Main Motor: 10 HP
Over Arm Motor: 5.5 HP
Feed Motor: 3 HP
Coolant Pump Motor: 0.1 HP

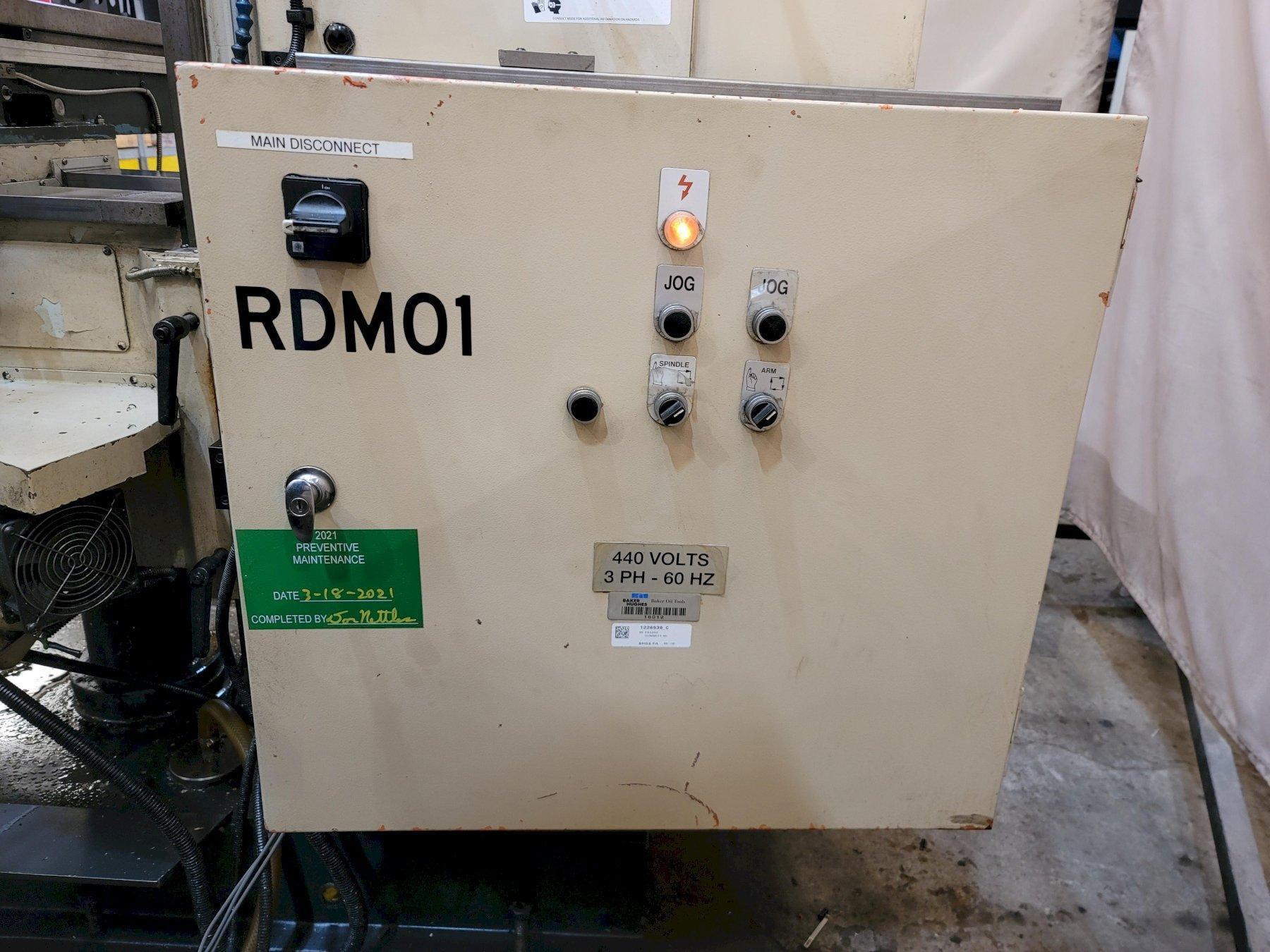

Electrics: 440V/3Ph/60Hz
Weight (Approximate): 7040 Lbs.
Equipped with:

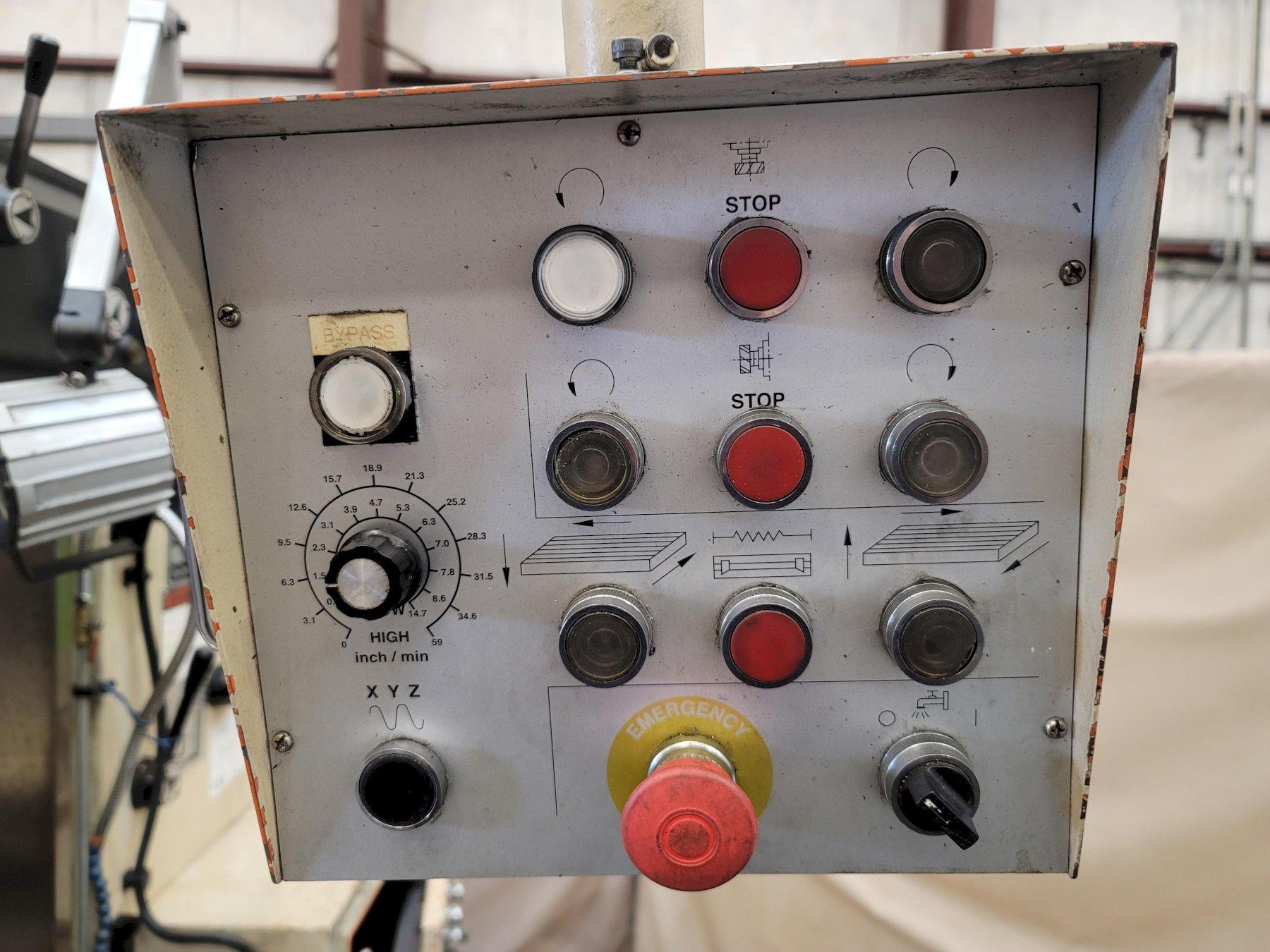

Pendant Control

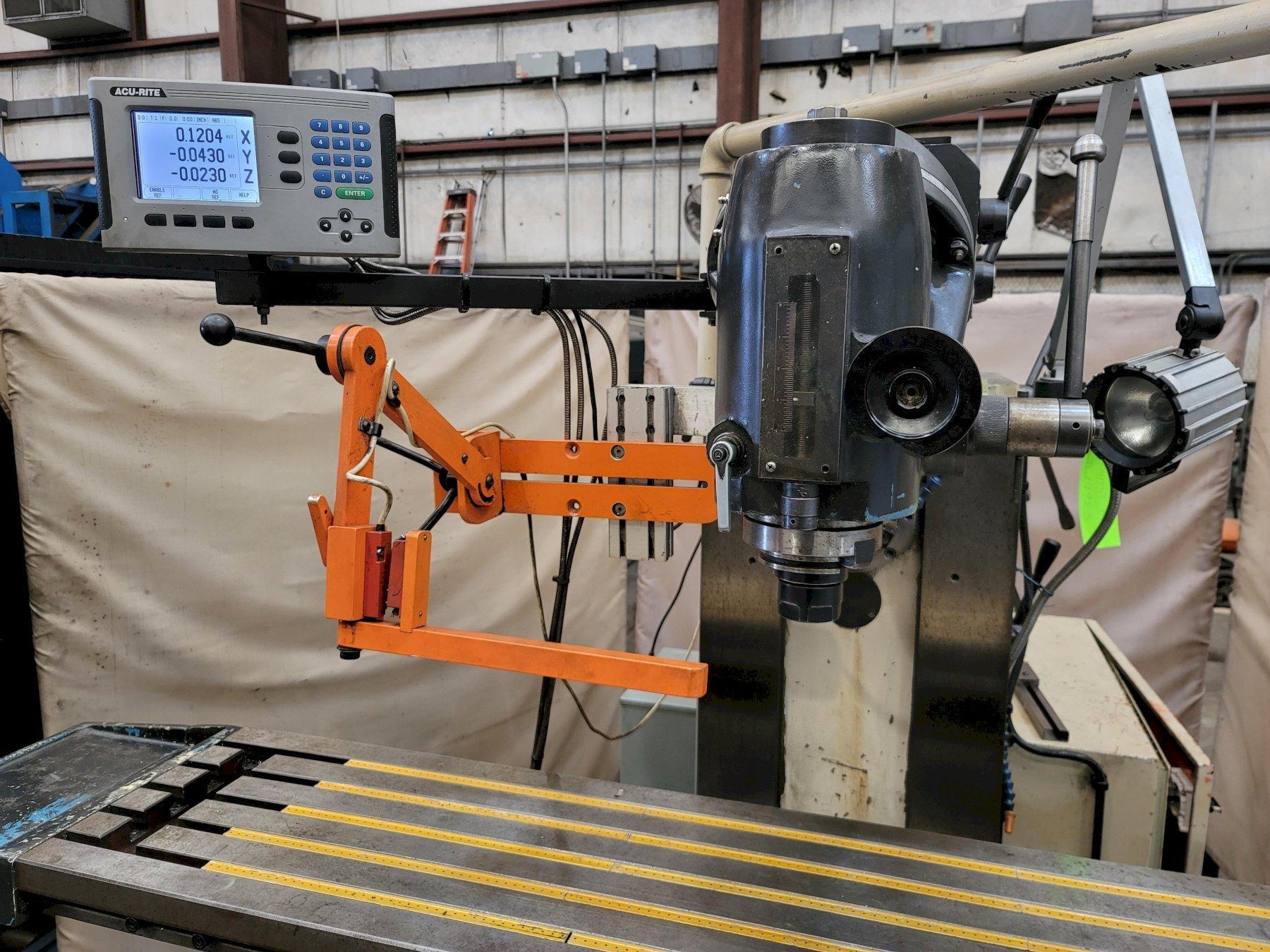

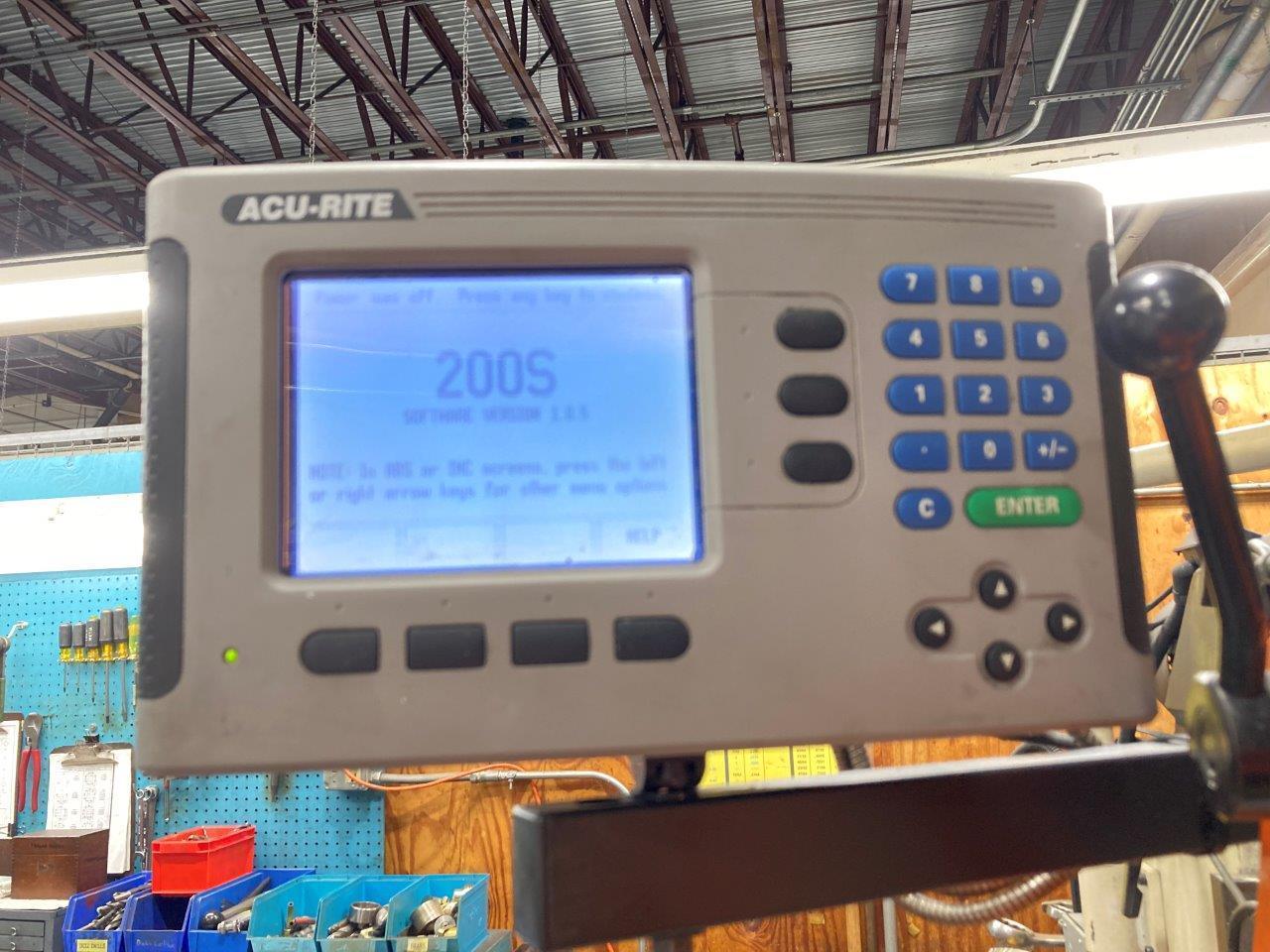

Acu-Rite 3-Axis DRO
Compound Vertical Head Swivel
Dividing Head
Machine Vise
Work Light

Note: All Specifications Subject to Verification
