1999 CBM LY 1275 Roll Forming System (#4939)

Manufacturer

Category

Roll Formers

Type

ROLL FORMERS

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

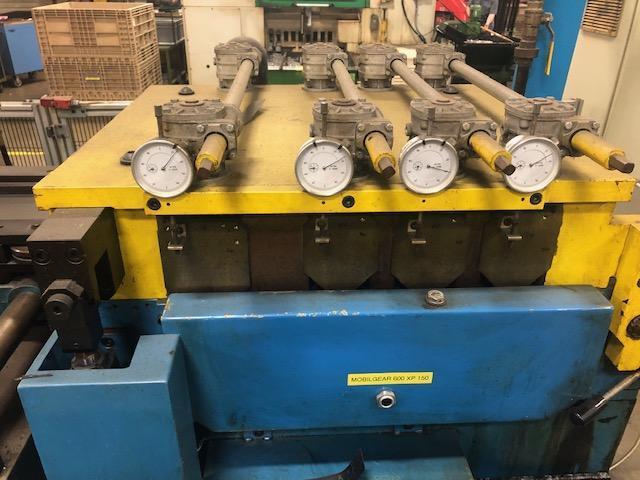

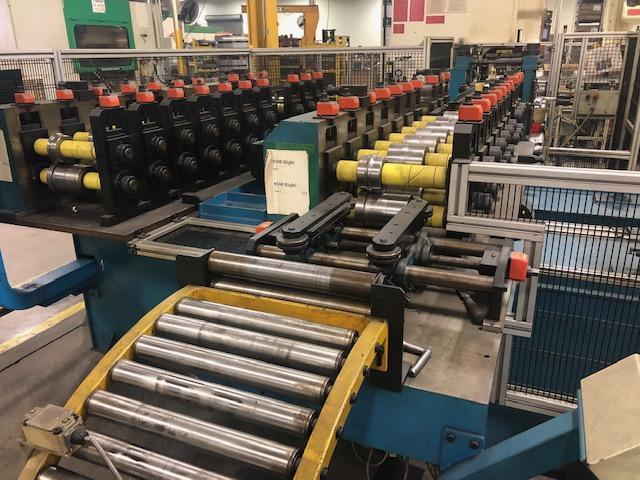

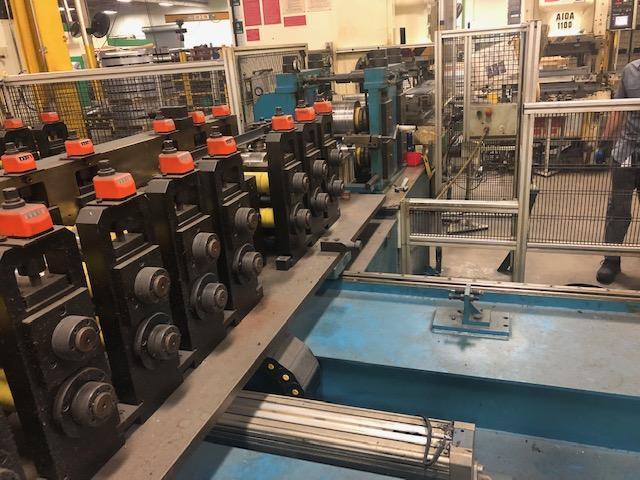

400mm X 3mm Roll Forming System with Dual System Decoiler, Straightener, Welder, Alternating Rolls and Framing.


GENERAL SPECIFICATIONS
Sheet Width:                        400mm
Max Sheet Thickness:                3mm
Min Sheet Thickness:                 0.6mm
Feed Speed:                        (1” Material) 15m
Number of Takeaway Wheels:            2
Roll Diameter:                    75mm
Installed Capacity:                    2.2kW
Number of Forming Passes:            10
Center Distances Between Passages:        200mm
Max Speed:                        20mm/min

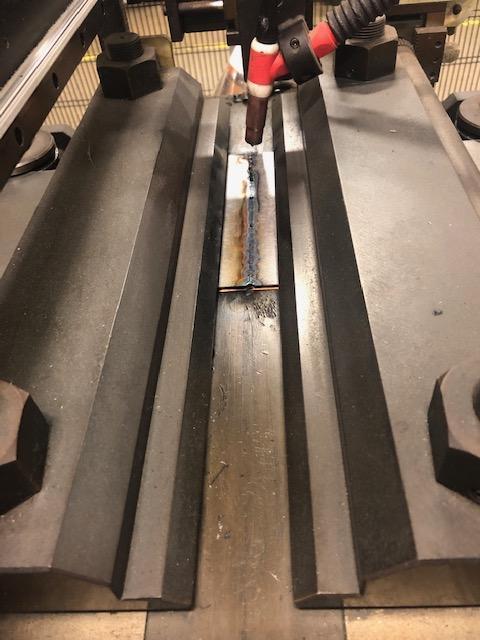

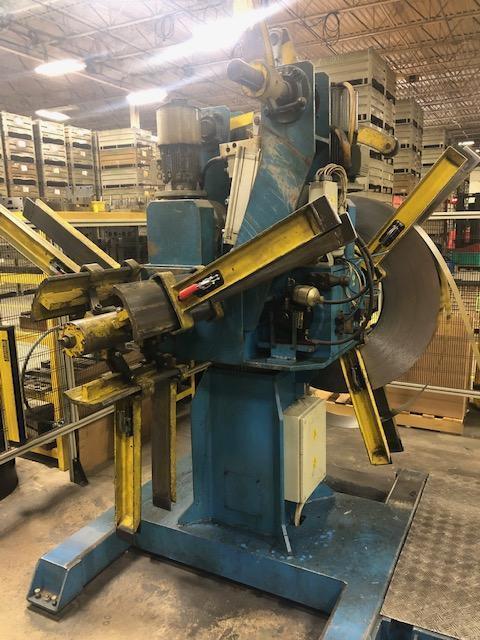

INCLUDES: Duel System Decoiler, Straightener, Welder, Alternating Rolls and Framing.


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
