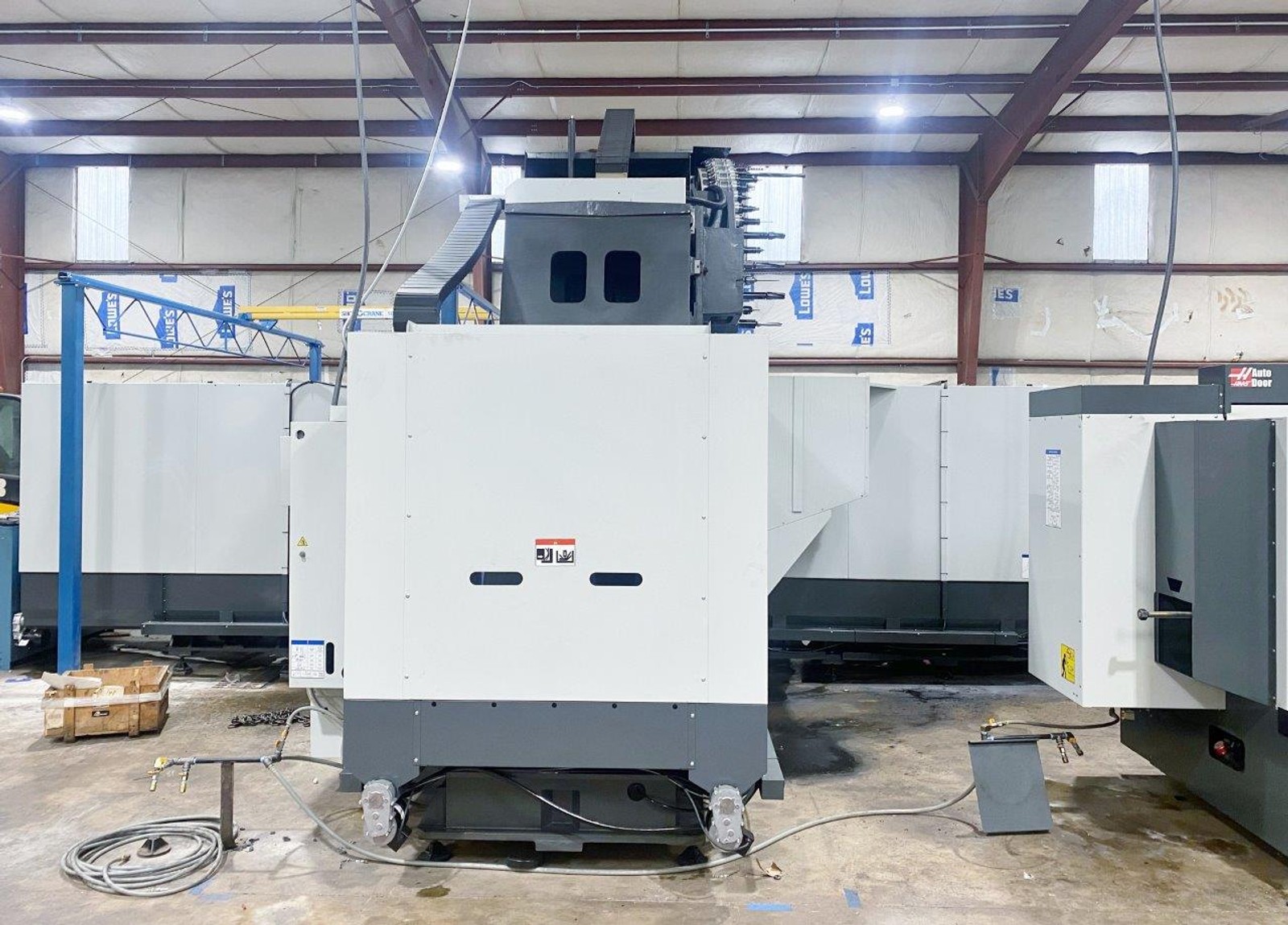

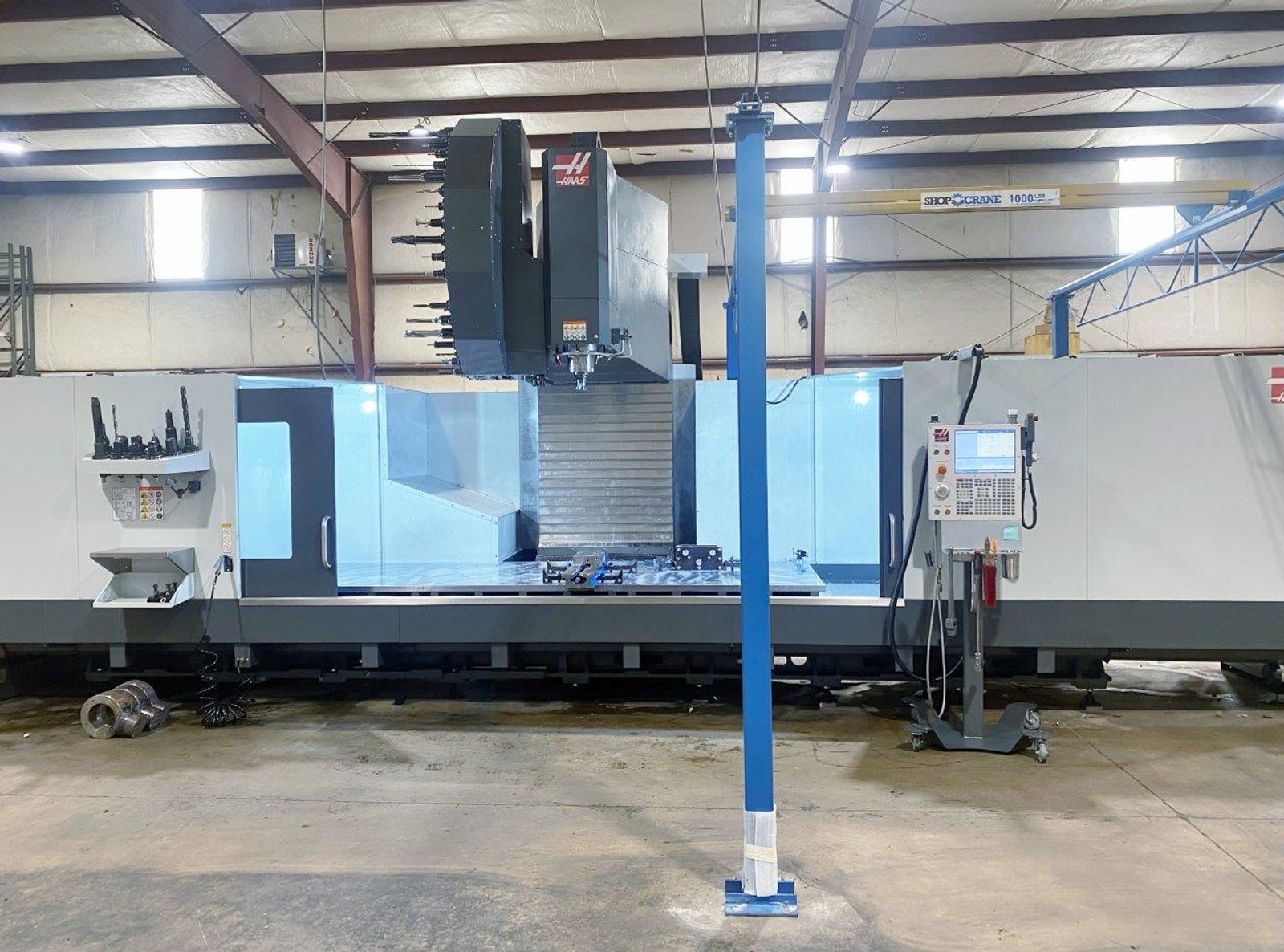

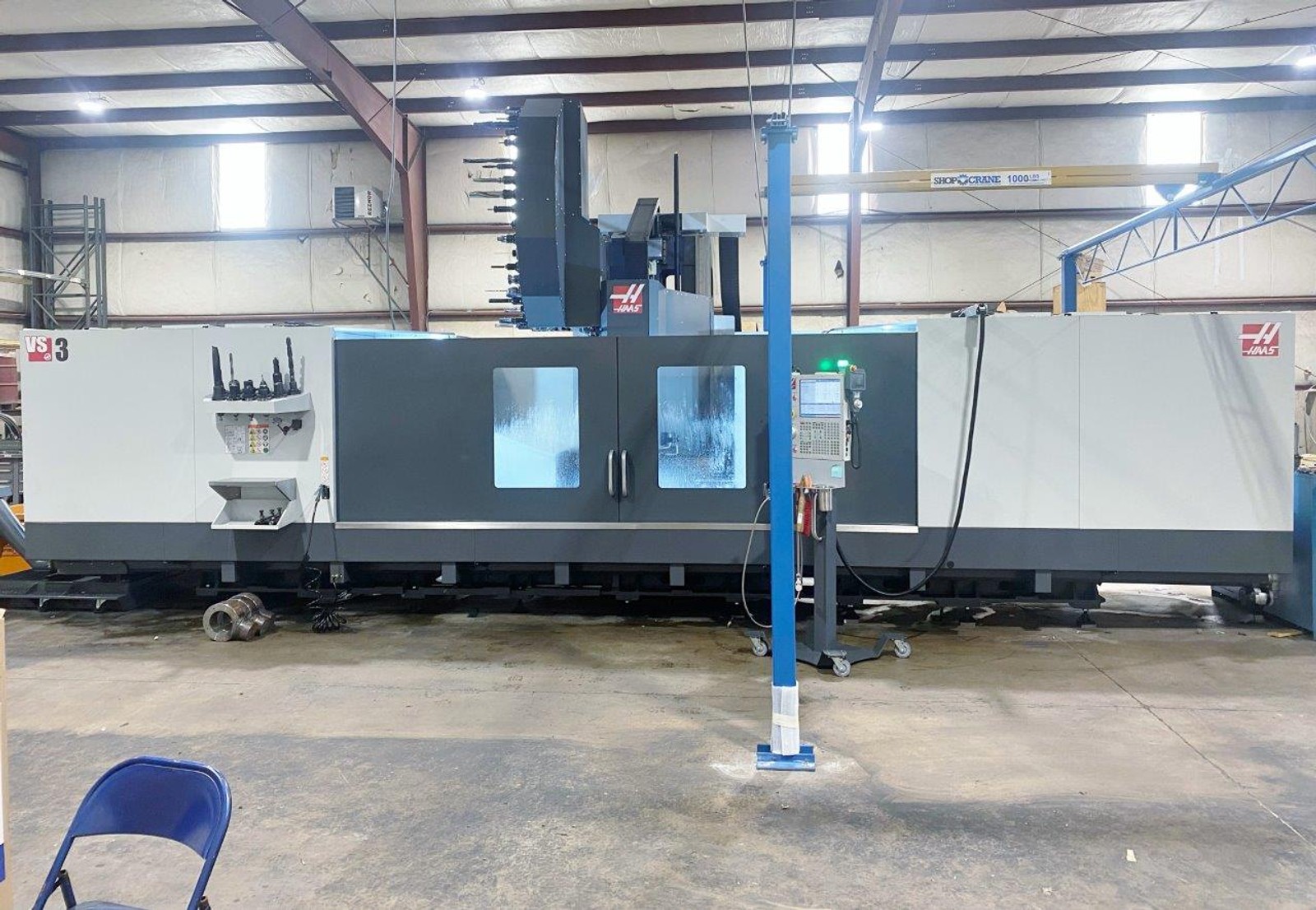

2022 HAAS VS-3

Manufacturer

HAAS

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

498035

Model

VS-3

Dealer Location

Maryland

Request a Quote
View Contact Information

Spec Sheet

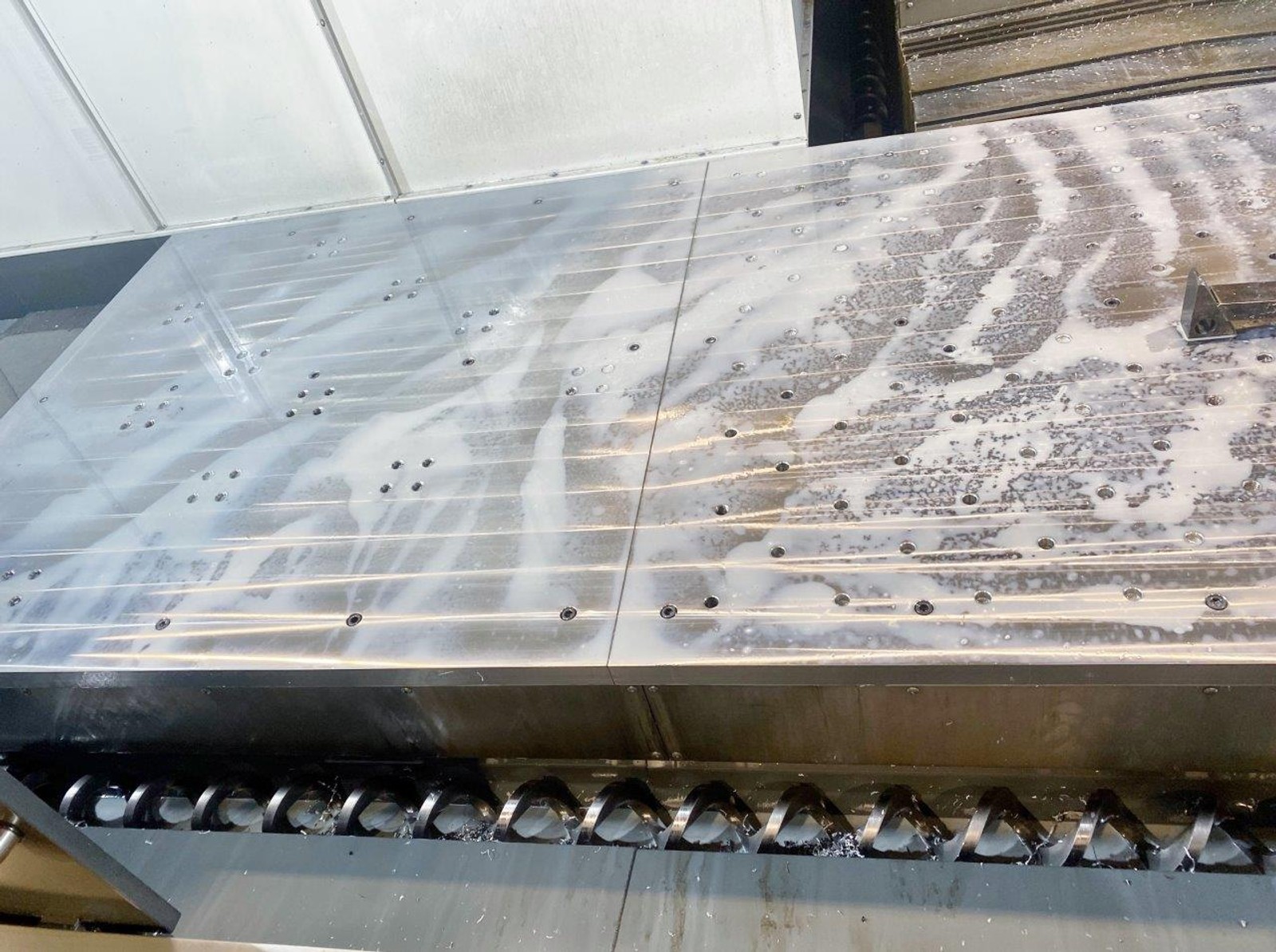

TABLE DIMENSIONS......... 153" X 49"
TABLE CAPACITY........... 10,000 LBS
X-AXIS TRAVEL............ 150"
Y-AXIS TRAVEL............ 50"
Z-AXIS TRAVEL............ 50"
SPINDLE SPEED............ 7,500 RPM
SPINDLE MOTOR............ 60 HP
SPINDLE TAPER............ CAT 50
TOOL CAPACITY............ 50 ATC

EQUIPPED WITH:

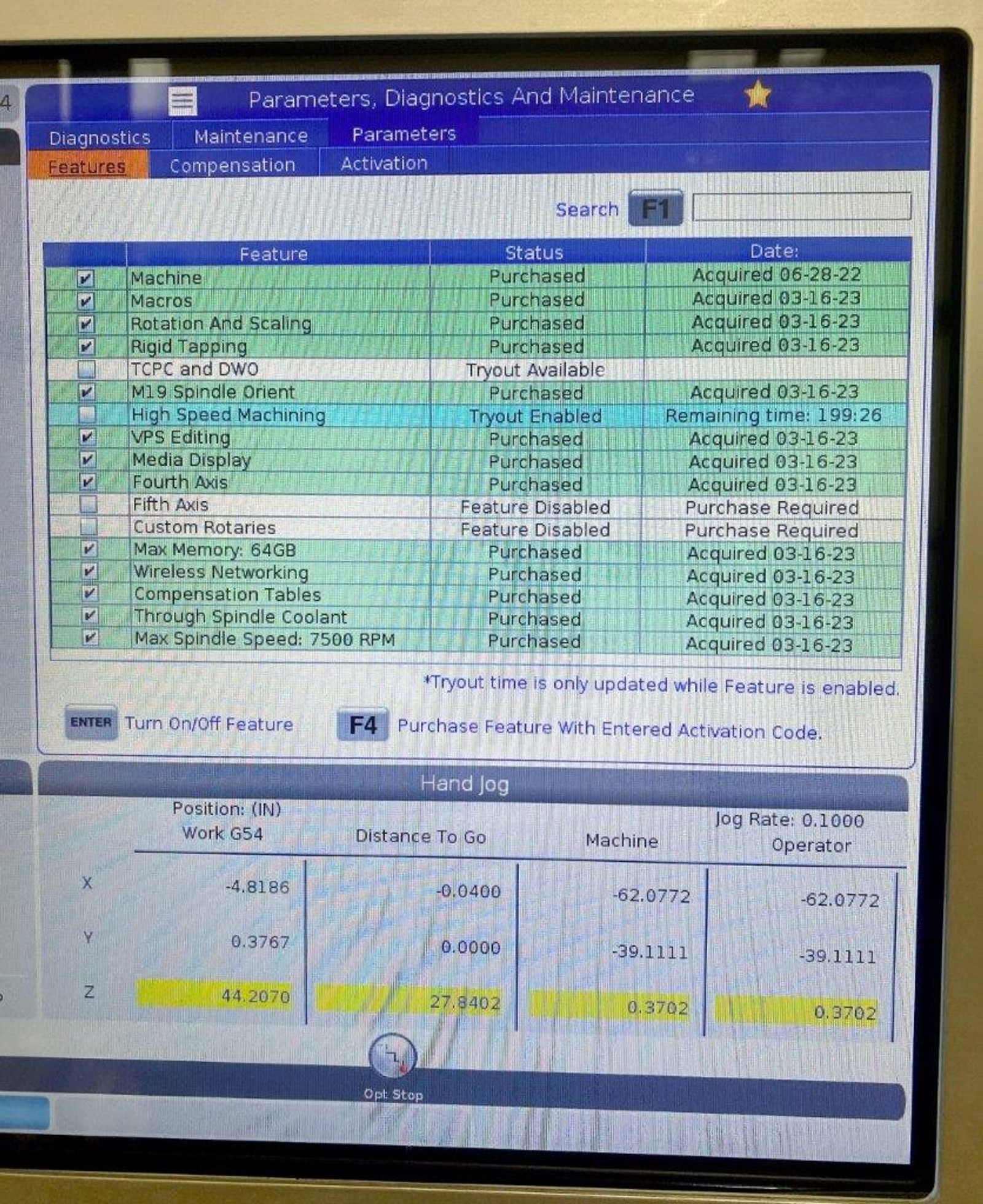

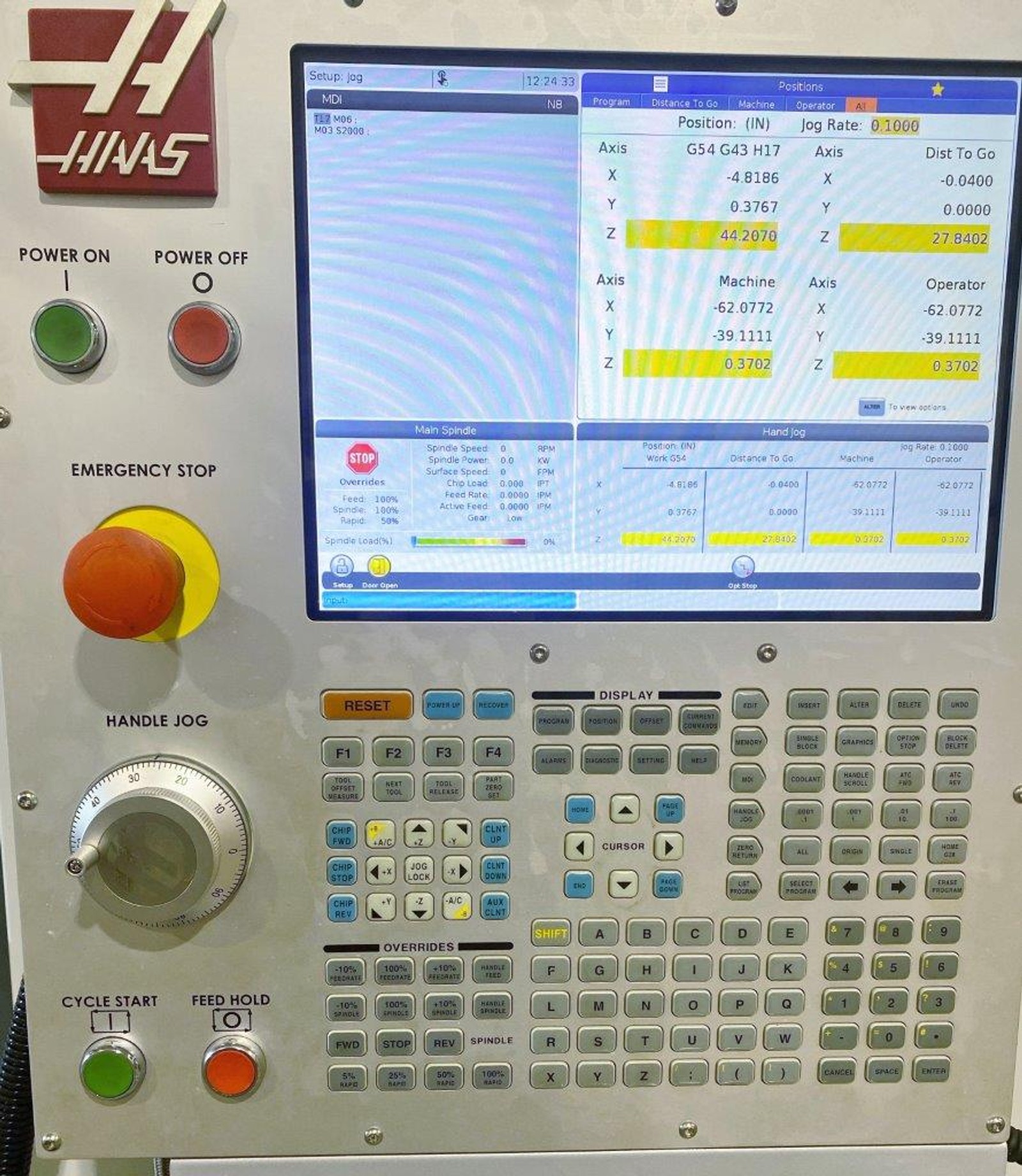

HAAS NEXTGEN CONTROL (TOUCH SCREEN)
HIGH-PRESSURE THROUGH-SPINDLE COOLANT (1,000 PSI)
RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
HIGH-PERFORMANCE SPINDLE (7,500 RPM/60 HP)

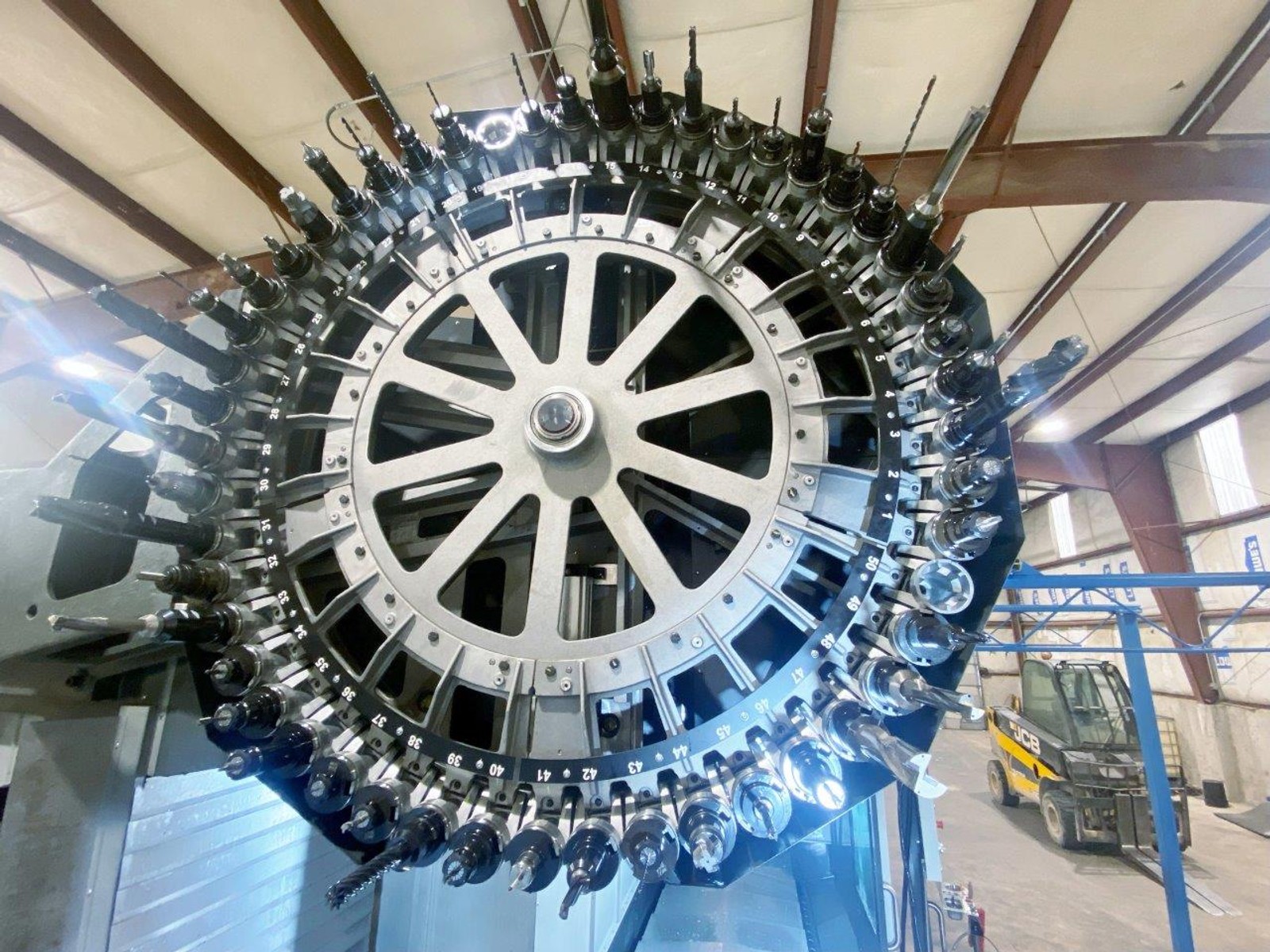

SIDE-MOUNT TOOL CHANGER (50 ATC)
4TH AXIS DRIVE & WIRING
2-SPEED GEARBOX

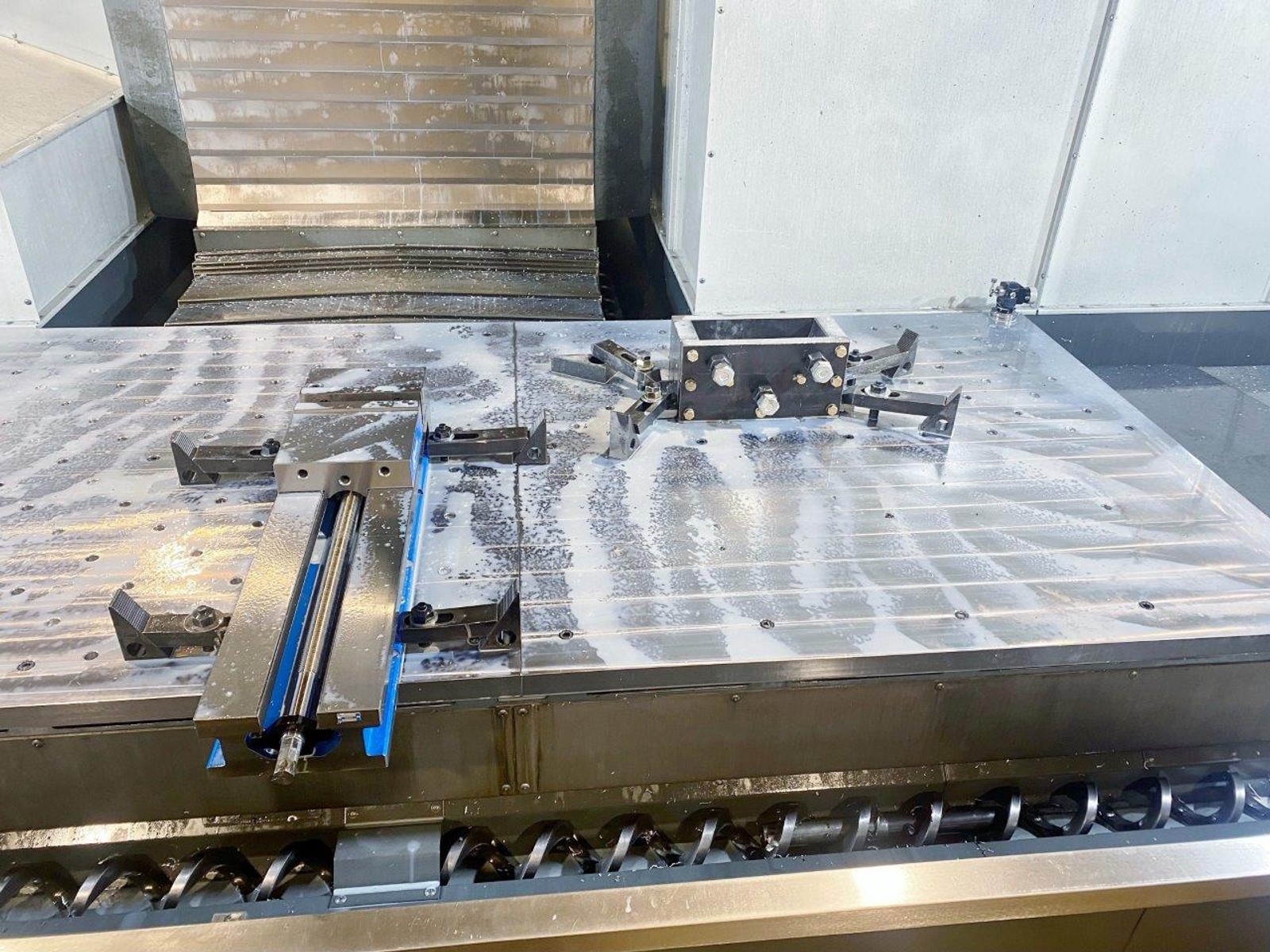

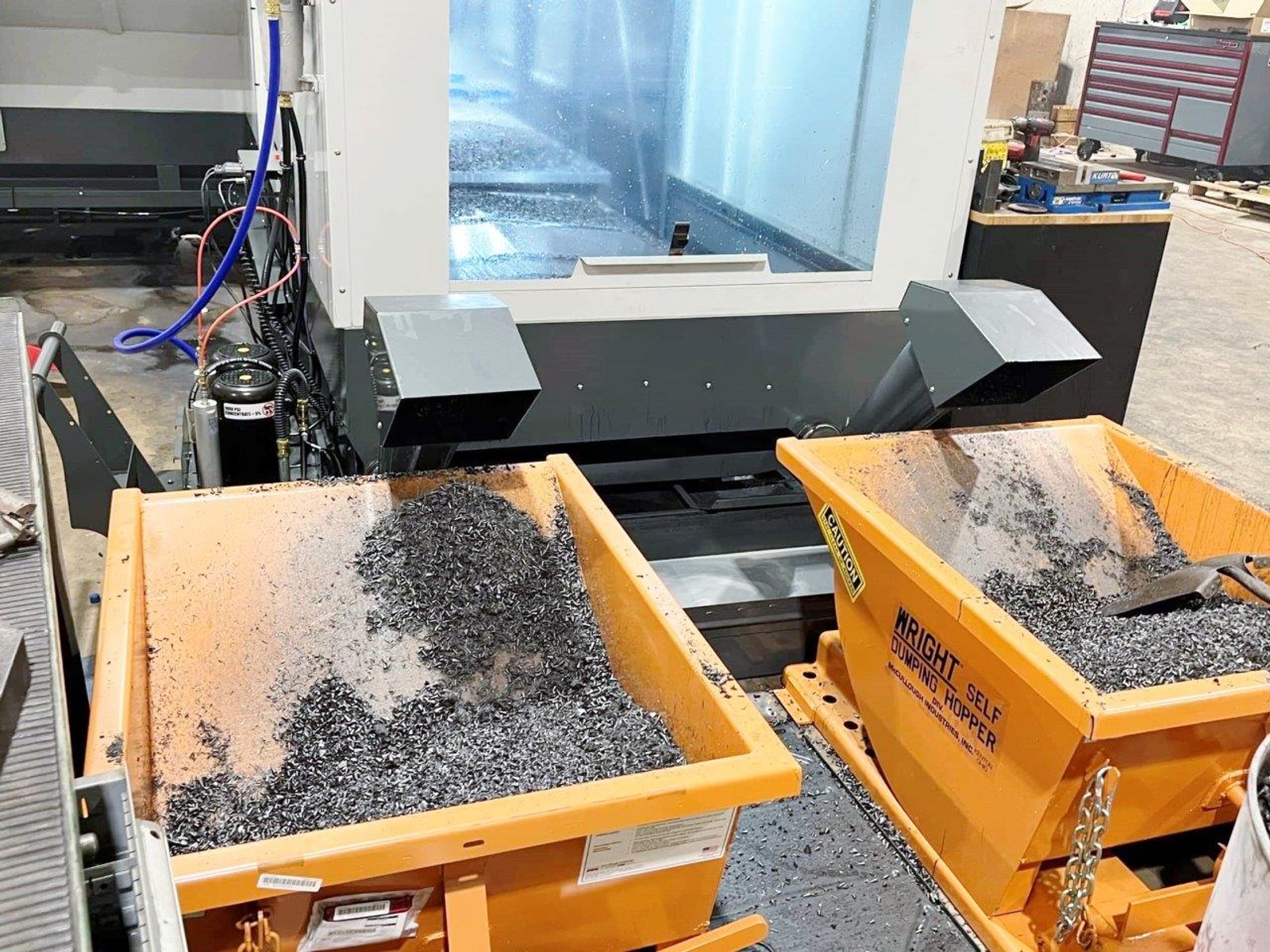

CHIP AUGER
REMOTE JOG HANDLE (TOUCH SCREEN)
HIGH-PRESSURE FLOOD COOLANT

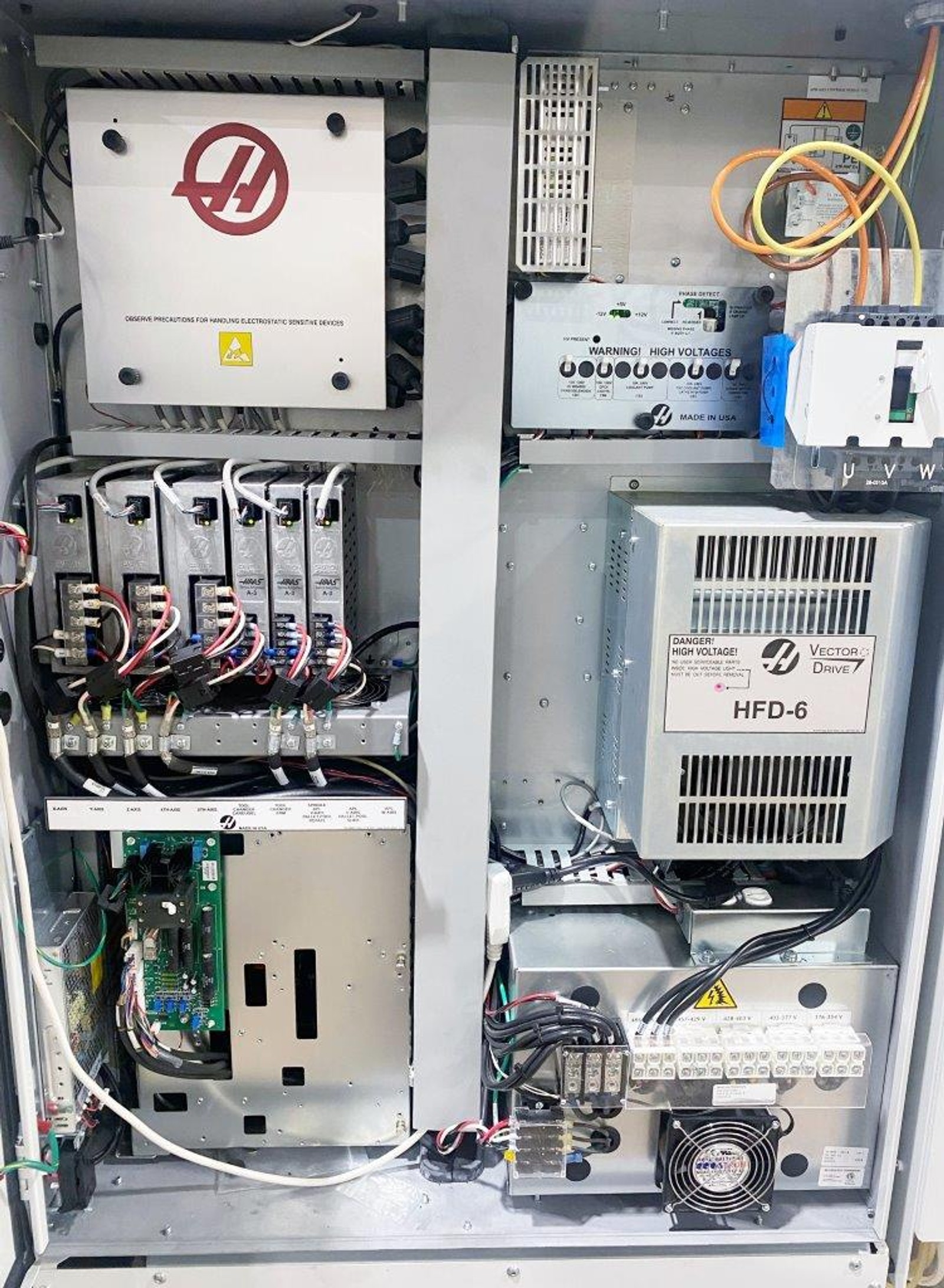

CNC CONTROL CABINET COOLER
COOLANT TANK OIL SKIMMER
WINDOW AIR BLAST
VISUAL PART PROGRAMMING SYSTEM
COORDINATE ROATION & SCALING
MEDIA DISPLAY M-CODE (M130)
SECOND HOME POSITION
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
USB PORT
ETHERNET
64GB EXPANDED MEMORY
HAASDROP
HAASCONNECT (REMOTE MONITORING)
WIFI CONNECTION FOR THE HAAS CONTROL
EARLY POWER-FAILURE DETECTION MODULE
INTERNAL HIGH-VOLTAGE TRANSFORMER (MACHINE SET-UP TO RUN ON 440V)

** MACHINE IS IN LIKE-NEW CONDITION

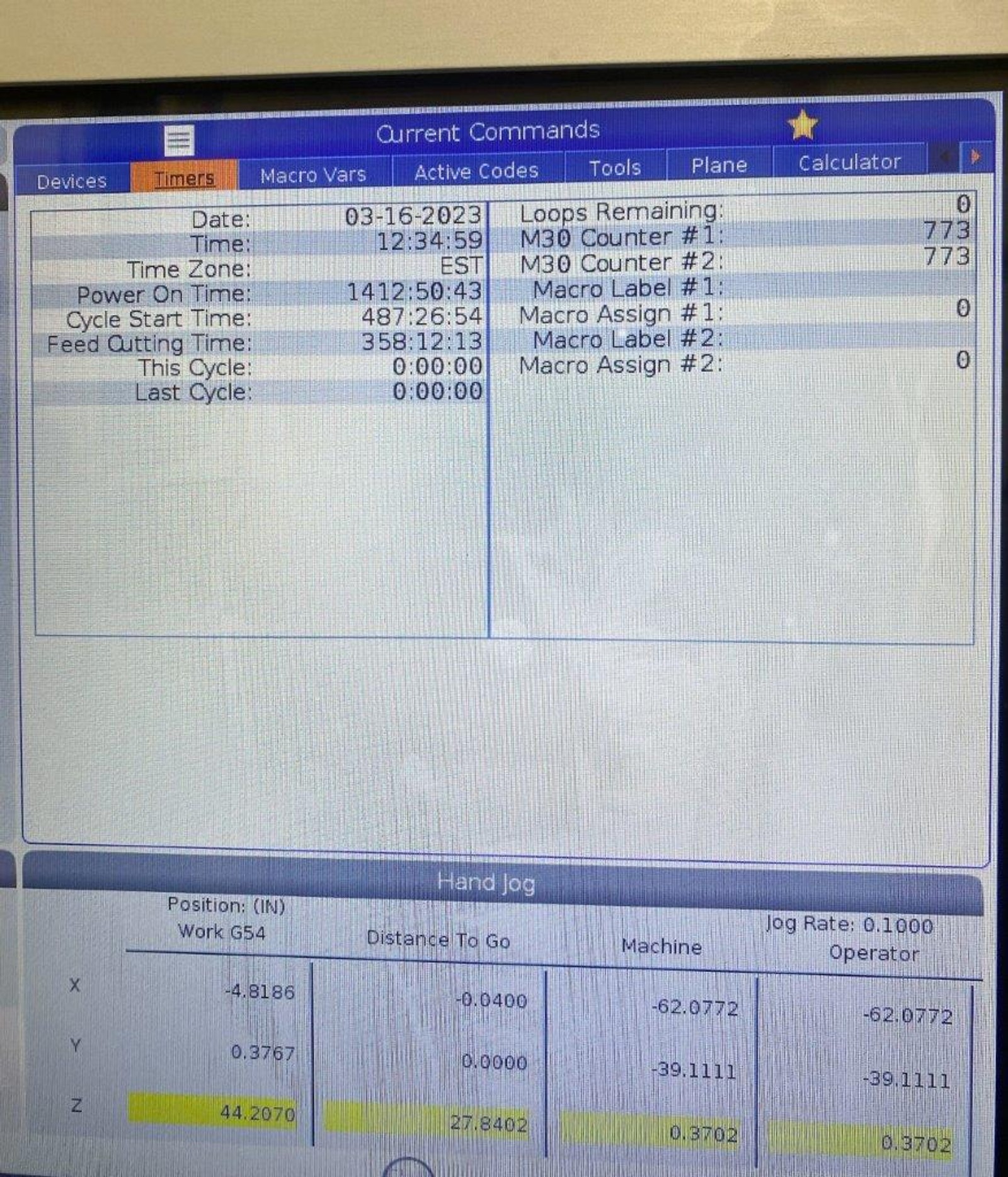

** AS OF MARCH 2023, CUTTING TIME – 358 HOURS

** FULL REPLACEMENT COST, AS EQUIPPED - $525,000
** MACHINE CUT PRIMARILY CAST IRON (ONLY 358 CUTTING HOURS)
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
