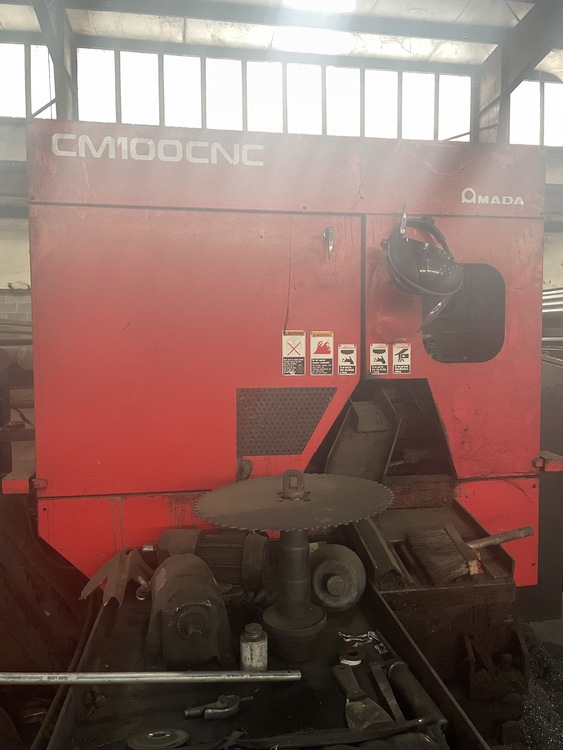

Amada CM-100CNC Circular Cold Saw, High Speed, carbide blade, ferrous Cut-off, production like Tsune, Nisijimax,

Amada CM-100CNC Circular Cold Saw, High Speed, carbide blade, ferrous Cut-off, production like Tsune, Nisijimax,

Manufacturer

AMADA

Spec Sheet

Overview

Type:

Circular or Mitre Cold Saws

Category:

Saws

Manufacturer:

AMADA

Model:

CM100CNC

Condition:

Used - Rebuilt

Year:

2002

Stock #:

8220

Status:

For Sale

Serial #:

1080004

Description

High Quality High Speed cut off saw for ferrous metal using HSS or Carbide tipped blades to cut FAST!

Reconditioned per order.

Myers Technology Company Proprietary

50 Point Refurbishing and Repair Process

Myers Technology Company (MTC) carefully examines all major castings for cracks, wear, and weak point failure.

MTC tests all slide and pivot areas for proper alignment and functionality.

We start up and test run all equipment.

MTC ensures that all functions of both manual and autocycles work properly.

We take note of any missing or failing parts and place orders for replacement parts that meet or exceed OEM standards.

Once the machine passes inspection on steps 1-5, MTC begins disassembly.

All guards are removed and inspected for wear or cracks.

All way covers are removed and ways and covers inspected for wear or tear.

Machine oil is drained, cleaned and replaced with new oil to proper levels and condition.

All vices, chucks, and other mechanical control items are removed, cleaned and inspected.

The machine is thoroughly cleaned using steam, degreasers, and solvents.

The hydraulic system is tested for noise.

The hydraulic system pressure is tested for proper settings.

The hydraulic system couplings are examined and aligned as needed.

The hydraulic system hoses are inspected and replaced as needed.

The hydraulic system valves are inspected and tested for proper function.

Electrical system wires are cleaned and examined for damage or wear, replaced as needed.

Electrical system switches are cleaned and inspected for damage or wear, replaced as needed.

Electrical system controls are cleaned and inspected for damage or wear, replaced as needed.

The electrical system cabinet is examined and cleaned.

Worn and failing elements of the hydraulic and electrical systems are replaced as necessary.

Bearings are inspected for proper function and measured for play.

Bearings are replaced as necessary.

Motors are inspected and rebuilt or replaced as necessary.

Motor couplings are removed, cleaned, and examined for wear and failure, replaced as necessary.

Belts are inspected for wear, cracks, and fraying and replaced as necessary.

Belts are inspected for proper alignment.

Gearboxes are cleaned and inspected.

Oil is drained from gearbox.

Gearboxes are refilled with proper oil to correct levels.

Chip conveyors are cleaned and inspected for wear.

Coolant systems are cleaned and inspected.

Worn and failing elements of the gearbox, conveyor, and coolant systems are inspected and replaced as necessary.

Hydraulic fluid is drained and replaced to proper levels in hydraulic system.

All filters are removed and cleaned or replaced.

Sheet metal is cleaned and inspected for wear and failure.

Safety switches are cleaned and tested for proper function.

Safety switches are replaced as necessary.

Machine is inspected to ensure steps 1-38 have been properly completed.

Unit approved for painting.

All previously painted surfaces are prepped and primed.

All primed surfaces are given 2 coats of industrial grade paint.

All systems are reassembled to complete the machine.

All buttons and switches on control works are inspected for wear and functionality.

Machine functions are tested for performance.

Machine is operated in full automatic mode.

Test cuts are completed and examined for accuracy.

If unit passes tests in steps 44-47, machine is calibrated.

A video of the machine is recorded.

Machine is prepped for proper shipping, tied down, Wrapped, etc.

Machine is given a 6 month Warranty

There are many more items checked and repaired

Optional: we test and run for $ 38,500.00 As Inspected with video

Equipped With

Lift up Chip Conveyor, 18 foot Bar loader, MQL or Mist Coolant system, Full enclosure, Parts chute, New Blade all available manuals

Specifications

Blade Dia	16"
Power	15 hp
Control	CNC (Amada)
Dimensions	7' x 7' x 28' long with loader
Weight	7,700 lbs.

Model: CM 100 - CNC

220 Volts, 3-Phase, 60 Hz

Motors; Blade 15 HP

Hydraulic 2.2 kW

Feed 0.5 kW

Air 3.7/2.2 kW

Chip Conveyor 0.2 kW

Blade; Diameter 360mm 14.2"

Thickness 2.5mm 0.1"

Power Required; 31 KVA

Mass of Machine 3450 kg, 7,590 Lbs. with barfeed

Serial No. 10800 004

Manufactured In 2002
