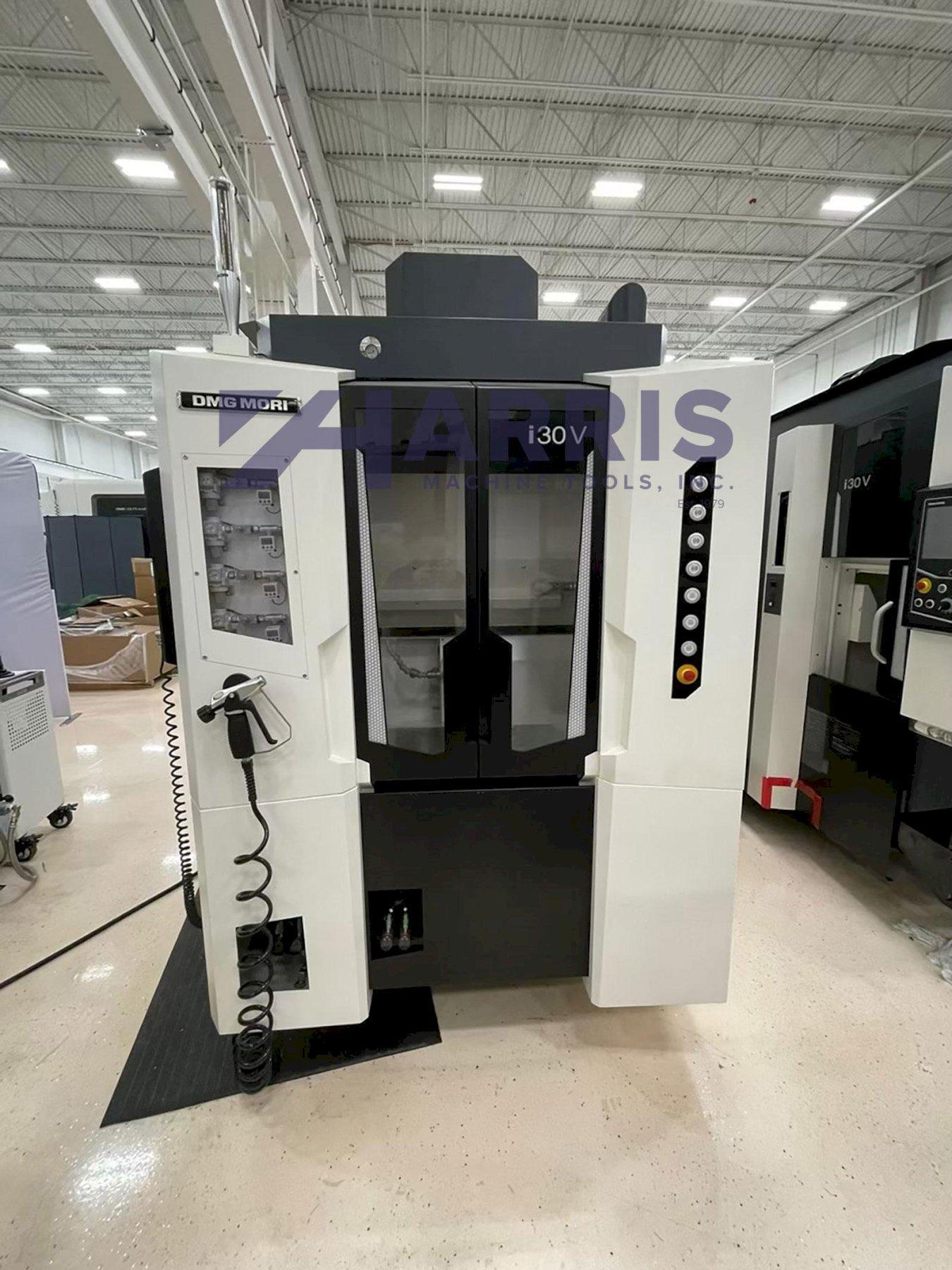

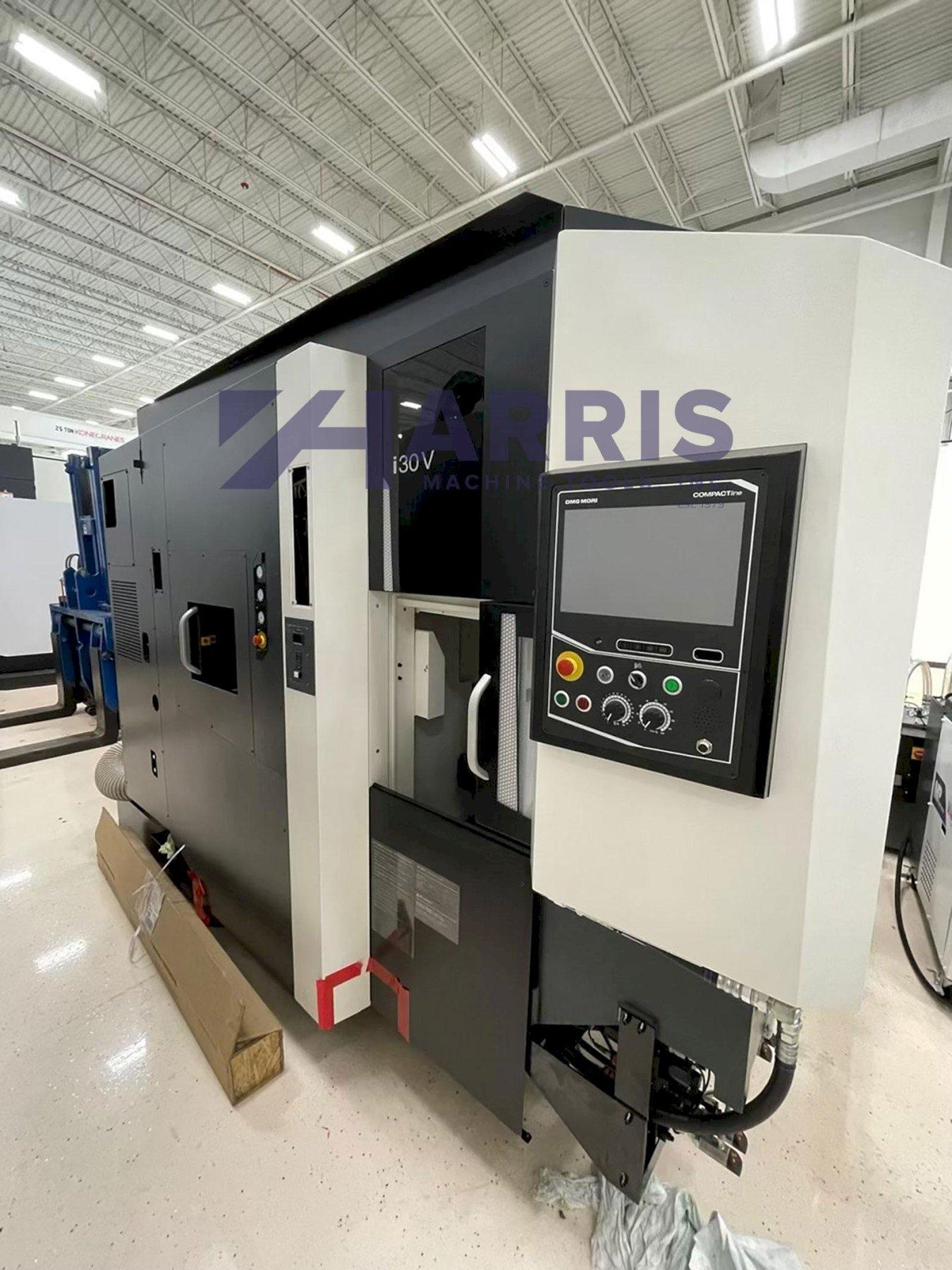

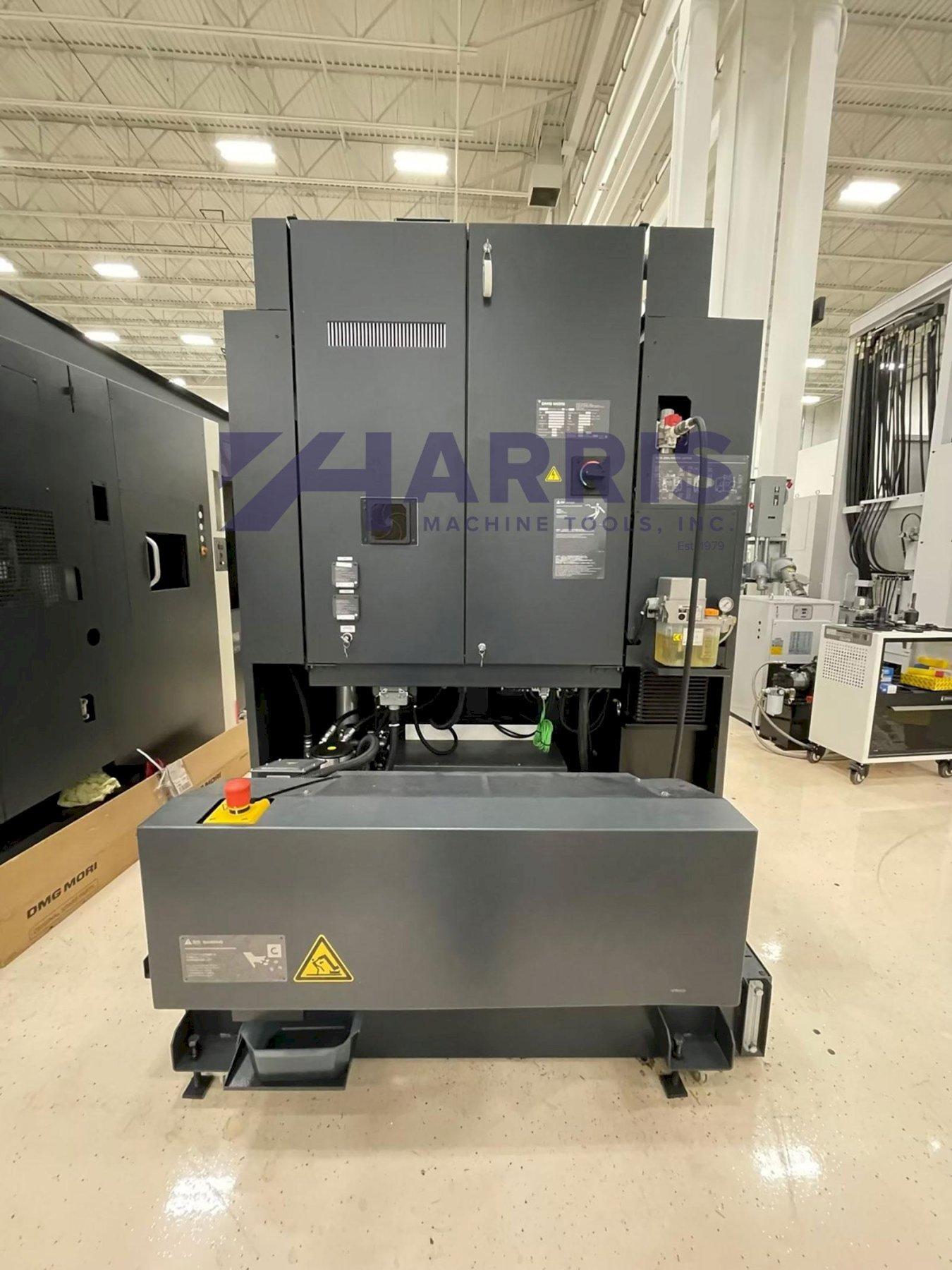

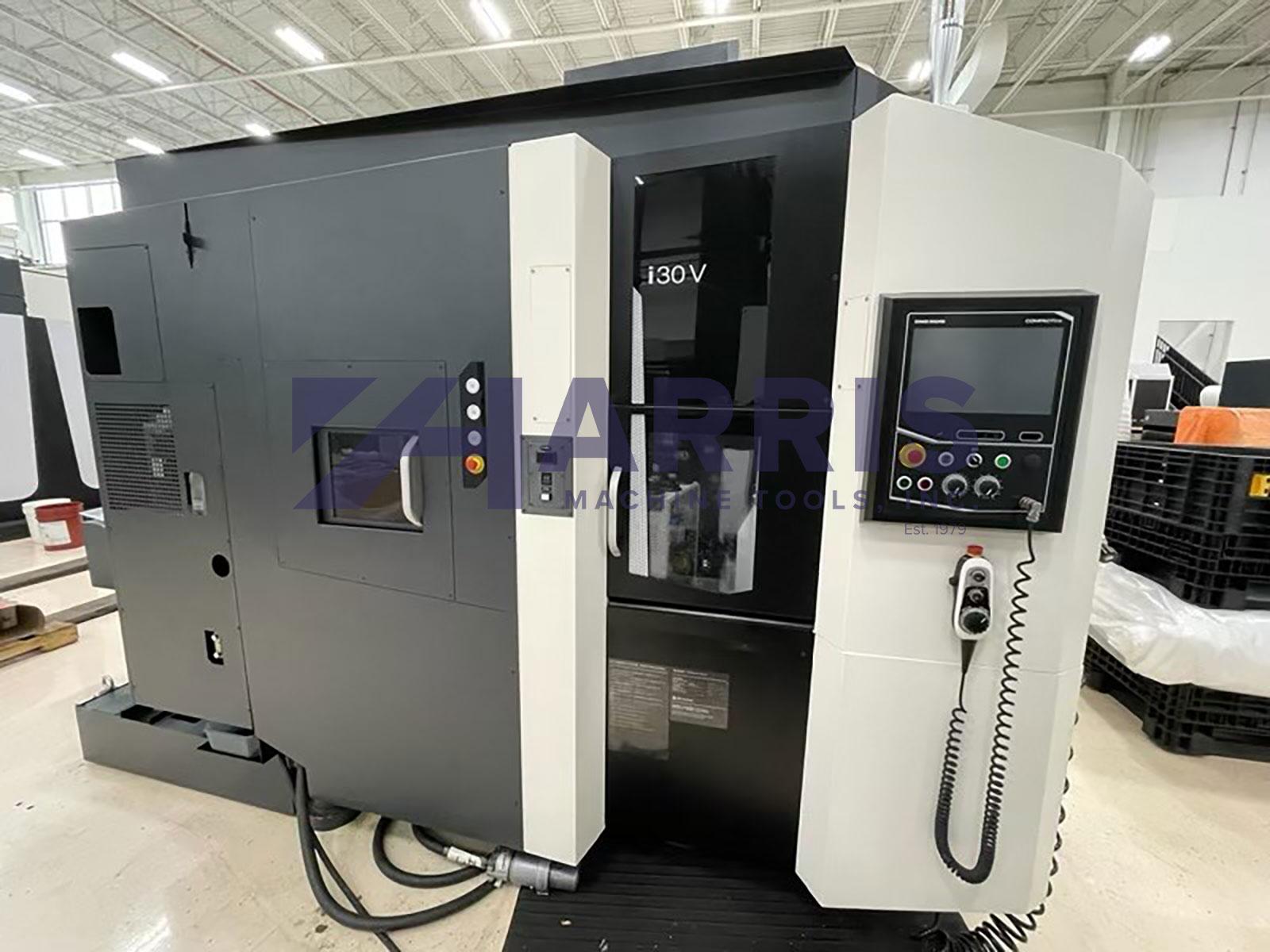

Used, DMG Mori i 30 V CNC Vertical Machining Center

Manufacturer

DMG MORI

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

20182

Model

I 30V-SN

Dealer Location

Texas

Request a Quote
View Contact Information

Spec Sheet

Taper - CAT 40 DUAL CONTACT
X Axis Travel - 15.7 inches
Y-Axis Travel - 10.6 inches
Z Axis Travel - 11 inches
Max Spindle Speed (RPM) - 12000
Spindle Motor - 7.5 horsepower
Table-L - 11.8 inches
Table-W - 23.6 inches
Max Table Load - 330 pounds
CNC Control - yes
Type of CNC Control - DMG Mitsubishi Electric M730UM
Tool Changer Capacity - 14
Rapid Traverse Rate (X/Y/Z) - 2,440 (ipm)
Tool Change Time - 3 Seconds
Dimensions - 61.3W x 128.9D x 104.3H
Weight - 10846 pounds


Distance from table surface to spindle gauge plane:  9.4 - 20.5"
Max Tool Length:  10"
Max Tool Weight:  14 lb.
Max Feed Rate:  2,440 ipm

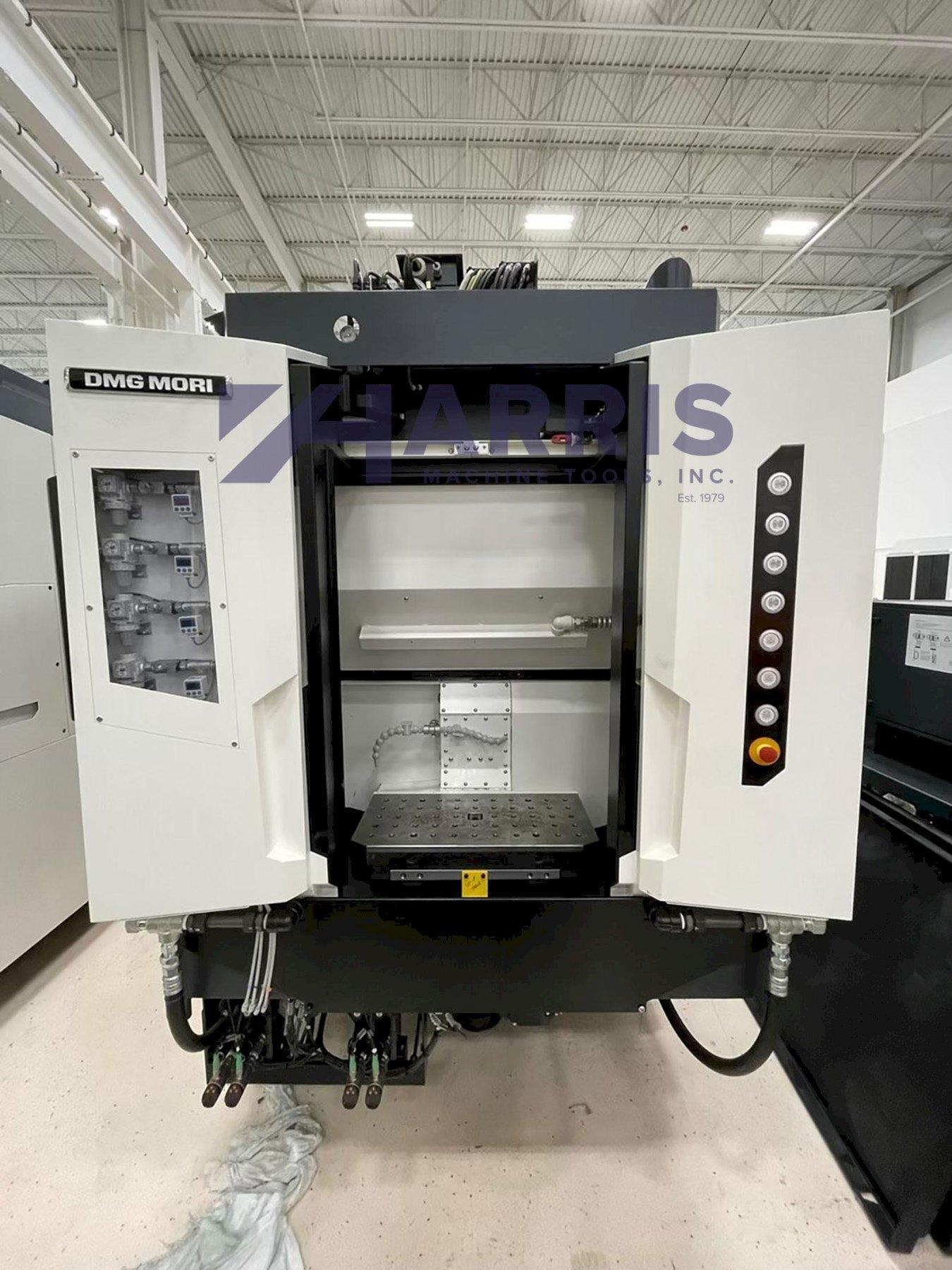

Number of Pallets:  2
Method of Pallet Change:  Rotation
Pallet Change Time:  2 seconds

FACTORY OPTIONS INCLUDED:  COST:  $135,000 over base machine

Standard spindle 12,000 min-1, 5.5/ 3.7 kW (#40)
Spindle Taper 7/24 Taper #40 (two-face contact)/ Grip CAT
Preparation for Center Through-spindle coolant system
Retention Knob: Special (Center-Through) (7/24 Taper #40)

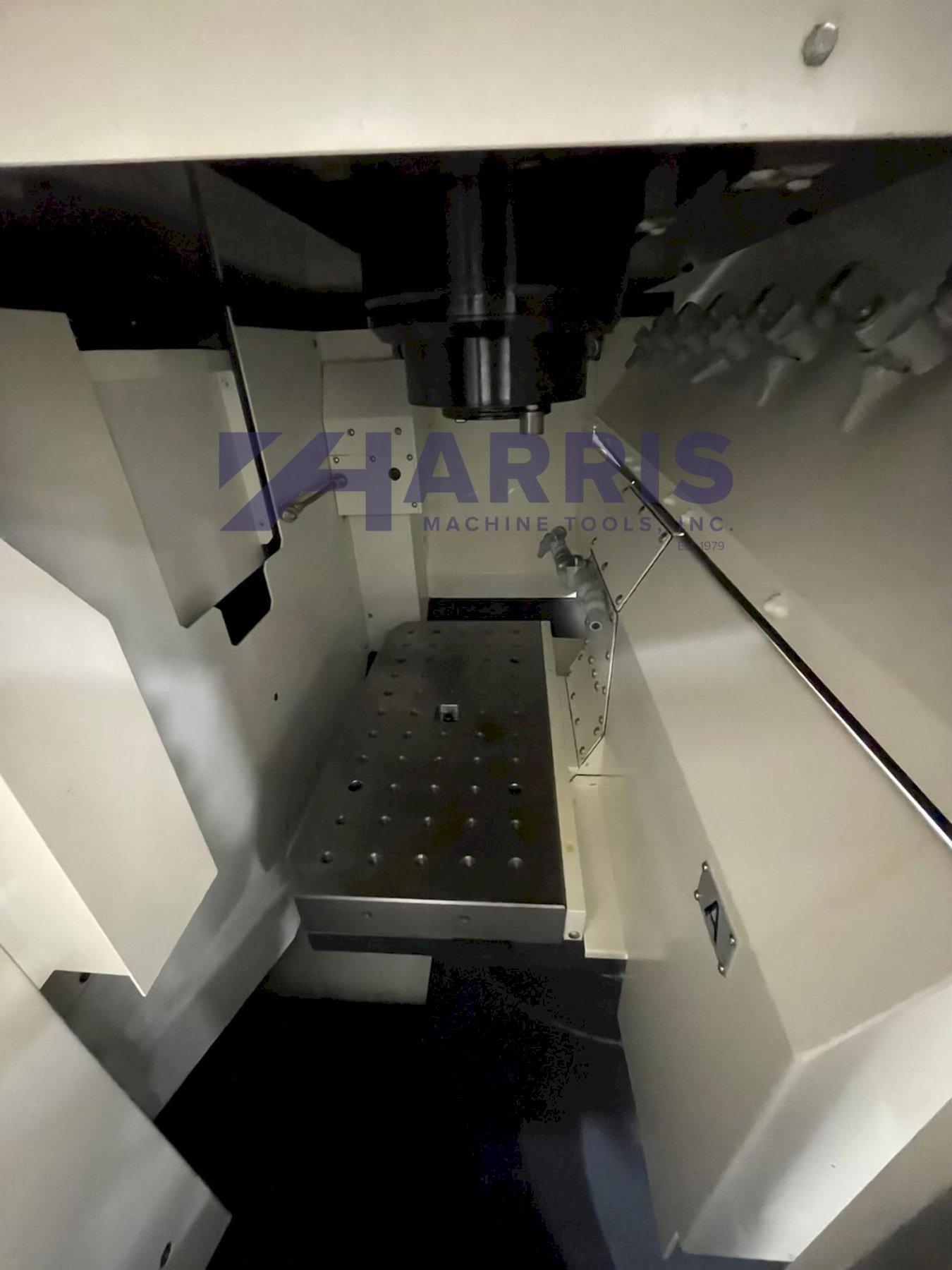

Changing to Tapped pallets (2 pallets)
Interface for Hydraulic fixture (2 circuits x 2, 4 ports on each pallet)
Interface for Workpiece seating detection (2 lines x 2, 2 ports on each pallet)
Tool magazine door
Usable Coolant Type: Water-Soluble Coolant
Chip conveyor (rear discharge, magnet scraper type)
Interface for Through-Spindle Coolant System (7 MPa, Constant Pressure)
Coolant gun
Fixture washing coolant
Shower coolant
Mist collector (AFS 600), including stand (SK-OP)
Oil Skimmer (Belt type) (SK-OP)
Signal lamp 4 colors (Red, yellow, green, blue)
Automatic door (No Tape switch)
Interface for EtherNet/IP (SK-OP)
Interface for Robot (EtherNet/IP), Need to select EtherNet/IP Interface
Interface for Gage (EtherNet/IP), Need to select EtherNet/IP Interface (SK-OP)
High acceleration (including Dry anchor)
Spindle Head Cover
10 external M-codes (SK-OP)
Setting Unit inch
Multiple M codes in single block (Multi M code function)
Screen display English
MCC TMS
MAPPS Tool management system + Tool ID (MAPPS software only)
Tool ID system (Stand installed in MG)
Tool brackage detection(KEYENCE sensor PX-10CP)
Assembly fee for special option
DMQP: ChipBlaster M30/70 Unit - 8 gpm @ 1000 PSI 50 gal tank / cyclone filter (installed)
DMQP: ChipBlaster Sludge Settling Tank "Baffled settling tank for dirty coolant discharge: 35 gal capacity  **recommended with all cyclonic filters  (installed)

*All specifications are subject to verification
