Amada RG3512LD, 38.5 Ton , 2-Axis CNC Ctrl., 48" OA, 40" BH, 3.9" Stroke, 1999 #43011

Manufacturer

AMADA

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, HYDRAULIC (Inch/Ton)

Stock

43011

Model

RG3512LD

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43011

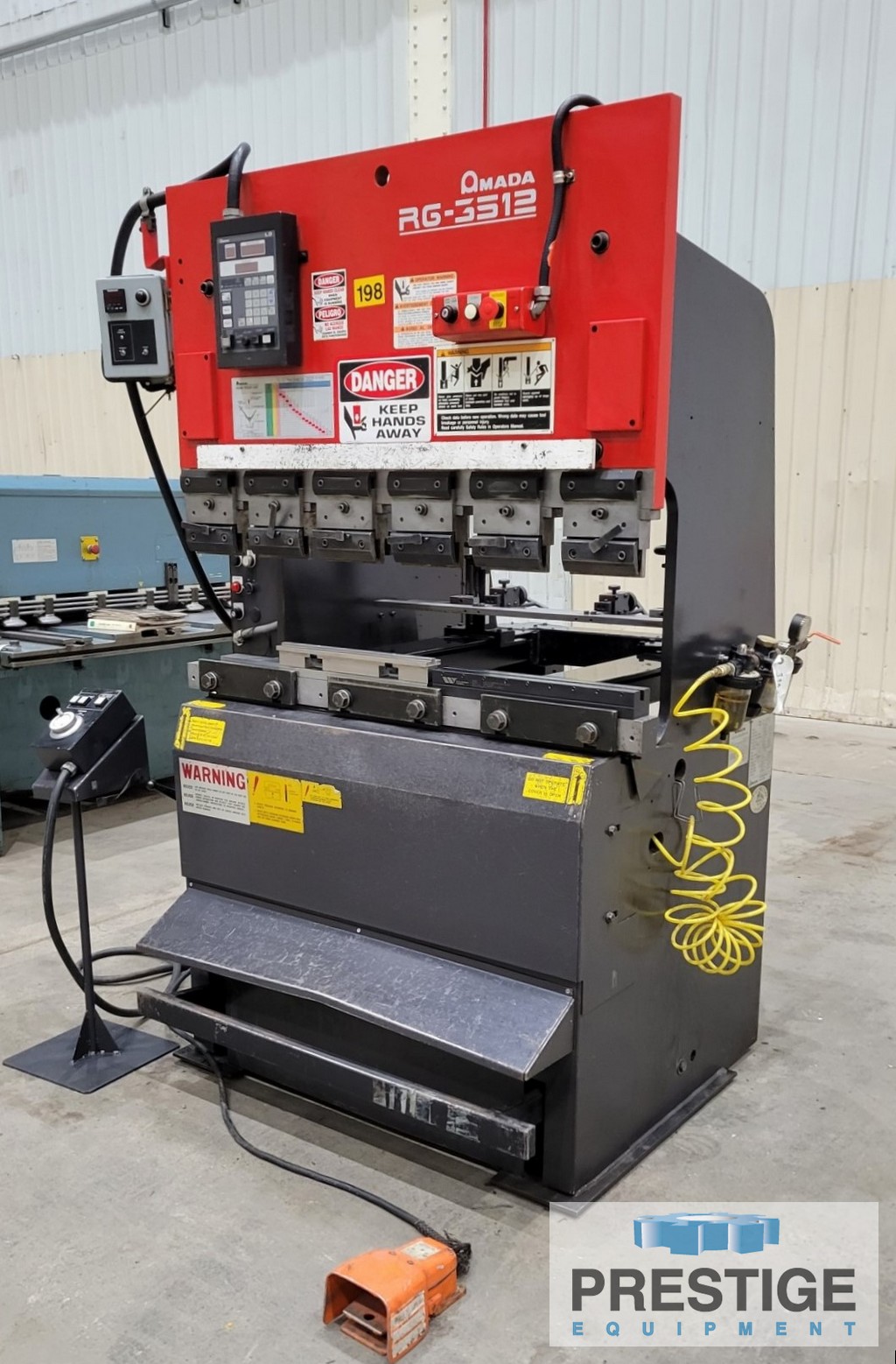

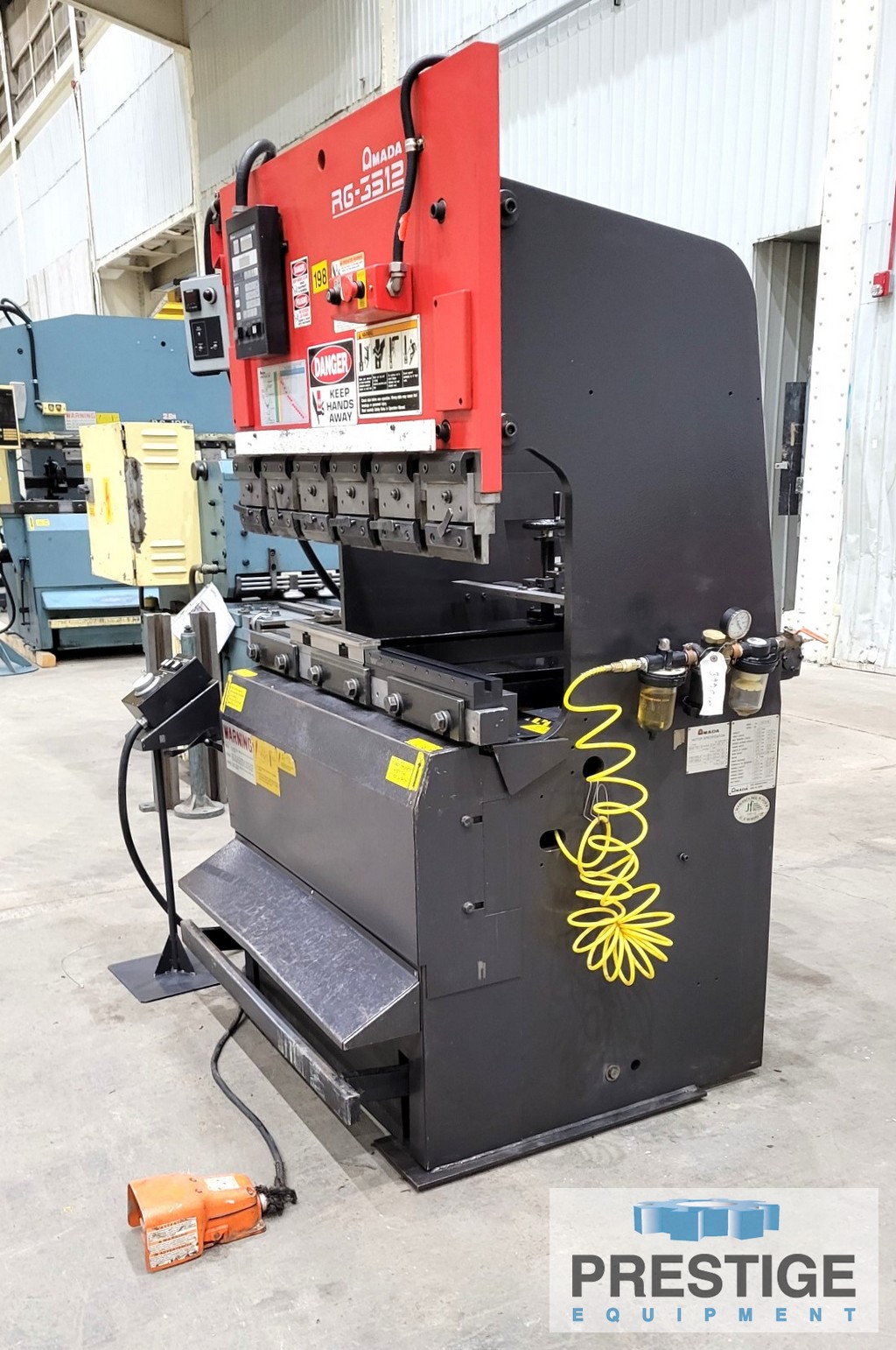

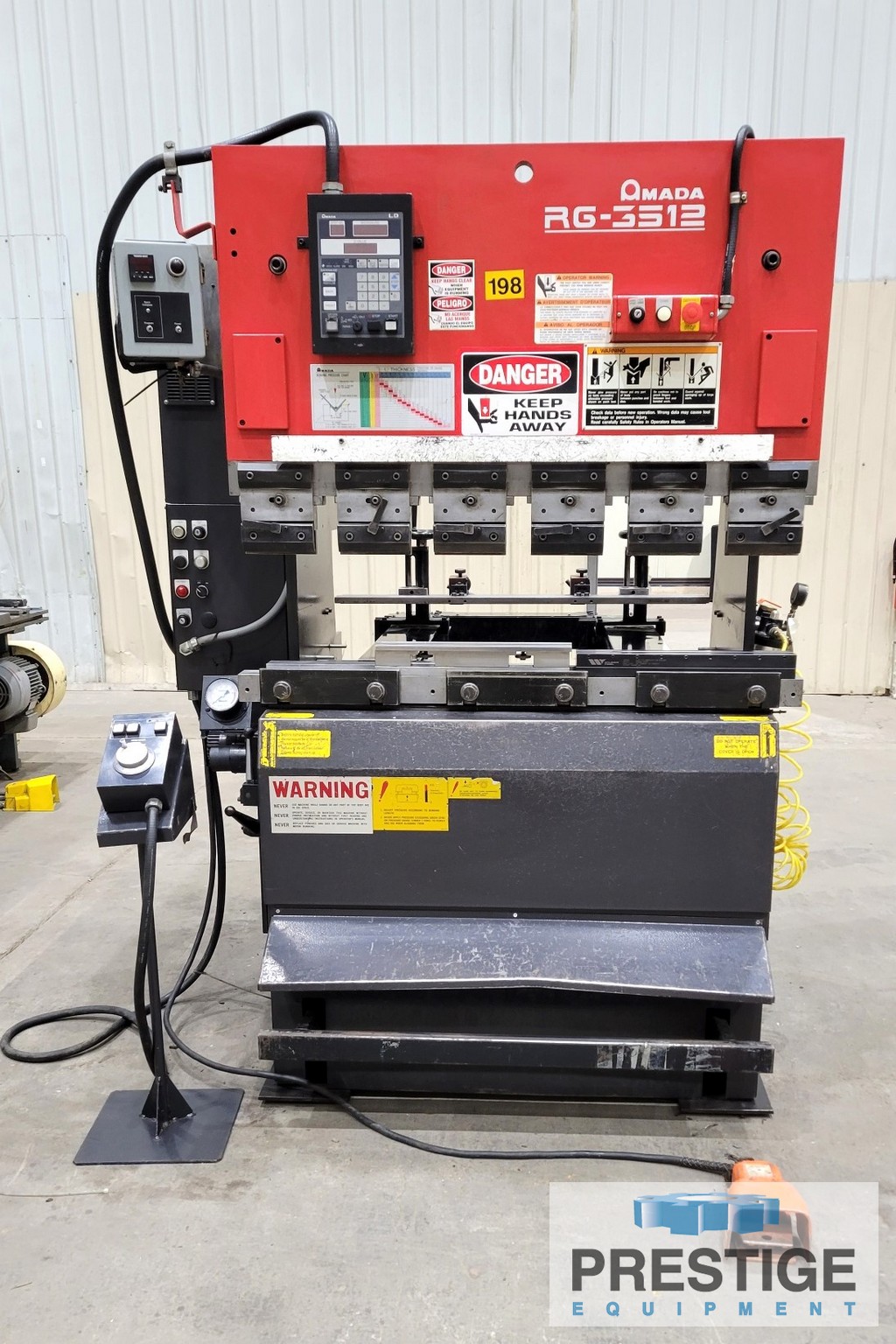

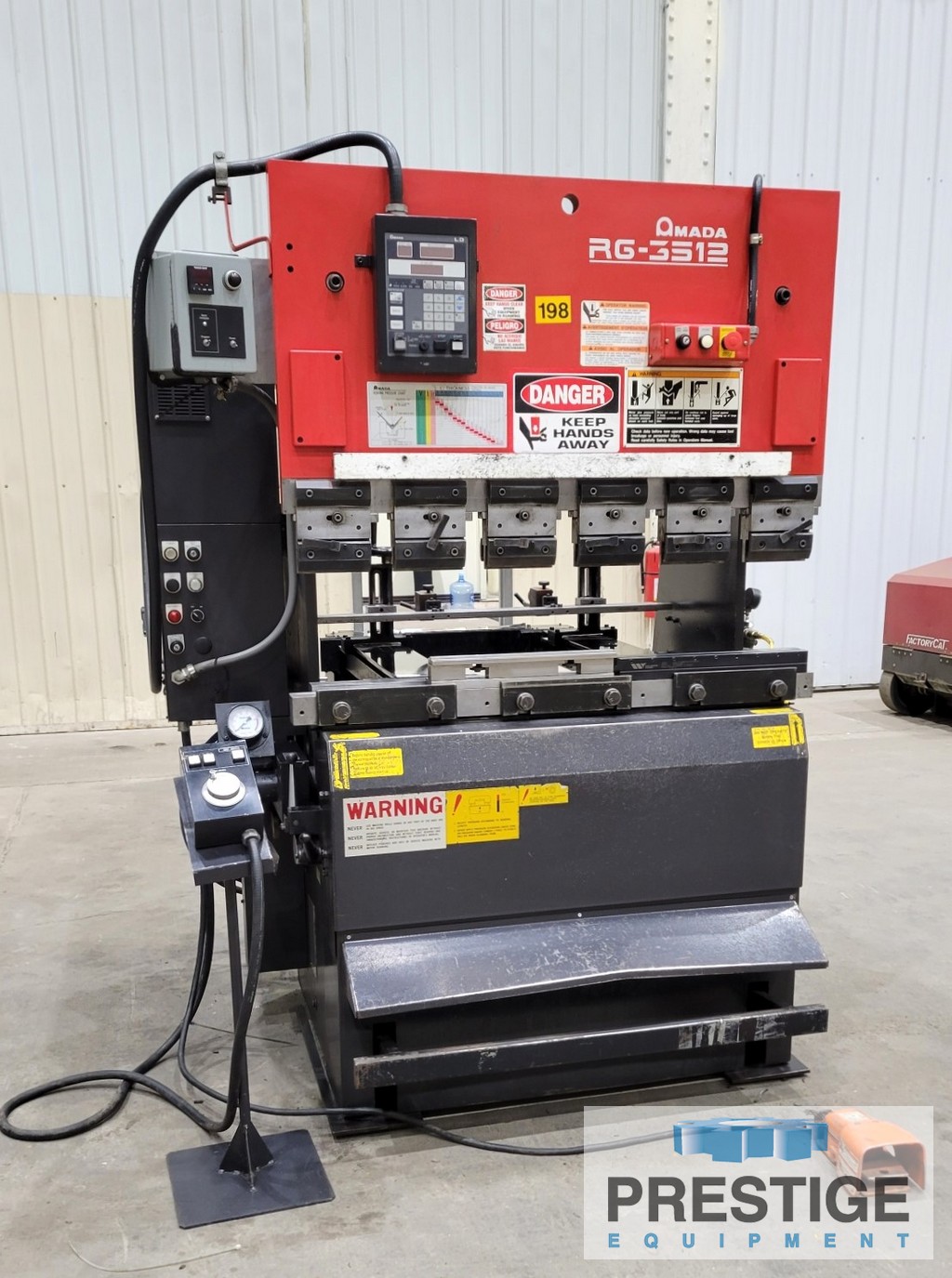

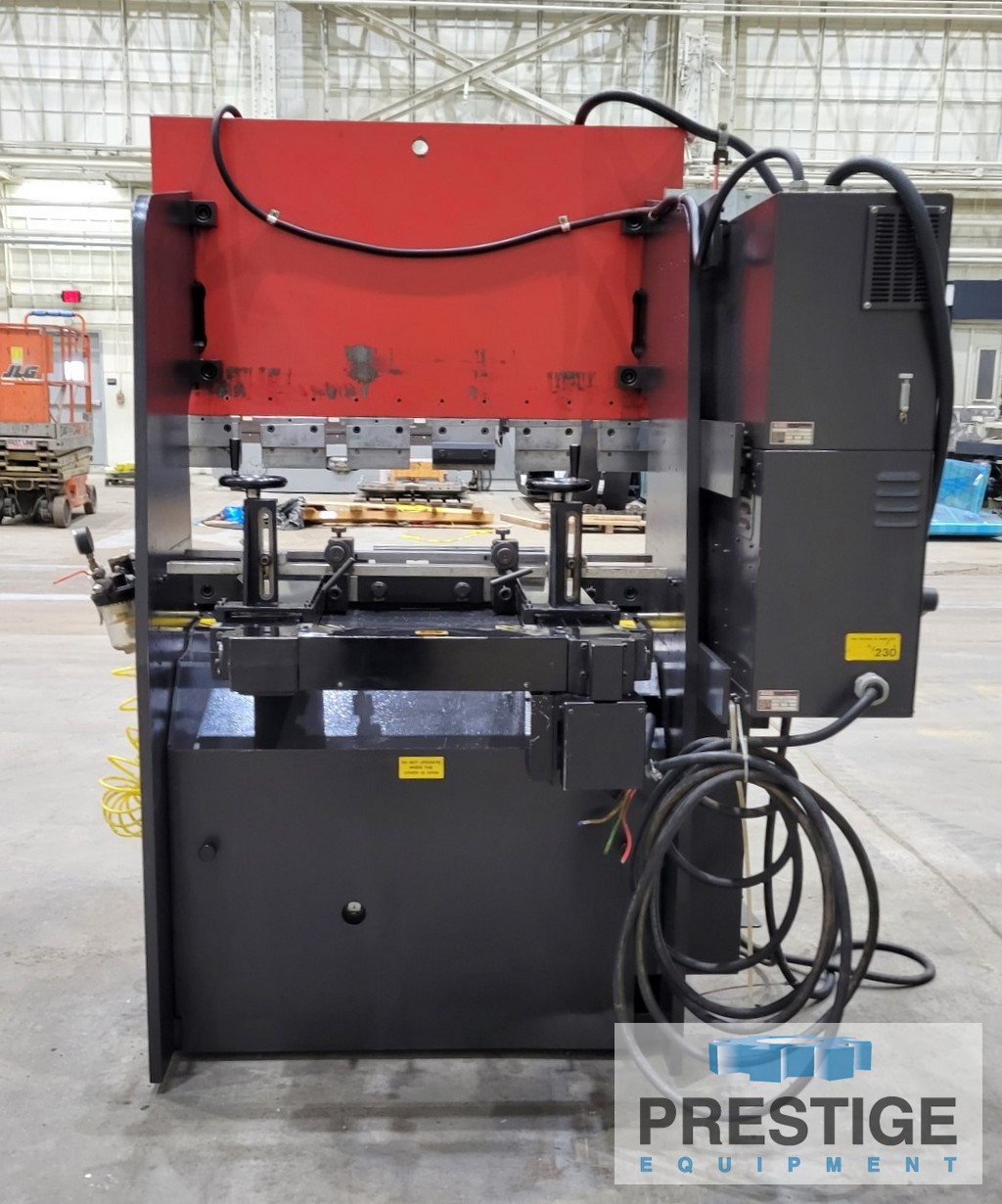

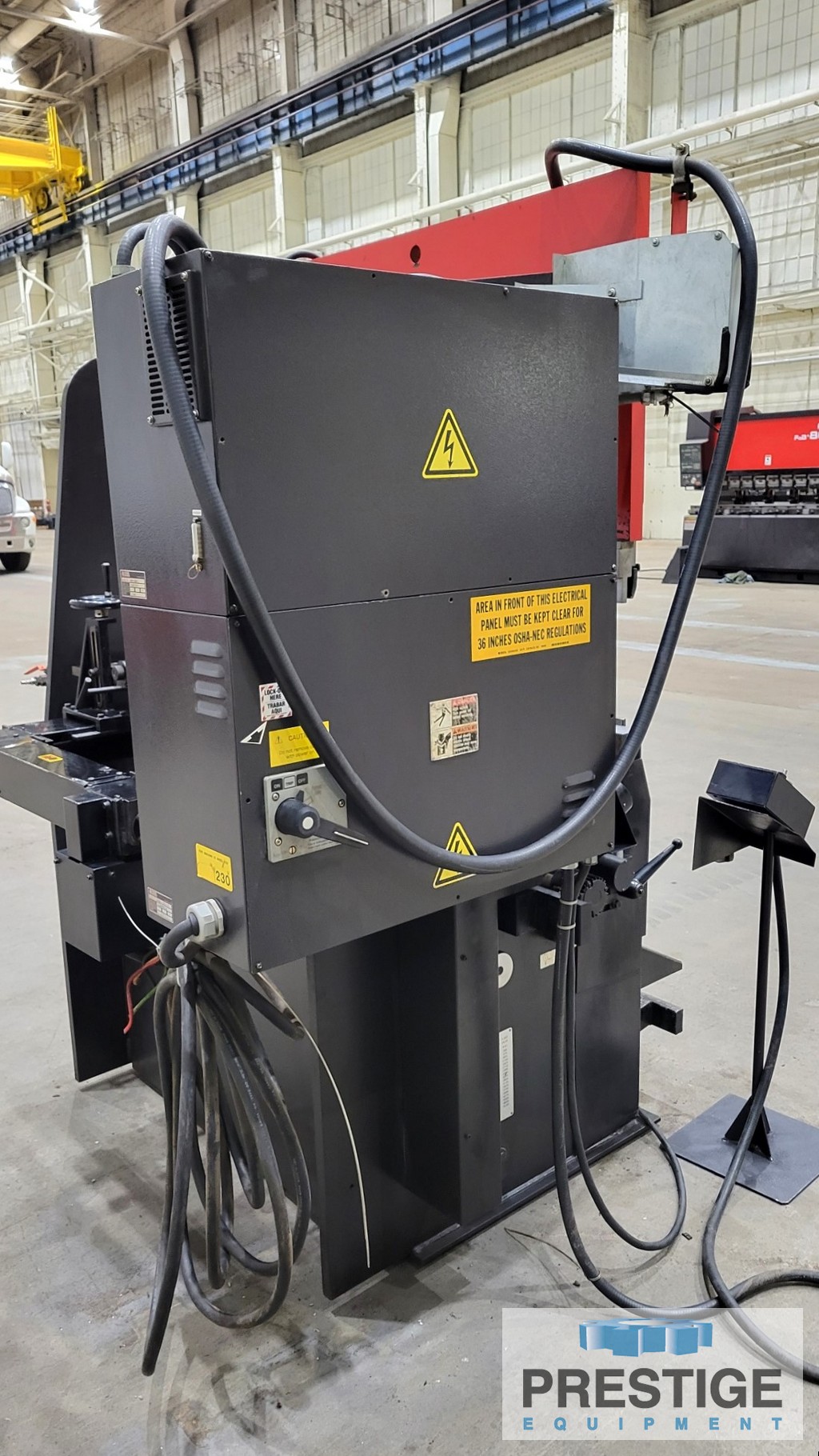

Amada RG3512LD 38.5 Ton Upacting Hydraulic CNC Press Brake

FEATURES:

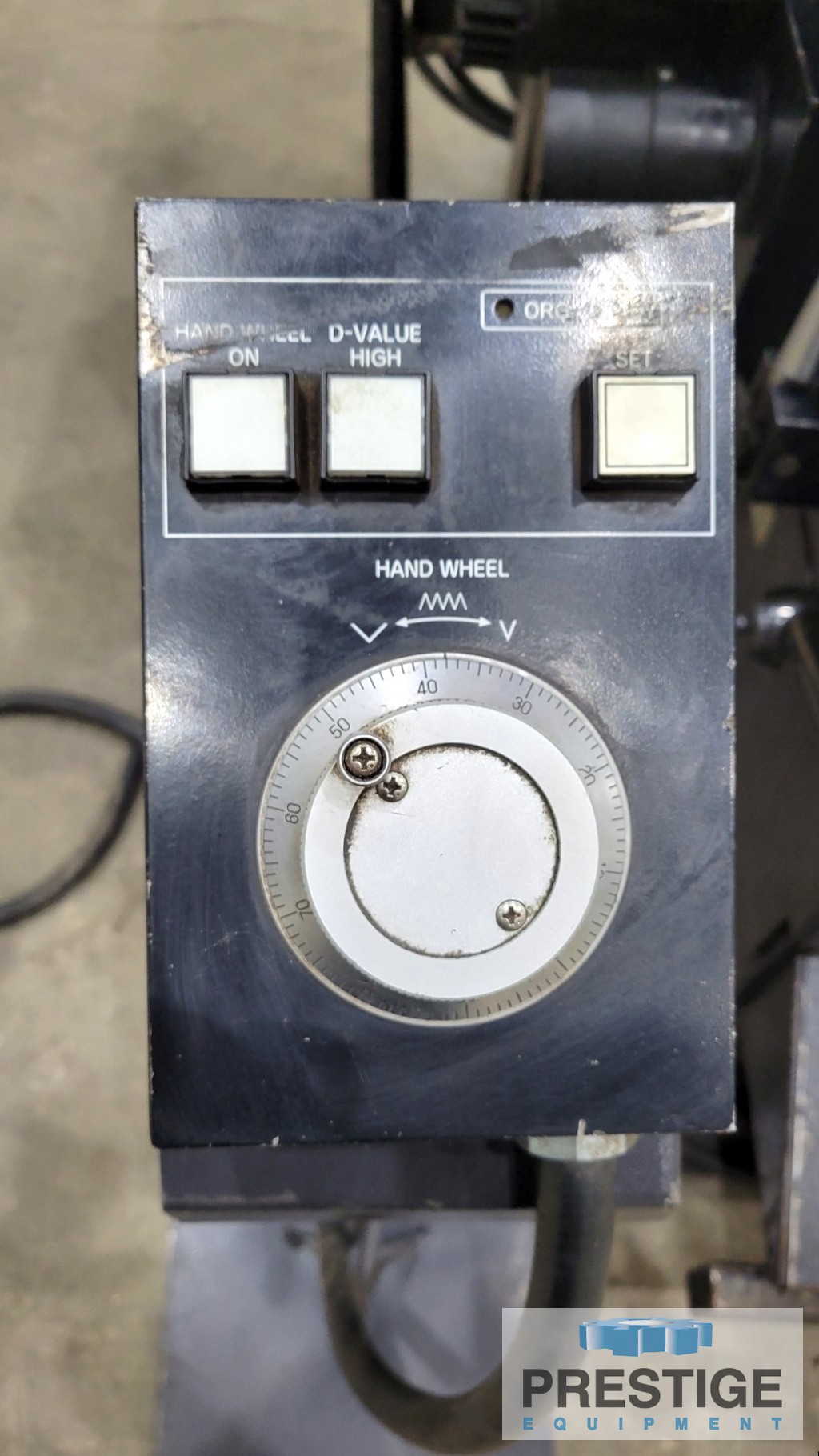

Amada LD 2-Axis CNC Control

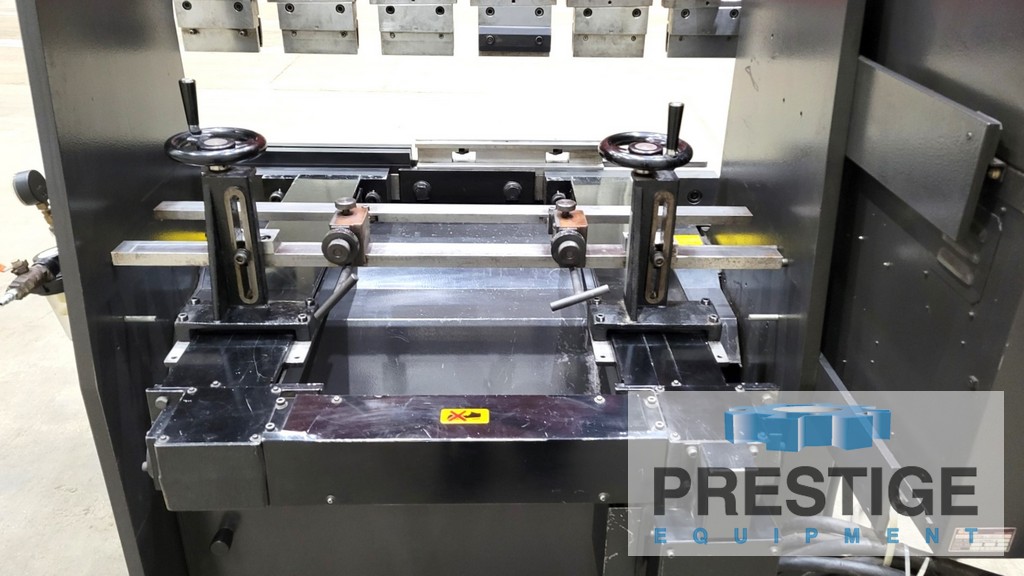

Single Axis CNC Back Gauge
CNC Programmable Ram Position
Upper Punch Holders
Foot Tredal Control

CAPACITY:
Tonnage Capacity ...................... 38.5 Tons
Overall Bed Length .................... 47.2"
Distance Between Housings ............. 40.2"
Throat Depth .......................... 7.9"
Open Height ........................... 14.57"
Stroke Length ......................... 3.94"
Back Gauge Travel ..................... 19.6"
Approach Speed ........................ 177 IPM
Bend Speed ............................ 31 IPM
Return Speed .......................... 94 IPM
Motor Size (400/460,230) .............. 5 HP
Approximate Shipping Weight ........... 3,968 Lbs

EQUIPPED WITH:
Amada LD 2-Axis CNC Control, up to 99 steps
Single Axis CNC Back Gauge
CNC Programmable Ram Position

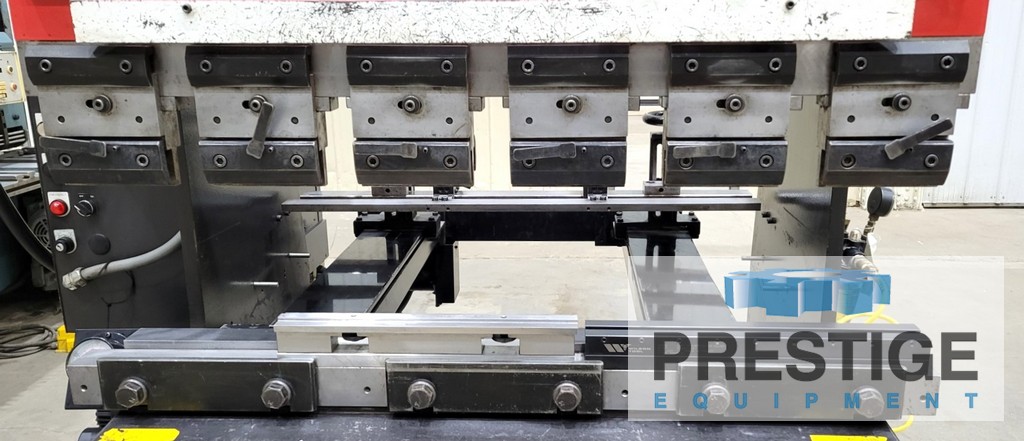

Full Set of Upper Punch Holders
Foot Tredal Control
