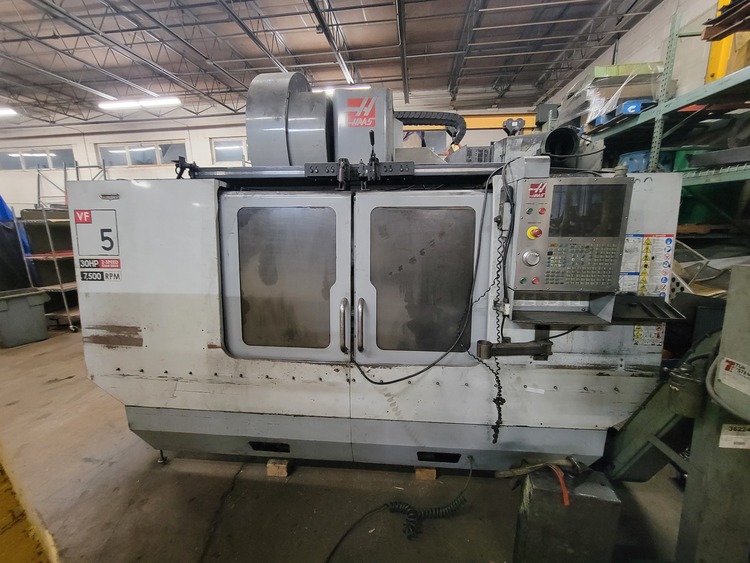

2008 Haas VF-5/50 taper, 4 Axis, 30 ATC,

Manufacturer

HAAS

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

8388

Model

VF-5/50

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet

Overview

Type:
Vertical Machining Centers
Category:
Machining Centers
Manufacturer:
HAAS
Model:
VF-5/50
Condition:
Used - Good
Year:
2008
Stock #:
8388
Status:
For Sale
Serial #:

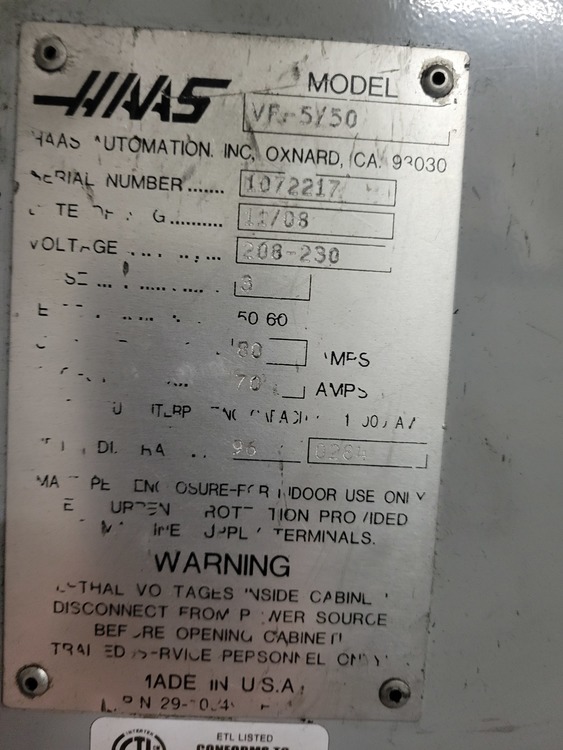

1072217

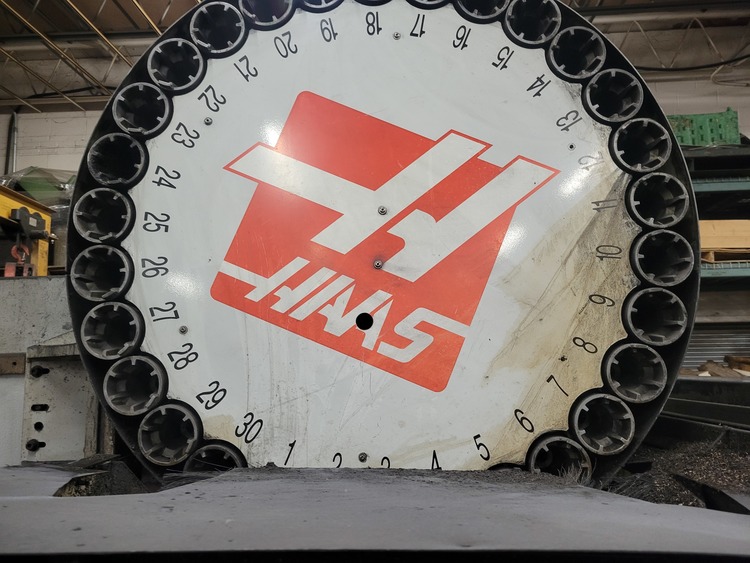

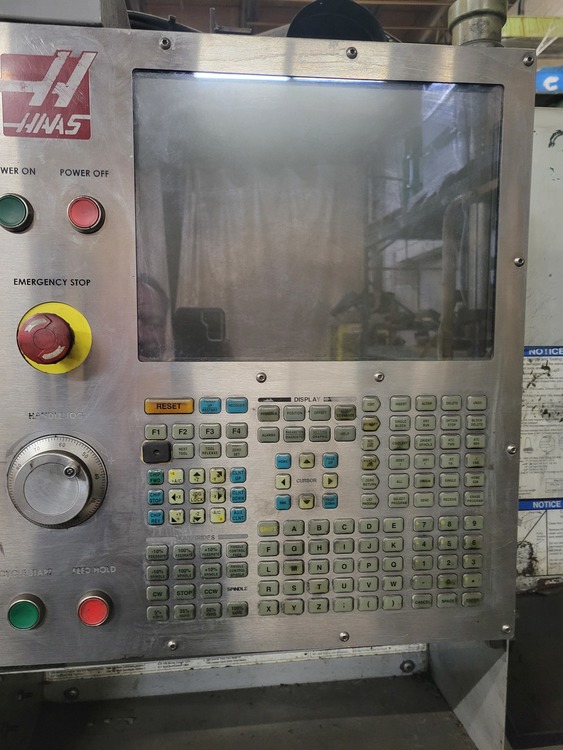

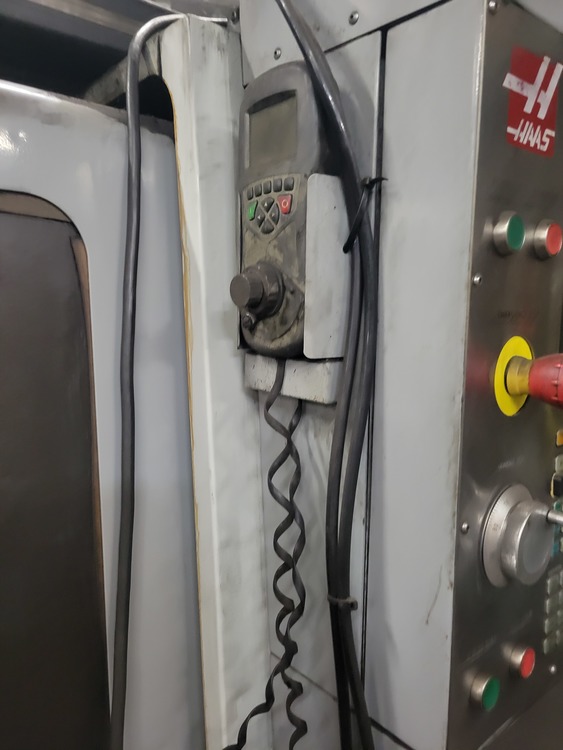

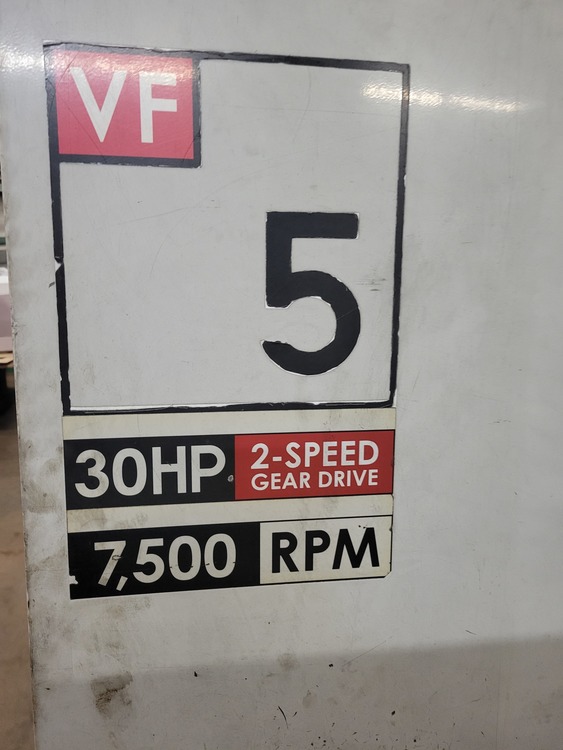

Haas Heavy duty VF-5 #50 Taper, with 4 xis drive, Side mount 30 ATC, Remote MPG with screen, 7,500 PRM, 30 H.P., P Cool, Chip Auger, Internal transformer

4th axis drive, #50 Taper, 30 H.P. spindle, 7,500 RPM, gearbox, Chip conveyor, Internal transformer, coolant flush, MPA with screen, rigid tapping, P-cool and more

X50"
Y26"
Z25"
Power30 hp
RPM7,500 RPM
# ATC30
TaperCT 50
Table-W23"
Table-L62"
# Axis4
ControlCNC (Haas)

TABLE WORKING SURFACE 62” x 23”



· TABLE LOAD CAPACITY 4,000 LBS.



· LONGITUDINAL TRAVEL (X-AXIS) 50”



· CROSS TRAVEL (Y-AXIS) 26”



· VERTICAL TRAVEL (Z-AXIS) 25”



· RAPID TRAVERSE RATE, ALL AXES 1200 IPM



· TOOL STORAGE CAPACITY 30 Side Mount



· SPINDLE HORSEPOWER 30 HP



· SPINDLE SPEEDS RANGE 7500 RPM (2 spd Gear)



· SPINDLE TAPER CAT-50



· APPROXIMATE WEIGHT - NET 15,150 LBS.



POWER: 220V. / 3 Phase
