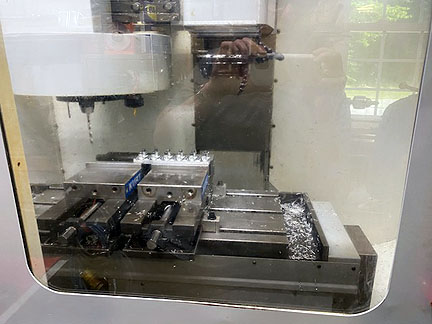

HAAS CNC Mini Mill Vertical Machining Center, Year 2003, 3174

Manufacturer

HAAS

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

3174

Model

Mini Mill

Dealer Location

Connecticut

Request a Quote
View Contact Information

Spec Sheet

Table Size 36" x 12"
Maximum Table Load 500 lbs
X-axis travel 16"
Y-Axis Travel 12"
Z-Axis Travel 10"
Spindle Taper BT #40
Spindle Speed 6,000 RPM
Spindle Motor 7.5 HP
Distance Spindle Nose to Table Top 4" - 14"
Tool Magazine Capacity 10 Position ATC
Tool Change Time Tool to Tool 2.5 Seconds
Rapid Traverse Rates 650 IPM
Cutting Feed Rate
500 IPM
Machine Dimensions LxWxH 78" x 80" x 98"
Machine Weight 3,400 lbs

Equipped With:

Coolant Filtration System
Coolant Tank w/Pump

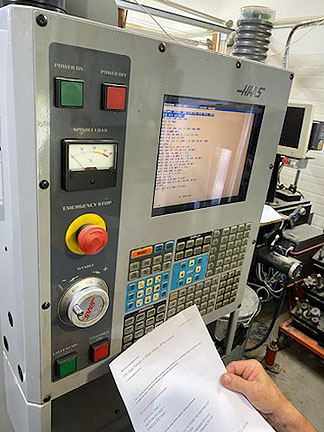

15" Monitor
Ridgid Tapping
RS232 Port Interface
Approx.. 50 tool holders
Misc. Cutters

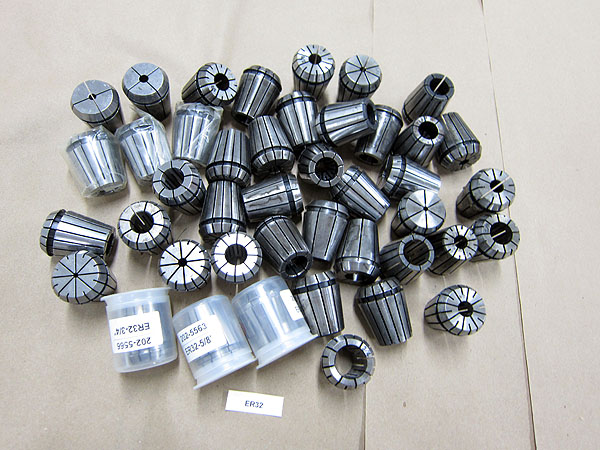

Misc ER32, 20 and DA20 Collets

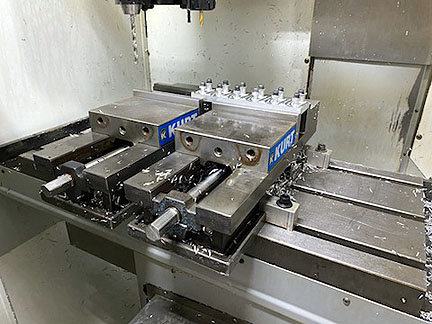

2-Kurt Vices 3600V
