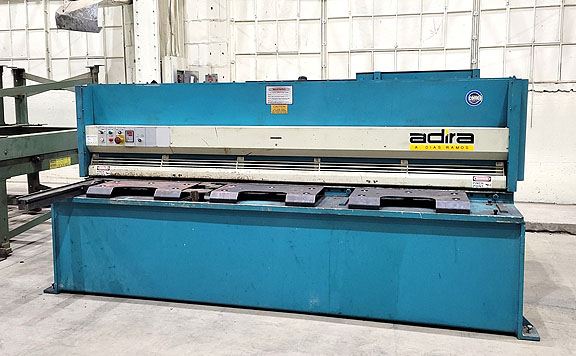

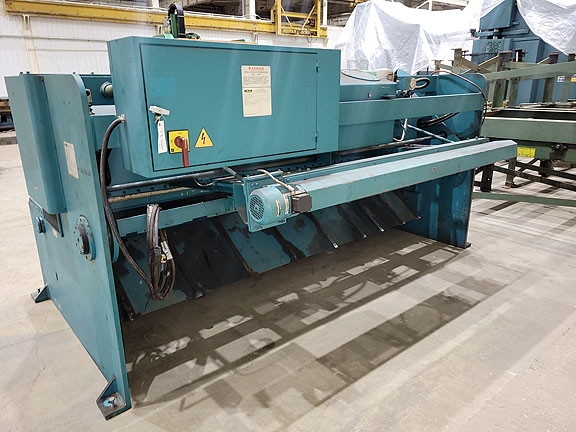

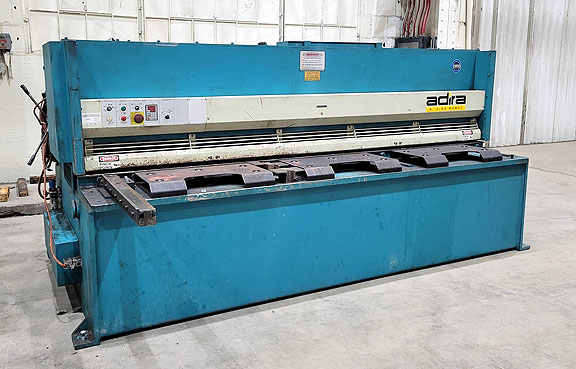

Adira 10' x 1/14" GHS-0630 Hydraulic Power Squaring Shear, 2002 - 3182

Manufacturer

Adira

Category

Shears

Type

SHEARS, POWER SQUARING (Inches)

Stock

3182

Model

G-0630

Dealer Location

Connecticut

Request a Quote
View Contact Information

Spec Sheet

CAPACITY:
MAXIMUM CUTTING THICKNESS 1/4"
MAXIMUM CUTTING LENGTH 120"
BACK GAUGE DEPTH 29"
NUMBER OF HYDRAULIC HOLD DOWNS 16
BLADE SIZE .25" X 2.5" X 122"
THROAT DEPTH 12"
TABLE HEIGHT 34"
RAKE ANGLE, FIXED 1-1/4 DEG
GAP ADJUSTMENT(12) .002” - .043”
MAIN MOTOR 12 HP
ELECTRICS 220/440 V, 3 PH
ELECTRICS, AS CURRENTLY WIRED 440 V, 3 PH
APPROX. DIMENSIONS, NO ARMS 140” X 68” X 69”
APPROX. WEIGHT 12,350 LBS
EQUIPPED WITH:

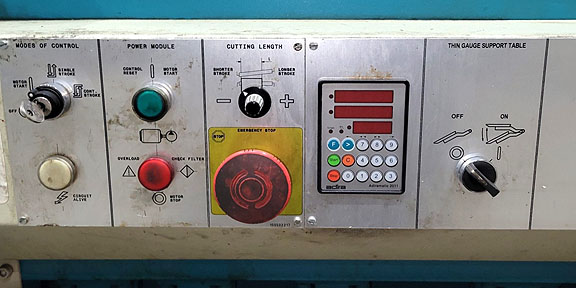

ADIRAMATIC 2011 SELF POSITIONING BACK GAUGE CONTROL WITH LED READOUT
SQUARING ARM
ADJUSTABLE STROKE LENGTH
INFINITELY VARIABLE BLADE GAP ADJUSTMENT
FLUSH FLOOR (NO PIT)
