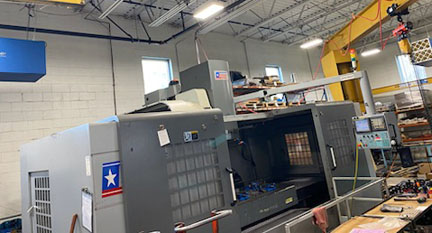

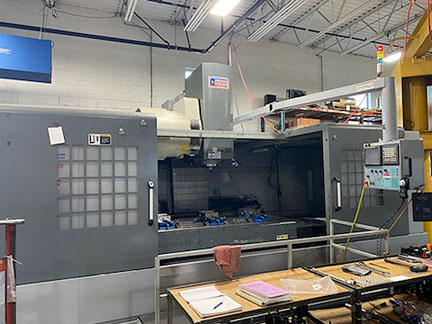

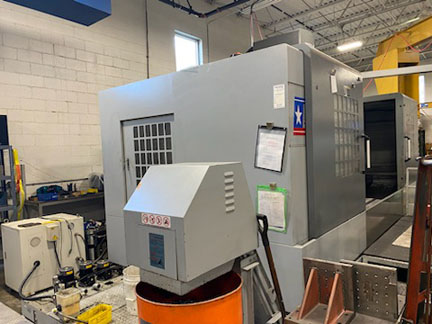

Agma Patriot CNC VMC, Troyke 20" 4th Axis Rotary table w/tailstock included 2011 - 3184

Manufacturer

Agma

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

3184

Model

VMC 2210N

Dealer Location

Connecticut

Request a Quote
View Contact Information

Spec Sheet

Spindle
Taper No.50
Transmission Gear
Spindle Speed 6,000 RPM

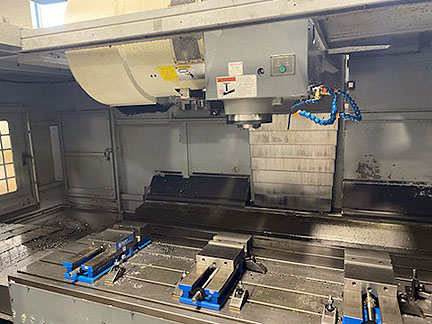

Table
Size 94.49" x 39.37" Std.
T-Slot size .71" x 7 x 5.91" Std
Work Area 86.61" x 39.37" Std
Max. Table Load 8,000 lbs
Travel & Feed Rate
X Axis 86.61"
Y Axis 39.37"
Z Axis 31.50"
Distance from Spindle Nose to Table 5.91" ~ 37.40"
Distance from Spindle Center to Column Ways 43.31"
Rapid Traverse X, Y = 12/ M/min (590 IPM)
Z=10 M/Min (393 IPM)
Cutting Feedrate X, Y, Z: 1~10,000mm/min (393 IPM)

ATC
CAT 50
Pull Stud MAS P50T-1 (45°)
Magazine Capacity 32
Max Tool Diameter (with adjacent pocket empty) 9.84"
Max. Tool Diameter (full storage) 4.92"
Max. Tool Length 13.78"
Max. Tool Weight 33 lbs
ATC Type Arm Type

Motor
Spindle (Cont./30min) 25/30 HP
X/Y/Z Axes (Fanuc) 9.33/9.33/9.33HP
Lubrication Pump .033 HP
Coolant Pump .66 HP

Machine Dimensions
Height 142"
Floor Space 225" x 154"
Machine Weight 44.000 lbs

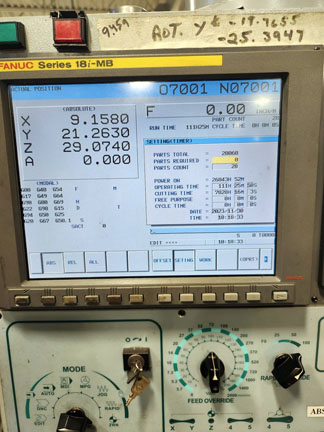

Control Fanuc OiMF

Equipped with:
Coolant through the spindle

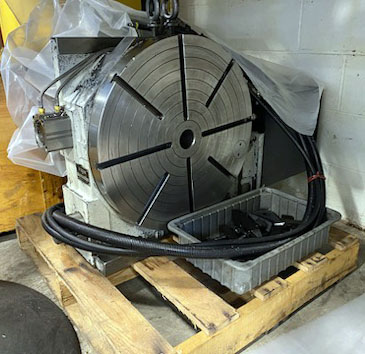

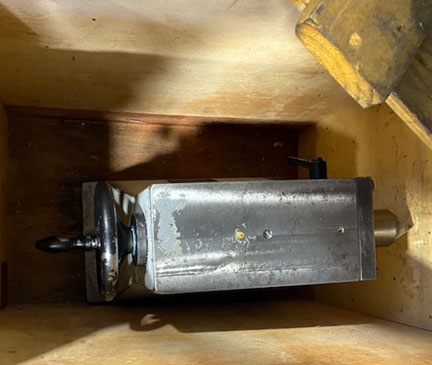

Troyke 20" 4th Axis Rotary Table with Tail Stock
