Awea SP-3016 HSS, X-120", Y-63", Z-30", 66" BC, 59" x 128" Tbl, Rigd. Tap., TSC, USB, Fanuc 18i-MB, #43242

Manufacturer

AWEA

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

43242

Model

SP-3016

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43242

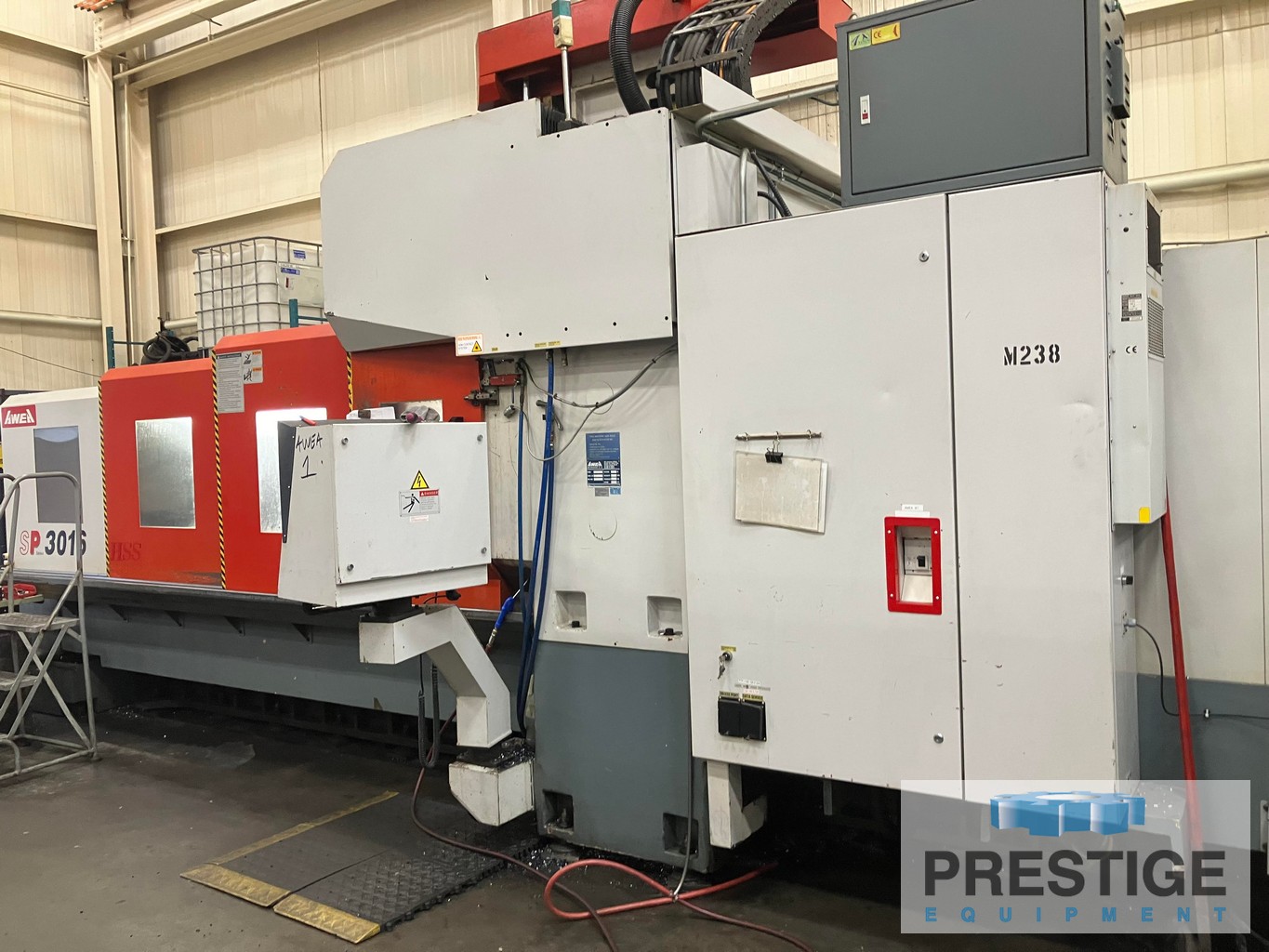

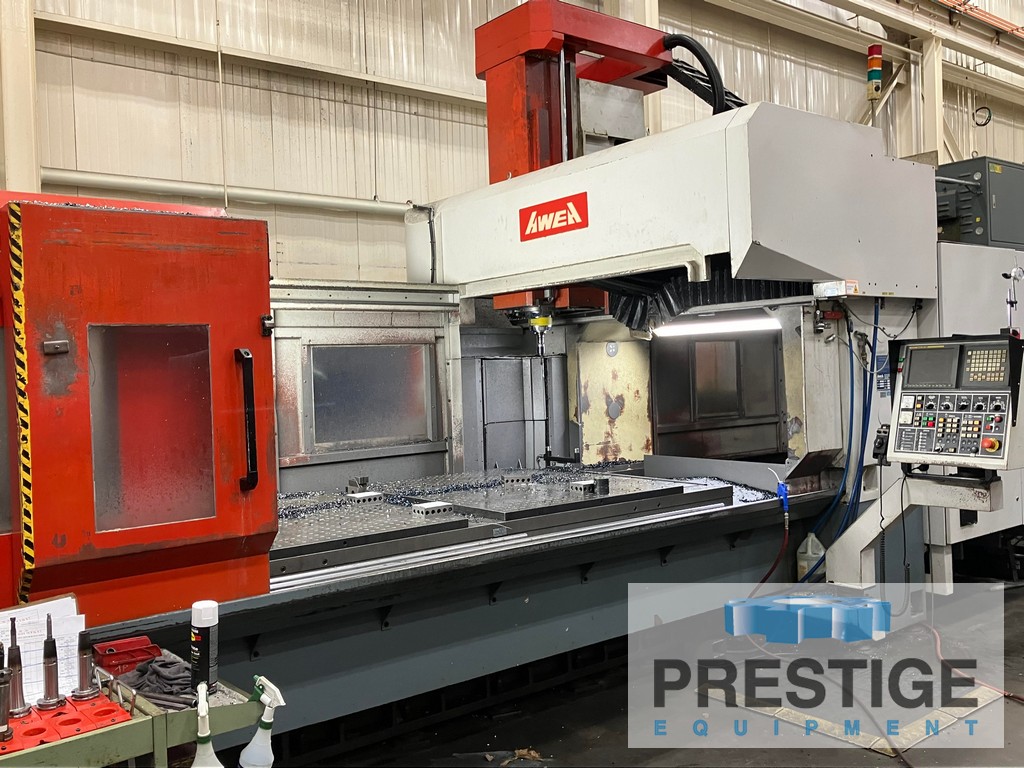

Awea SP 3016 HSS Bridge Type Machining Center

FEATURES:
FANUC 18i-MB CNC Control
USB Port
Rigid Tapping
1000 PSI Coolant Through Spindle
Laser Tool Measurement
HPCC High Speed Machining

Specifications:
Awea SP 3016 HSS Bridge Type Machining Center
New 2005
X-Axis ................................ 120"
Y-Axis Travel ......................... 63"
Z-Axis Travel ......................... 30"
Table Size ............................ 128.3" x 59"

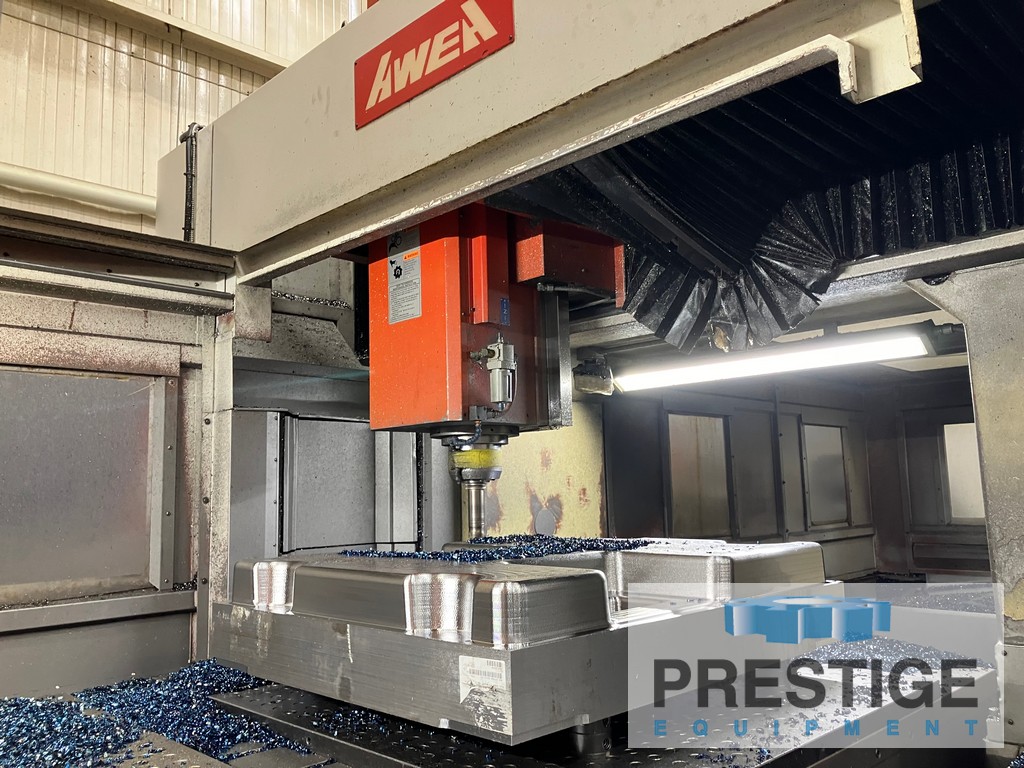

Spindle Speed ......................... 15,000 RPM
Spindle Taper ......................... CAT 40
Spindle Motor ......................... 30 / 25 HP
Tools ................................. 16 ATC
Table Load Capacity ................... 22,000 lbs.
Rapid Traverse Rates (X & Y / Z) ...... 787 / 591 IPM
Max Tool Diameter ..................... 4" / 5"
Max Tool Length ....................... 11.8"
Max Tool Weight ....................... 15 lbs.
Distance Between Columns .............. 66.9"
Spindle Nose to Table Top ............. 6.3" - 36.2"

EQUIPPED WITH:
FANUC 18i-MB CNC Control
10.4" Color LCD
PC/MCIA Interface
USB Port
Rigid Tapping

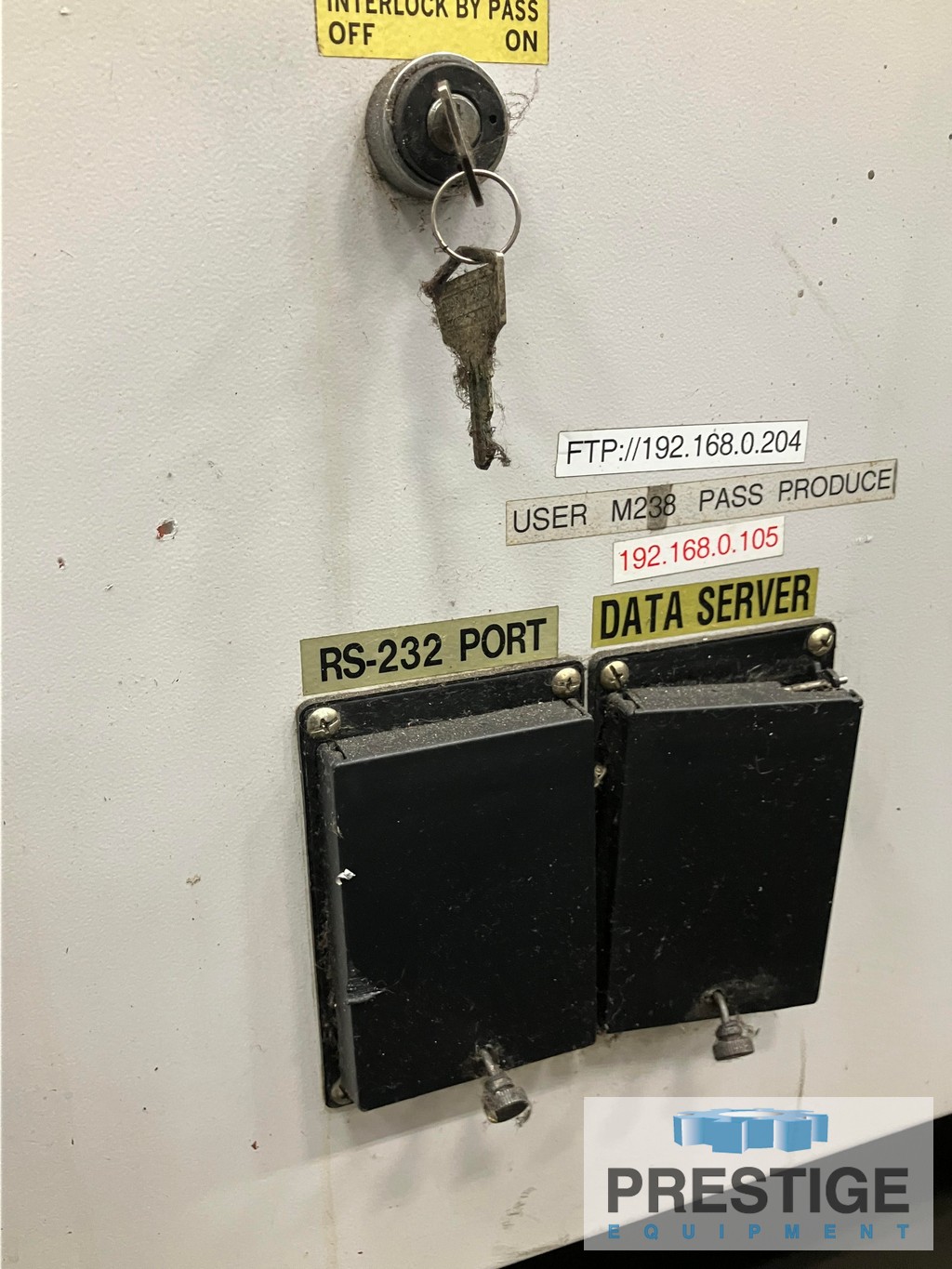

Data Server

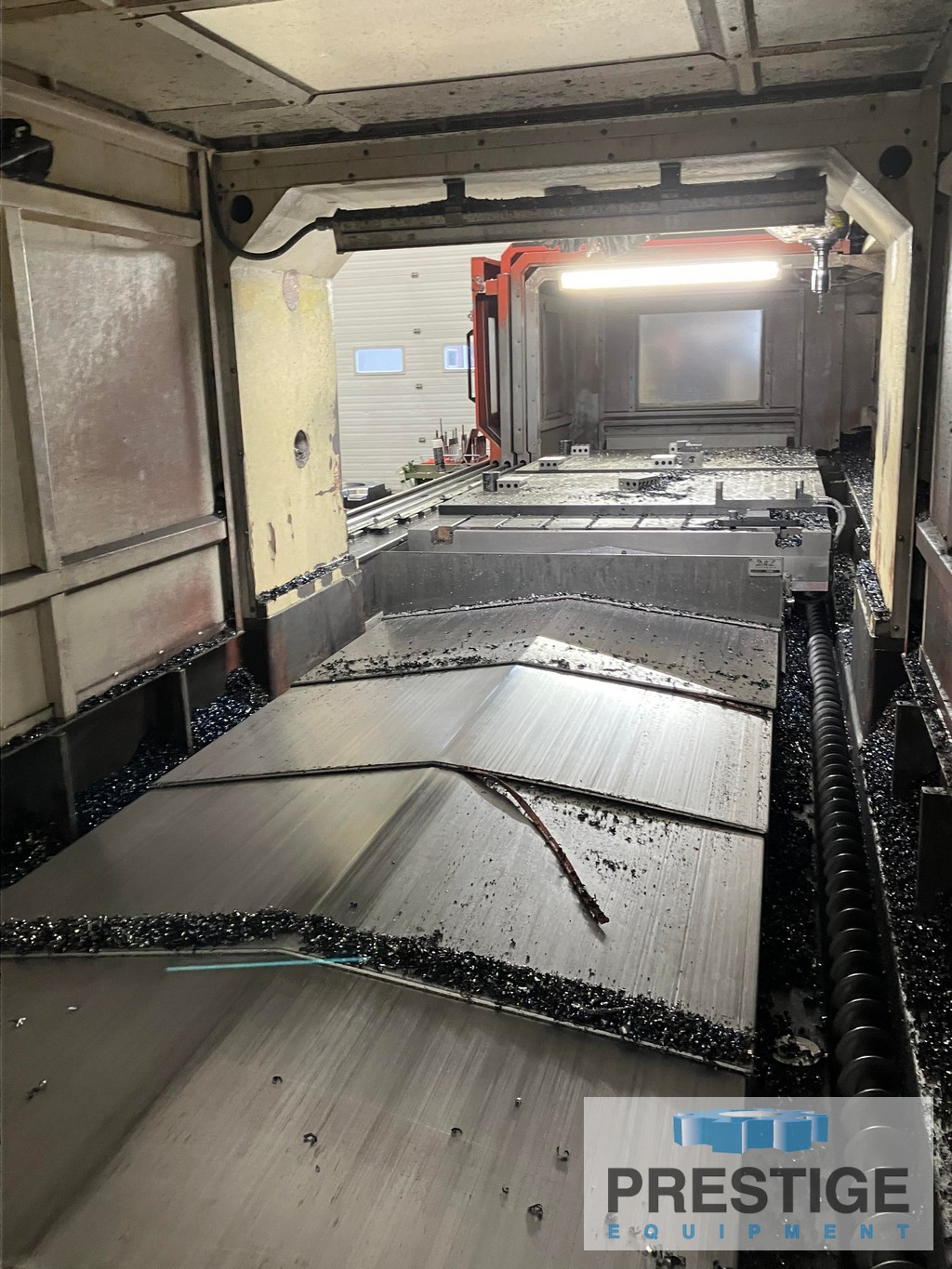

Chip Conveyor
Chip Augers
Additional Large Coolant Tank for CTS
1000 PSI Coolant Through Spindle
Laser Tool Measurement
HPCC High Speed Machining
