Trumpf TC-5000/1600, 65" x 120", Trumalift Sheet Master, Siemens 840D, 21 Station ATC, Tooling, #43271

Manufacturer

TRUMPF

Category

Punches

Type

PUNCHES, TURRET, CNC (incl. PUNCH PRESSES)

Stock

43271

Model

TC-5000/1600

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43271

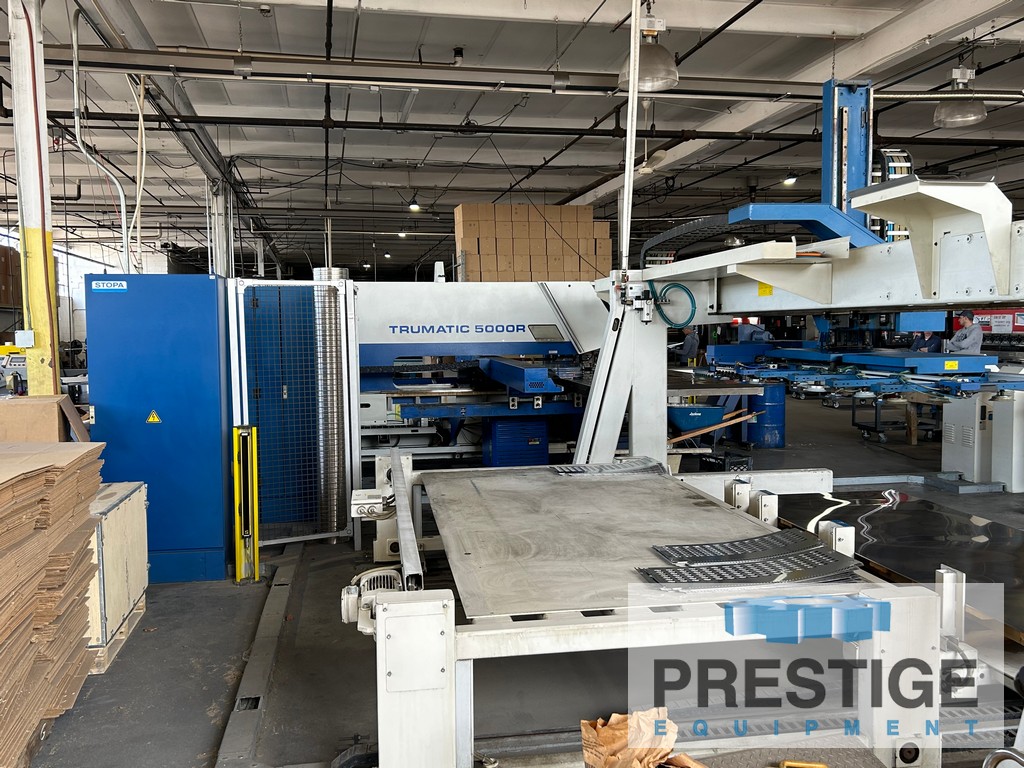

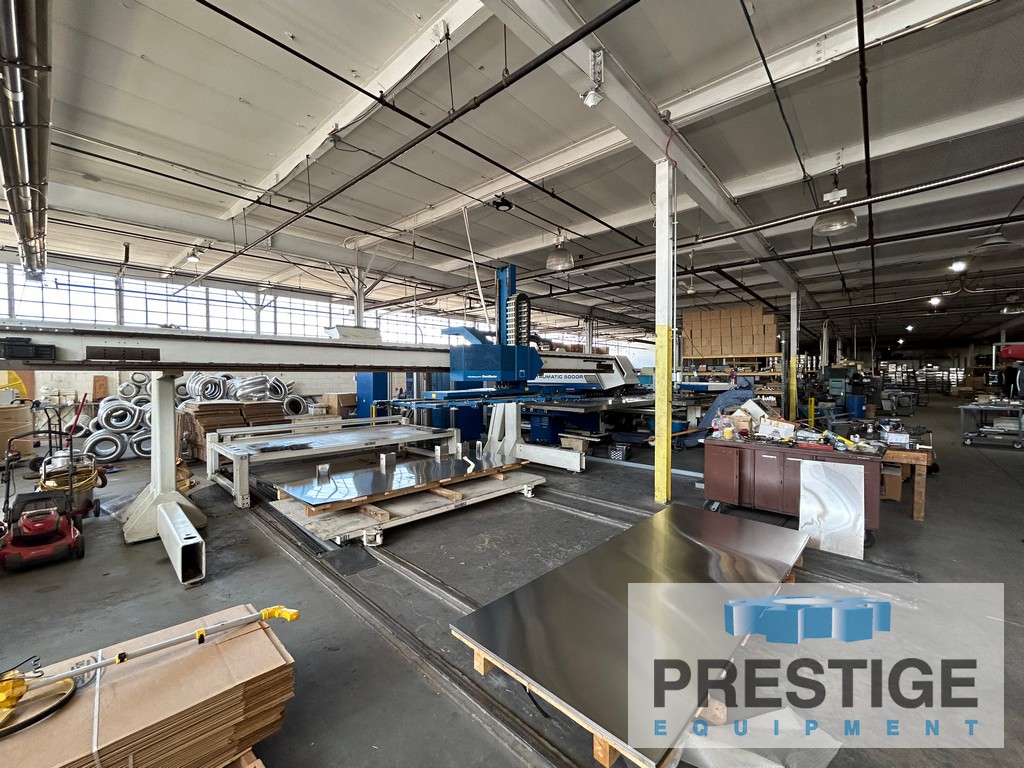

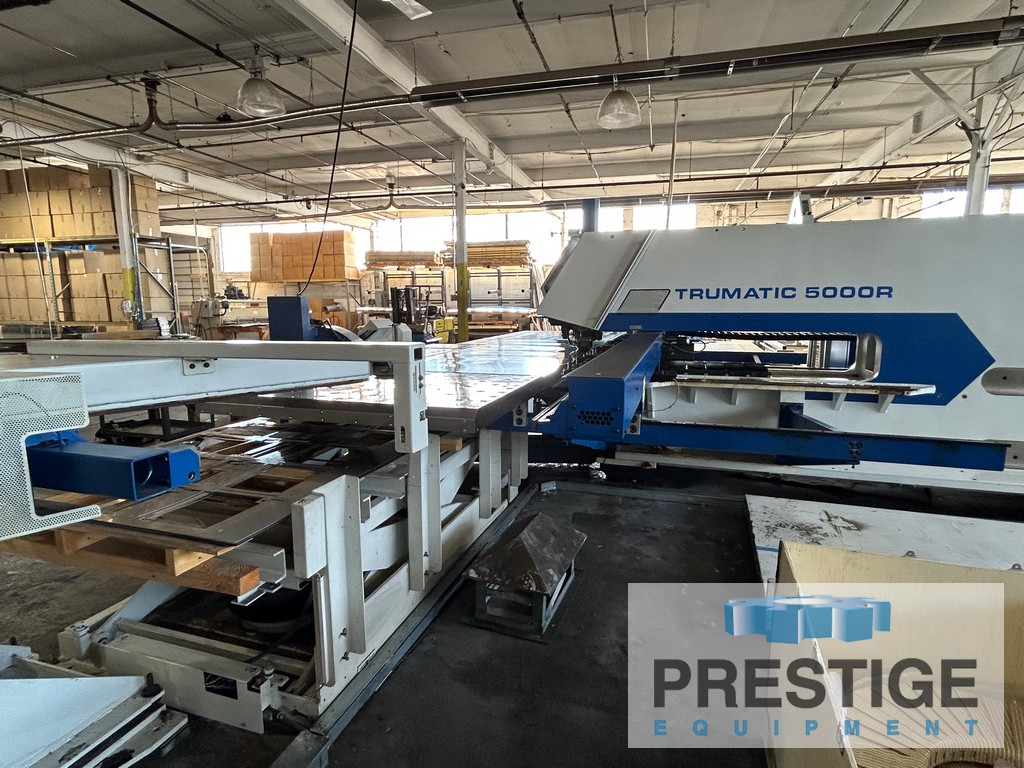

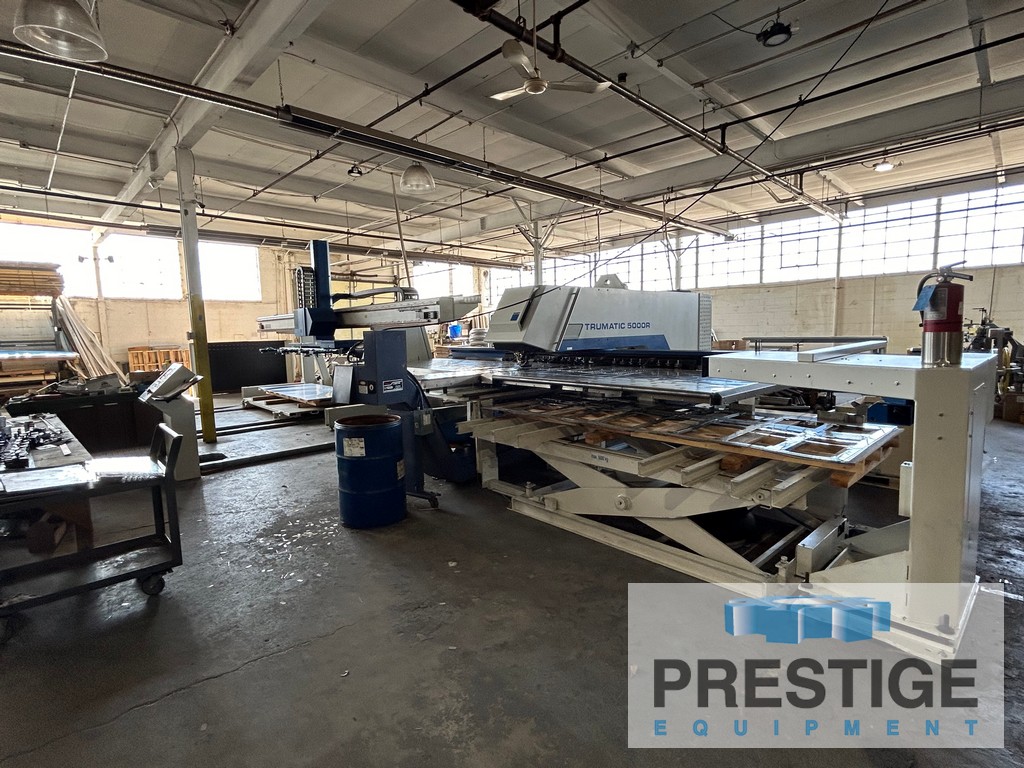

Trumpf 25 Ton TC-5000/1600 CNC Punch And Contour Machine

FEATURES:
Siemens 840D CNC Control

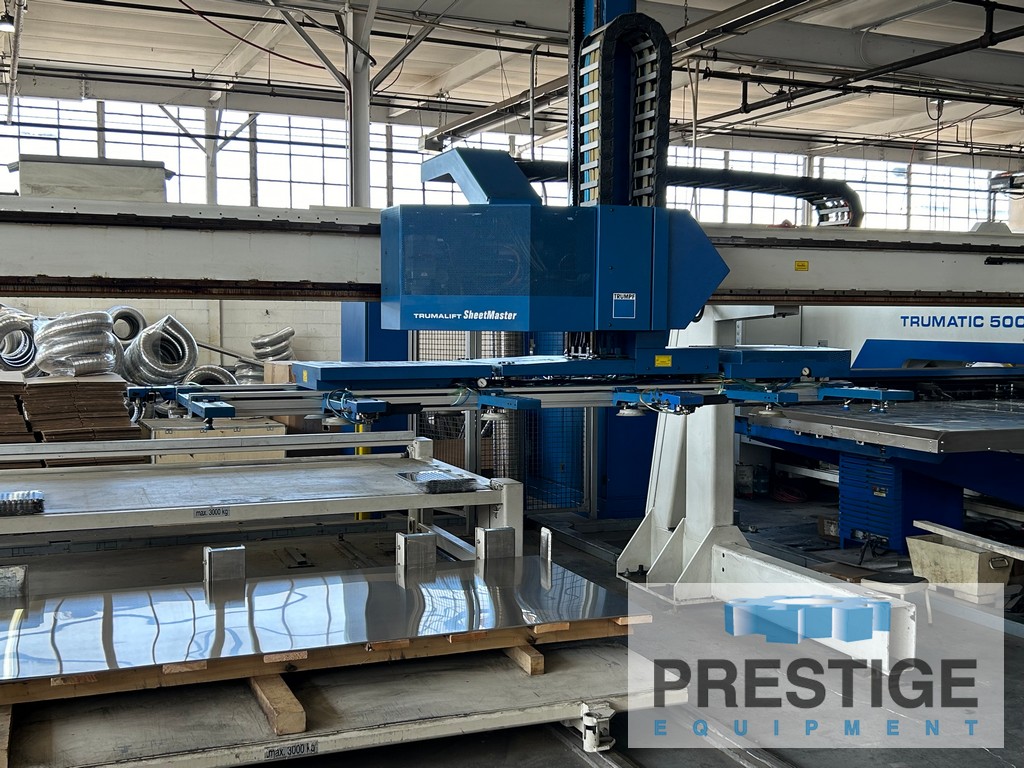

Trumalift SheetMaster
21 Station Linear Tool Changer On X-Axis Rail
CNC Rotation all 21 Stations

CAPACITY:
Tonnage Capacity ..................... 25 Tons
Maximum Sheet Thickness .............. .31"
Maximum Punch Diameter ............... 3"
Maximum Work Piece Weight ............ 510 Lbs.
Y-Axis Table Travel .................. 65"
X-Axis Table Travel .................. 120"
Max. Stroke Per Minute (1" Centers) .. 300
X-Axis Speed ......................... 4000 IPM
Y-Axis Speed ......................... 2340 IPM
C-Axis Speed ......................... 330 RPM
Positioning Accuracy ................. +/-.004"

EQUIPPED WITH:

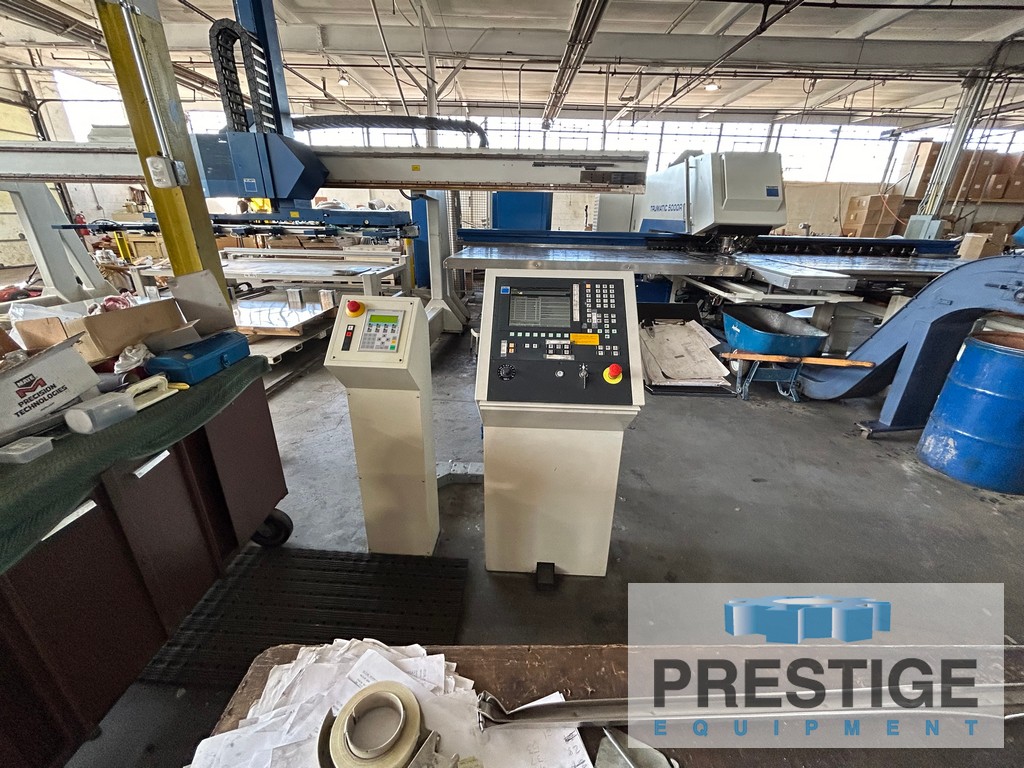

Siemens Sinumerik 840D CNC Control

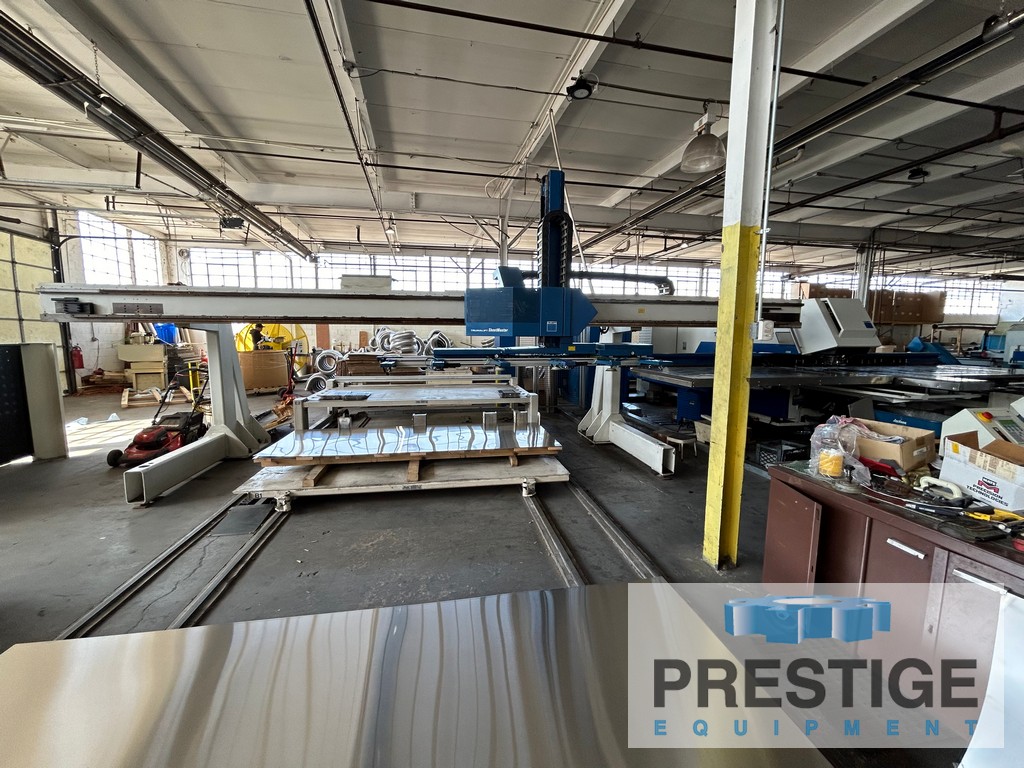

Trumalift SheetMaster
Programmable Part Chute, 20" x 20" Max. Part
21 Station Linear Tool Changer On X-Axis Rail
CNC Rotation all 21 Stations
Automatic Sheet Repositioning
Light Barrier Safety System-Full Perimeter

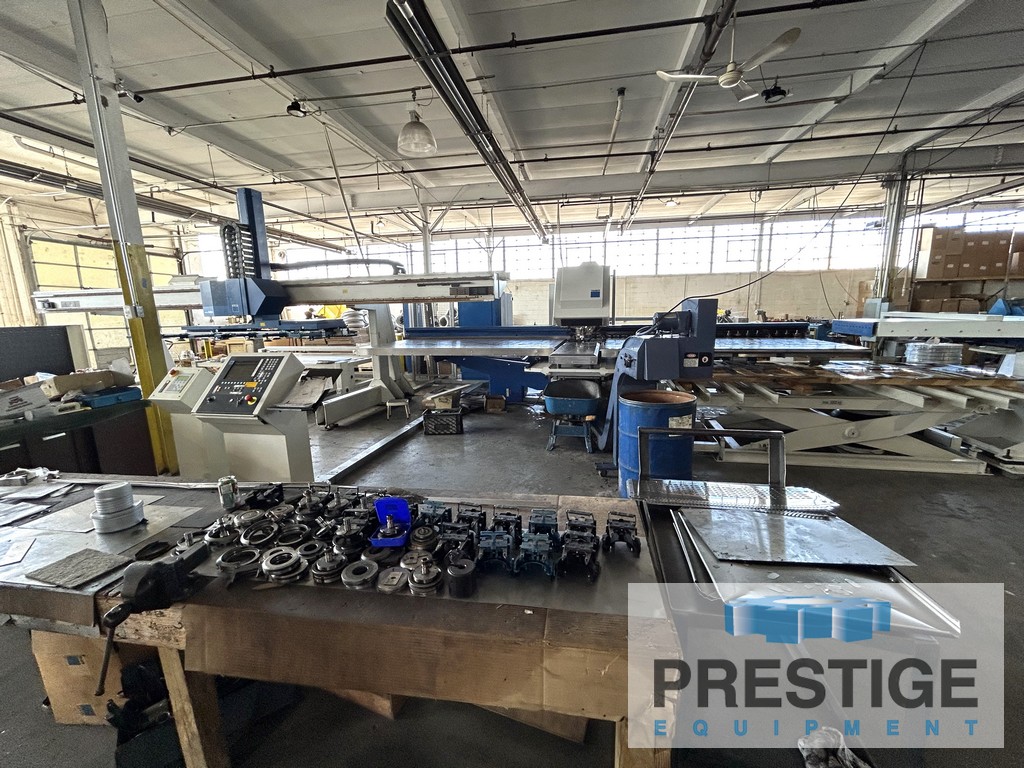

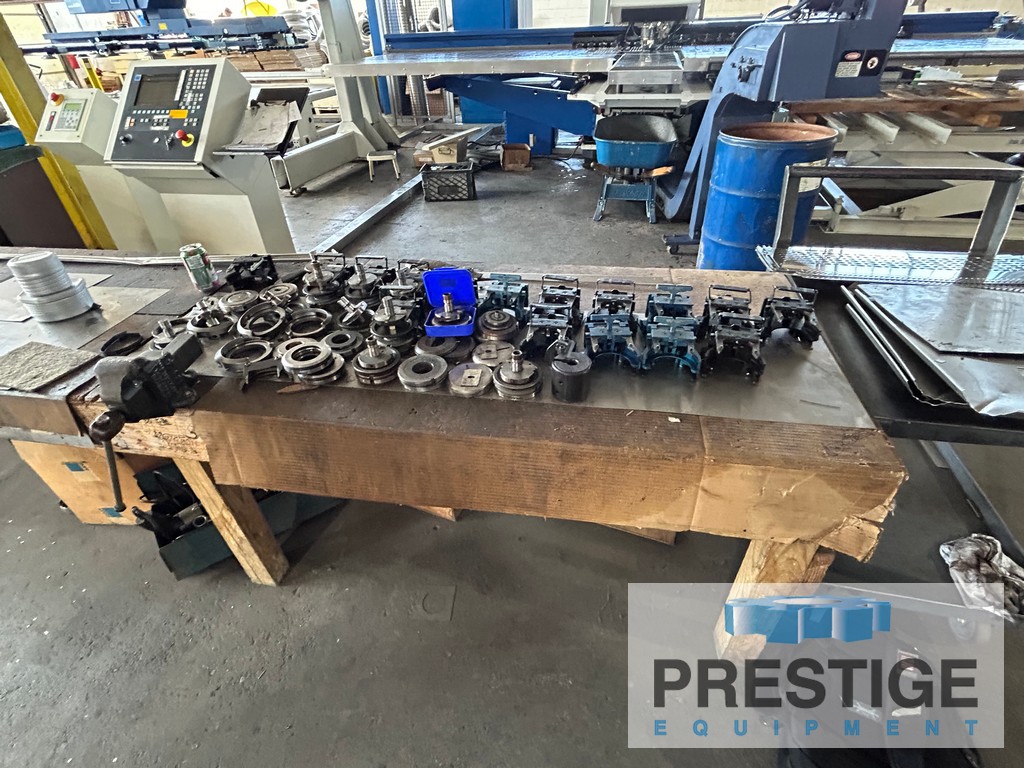

All Related Tooling

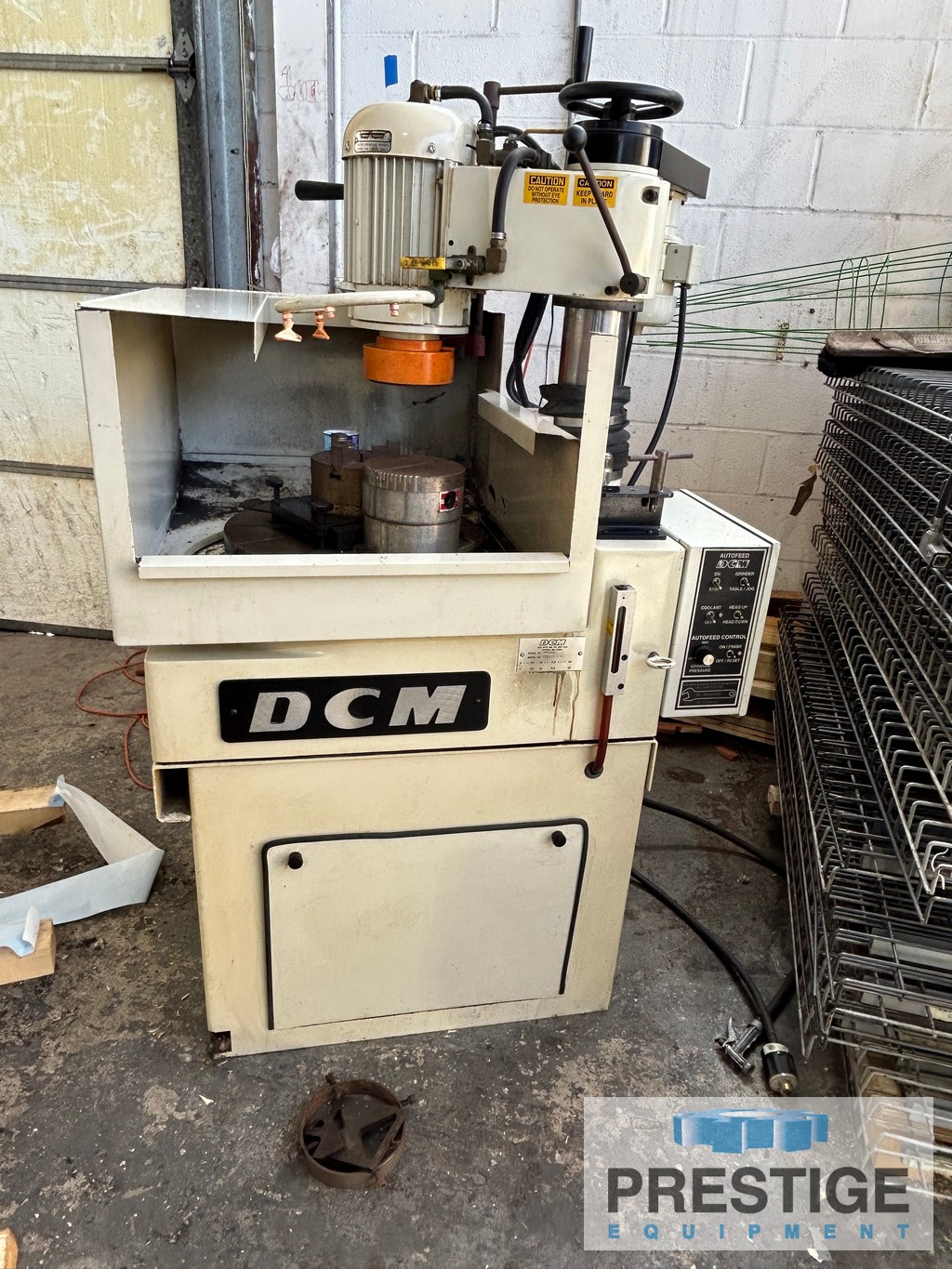

NOTE: Also Included, DCM Tool Sharpner

HOURS: 17,121

NOTE:
Inspect in Plant Under Power
