YCM DCV6030 BF, X-220", Y-120", Z-40", 236" x 118" Table, 6K RPM, 60-ATC, ACC, Angle Head, TSC, Fanuc 200FB, #43317

Manufacturer

YCM

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

43317

Model

DCV6030 BF

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43317
YCM DCV6030 BF CNC Vertical Bridge Mill

FEATURES:

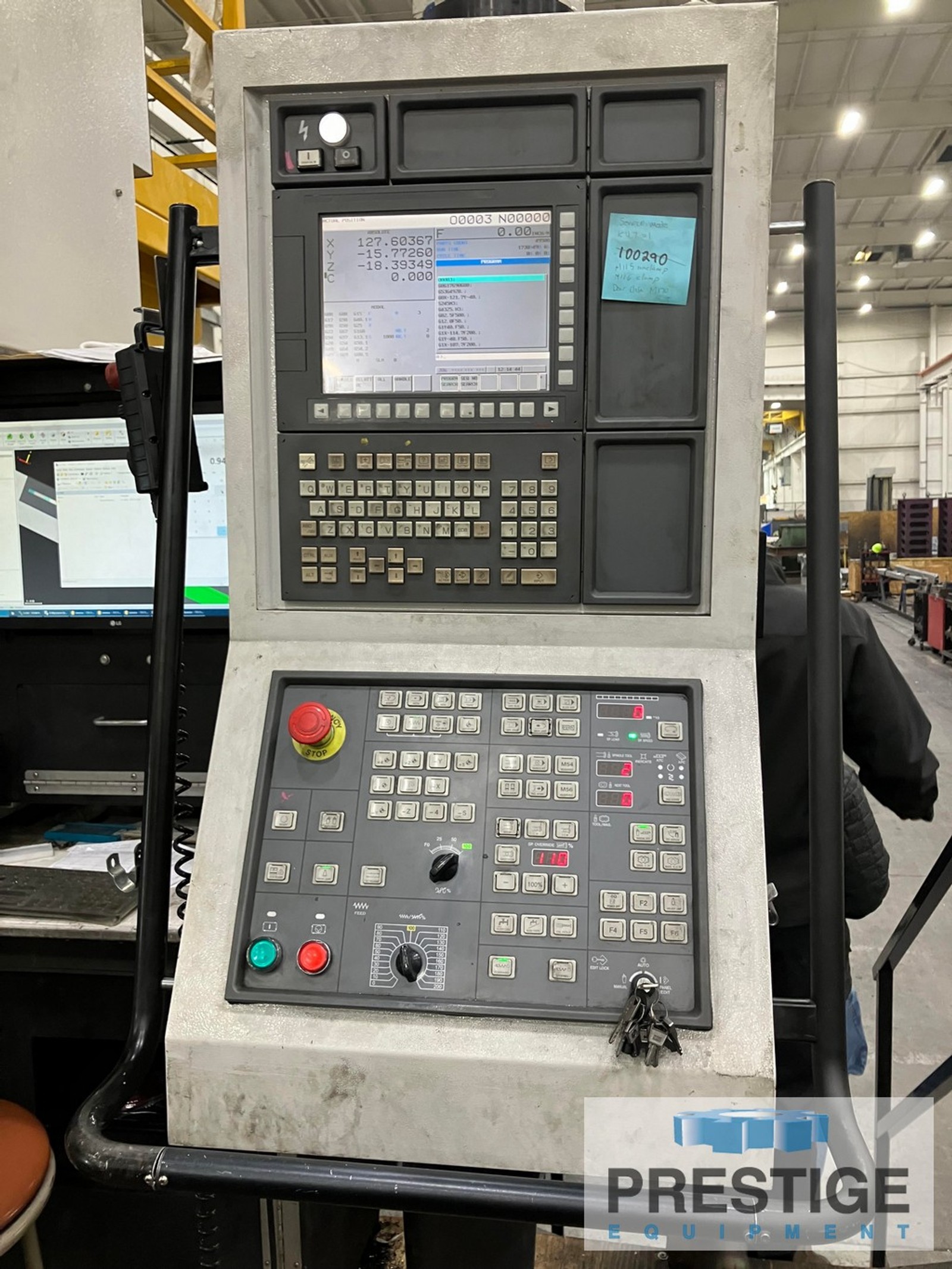

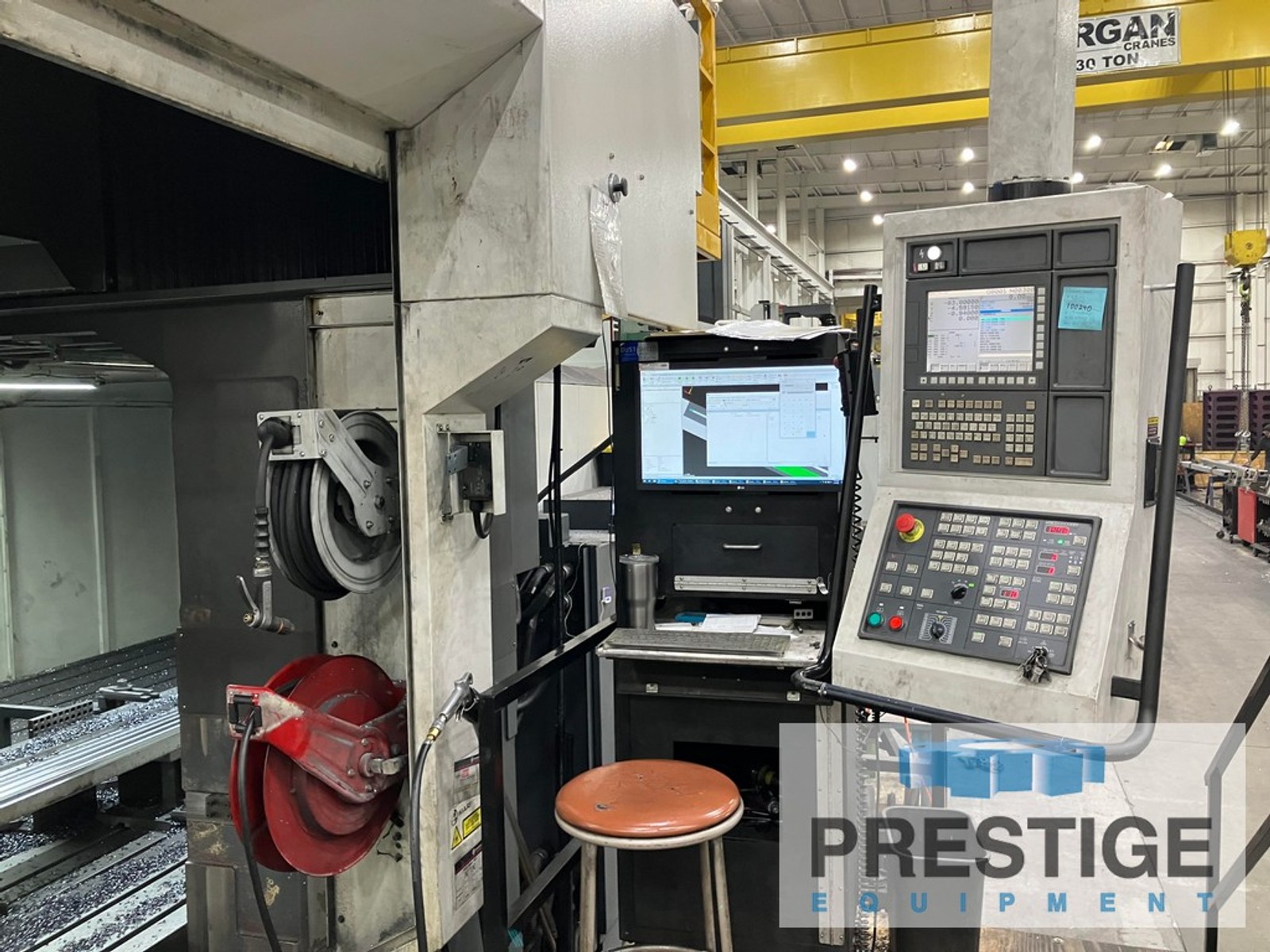

Fanuc 200FB CNC Controls
60-Station Automatic Toolchanger
Automatic Attachment Changer

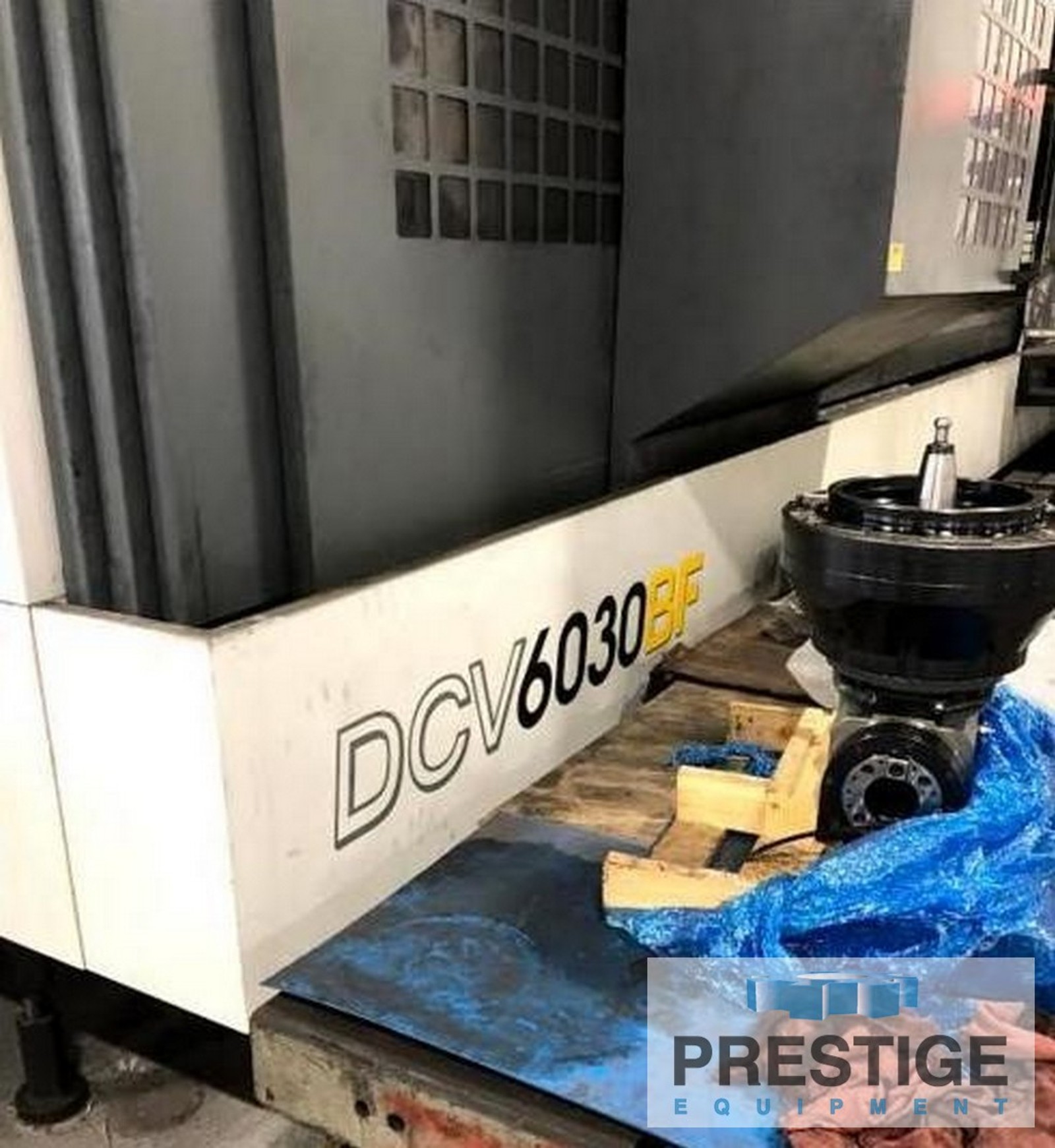

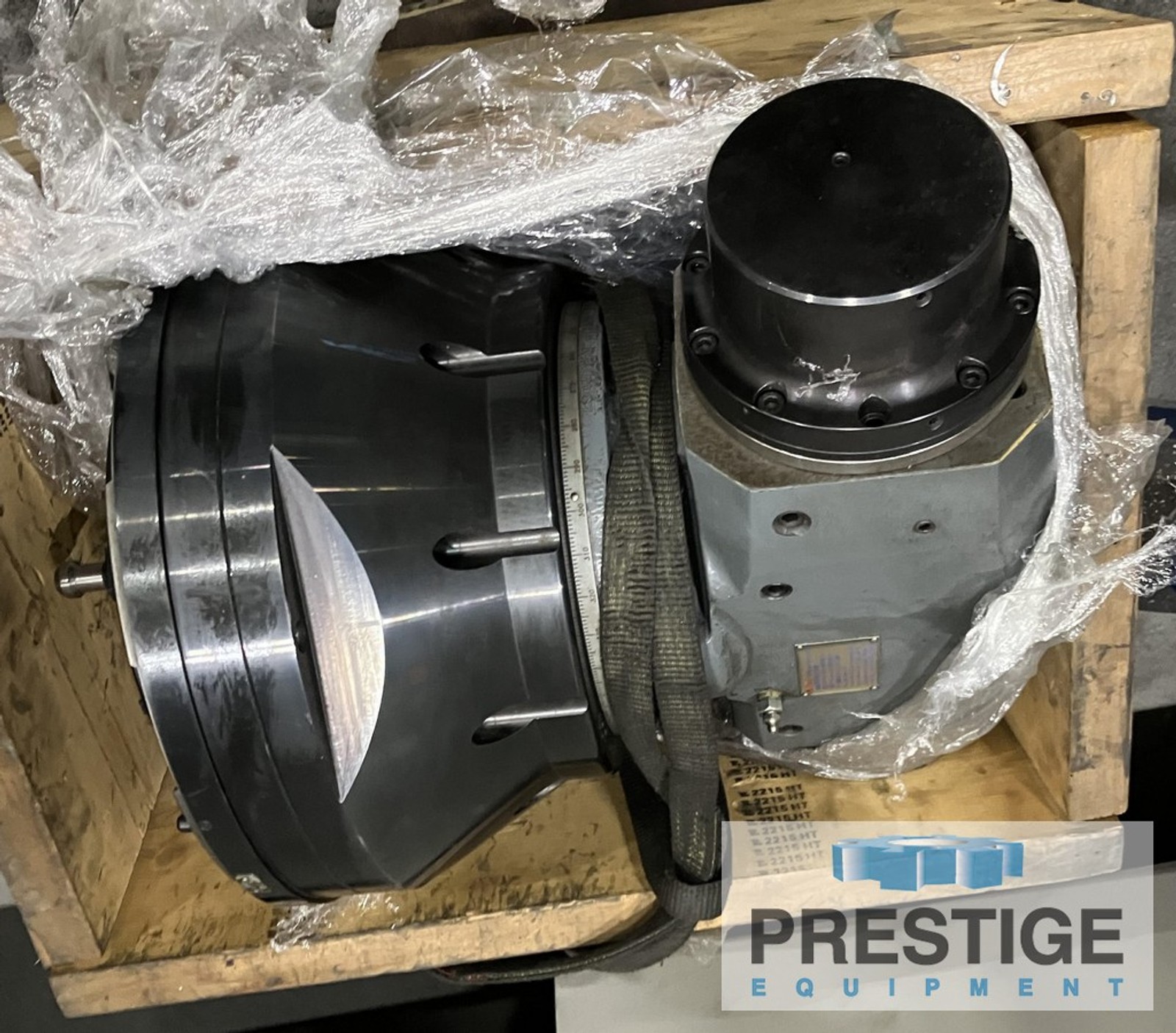

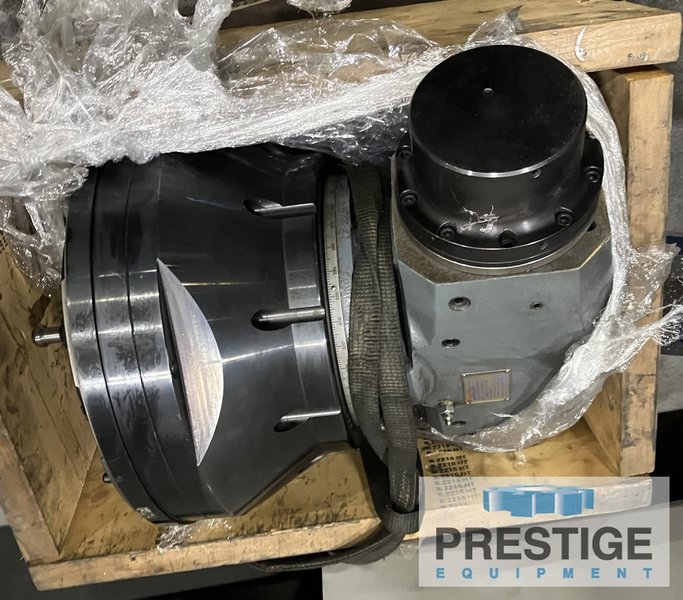

90 Degree Auto Indexing Right Angle Head (Rebuilt Recently)

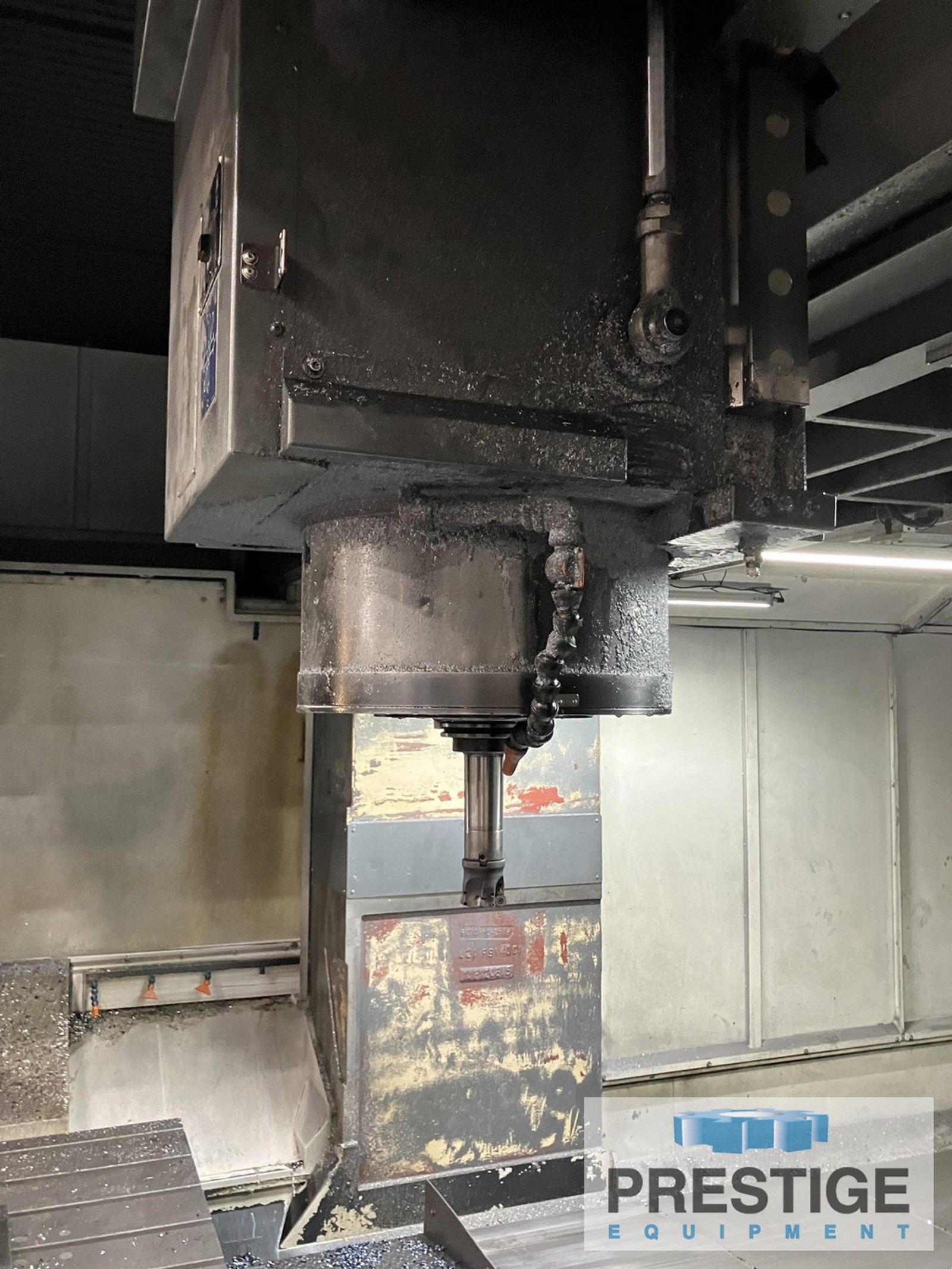

High Torque Spindle
Full Chip Enclosure with Roof
2GB Data Server
High Speed Skip Function
250 MM Additional Column Height
Heidenhain Scales on X, Y & Z
Through Spindle Coolant with Filtration
Spindle Load Compensation
Marposs Gauge Tool Laser Measurement
Renishaw Touch Probe
Chip Conveyor
Spindle Chiller
Steel Sliding Way Covers

Specifications:
Table Travel, X-Axis ................. 220"
Ram Cross Travel, Y-Axis ............. 120"
Ram Stroke, Z-Axis ................... 40"

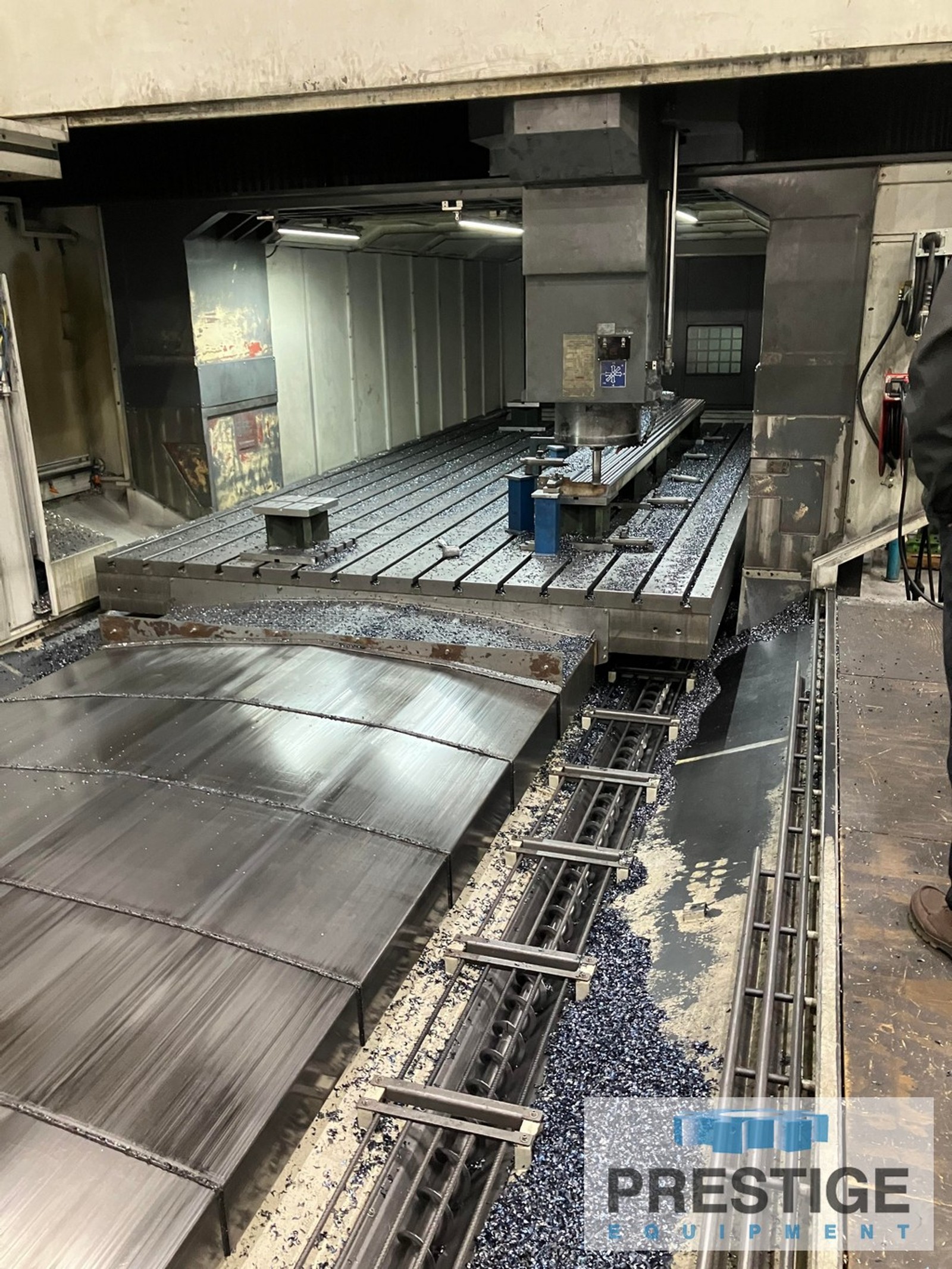

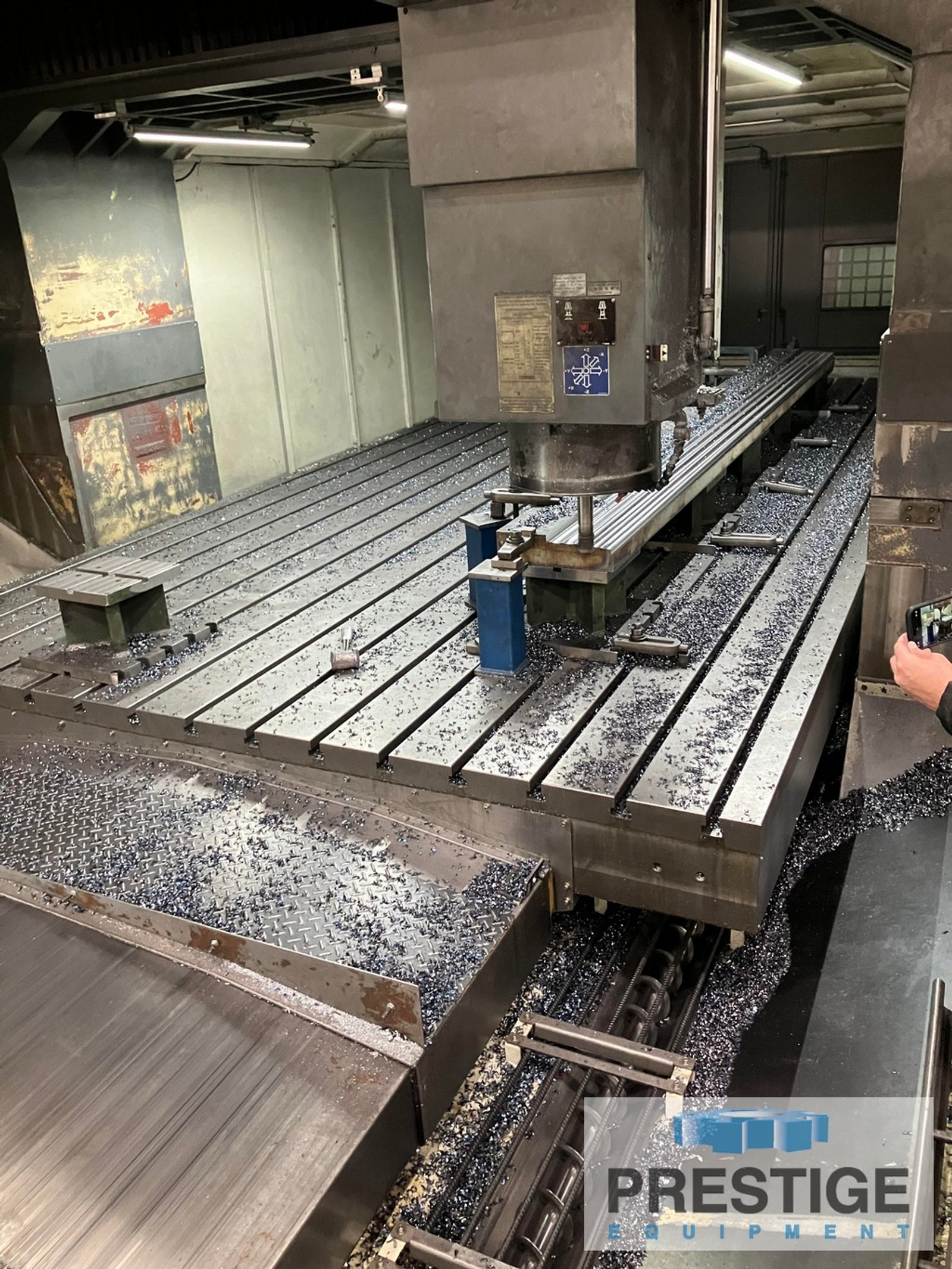

Table Size ........................... 236.22" X 118.11"
Distance Between Columns ............. 122"
Spidnle Nose to Table, Max ........... 50.63"
Spindel Nose to Table, Min ........... 20.63"
Spindle Speeds, Max .................. 6000 RPM
Spindle Ranges, Geared ............... 2
Spindle Taper ........................ CAT #50
Feed Rates ........................... X,Y,Z AXES .04-394 IPM
Table Load Capacity .................. 55,110 LBS
Machine Weight ....................... 153,000 LBS

EQUIPPED WITH:
Fanuc 200FB CNC Controls
60-Station Automatic Toolchanger
Automatic Attachment Changer
90 Degree Auto Indexing Right Angle Head (Rebuilt Recently)
High Torque Spindle
Full Chip Enclosure with Roof
2GB Data Server
High Speed Skip Function
250 MM Additional Column Height
Heidenhain Scales on X, Y & Z
Through Spindle Coolant with Filtration
Spindle Load Compensation
Marposs Gauge Tool Laser Measurement
Renishaw Touch Probe
Chip Conveyor
Spindle Chiller
Steel Sliding Way Covers

Note:
Under Power In Midwest Plant!
