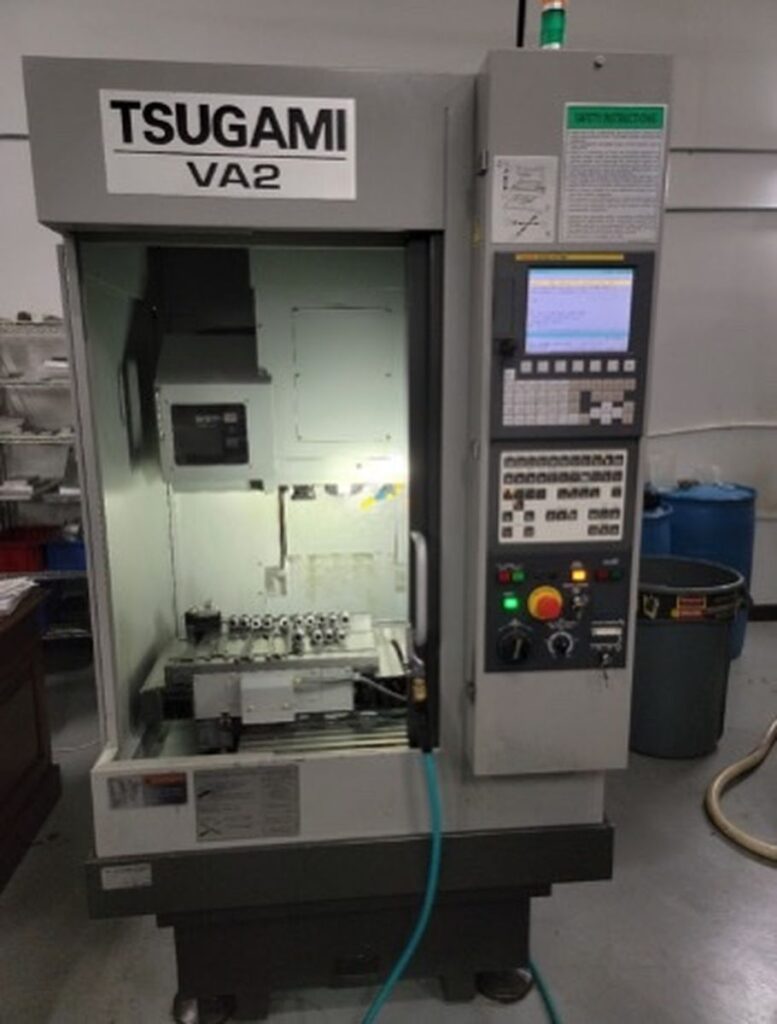

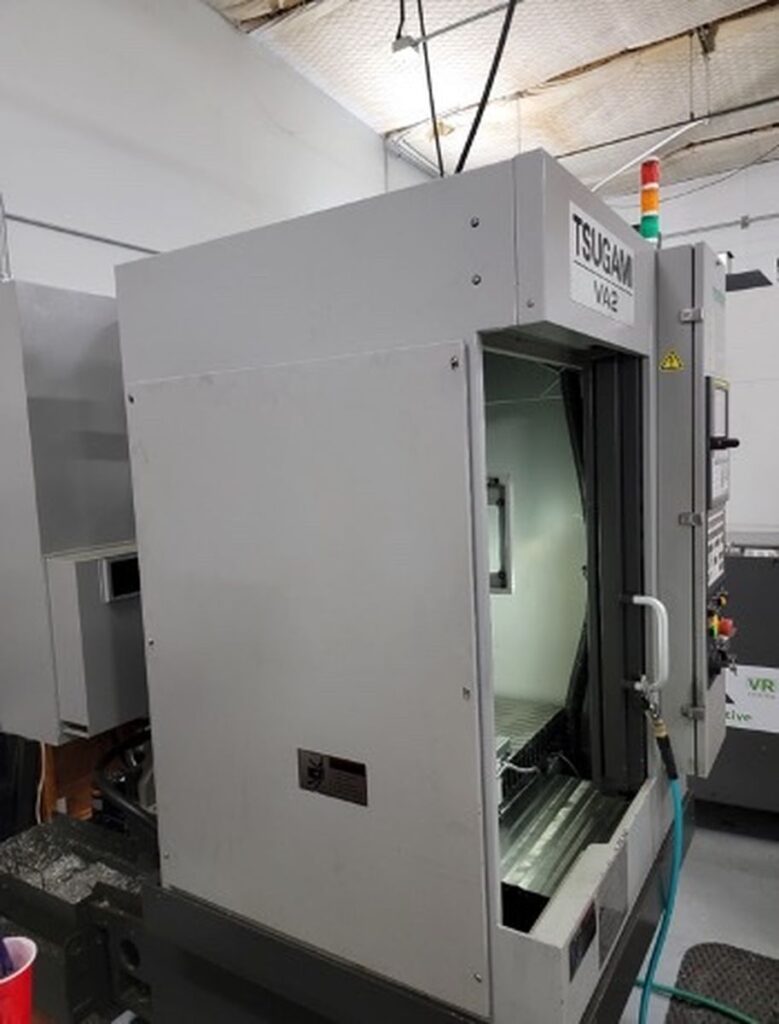

Tsugami VA2 High Speed Vertical Machining Center (2015)

Manufacturer

Tsugami

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

173240001

Model

VA2

Dealer Location

Georgia

Request a Quote
View Contact Information

Spec Sheet

  • Stock #: 173240001
  • Location: TX
  • Brand: Tsugami
  • Model: VA2
  • Year: 2015
  • Approx. Shipping Weight: 3,975 Lbs.
  • Approx. Shipping Dimensions: 42″ L x 80″ W x 78″ H
  • Loading Fee: Rigging Required

Specifications

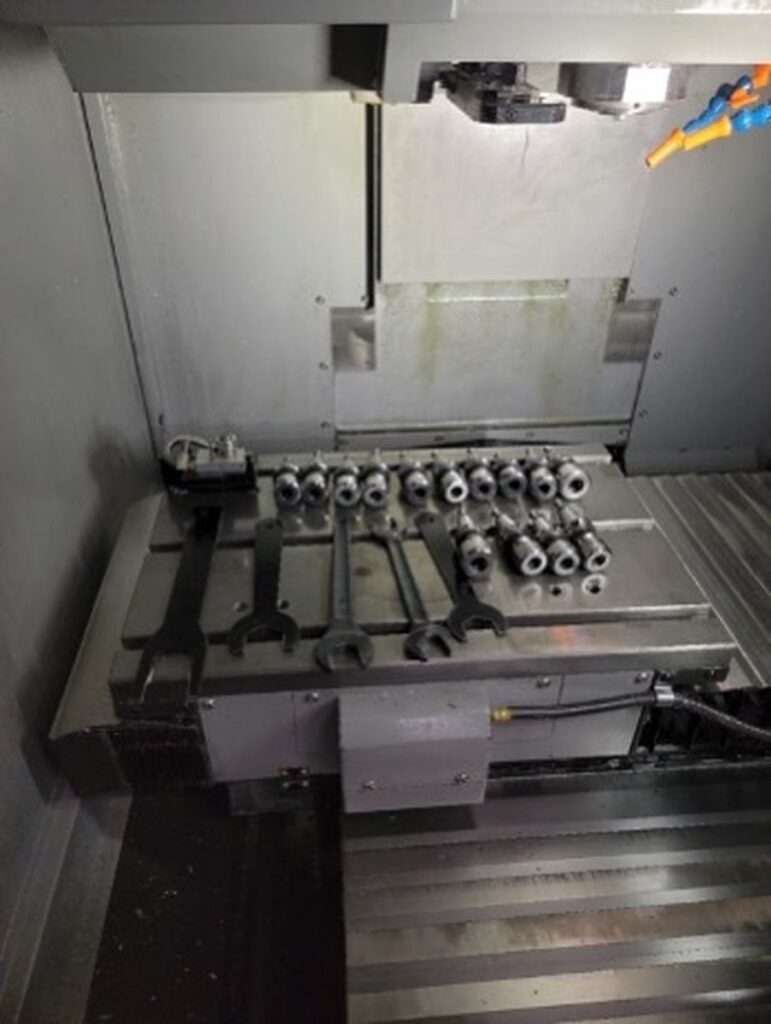

  • Table size: 500 mm x 300 mm
  • Distance between spindle face and table face: 110 mm – 360 mm
  • Maximum weight on table: 200 kg (uniformed load)
  • X-axis stroke: 360 mm
  • Y-axis stroke: 260 mm
  • Z-axis stroke: 250 mm
  • Rapid traverse rate (X, Y, Z axis): 40 m/min
  • Cutting feed rate: 1 to 30,000 m /min
  • Spindle taper: 7/24 taper S20T
  • Spindle speeds: 7/24 taper S20T Spindle speeds 300 to 30,000 min-1 (Normal highest spindle speed 28,000 min-1)
  • Tool storage capacity: 14 tools (Maximum mountable tool number: 15 tools)
  • Maximum tool size (W x L): 60 mm x 130 mm

Equipped With

Helical Interpolation, Tool Breakage Detection, Rigid Tapping, Tool Setter, Spindle Retention Force Gauge, Renishaw Probe, misc. ER16 & ER20 Holders

Additional Info

Machine can be inspected upon request.

This machine is being sold from our client’s facility and is sold AS-IS (Not covered under the MDNA Return Privilege). We always recommend machine be inspected in person to verify condition.
