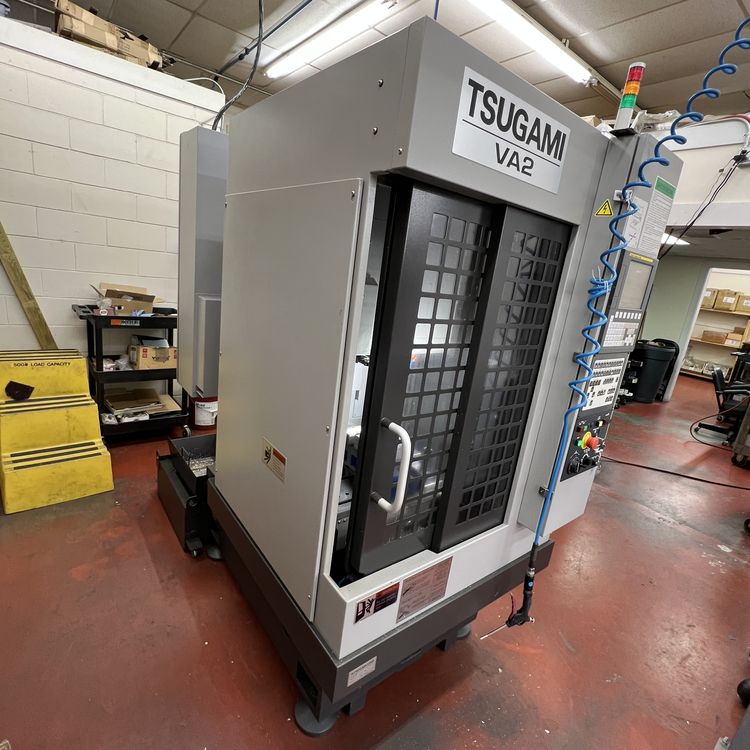

Tsugami VA2 High Speed Vertical Machining Center

Manufacturer

Tsugami

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

121230008

Model

VA2

Dealer Location

Georgia

Request a Quote
View Contact Information

Spec Sheet

  • Stock #: 121230008
  • Location: GA
  • Brand: Tsugami
  • Model: VA2
  • Year: 2018
  • Loading Fee: Rigging Required

Specifications

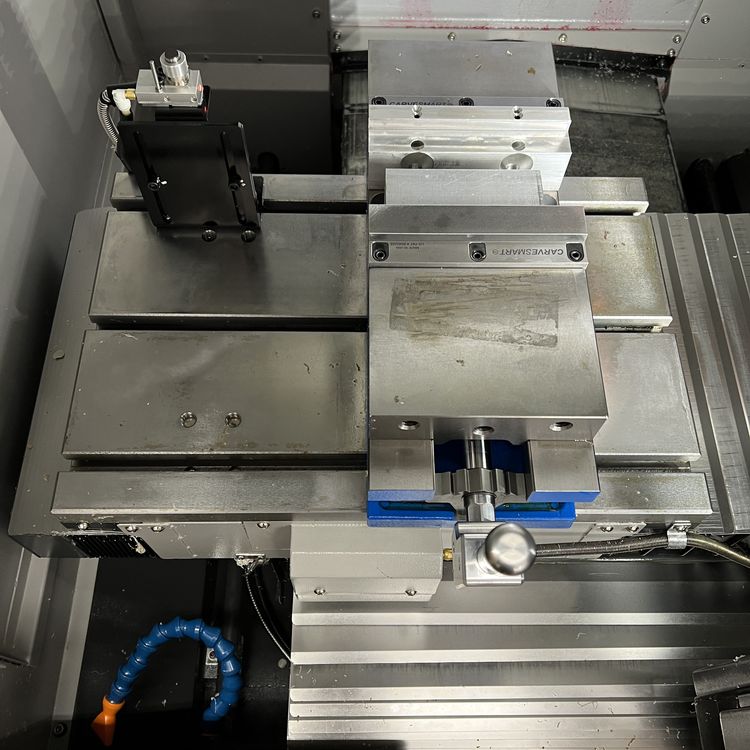

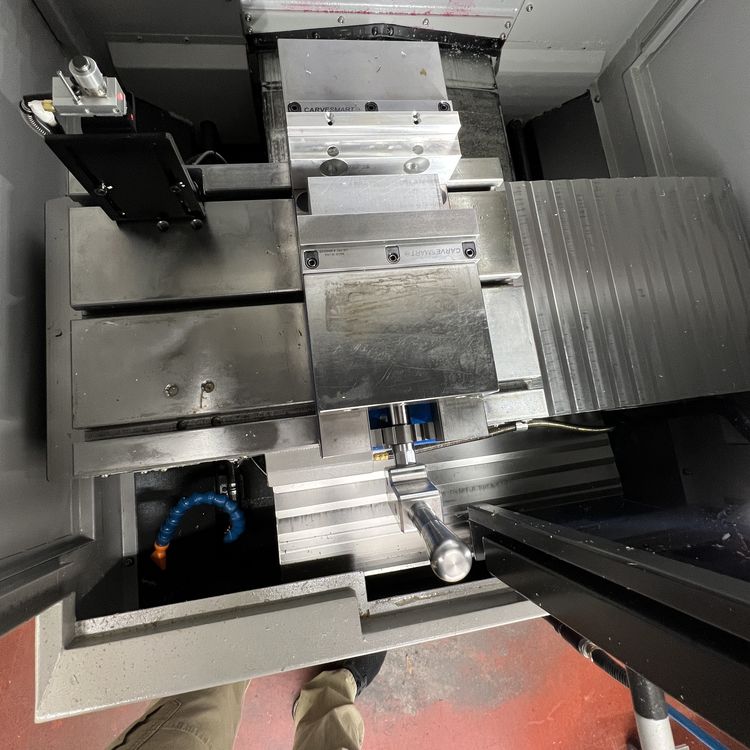

  • Table size: 500 mm x 300 mm
  • Distance between spindle face and table face: 110 mm – 360 mm
  • Maximum weight on table: 200 kg (uniformed load)
  • X-axis stroke: 360 mm
  • Y-axis stroke: 260 mm
  • Z-axis stroke: 250 mm
  • Rapid traverse rate (X, Y, Z axis): 40 m/min
  • Cutting feed rate: 1 to 30,000 m /min
  • Spindle taper: 7/24 taper S20T
  • Spindle speeds: 7/24 taper S20T Spindle speeds 300 to 30,000 min-1 (Normal highest spindle speed 28,000 min-1)

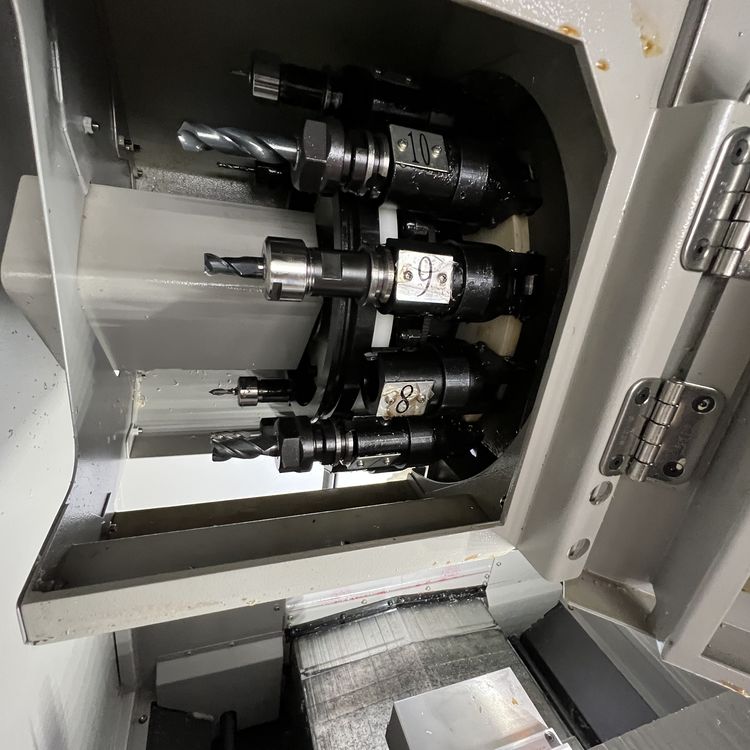

  • Tool storage capacity: 14 tools (Maximum mountable tool number: 15 tools)
  • Maximum tool size (W x L): 60 mm x 130 mm

Equipped With

30,000 RPM Integral Spindle, 14 Position High Speed ATC, Tool Breakage Detection

Additional Info

Machine can be inspected upon request.

This machine is being sold from our client’s facility and is sold AS-IS (Not covered under the MDNA Return Privilege). We always recommend machine be inspected in person to verify condition.
