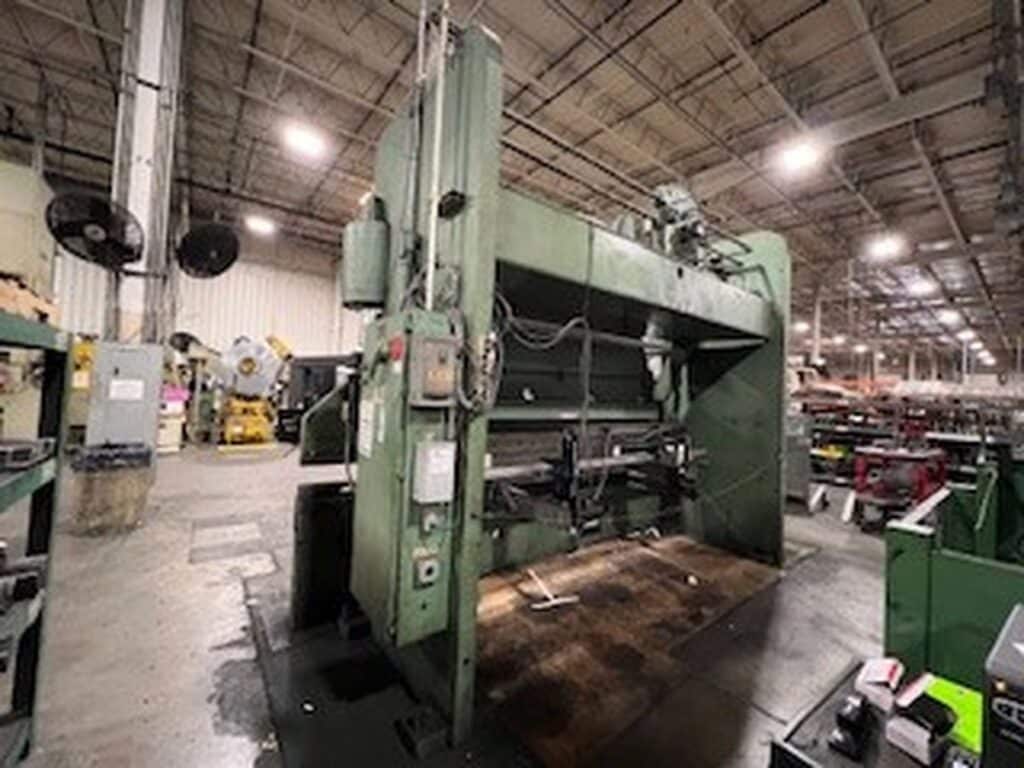

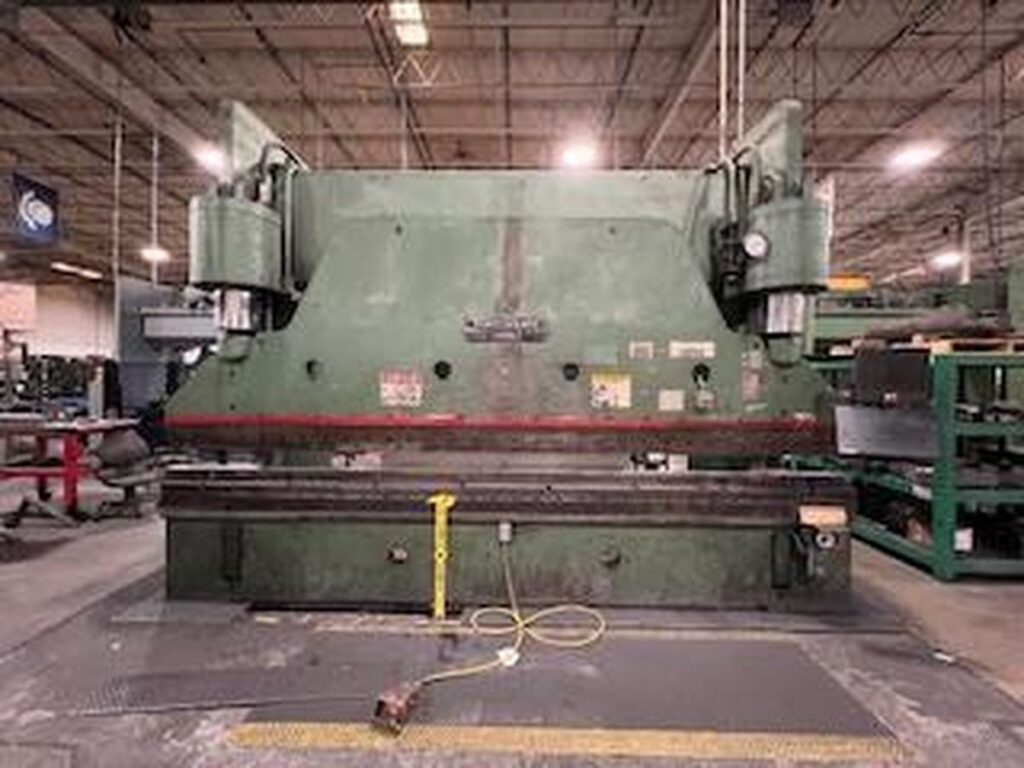

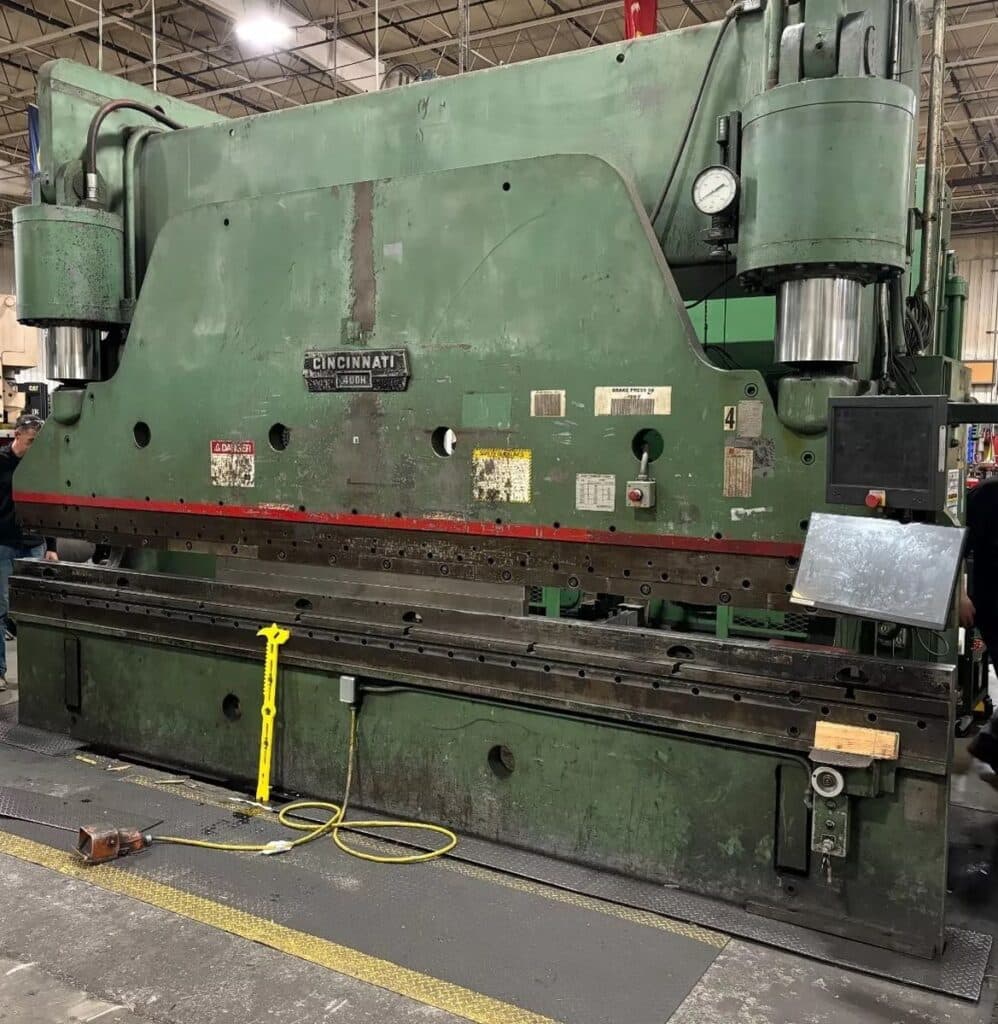

Cincinnati 400H Series 16′ x 400 Ton Hydraulic Press Brake w/ Automec CNC Backgauge

Manufacturer

Cincinnati

Category

Brakes (including Press Brakes)

Type

PRESS BRAKES

Stock

180240048

Model

400H Series

Dealer Location

Georgia

Request a Quote
View Contact Information

Spec Sheet

  • Stock #: 180240048
  • Location: Stone Mountain, GA
  • Brand: Cincinnati
  • Model: 400H Series

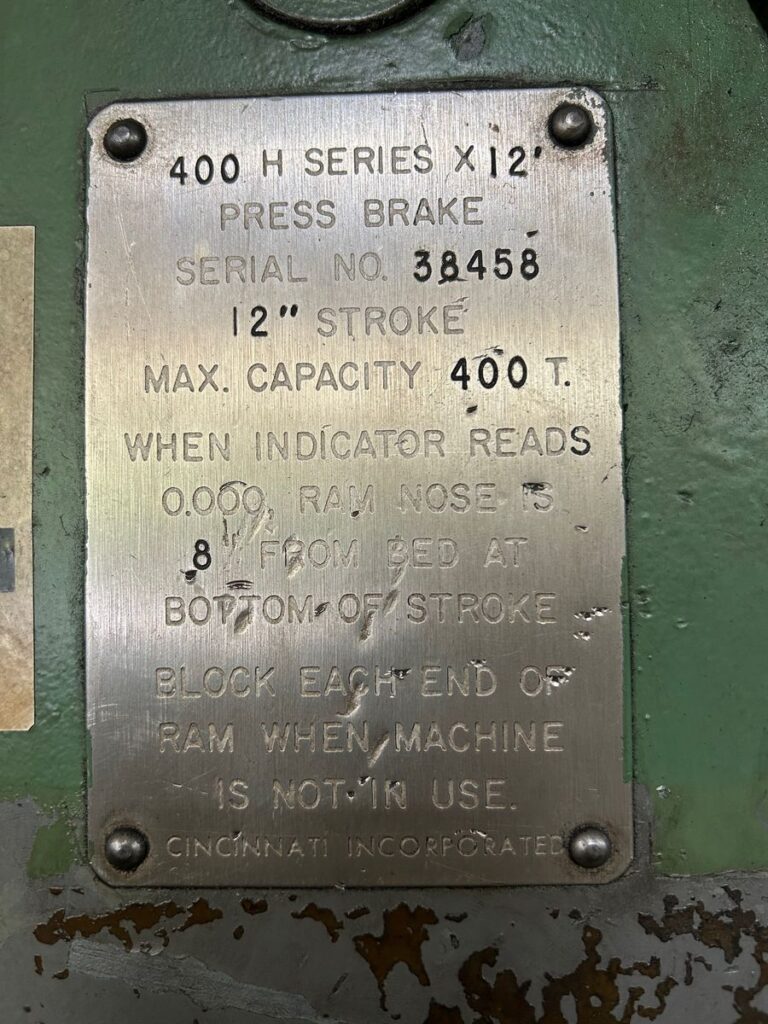

  • Serial #: 38458
  • Approx. Shipping Weight: 58,000 Lbs.
  • Approx. Shipping Dimensions: 17′ L x 8′ W x 12′ H

Specifications

  • Max Tonnage Capacity: 400 Ton
  • Overall Bed & Ram Length: 16′
  • Distance Between Housings: 12’5-3/4″
  • Stroke: 12″
  • Open Height: 20″
  • Closed Height: 8″
  • Ram Speed, Fast Press: 64 IPM
  • Ram Speed, Full Tonnage Press: 27 IPM
  • Ram Speed, Return Speed: 51 IPM
  • Main Motor HP: 40

Equipped With

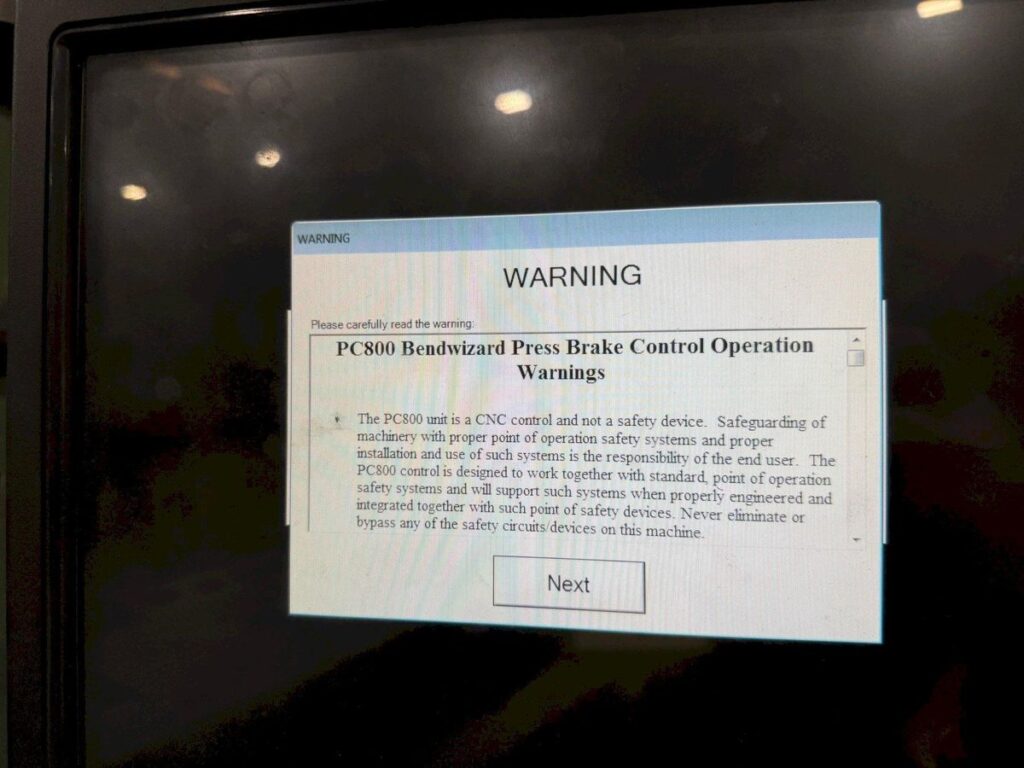

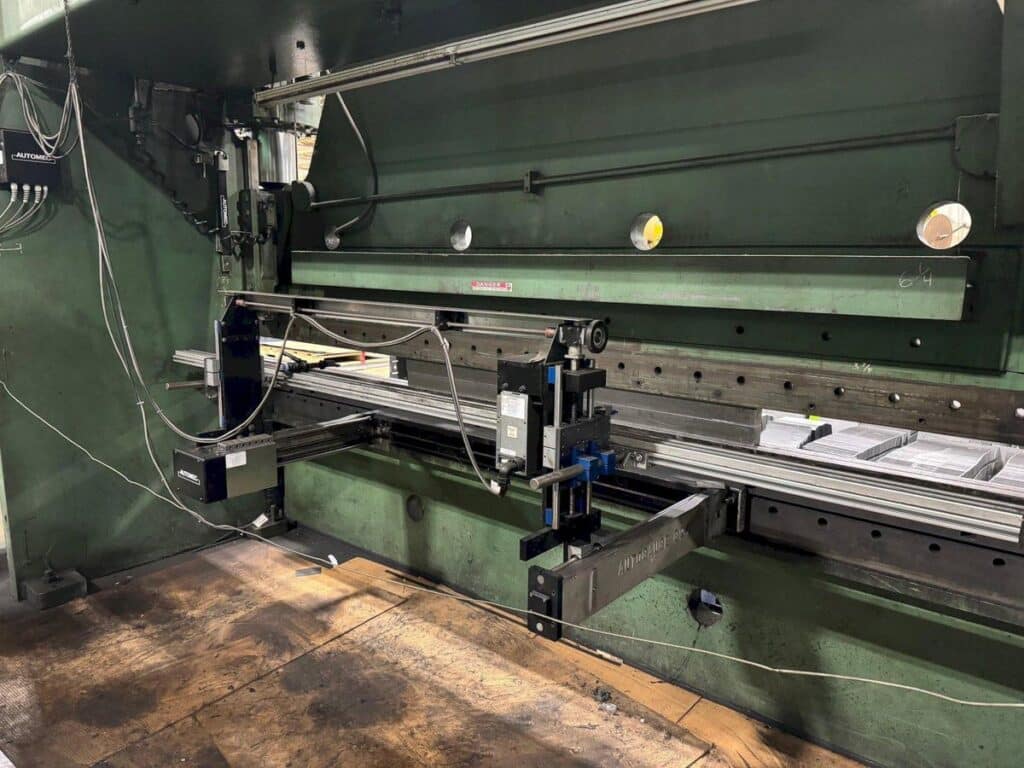

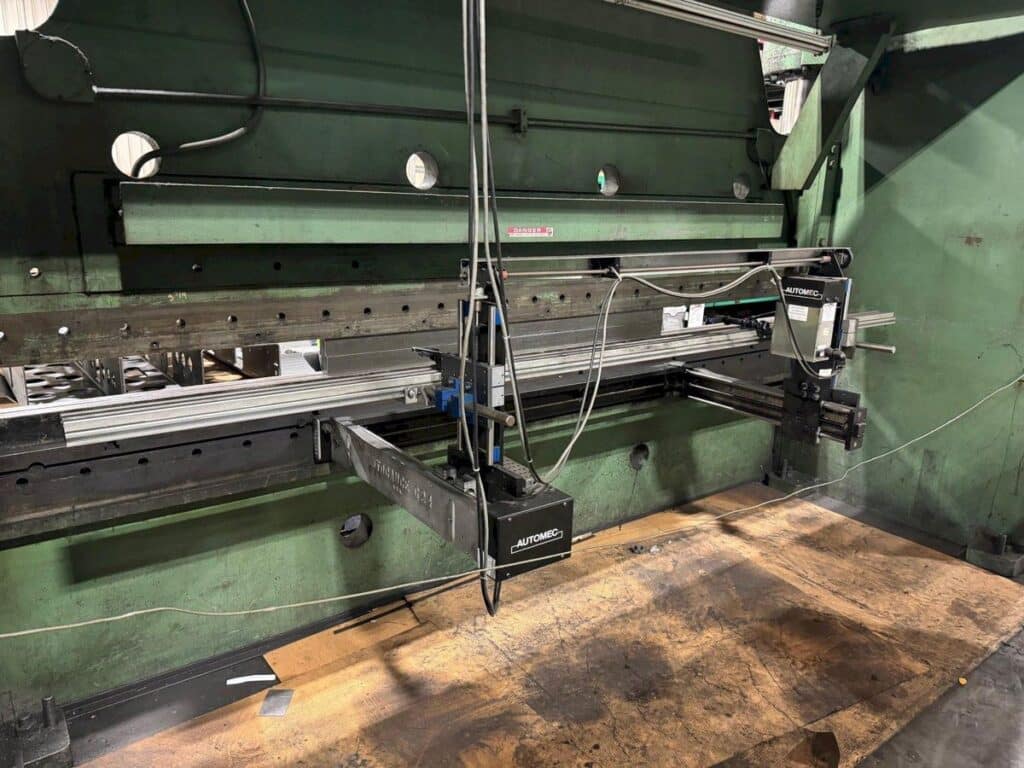

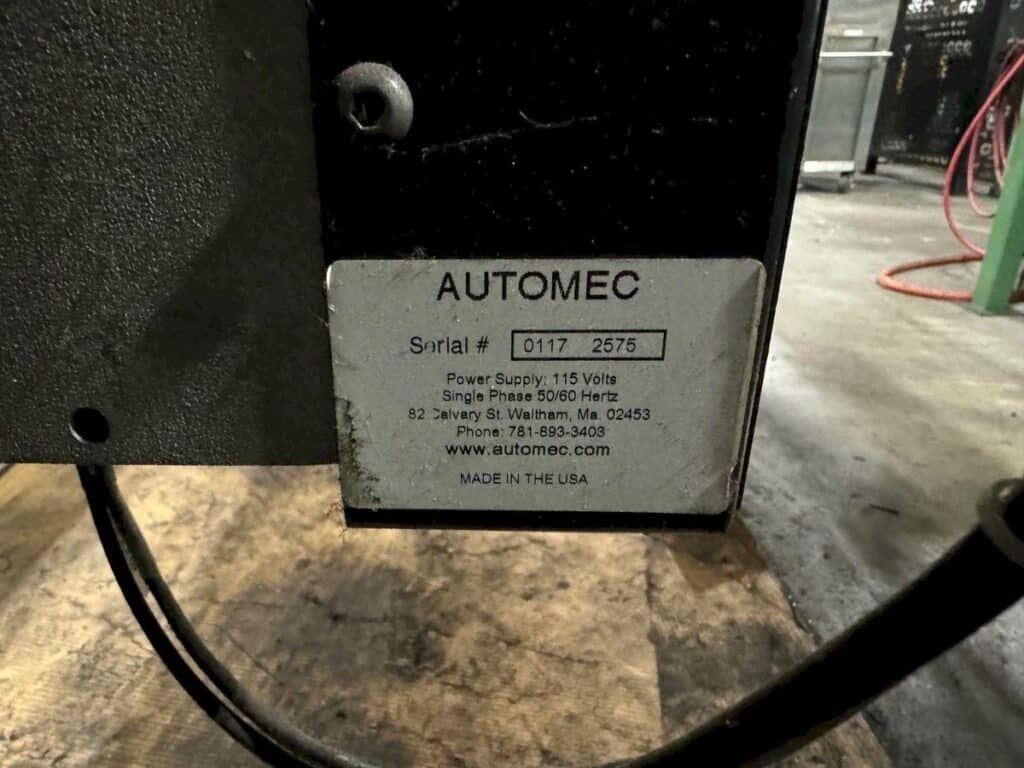

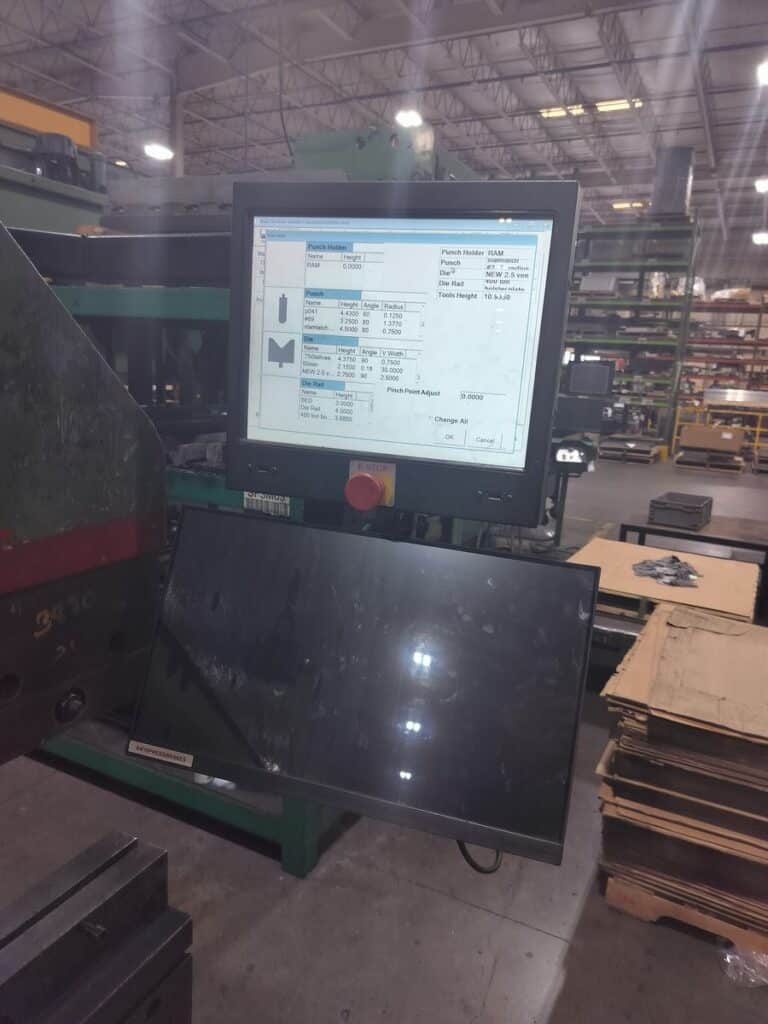

Automec Autogauge CNC Back Gauge, Electric Foot Pedal Operation, 3-1/2″ Die Filler Block

Additional Info

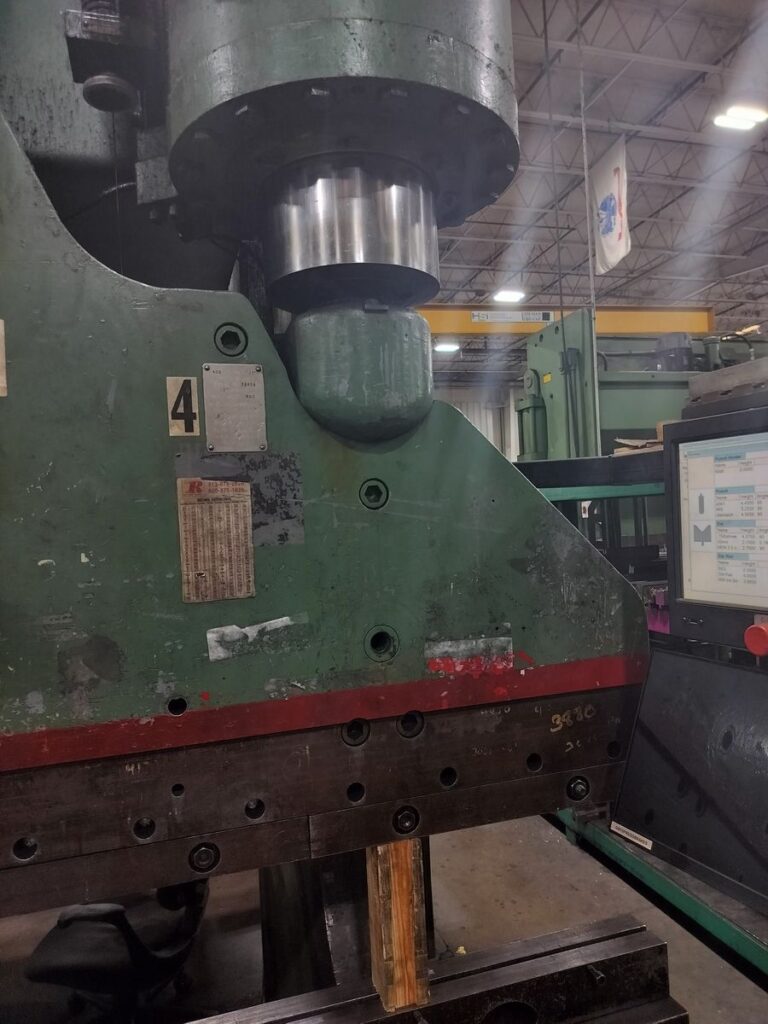

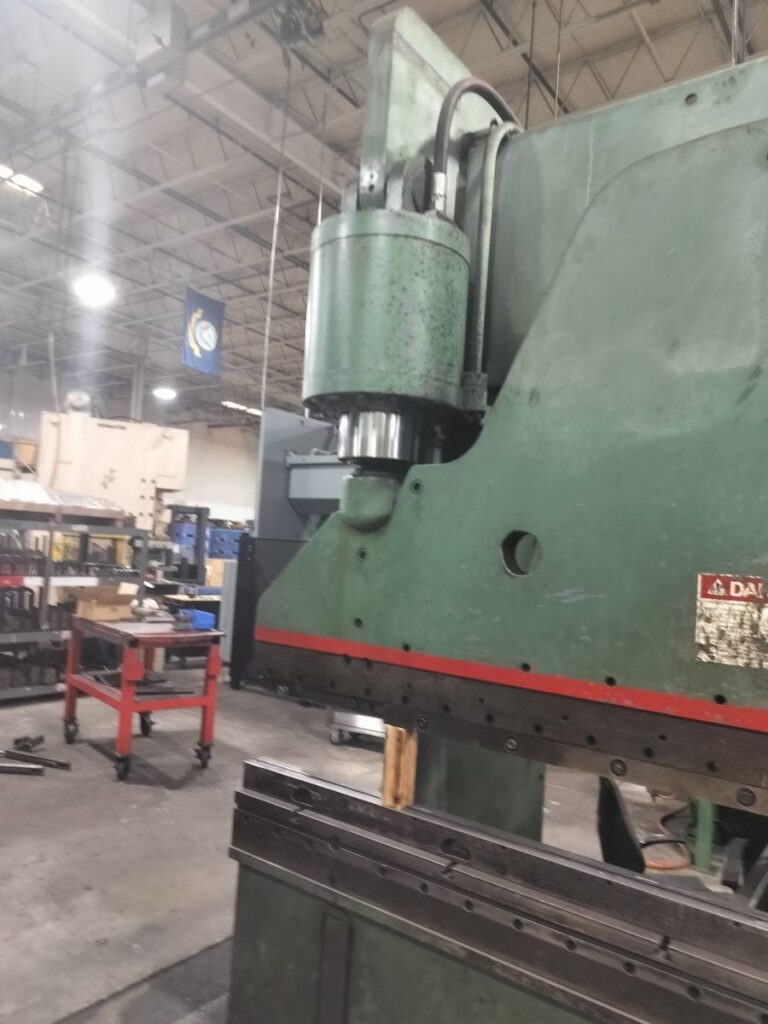

Both ram guide way clamp castings are cracked. Please see the last two photos for reference. Both cylinders leak hydraulic oil from around the wiper seals. Lower die and upper punch pictured are not included.
