Omax 55100 4' x 8' Precision Waterjet, Omax 30 HP Variable Frequency Drive Pump, Water Level Control, SRS Garnet Cleanout System, 2005, Setup & Training Available

Manufacturer

Omax

Category

Water Jet Cutting

Type

WATER JET CUTTING, CNC

Stock

None

Model

55100

Dealer Location

Missouri

Request a Quote
View Contact Information

Spec Sheet

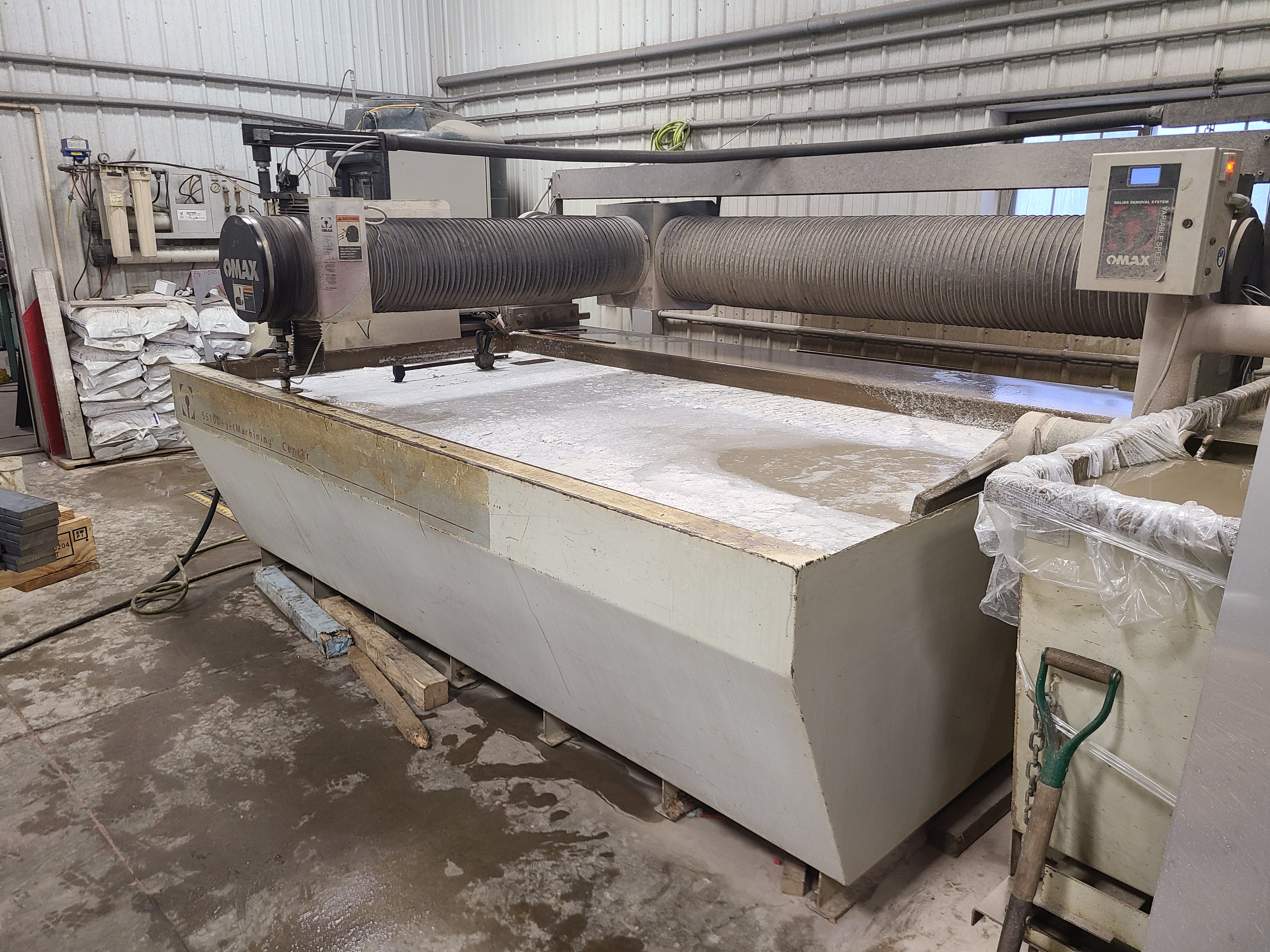

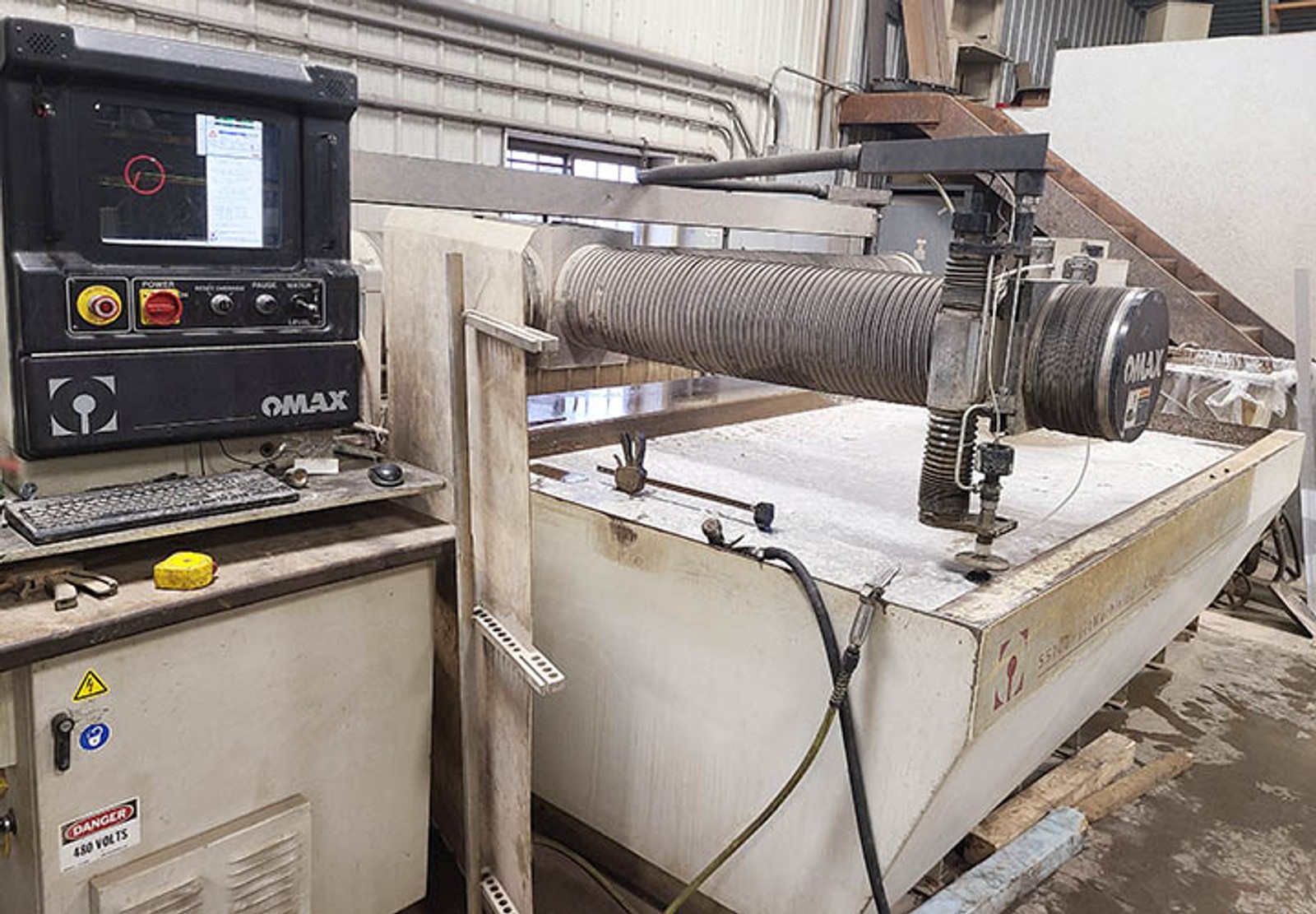

Used OMAX Model 55100 Precision WaterJet
With Omax 30 HP Variable Frequency Drive Pump

Manufactured - 2005, Approx 6,000 Hours
Serial #B511912

MACHINE CONFIGURATION
Table Size: 65” W x 126” L
Cutting Capacity: 55” x 100”
Table Weight Capacity: 175 Lbs/Sq Ft
Machine Slat Height: 4”
Machine Weight Empty: 8,000 Lbs.
Operating Weight: 22,000 Lbs.
Machine Height: Approx. 70”

NOZZLE CONFIGURATION
Jewel: .014” Orifice
Mixing Tube: .030” Carbide Ceramic
Garnet Flow: .5 to 1 Lbs/Minute

DRIVE SYSTEM
Closed Loop Digital Drives
Brushless AC Servo Motors
Pre-Loaded Ball Screws, Linear Bearings, Hardened & Ground Ways
Round Bellows Completely Enclosing Each Axis

CONTROL
PC Based Control
Windows Software
Omax Full Integrated CAD/CAM Software
Select Multiple Home Positions
Import Over 40 File Formats
Full Material Library
6 Cut Qualities
Heads Up Traversing
Array Nesting
Auto Tool Path Generation
Material Stack Height Calculator
Intelli-Trace – Dynamic Pierce, Corner Passing, Tilt Forward Automatic Functions

PUMP
Omax 3050 30 HP Pump
Variable Frequency Drive Pump
High/Low Pressure Pierce/Cut for soft & Brittle Material
Less Electric & Water than Intensifier Pump
Easy to Maintain






EQUIPPED WITH:
-Water Level Control
-SRS Garnet Cleanout System

Location: St. Louis, MO
Terms: Payment Prior to Shipment
Payment: $46,500.00


OPTIONAL INSTALLATION, SETUP, TRAINING, MAINTENANCE (NOT INCLUDED IN PRICE)
• We have over 27 years of Omax waterjet experience with (5) factory trained technicians on staff. We can offer setup & training on the machine, additional factory accessories, preventative maintenance, and factory parts. We can customize a program around an individual’s need.

One thing we do different than any other used machinery dealer in the country, we actually bring in used Omax & Maxiem waterjets, tear the machines down, and fully recondition them. (Many dealers just clean, slap on a coat of paint if necessary, and get things working). We start with the base tank and build our way back up cleaning, painting, reconditioning/repairing/replacing, bringing each component into tolerance until we have a complete machine which is as close as you can find to a new machine in tolerance. It takes more time, a lot more effort, and more expense, but the end result is well worth it.
• Preventative Maintenance: Yearly Maintenance, Pump rebuilding, Machine cutting issues resolved
• Machine Laser Calibration
• Operator Training equal to New Machine Purchase
• Over $250,000 in Omax Parts in Stock – St. Louis, MO
