1999 HNK VTC-12/16 CNC Vertical Lathe For Sale

Stock

MD74416

Model

VTC-16/20

Dealer Location

Michigan

Spec Sheet

CNC Control - yes
Type of CNC Control - Fanuc 18i-TB
Swing - 62.99 inches
Turning Diameter - 62.99 inches
Table Diameter - 49.21 inches
Max Table Load - 17636 pounds
Chuck Size - 63 inches
Max Height Under Rail - 62.99 inches
Spindle Speed (RPM) - 350 rpm
X-Axis Travel - 46.06 inches
Z-Axis Travel - 35.43 inches
Spindle Motor - 60 horsepower
Turret Capacity - 12

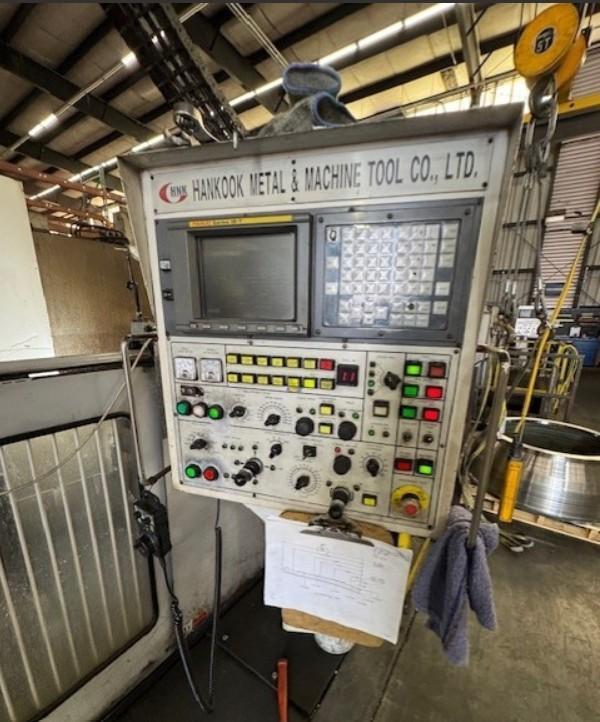

- Fanuc 18i-TB CNC Control
- 12-Station Automatic Tool Changer
- Linear Scales on X/Z Axes
- 62.99" Face Plate Chuck W/4-Jaws
- Coolant System
- Full Chip and Splash Enclosure
- Chip Conveyor
- 60 HP Main Motor
