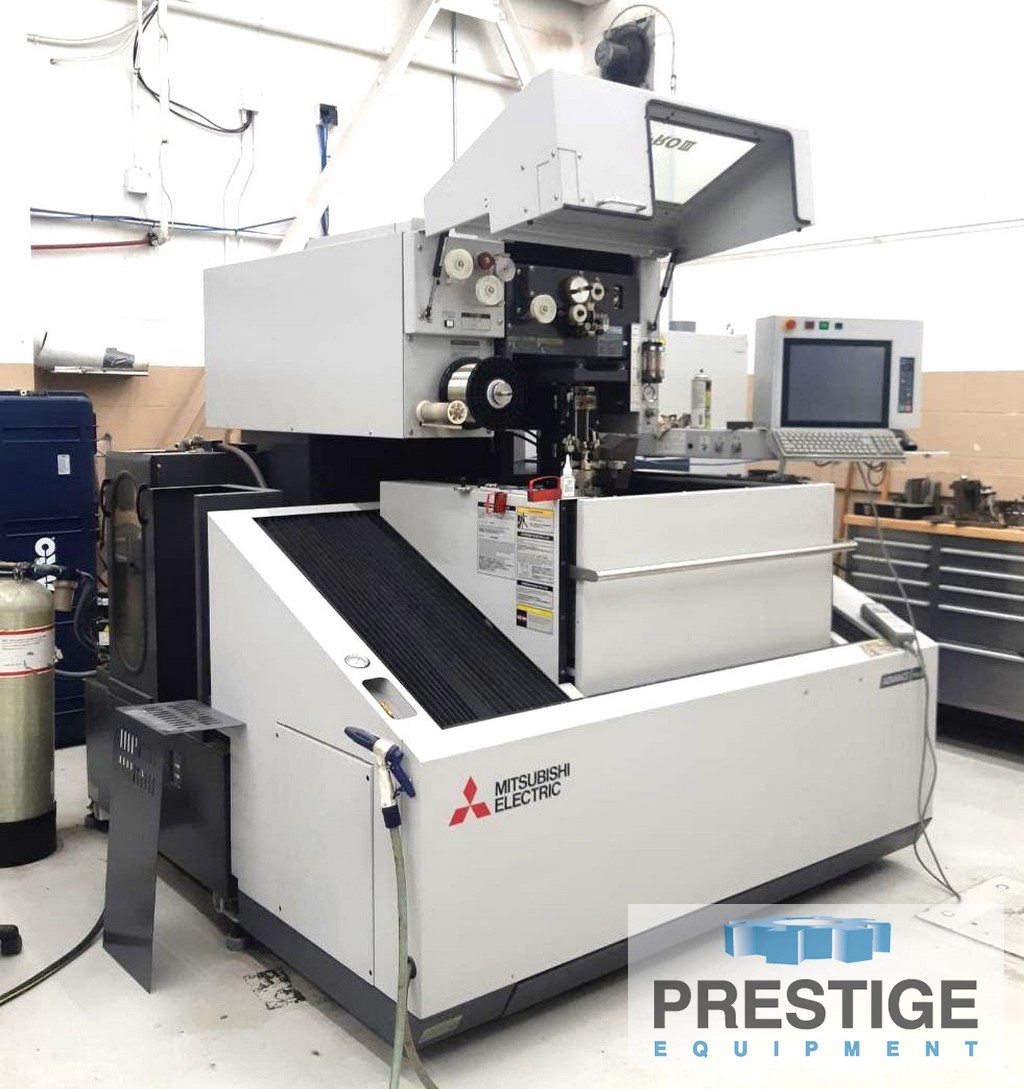

Mitsubishi MV1200s, X-23", Y-15", Z-16", 31.3" x 27.3" x 8" Max Work Piece, 29" x 17" Tbl, Auto Thread, CNC 2017 #43925

Manufacturer

MITSUBISHI

Category

EDM Machines

Type

ELECTRIC DISCHARGE MACHINES, WIRE, CNC

Stock

43925

Model

MV1200s

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43925
MITSUBISHI MV1200S WIRE EDM ADVANCE TYPE 3

FEATURES:

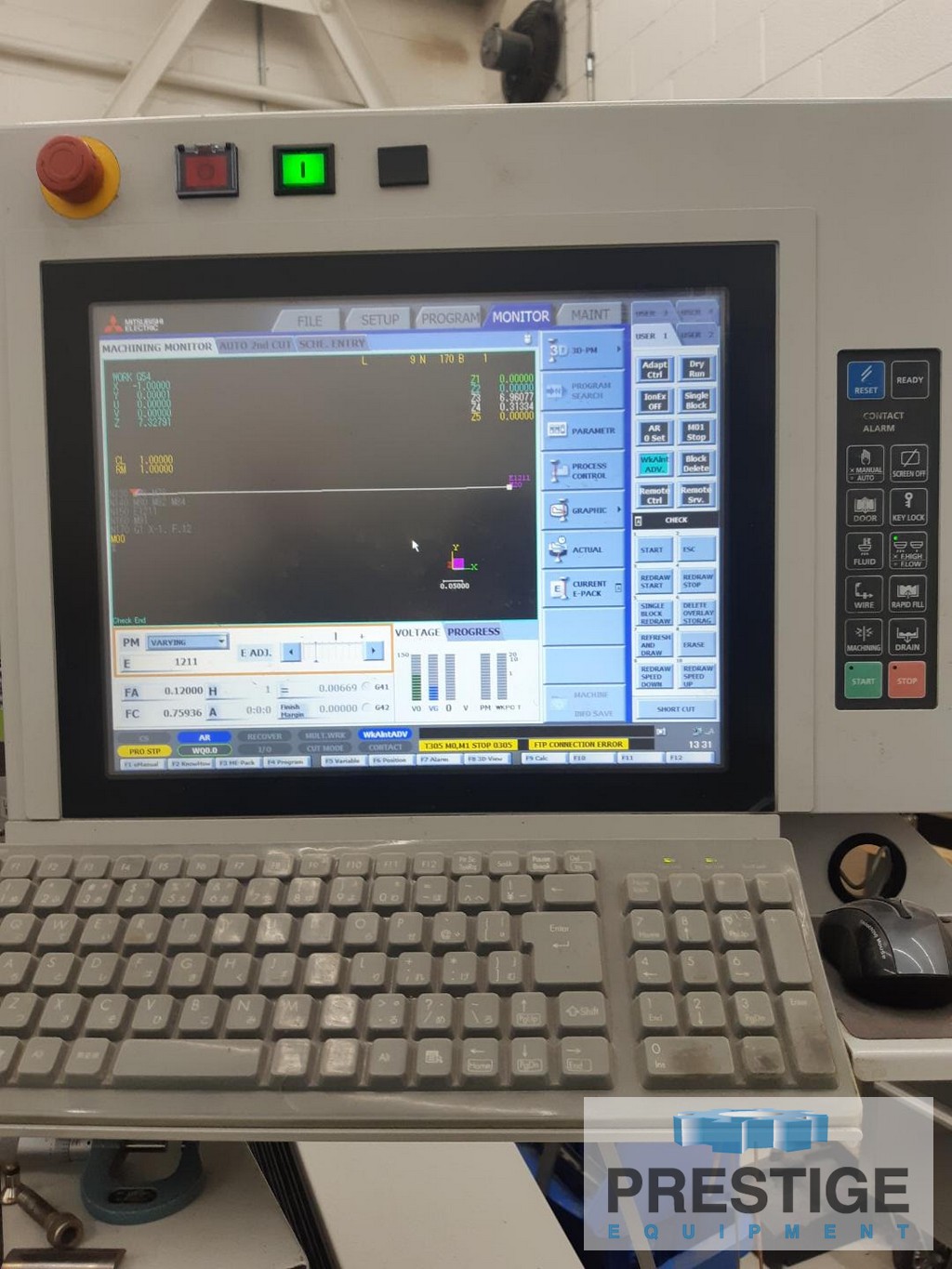

Mitsubishi CNC Controls
Remote Pendant
Filter Tanks

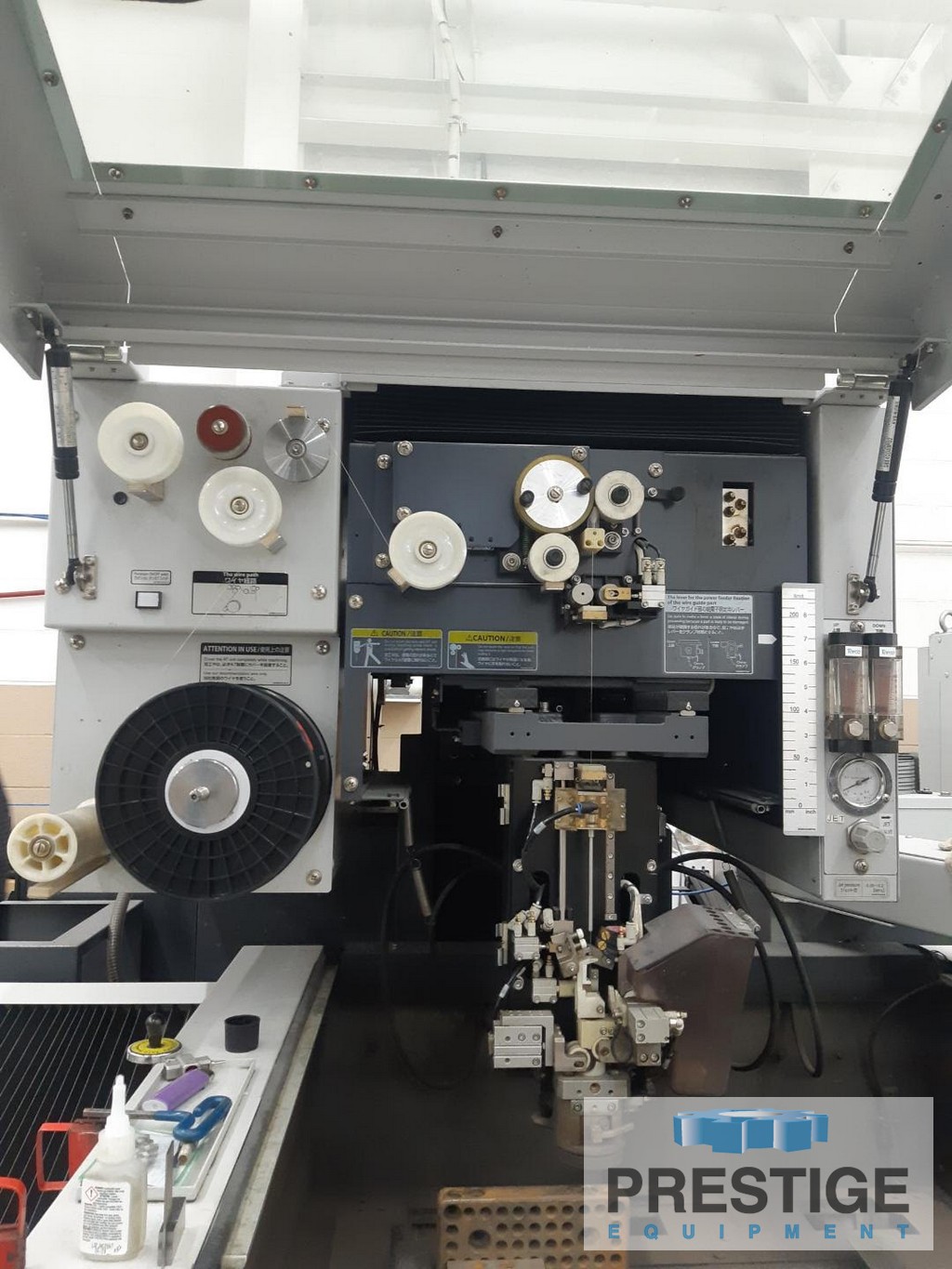

Auto Threading

Specifications:
X-AXIS TRAVEL ......................... 23.6"
Y-AXIS TRAVEL ......................... 15.7"
Z-AXIS TRAVEL ......................... 16.7"
MAX WORKPIECE DIMENSIONS .............. 31.3" x 27.3" x 8.5"
MAX SUBMERGED WORKPIECE WEIGHT......... 1,100 LBS
MACHINING RANGE........................ 15.6" x 11.7" x 8.7"
MAX. WORKPIECE AT HEIGHT .............. 8.7"
TABLE DIMENSIONS (W x D) .............. 29.1" x 17.2"
TABLE TRAVELS (U & V AXIS) ............ +/-3.0" x +/- 3.0"
MAX TAPER ANGLE @ THICKNESS ........... 15 DEGREES @ 8"
WIRE DIAMETER RANGE BT AT ............. 0.004" to 0.012"
U/V TRAVEL ............................ +-2.4" +- 2.4"
FILTER TANK CAPACITY .................. 145 GAL
MACHINE DIMENSIONS .................... 79.7" x 106.3" x 79.3"
MACHINE WEIGHT ........................ 5,952 LBS

EQUIPPED WITH:
Mitsubishi CNC Controls
Remote Pendant
Filter Tanks
Auto Threading
