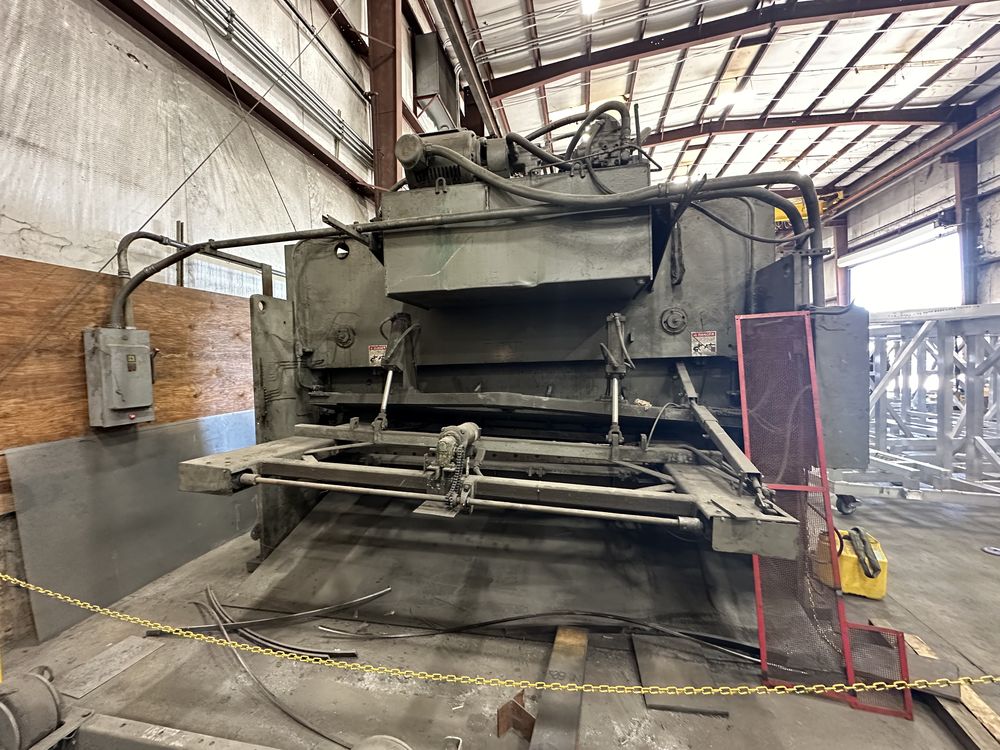

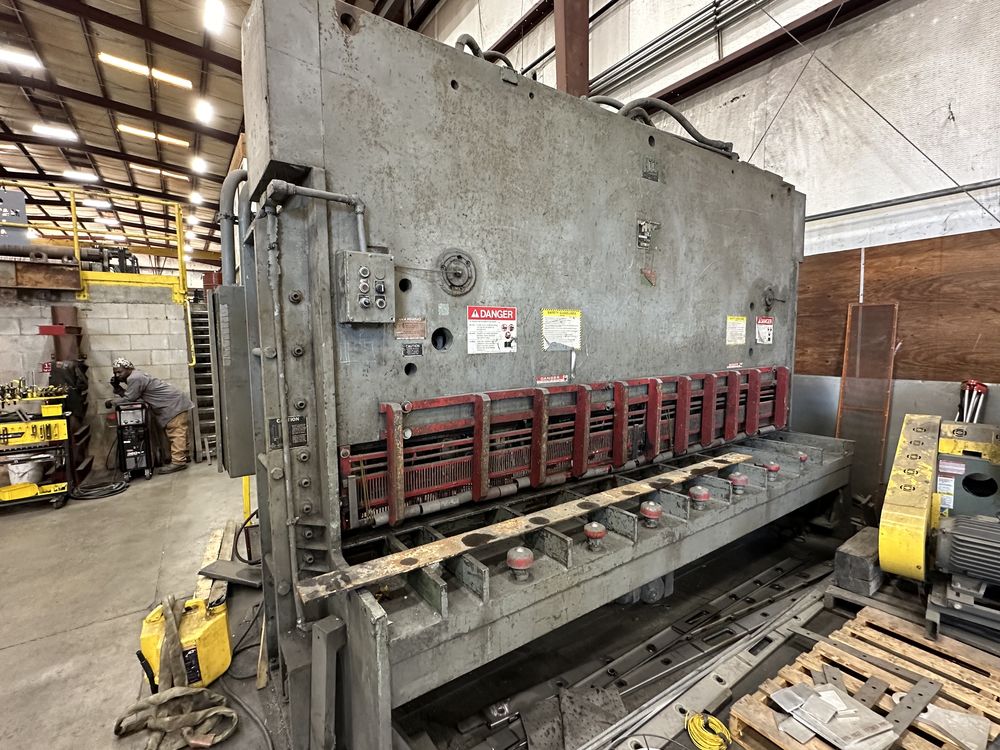

HTC 750-12SRHC 3/4″ x 12′ Hydraulic Shear

Manufacturer

HTC

Category

Shears

Stock

121250018

Model

750-12SRHC

Dealer Location

Georgia

Spec Sheet

  • Stock #: 121250018
  • Location: Macon, GA
  • Brand: HTC
  • Model: 750-12SRHC
  • Approx. Shipping Weight: 55,000 Lbs
  • Approx. Shipping Dimensions: 14′ W x 10′ D x 13′ H
  • Loading Fee: Rigging Required

Specifications

  • Cut Capacity (Mild Steel): 3/4″
  • Maximum Cutting Length: 12′
  • Stroke Range: 7-10 SPM
  • Ram Speed: 98 IPM (Down) and 201 IPM (Return)
  • Rake Angle: 1/2″ Per Foot

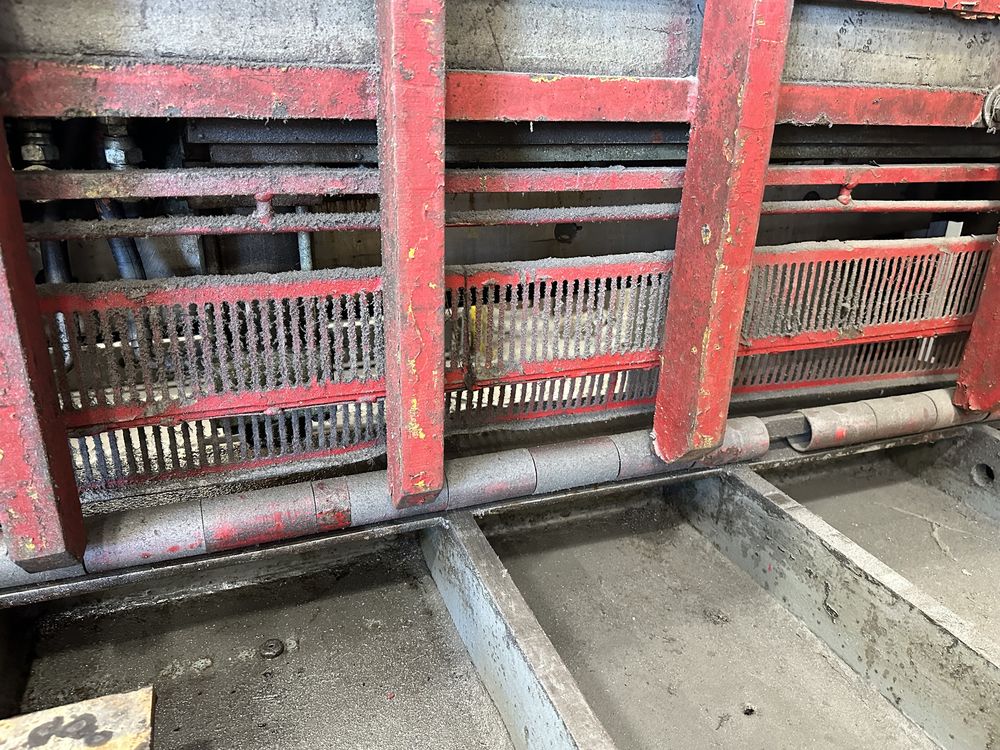

  • Hydraulic Holdowns: 13
  • Working Height: 34″ Floor to Top of Bed

Equipped With

10′ Squaring Arm, 36″ Powered Back Gauge, Electric Foot Pedal

Additional Info

This shear is missing a few hold downs on the right side , it is under power and can be demoed upon request
