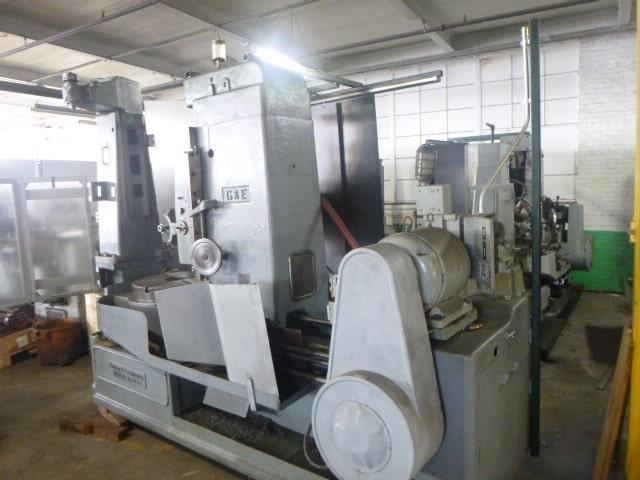

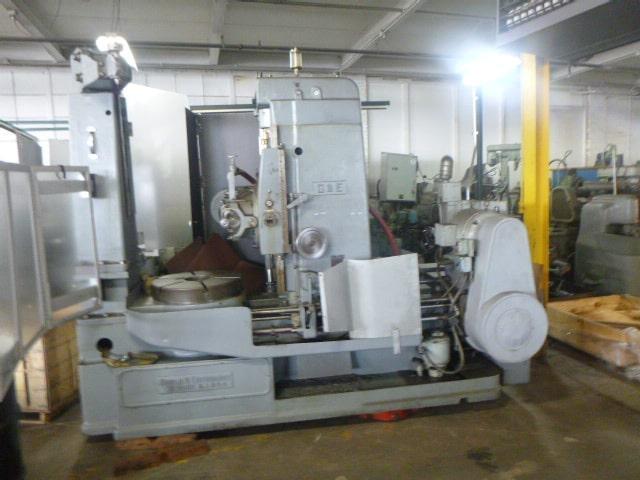

Gould & Eberhardt Model 48H Universal Vertical Gear Hobber

Manufacturer

GOULD & EBERHARDT

Category

Gear Machines

Type

GEAR HOBBERS, VERTICAL, CNC

Stock

GH48HAX

Model

48H

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet

Rated Pitch in Steel, Maximum - 2.5 DP
Face Capacity-Spur - 16”
Face Capacity-45° Helical Gear - 12”
Max. Diameter Spur Gear-w/o Support - 48”
Max. Diameter Spur Gear w/Support - 32”
Max Diameter 45° Helical Gear - 48”
Hob Diameter, Max - 8”
Work Table Diameter - 32”
Index Worm Gear Diameter - 32”
Index Range (Per Catalog)-Including Primes - 15-100
Index Range (Per Catalog)-Excluding Primes - 100-400
Hob Speeds (12) - 22-130 RPM
Overall Dimensions (Approx.) - 148" x 84" x 98" Height
Weight (Est.) - 18,500 lbs.


EQUIPPED WITH:
Differential.

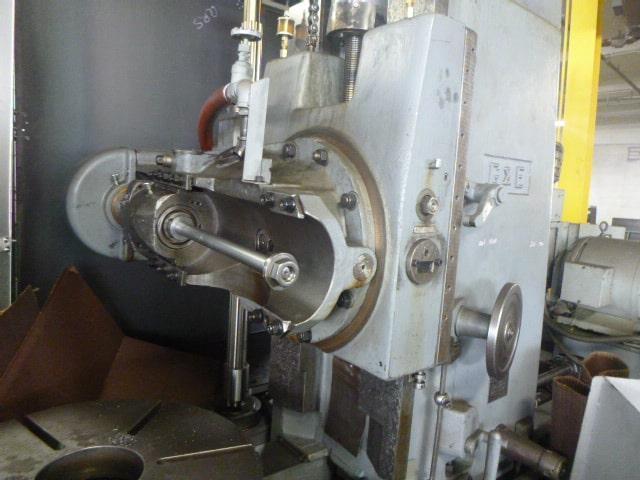

Standard Swivel Hob-Head.
Single Thread Index Worm.
Power Rapid Traverse.
Auto Infeed.
Outboard Support Column w/Tailstock.
Climb & Conventional Hobbing Capability.
Change Gears in Machine.
Coolant System.
