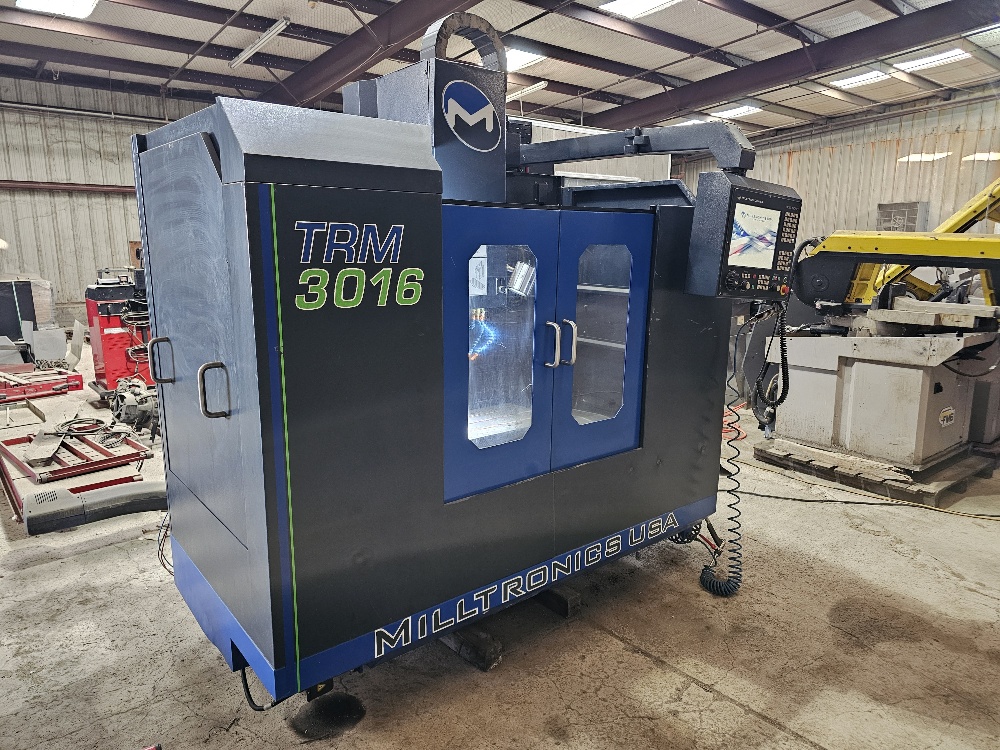

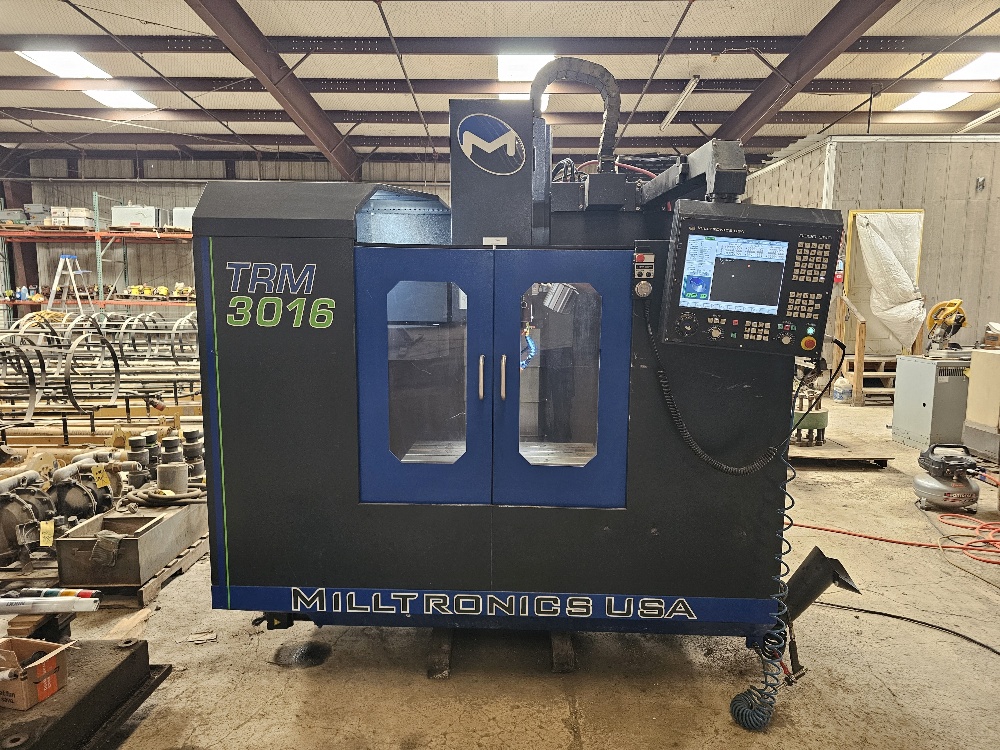

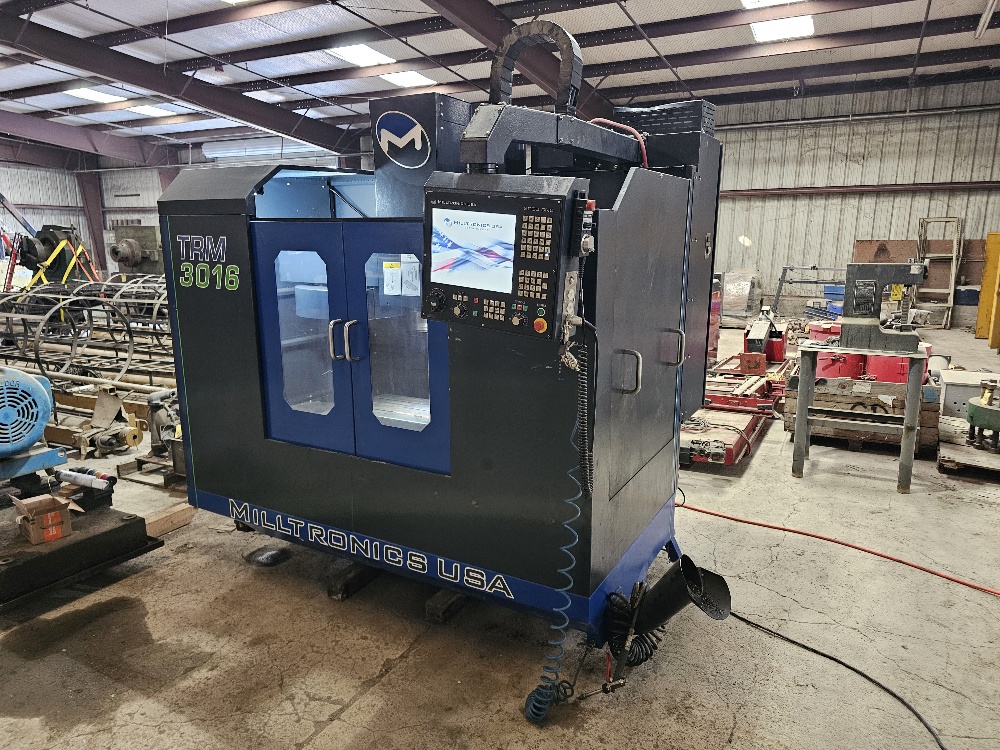

2020 MILLTRONICS TRM3016 CNC VERTICAL MACHINING CENTER

Manufacturer

MILLTRONICS

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

None

Model

TRM3016

Dealer Location

California

Request a Quote
View Contact Information

Spec Sheet

MAKE: MILTRONICS
MDL: TRM3016
S/N: HMT160005
YR: 2020

CAPACITY
Travels ................. 30" x 16" x 20"
Table Working Surface ... 35.4" x 16"
Max. Weight on Table .... 992 lbs
Table T-Slots............ .71"

SPINDLE
Spindle Taper............ BIG-PLUS® ISO No. 40
Spindle Speed (Max.) .... 8000 RPM
Spindle Power (Max.) .... 15/10 HP
Spindle Torque (Max.) ... 67 ft-lbs
Spindle to Nose ......... 4" - 24"

AUTOMATIC TOOL CHANGER
Tool Shank .............. CT40
Retention Knob .......... MAS 60
Tool Capacity / Type .... 16 / Carousel
Max. Tool Diameter ...... 4"
Max. Tool Length ........ 11"
Max. Tool Weight ........ 10 lbs

MOTION
Rapid Traverse Rate ..... 700 IPM

LOCATION: DALLAS, TX 75241

***PURCHASED THROUGH AN INSURANCE COMPANY,
SHEET METAL DAMAGE, ROOF COLLAPSED

PRICE: $34,500.00

***SPECIFICATION SHOWN ARE TO BE
USED AS A GUIDELINE ONLY. IT IS
THE CUSTOMER RESPONSIBILITY TO
CHECK FOR SIZE AND FEATURES BEFORE
PURCHASING WE WILL NOT BE RESPONSIBLE
FOR ERROR OR OMISSIONS.
