OKK HM-120S 4-Axis, Fanuc 310i-SA, X-67", Y-55", Z-49", 2APC 49" Pallets, 60 ATC, TSC, Chip Conveyor, 2008, #43881

Manufacturer

OKK

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

43881

Model

HM-1250S

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43881

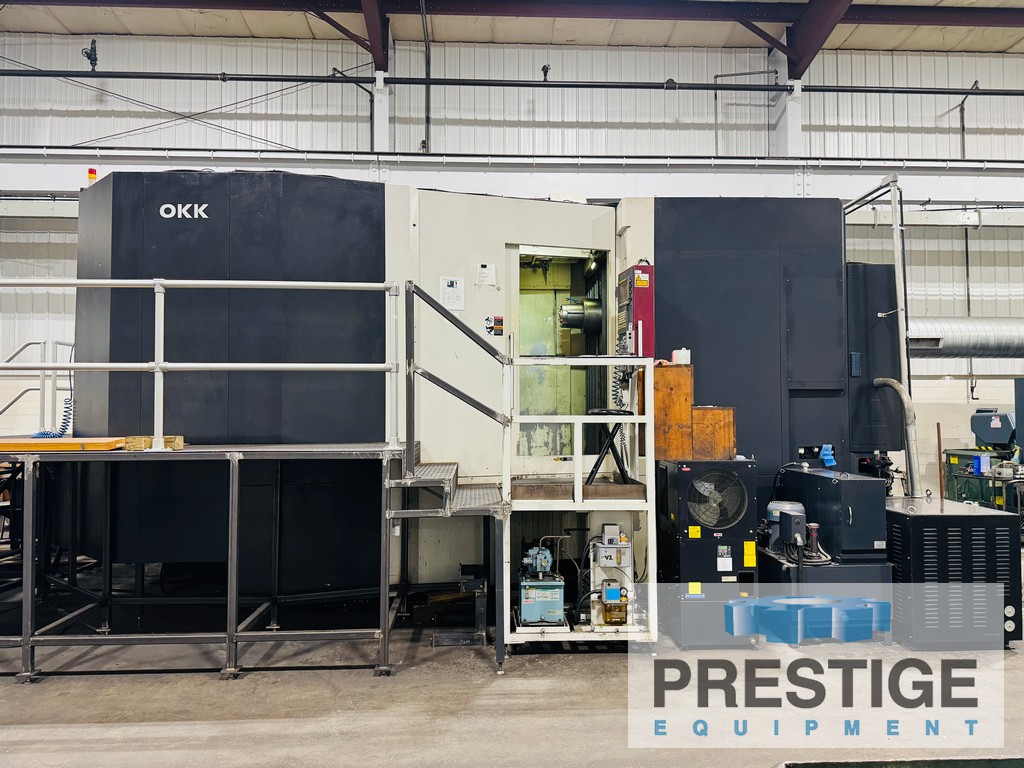

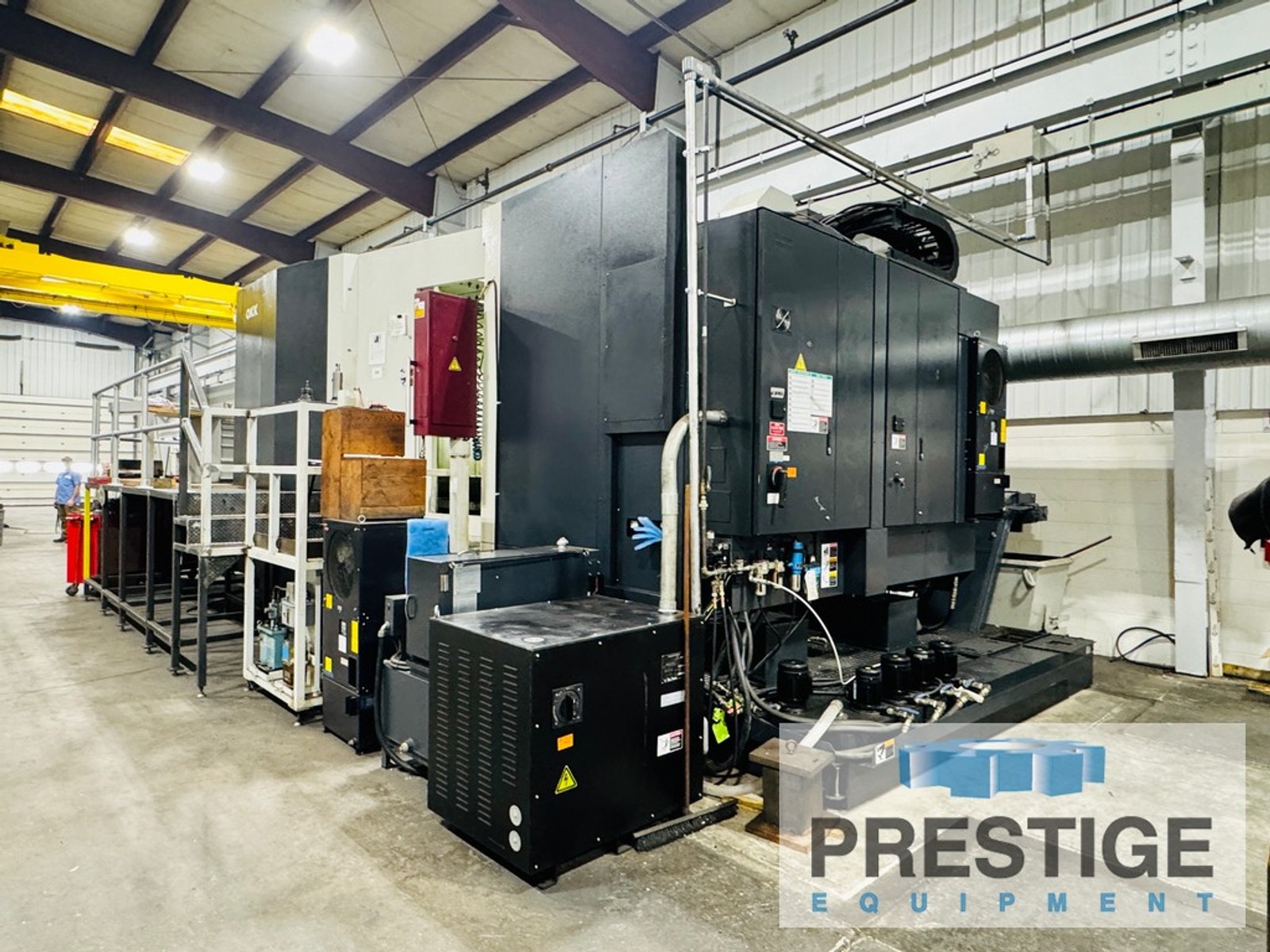

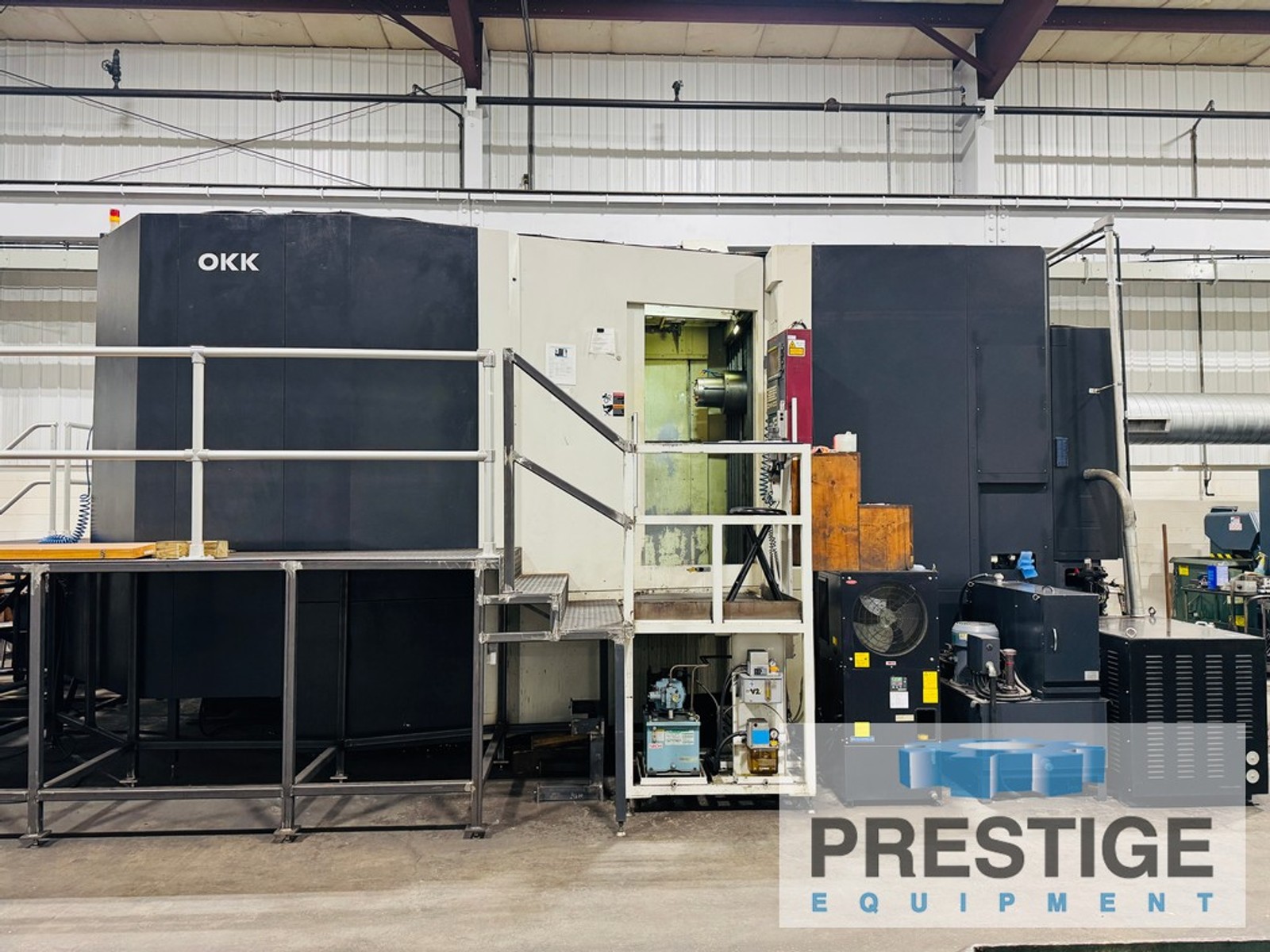

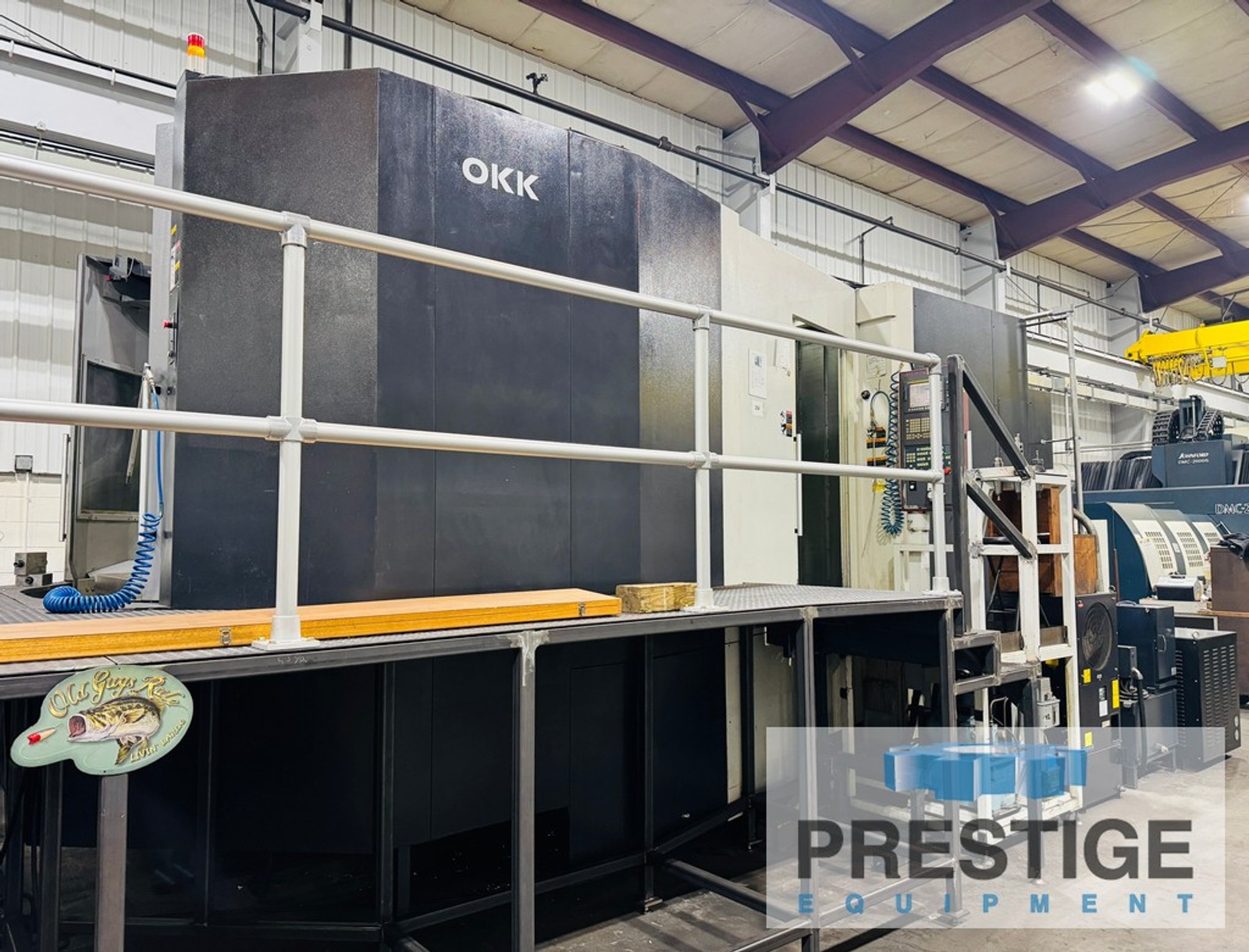

OKK HM-1250S CNC 4-Axis Horizontal Machining Center

FEATURES:
Fanuc 310iS-A 4-Axis CNC Control

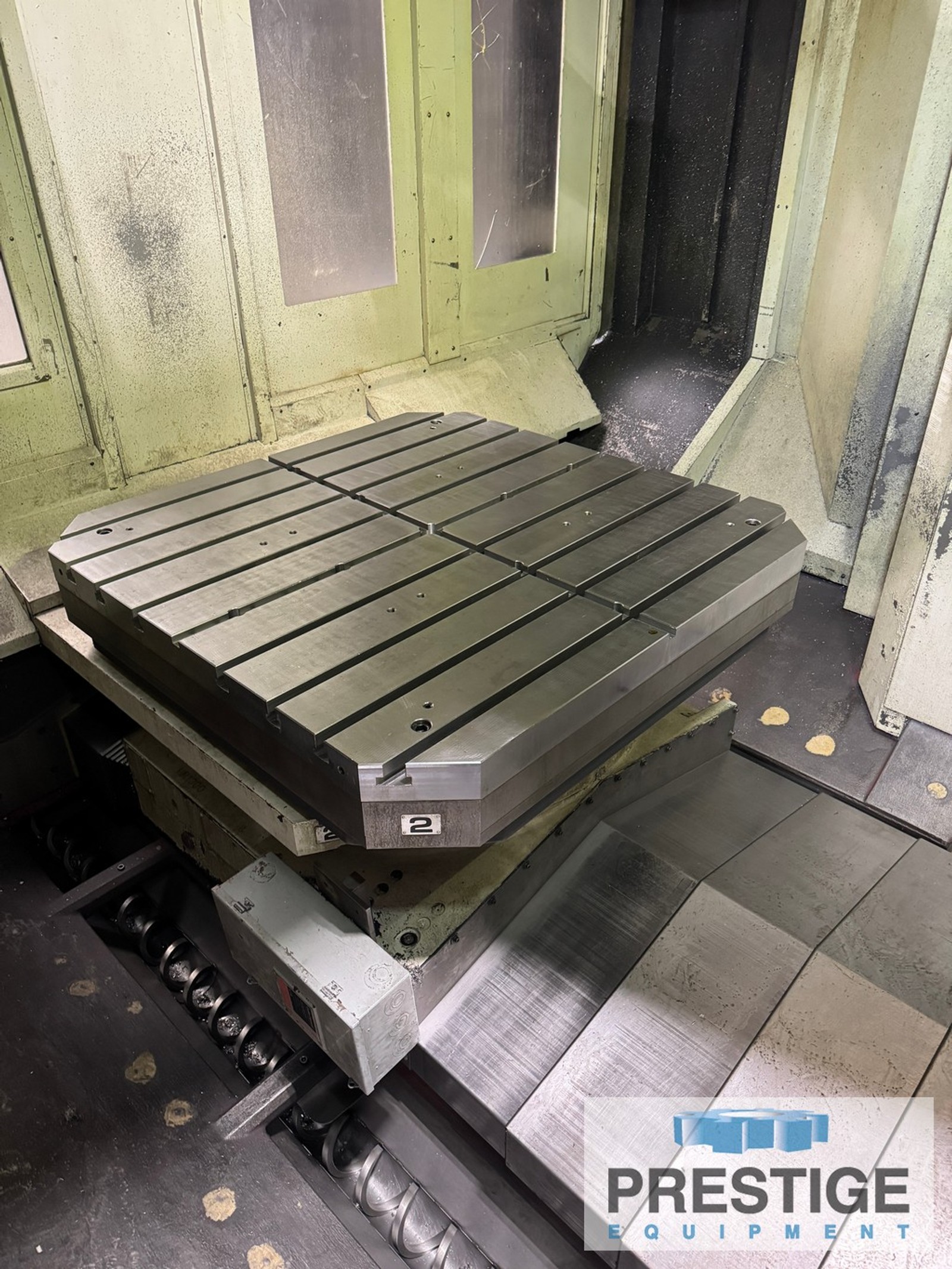

(2) 49.21" x 49.21" Pallets
60-Position Automatic Tool Changer
Full B-Axis Contouring
Through Spindle Coolant
Probe
Chip Conveyor

CAPACITY:
X-Axis Travel ......................... 66.93"
Y-Axis Travel ......................... 55.12"
Z-Axis Travel ......................... 48.82"
Maximum Work-piece .................... 77.56" x 59.84"
Number Of Pallets ..................... 2
Pallet Size ........................... 49.21" x 49.21"
Pallet Indexing ....................... 0.001 Degree
Weight Capacity ....................... 6600 Lbs.
Spindle Center to Table Top .......... 2.76"-57.87"
Spindle Nose to Table Center ......... 14.17"-62.99"

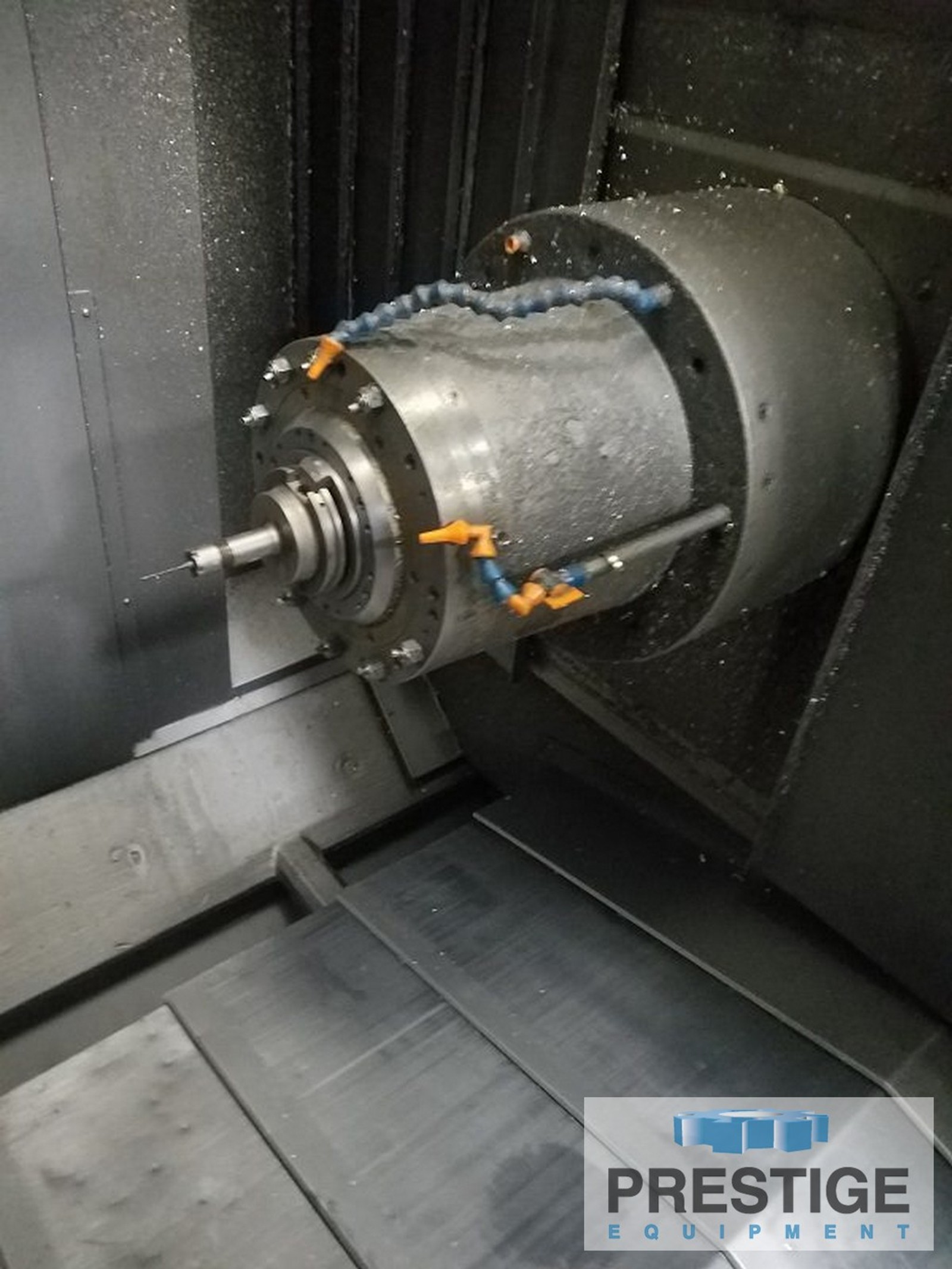

Spindle Speeds ....................... 8,000 RPM
Spindle Taper ......................... #50 CAT
Spindle Motor ........................ 40 HP
Tool Changer .......................... 60 ATC
Maximum Tool Diameter ................ 4.53" / 10.63"
Maximum Tool Length .................. 23.62"
Maximum Tool Weight .................. 55 lbs
Rapid Traverse, (X,Y & Z) ............. 1889 IPM
Machine Weight ....................... 72,000 lbs

CNC CONTROL OPTIONS:

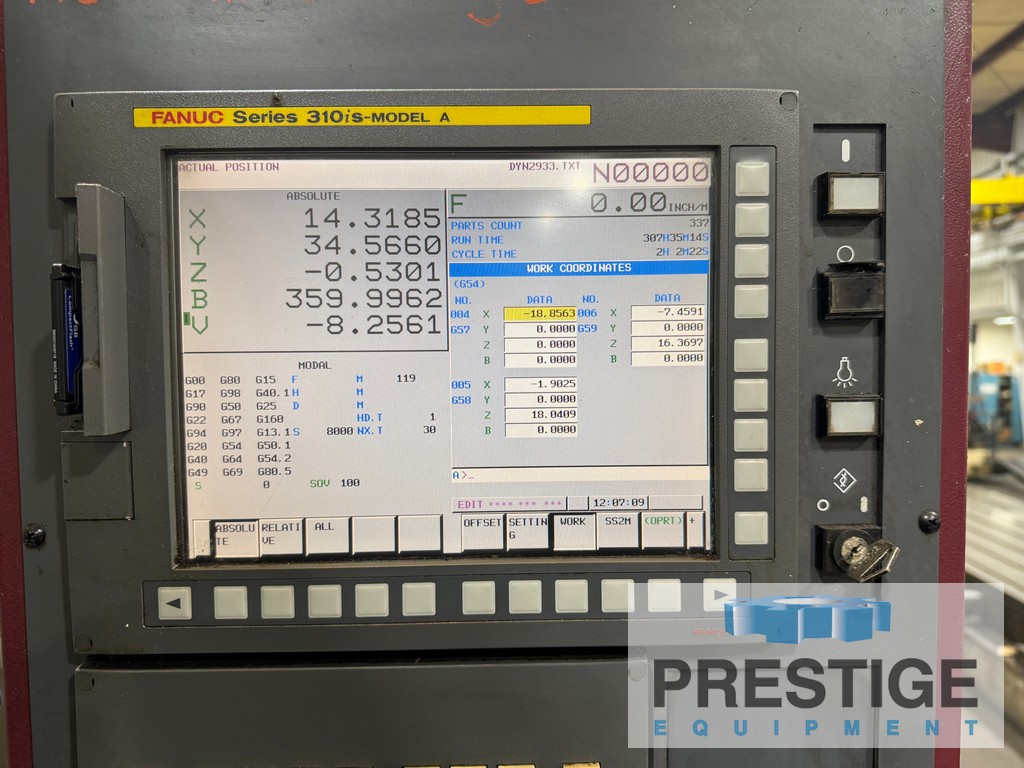

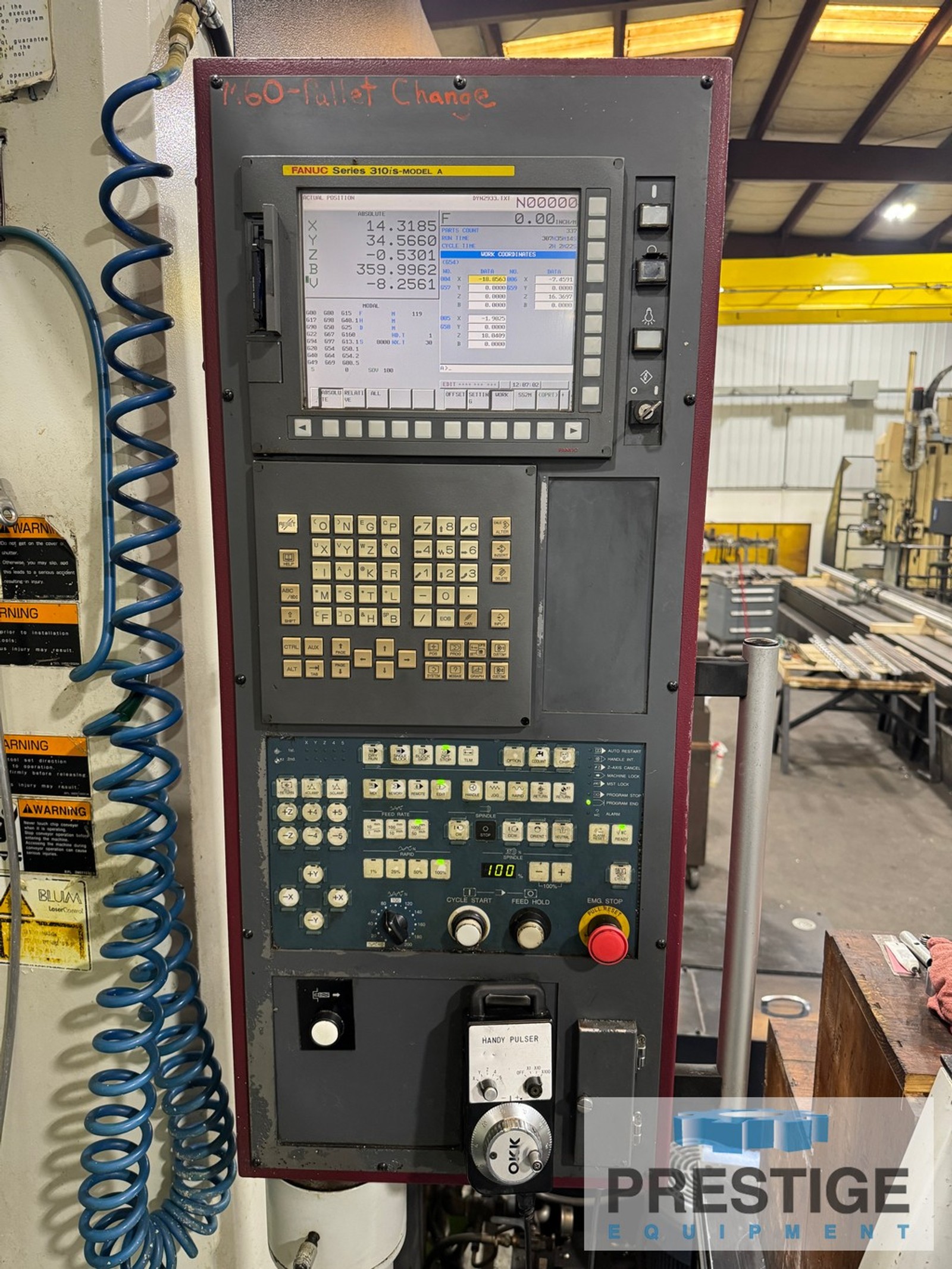

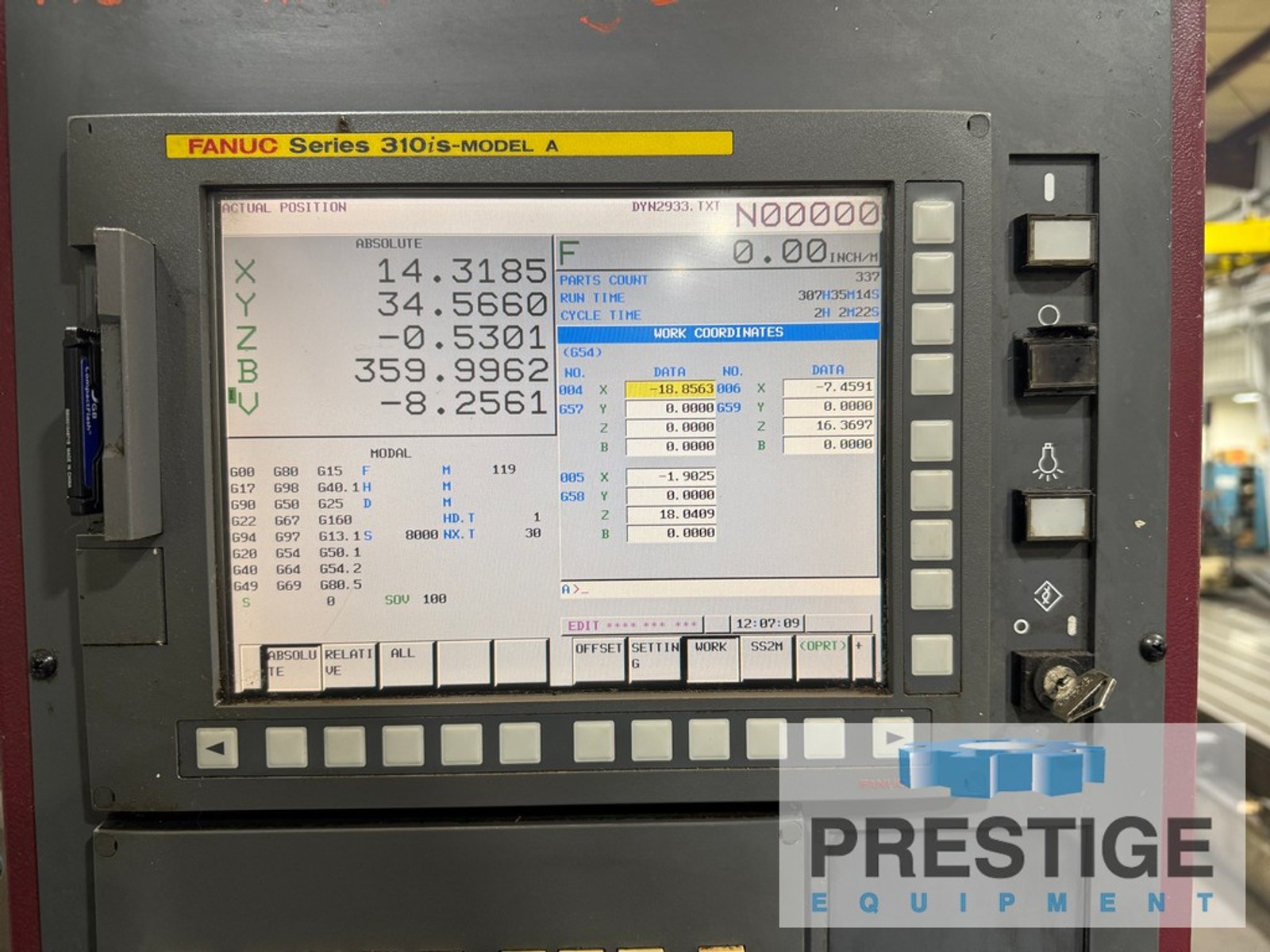

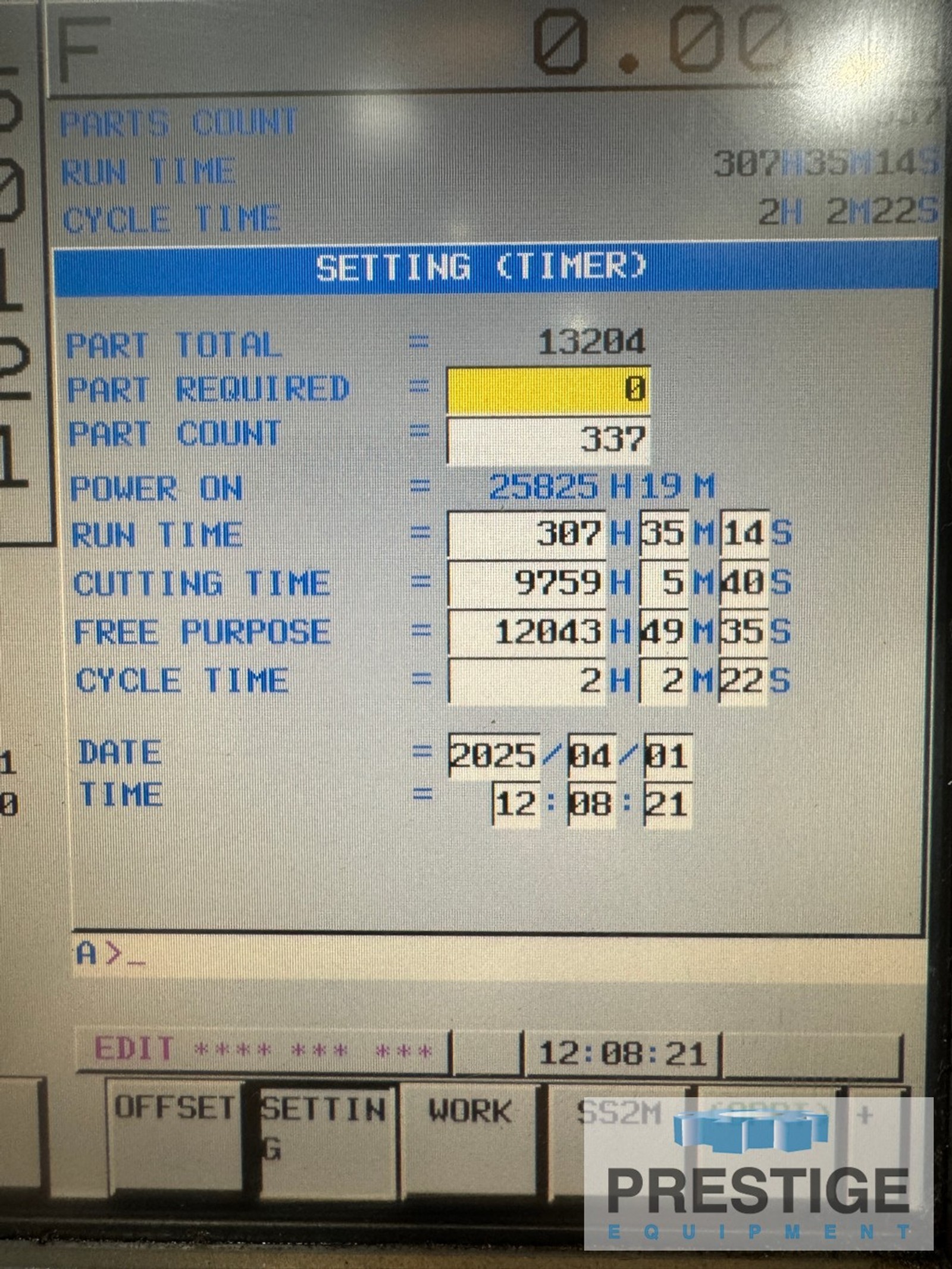

Fanuc 310iS-A 4-Axis CNC, Graphic Display, 10.4" Color TFT
USB Port, PC/MCIA Interface
Program Restart
Stored Pitch Error Compensation
Spindle Orientation
Inch/Metric Conversion
Canned Cycles
Automatic Corner Override
48 Pairs of Additional Work Coordinate System
Cutter Compensation C
Tool Offset Memory C
Background Editing
Macro Executor
Custom Macro B
PMC Function
Stored Stroke Check 2, 3
HQ Control
Helical Interpolation
512 KB Program Memory
Programmable Mirror Image
120 Registered Programs
200 Sets of Tool Offsets
128 Pairs of Tool Life Management
Digital Servo Function
Controllable Axes Expansion
Second Reference Point Return

EQUIPPED WITH:
(2) 49.21" x 49.21" Pallets
Full B-Axis Pallet Contouring/Rotation
60-Position Automatic Tool Changer
Through Spindle Coolant (1000 psi)
Blum Laser Auto Tool Length Measurement
Tool Breakage Detection
Rigid Tapping
Renishaw Touch Probe
Manual Pulse Generator
Dual Chip Augers

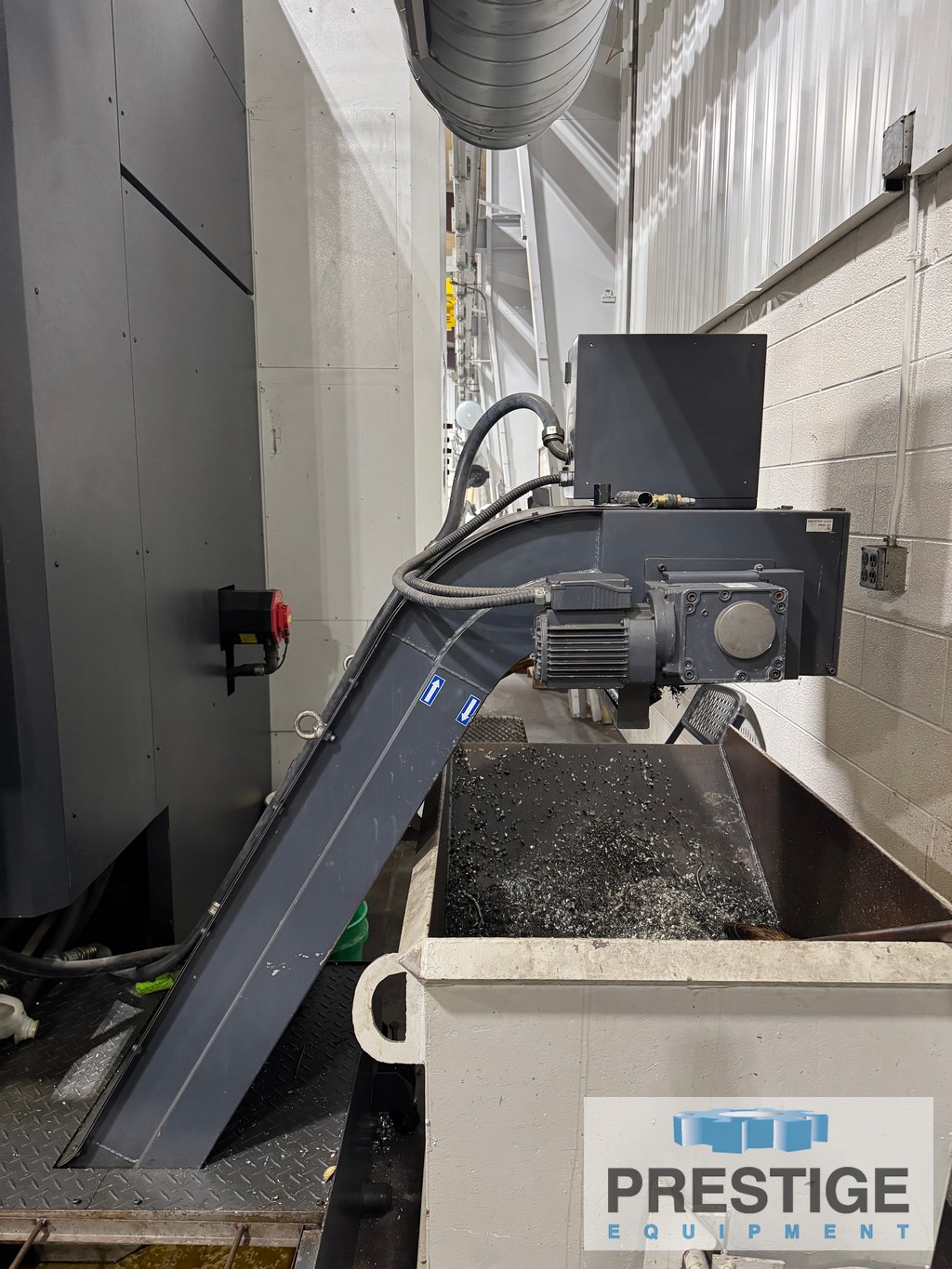

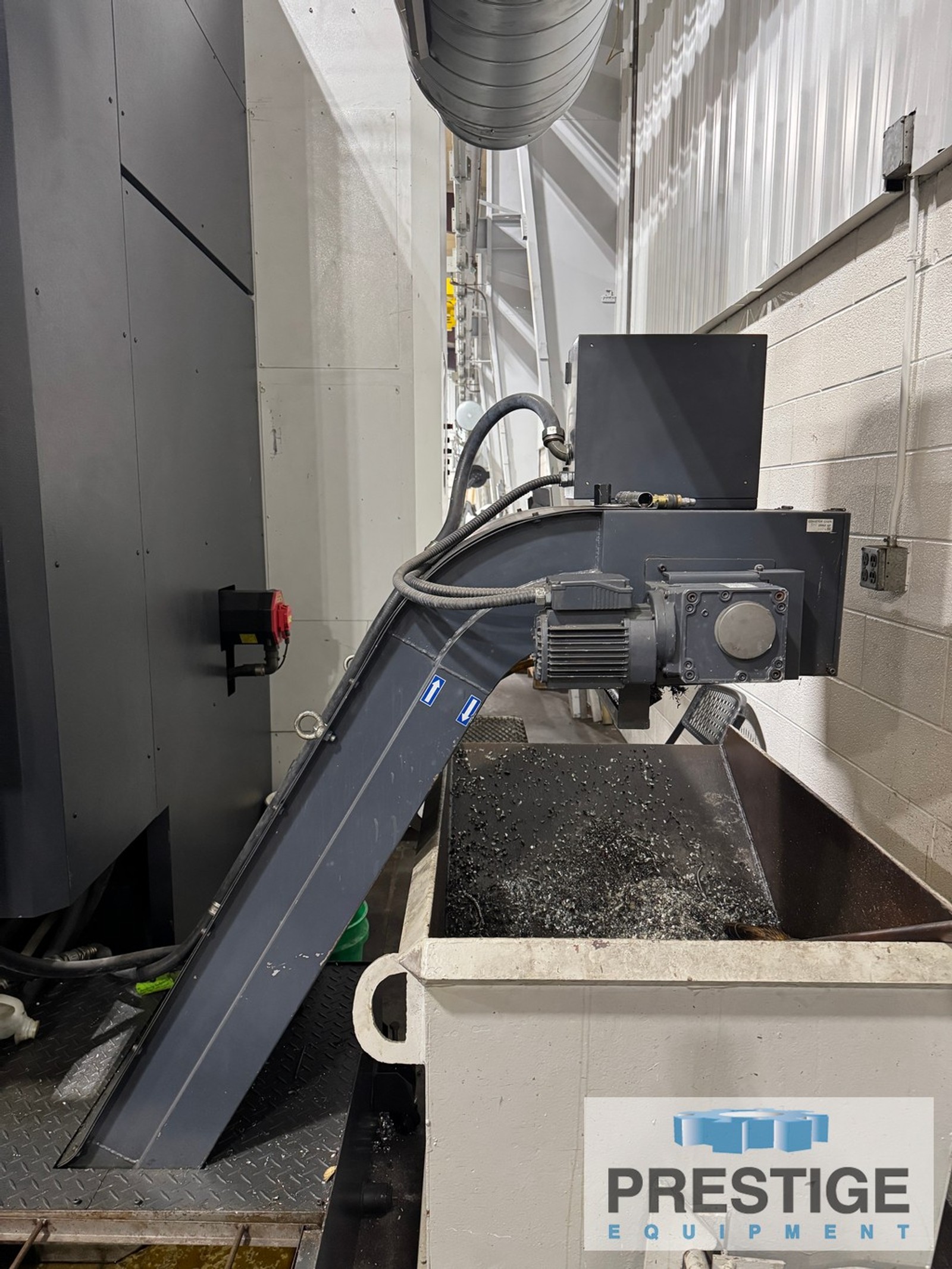

Hakusan Chip Conveyor (Left Rear Exit)

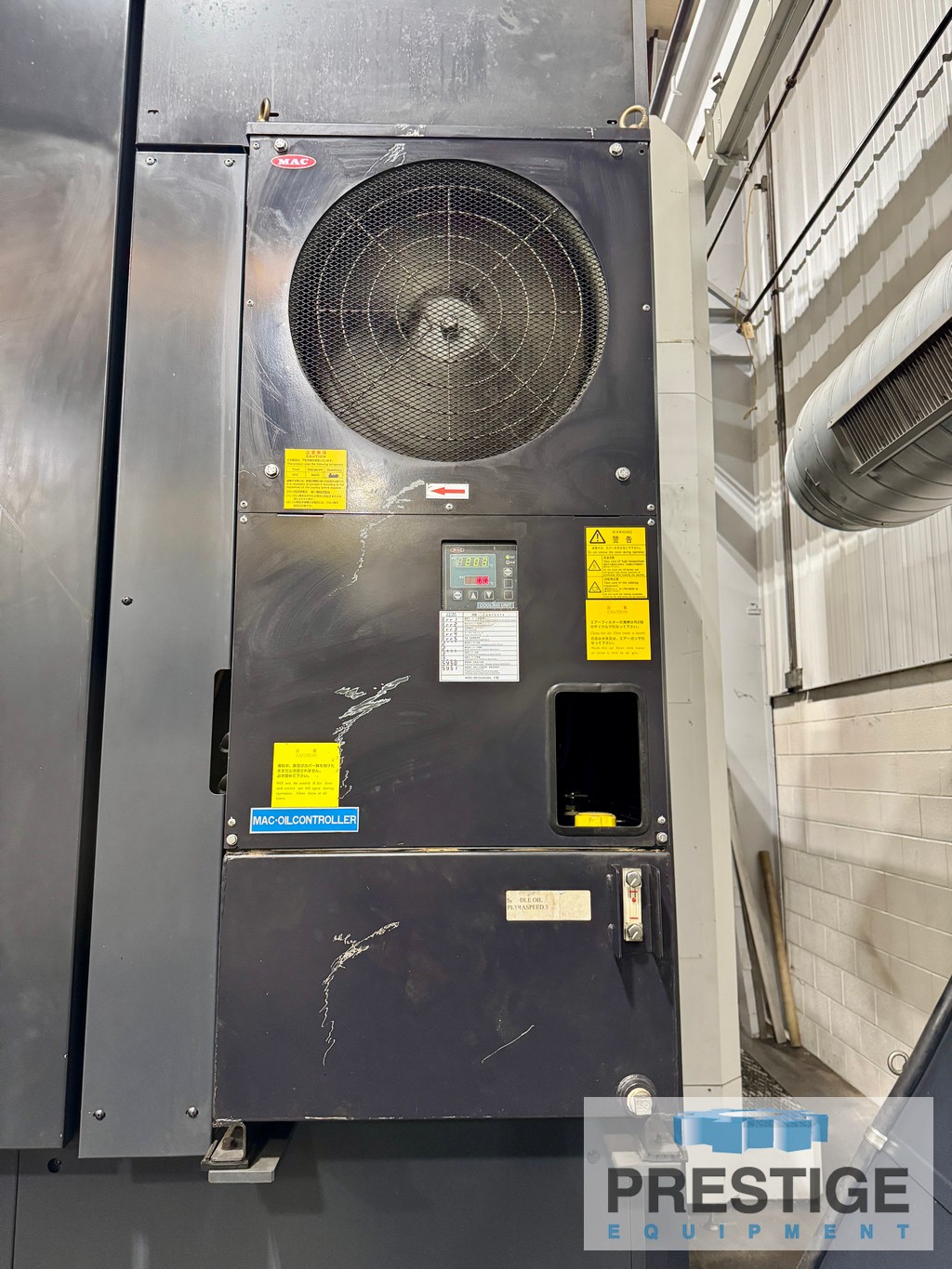

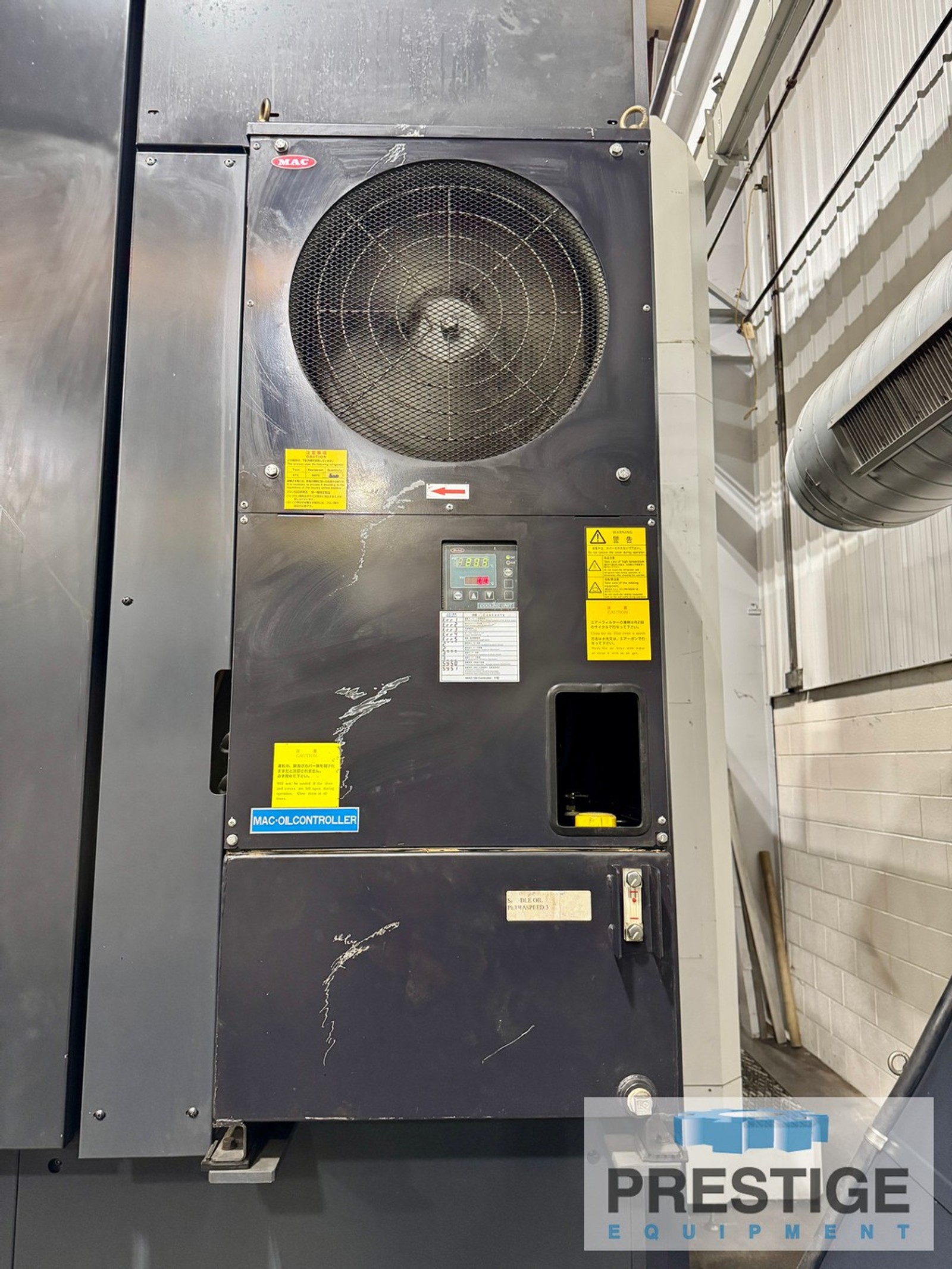

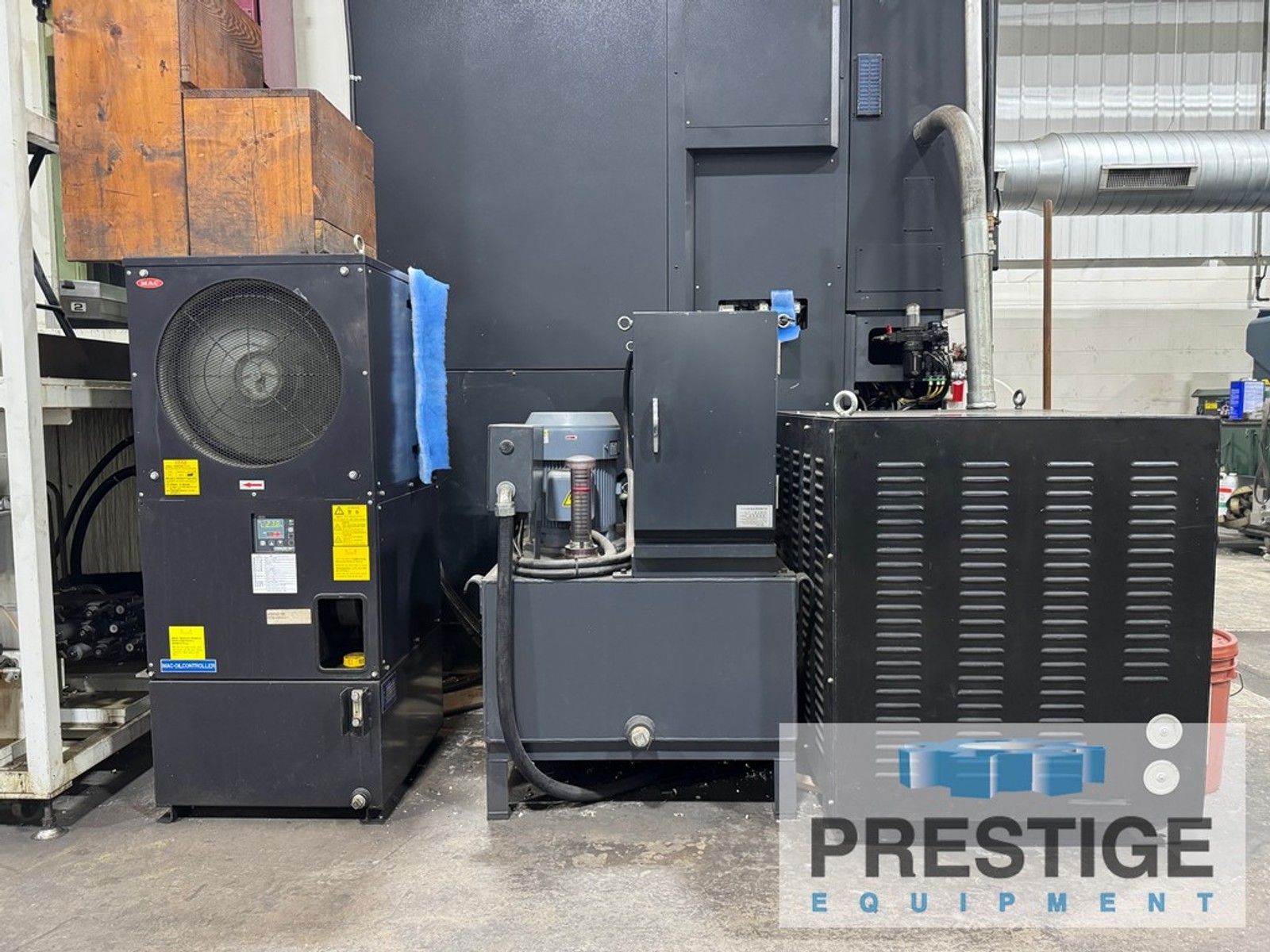

Spindle Chiller Unit
Multi-Tap Transformer
Three Color Tower Light
B-Axis Linear Scales
Dual Position Feedback

LOCATION:
Under Power In Midwest Plant
