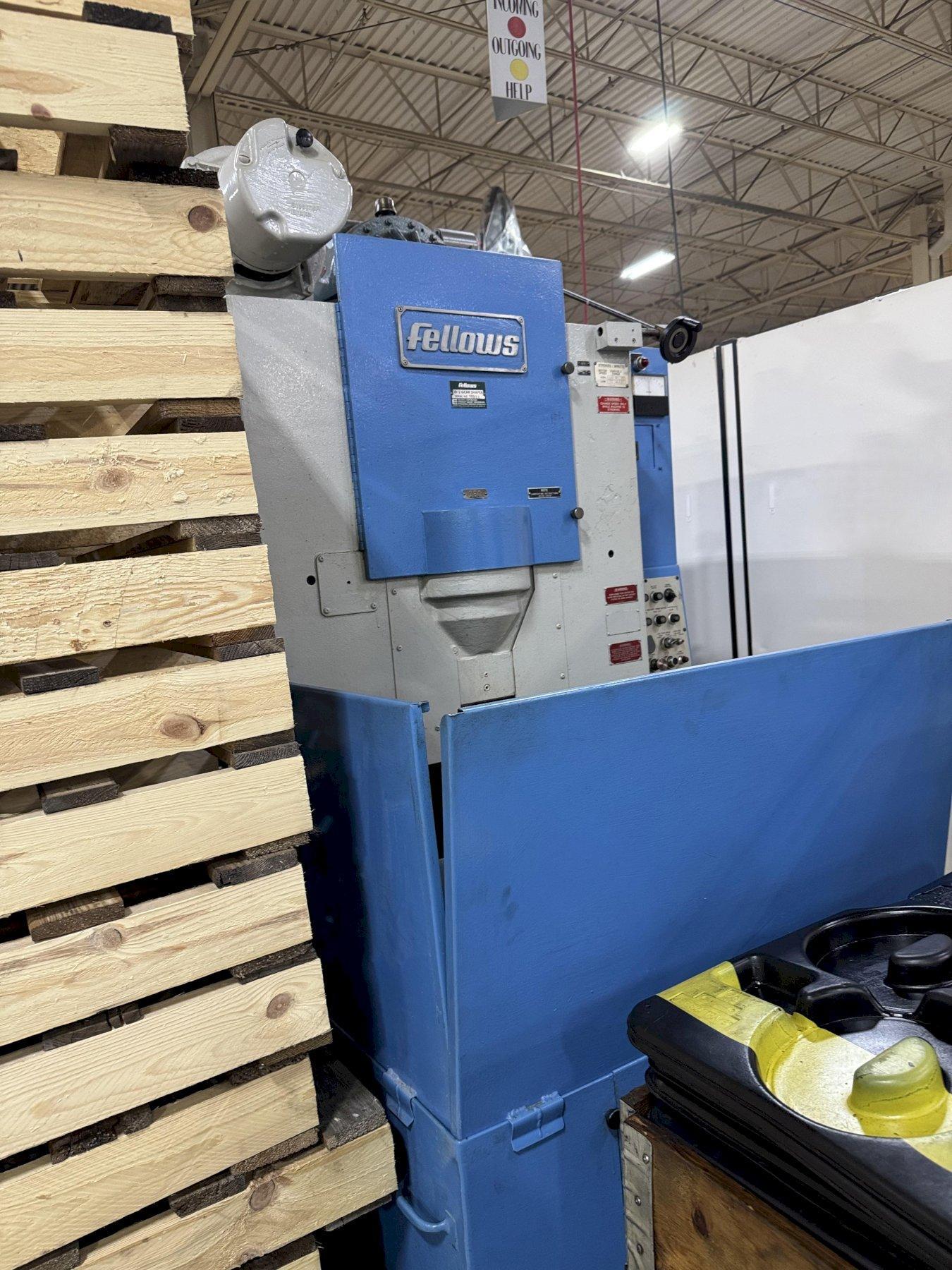

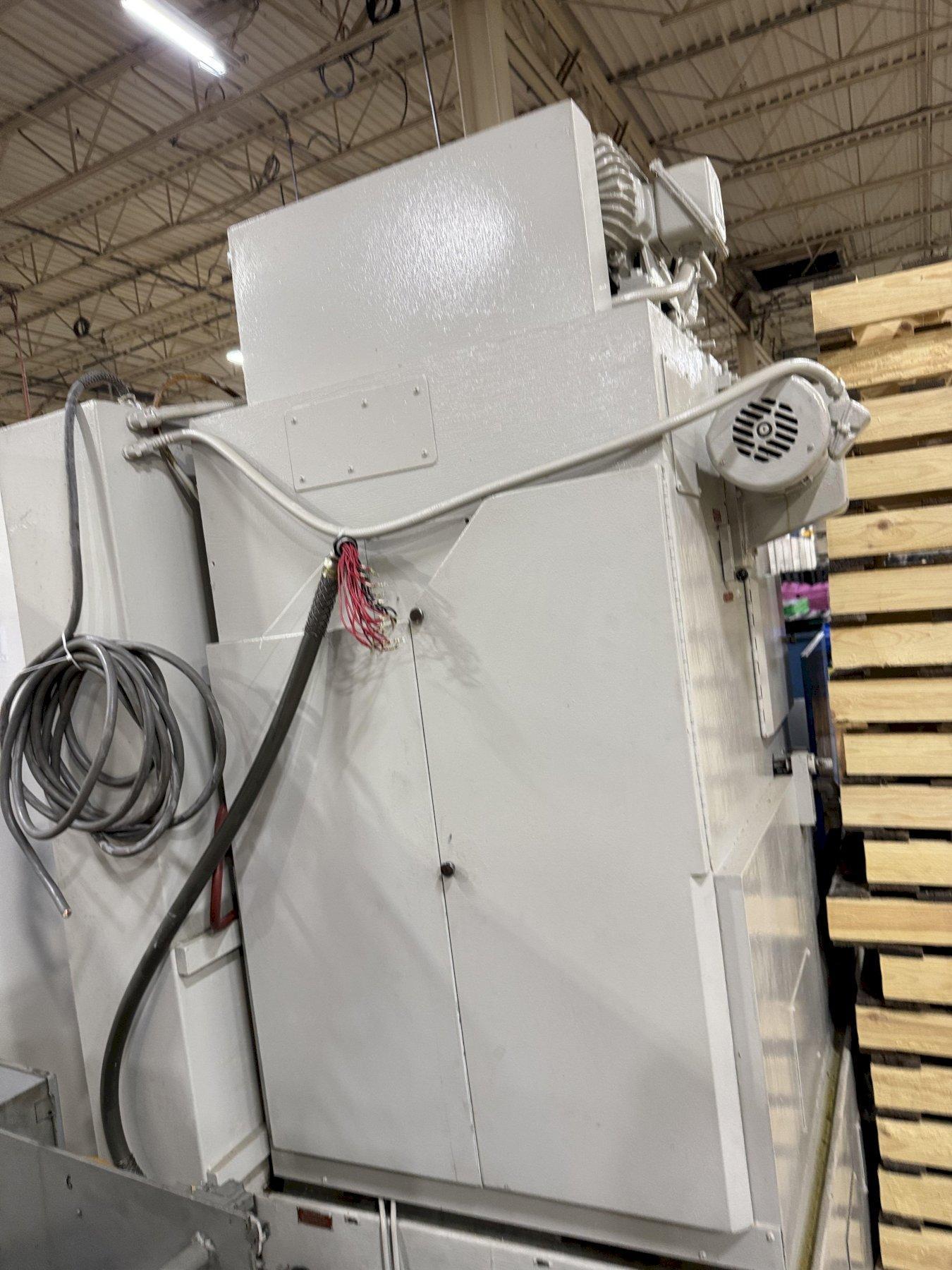

Fellows 10-2 High Production Gear Shaper

Manufacturer

FELLOWS

Category

Gear Machines

Type

SHAPERS, GEAR

Stock

GH1022x

Model

10-2

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet

Maximum Pitch Diameter, External - 10"
Maximum Diametrical Pitch: Spur - 4
Maximum Diametrical Pitch: Helical - 5
Maximum Face Width - 2"
Distance Table Top to Shaper Spindle Casting - 12"
Maximum Helix Angle (using 5" Cutter) - 45°
Maximum OD of Fixture - 19"

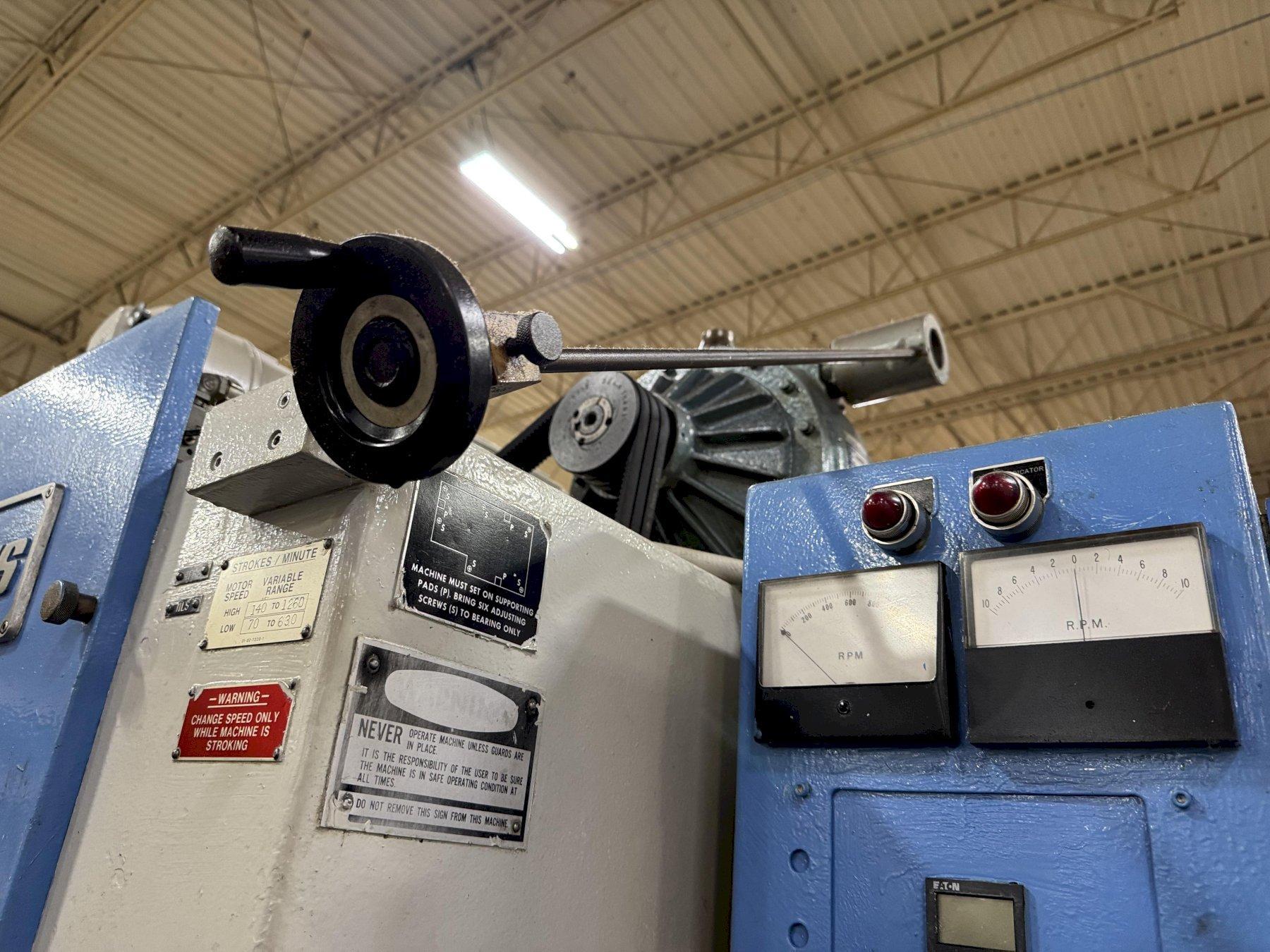

Spindle Stroking Speeds (Variable) - 70 - 1260 RPM
Feed per Stroke - .001" - .040"
Number of Cuts per Cycle - 1, 2, or 3
Approximate Weight - 12,000 Lbs


EQUIPPED WITH:

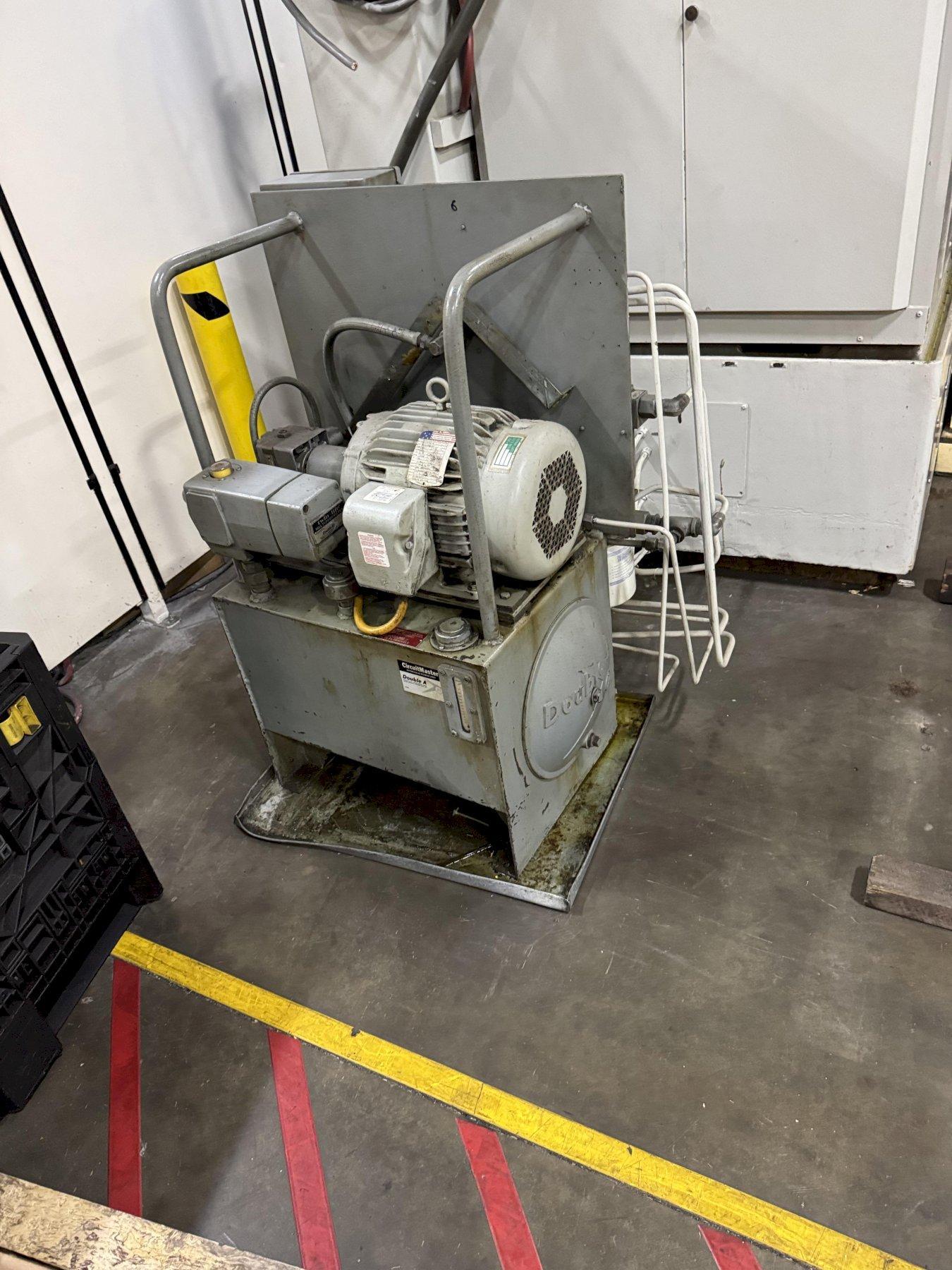

Motor-Driven with 7.5 HP, 2-Speed, 3 Phase, 60 Cycle, AC Volt Spindle Drive. Independent DC Rotary Drive for Feeds. 5 HP Hydraulics. MD Coolant. MD Lubrications. Complete Electrical Controls.

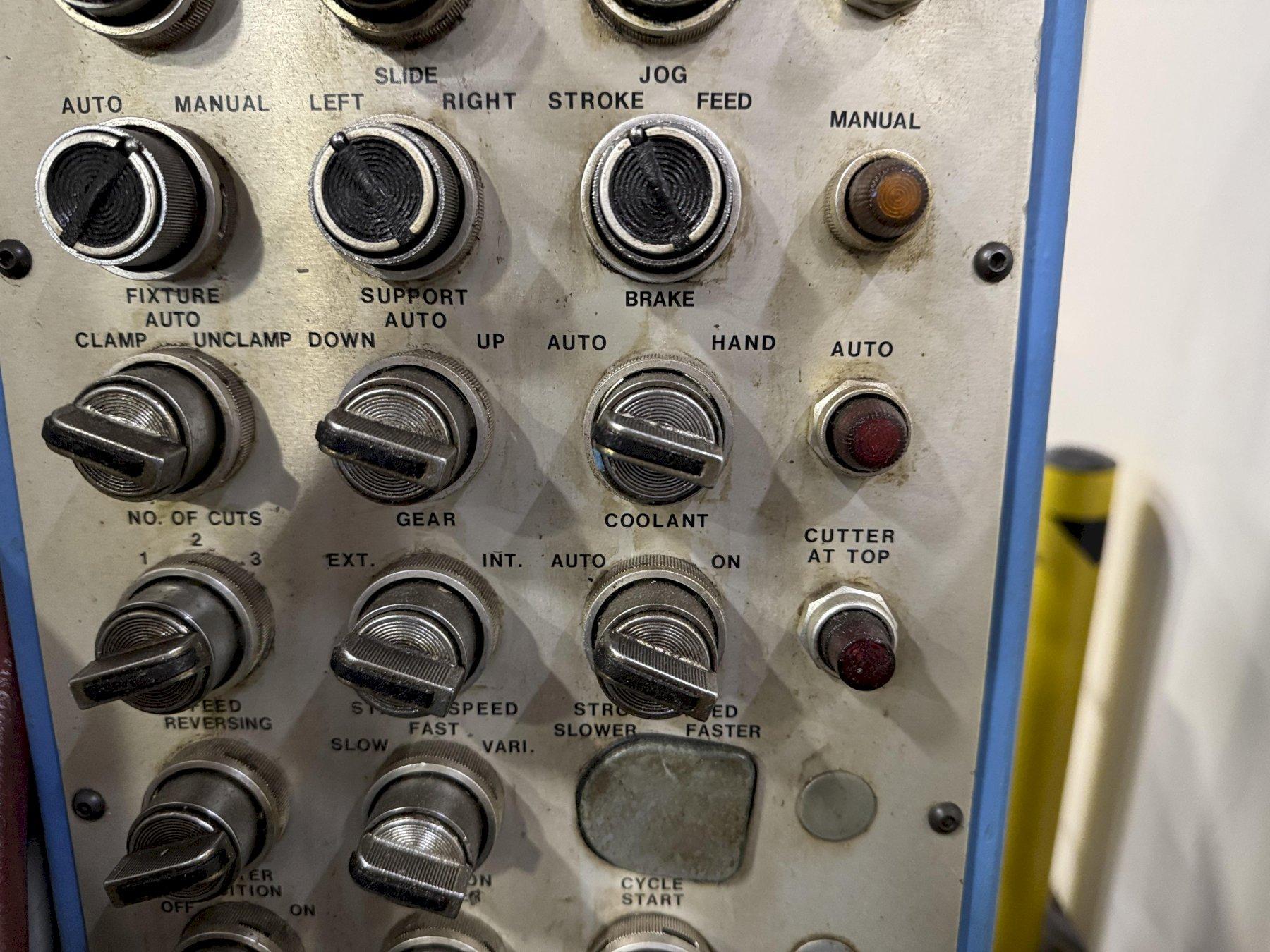

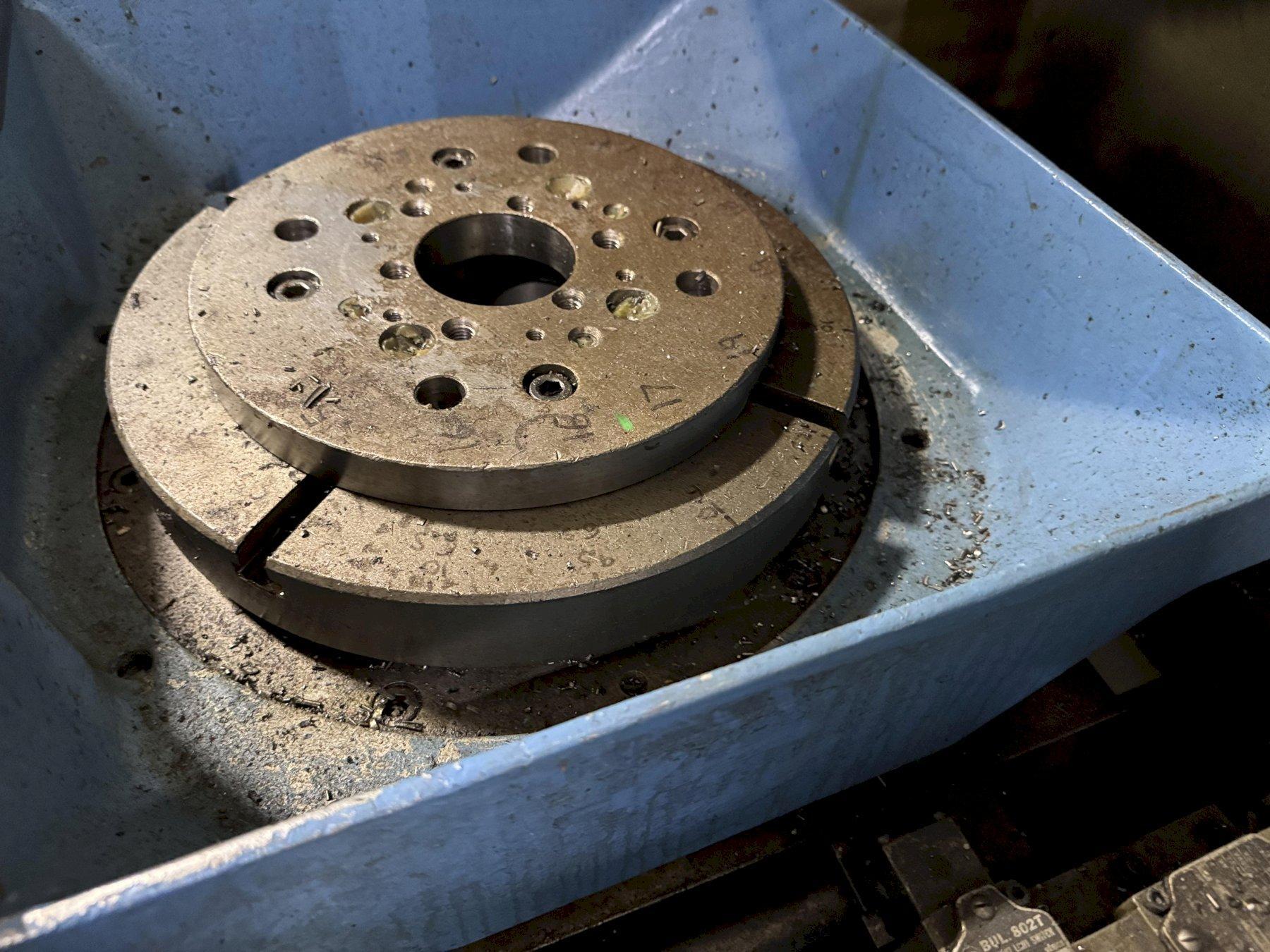

Capacity for Cutting External Spur or Helical Gears and many Non-Involute Shapes. Built-in Crowning Ability. Taper Ability. Variable Speed Infeed for Better Finish and Extended Cutter Tool Life. Cuts and Infeed Rates are Set by Potentiometers. Infinitely Variable Depth Control. Digital Display for Setting Stroking Speeds for Rough and Finish Cuts. Automatic Cutter Positioning for Locating Cutter at Top or Stroke. Work Positioning. 1,2,3 Cut Cycles. Automatic Fixture Clamping. "A" and "B" Rotation Counters. Analog LED Table RPM. T- Slotted Work Table. Chip Basket.
