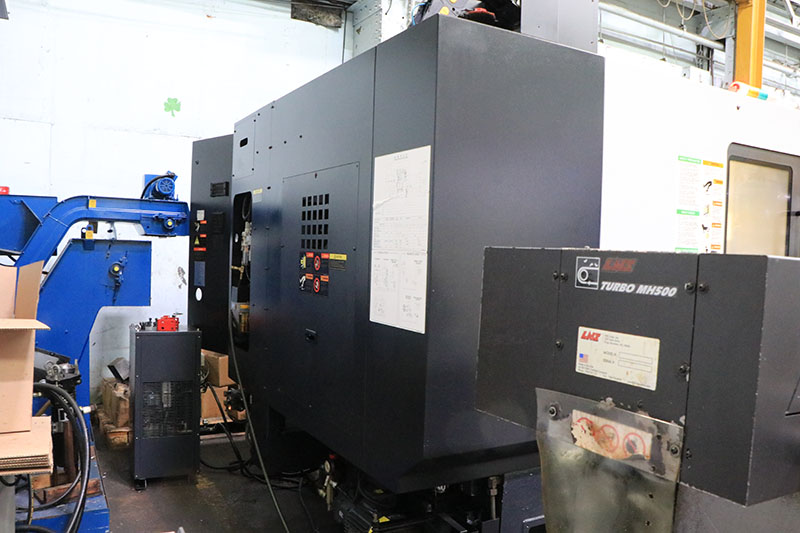

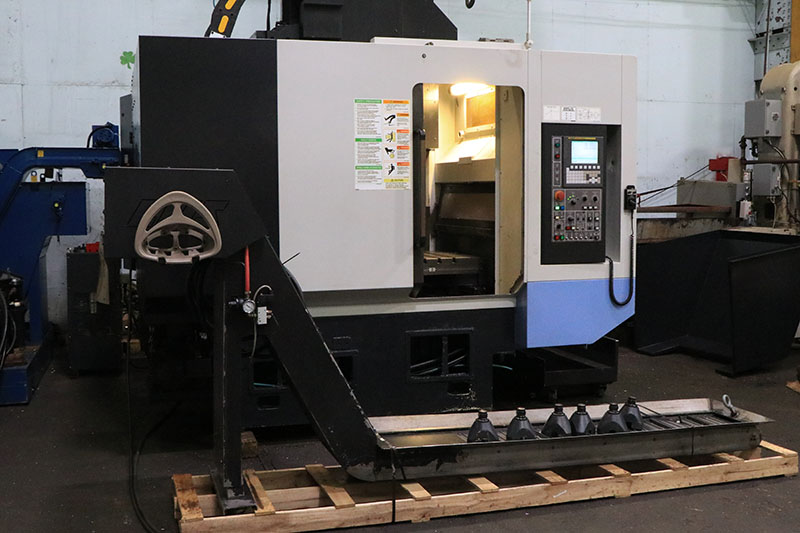

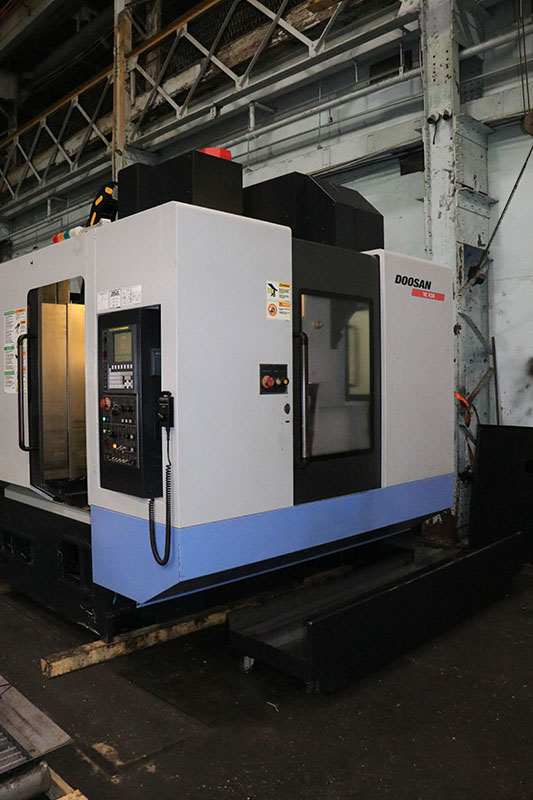

DOOSAN VC 430 CNC TWIN TABLE VERTICAL MACHINING CENTER - NEW: 2011

Manufacturer

DOOSAN

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

69196

Model

VC-430

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

DOOSAN TWIN TABLE VERTICAL MACHINING CENTER

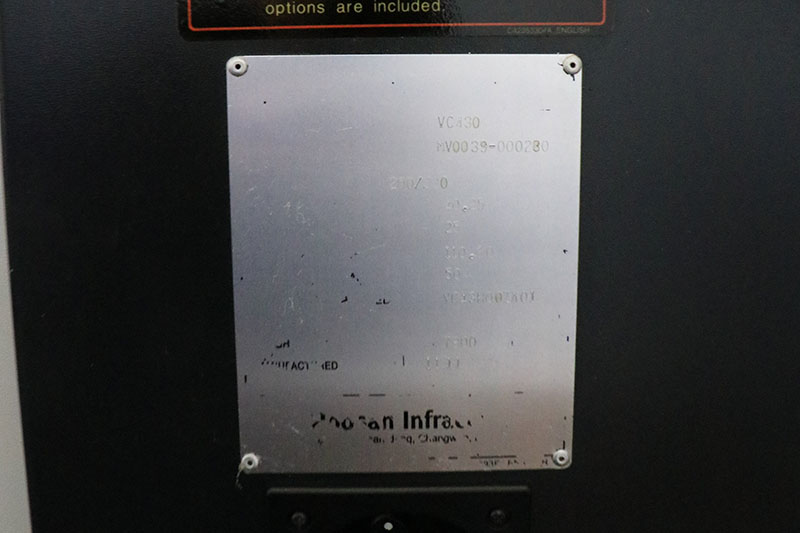

MODEL: VC 430, MV0039 000230, NEW: 2011

SPECIFICATIONS:
X-AXIS TRAVEL ......................... 22"
Y-AXIS TRAVEL ......................... 16.9"
Z-AXIS TRAVEL ......................... 22.4"
MAXIMUM SPINDLE SPEED ................. 12,000 RPM
SPINDLE TAPER ......................... CAT 40
SPINDLE MOTOR ......................... 25 HP
AUTOMATIC TOOL CHANGER ................ 30 TOOLS
PALLET SIZE ........................... 28" X 19.3"
DISTANCE SPINDLE NOSE TO TABLE ........ 5.9" MIN - 28.3" MAX
NUMBER OF PALLETS ..................... 2
PALLET CHANGE TIME .................... 5 SECONDS
PALLET LOADING CAPACITY ............... 661 LBS/EACH
DIMENSIONS .................... 87" L X 114" W X 108" H
(PLUS 37" FOR CHIP CONV) (122.4" HEIGHT MAX)
APPROXIMATE WEIGHT .................... 17,200 LBS

EQUIPPED WITH:

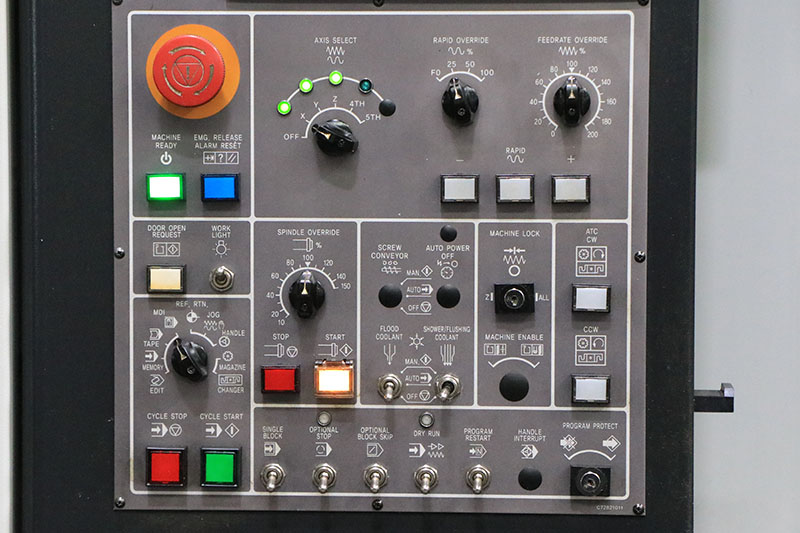

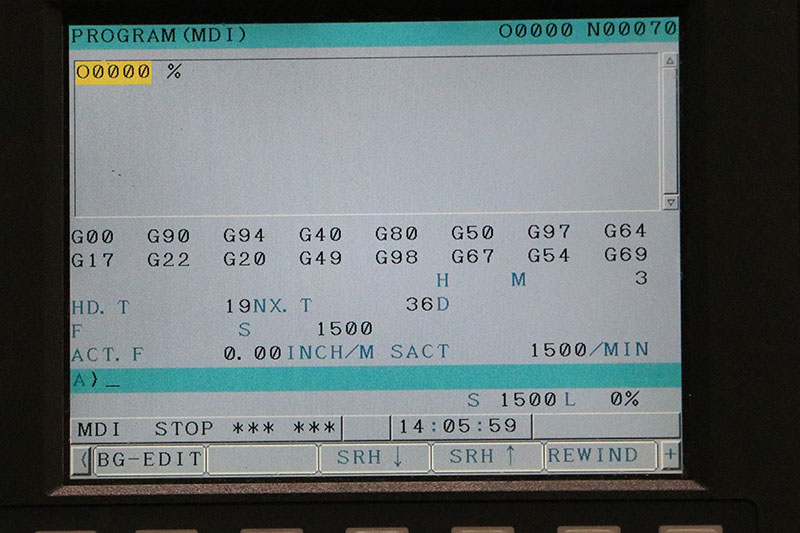

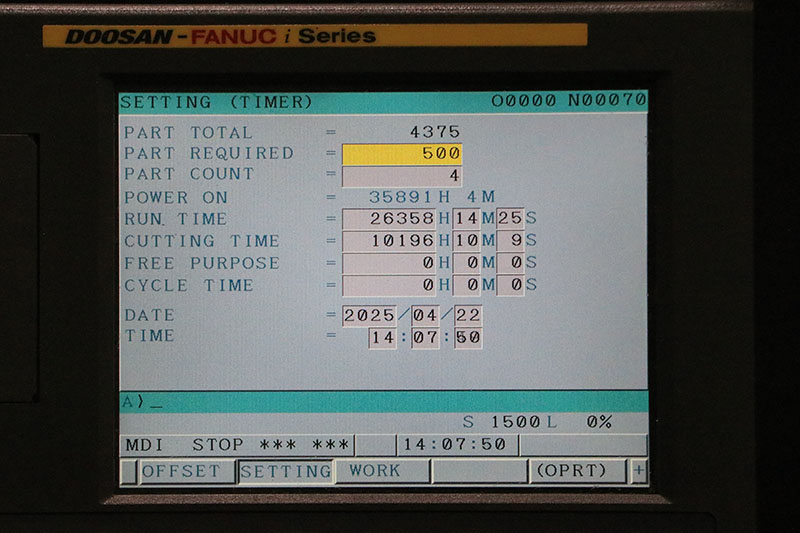

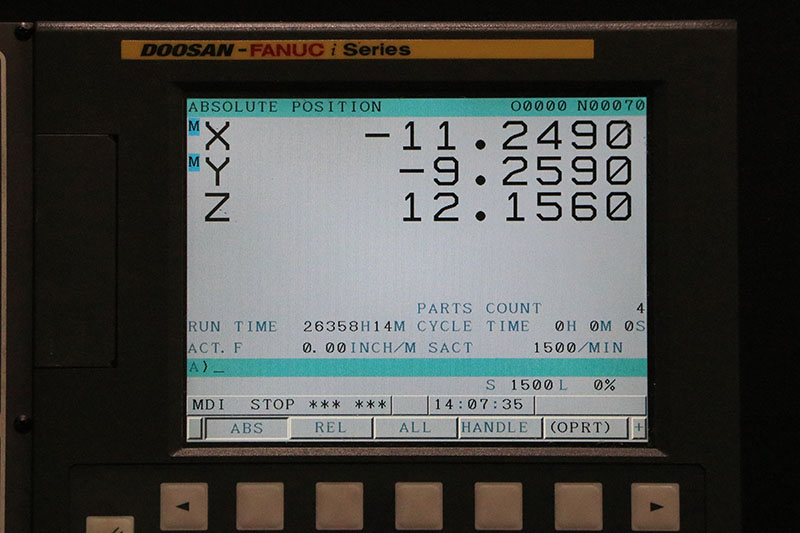

FANUC I CNC CONTROL

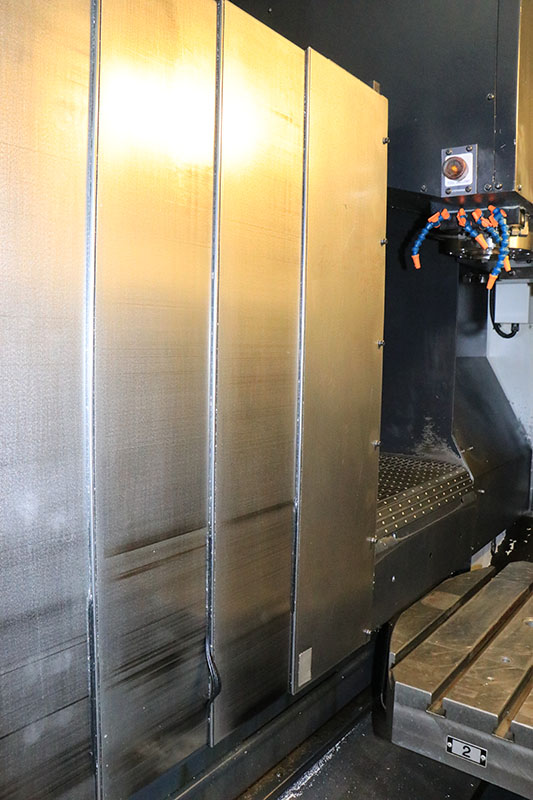

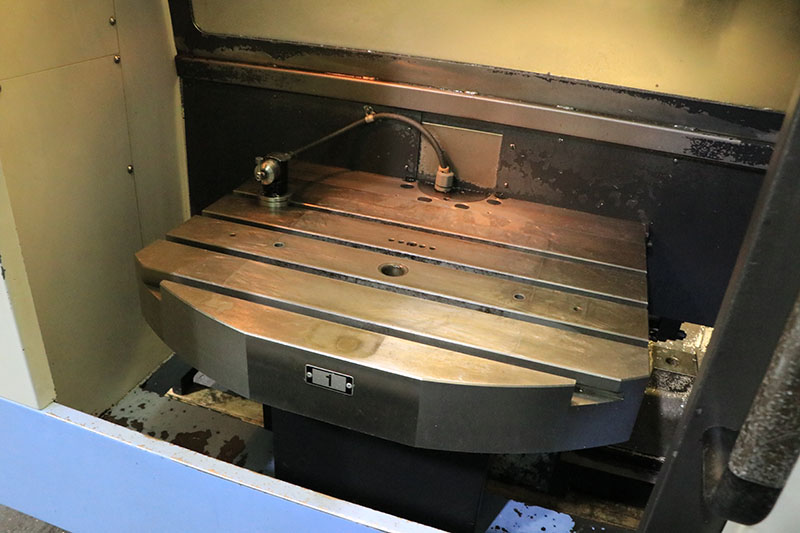

(2) PALLETS

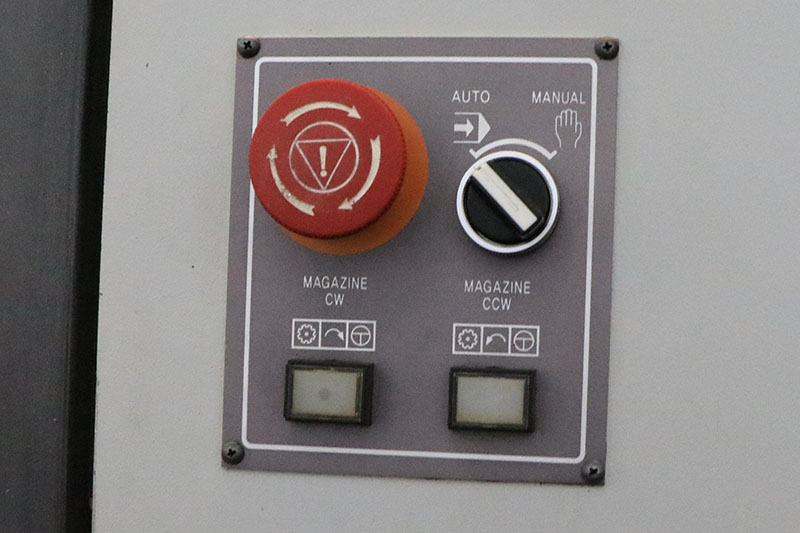

SIDE MOUNTED 30 POSITION AUTOMATIC TOOL CHANGER

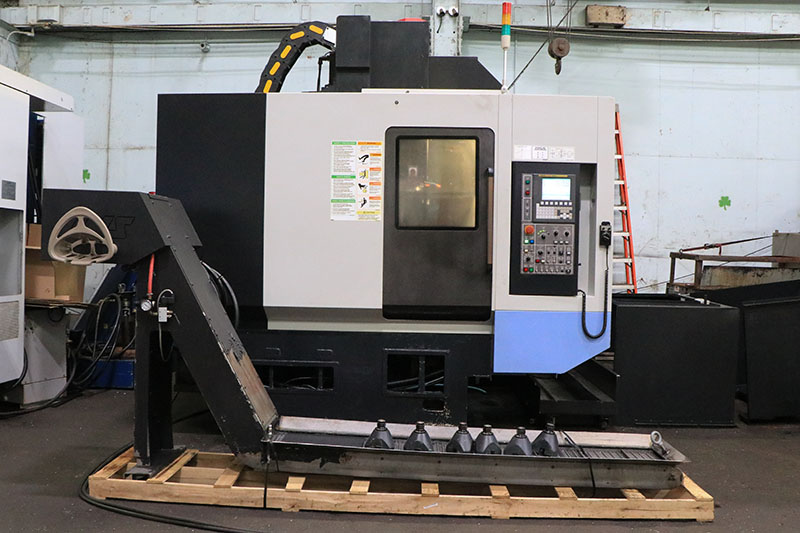

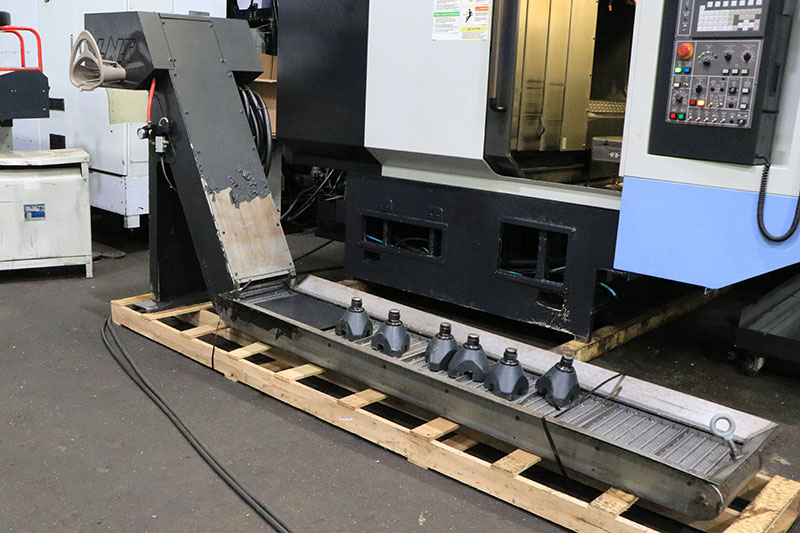

CHIP CONVEYOR

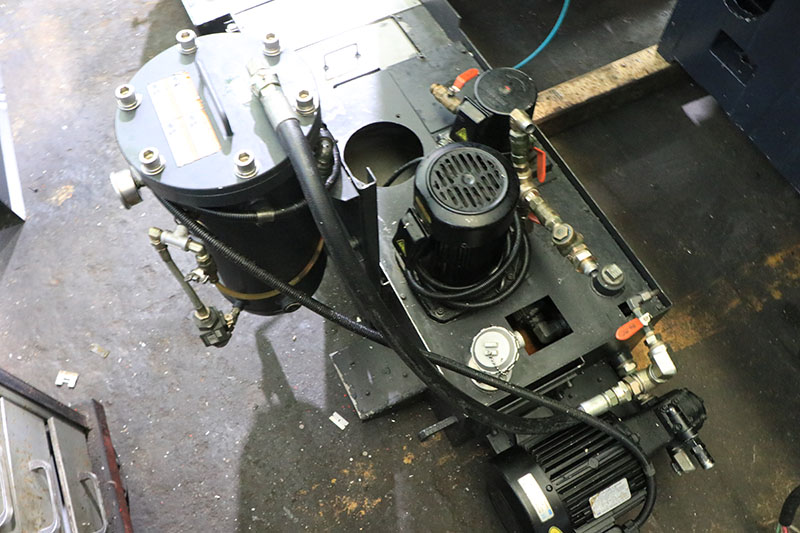

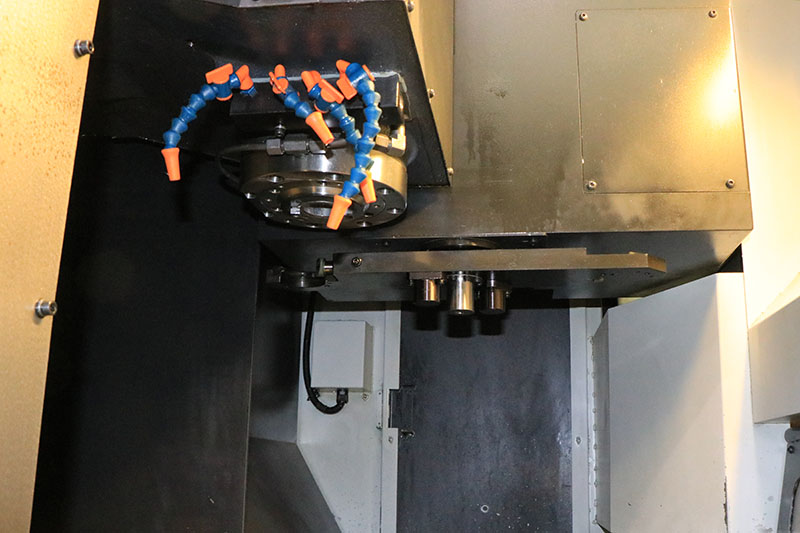

COOLANT THROUGH THE SPINDLE
NEW SPINDLE DONE APPROXIMATELY ONE YEAR AGO

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
