HAAS VF3YT/50 CNC VERTICAL MACHINING CENTER - NEW: 2012

Manufacturer

HAAS

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

69193

Model

VF-3YT/50

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

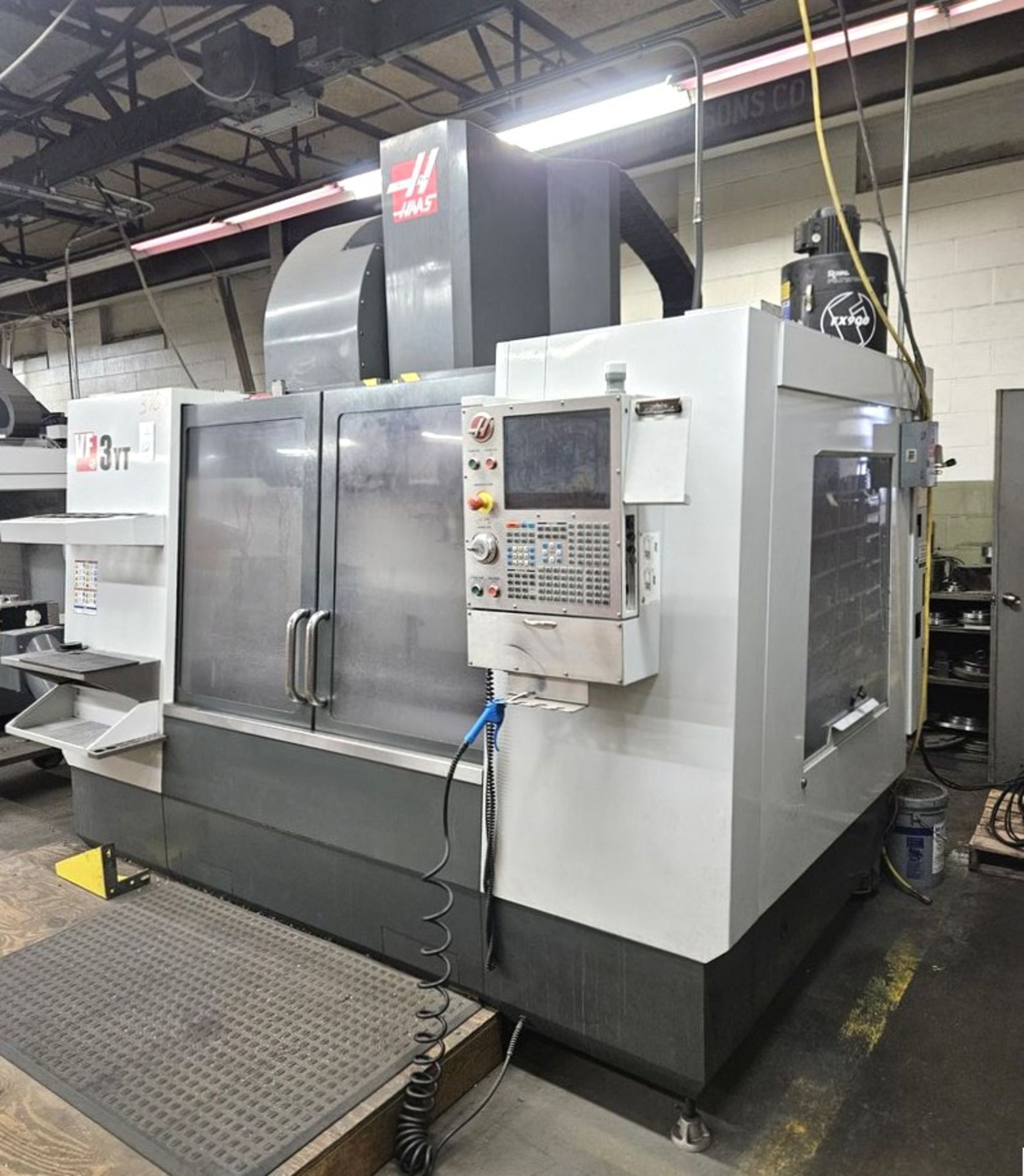

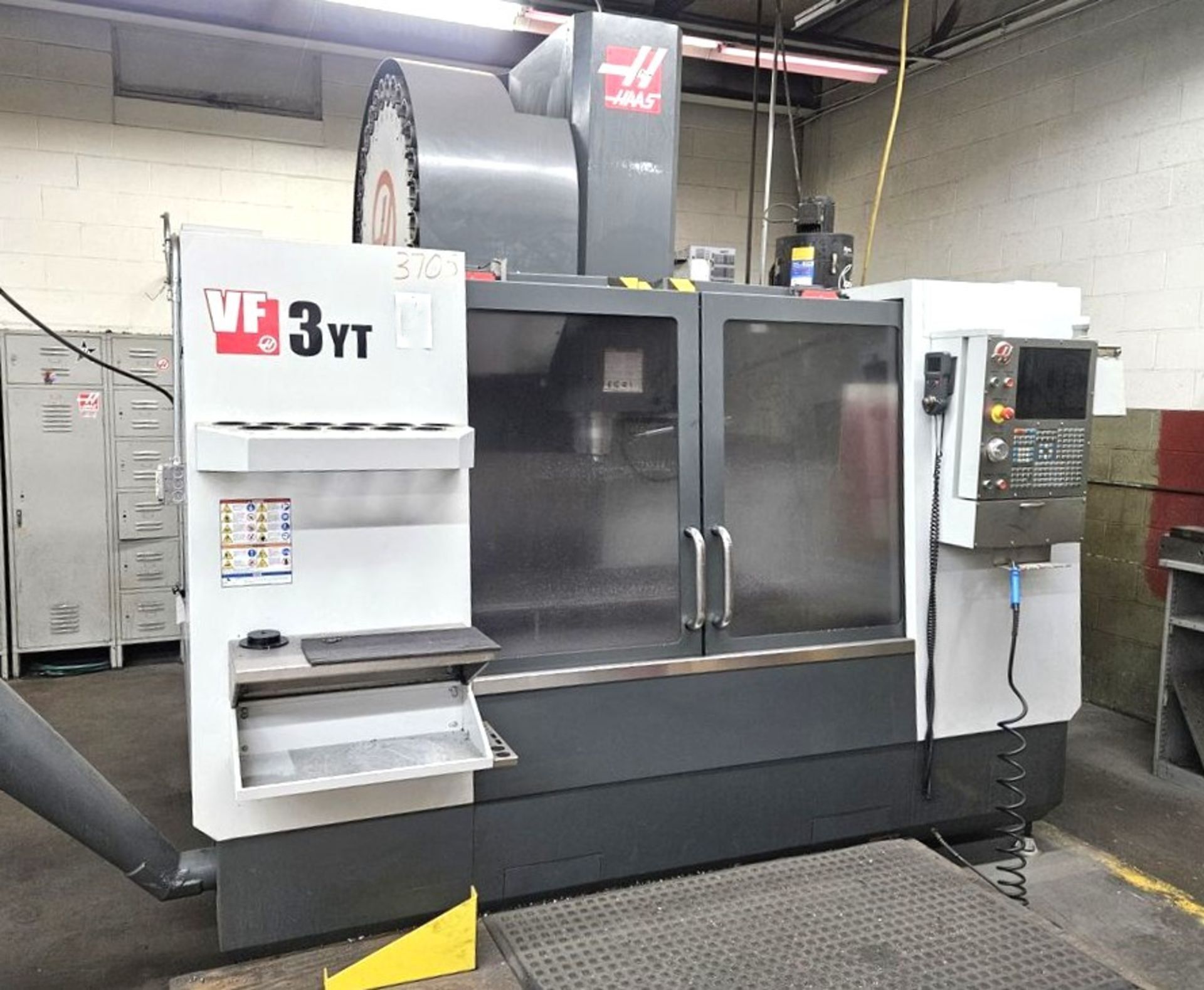

HAAS VERTICAL MACHINING CENTER

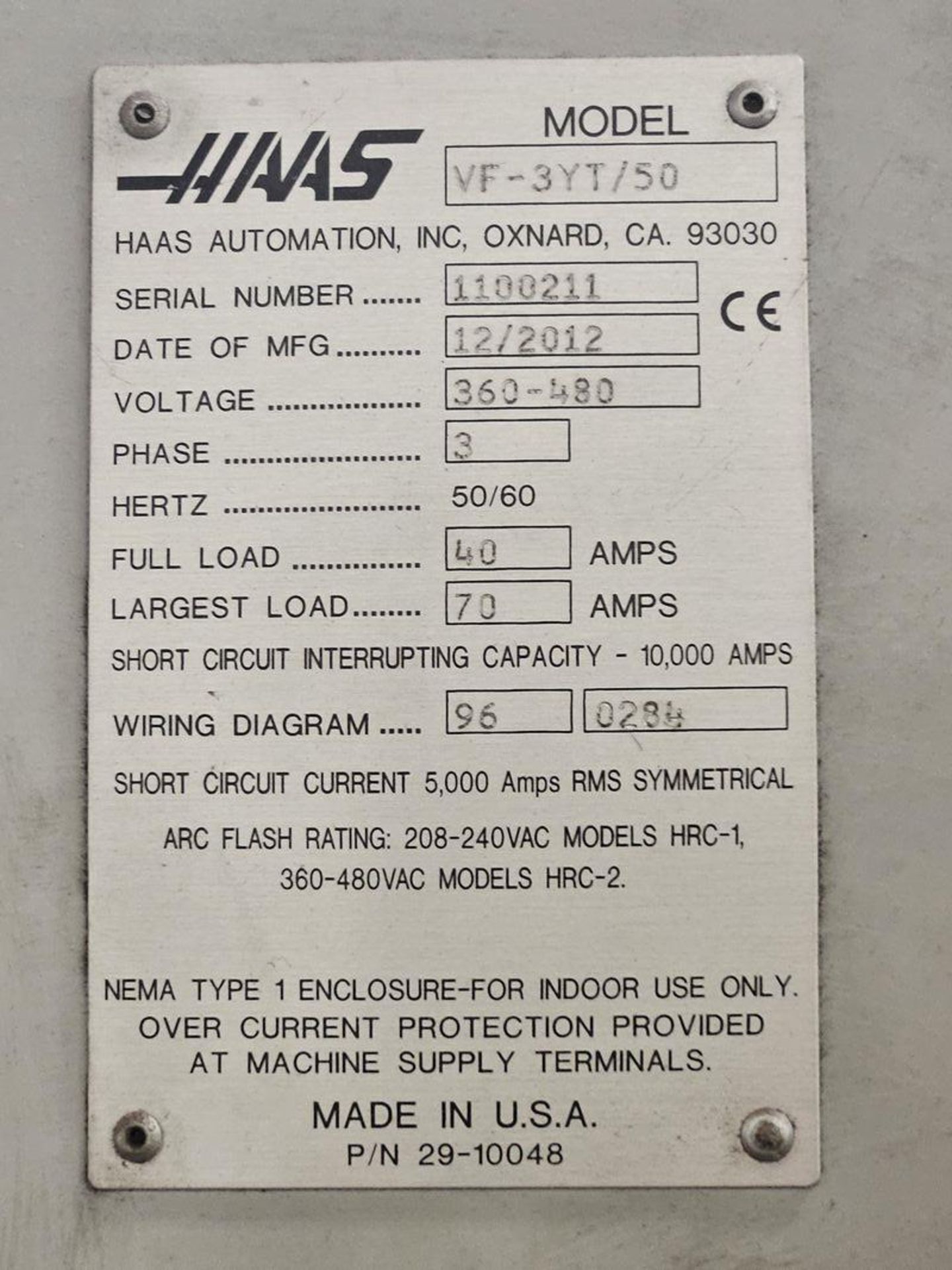

MODEL: VF3YT, S/N: 1100211, MFG: 2012

SPECIFICATIONS:
X-AXIS TRAVEL .................... 40" 1016mm
Y-AXIS TRAVEL .................... 26" 660mm
Z-AXIS TRAVEL .................... 25" 635mm

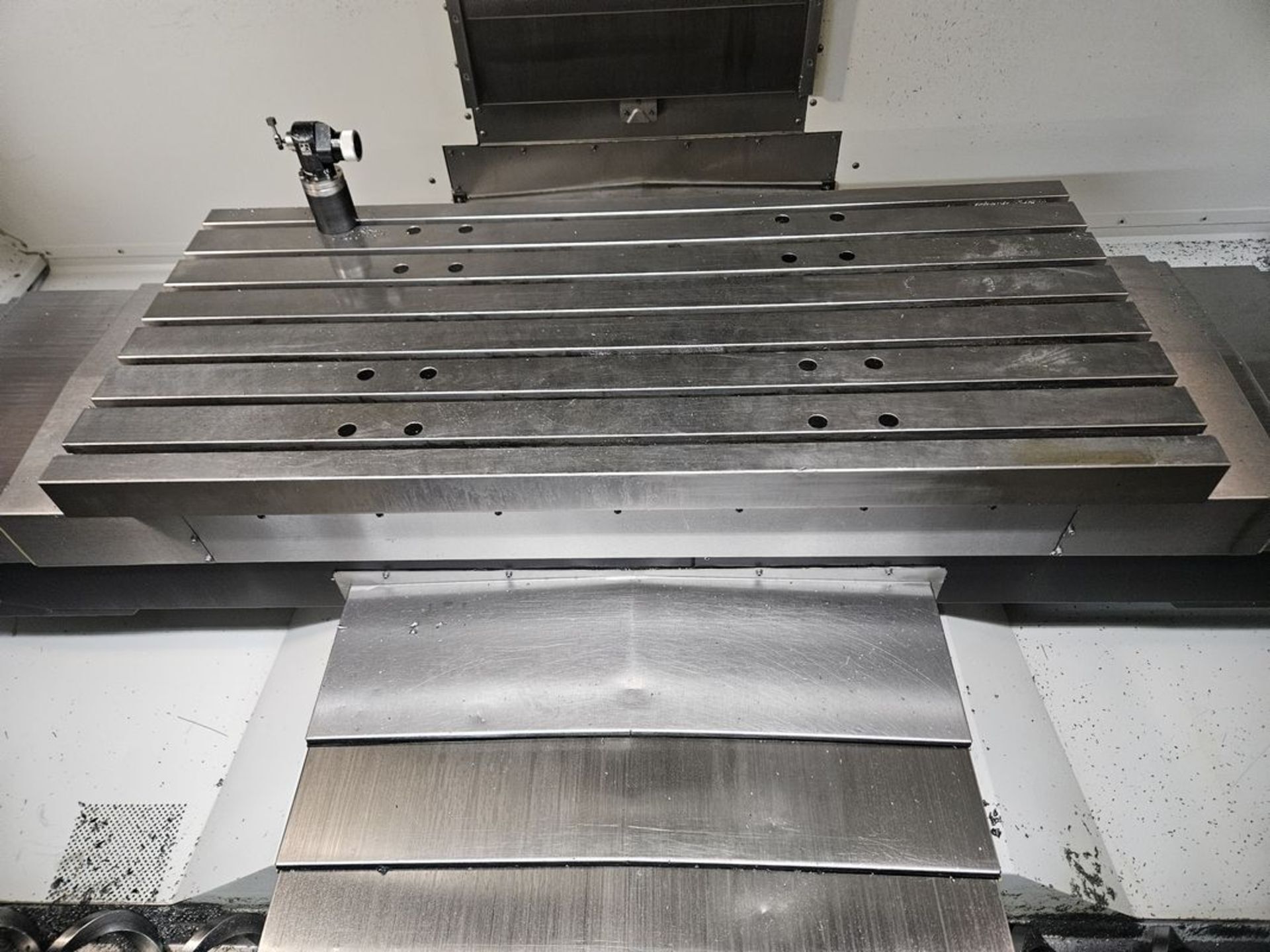

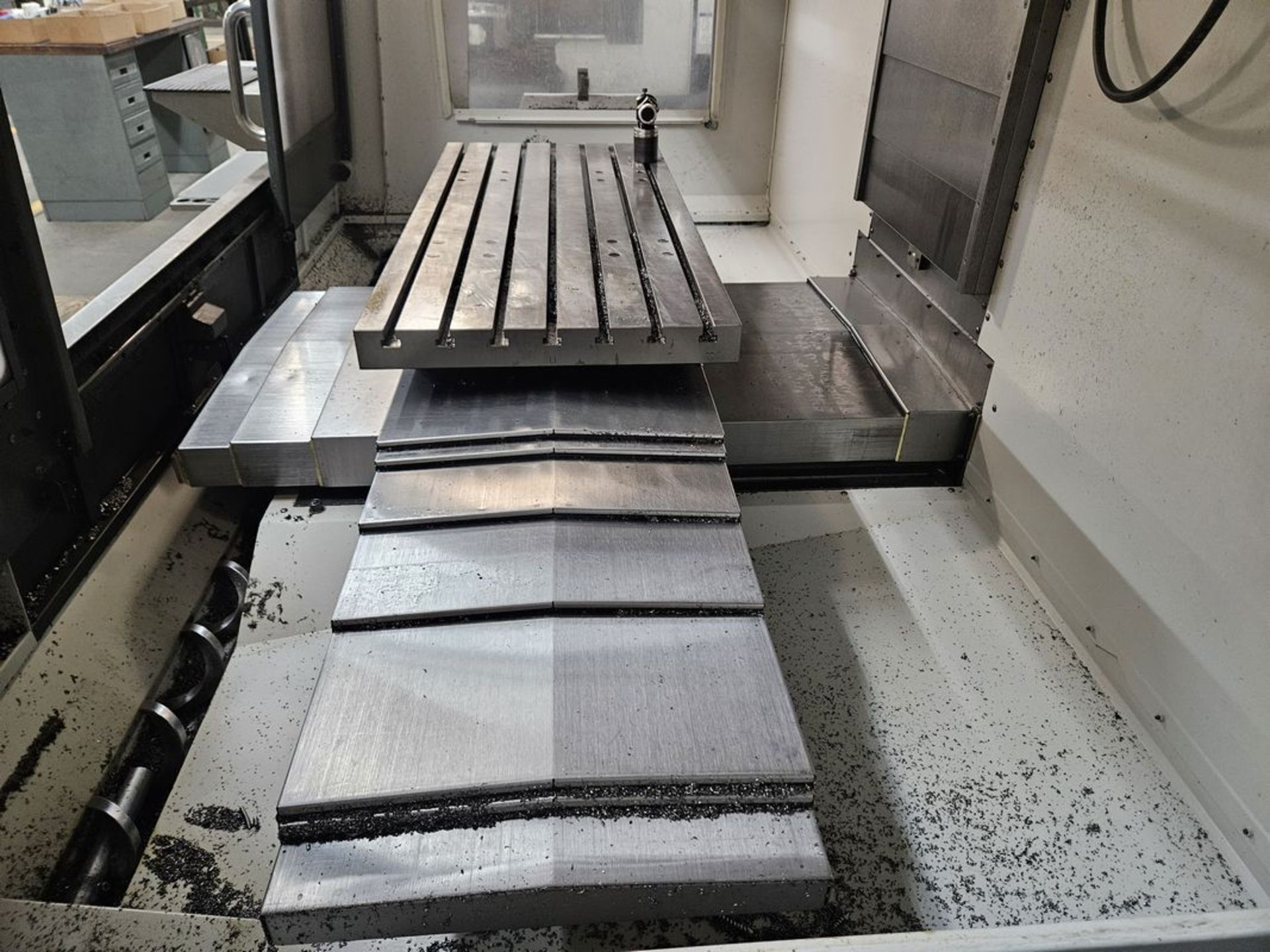

TABLE SIZE ....................... 54" X 25"
TABLE LOAD CAPACITY .............. 4,000 LBS
SPINDLE SPEED .................... 7,500 RPM
SPINDLE MOTOR .................... 30 HP
SPINDLE TAPER .................... CT 50
TOOL MAGAZINE CAPACITY ........... 30 ATC
MAXIMUM TOOL DIAMETER/WEIGHT ..... 3.0" / 12 LBS
RAPID TRAVERSE RATE............... 710 IPM
MACHINE DIMENSIONS: .............. 123" x 89" x 94"H
MACHINE WEIGHT: .................. 15,000 LBS


EQUIPED WITH:

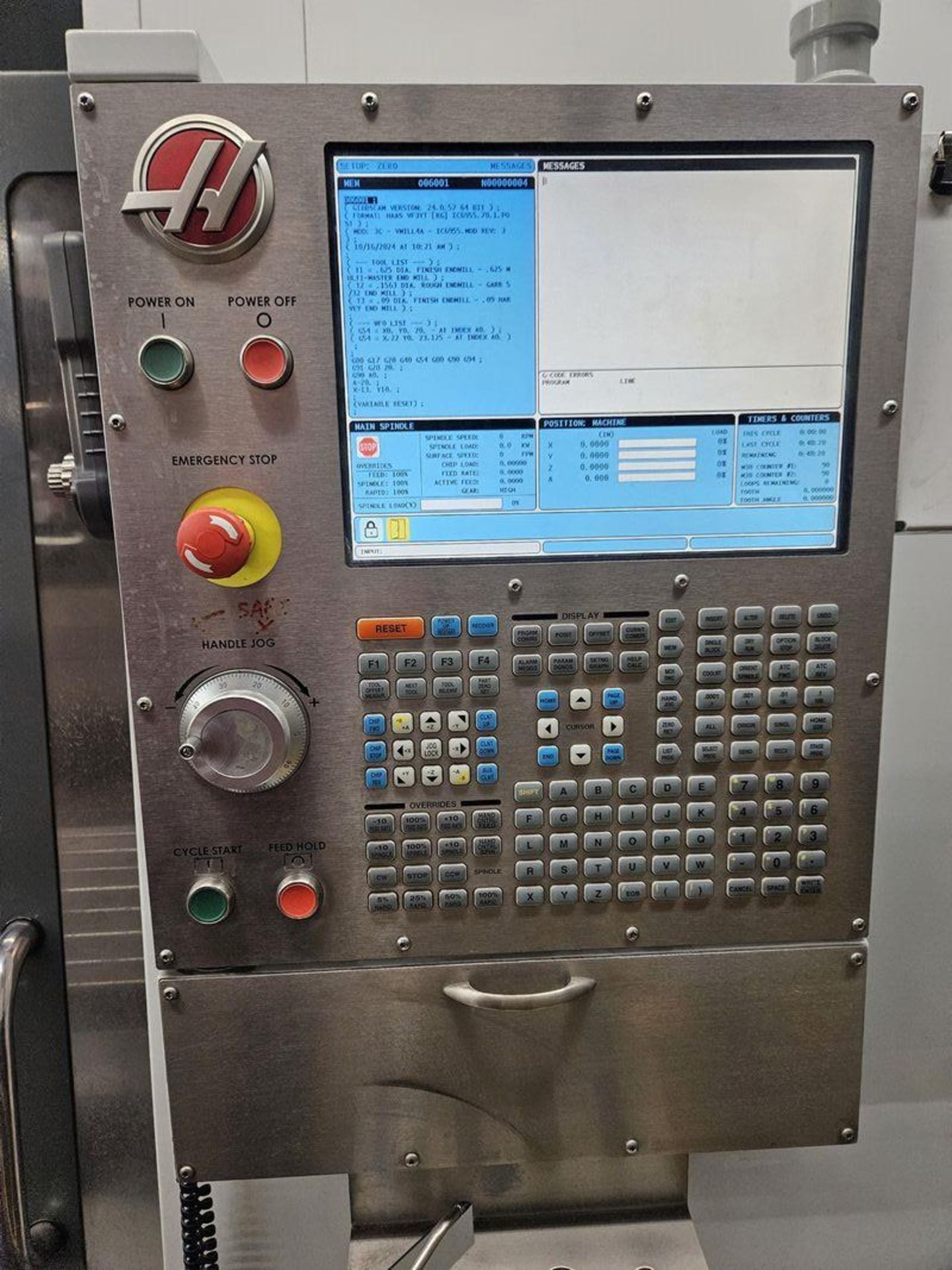

HAAS 5-AXIS CONTROL
4TH & 5TH AXIS DRIVE CARDS
RIGID TAPPING
RENISHAW INTUITIVE PROGRAMING SYSTEM (WIPS)
COOLANT SYSTEM
COOLANT THROUGH SPINDLE

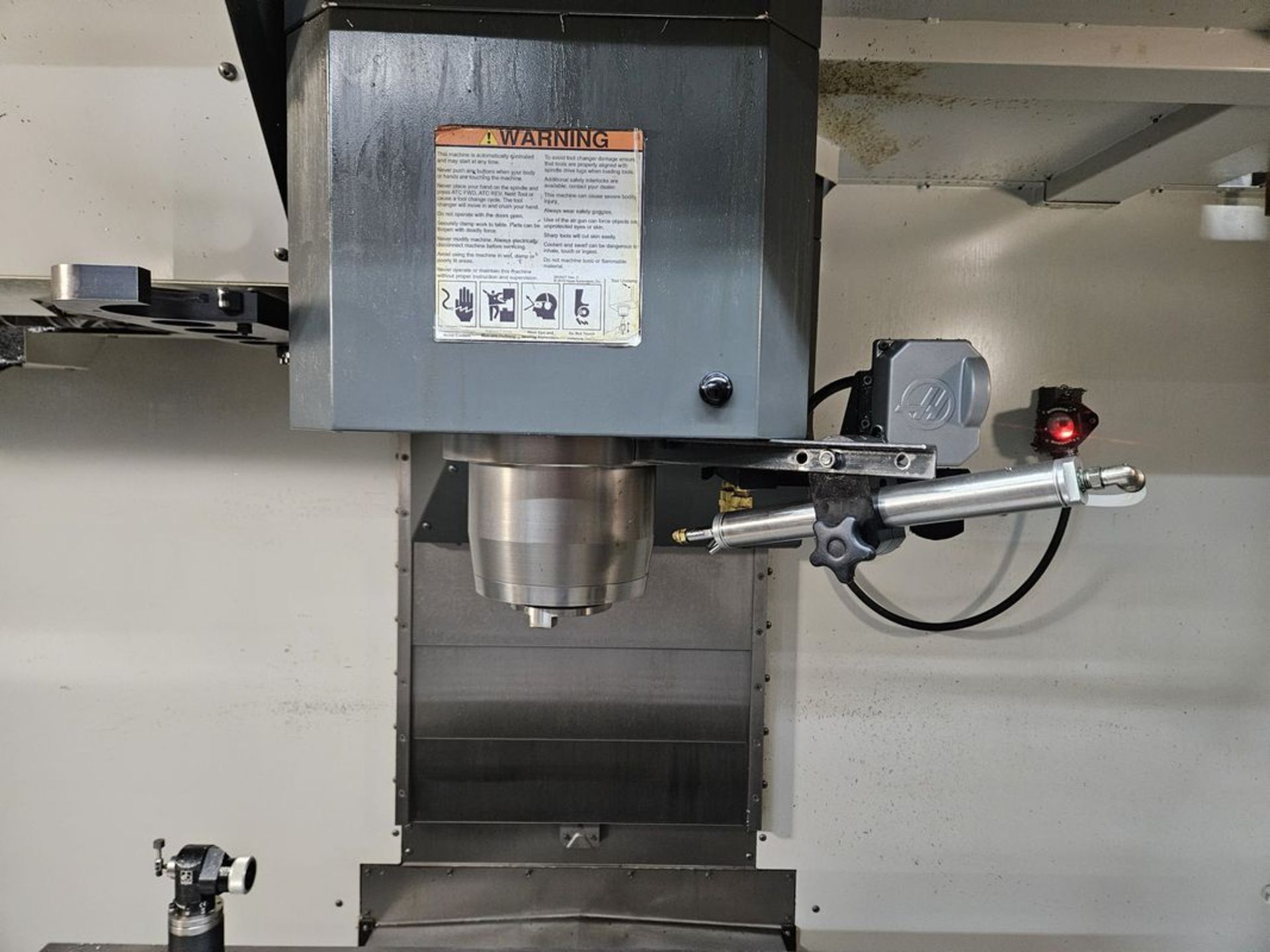

PROGRAMMABLE COOLANT NOZZLE
AIR BLOW
CHIP AUGER

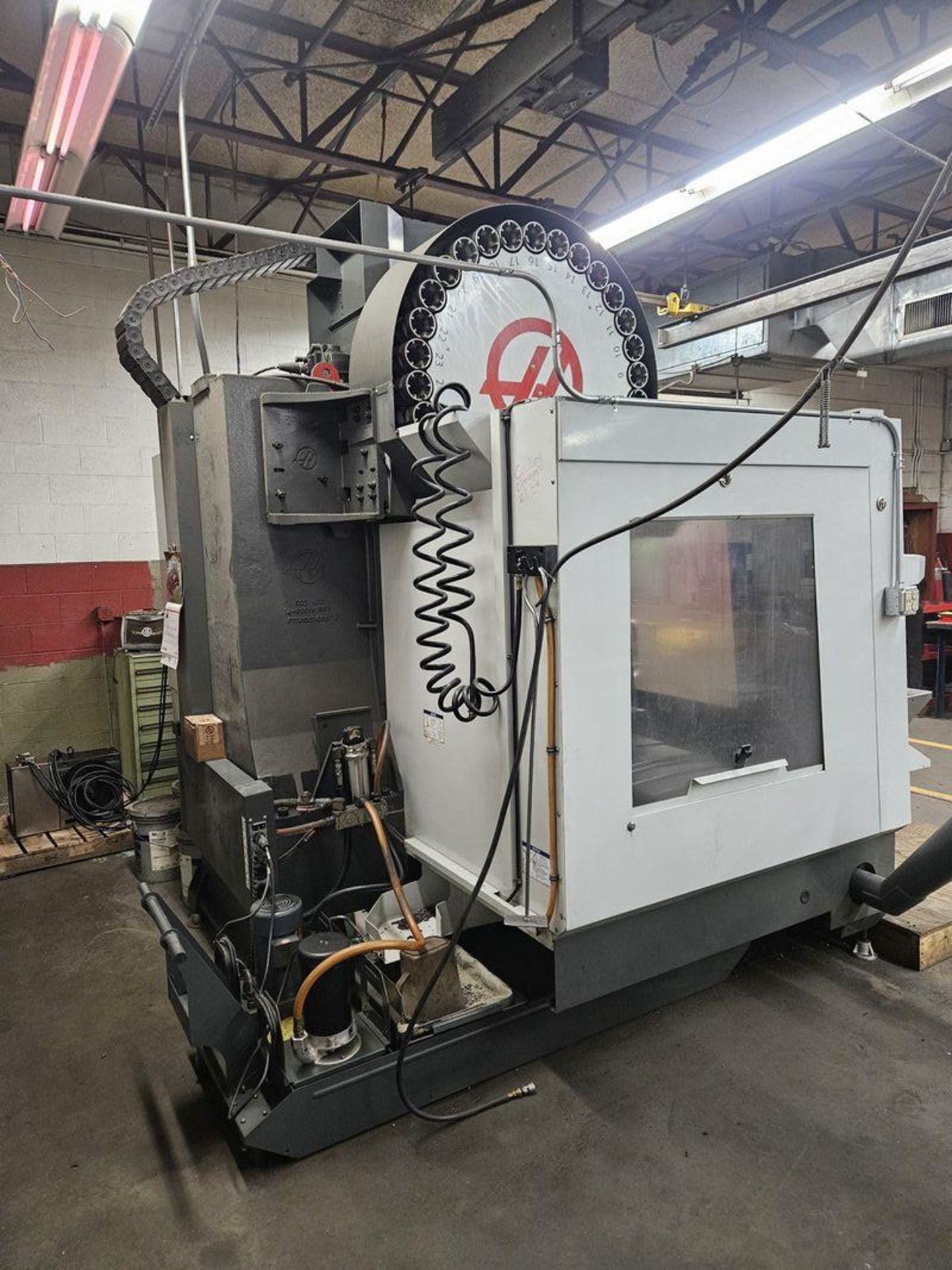

30 TOOL SIDE MOUNTED TOOL CHANGER
30 HORSE POWER SPINDLE DRIVE
