SOUTHWESTERN INDUSTRIES TRAK K3 EMX CNC MILLING MACHINE - NEW: 2016

Manufacturer

TRAK (SOUTHWESTERN INDUSTRIES)

Category

Milling Machines

Type

MILLERS, VERTICAL/UNIVERSAL, CNC

Stock

69119

Model

RAK K3 EMX

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

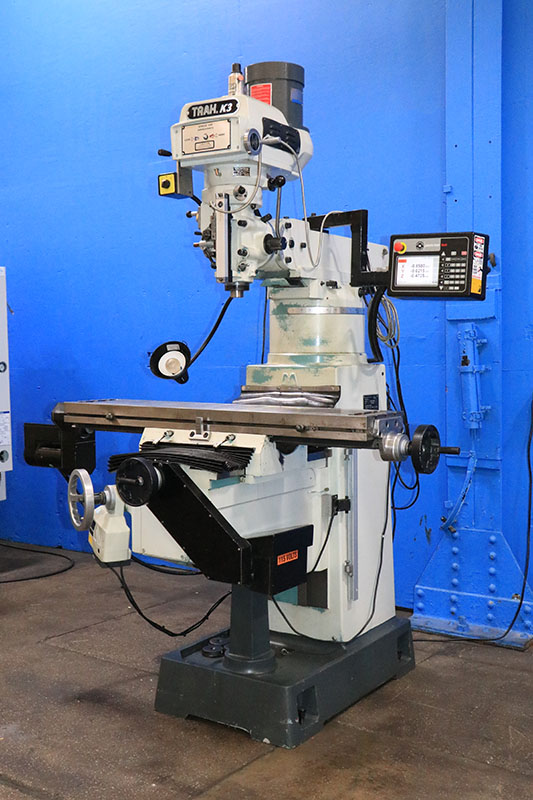

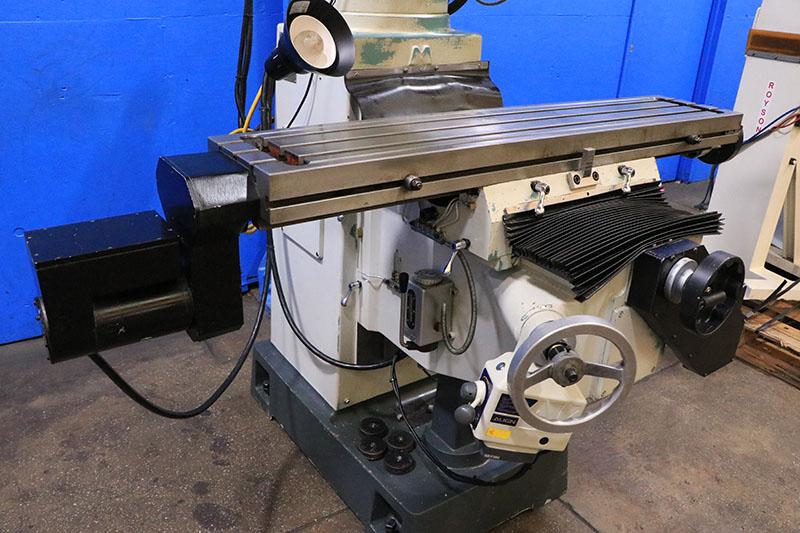

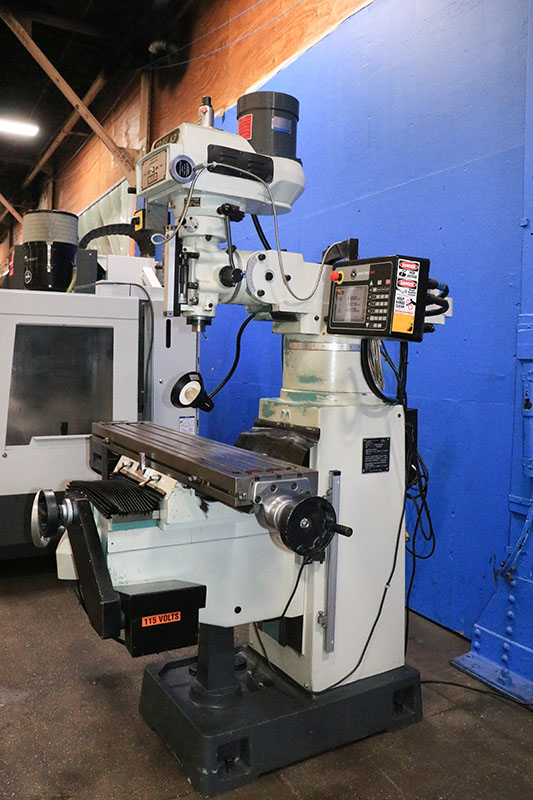

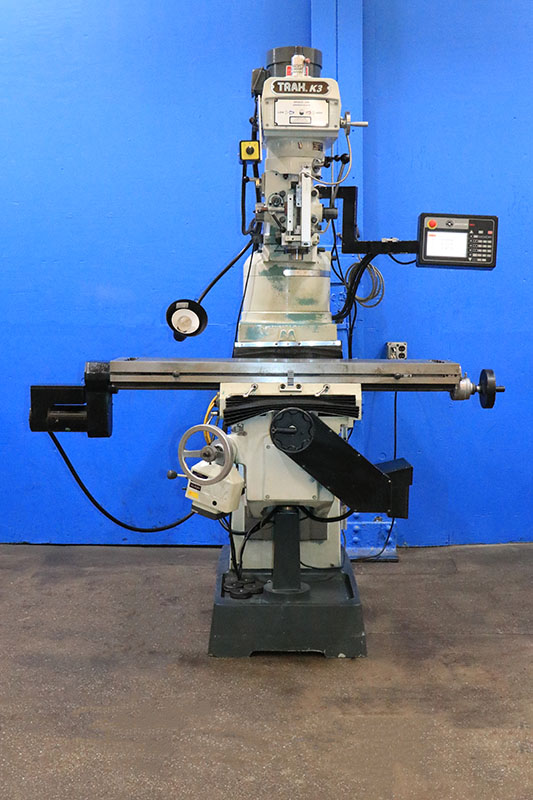

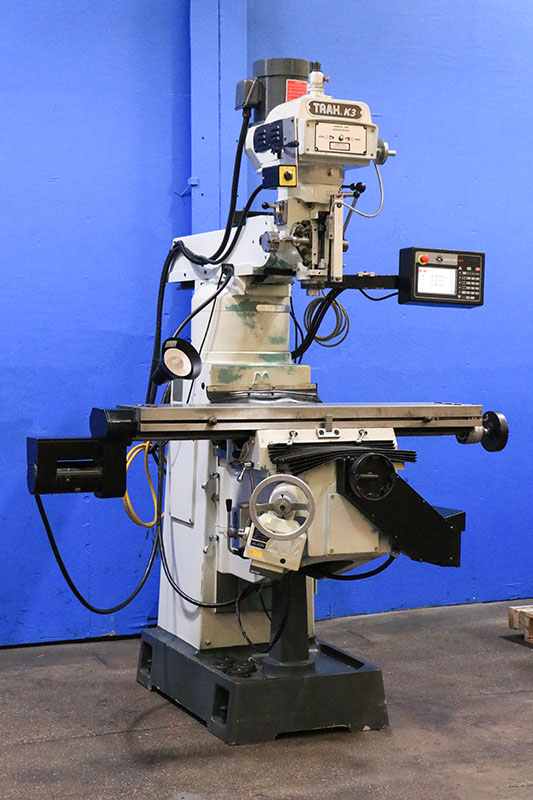

SOUTHWESTERN INDUSTRIES CNC VERTICAL MILL

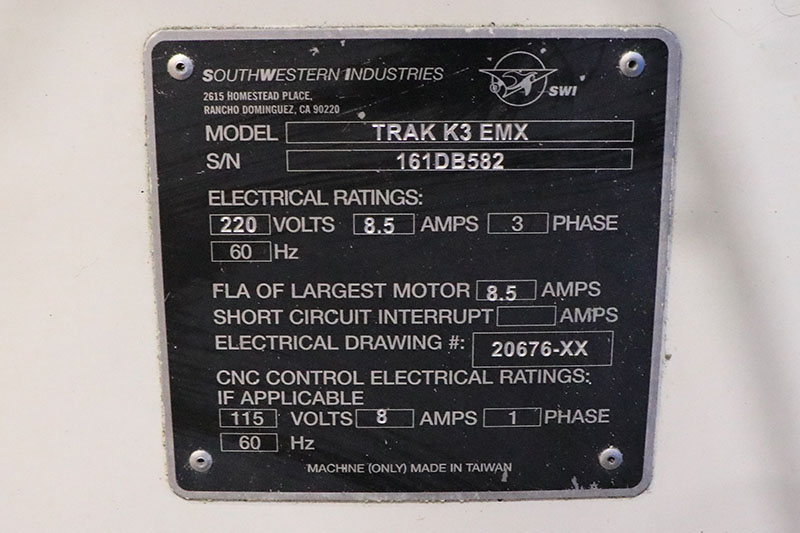

MODEL: TRAK K3 EMX, S/N: 161DB582, NEW: 2016

SPECIFICATIONS:

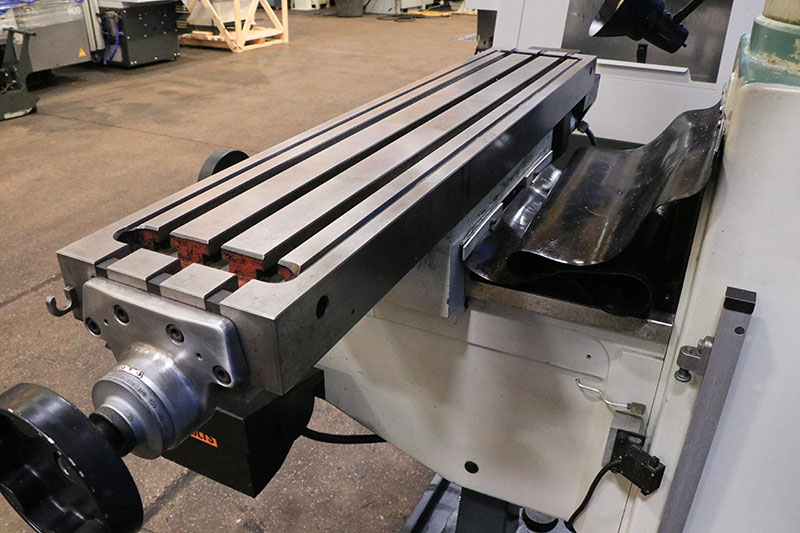

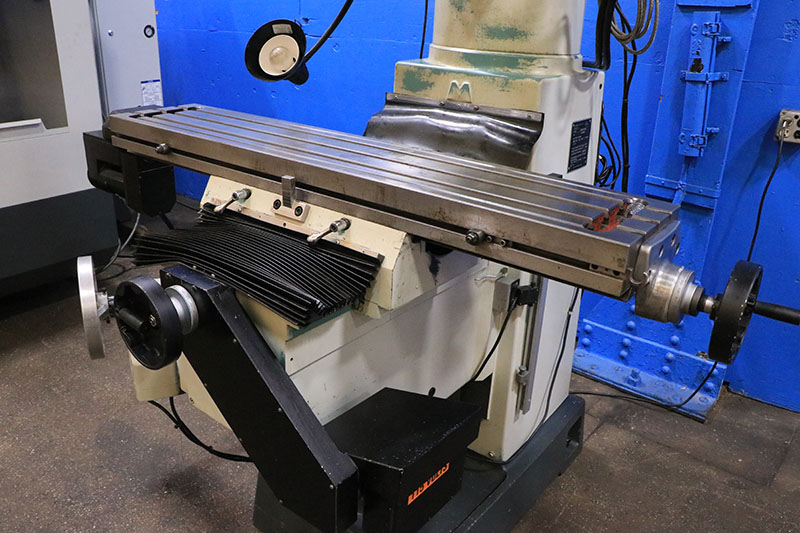

TABLE WORKING SURFACE ............. 10" X 50"
TRAVELS:
LONGITUDINAL TABLE (X) .... 32"
CROSS TABLE (Y) .......... 16"
QUILL (Z) ................. 5"
VERTICAL, KNEE ............ 16"
RAM ....................... 15"
QUILL DIAMETER .................... 3.375"
MAXIMUM UNIFORM TABLE LOAD ........ 750 LBS.

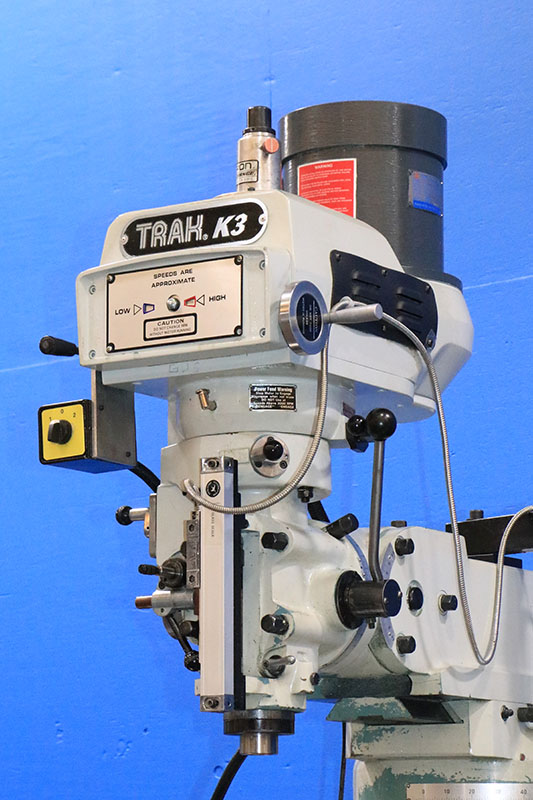

HEAD TILT, LEFT AND RIGHT ......... 90 DEGREES
HEAD TILT, FRONT TO REAR, EACH WAY. 45 DEGREES
(3) POWER QUILL FEEDS ............. .0015, .003, .006 IPR
SPINDLE SPEED RANGE (2) (INF VAR) . 60-500 RPM & 500-4,200 RPM.
SPINDLE TAPER ..................... R-8
MAXIMUM COLLET CAPACITY ........... 3/4"
MAXIMUM RAPID FEED RATE ........... 100 IPM
APPROX DIMENSIONS ................. 69" L-R X 69" F-B X 90" H
APPROX WEIGHT ..................... 2850 LBS

EQUIPPED WITH
- MANUAL OR CNC MODE OF OPERATION

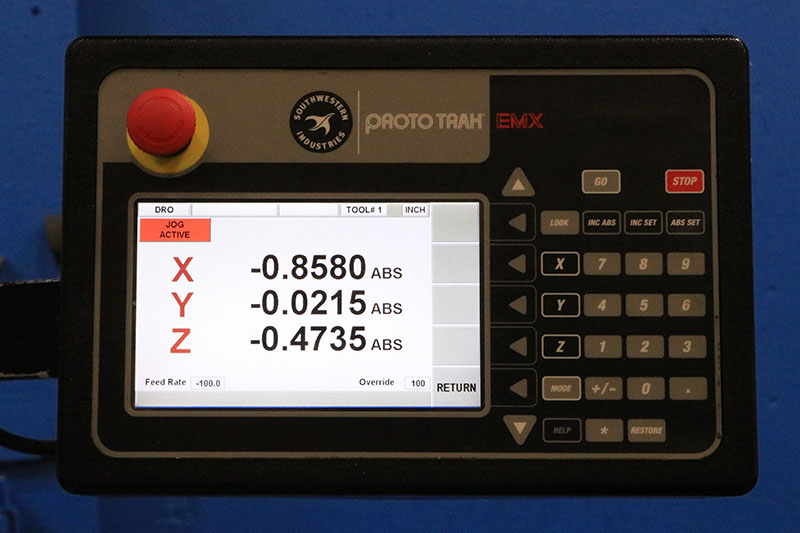

- PROTOTRAK MODEL: EMX 2 TWO-AXIS (X & Y) CNC CONTROL
(THREE-AXIS DIGITAL DISPLAY IN MANUAL MODE) W/ LCD SCREEN
- PRECISION BALL SCREWS AND SERVO DRIVES FOR X & Y AXES
- MEEHANITE CASTING
- HARDENED AND GROUND SQUARE BOX WAYS ON SADDLE
- HARDENED AND GROUND DOVETAIL WAYS ON X-TABLE & Z-KNEE
- SLIDE WAYS ARE TURCITE COATED
- 6" RISER BLOCK ON COLUMN

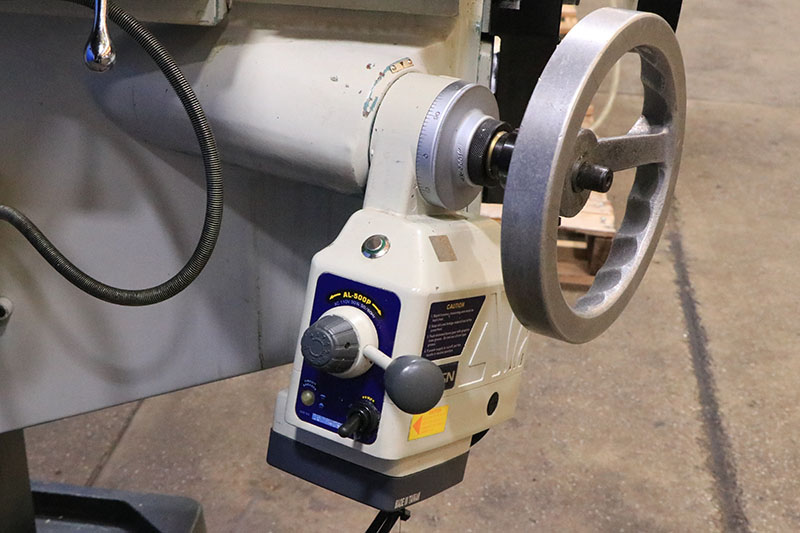

- ALIGN POWER FEED FOR KNEE ELEVATION
- MANUALLY OPERATED ONE SHOT LUBRICATION SYSTEM
- 3 H.P. 3/60/220-440 VOLT SPINDLE DRIVE MOTOR AND ELECTRICAL CONTROLS

MACHINE IS WIRED FOR 220 VOLT OPERATION.

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
