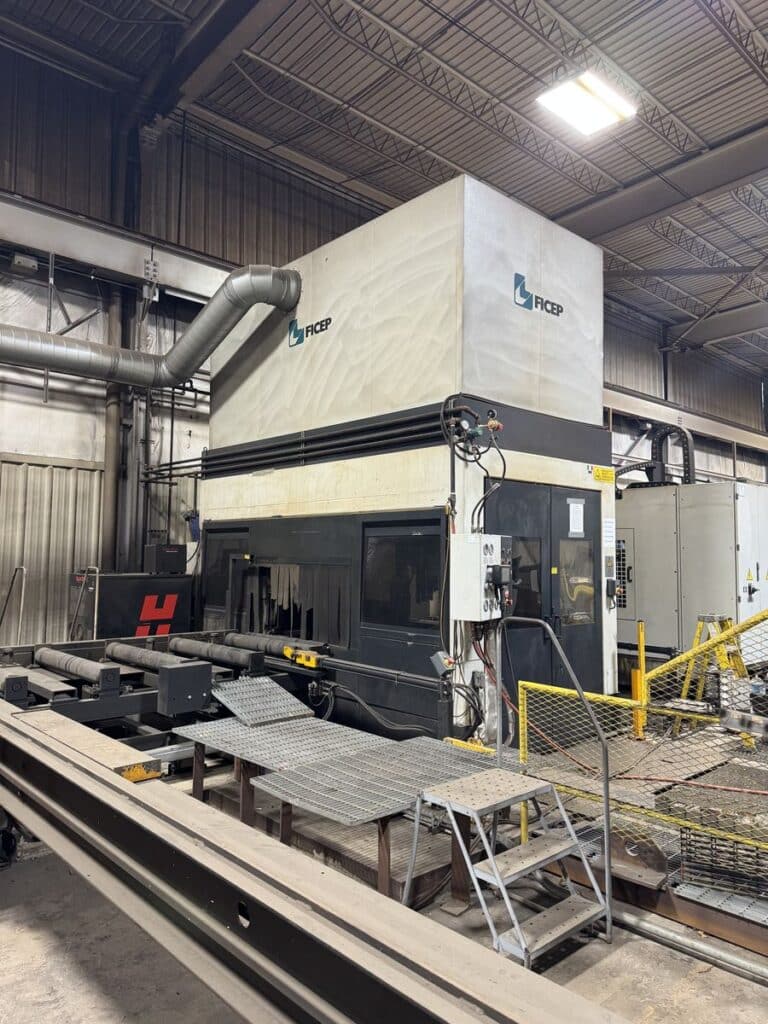

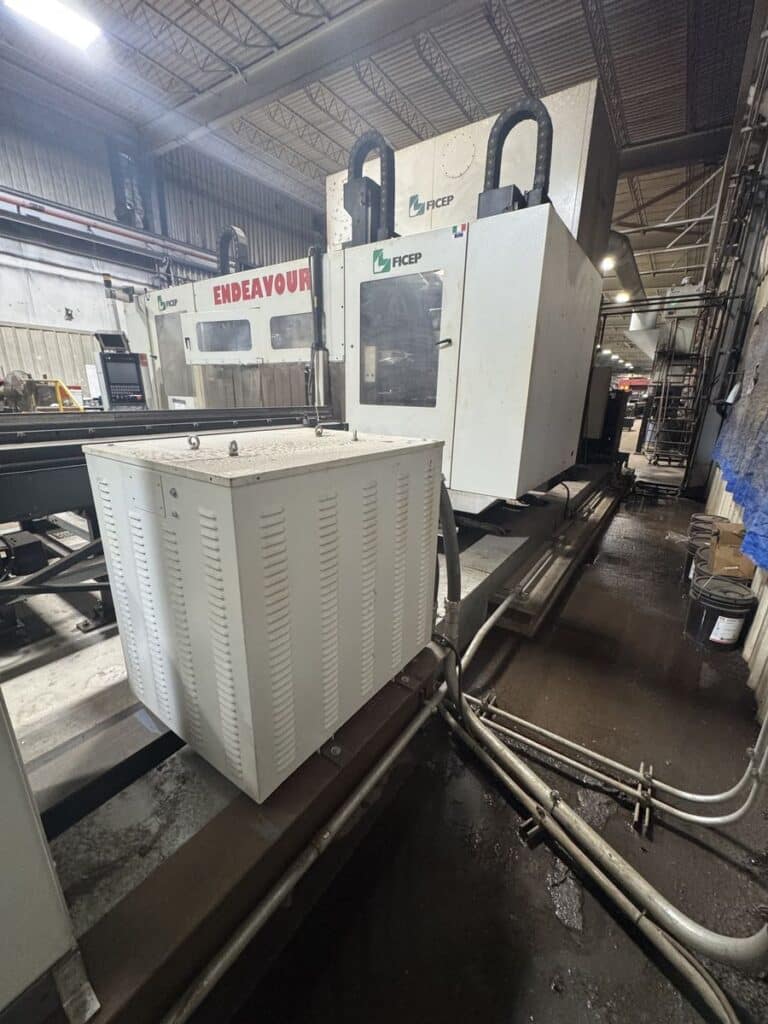

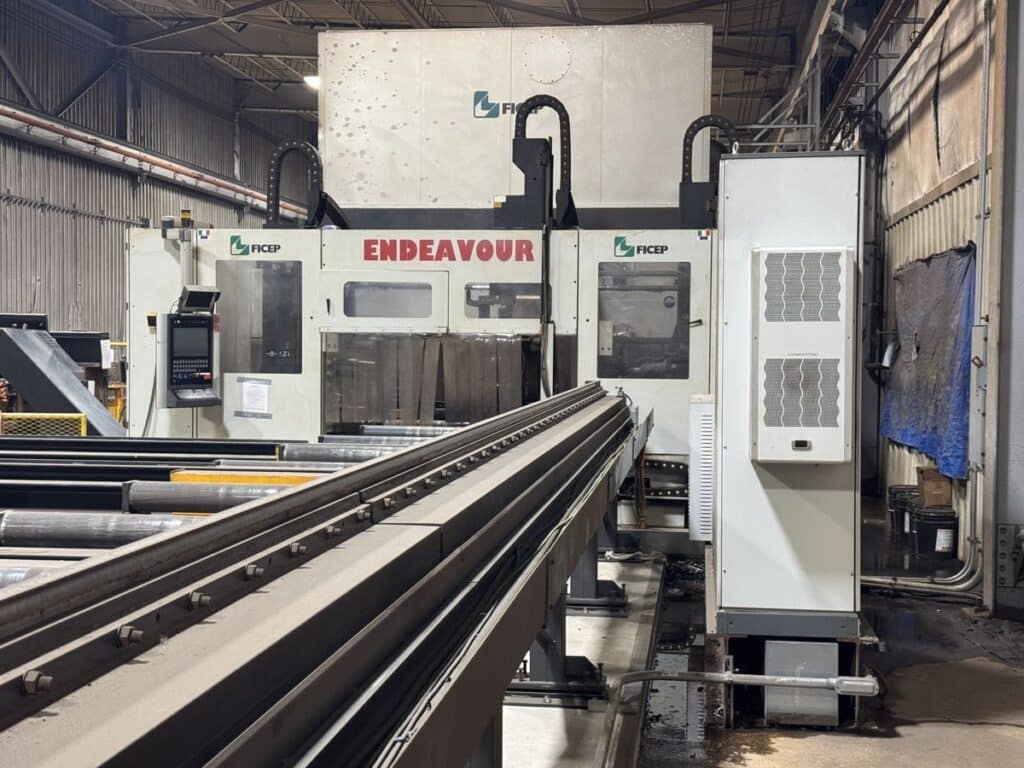

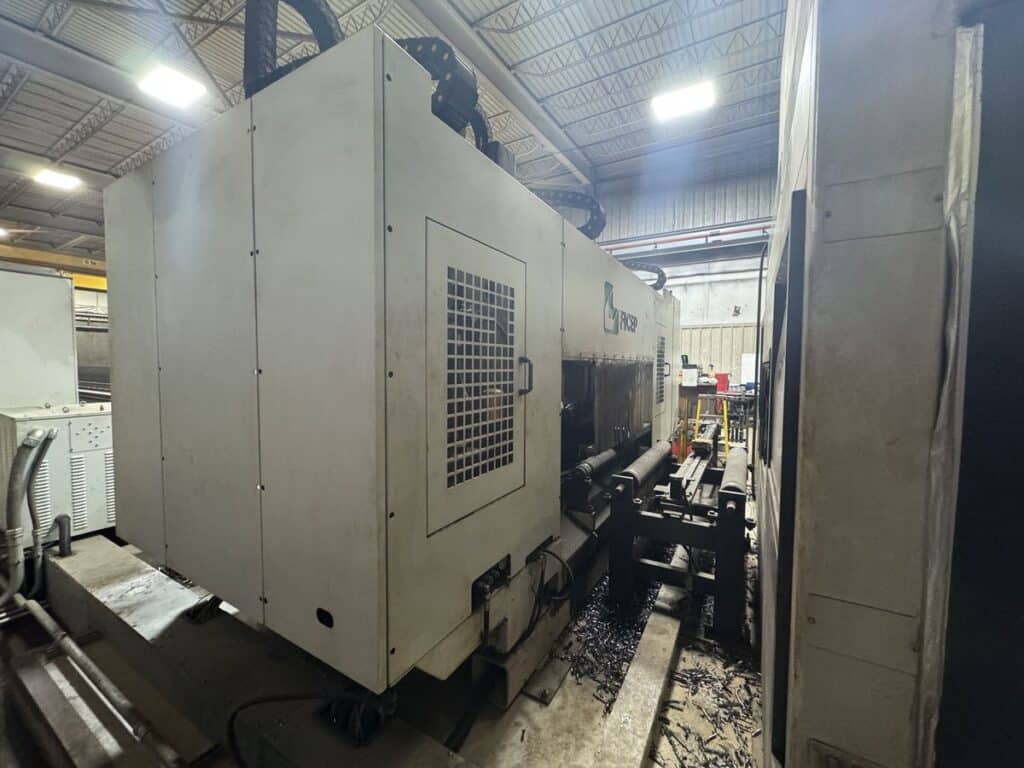

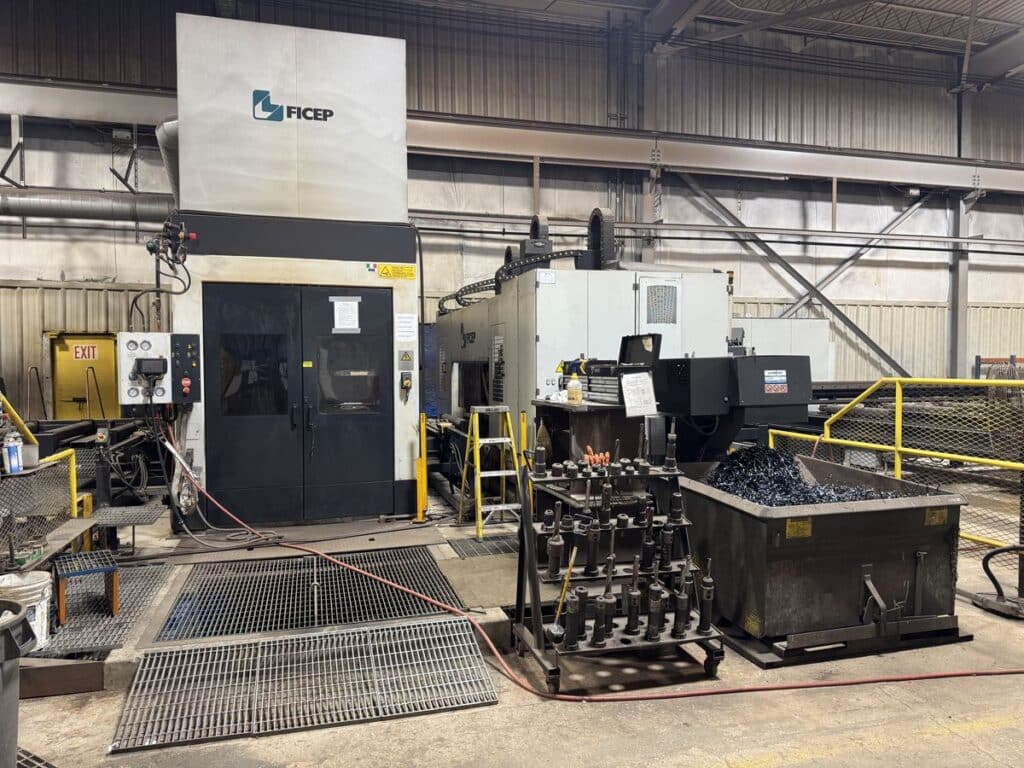

FICEP Endeavor 1204 DDRC CNC Drilling & Robotic Coping Line (2017)

Manufacturer

FICEP

Category

Fabricating Machines

Type

PLASMA CUTTERS

Stock

173250002

Model

Endeavor 1204 DDRC

Dealer Location

Georgia

Request a Quote
View Contact Information

Spec Sheet

  • Stock #: 173250002
  • Brand: FICEP
  • Model: Endeavor 1204 DDRC
  • Year: 2017
  • Loading Fee: Rigging Required

Specifications

  • Min Channel Depth: 3-1/8″
  • Max Channel Depth: 48″
  • Min Flange Height: 1-3/4″
  • Max Flange Height: 11-3/4″
  • Drilling Capacities: 1 Vertical Drill Head, 2 Horizontal Drill Heads, 1 Spindle Per Drill Head
  • Max Hold Diameter: 1-9/16″
  • Max Drilling Thickness: 4″
  • Spindle Motor Per Head: 41 HP
  • Spindle Speed: 180 – 5,000 RPM
  • Max Section Weight: 33,000 LBS
  • Max Carriage Speed: 164 FPM
  • Power Required: 480V / 3 Phase

Equipped With

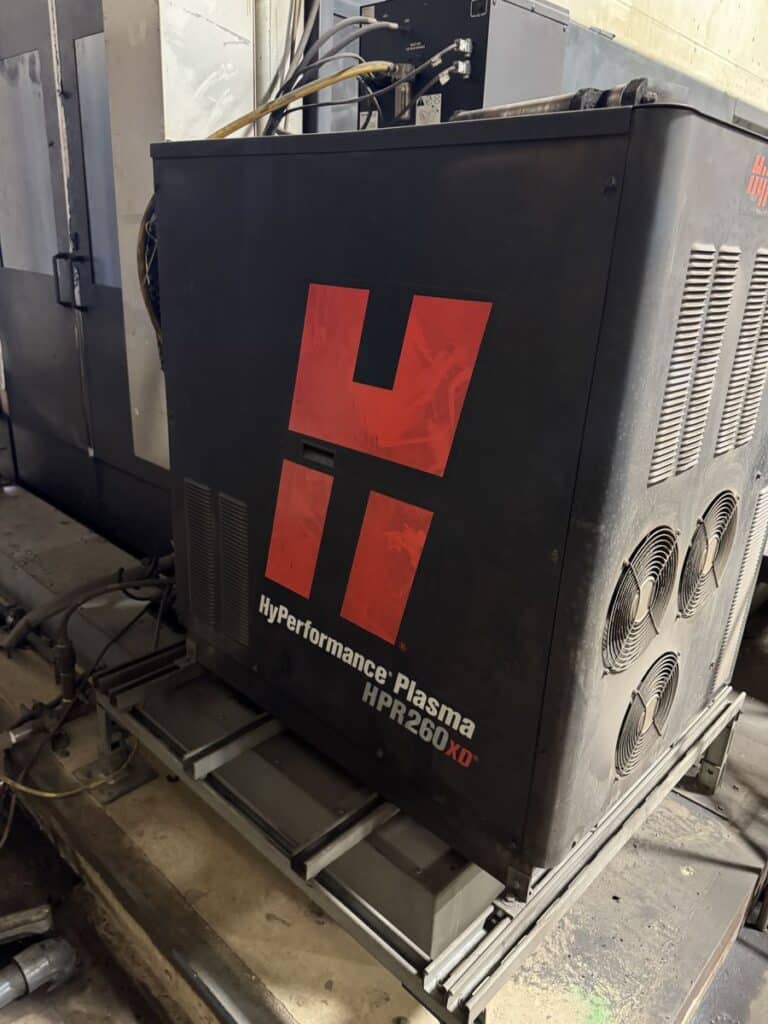

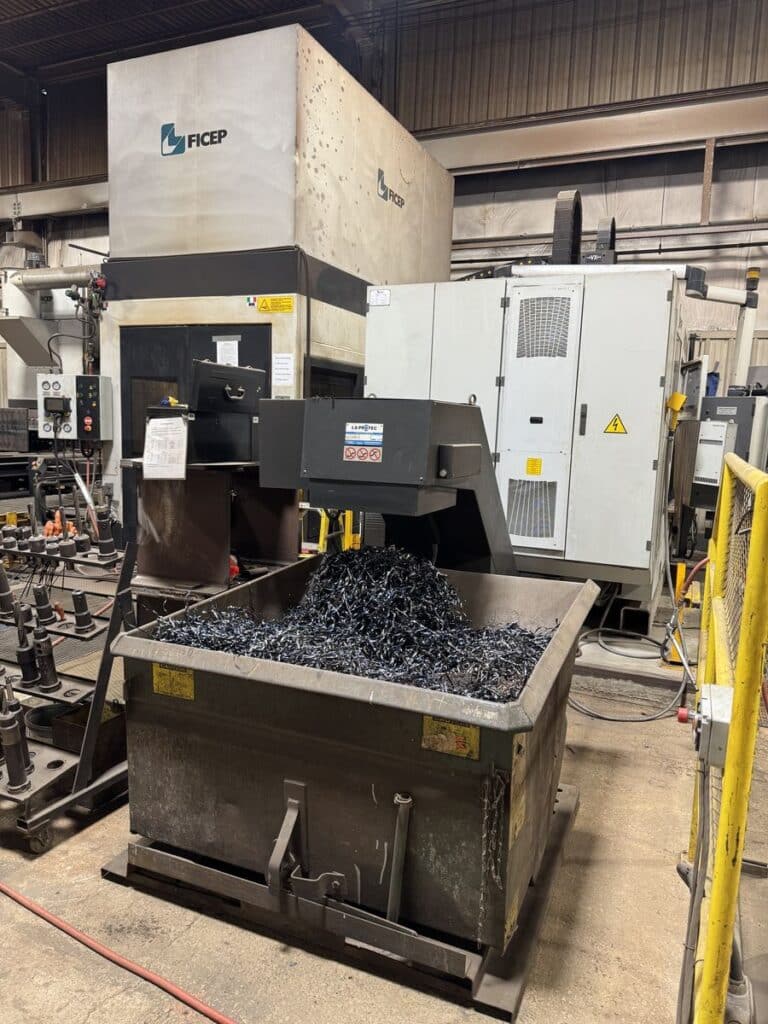

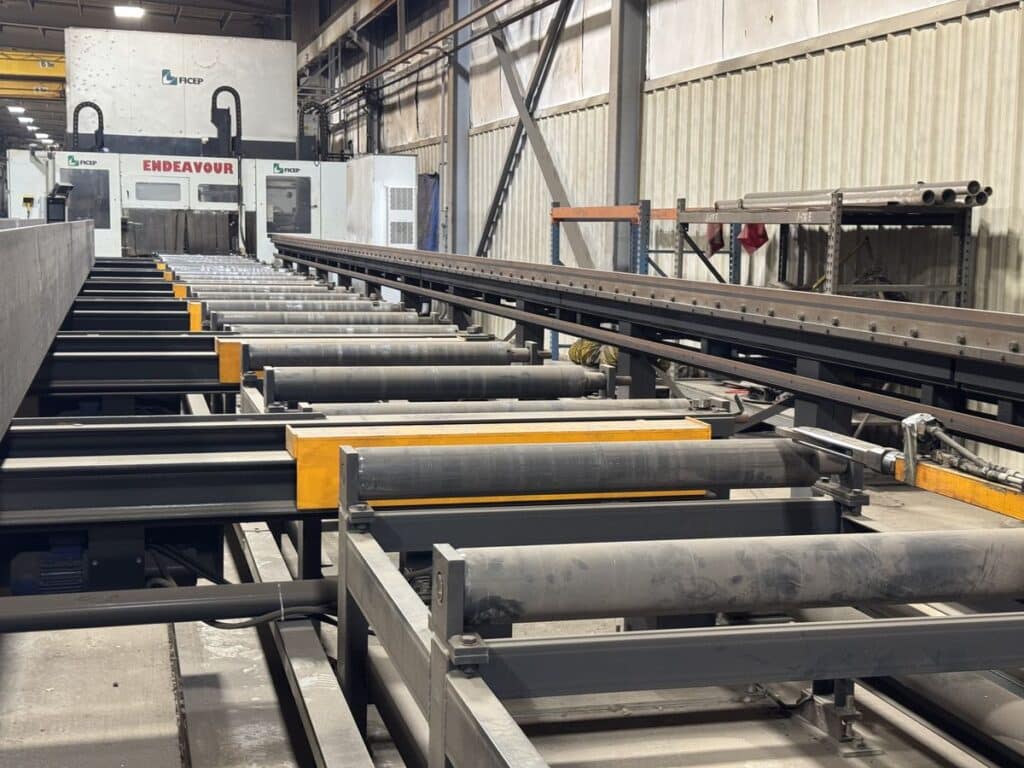

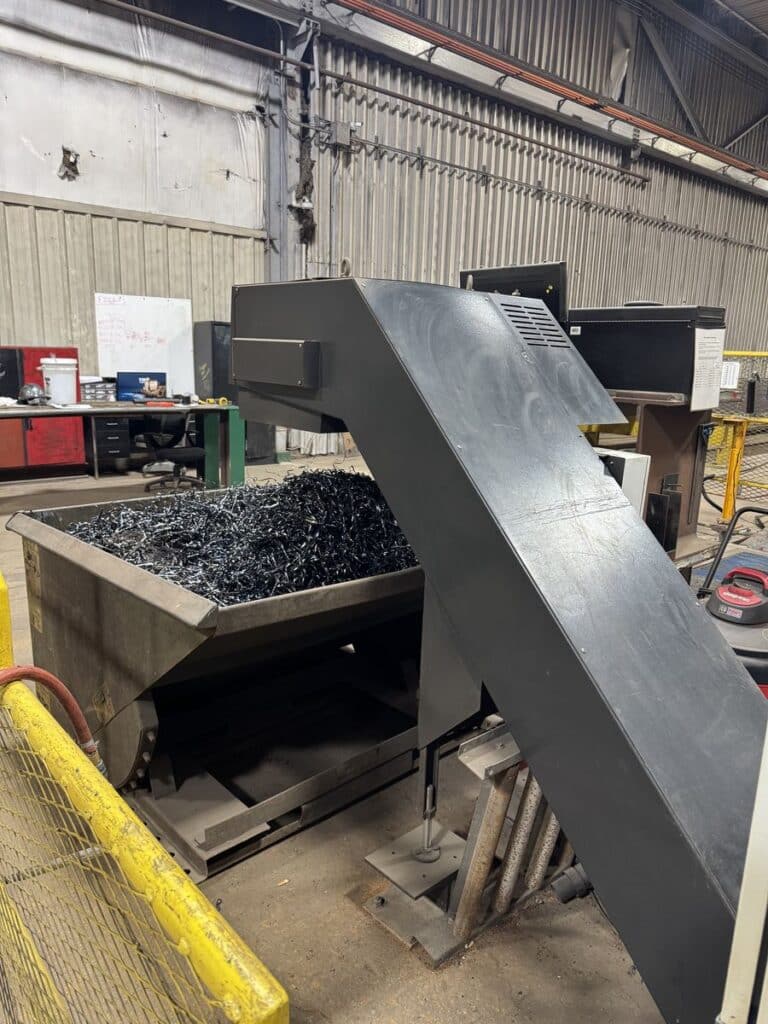

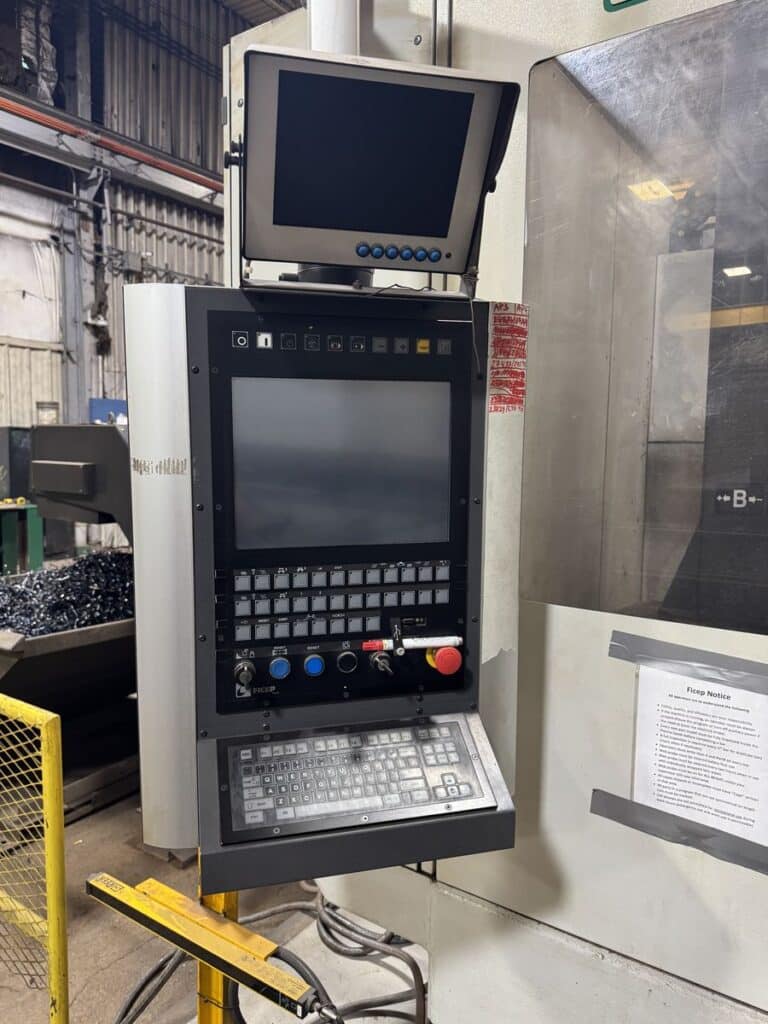

Hypertherm HyPerformance HPR 260XD Plasma Cutting System w/ Automatic Oxy Fuel Torch, Ficep Pegaso Control System, (15) HSK-A80 Connection for Tool Change System, Air Conditioner Units for Electrical Cabinets, Automatic Loading & Unloading Using Transfer Table w/ Catches, Automation System for Section/Piece Loading & Unloading, Chip Conveyor for Drilling Unit, HSK-A80 Tool Holders, Short Piece & Scrap Unloading Device, (2) Additional Scribing Tools, Automatic Gas Control Panel, Camera Mounted on Material Gripper, Profile Survey Device w/ Laser Unit, Smoke Intake System for Robot, Underside Scribing

Additional Info

Machine is under power and available to demo. Additional specifications pictured in photos.
