72" x 0.060" x 40,000# Iowa Precision Slear II Line

Manufacturer

IOWA PRECISION

Category

Fabricating Machines

Type

CUT-TO-LENGTH LINES

Stock

11583

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet


Model: SLR 7216-1-CT-150

Width: 72"
Weight Capacity: 40,000#
Thickness Range: 0.024" - 0.060"
Coil I.D.: 19" - 24"
Line Speed: 150
Line Direction: Left to Right

Consisting of the following:

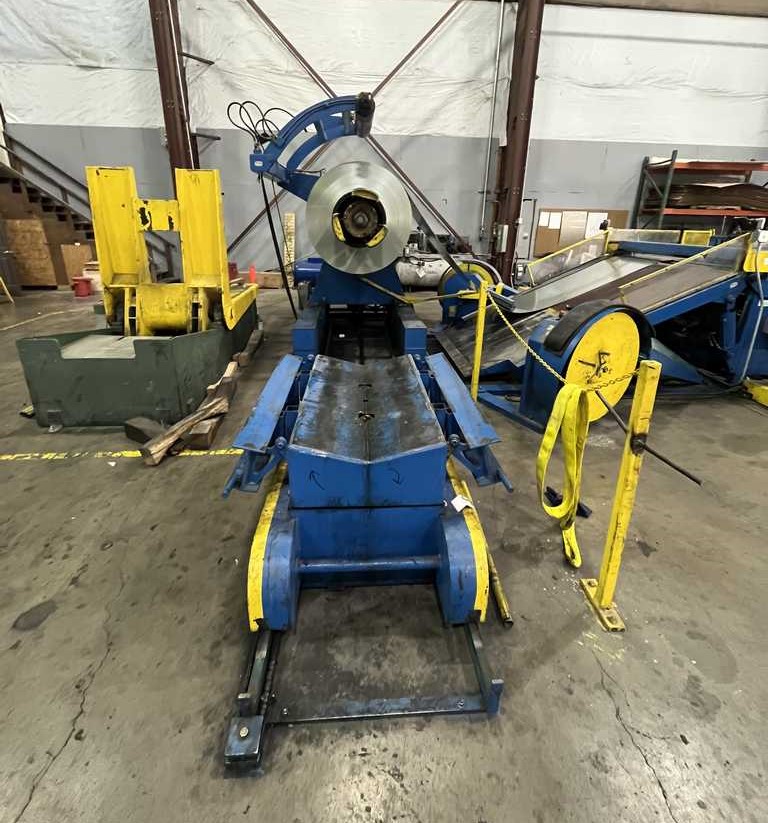

-Entry Coil Car:
40,000# Capacity
Hydraulic Lift and Travel

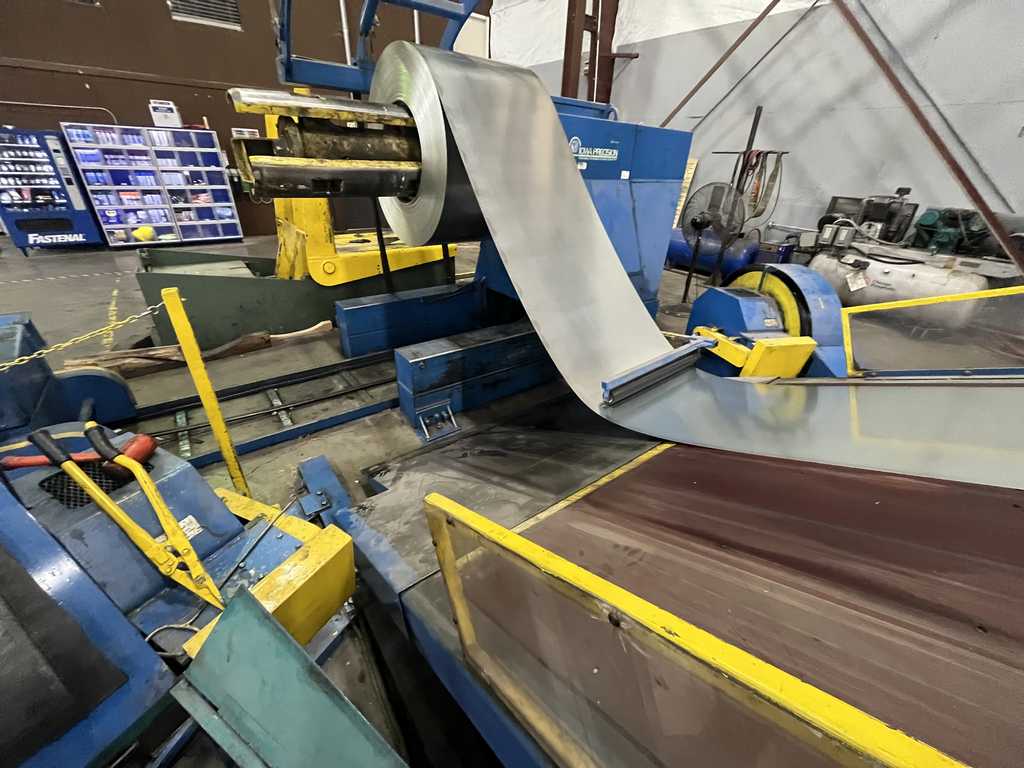

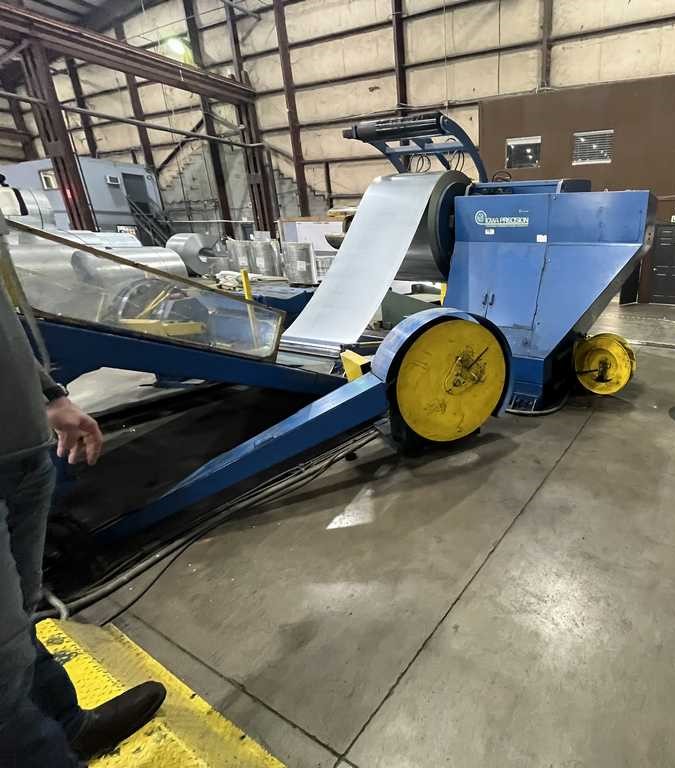

-Mandrel Uncoiler:
Model: UCR40M72
Powered Overarm Holddown
Powered with Loop Control
Hydraulic Expansion

-Peeler Table:
Hydraulic Lift
Hydraulic Cylinder Blade Extend

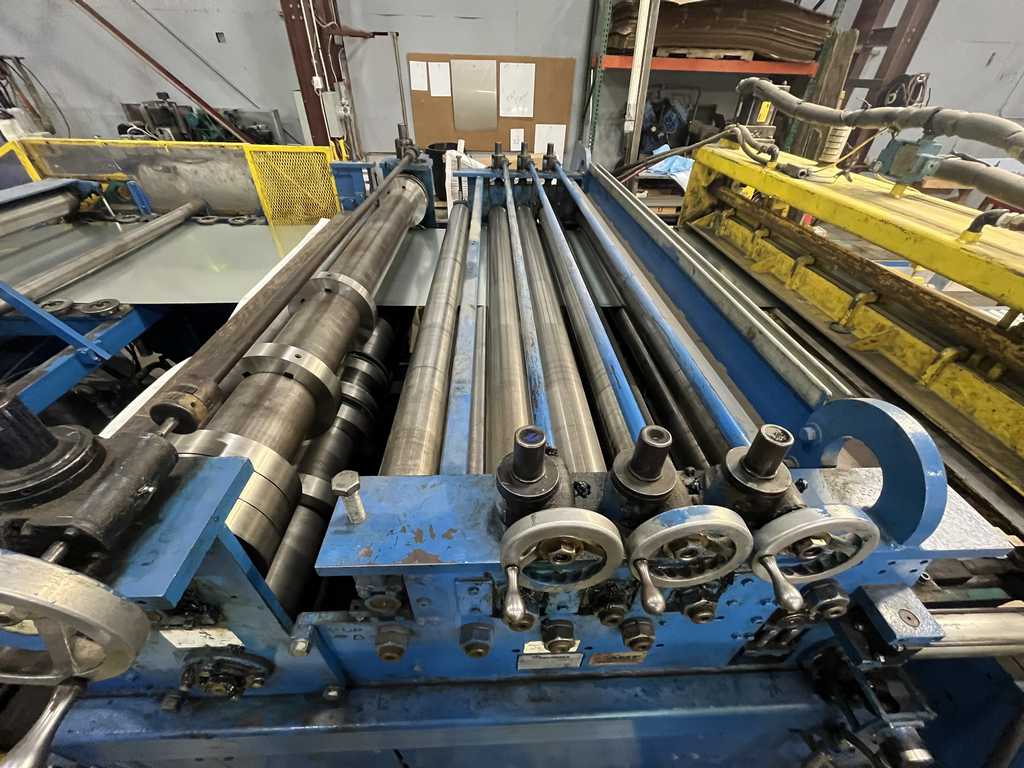

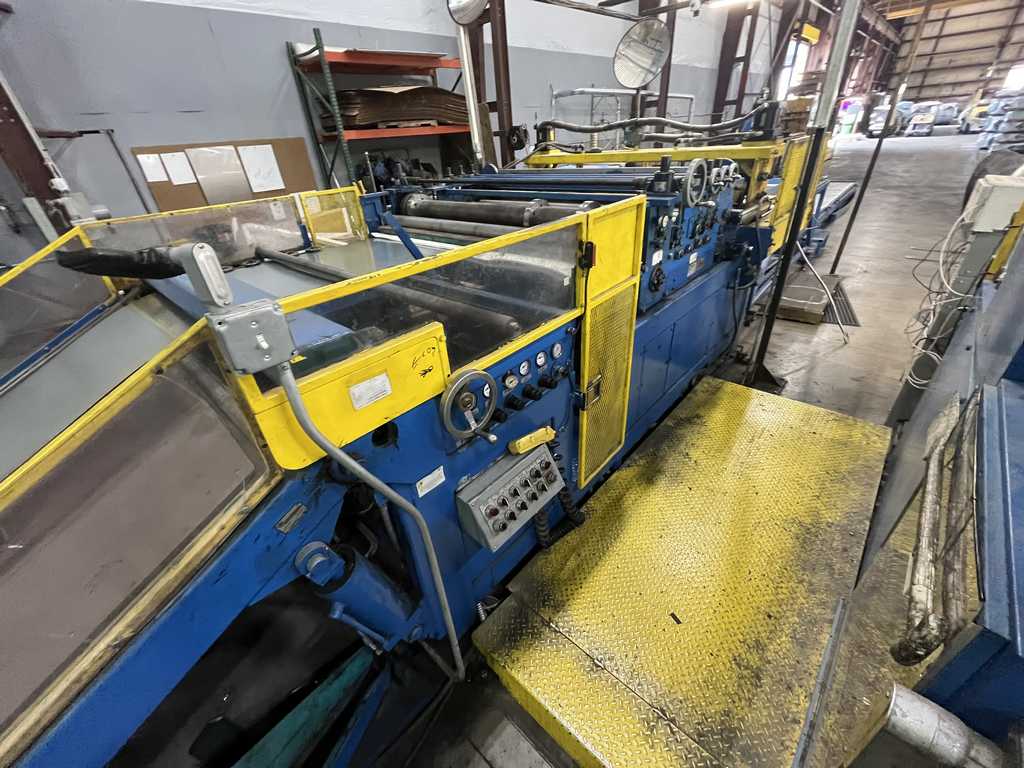

-Slear Unit:
Entry Strip Edge Guide
6 Roll Straightener
Independent Roll Adjustment
6" Arbor Slitter Head
Hub Type Knives
4 Cuts in 16 Ga. Max.
Measuring Roll

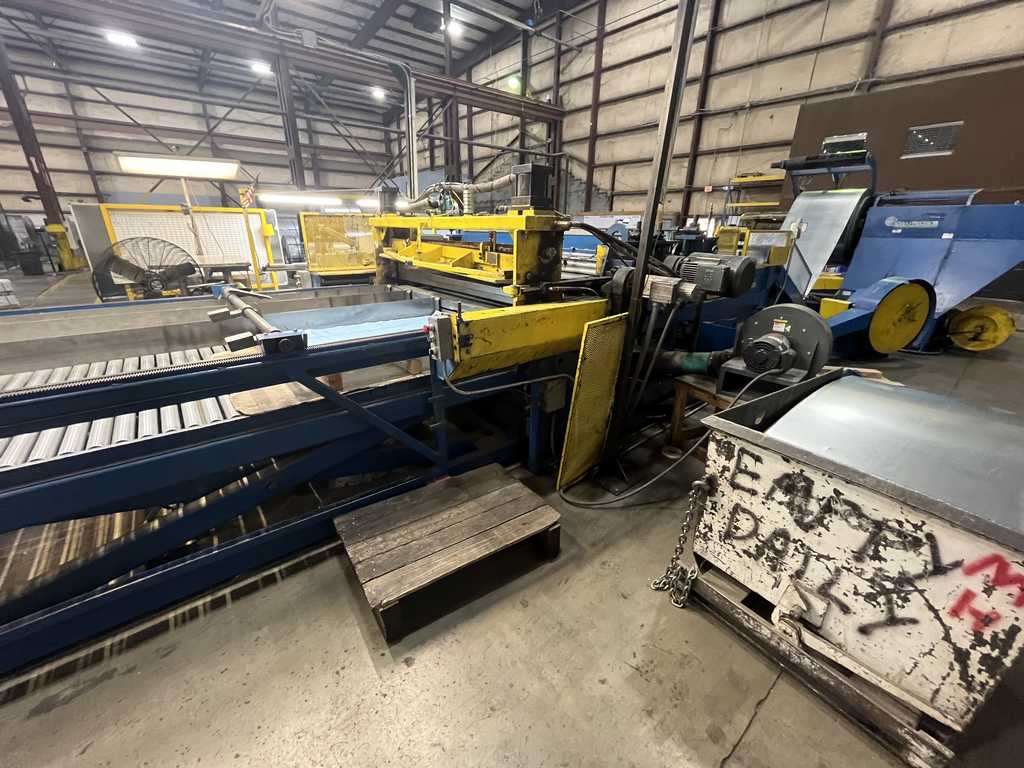

-Flying Shear:
Hydraulic Shear
Drive System from the Straightener
Air Cylinder Return

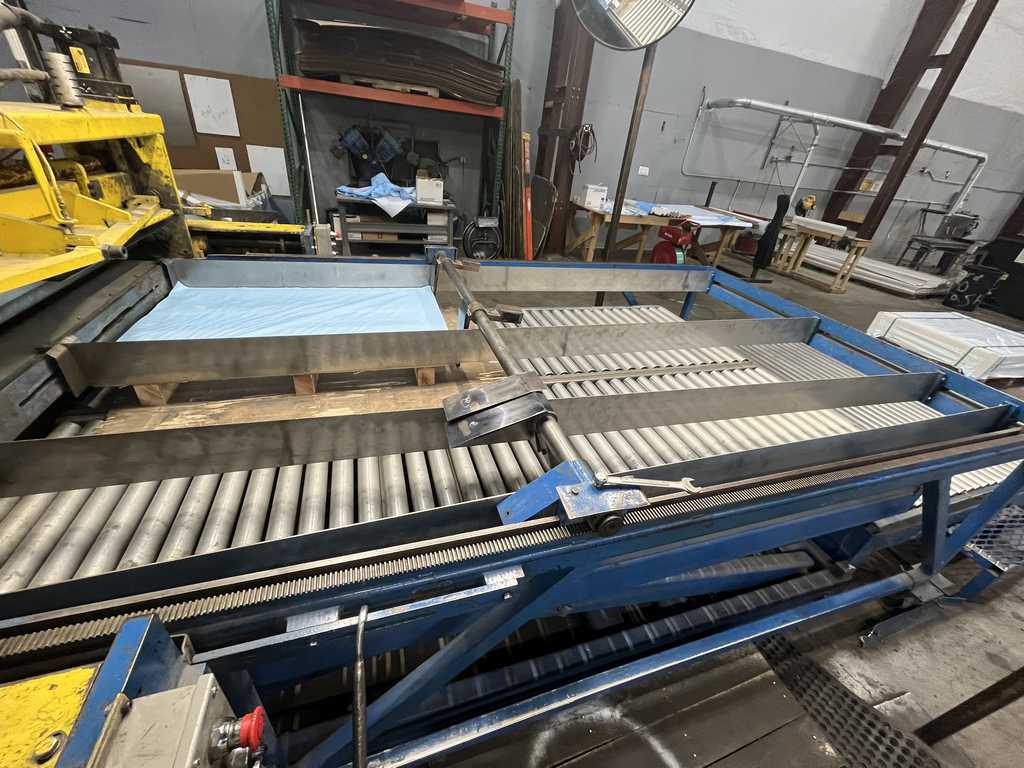

-Auto Stacker:
10' Long Stacker
5 Dividing Pans for Multi Blanking
Hydraulic Scissor Lift

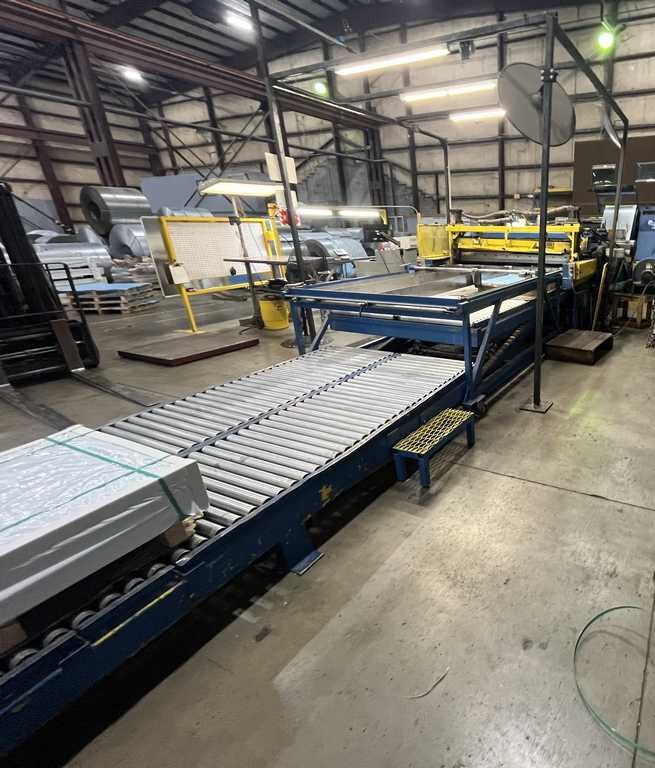

-Runout Conveyor:
In Line Conveyor

-Dual Scrap Winders:
Hydraulic Motor Drive
Level Wind

No Video Available
