72" x 0.187" x 50,000# B & K Cut To Length Line

Manufacturer

B & K

Category

Fabricating Machines

Type

CUT-TO-LENGTH LINES

Stock

11722-C

Model

None listed

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

YEAR: 1980


72" B&K Cut-to-Length Line

Coil Weight: 50,000 lbs.
Thickness Capacity: 0.187" Mild Steel
Line Speed: 150 FPM
Line Direction: Right to Left


Consisting of the following:

-Entry Turnstile: Octagon
4 C-Hook Arms
Powered Rotation

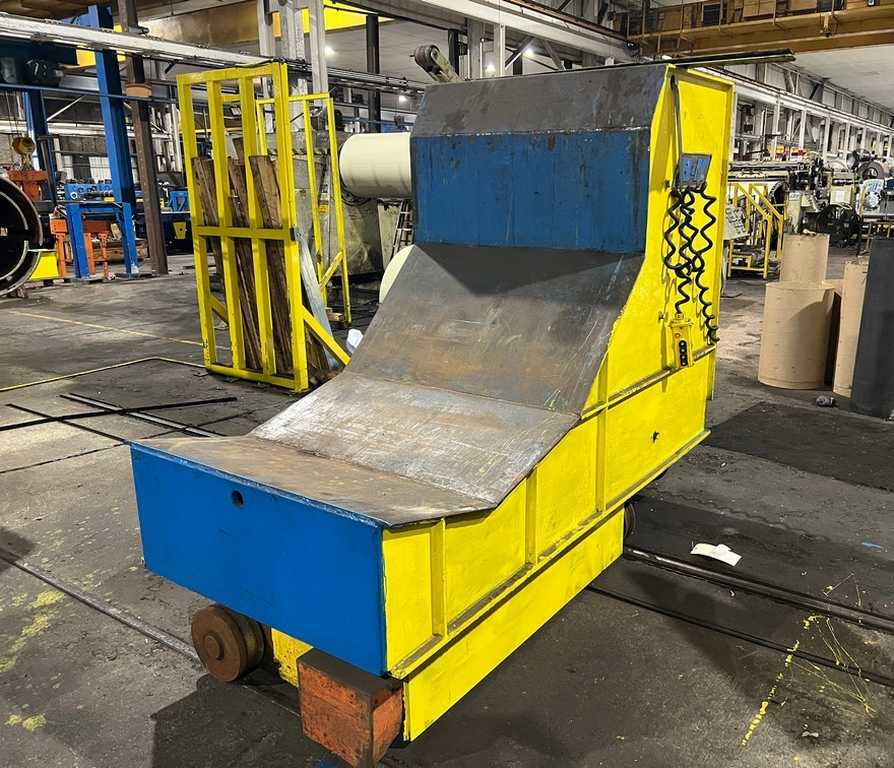

-Entry Coil Car:
Above Floor L-Shaped Design
Self-Contained Hydraulics

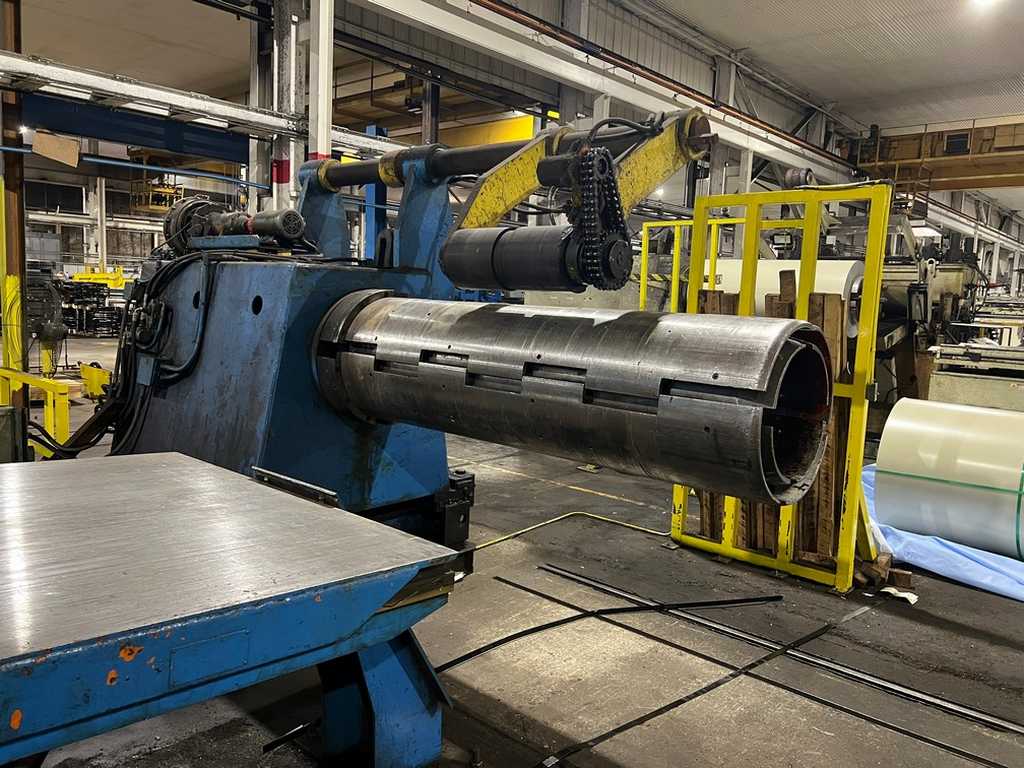

-Uncoiler:
Hydraulic Expanding Pumpkin Tooth Mandrel
20" - 24" Coil ID
72" Coil OD
Threading Drive w/Air Clutch
Hydraulic Slide Base
Attached Powered Holddown Roll

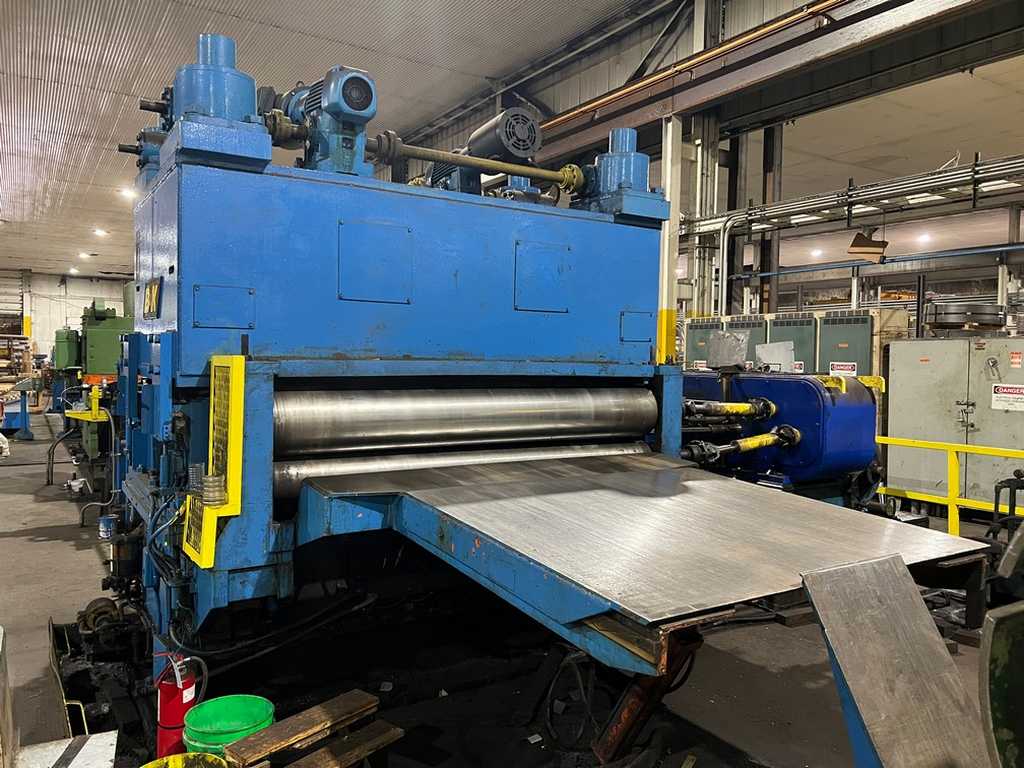

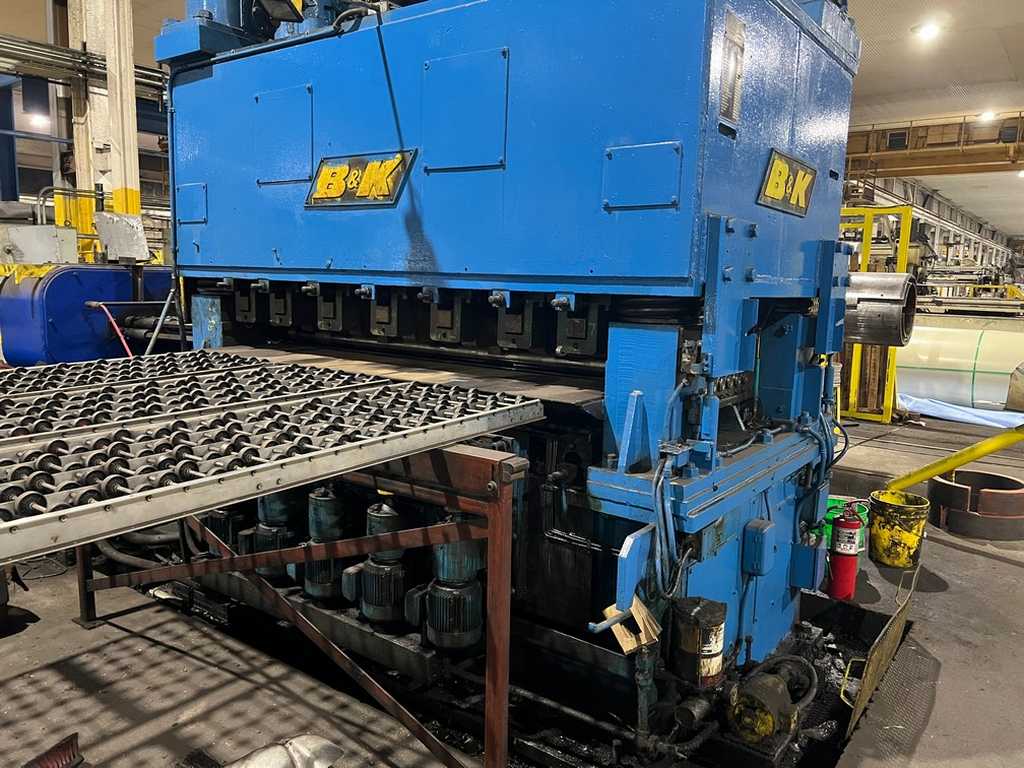

-Leveler:
Entry Hydraulic Peeler Table

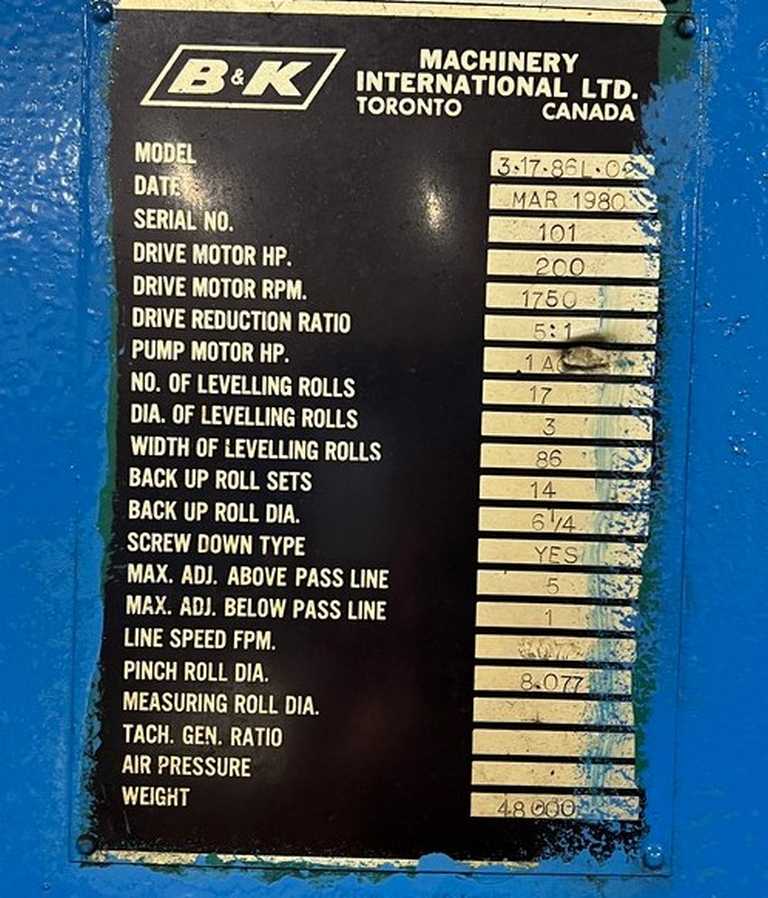

Leveler Model: 3-17-86L-02
Entry Driven Pinch Rolls

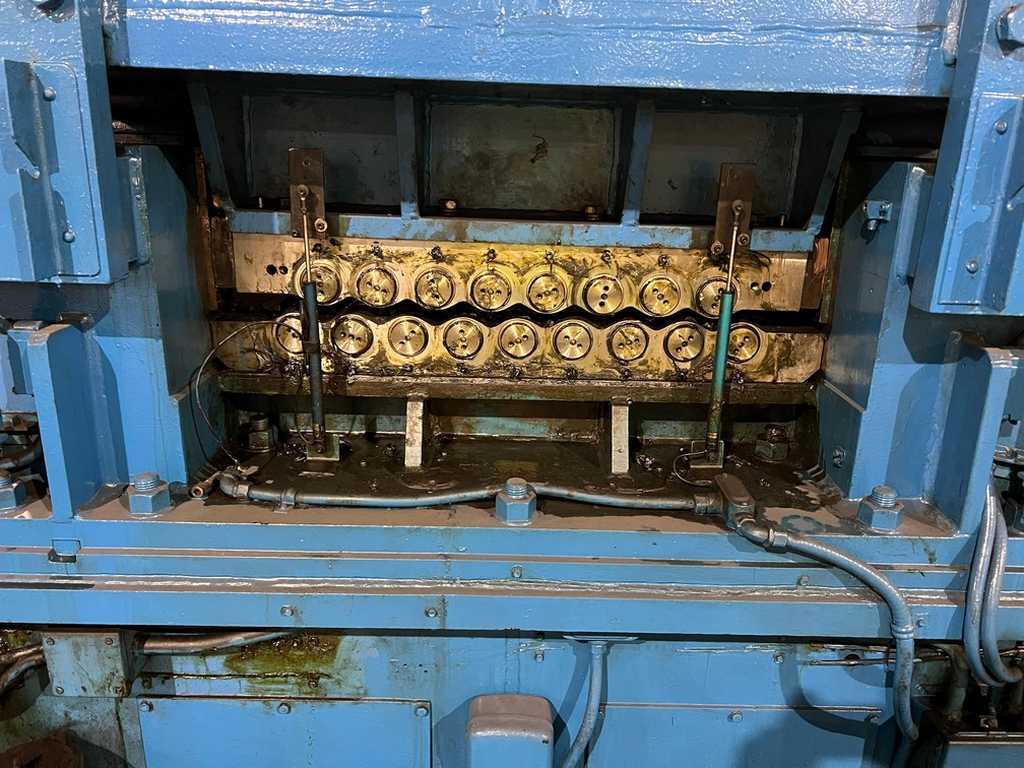

17 Work Rolls 8 over 9 Design
3" Dia. x 86" Wide Work Rolls

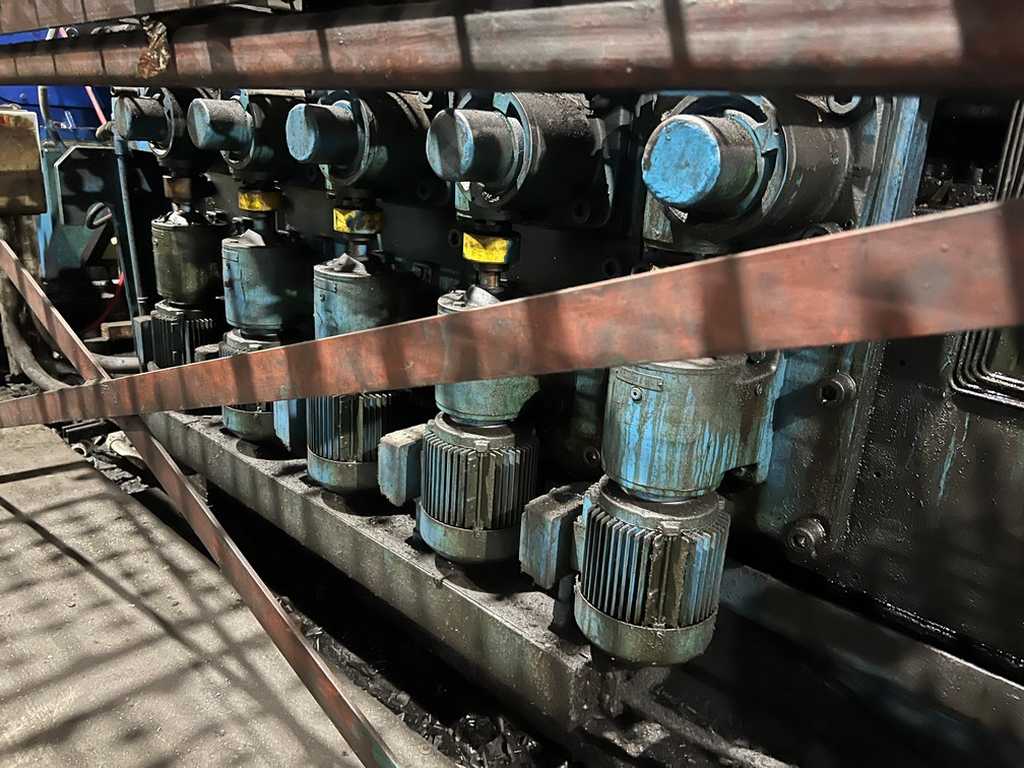

7 Flights of Backups, 5 Flights Motorized
200 HP DC Motor, 1750 RPM
Weight: 48,000 lbs.

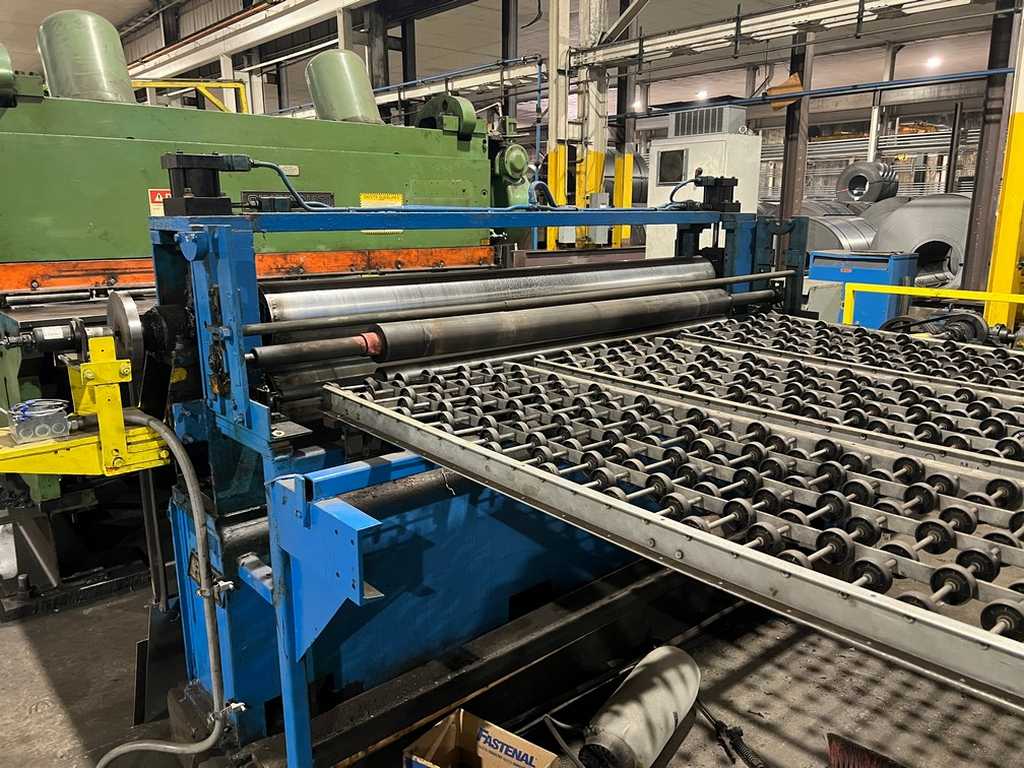

-Measuring Roll:

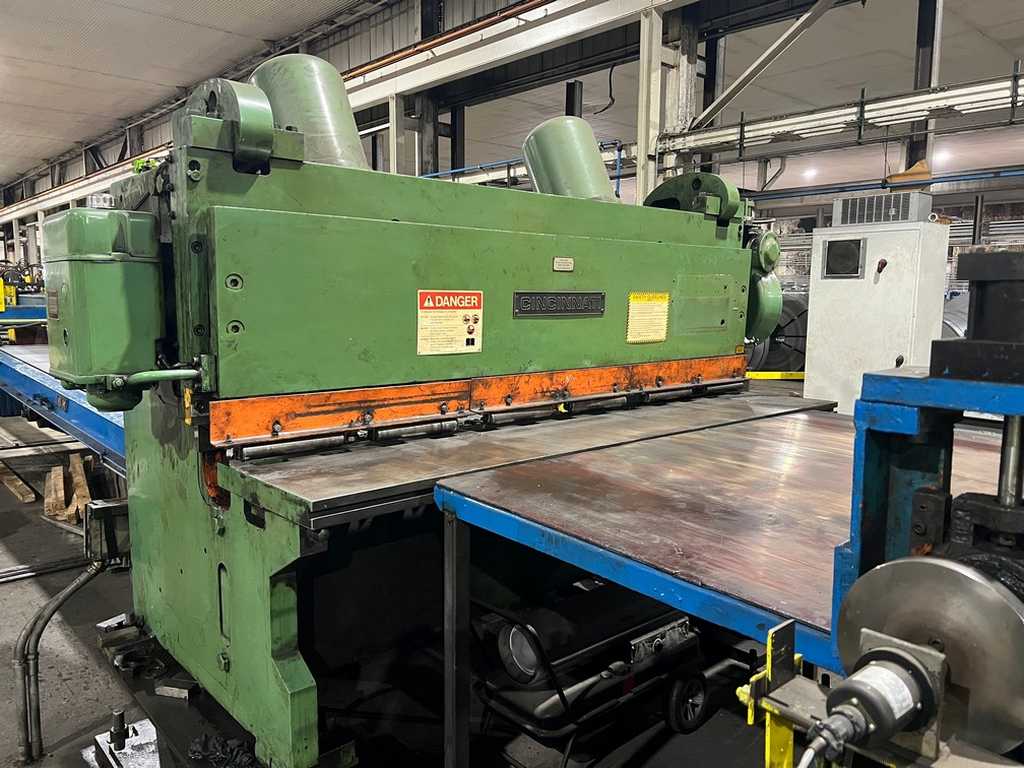

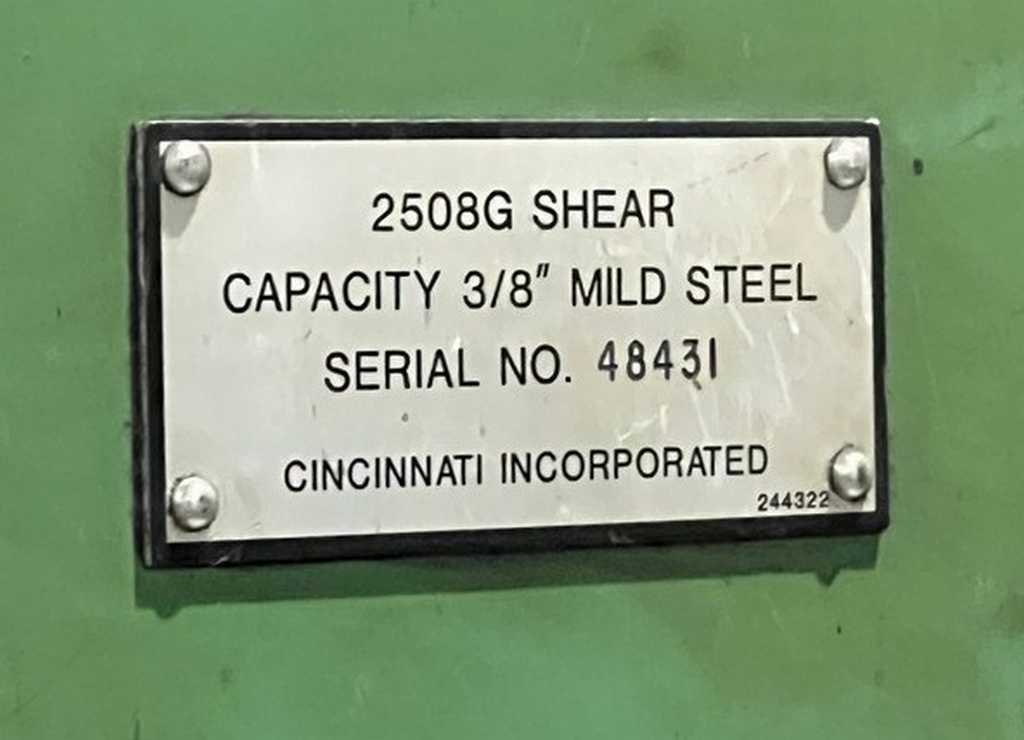

-Mechanical Shear: Cincinnati
Model: 2508 G
0.375" x 96" Capacity
50 Strokes/Min.

-Runout Belt Conveyor:

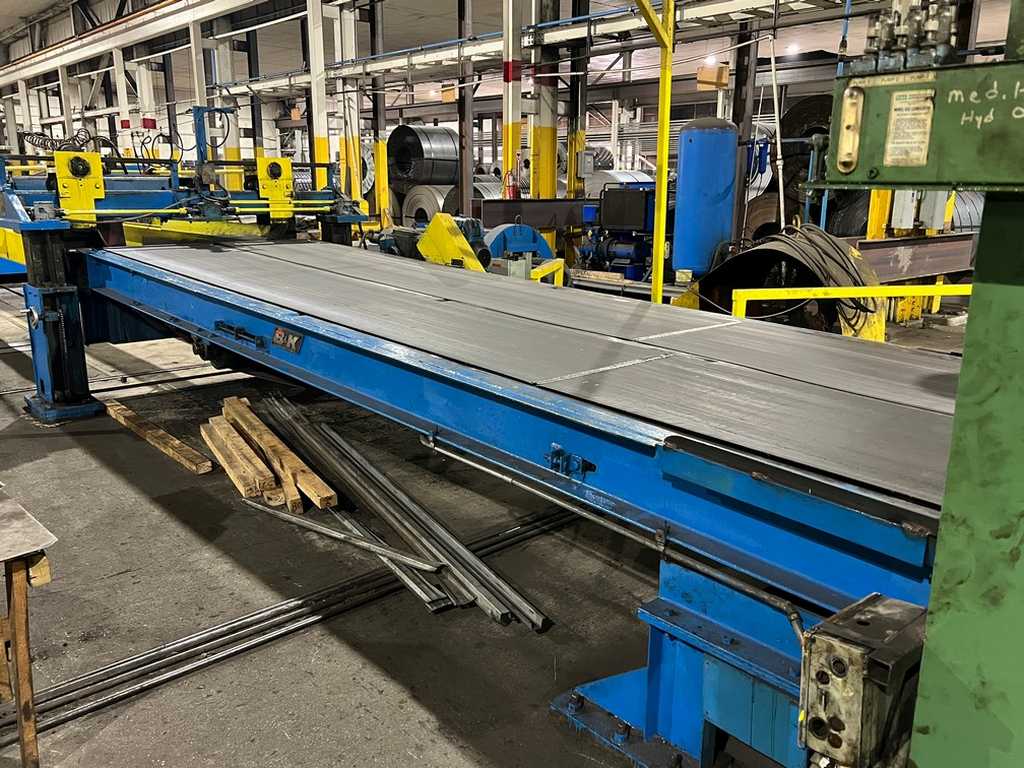

-Stacker:
20' Sheet Length
Drop Type Design
Motorized Back Stop
Side Pallet Injector Cart
End Discharge Sheet Cart

-Line is Installed
