48" x 5.50" x 40,000# Yoder Slitting Line

Manufacturer

YODER

Category

Slitters and Slitting Lines

Type

SLITTING LINES

Stock

11204

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet


Mode of Operation: Right to Left

Consisting of the following:

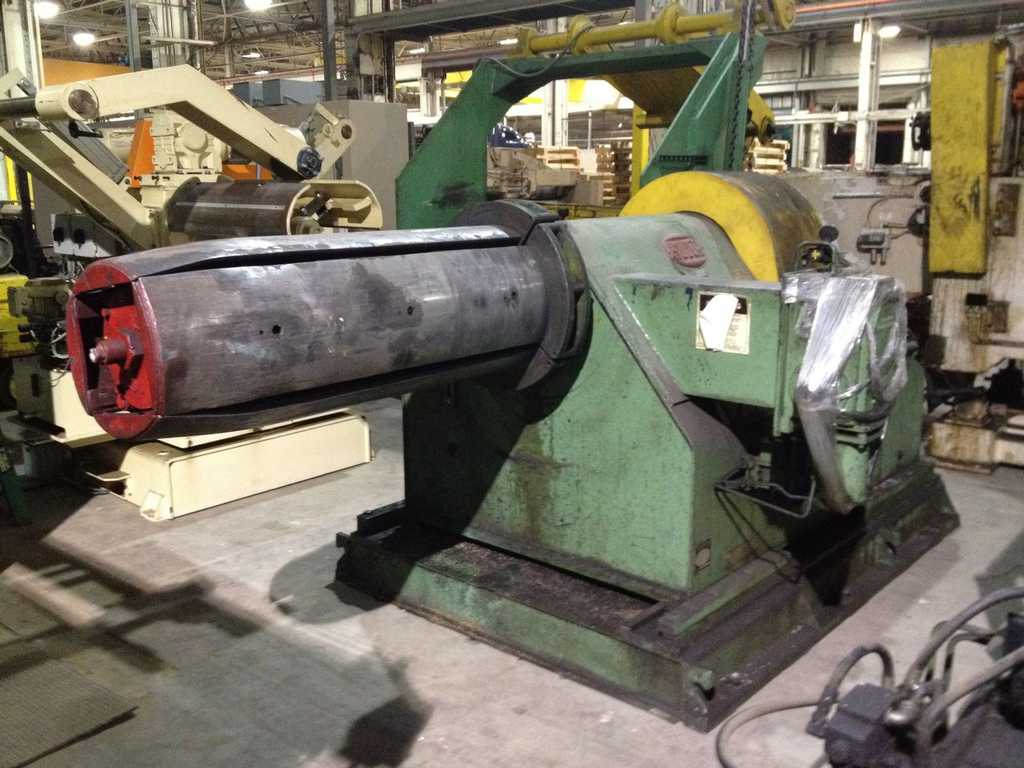

-Uncoiler:
Serial #Y5740-470
20" ID x 51" Face Mandrel
Hydraulic Expansion
Wichita Brake
Slide Base
Hydraulic Feed up Motor with Self Enclosed Power Unit
Approx. 48" from centerline of mandrel to floor

-Yoder Slitter Head:
5.50" Diameter
51" Face Arbor
Nutall Reducer: 14.36:1 Ratio
50 HP DC Motor, 1150/2000
CMC Pacemaster 6 Drive in Cabinet
for Slitter.
No Tooling

-Recoiler:
S/N: Y5740-770
40,000# Capacity
20" ID x 64" Face Drum
Manual Grip and Expansion
Hydraulic Pushoff
Floor to Centerline of Drum: 41.5"
Max OD: 72" (44" radius from CL of Drum to Overarm Shaft
50" Separator Shaft
125 HP ABB AC Motor, 1783 RPM with ABB Drive
H & S Reducer: Size 150-D210, 17.42:1, 100 HP Rating, 530 RPM Input,
1.0 Service Factor, S/N: L-504
11" Shaft
17,470 lbs. Ship Weight: 16' Length x 78" Width x 87" Height

-ABB Drive in Cabinet for Recoiler
380 - 500V., 180 a, 3 PH
ACS 800 UI 0140 SD150

-Removed and in storage
