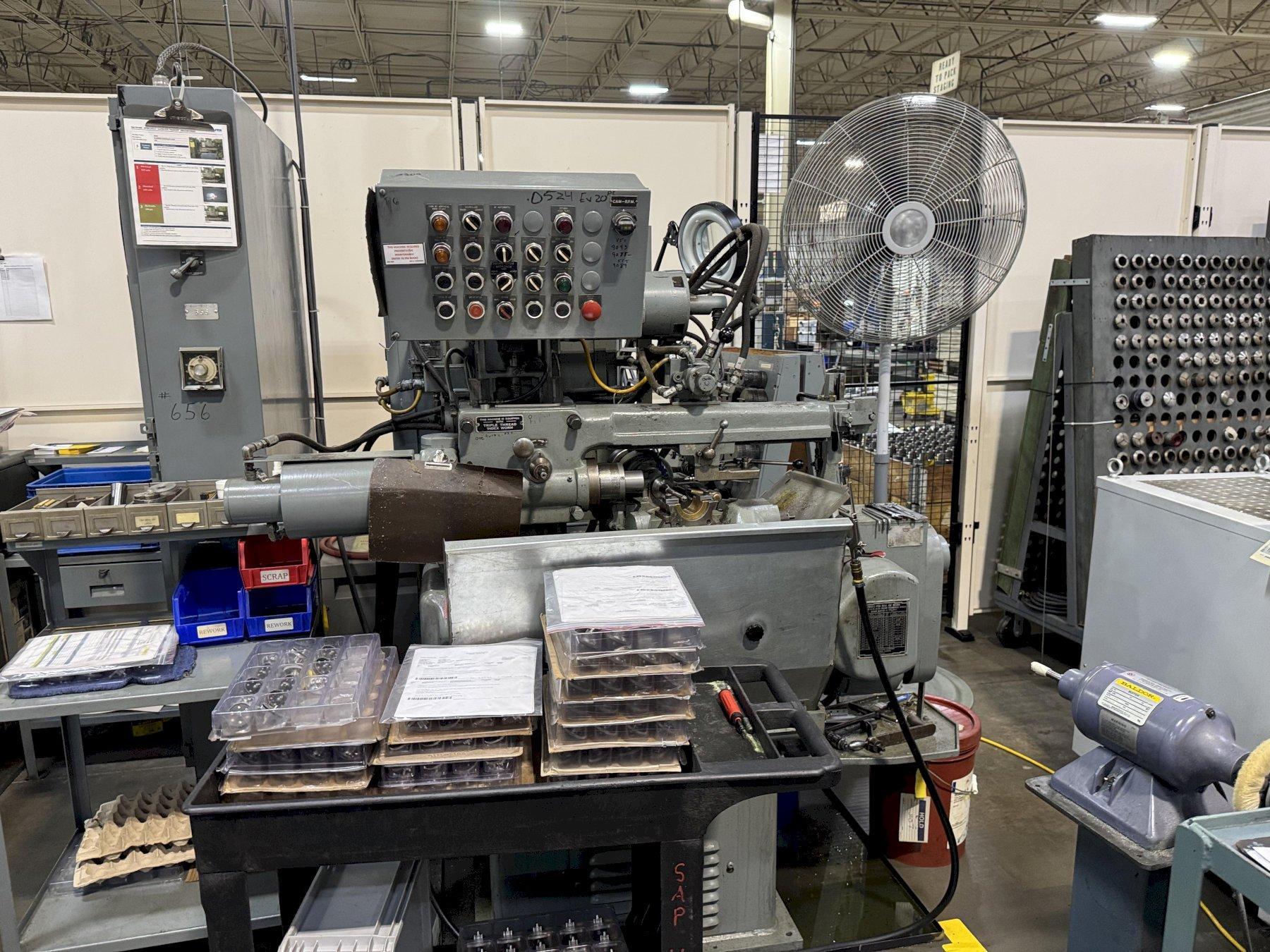

No.6-10 Barber-Colman Multicycle Gear Hobbing Machine

Manufacturer

BARBER COLMAN

Category

Gear Machines

Type

GEAR HOBBERS, VERTICAL, CNC

Stock

gh610ex

Model

No. 6-10

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet

Max. DP and Diameter in Steel, 1-Cut - 16DP - 2"
. - 48 DP - 6"
Max. Work Rated Diameter - 6 inches
Max. Travel of Hob Slide - 10.5 inches
Max.Dist. Work Spindle Face to Tailcenter - 15.75 inches
Max.Dist. Work Spindle to Centerline of Hob Spindle @ 0° Setting - 12.75 inches
Dis.Centerline of Work Spindle Face to Centerline of Hob Spindle @ 0° Setting - 3.875 inches
Dist.Centerline of Work Spindle Face to Bottom of Overarm - 3 inches
Max. Hob Diameter - 2.0625 inches
Max. Swivel Angle Setting - 60°R to 90°L
Hob Arbor, Straight - 0.75 inches
Hob Speed Range - 200 - 800 RPM
Feed Range - 0.015" - 0.150"
Vertical Feed Range Depth of Cut - 0.010" - 0.250"

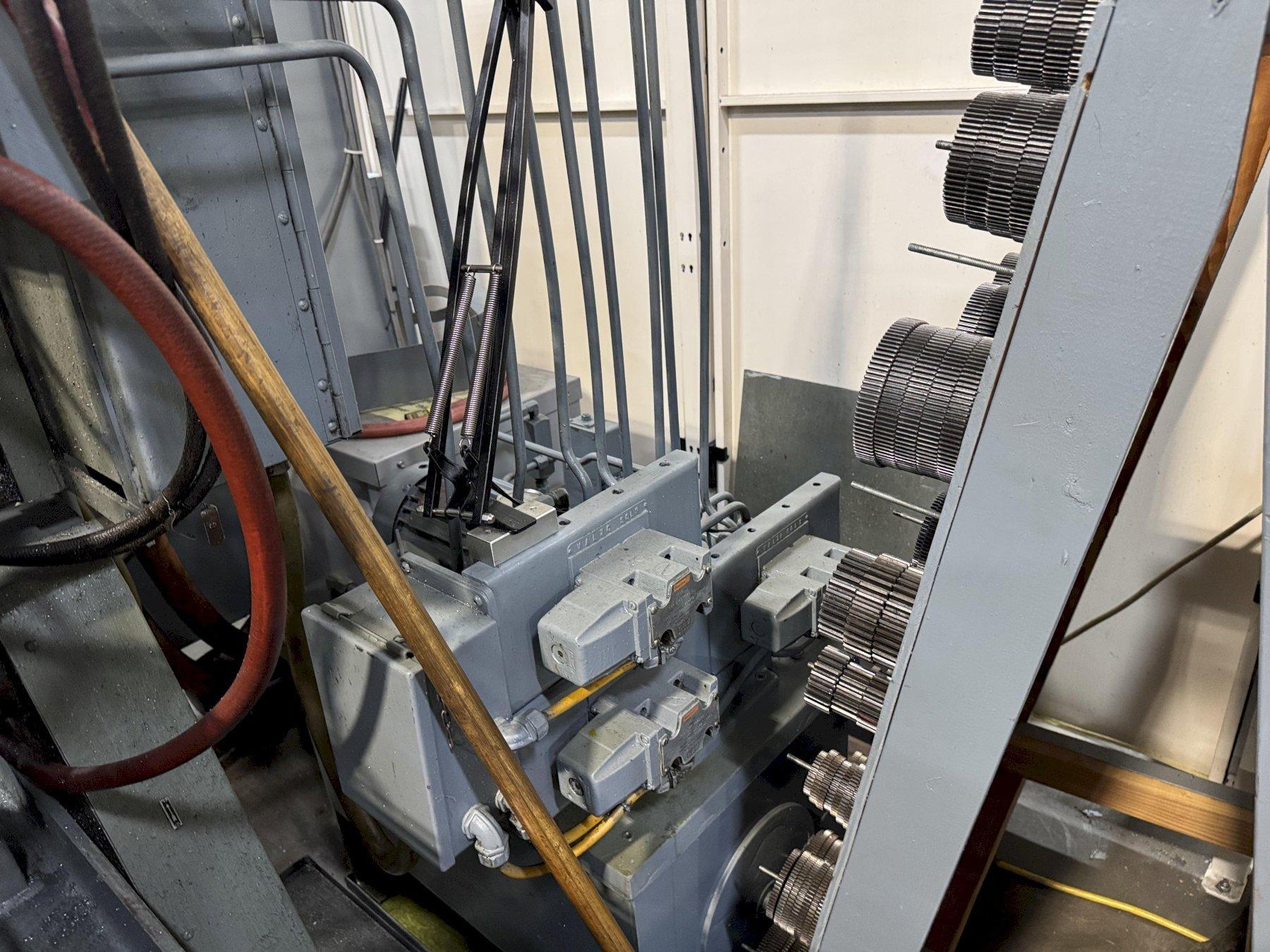

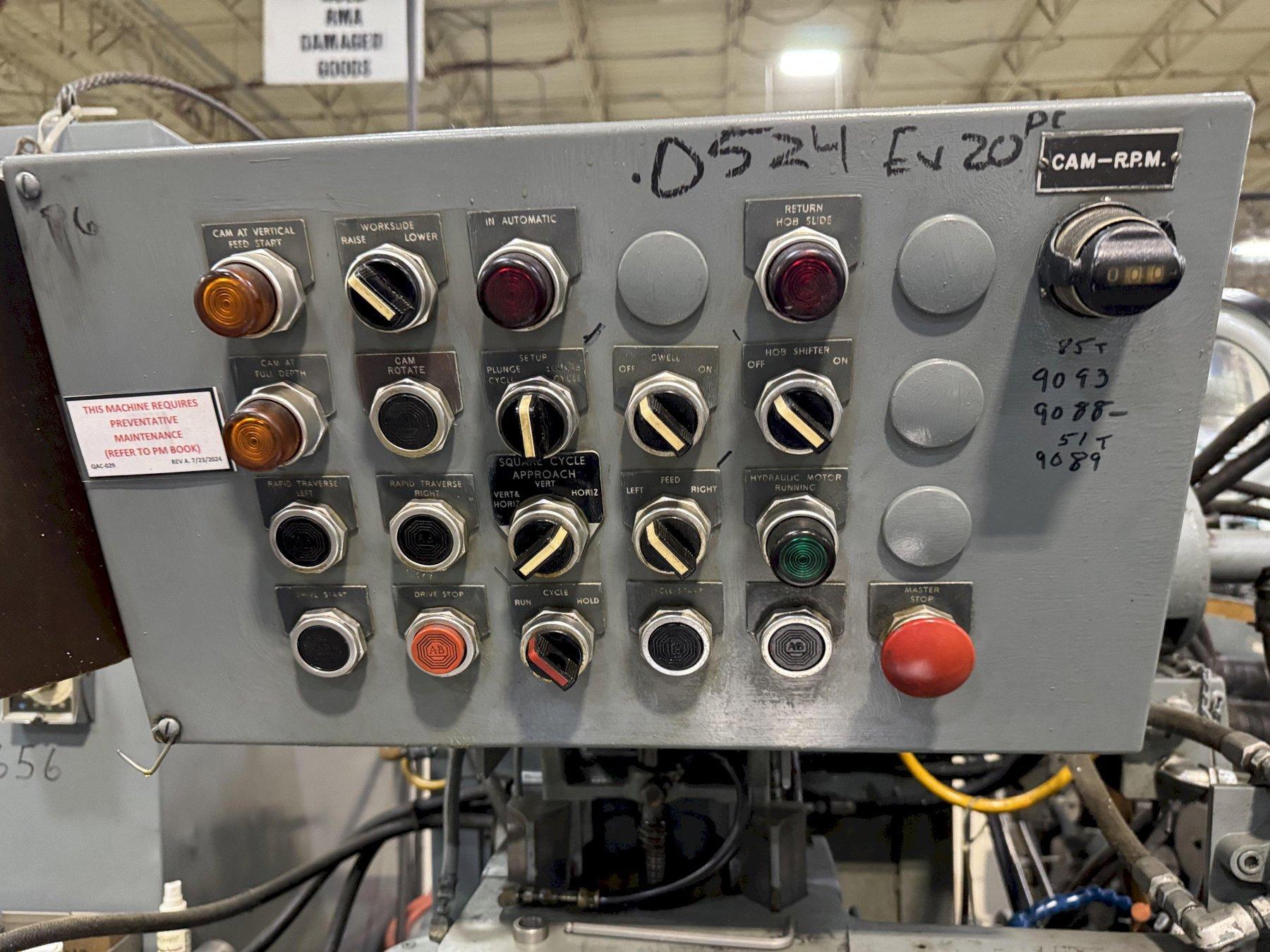

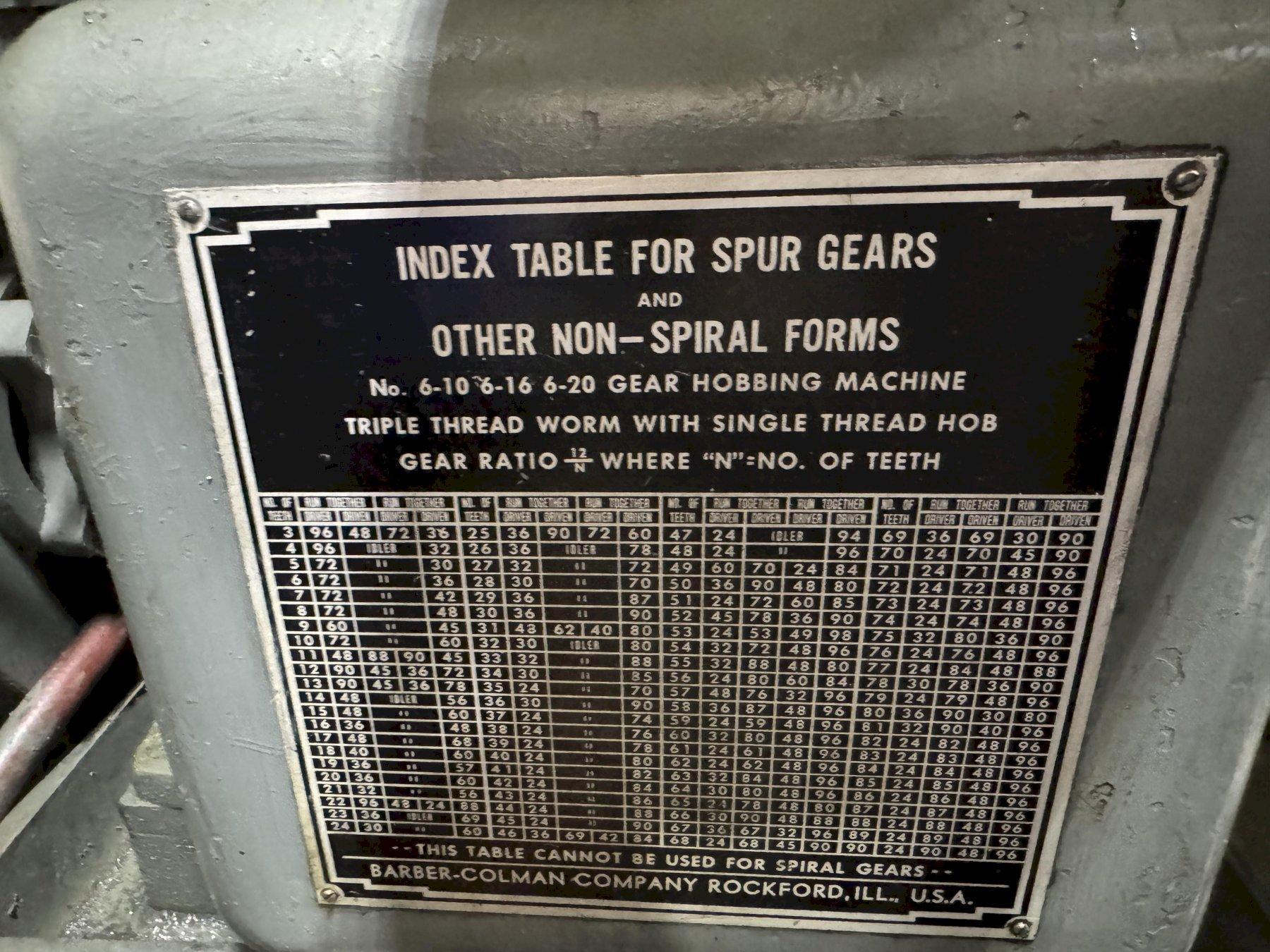

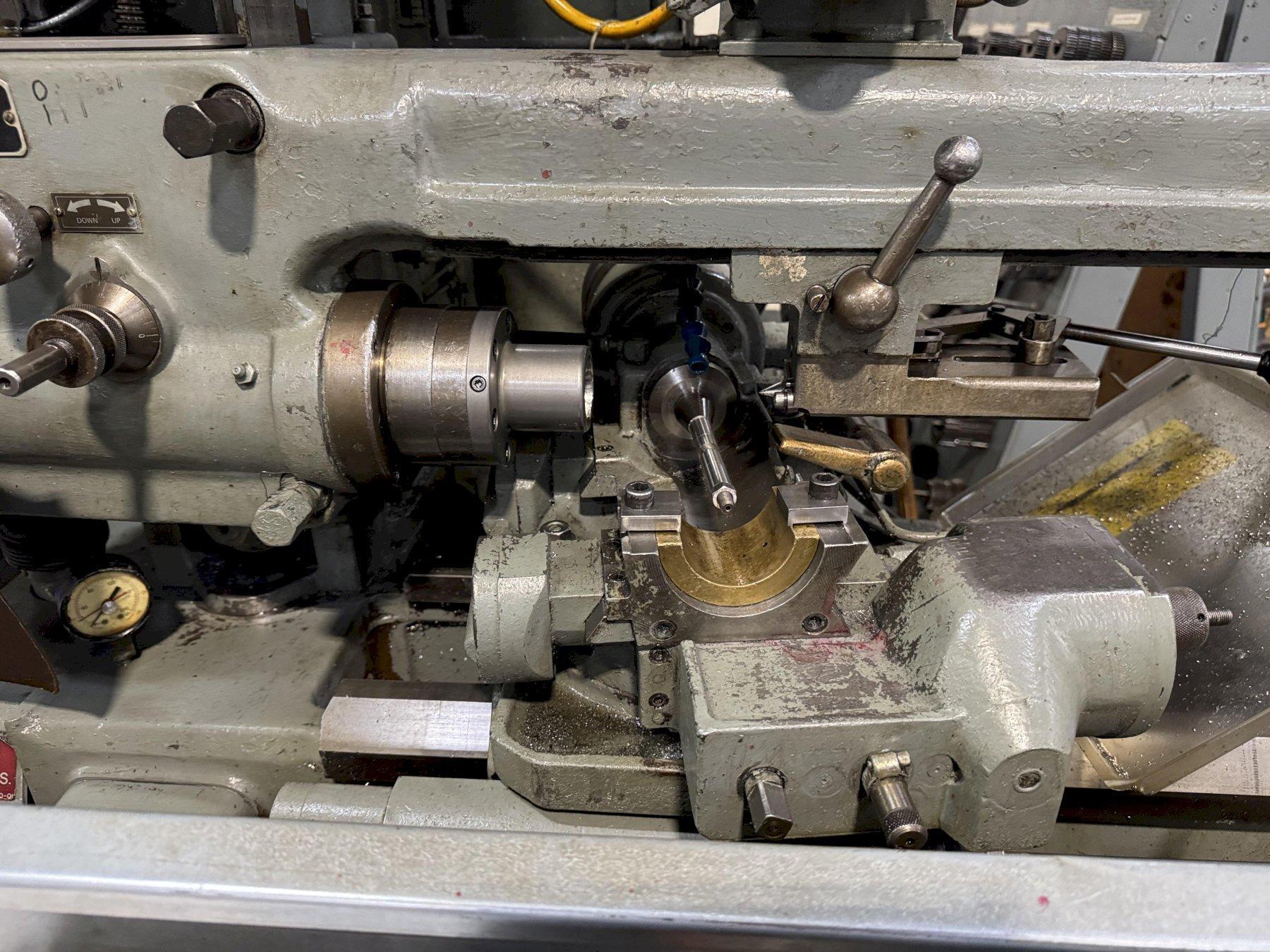

Standard Operation or Hydraulic Multicycle with Plunge or Square Cycles. Workslide Power Clamping. Universal Hob Slide. Triple Thread Index. Hydraulic Feed. Vertical Cam Rotation. Cam speed High-Low. Collet Chuck with Handwheel. Lever Operated Tailstock. Free Standing Electrical Control Panel. Operators Master Control Station with Cycle and Cam Speed Selector. Automatic Lubrication System. Change Gears. Coolant.

This machine is being offered As Taken from Service.  It appears to be in very good condition and may be inspected under power.
