HAAS DM-1 CNC Machining Center, 15K RPM, 40 Taper, 18 ATC. Yr 2019 in Excellent Condition.

Manufacturer

HAAS

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

None

Model

DM-1

Dealer Location

California

Request a Quote
View Contact Information

Spec Sheet

HAAS DM-1 VERTICAL MACHINING CENTER
S/N:1166552 YEAR: 2019
High Speed VMC, Mill, Drill Tap Center with 40 Taper Spindle.

SPECIFICATIONS:
• X-AXIS TRAVEL 20”
• Y-AXIS TRAVEL 16”
• Z-AXIS TRAVEL 15.5”

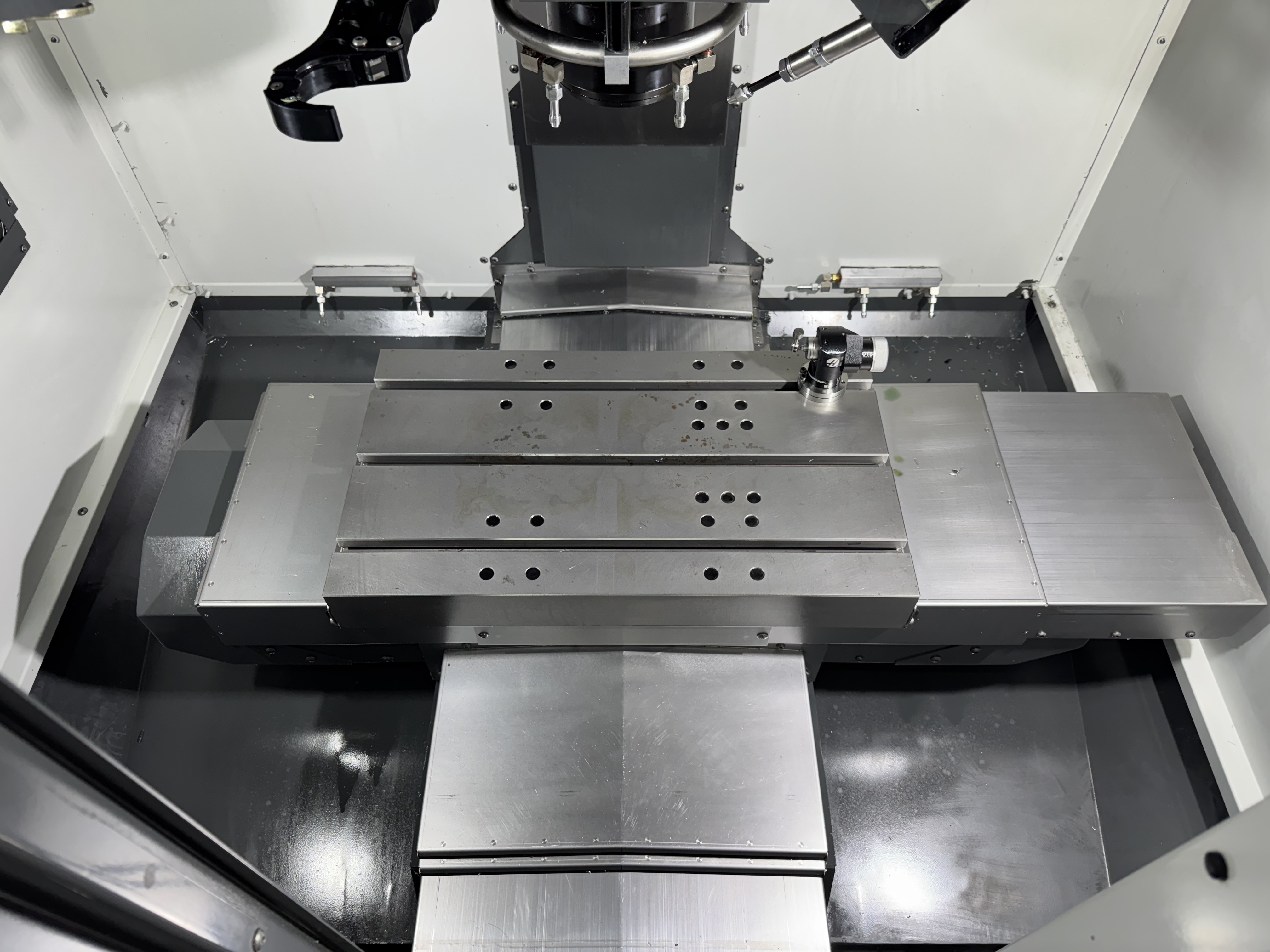

• TABLE 26” x 15”
• TABLE LOAD 500 LBS
• SPINDLE NOSE to TABLE TOP 6” – 21.5”
• SPINDLE TAPER CAT #40
• SPINDLE SPEED – INLINE DIRECT DRIVE 15,000 RPM
• TAPPING SPEED 5,000 RPM
• SPINDLE MOTOR 15 HP
• NUMBER OF TOOL POSITIONS 18
• TOOL CHANGE Time T-T, C-C 1.75 sec / 2 sec
• RAPID TRAVERSE RATES (X,Y,Z) 2400 IPM
• MAX CUTTING FEED RATE 1200 IPM
• POWER 208-240V / 3 ph.
• Weight: 5150 LBS.

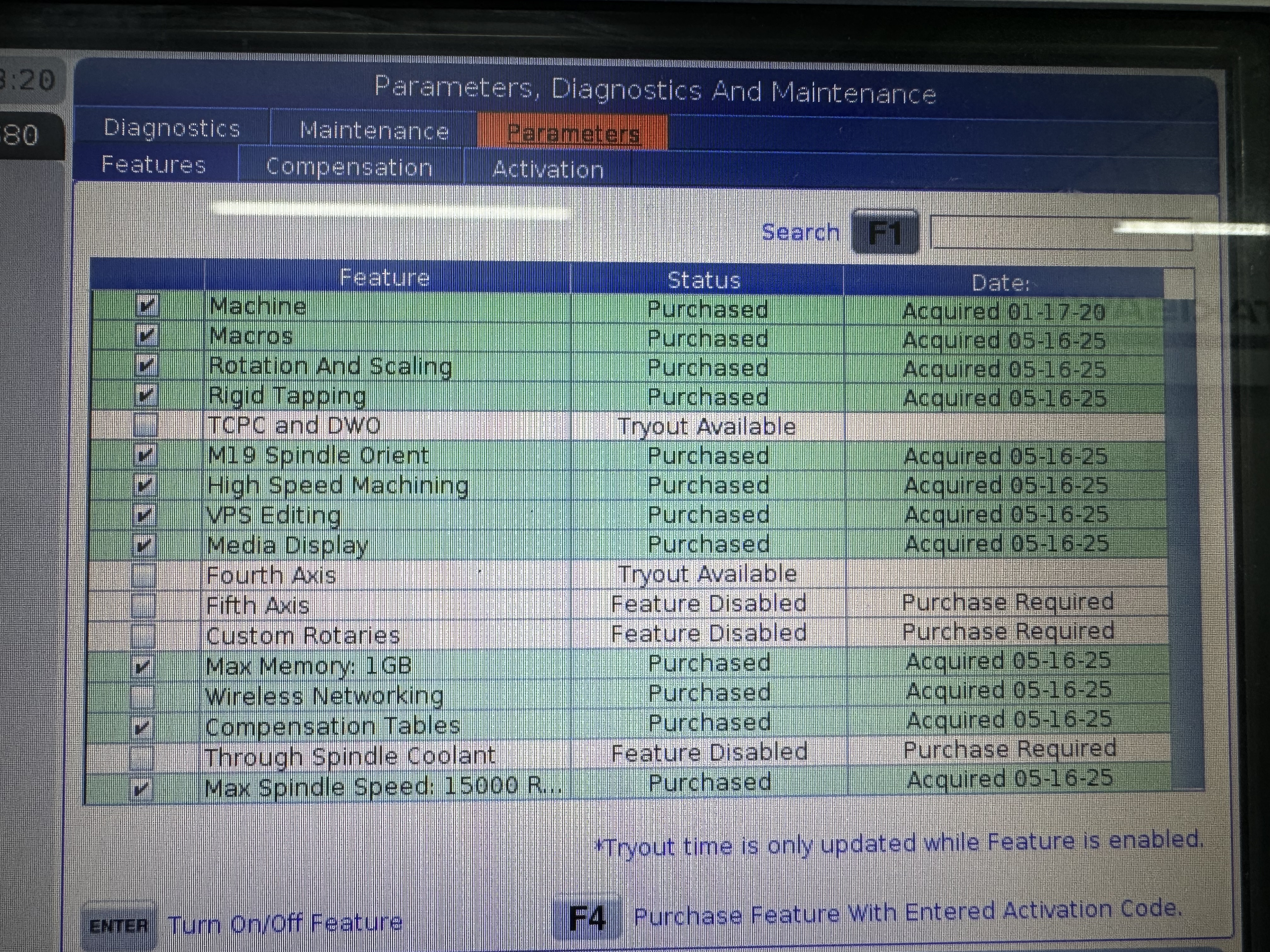

EQUIPPED WITH:
• WIPS ~ Renishaw part probe and tool probe package
• 15K RPM Spindle Upgrade, Inline Direct Drive
• CHIP AUGER
• 15” COLOR LCD MONITOR / 1GB MEMORY STD.
• HIGH SPEED MACHINING
• ENCLOSURE EXHAUSE SYSTEM
• M19 SPINDLE ORIENTATION
• USER MACROS
• COORDINATE ROTATION & SCALING
• VPS (Visual Part Programing System) EDITING
• MEDIA DISPLAY, MAX MEMORY 1GB, WIRELESS NETWORKING… Std.
• COMPENSATION TABLES
• USB DRIVE / RS-232 PORT
• COOLANT TANK / COOLANT PUMP KIT – ¾ HP
• RIGID TAPPING / WORK LIGHT
• TOOL RACK / MANUALS
• Hours: Power on: 9474 / Feed Cutting: 1088 / Cycle Start: 1604
