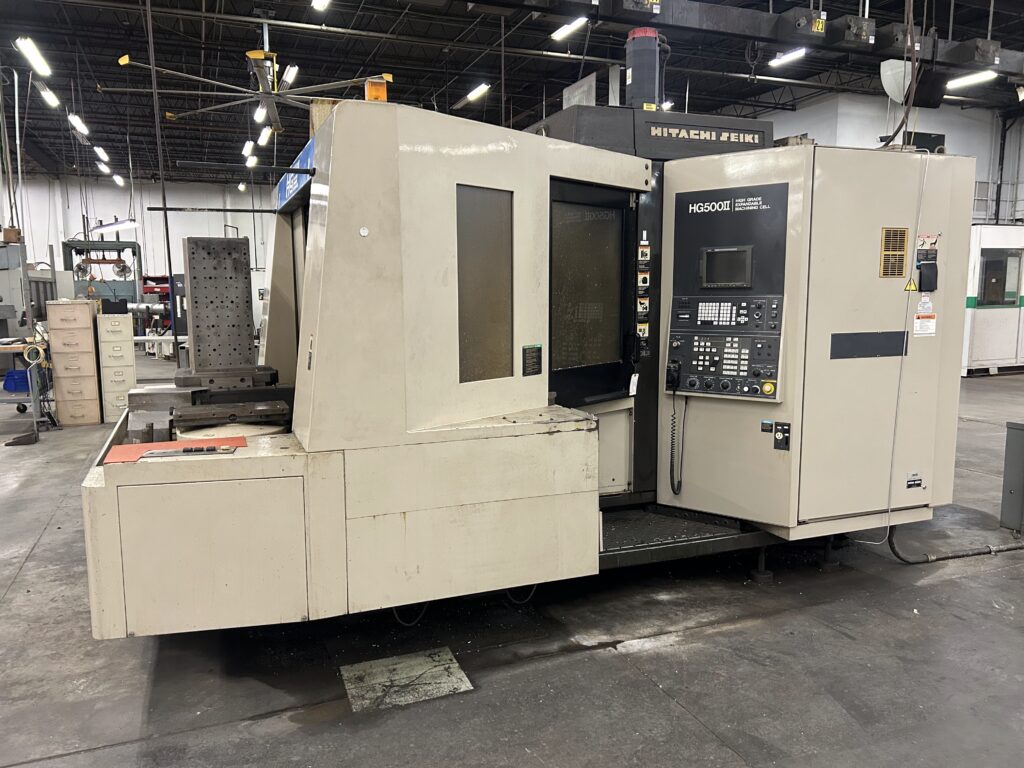

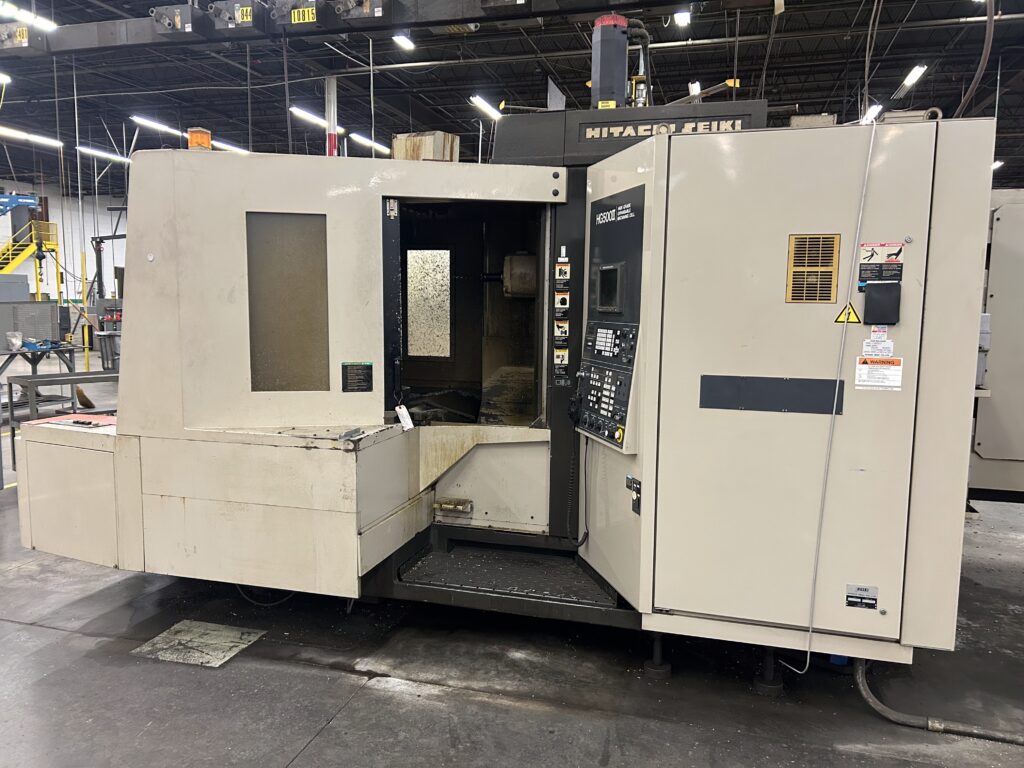

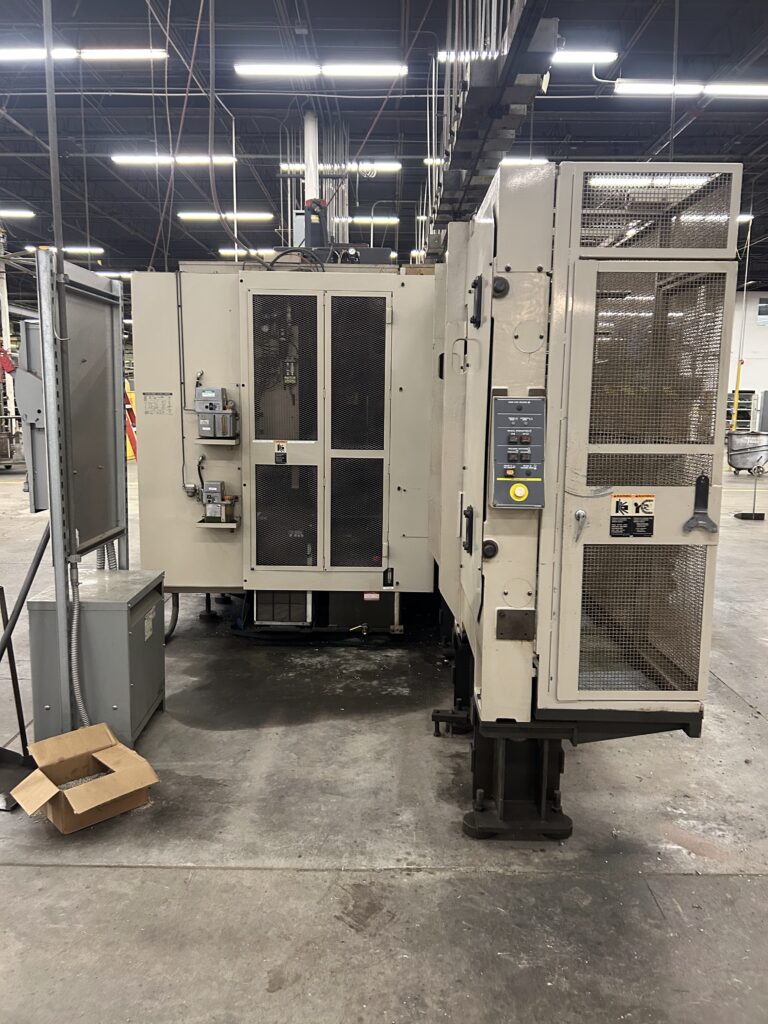

Hitachi Seiki HG-500II CNC Horizontal Machining Center, HMC

Stock

114250069

Model

HG-500II

Dealer Location

Georgia

Spec Sheet

  • Stock #: 114250069
  • Location: Decatur, GA
  • Brand: Hitachi Seiki
  • Model: HG-500II

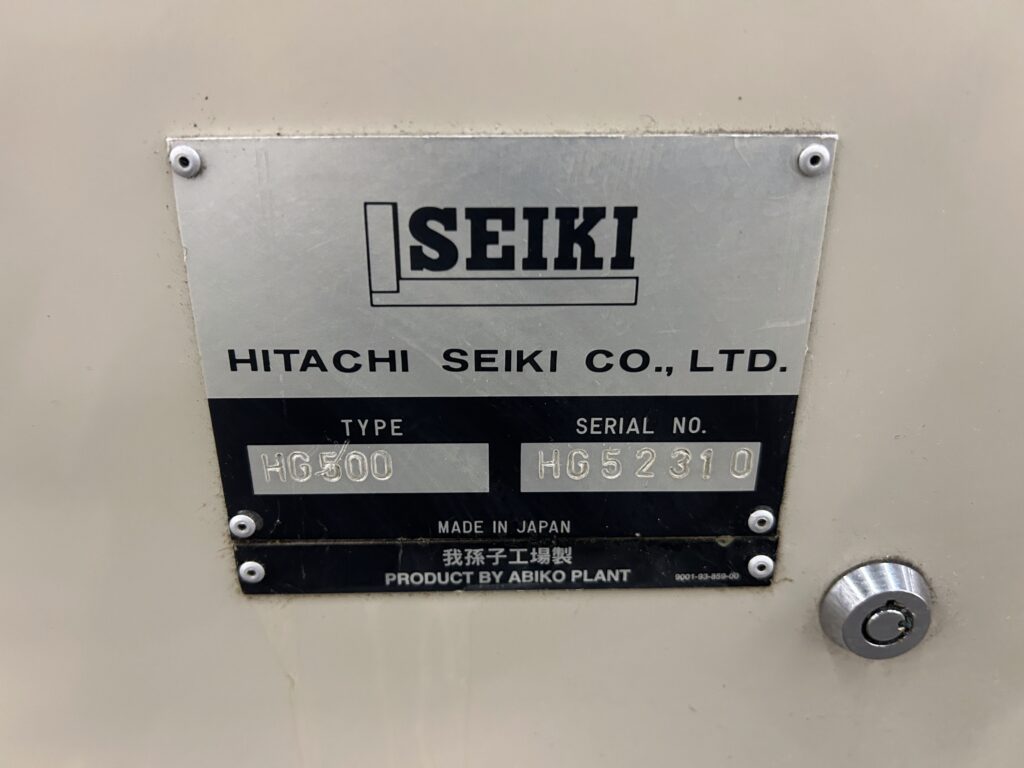

  • Serial #: HG52310
  • Approx. Shipping Weight: 25,000 Lbs.
  • Approx. Shipping Dimensions: 190L” X 122W” X 108H”
  • Loading Fee: Rigging Required

Specifications

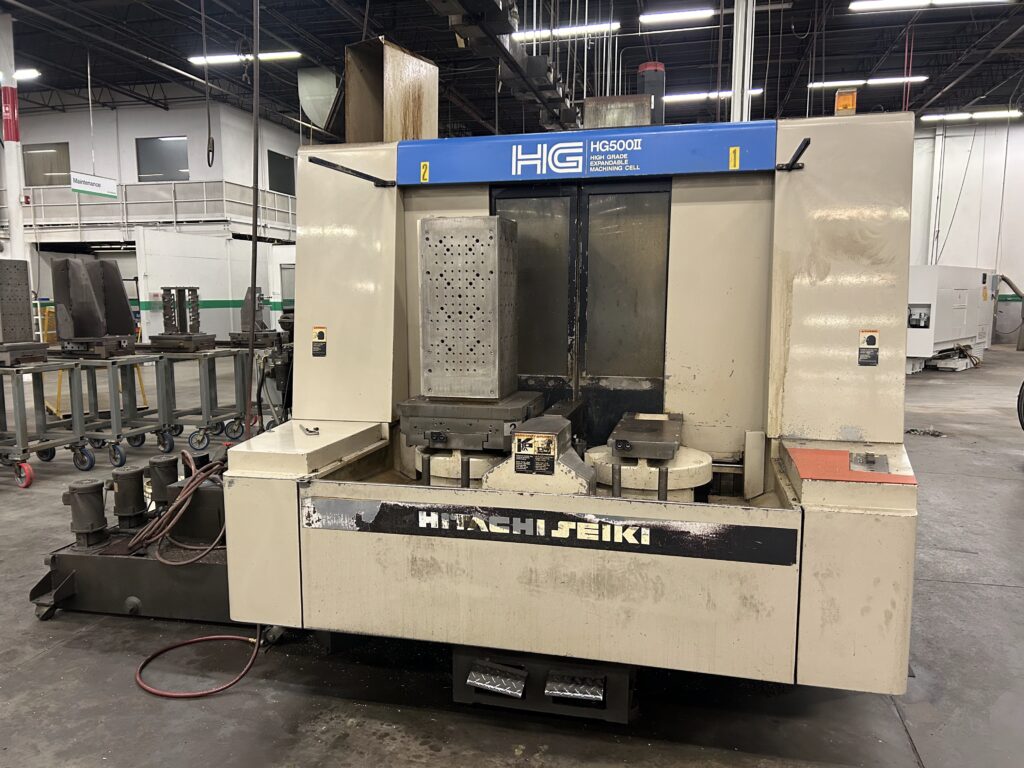

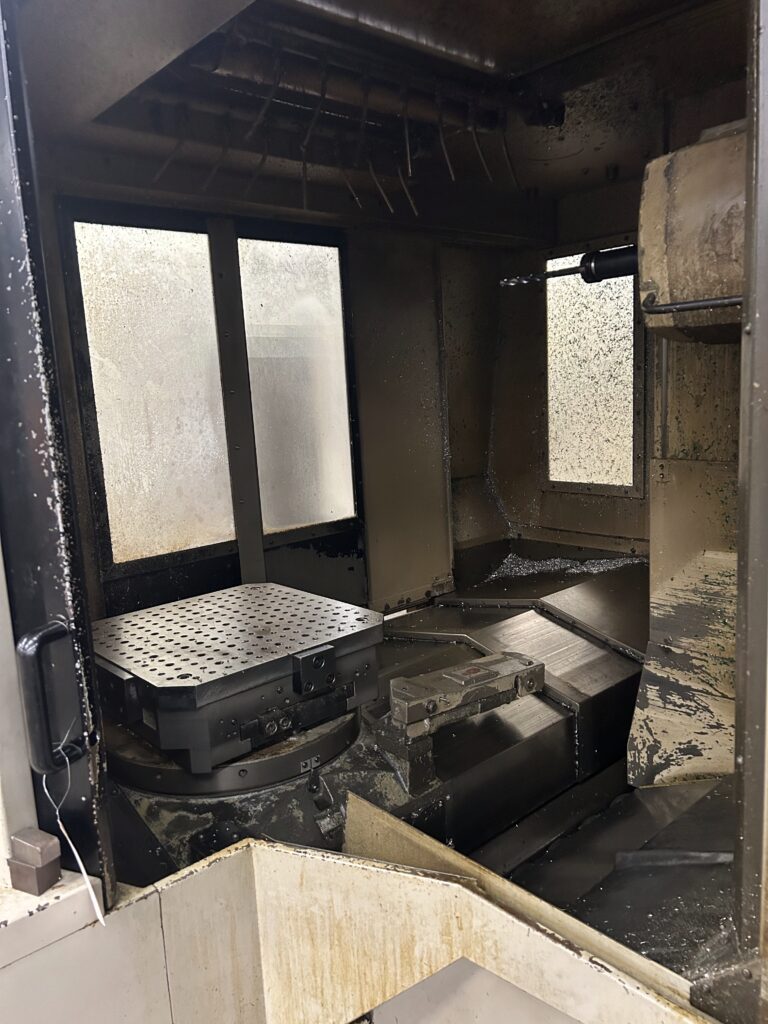

  • Pallet Size: 20″ x 20″
  • Maximum Pallet Load: 1800 Lbs.
  • Number of Pallets: 2
  • X-Axis Travel: 28″
  • Y-Axis Travel: 27″
  • Z-Axis Travel: 24″
  • Rapid Traverse Rate X, Y & Z Axis: 900 IPM
  • Cutting Feed Rate: 0.1 – 500 IPM

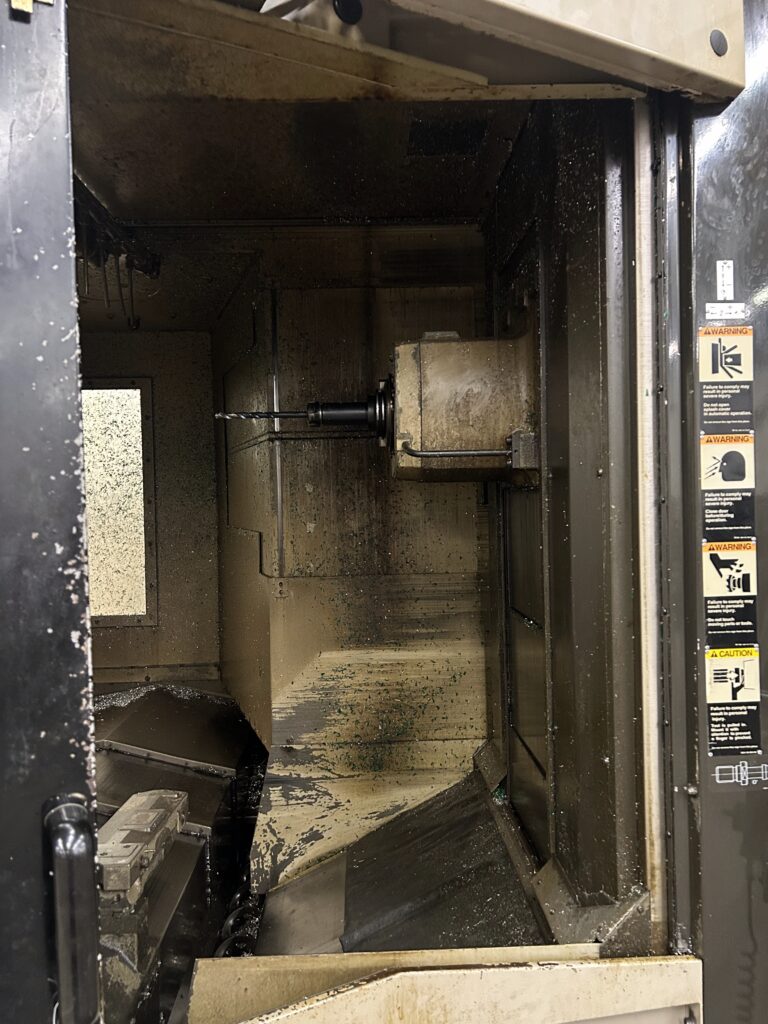

  • Spindle Taper: CAT 50
  • Spindle Speed, Max: 6000 RPM
  • Spindle Motor: 30 HP

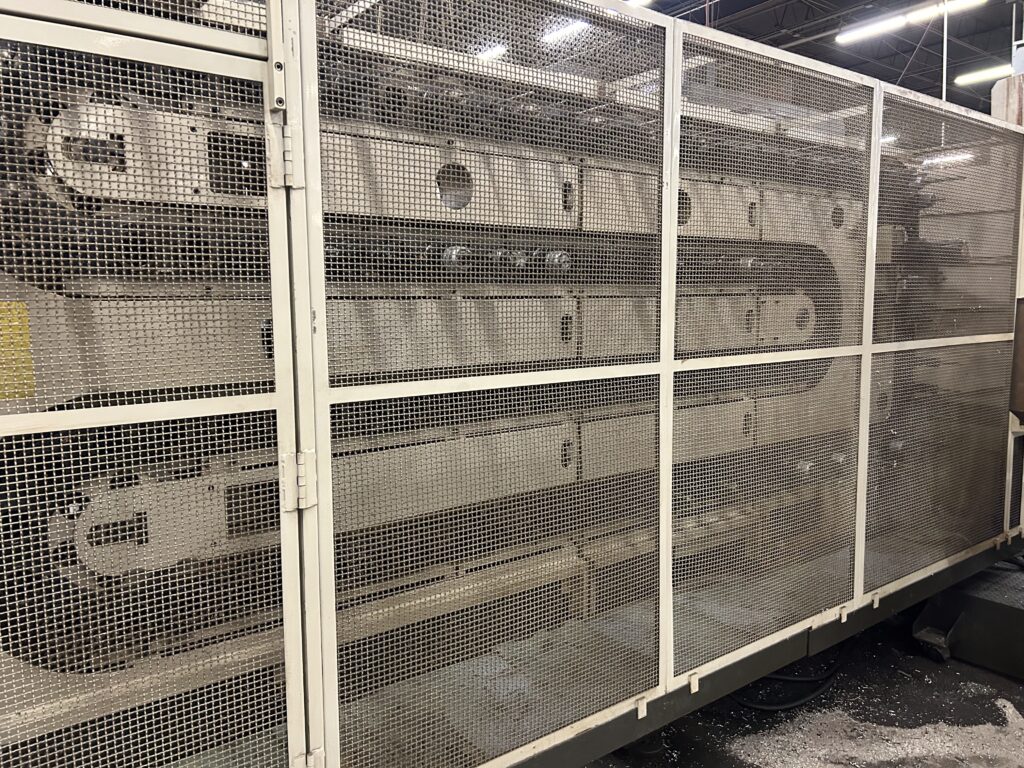

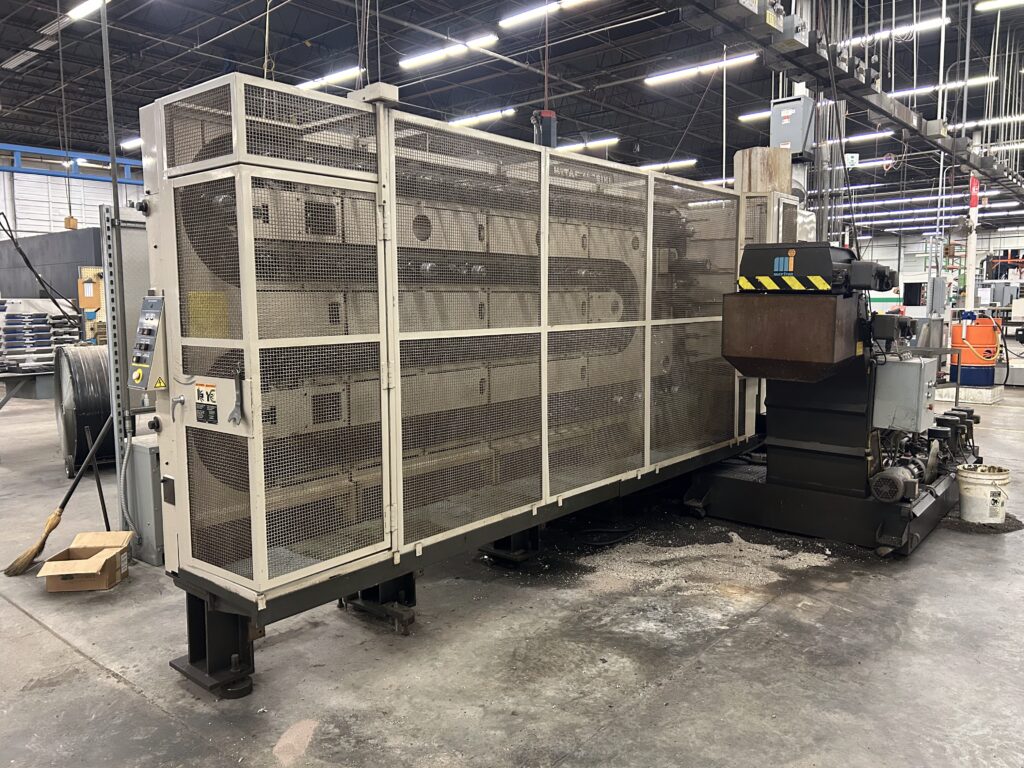

  • Tool Changer Capacity: 60 ATC
  • Spindle Center to Pallet Top: 0″ – 27″
  • Spindle Nose to Pallet Center: 6″ – 30″

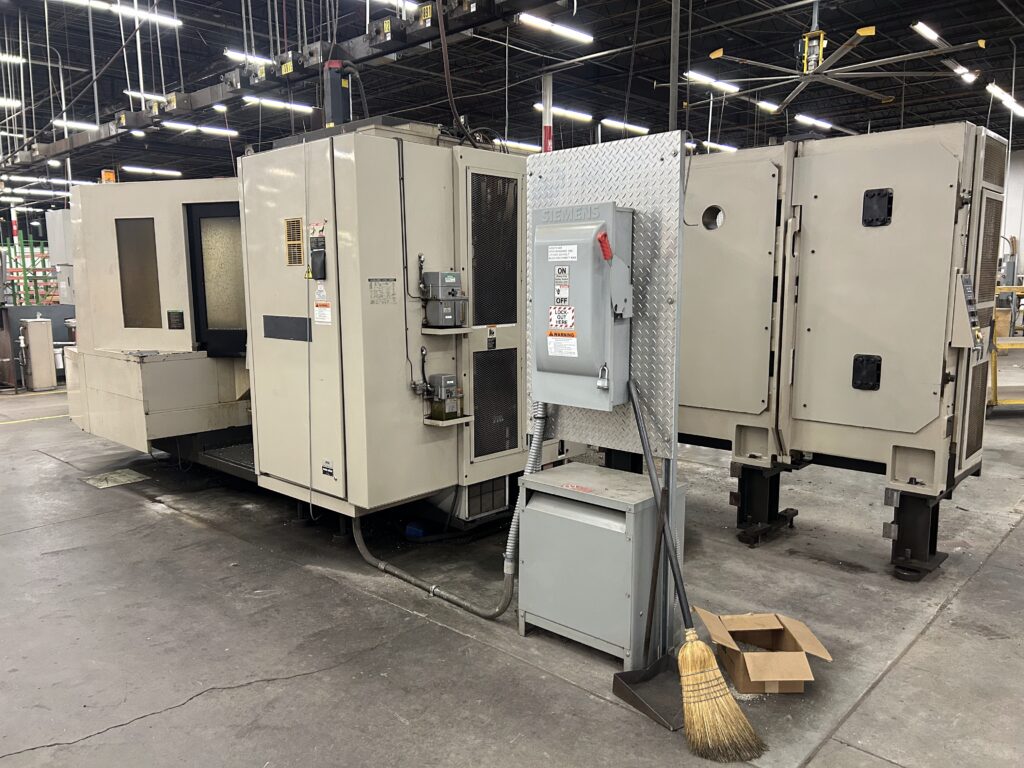

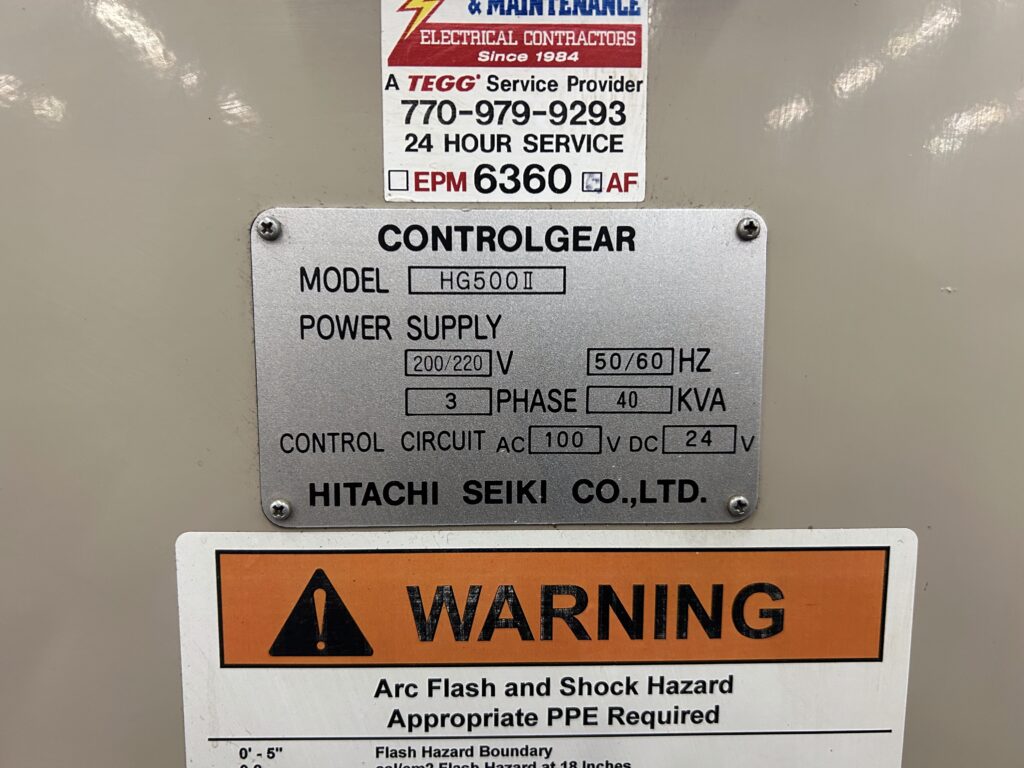

  • Electrical: 220V/3PH

Equipped With

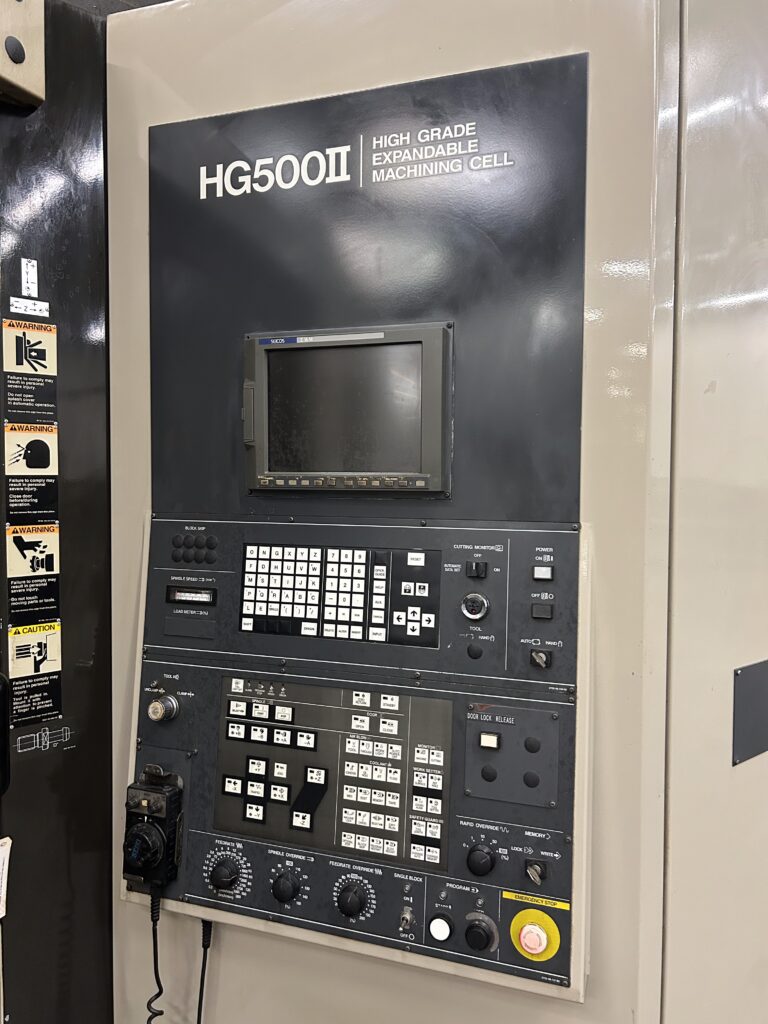

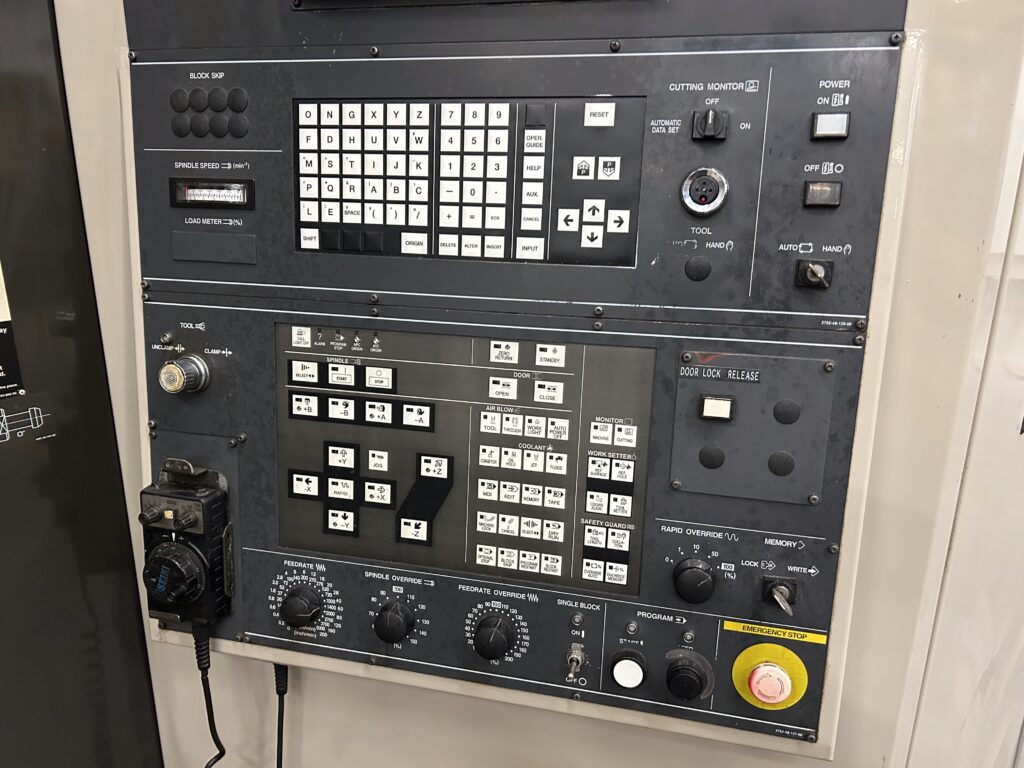

Seicos 16M CNC Control, 60 Position Tool Changer, Standard Coolant System with Tank & Pump, Chip Conveyor

Additional Info

The Hitachi-Seiki CNC Horizontal Machining Center can be demoed upon request, check out the video on the listing to see it in operation.
