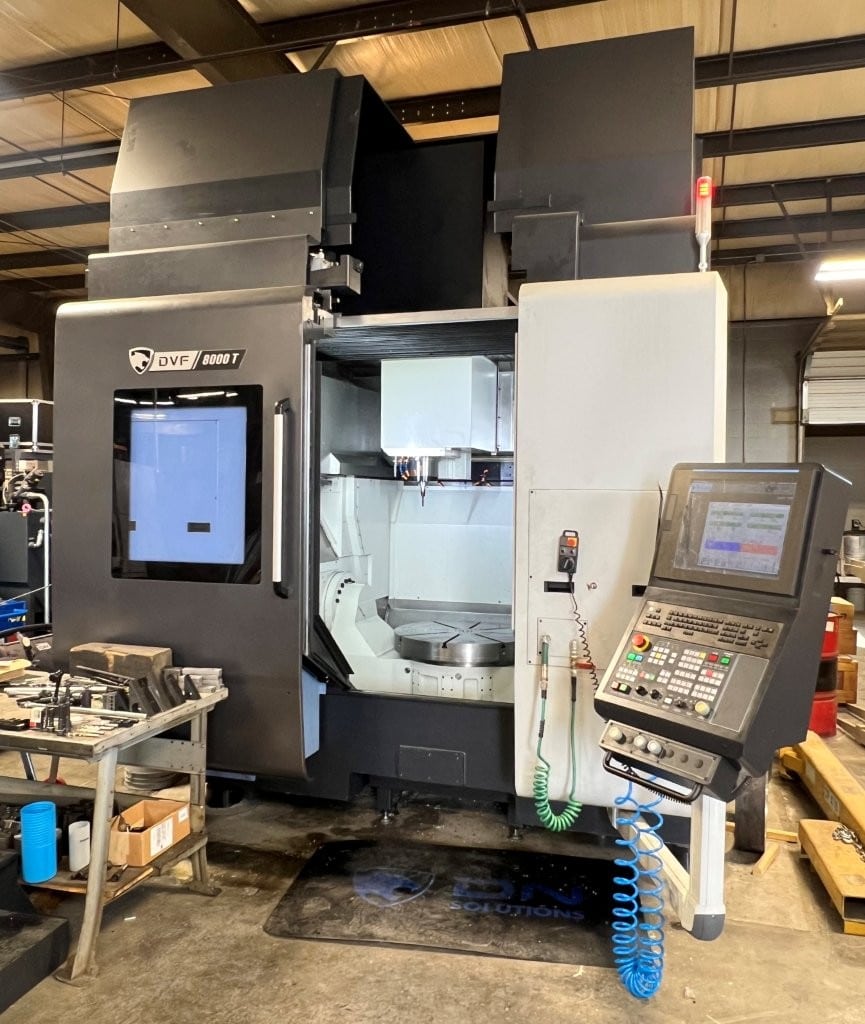

Doosan DVF 8000T 5 Axis CNC Vertical Milling Machine (Installed 2023)

Manufacturer

Doosan

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

133250013

Model

DVF 8000T

Dealer Location

Georgia

Request a Quote
View Contact Information

Spec Sheet

  • Stock #: 133250013
  • Location: IN
  • Brand: Doosan
  • Model: DVF 8000T
  • Year: 2020
  • Approx. Shipping Weight: 60,000 lbs
  • Loading Fee: Rigging Required

Specifications

  • Table Size: 31.5″
  • Table Capacity: 1,543 lbs
  • X-Axis Travel: 39.37″
  • Y-Axis Travel: 35.43″
  • Z-Axis Travel: 26.97″

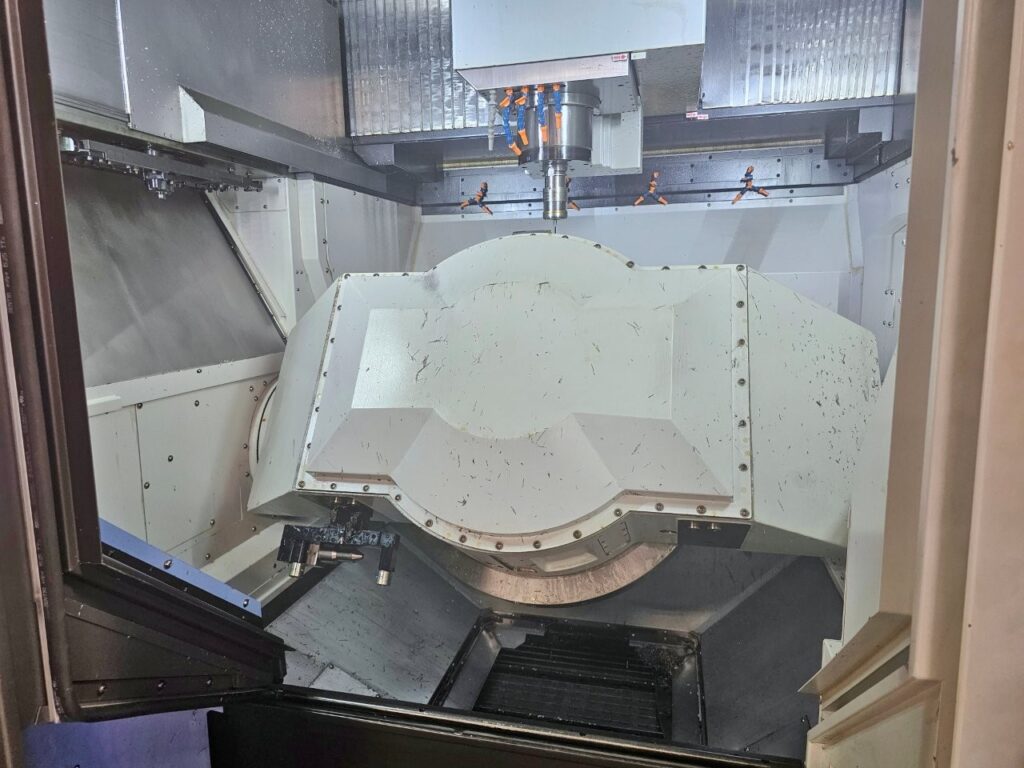

  • A-Axis Rotation: 240 Degrees (+/- 120 Degrees)
  • C-Axis Rotation: 360 Degrees
  • Spindle Speed: 18,000 RPM
  • Spindle Motor: 30 HP
  • Spindle Taper: HSK-T63
  • Tool Capacity: 120 ATC
  • Max Rapids: 1,772 ipm
  • Cutting Feedrate: 885 ipm

Equipped With

Installed in 2023 (Built 2020),

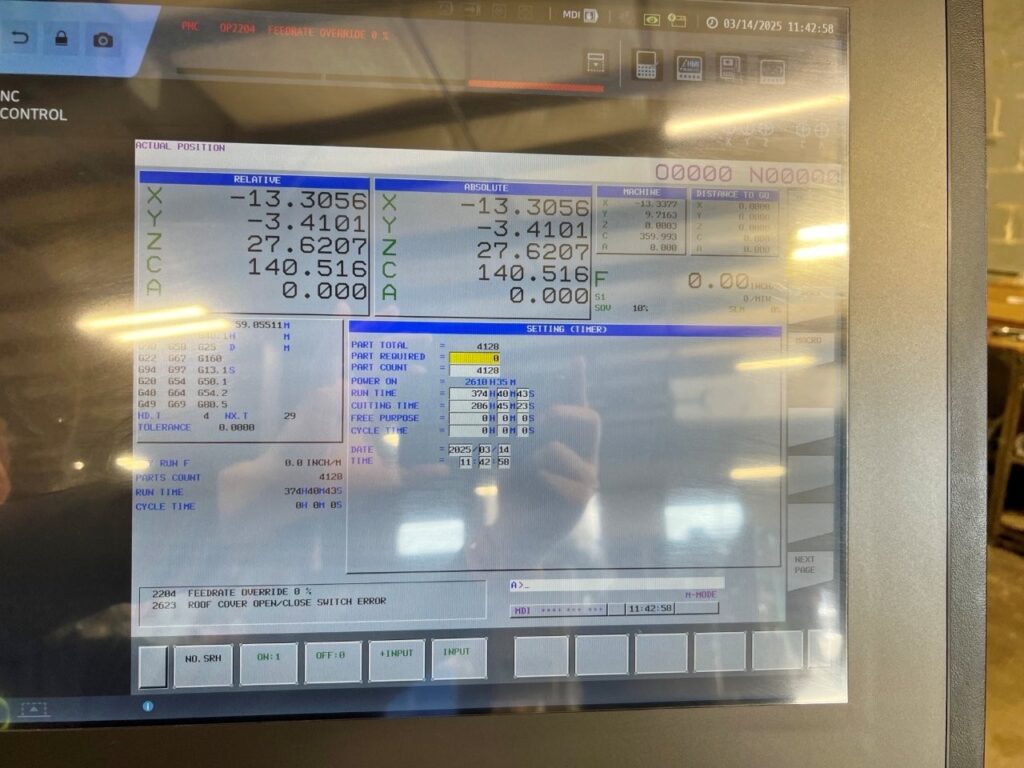

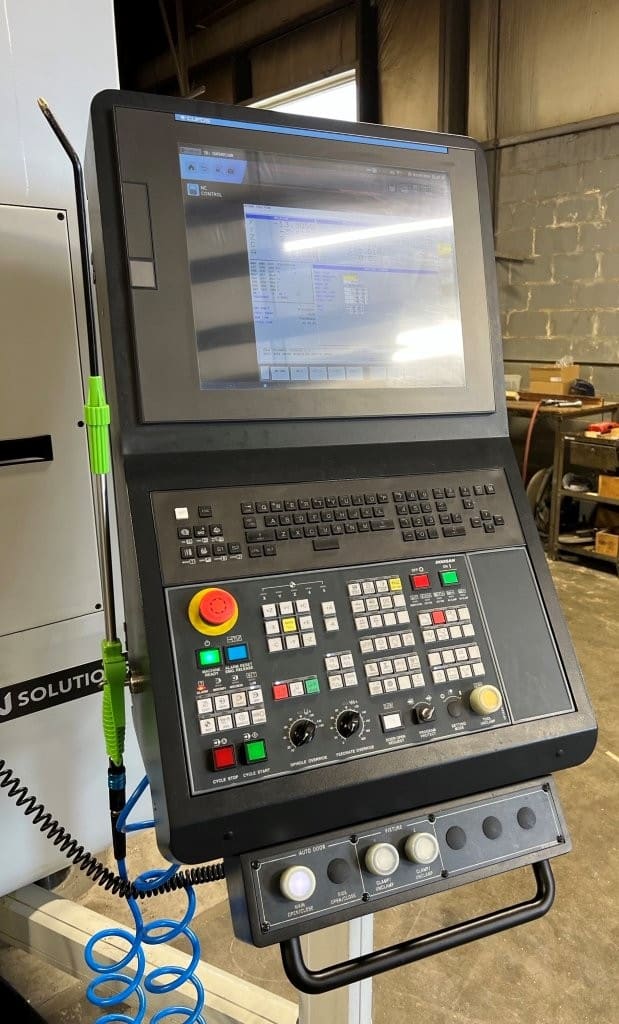

Doosan CUFOS Control (Fanuc),

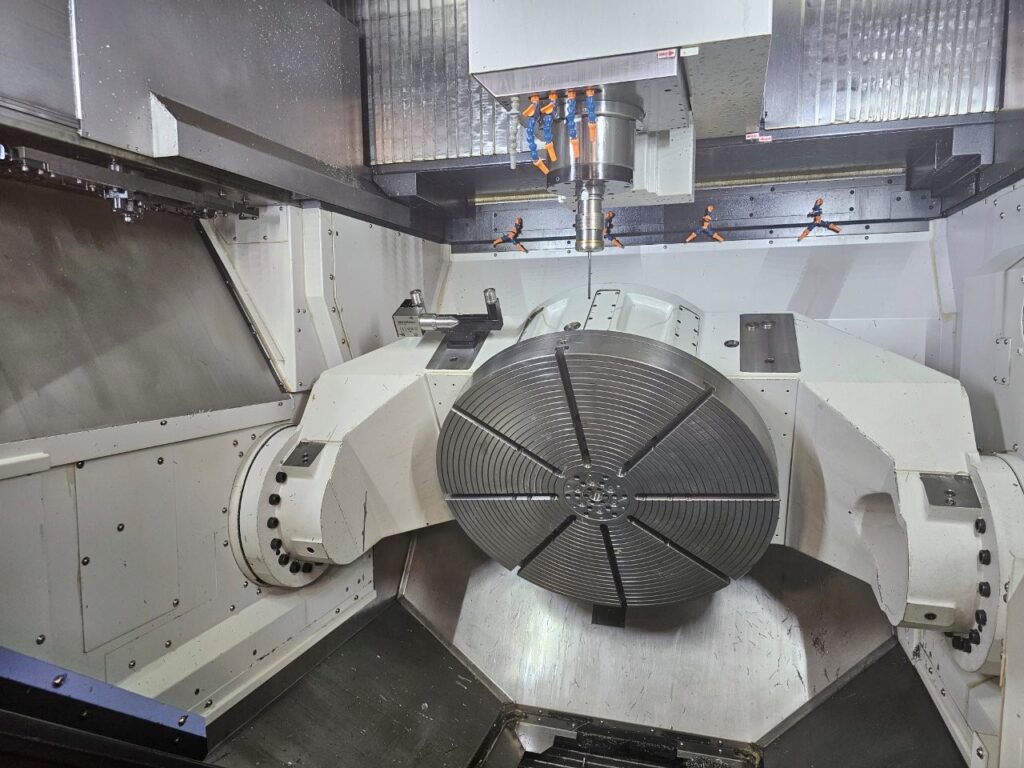

Simultaneous 5-Axis Vertical Machining Center with Turning Function,
18,000 RPM Spindle (HSK-T63),

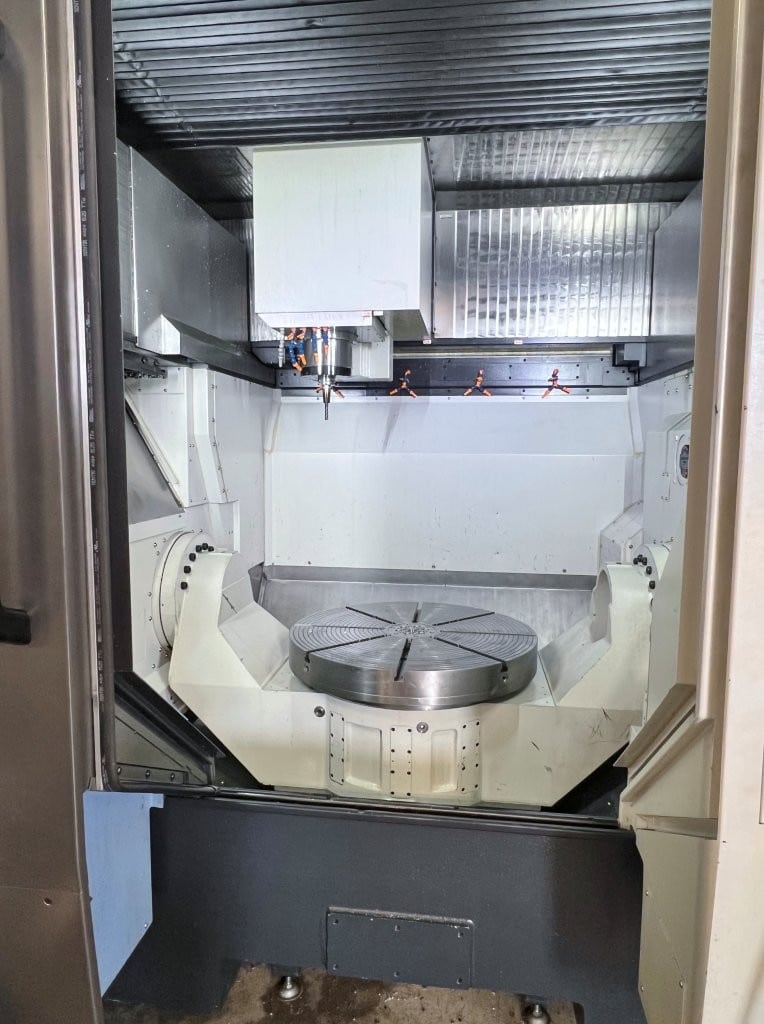

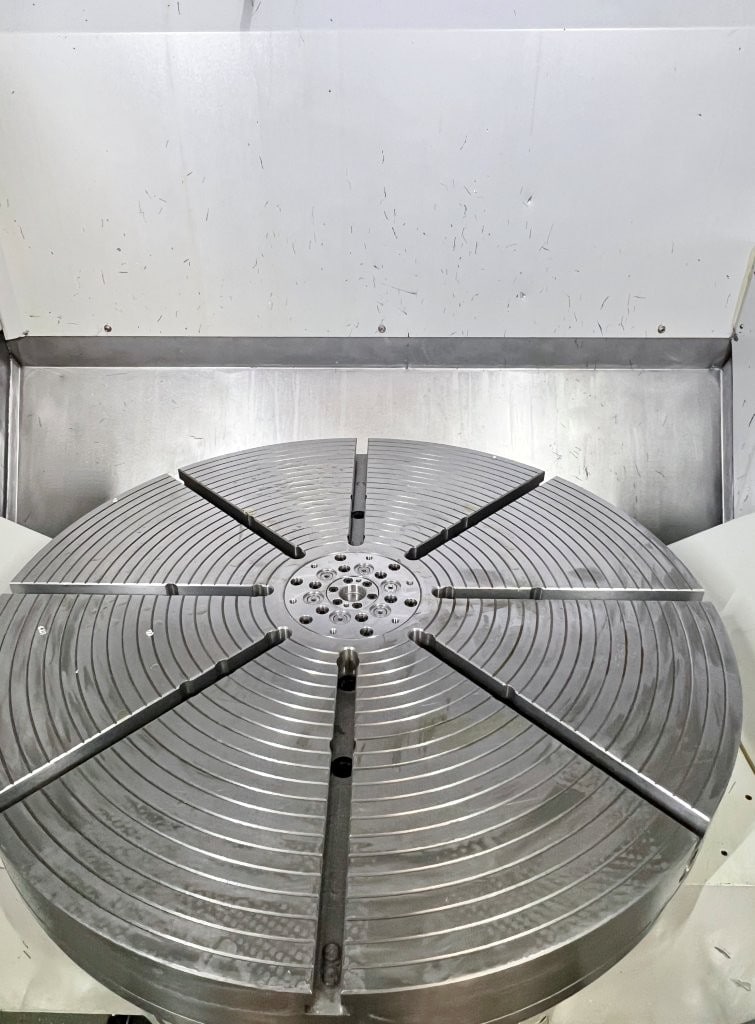

31.5” (800mm) Rotary Table,
600 RPM Direct Drive Turning Spindle (C-Axis),

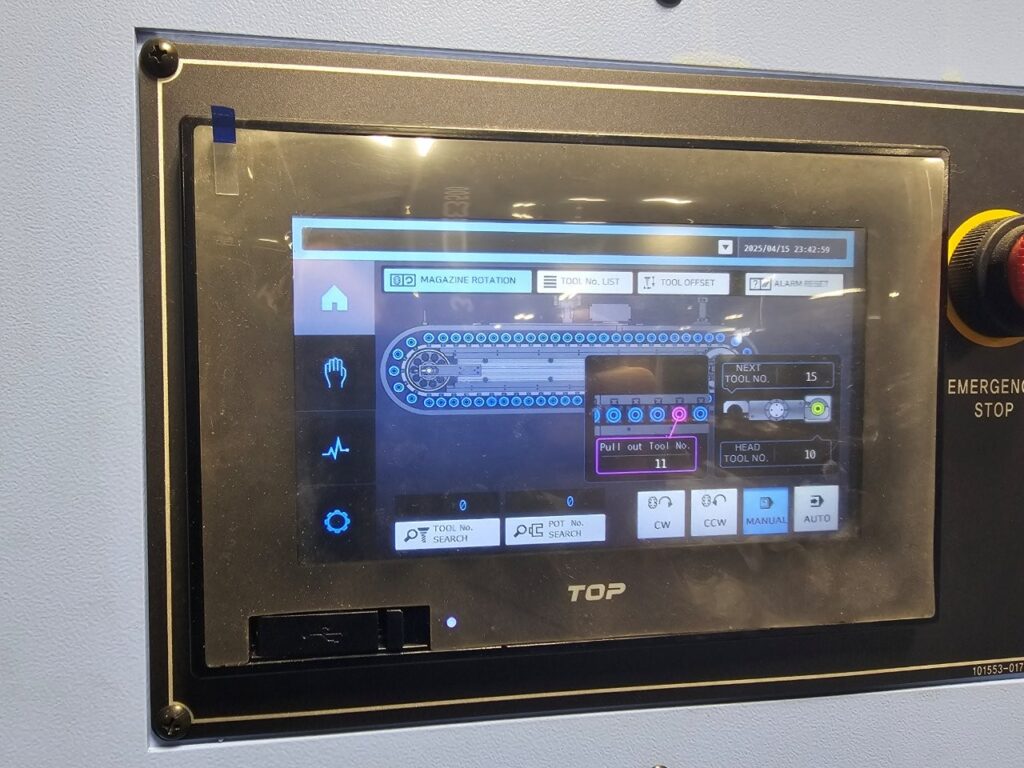

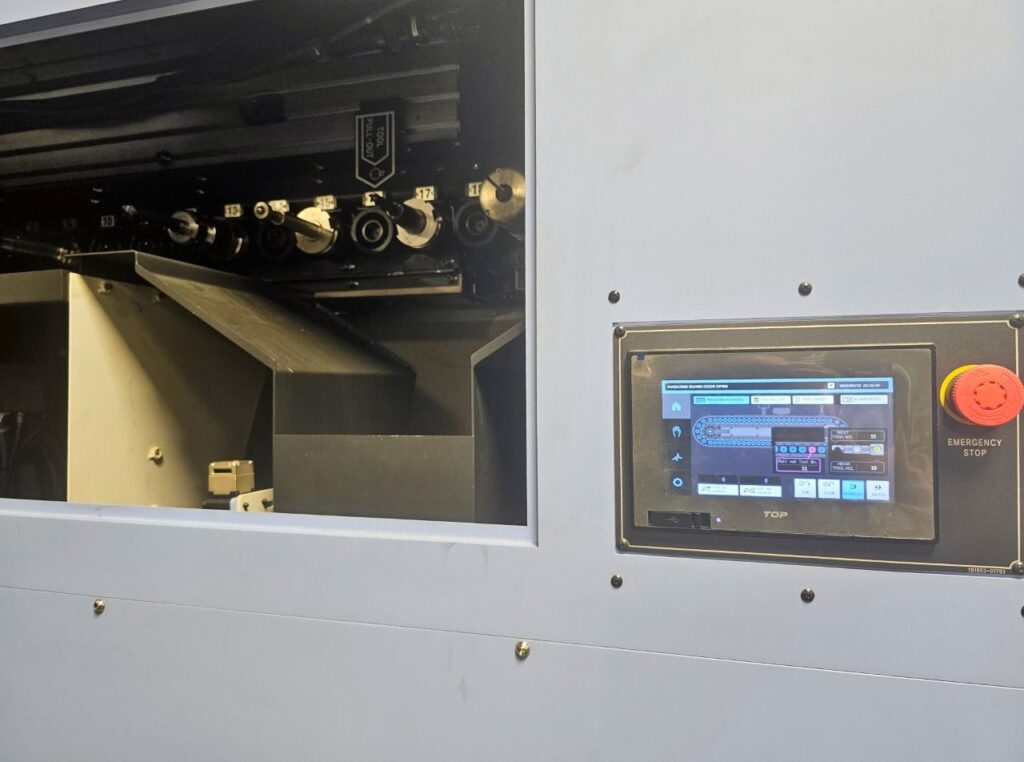

120 Tool Positions,
Renishaw Probe-Ready,
Through-Spindle Coolant & Air,

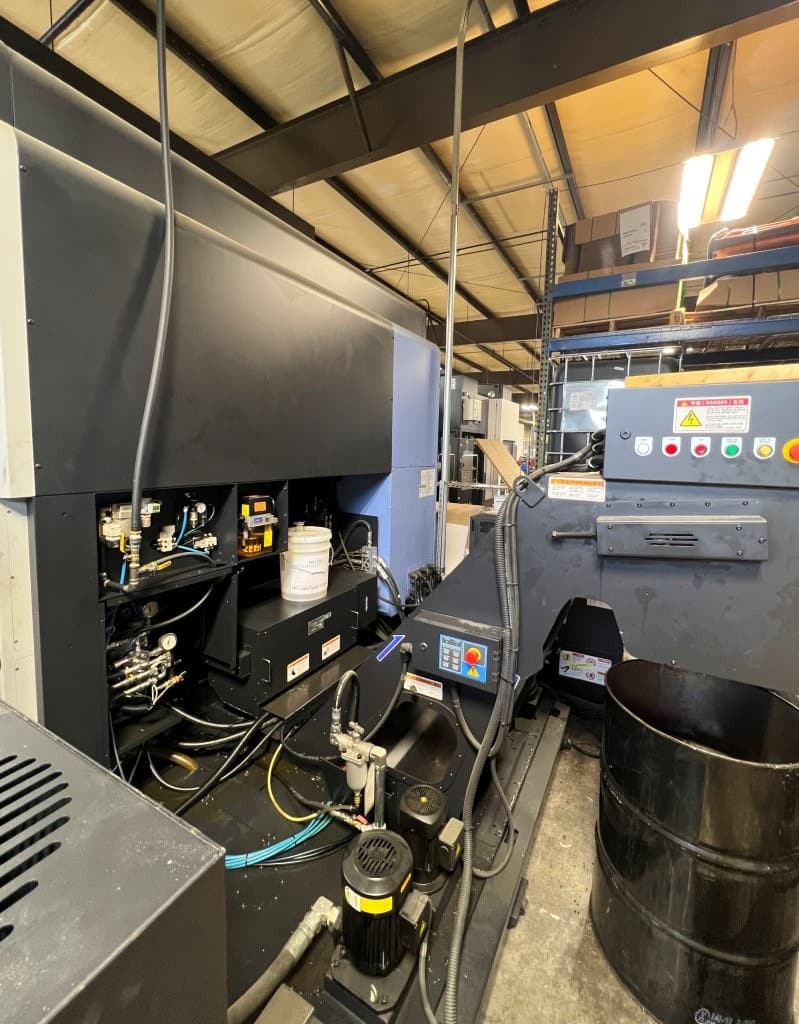

Chip Conveyor (Rear Discharge),
Spindle Chiller,
Coolant Chiller,
AiCC II 600 Block Look Ahead,
Intelligent Kinematic Compensation (IKC) Software for Fine Calibration of Rotary Axes,
Absolute Glass Scales (X/Y/Z),
Absolute Rotary Encoders (A & C Axes),
Spindle Orientation,
Rigid Tapping,
USB Port

Additional Info

Approximately 300 Cut Hours. Machine can be demonstrated upon request.
