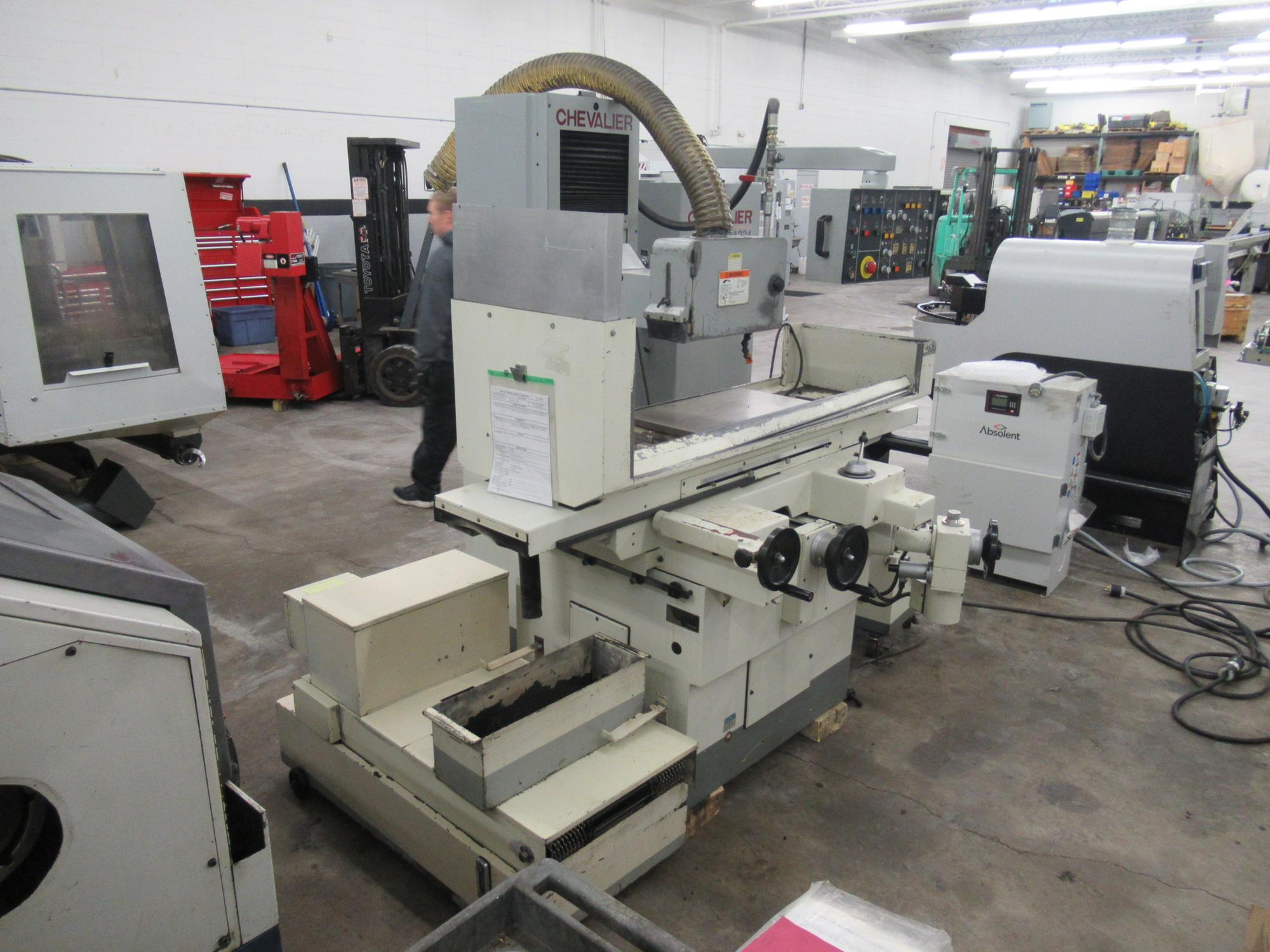

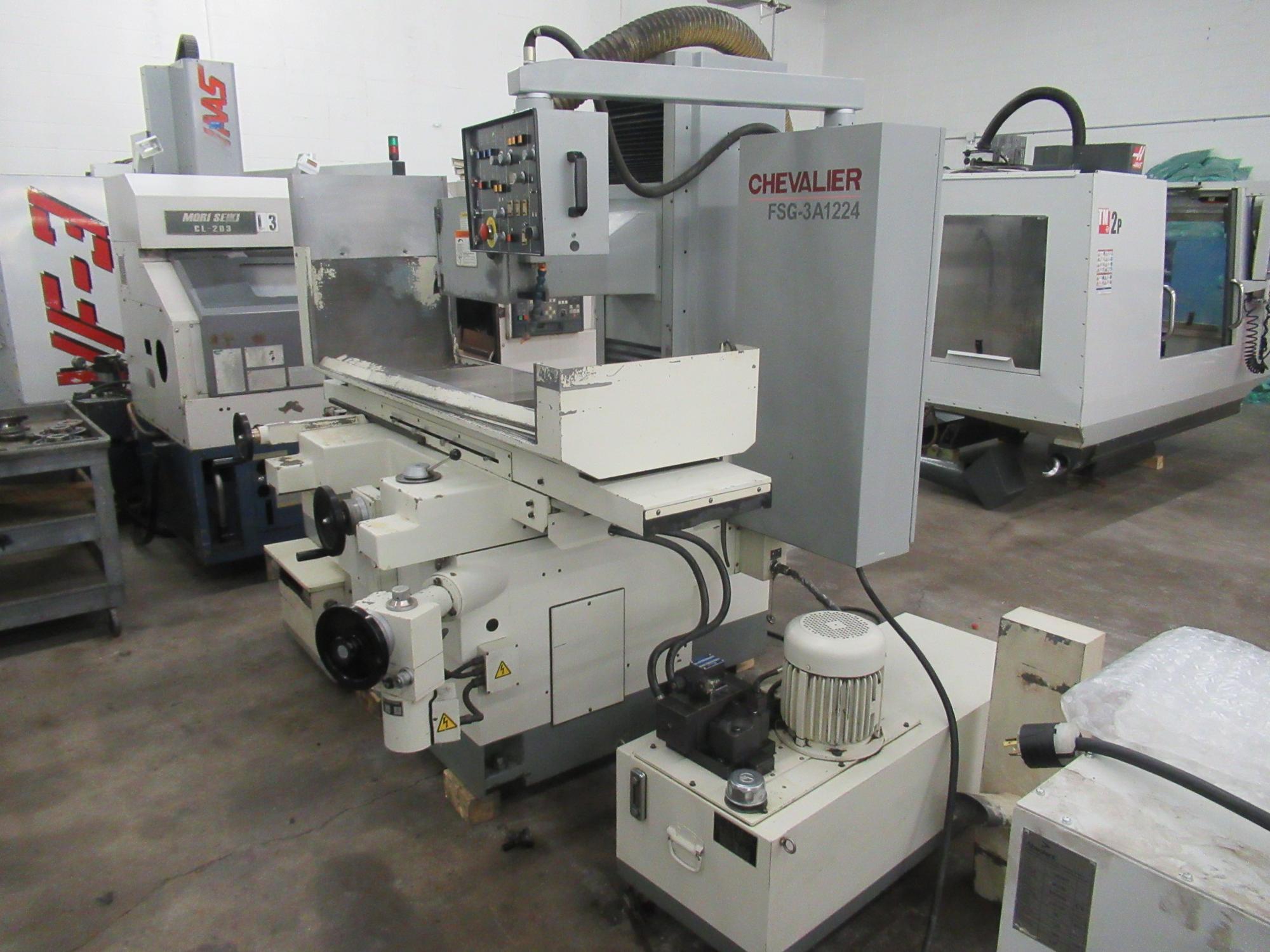

Chevalier FSG-3A1224 3-Axis Automatic Surface Grinder with Incremental Downfeed, Electromagnetic Chuck and Coolant System with Paper Filtration

Manufacturer

Chevalier

Category

Grinding Machines

Type

GRINDERS, GENERAL

Stock

6972

Model

FSG3A1224

Dealer Location

Minnesota

Request a Quote
View Contact Information

Spec Sheet

Table Working Surface: 12" x 24"

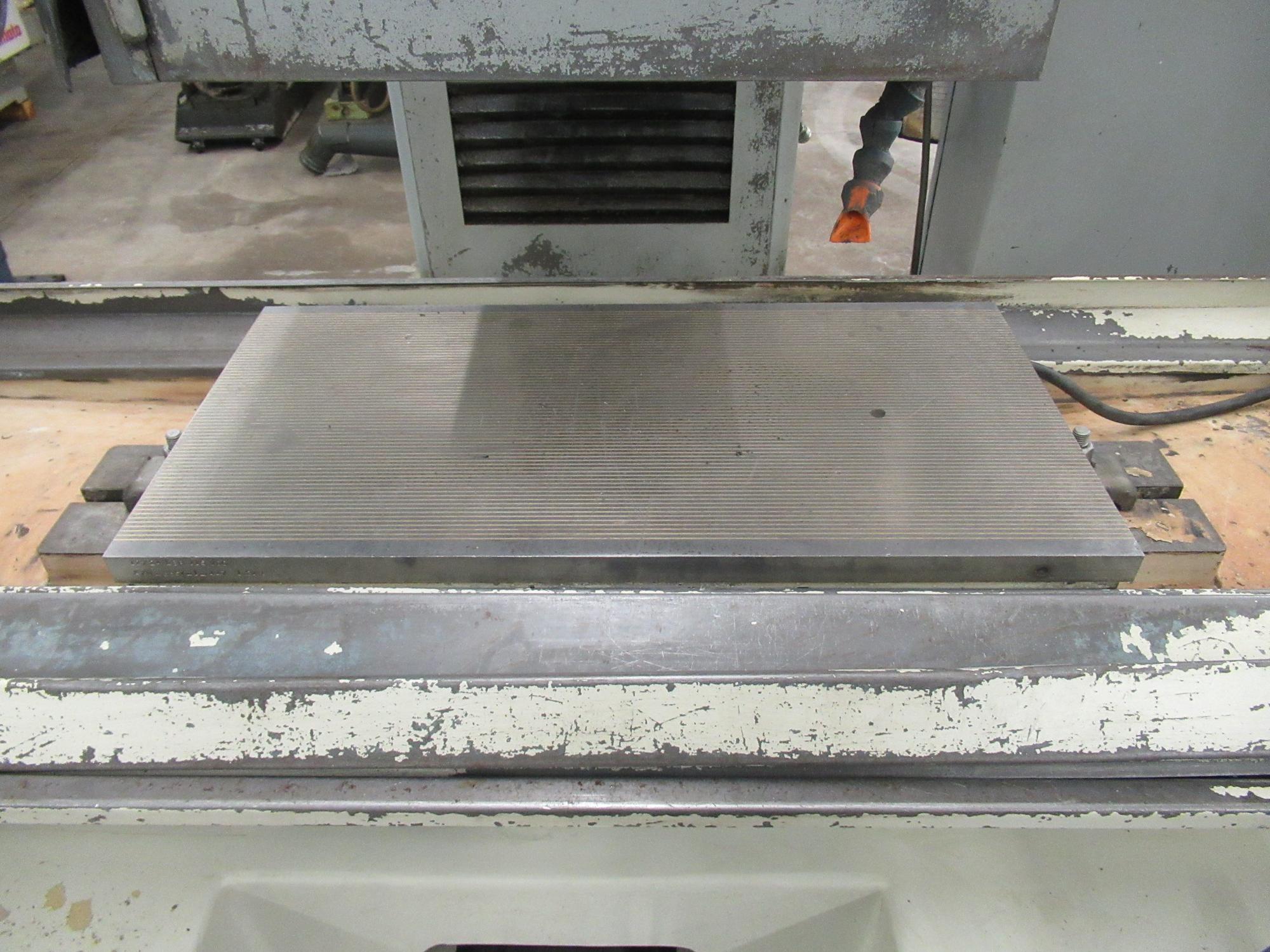

Max Chuck Size: 12" x 24"

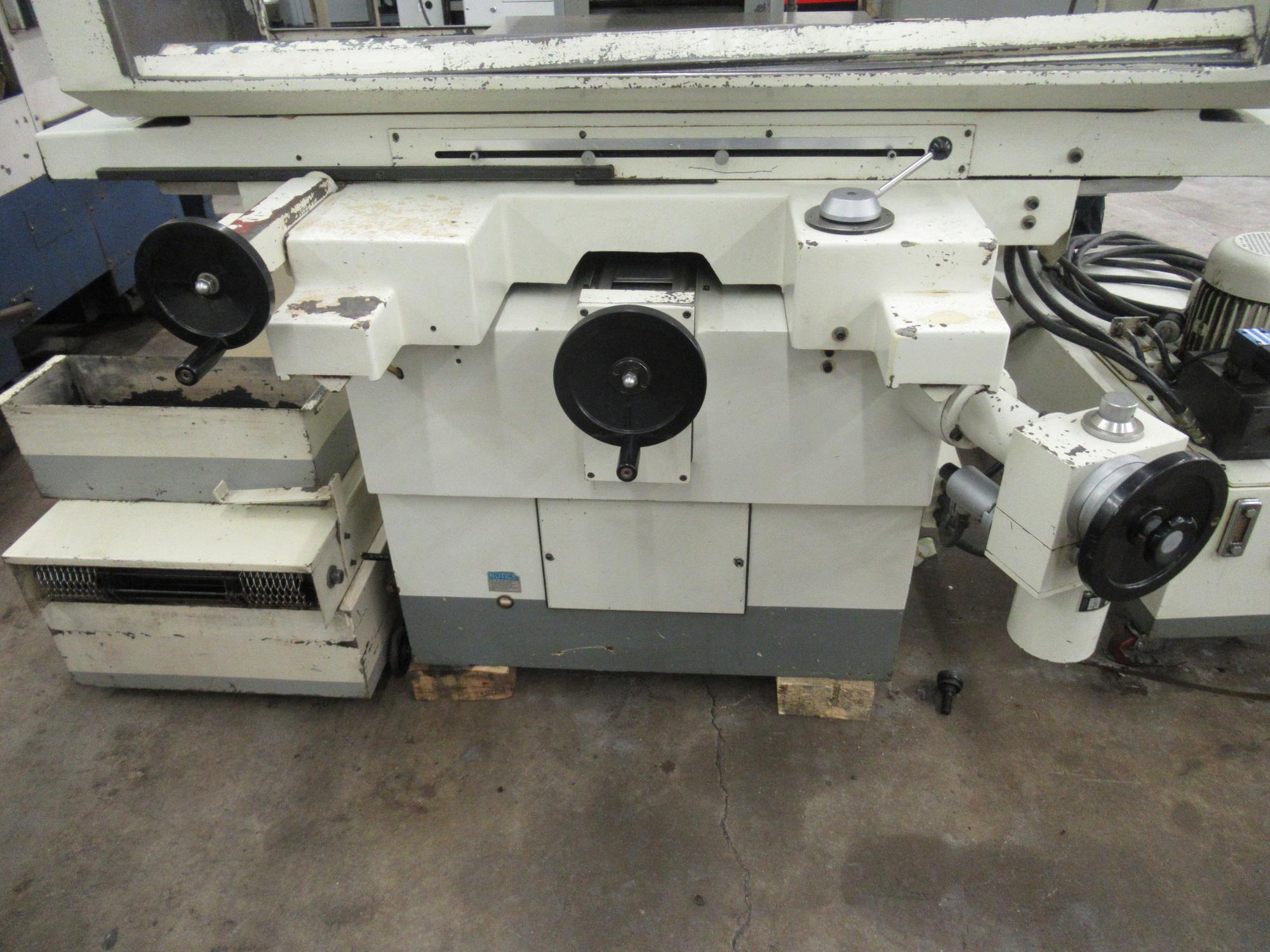

Max Table Movement (Manual): 27.5" Longitudinal Hand Travel

Max Table Travel Powered: 25.625"

Max Distance Spindle / Wheel to Table: 24.8" Max Spindle Center to Table

Crossfeed Travel Auto / Manual: 14.125" / 14.5"

Auto Longitudinal Feed Rate: 16-82 FPM Variable

Cross Feed Automatic Increments: .04 - .47"

Cross Feed Rapid Traverse Rate: 56 IPM

Auto Wheelhead Downfeed Increments: .0001" -.002"

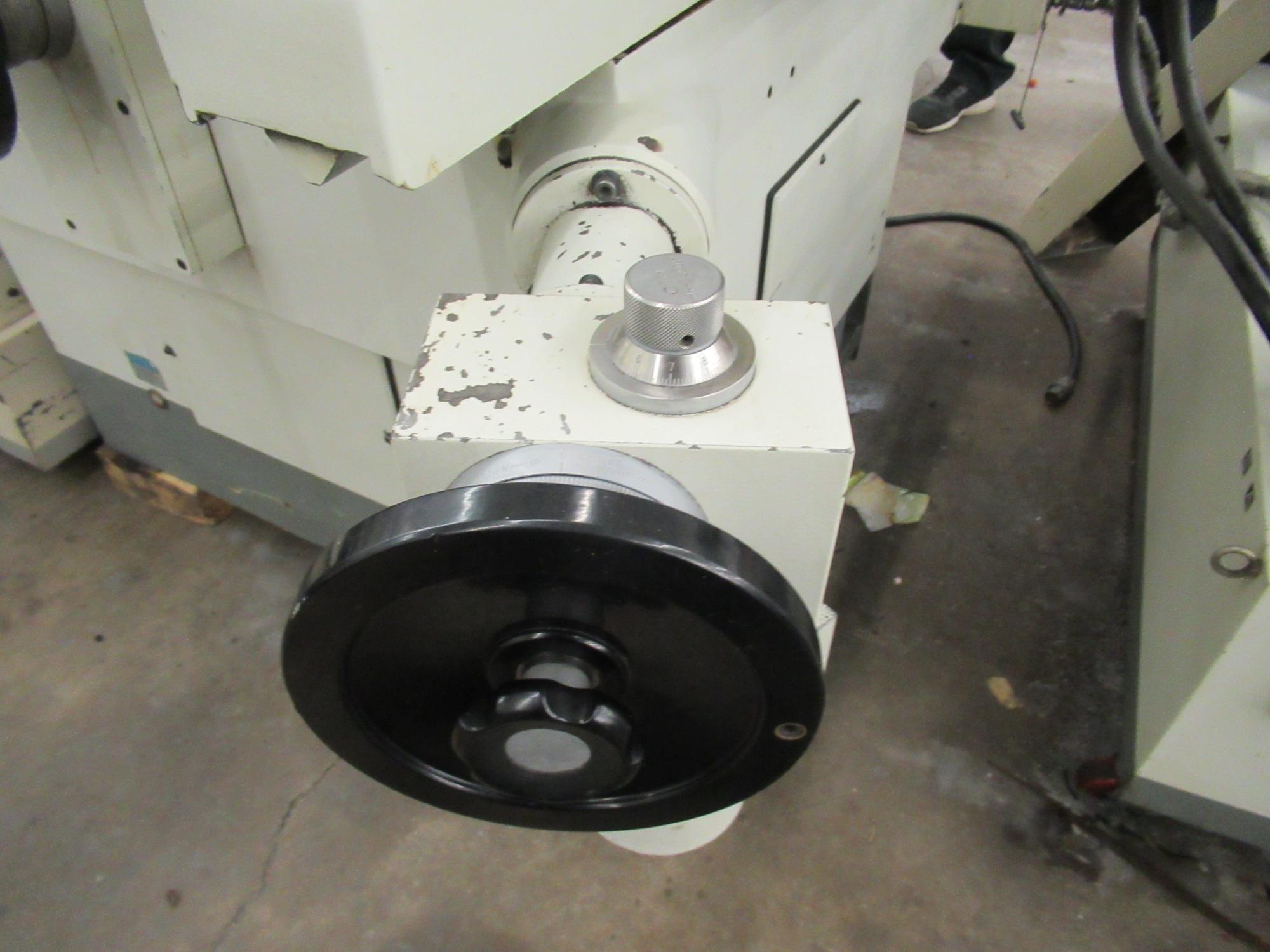

Hand Wheelhead Downfeed Increments: .0005" Per Granduation / .08" Per Revolution

Max Table Load (Including Chuck): 924 Lbs.

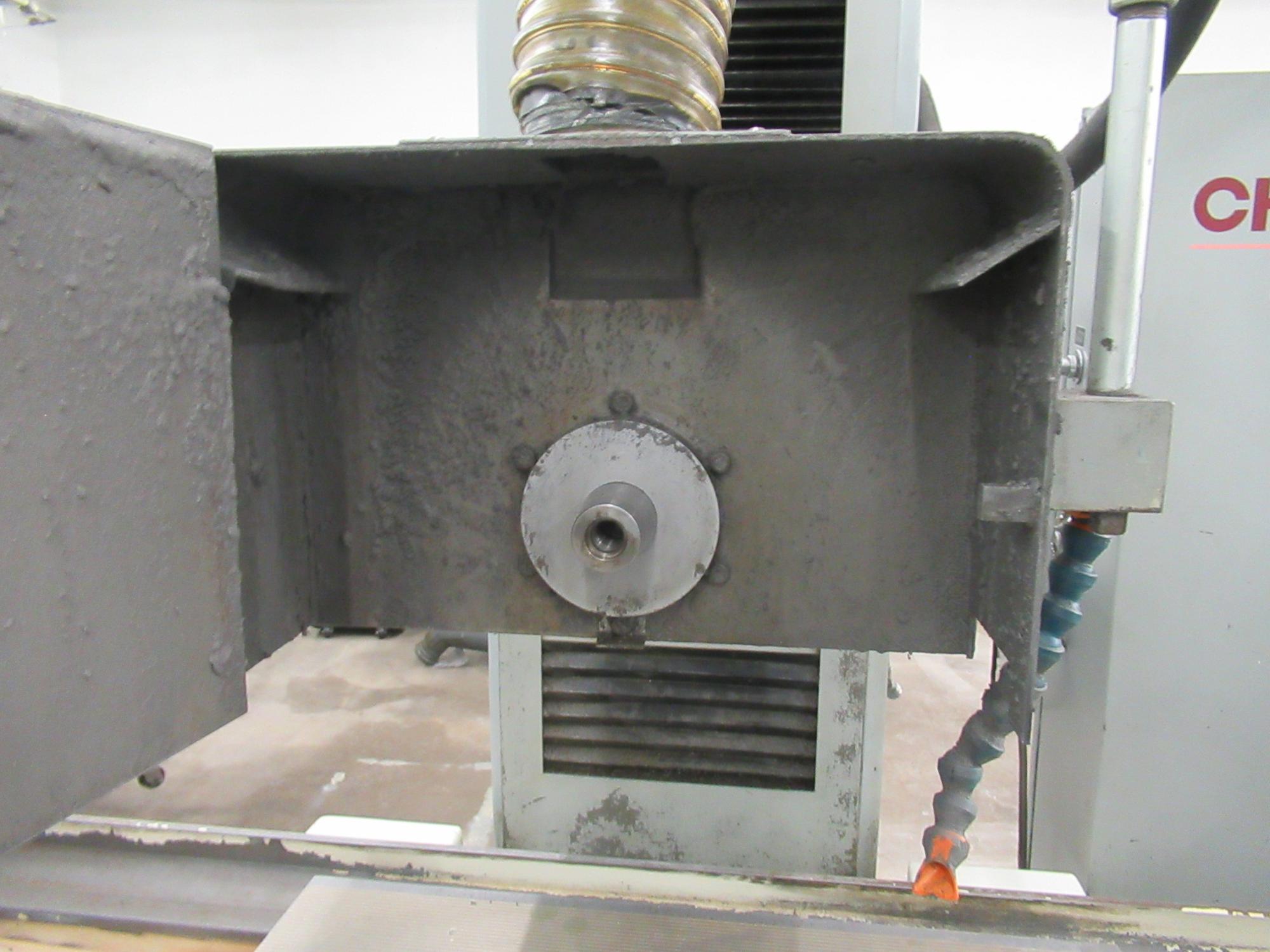

Max Wheel Size : 14" Diameter x 2" x 5" Hole

Wheel Speed: 1,750 RPM

Rapid Wheelhead Feed Rate: 13 IPM

Spindle Drive: 5 HP

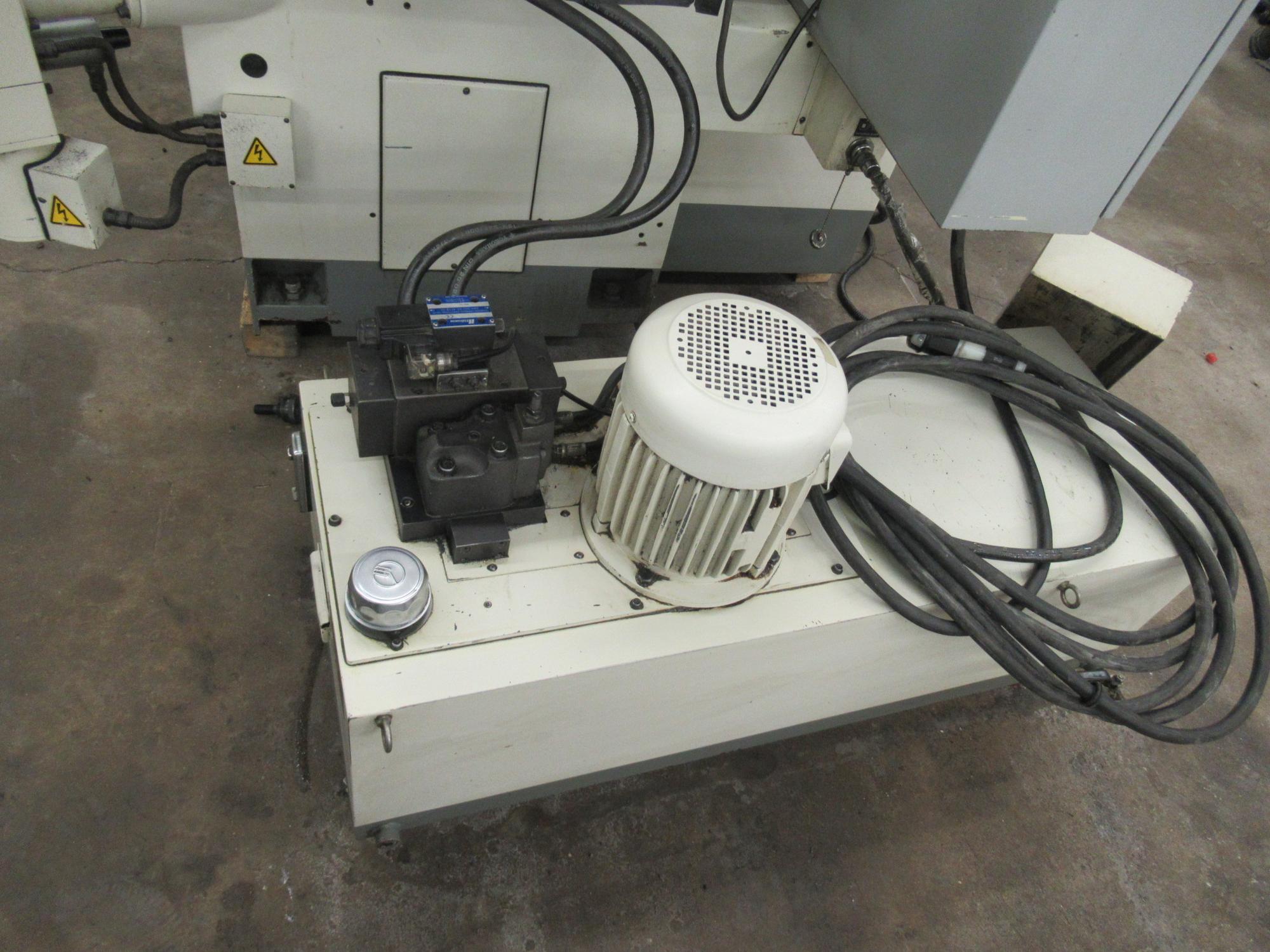

Hydraulic Motor: 2 HP

Wheelhead Elevation Motor: .25 HP

Description:

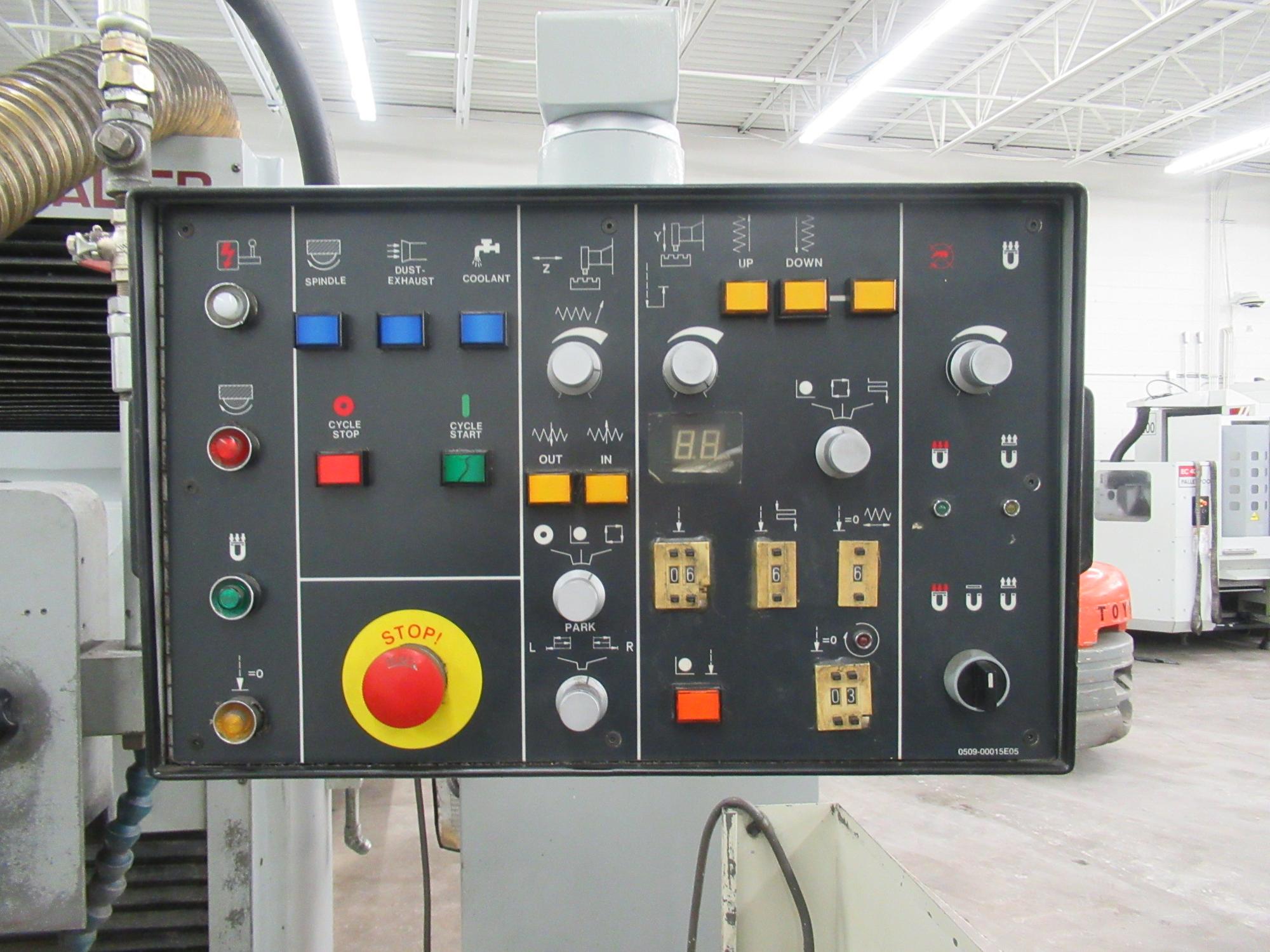

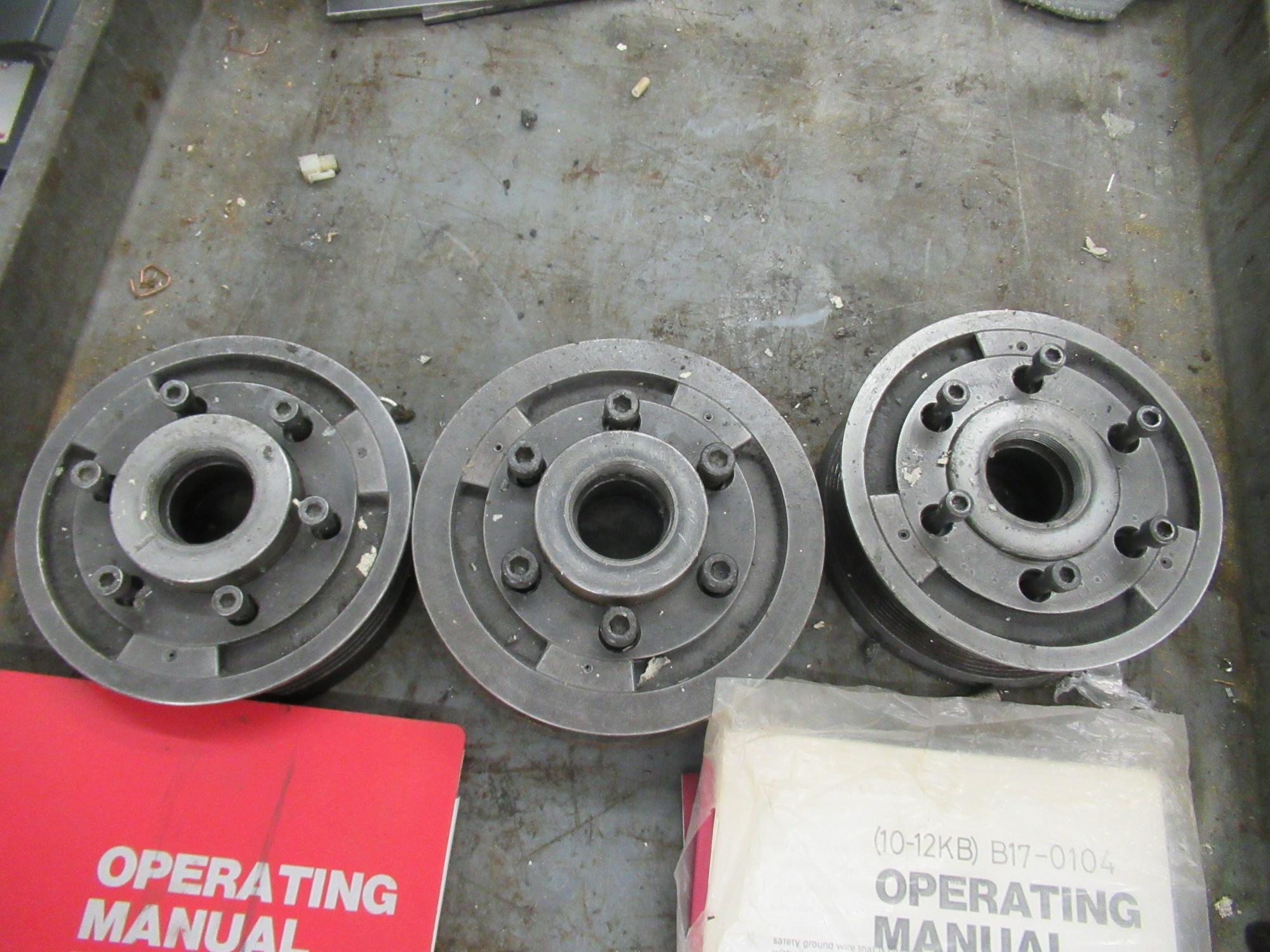

Chevalier 3-Axis Control, 12" x 24" Fine Pole Variable Electromagnetic Chuck, Fully Automatic 3-Axis Operation with Surface and Plunge Grinding Cycles, Rapid and Fine Wheelhead Adjustment, Hydraulic System, Paper Filtration Coolant System and Tank, Wheel Hubs.

Equipped With:

Chevalier 3-Axis Control, 12" x 24" Fine Pole Variable Electromagnetic Chuck, Fully Automatic 3-Axis Operation with Surface and Plunge Grinding Cycles, Rapid and Fine Wheelhead Adjustment, Hydraulic System, Paper Filtration Coolant System and Tank, Wheel Hubs.

Electrics:

208 Volt 3 Phase
