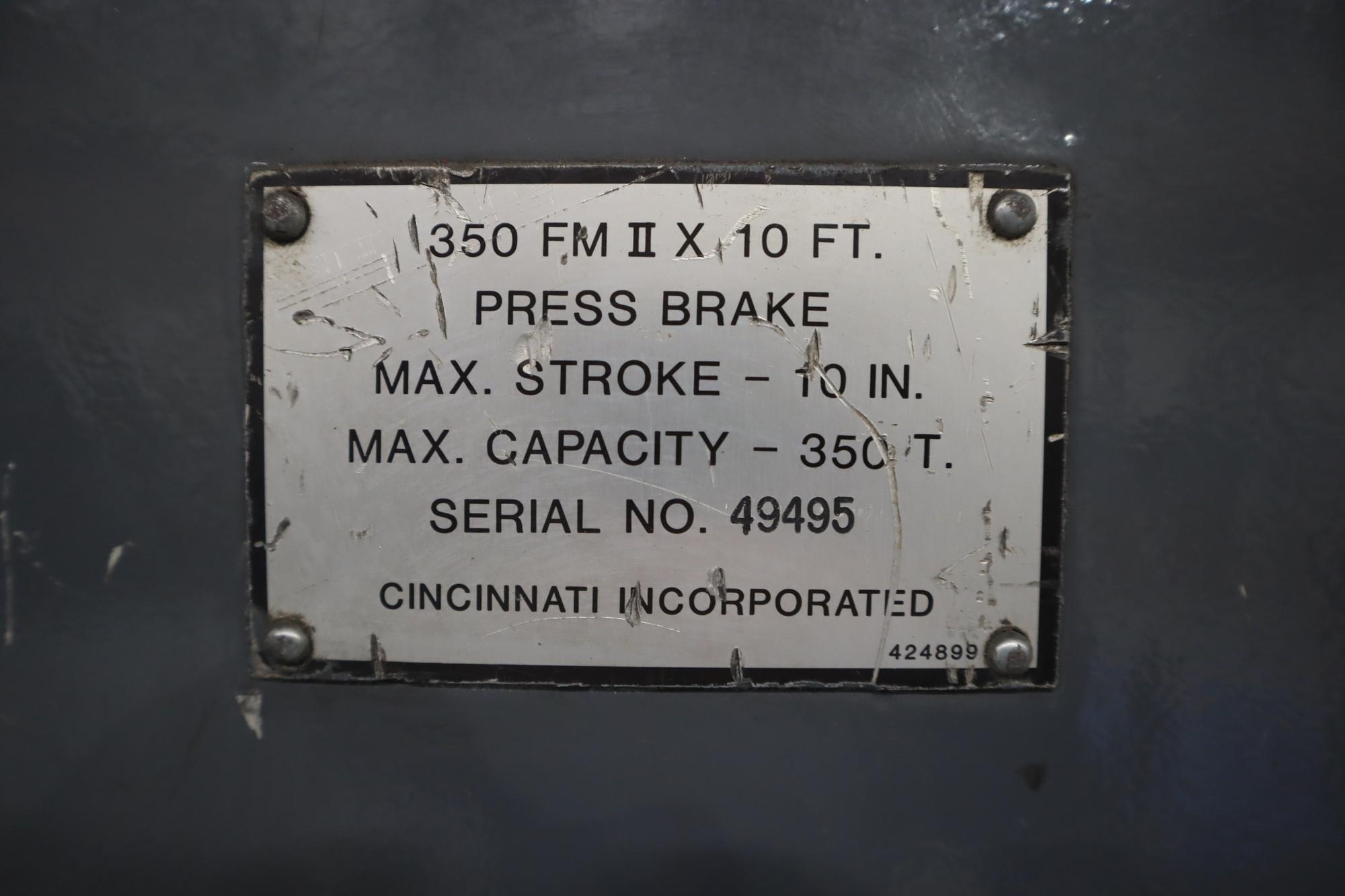

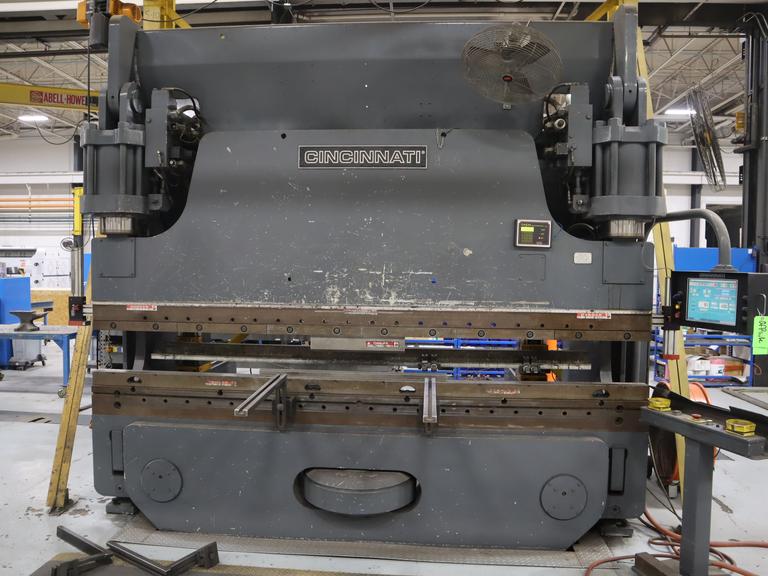

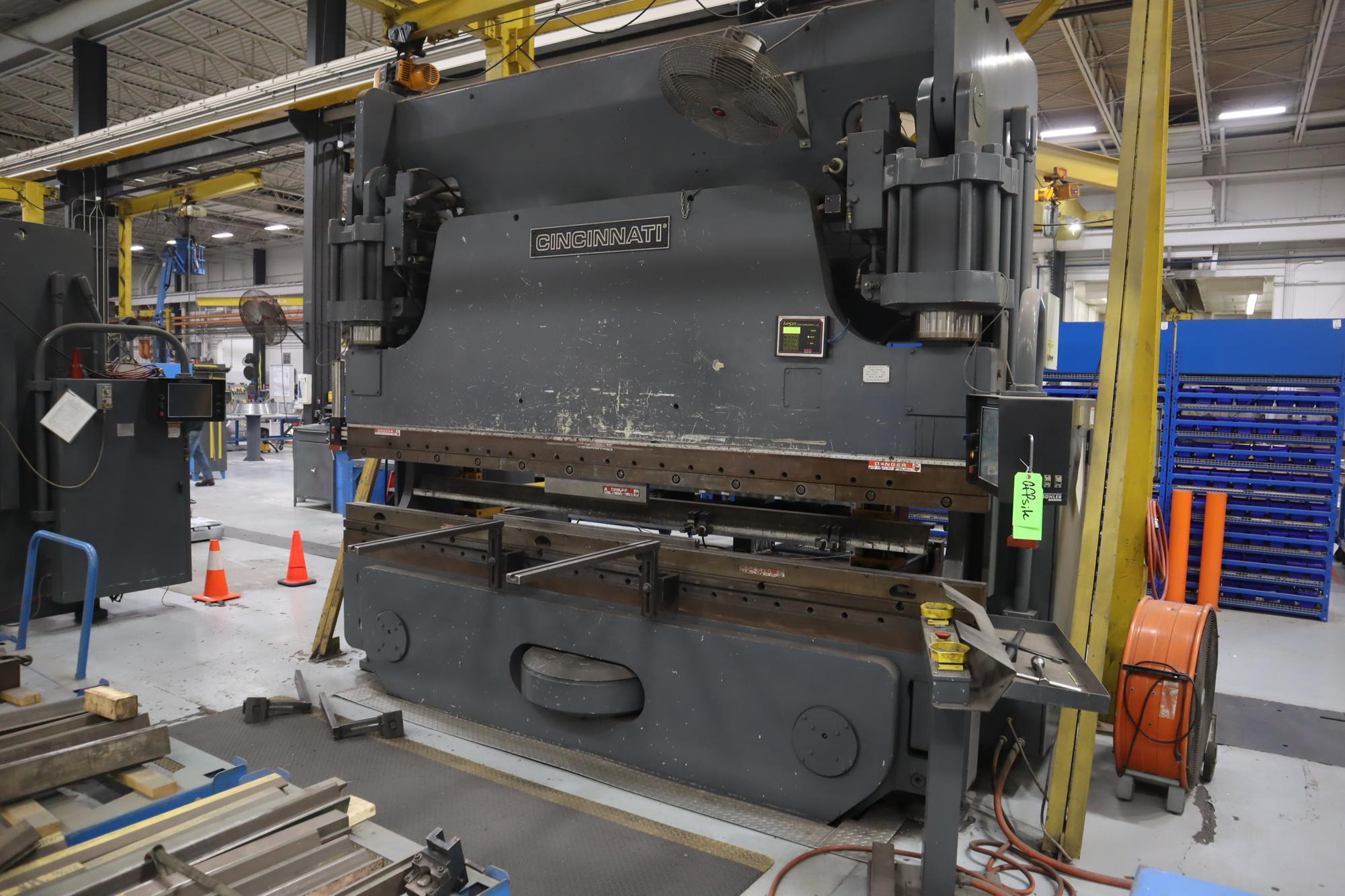

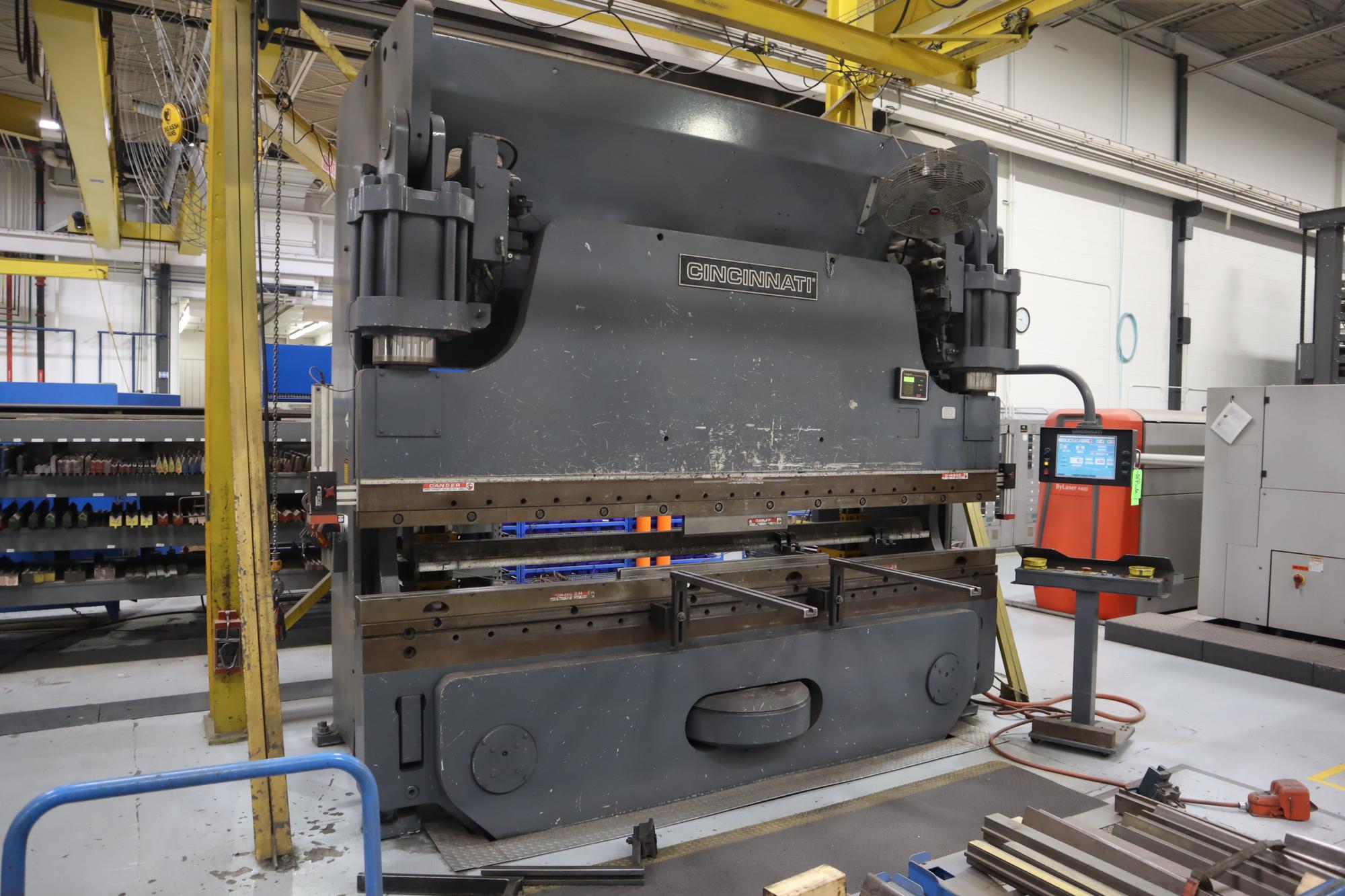

Cincinnati 350 FMII x 10 FT CNC Hydraulic Press Brake with Ram Tilt and Crowning

Manufacturer

Cincinnati

Category

Brakes (including Press Brakes)

Type

PRESS BRAKES

Stock

7244

Model

350FM II x 10FT

Dealer Location

Minnesota

Request a Quote
View Contact Information

Spec Sheet

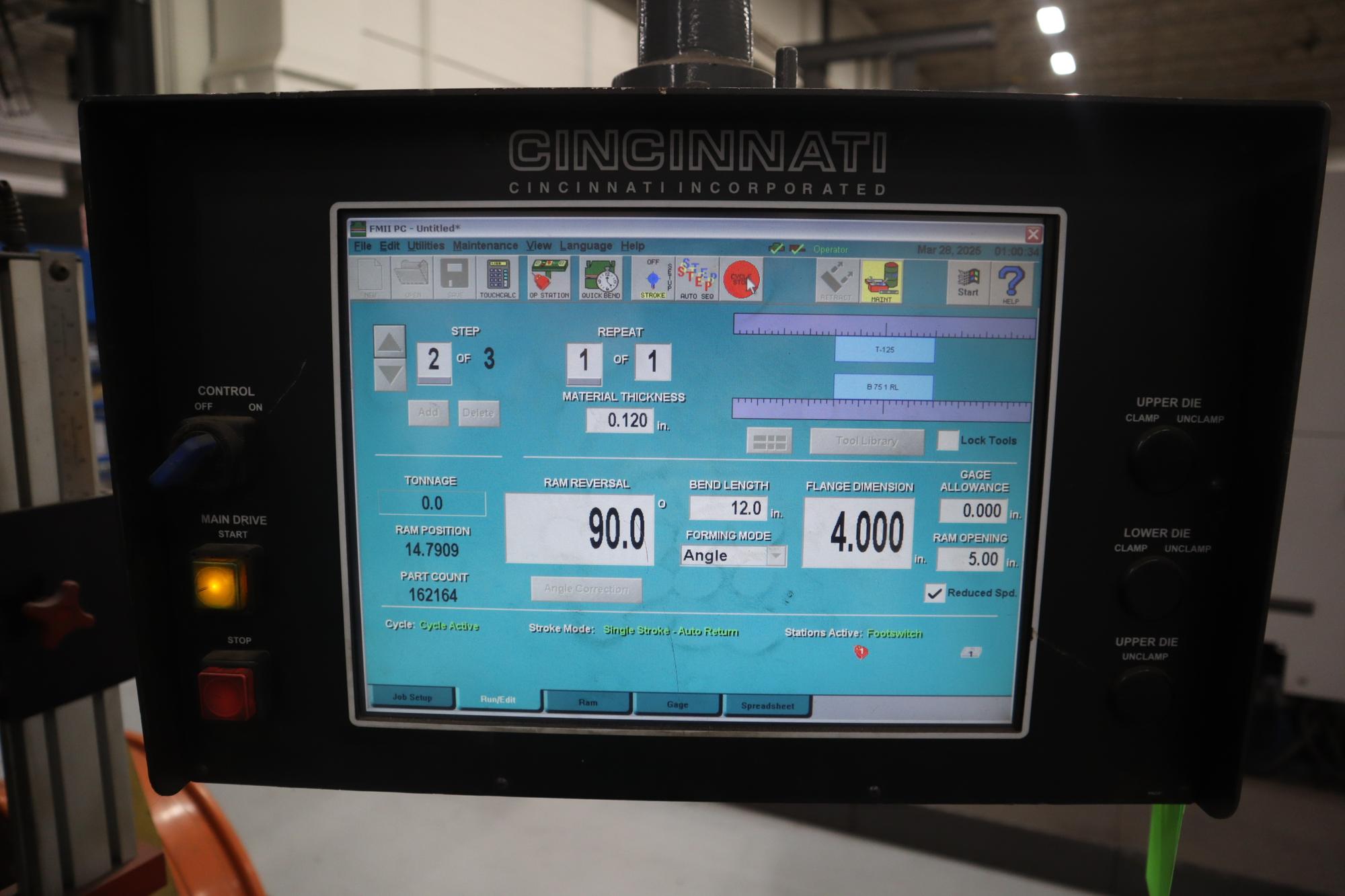

Control: Cincinnati FM II PC Control

Tonnage Capacity: 350 Tons

Bed and Ram Length: 12 ft

Distance Between Housings: 10 ft 6"

Ram Approach Speed: 155 in/min

Bending Speed(s): 25 in/min

Ram Return Speed: 135 in/min

Programmable Controlled Axes: X1,X2,Y1,Y2, Programmable R

Throat Depth: 10"

Max Open Height: 18"

Closed Height: 8"

Drive Motor: 25 HP

Description:

The FORM MASTER II is a hydraulically driven, servo controlled press brake. Linear encoders constantly monitor the bed-to-ram position, feeding this information to the control. The control is a programmable microcomputer, interfaced by the operator through a keyboard using a conversational program on a vacuum fluorescent display. The program control the vertical movement of the ram and horizotonal and vertical movements of the optional backgage. After a program is entered either the machine can be run or the program stored in internal memory. The FORM MASTER II Control allows an individual job to be quickly set up and run as well as complicated, multi-ben parts or long run jobs. After a program is run, the program and related set-up information can be saved for future use.

Equipped With:

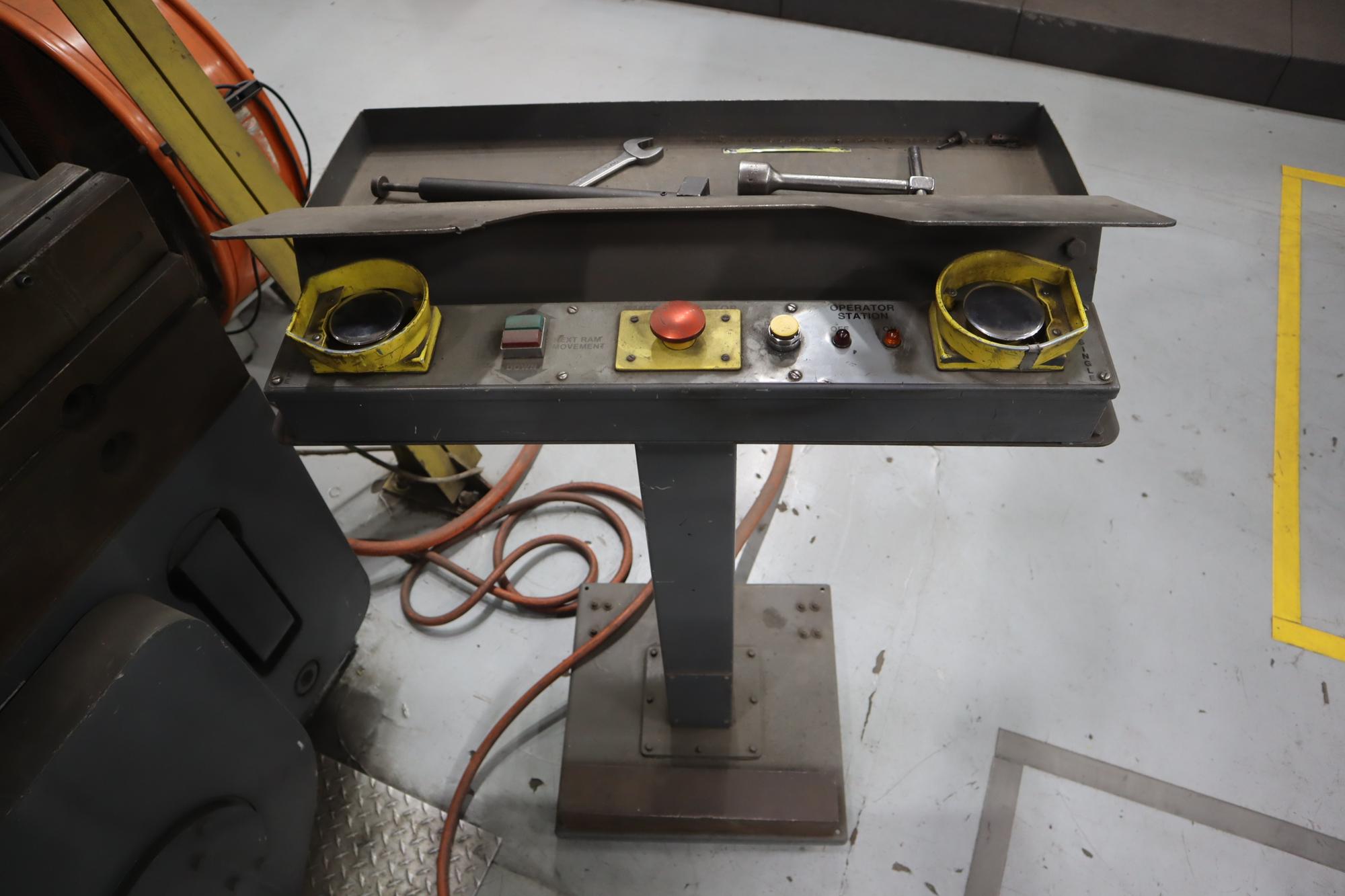

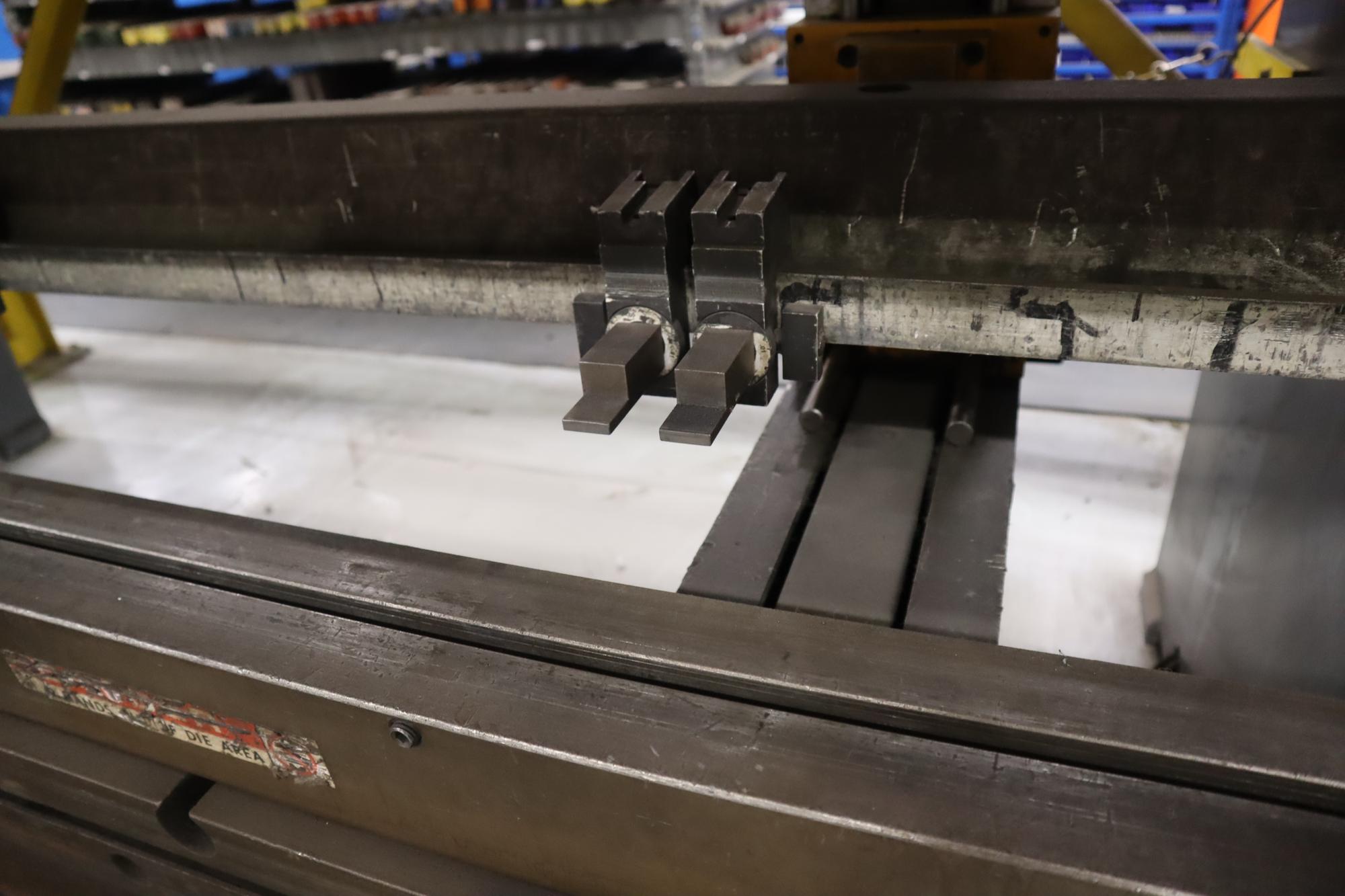

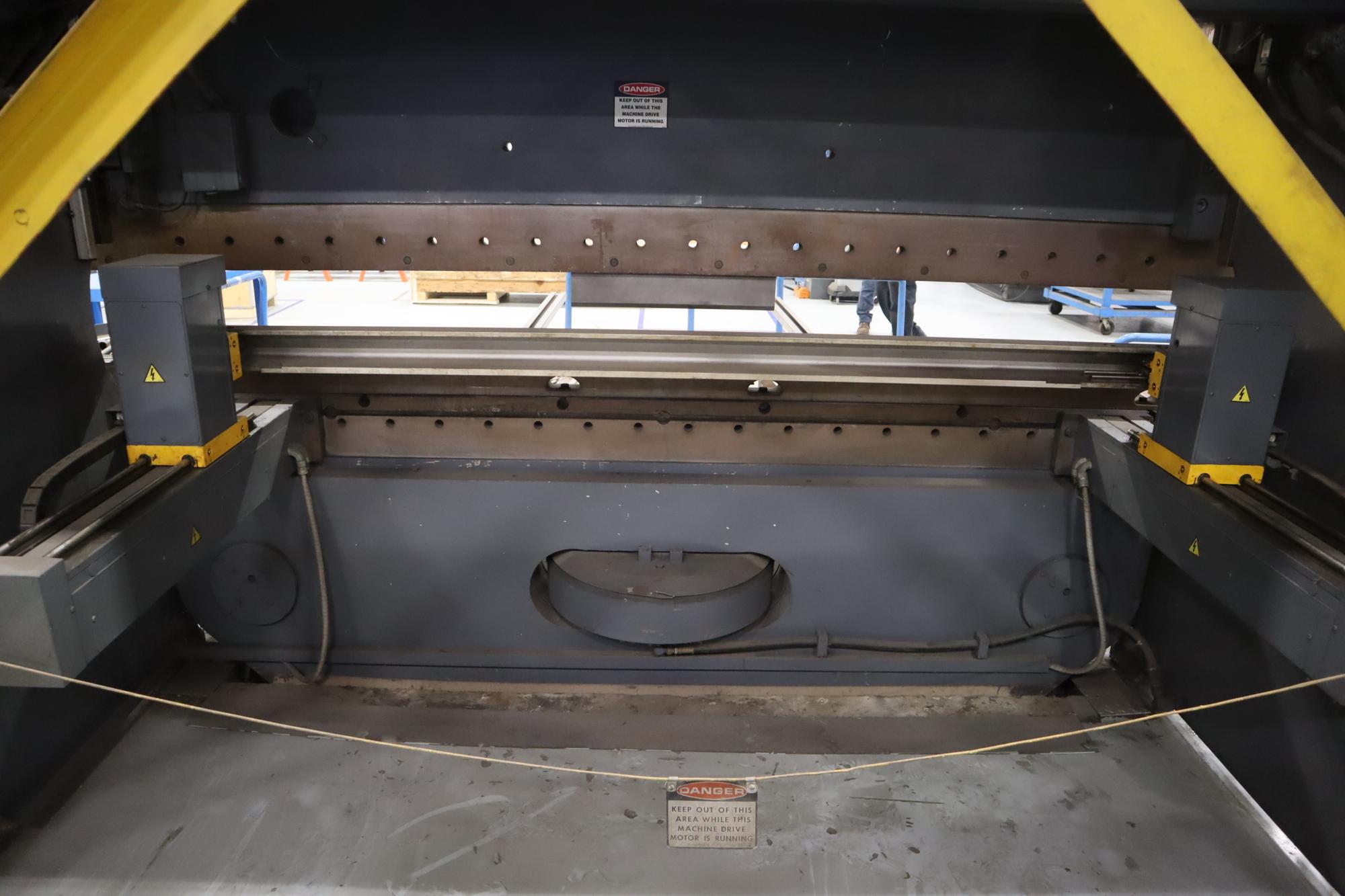

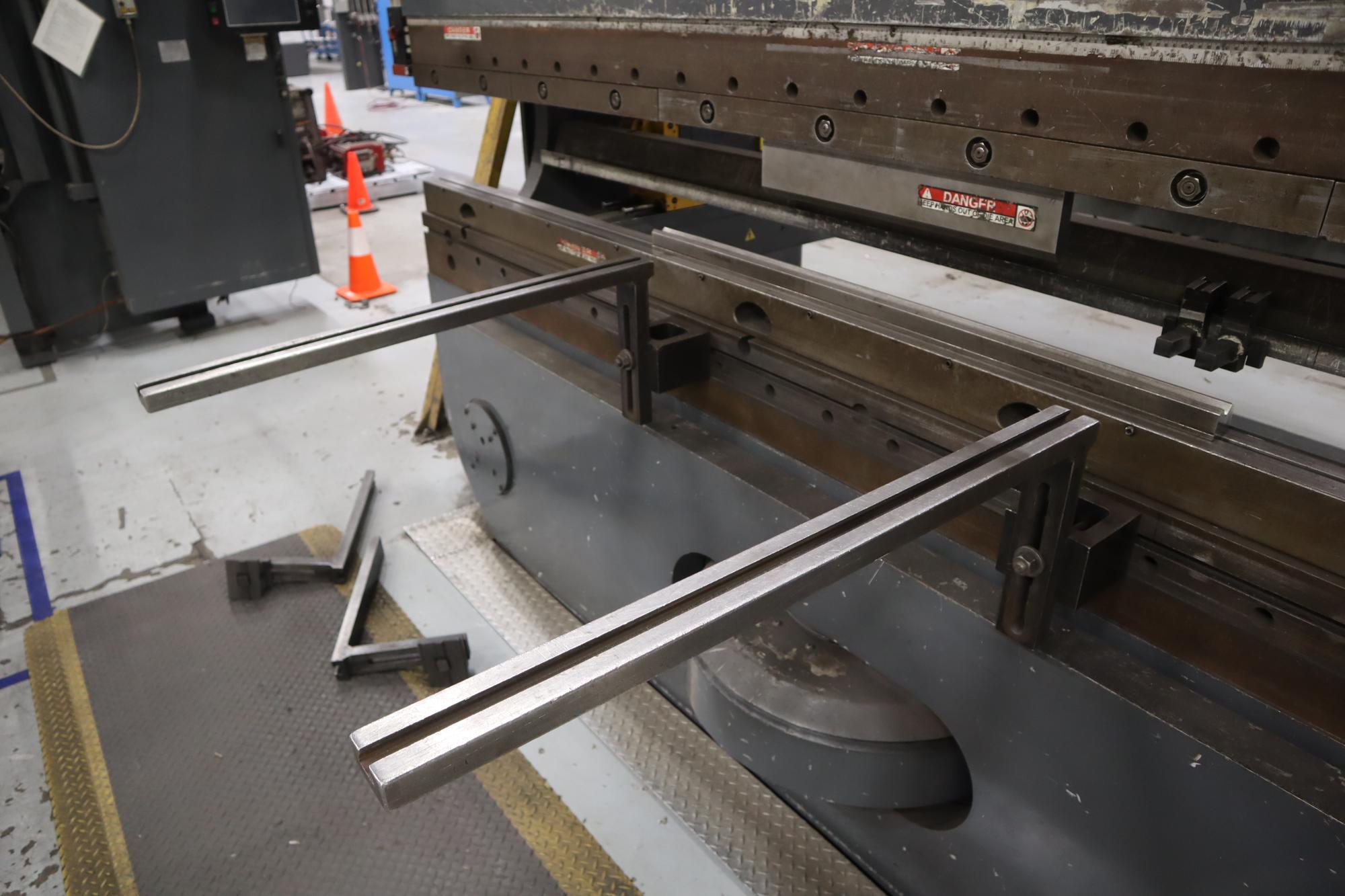

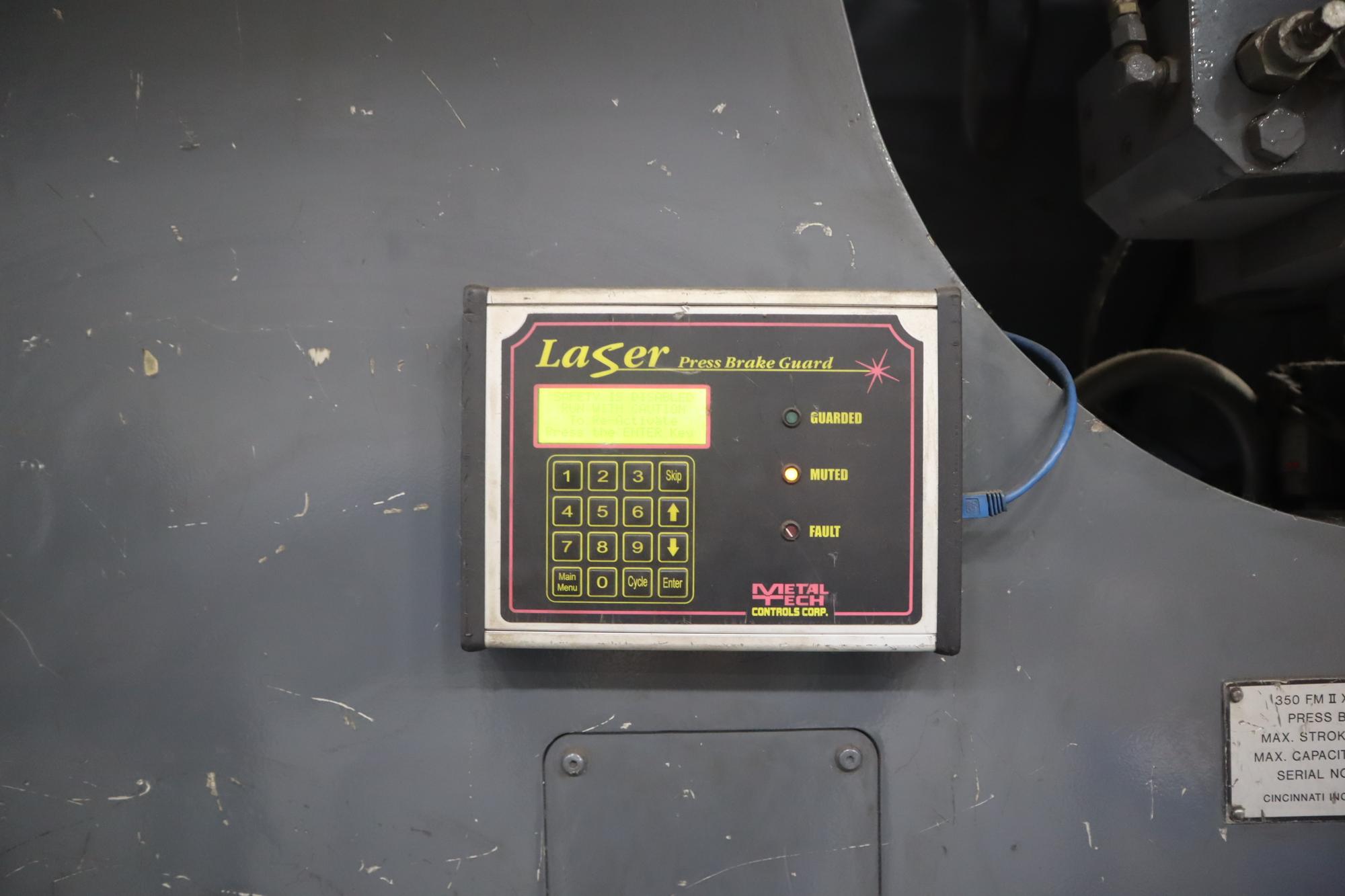

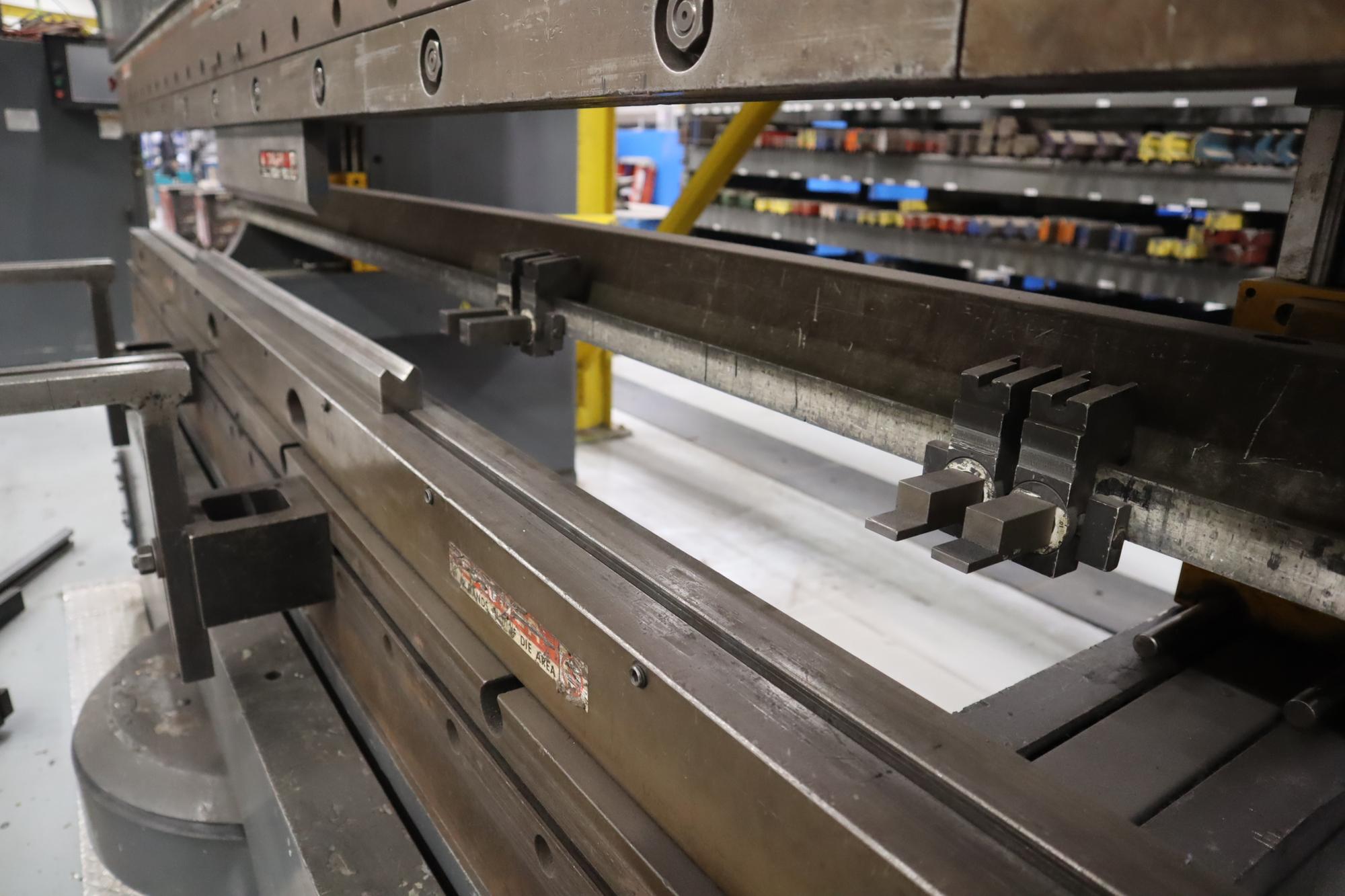

Cincinnati FMII-PC Control, Palm Button Control Pedestal, Ram Tilt and Crowning, Back Gauge with 4 Fingers, Remote Foot Trip, Sheet Supports, Laser Brake Guard, Remote Jog Handwheel, Ram Clamps, Lower Die Holder,  Upper and Lower Dies

Electrics:

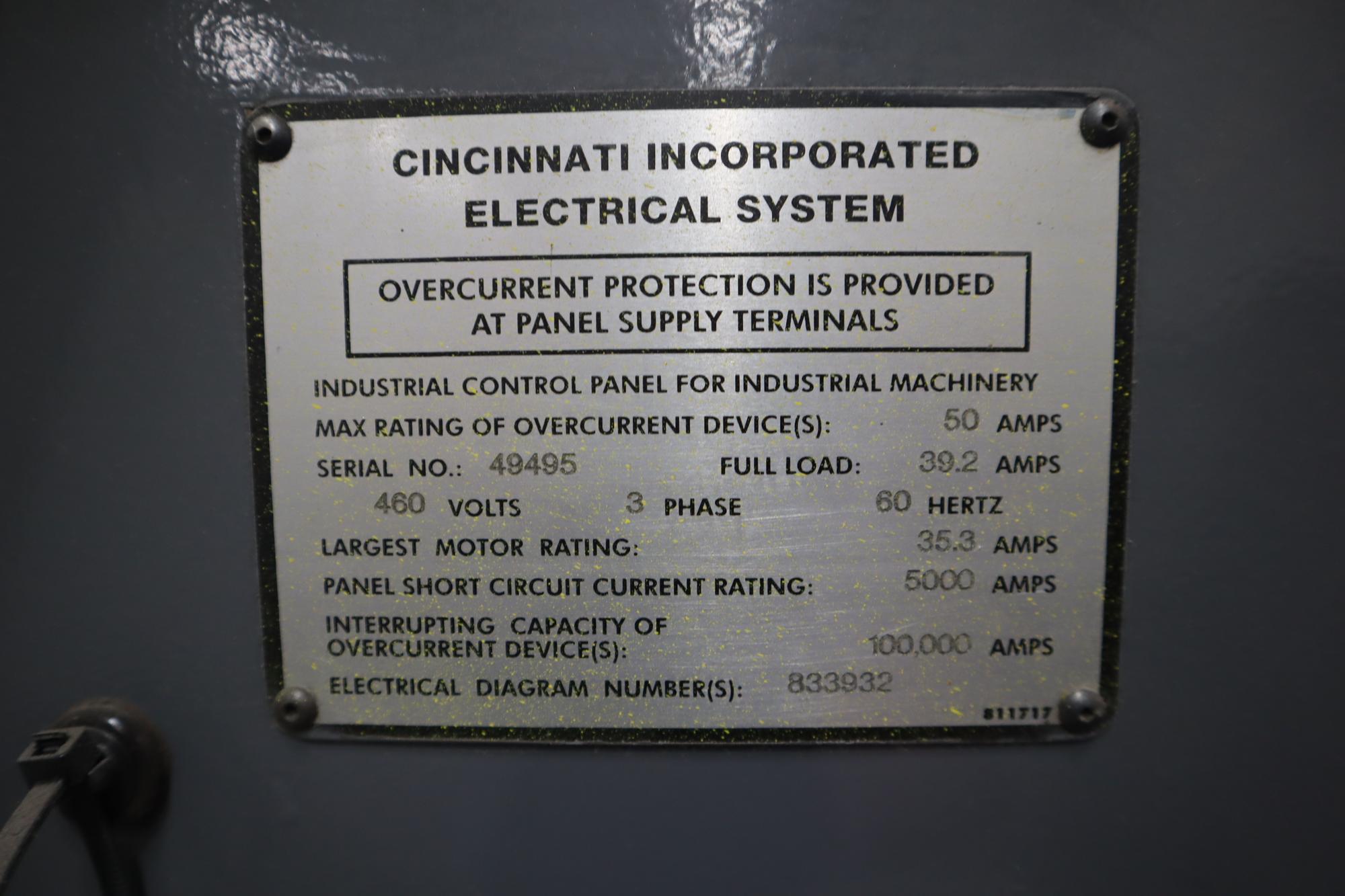

460 Volt, 3 Phase
