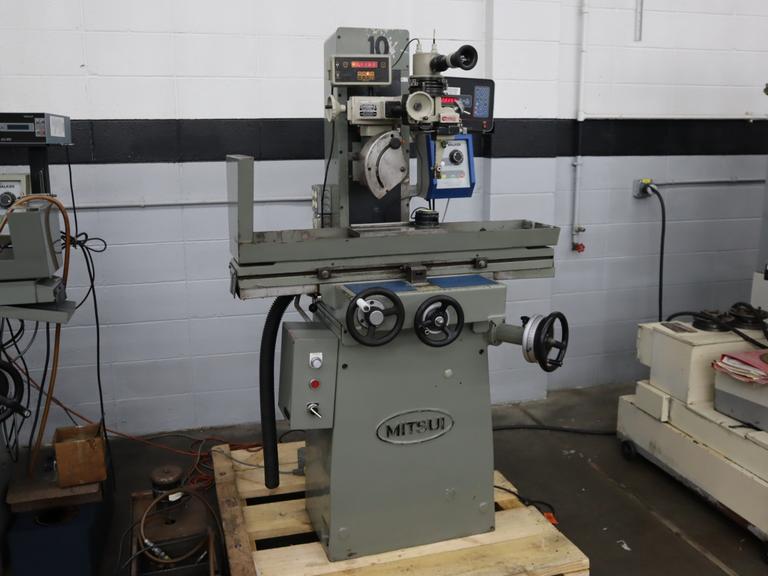

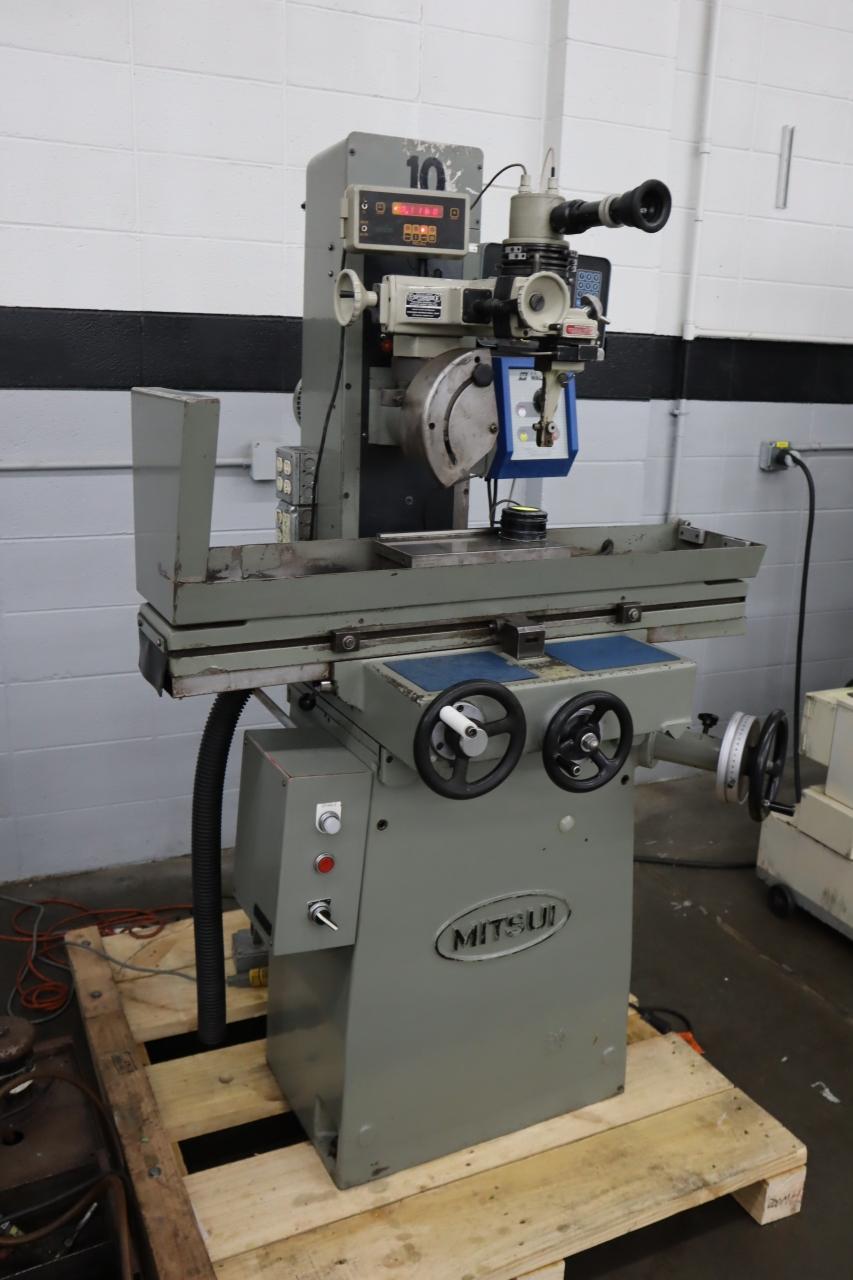

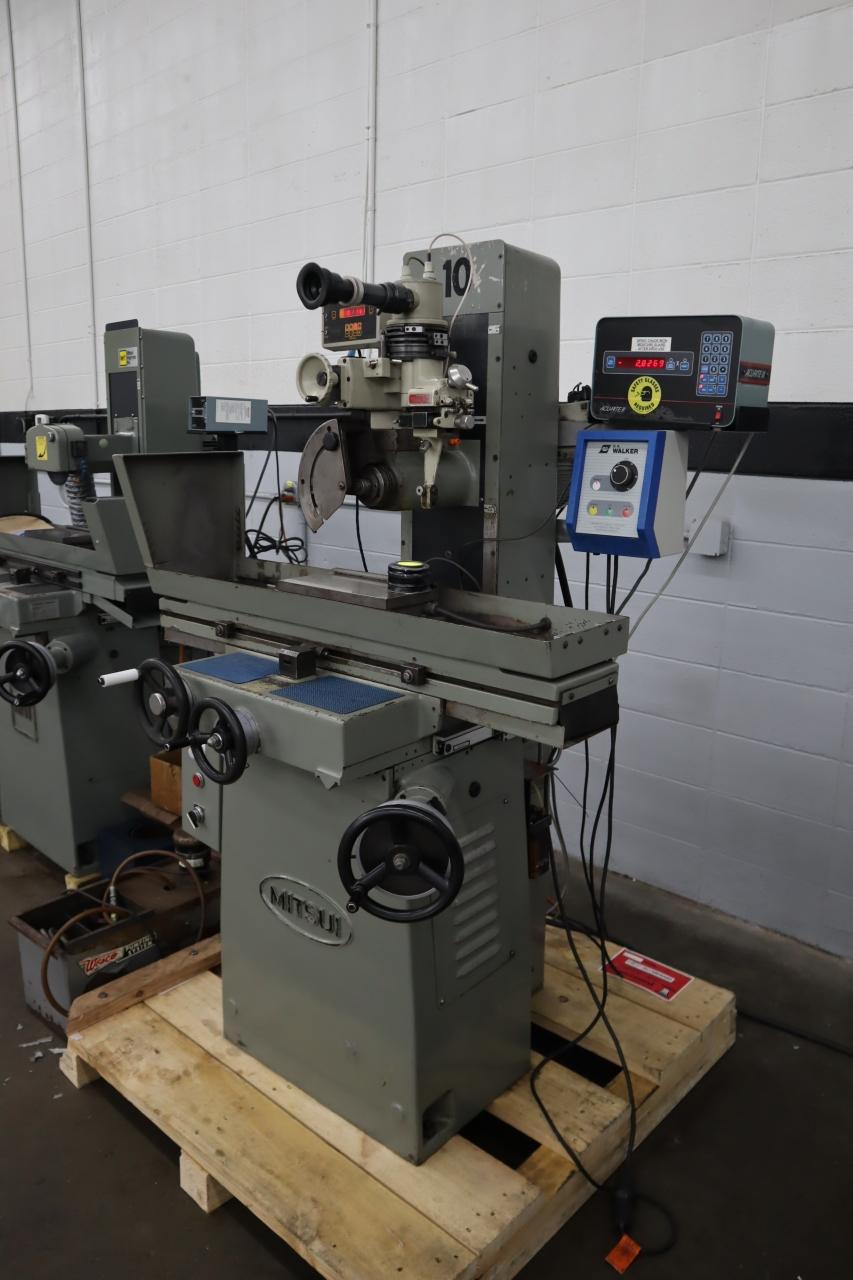

Mitsui High-Tech MSG-200MH 6"x12" Hand Feed Surface Grinder, OptiDress E Optical Wheel Dresser, Acu-Rite III DRO

Manufacturer

Mitsui High-Tech

Category

Grinding Machines

Type

GRINDERS, GENERAL

Stock

7253

Model

MSG-200MH

Dealer Location

Minnesota

Request a Quote
View Contact Information

Spec Sheet

Chuck Size: 6" x 12"

Table Size: 6" x 13.5"

Max Carriage / Table Movement: 8" x 15"

Max Height Spindle Center To Table: 18"

Max Wheel Size: 8" x 3/4" x 1.25"

Longitudinal Feed Rate: Hand Feed 4" Per Handwheel Rev.

Cross Feed Movement Per Handwheel Revolution: .1" Per Rev / .001 Increments

Wheelhead Feed Increments: Hand Feed .05" Per Rev. / .0001 Increments

Wheelhead Rapid Feedrate: Optional Poer Vertical Feed: 17-1/3 IPM

Spindle Speed: 3,470 RPM

Spindle Drive: 1.3 HP

Description:

Find a reliable Mitsui High-Tech MGS-200MH Surface Grinder equipped with an Optidress E Wheel Dresser and Facstor at Machinesused.com. This precision surface grinder offers high-performance grinding for toolrooms and production environments, delivering exceptional accuracy and finish. Ideal for shops seeking dependable Mitsui engineering and enhanced dressing capability with Optidress technology.

Equipped With:

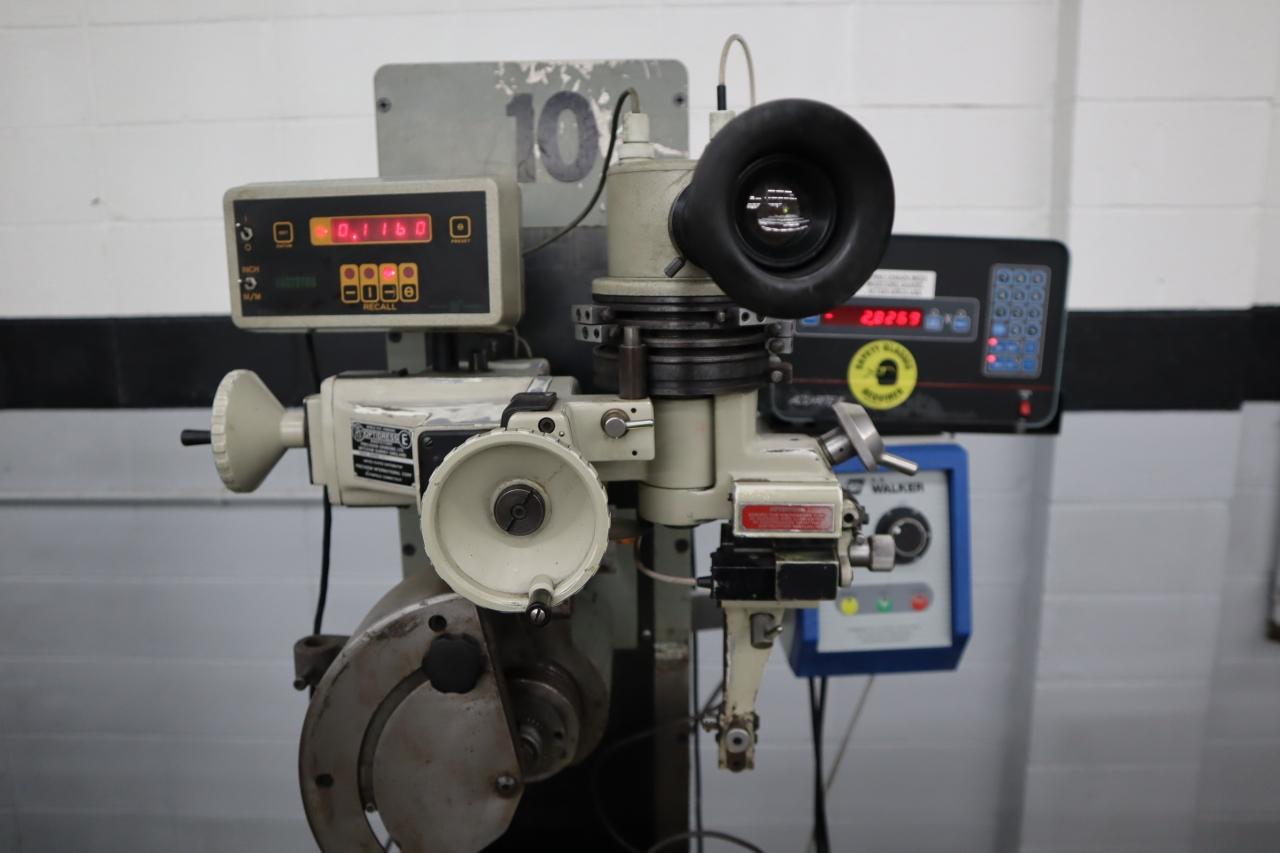

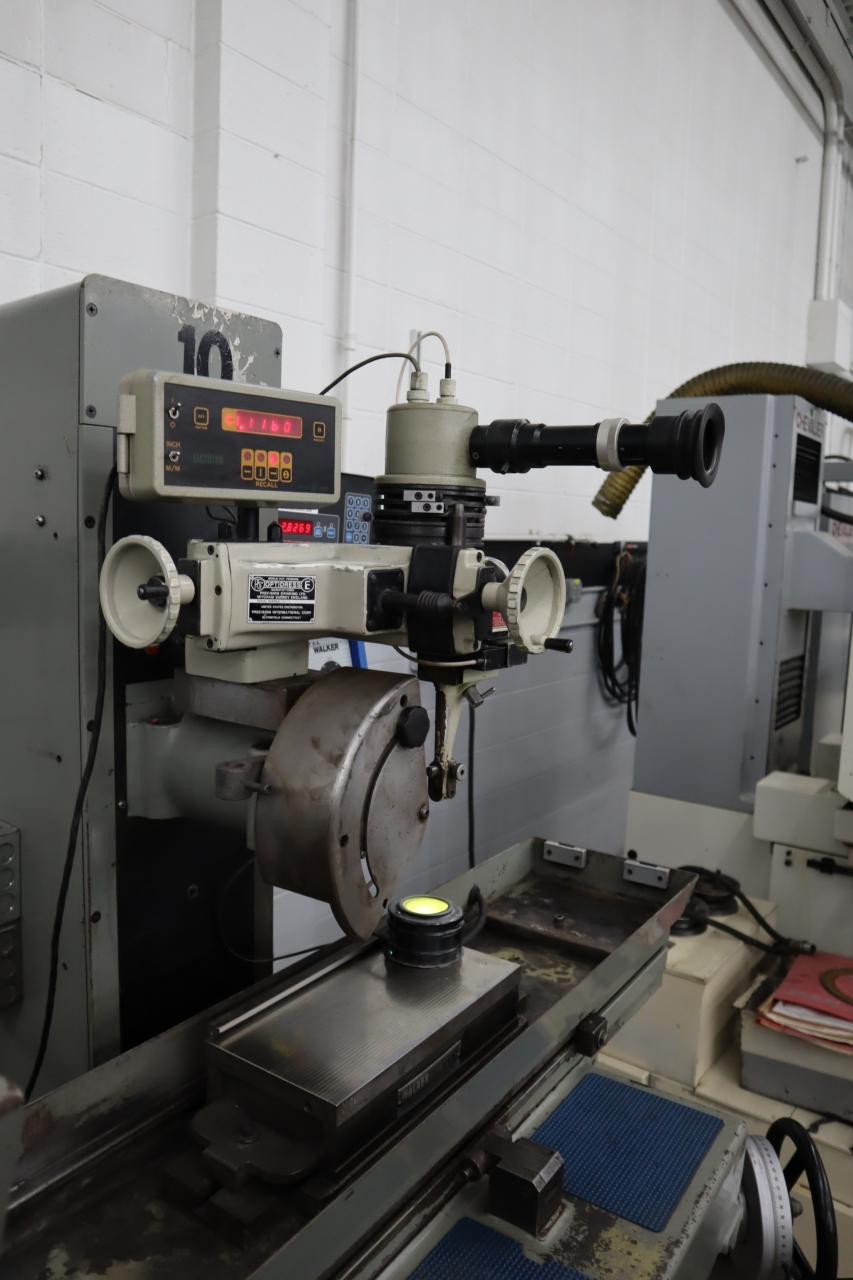

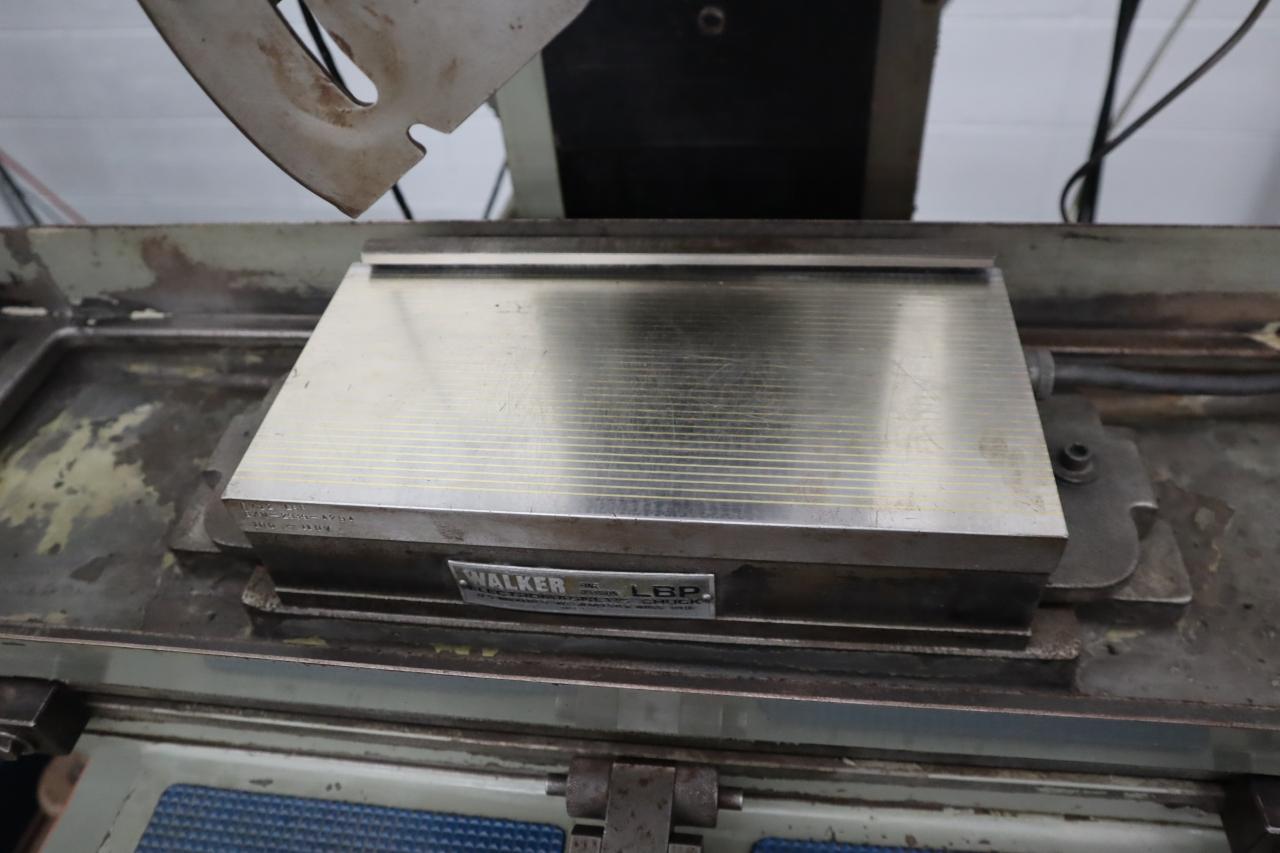

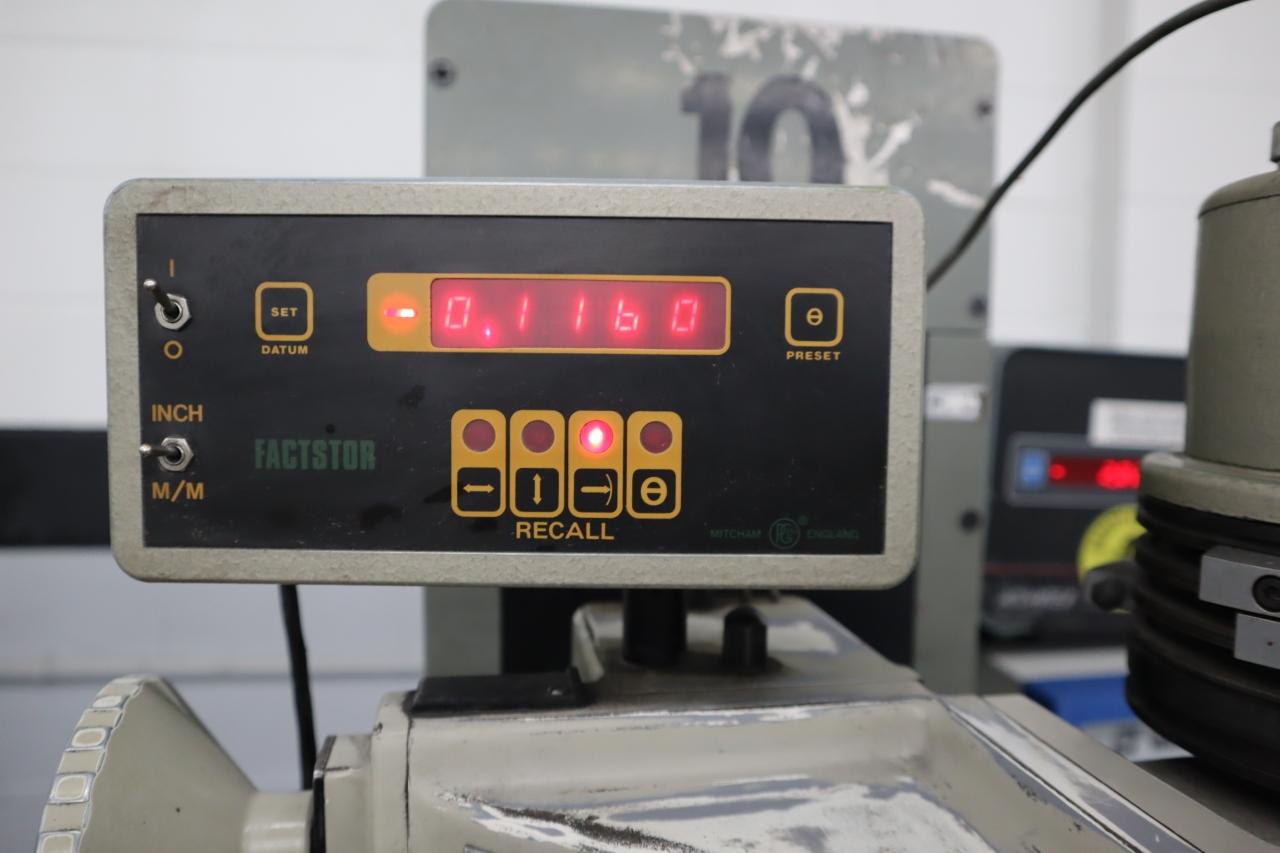

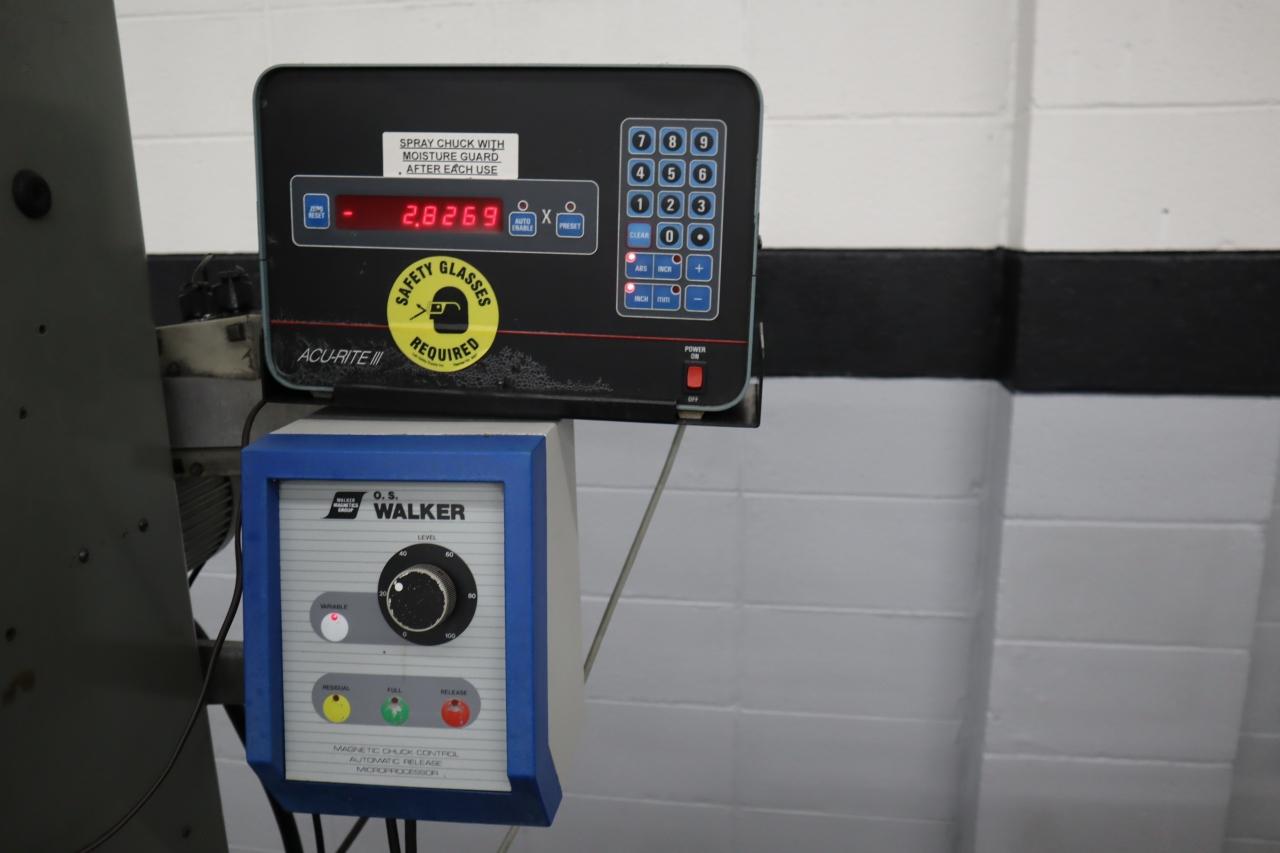

Acu-Rite III 1-Axis DRO on Cross Feed, Walker LBP 6"x12" Fine Line Electromagnetic Chuck with O.S. Walker Variable Chuck Control, OptiDress E Wheel Form Dresser with Factstor (s/n 711481), Coolant Tank & Pump

Electrics:

200-220 3 phase.
