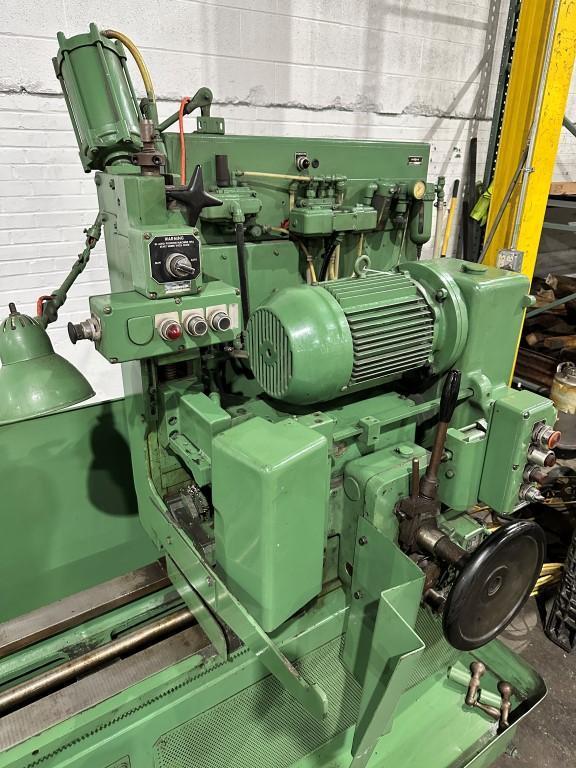

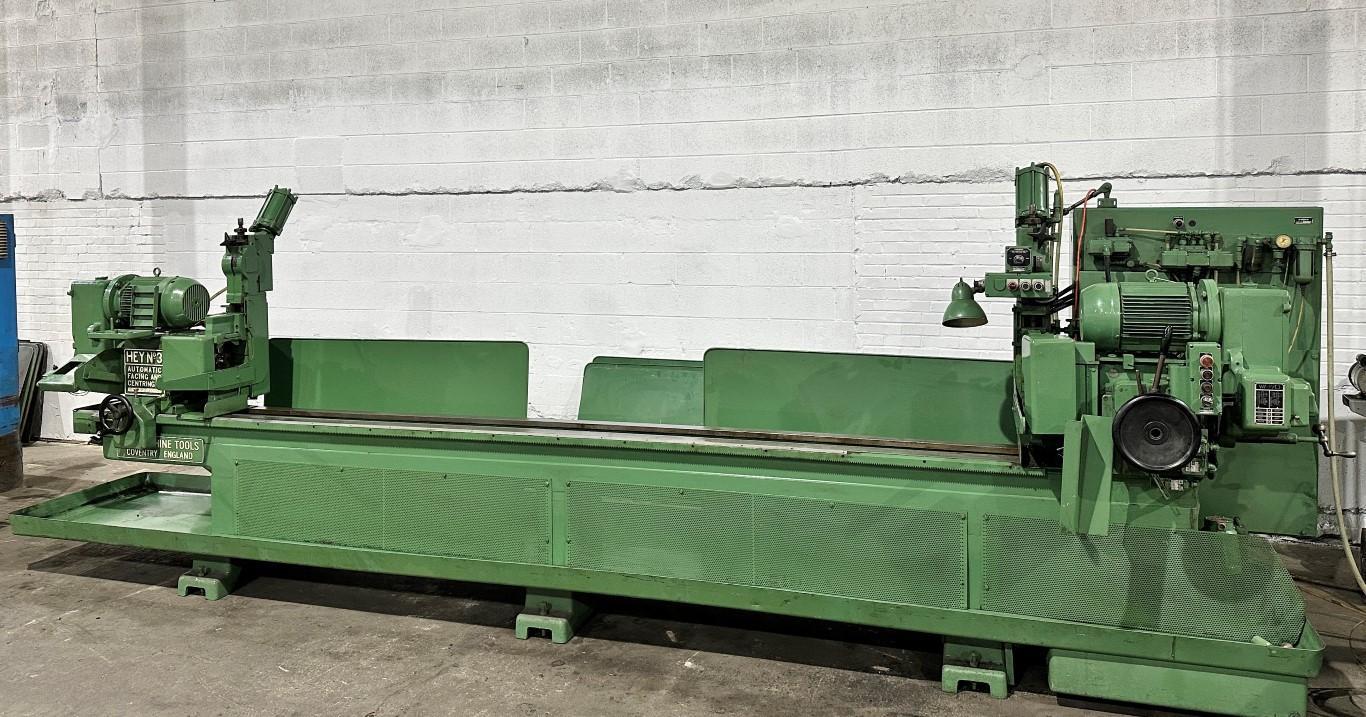

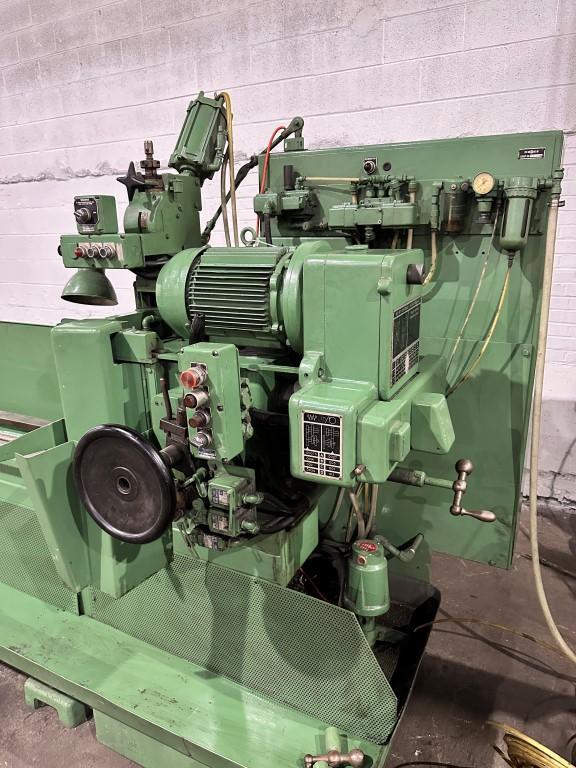

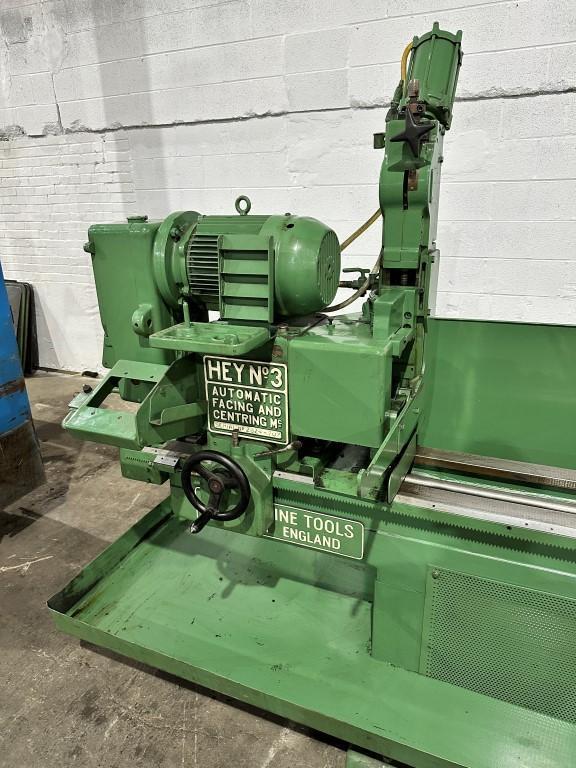

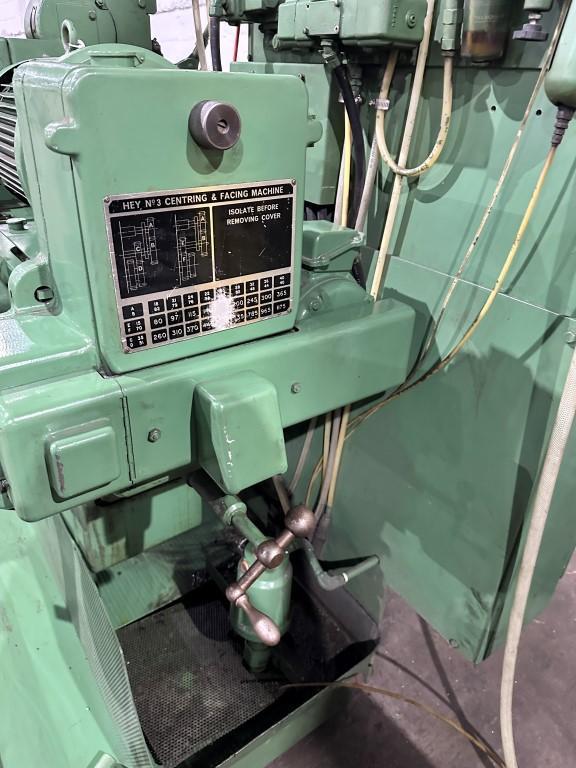

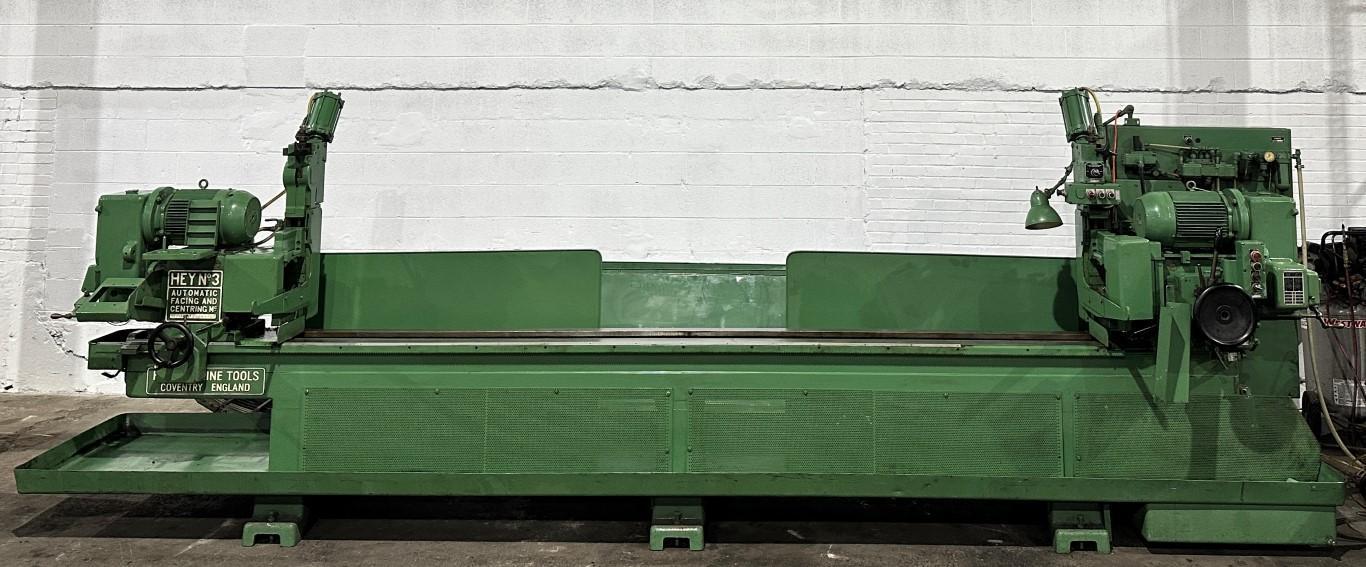

6.25" x 147" Hey No. 3 Double End Facing And Centering Machine

Manufacturer

HEY

Category

Centering/Facing Machines

Type

FACING & CENTERING MACHINES

Stock

TM4727

Model

No. 3

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet

Maximum Diameter Work Held in Standard Vise - 6.25"
Minimum Diameter Work - .25"
Maximum Work Length - 147"
Minimum Length (Held in Two Vises) - 3"
Minimum Length (Held in One Vise) - .75"
Maximum Diameter Admitted - 21"
Maximum Diameter of Facing with Standard Cutters - 5.12"
Spindle Speed Range - 80 - 1175 RPM
Feed Stroke Available with Standard Cams - 1.5" - 2.5"
Rapid Traverse Rate - 250 IPM
Approximate Weight - 10,000 Lb

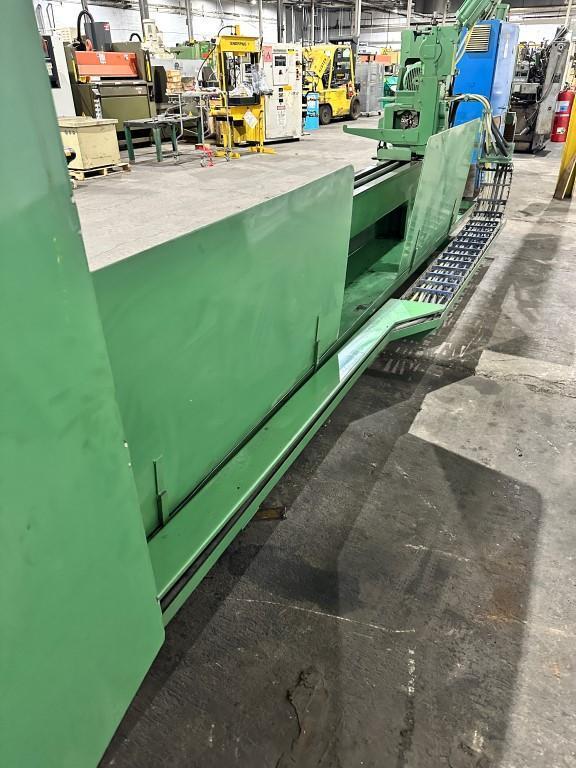

Equipped with:

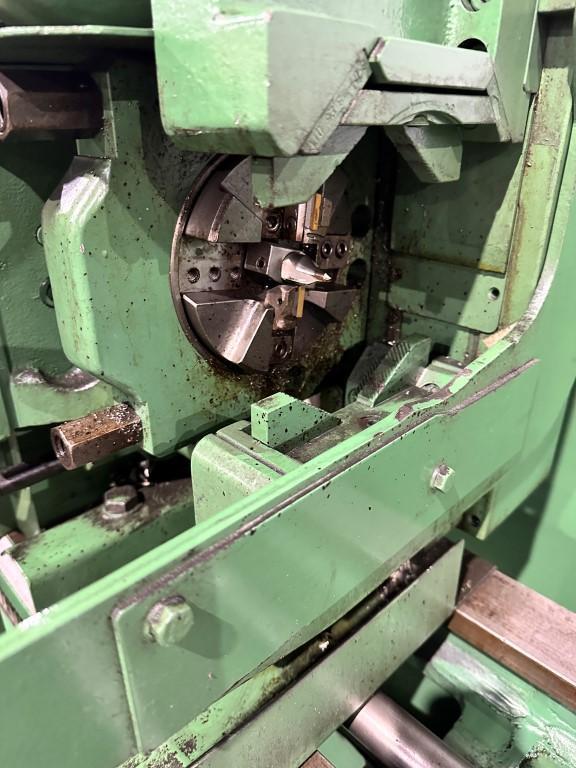

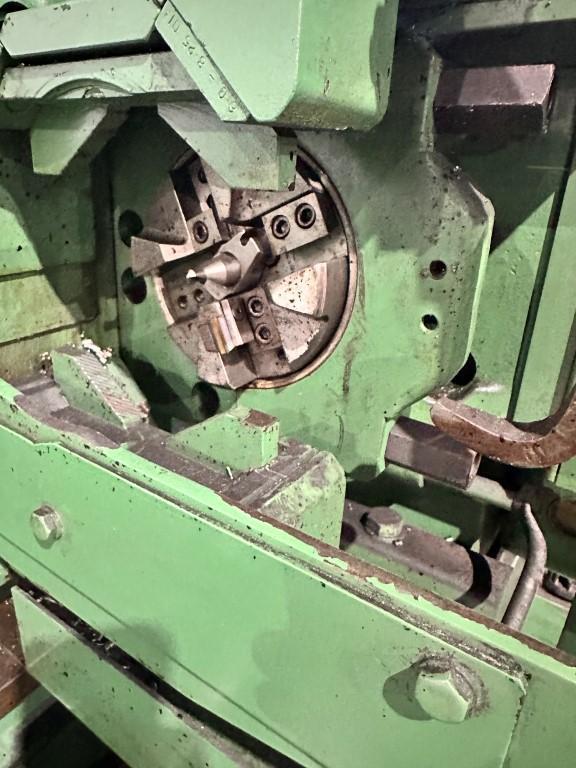

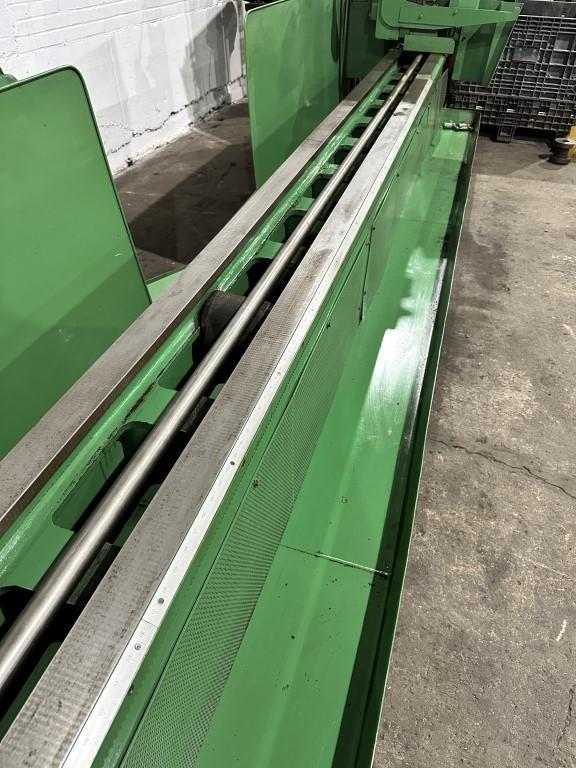

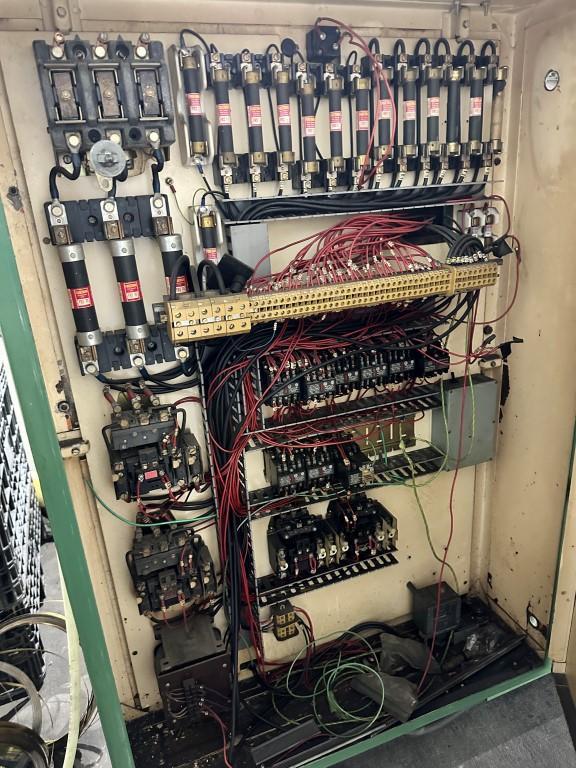

Motor-Driven with 10 HP, 3 Phase, 60 Cycle AC Gear Drive Spindle Heads with Controls, Automatic Work Cycling Controls, Quick Advance, Slow Feed (for Drilling), Dwell (for Facing Quick Returns), Automatic Trip, 6” Facing Cutter Heads, Air Operated Vices, Coolant System, Longitudinal Scale, Bar Load/Unload Support Arms. Splash Guards. Miscellaneous Tooling and Gears.
