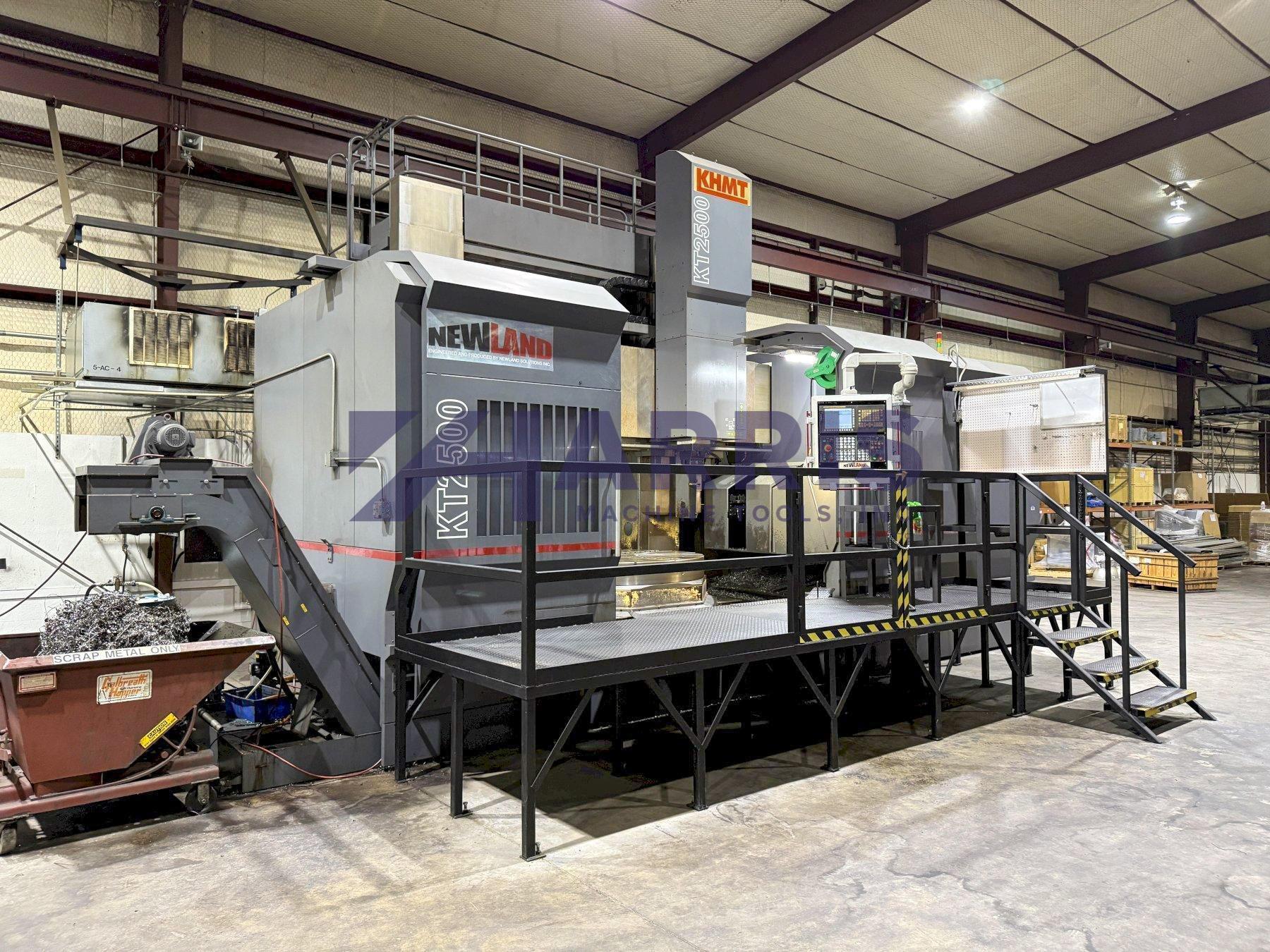

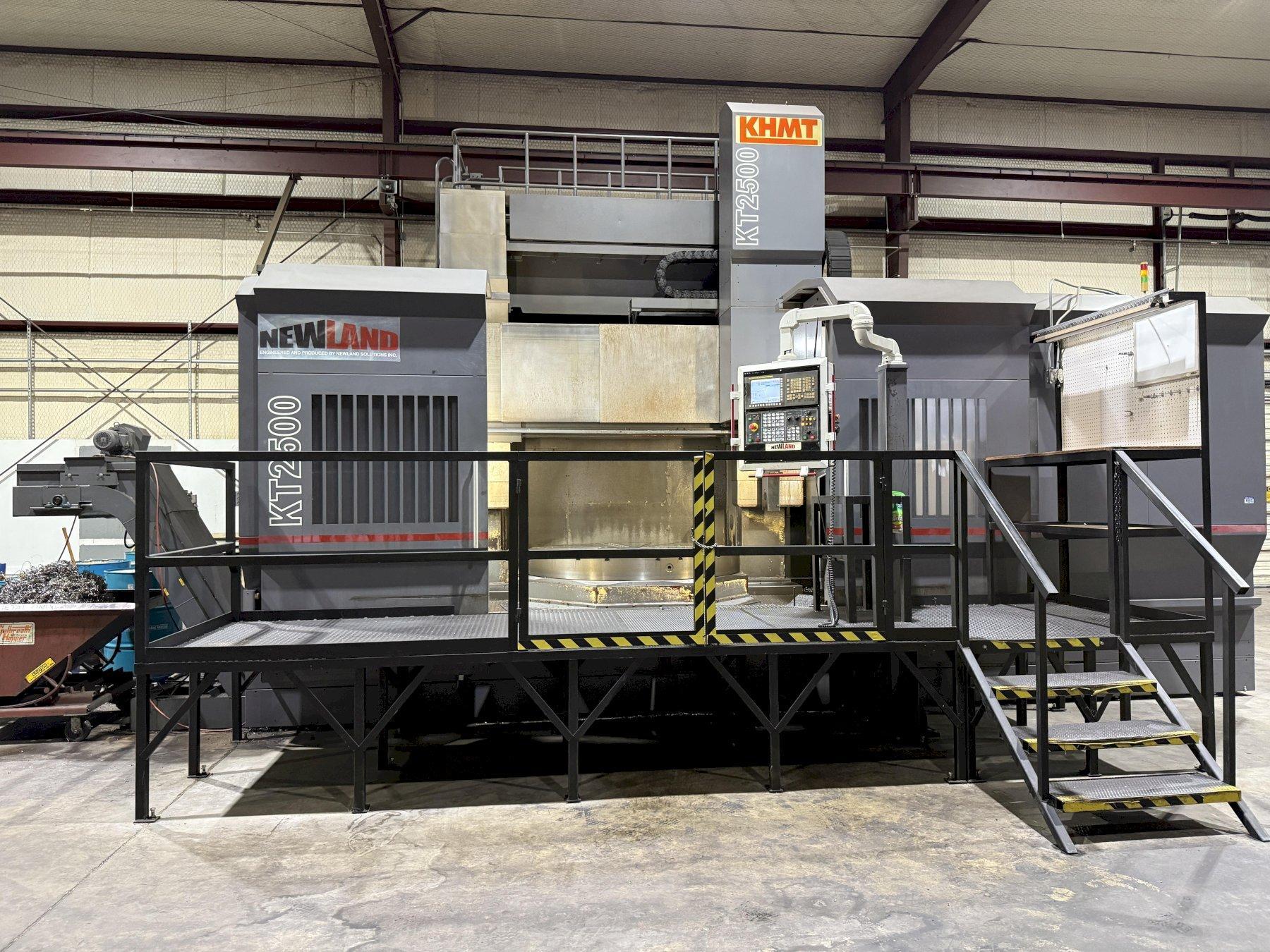

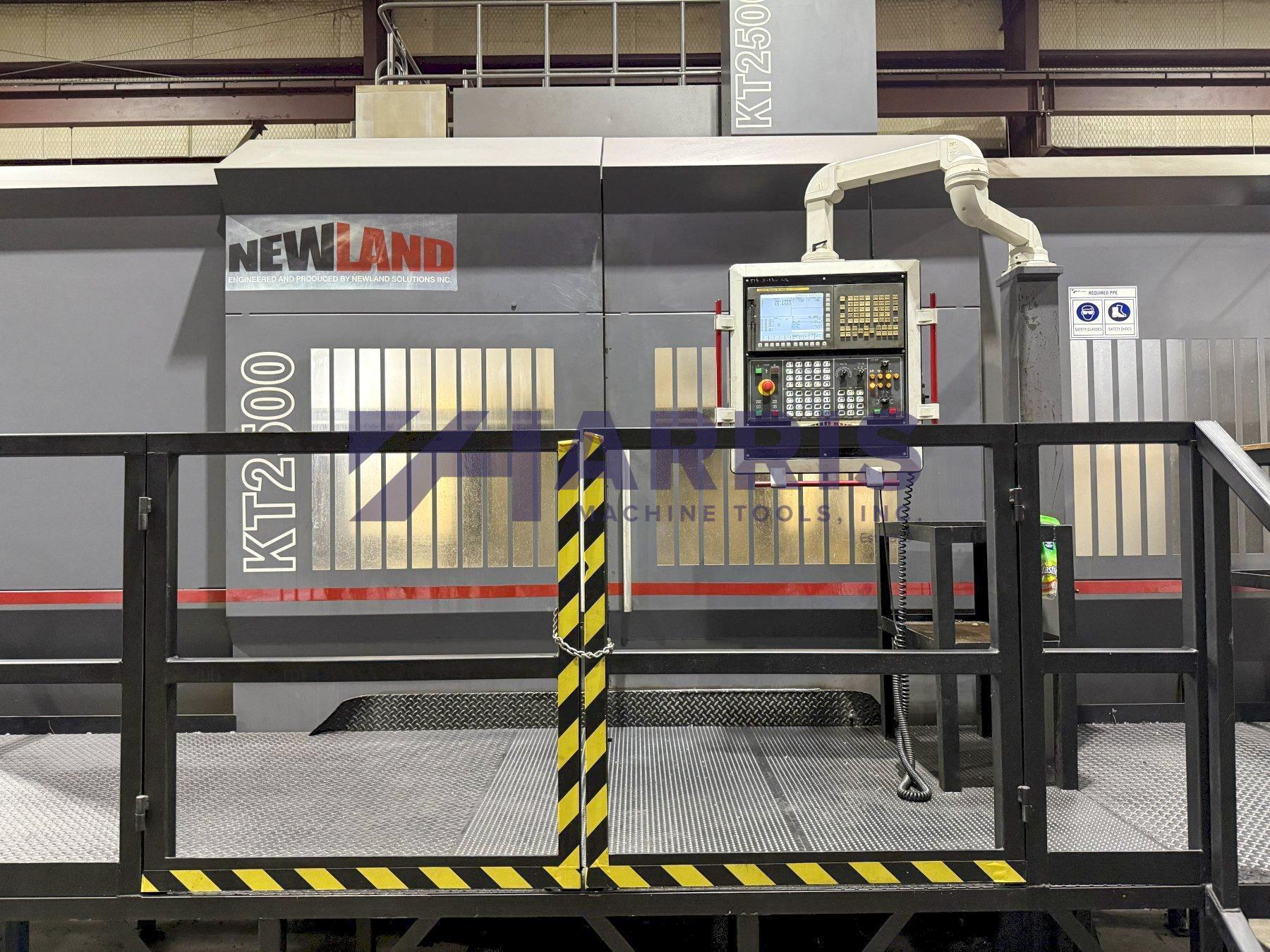

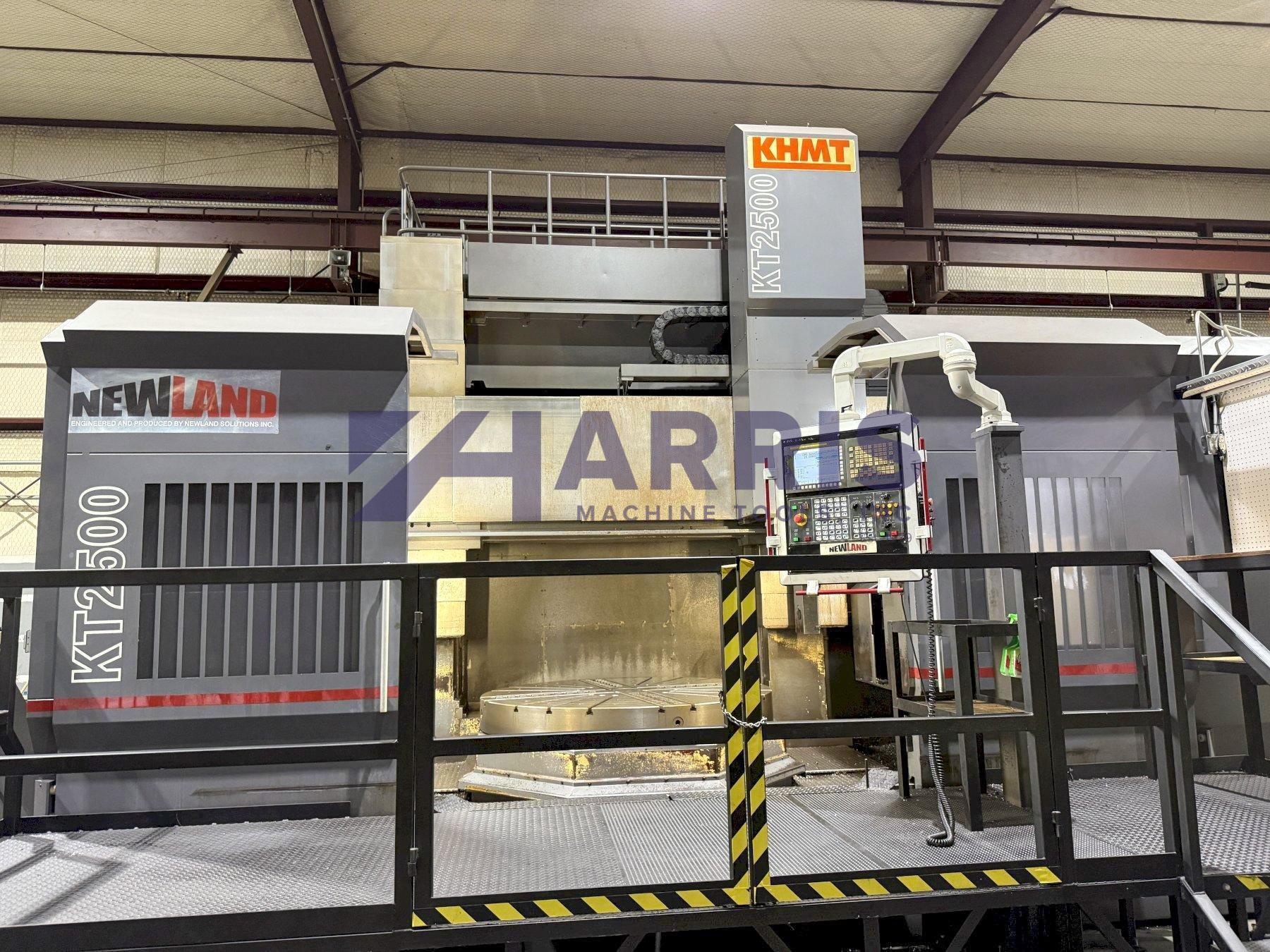

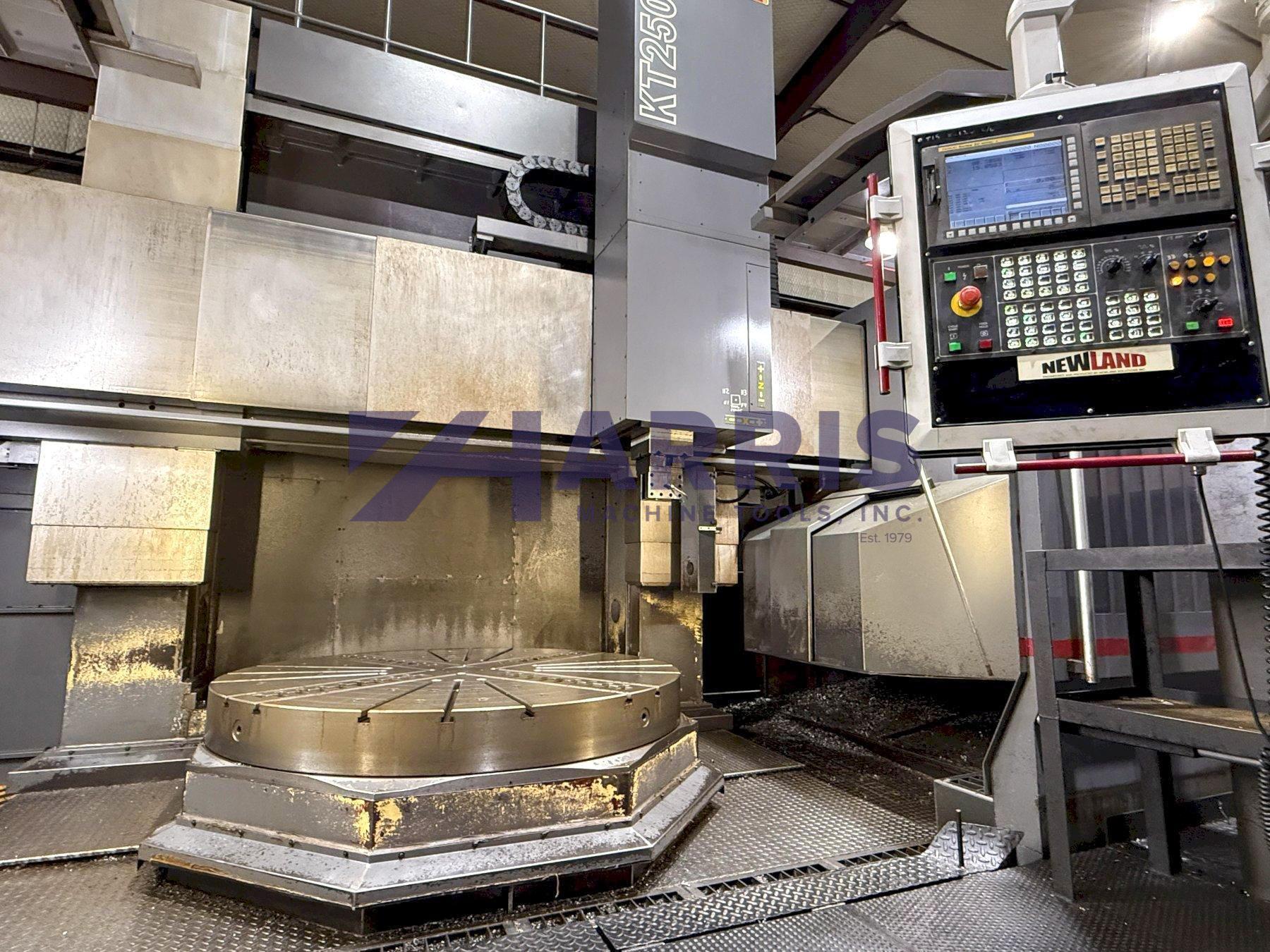

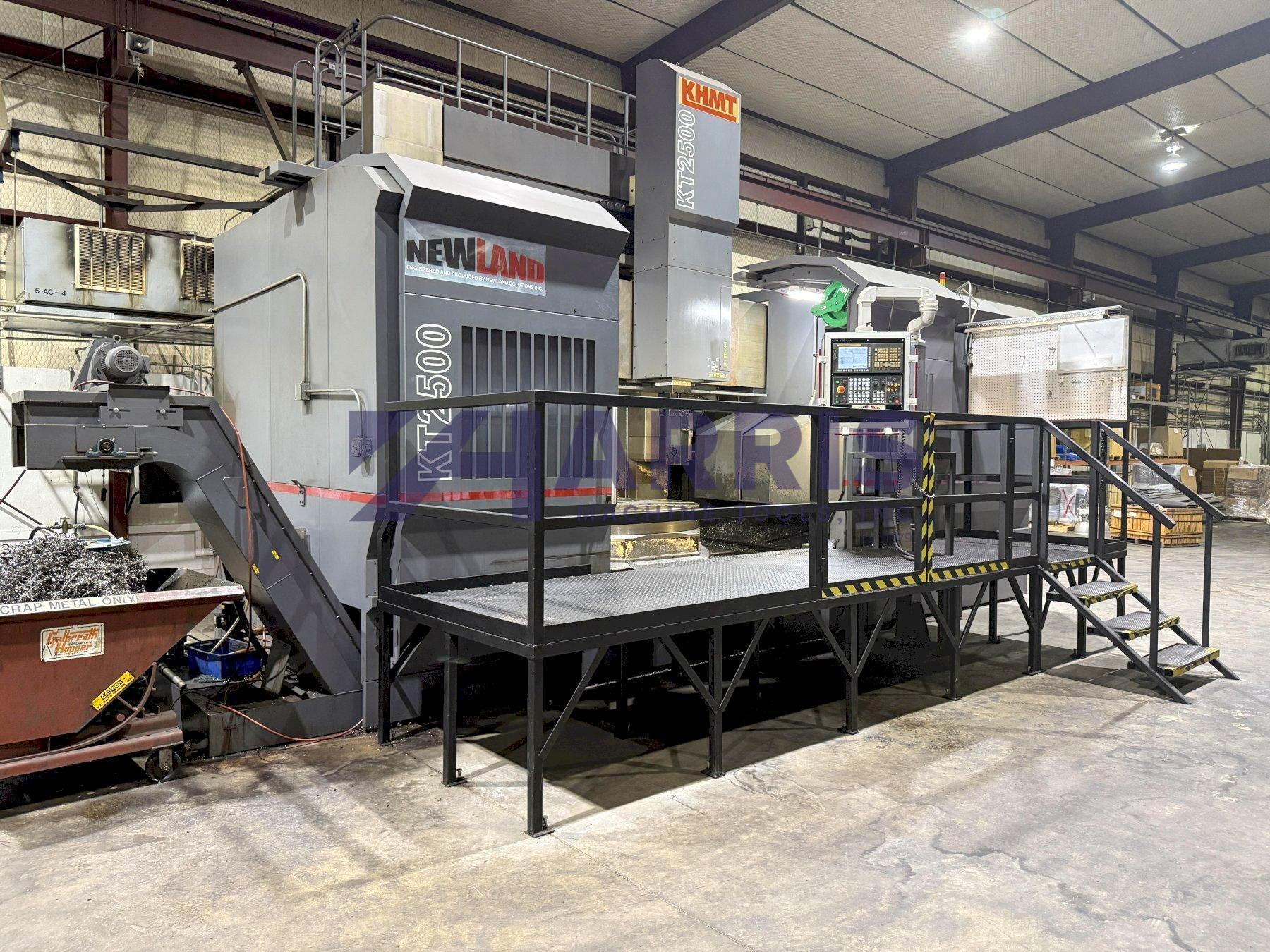

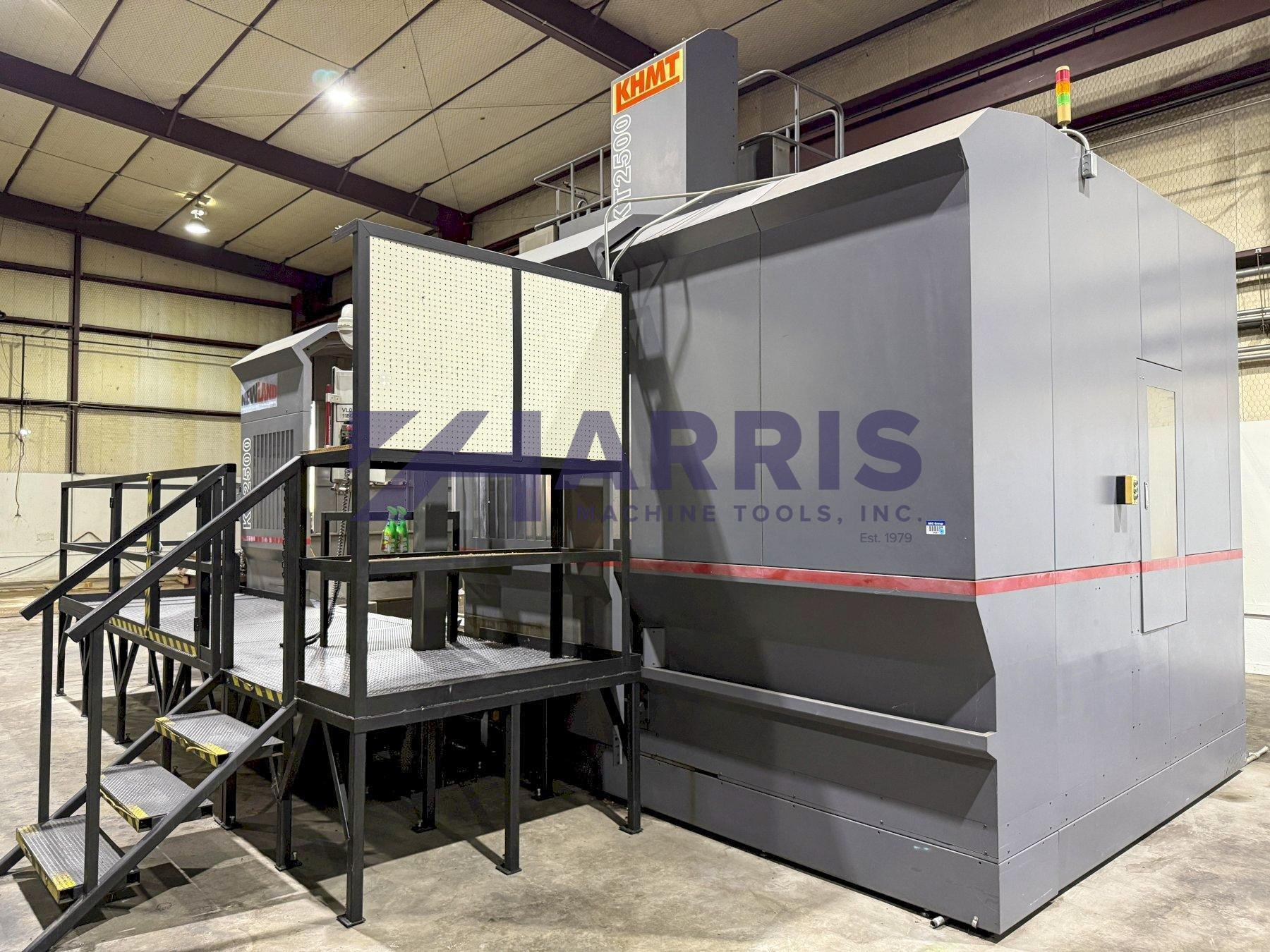

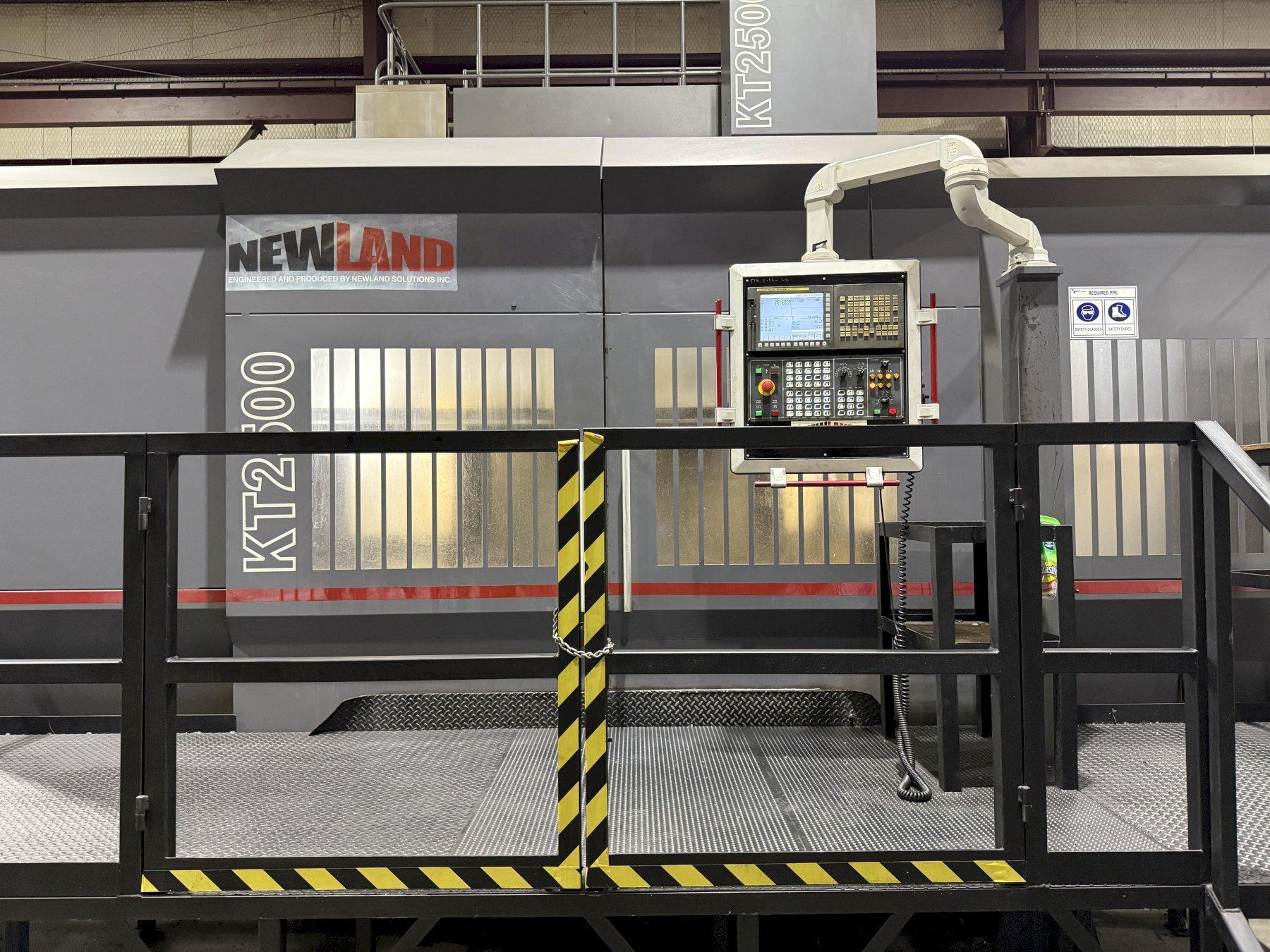

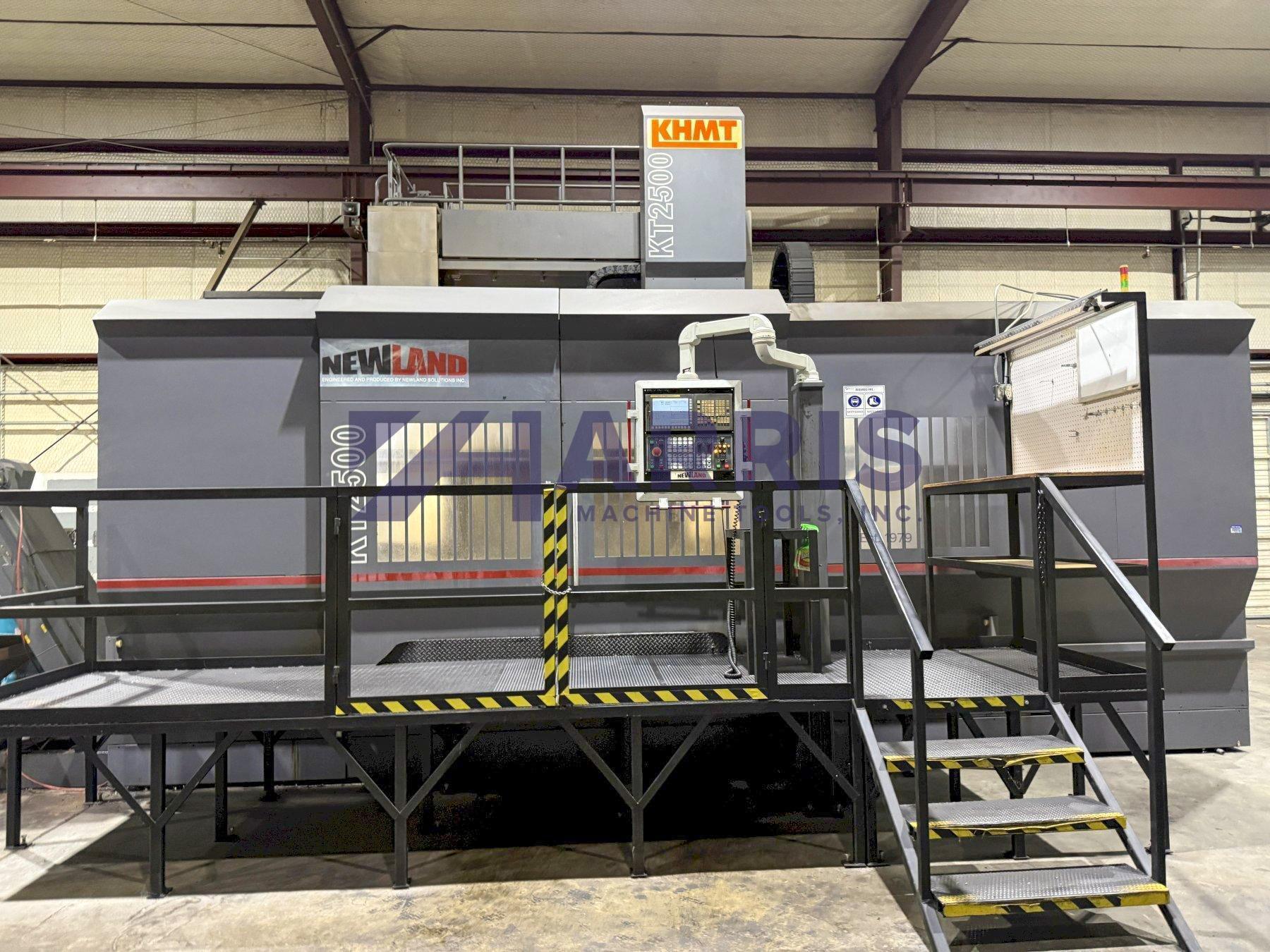

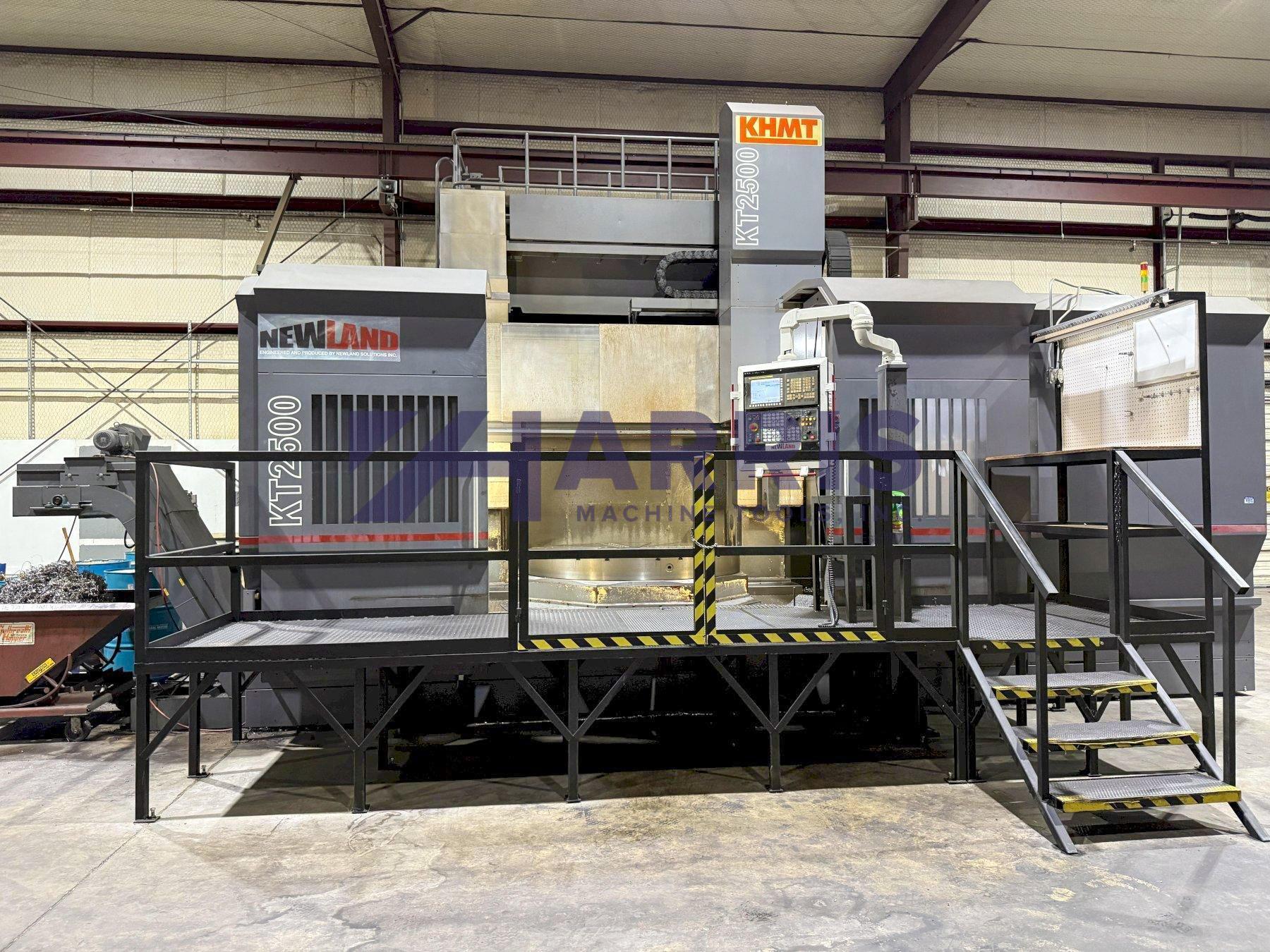

78" NEWLAND CNC VERTICAL BORING MILL WITH 63" TURNING HEIGHT, 2010

Manufacturer

NEWLAND

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

20760

Model

KT2500

Dealer Location

Texas

Request a Quote
View Contact Information

Spec Sheet



Specification:
Table diameter 78.7” 2000 mm
Maximum turning diameter 98.4” 2500 mm
Maximum Machining Height: 63” 1600 mm
Maximum Work piece Weight 65000 LB 29540 Kg
Maximum Ram Travel (Z-Axis) 49.2” 1250 mm
Saddle Travel (X-Axis) -3.9”/+80.7” -100/+2050 mm
Cross Rail Travel 39.4” 1000 mm
Cross Rail Programmable Stops Total Available 6
Distance between Cross Rail Stops 7.87” 200 mm
Ram Size 10”x10” 254x254 mm
Maximum Cutting Force 11240 LBS 50000N
Main Motor Horsepower 80 HP 60 kW
Table Speed 5-260 RPM
Max.Table Torque 33190 FT.LB 45000 Nm
Number of Pockets in Tool Changer 24
Maximum Tool Weight 132 lbs 60 kg
Maximum Tool Length 20” 500 mm
Axis Feed Rates Infinitely Variable 0-200 IPM 0-5000 mm/min
Rapid 400 IPM 10000 mm/min

Features and accessories

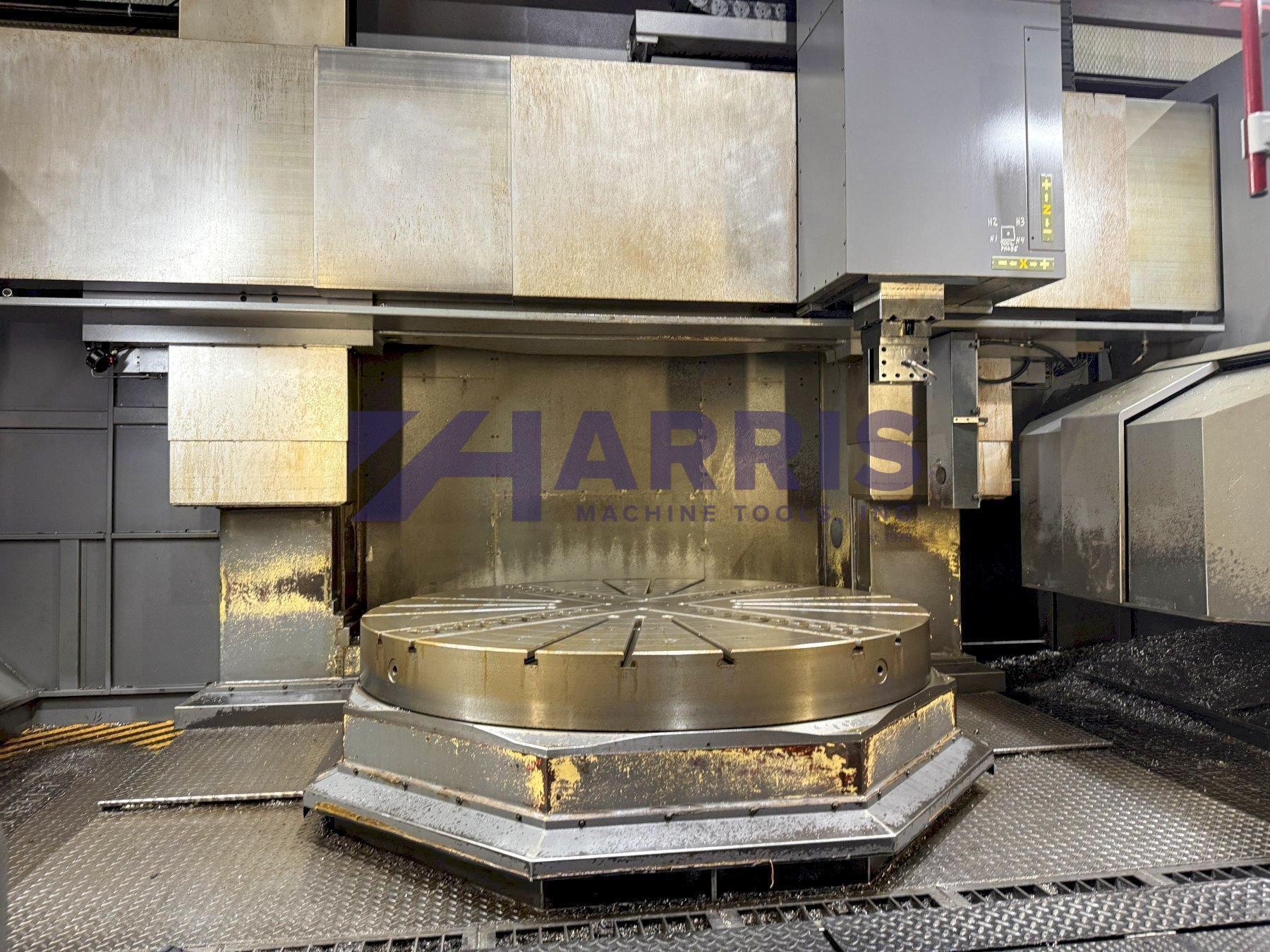

- 78.7” DIA CHUCK
- 4 BORING MILL JAWS WITH TWO PIECE JAWS

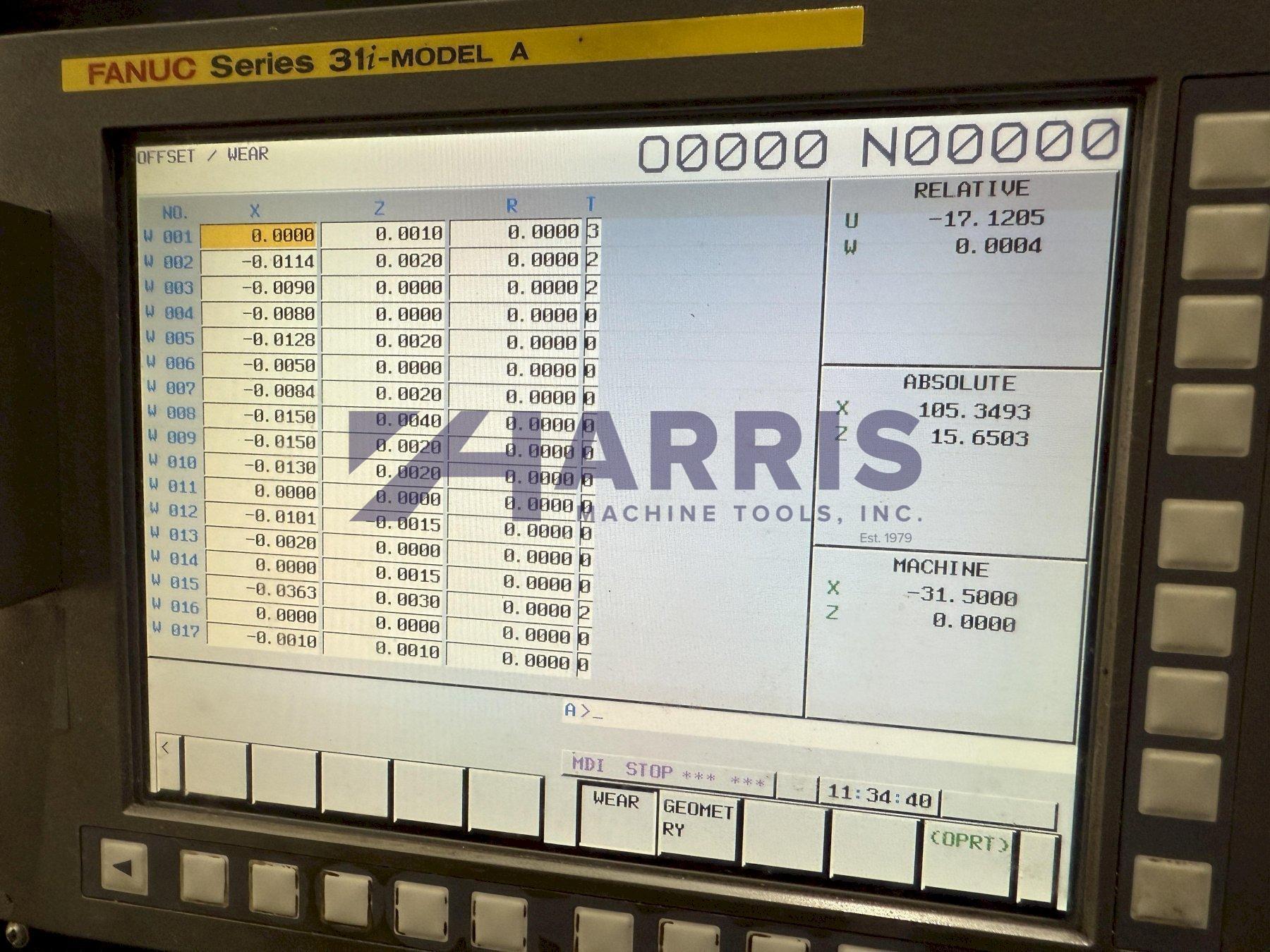

- FANUC AC FEED MOTORS WITH DIGITAL DRIVES

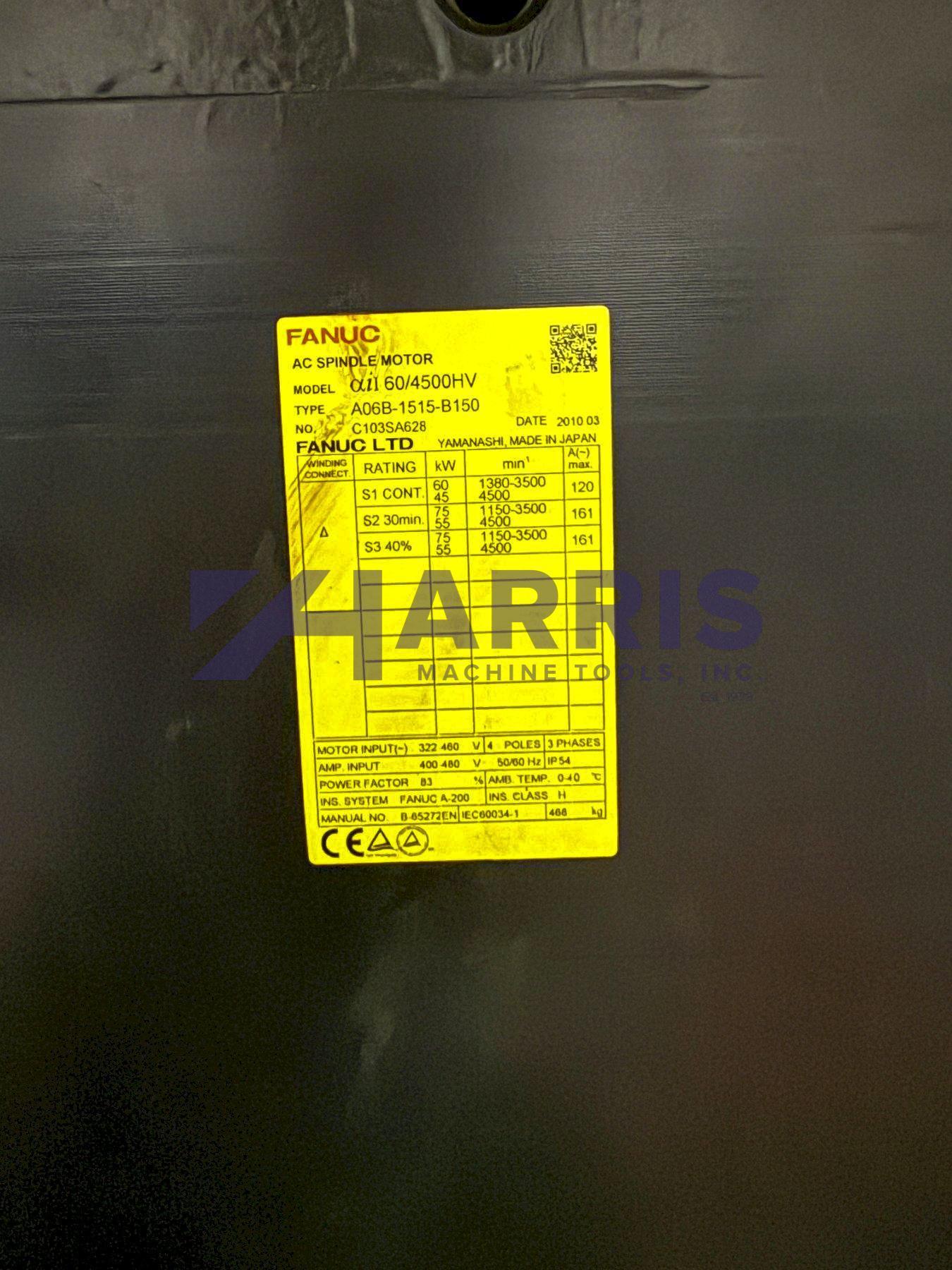

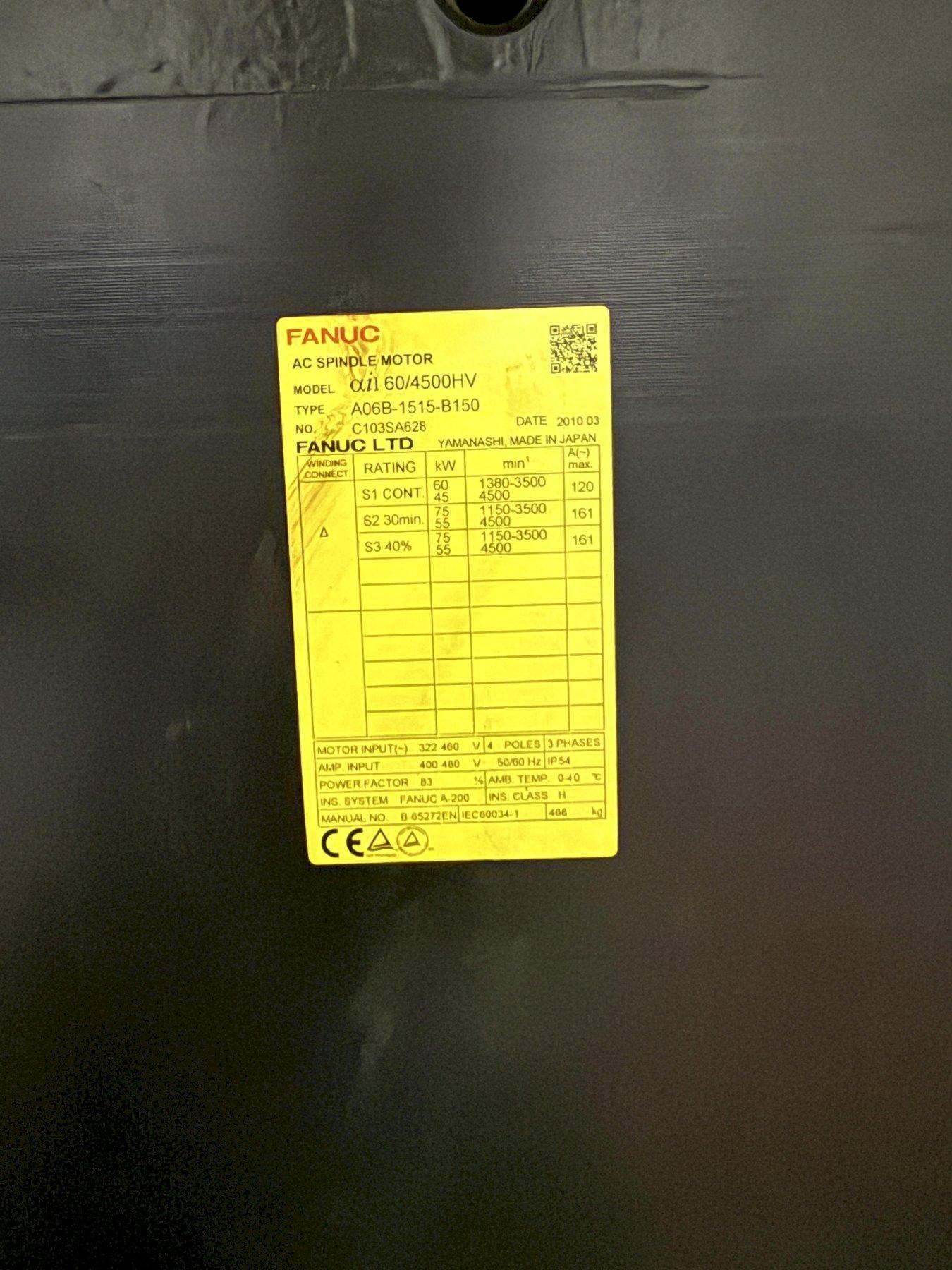

- FANUC MAIN DRIVE SPINDLE MOTOR
- PRELOADED BALL SCREWS ON ALL LINEAR AXES
- STEEL WAY COVERS
- POWER TOOL CLAMPING

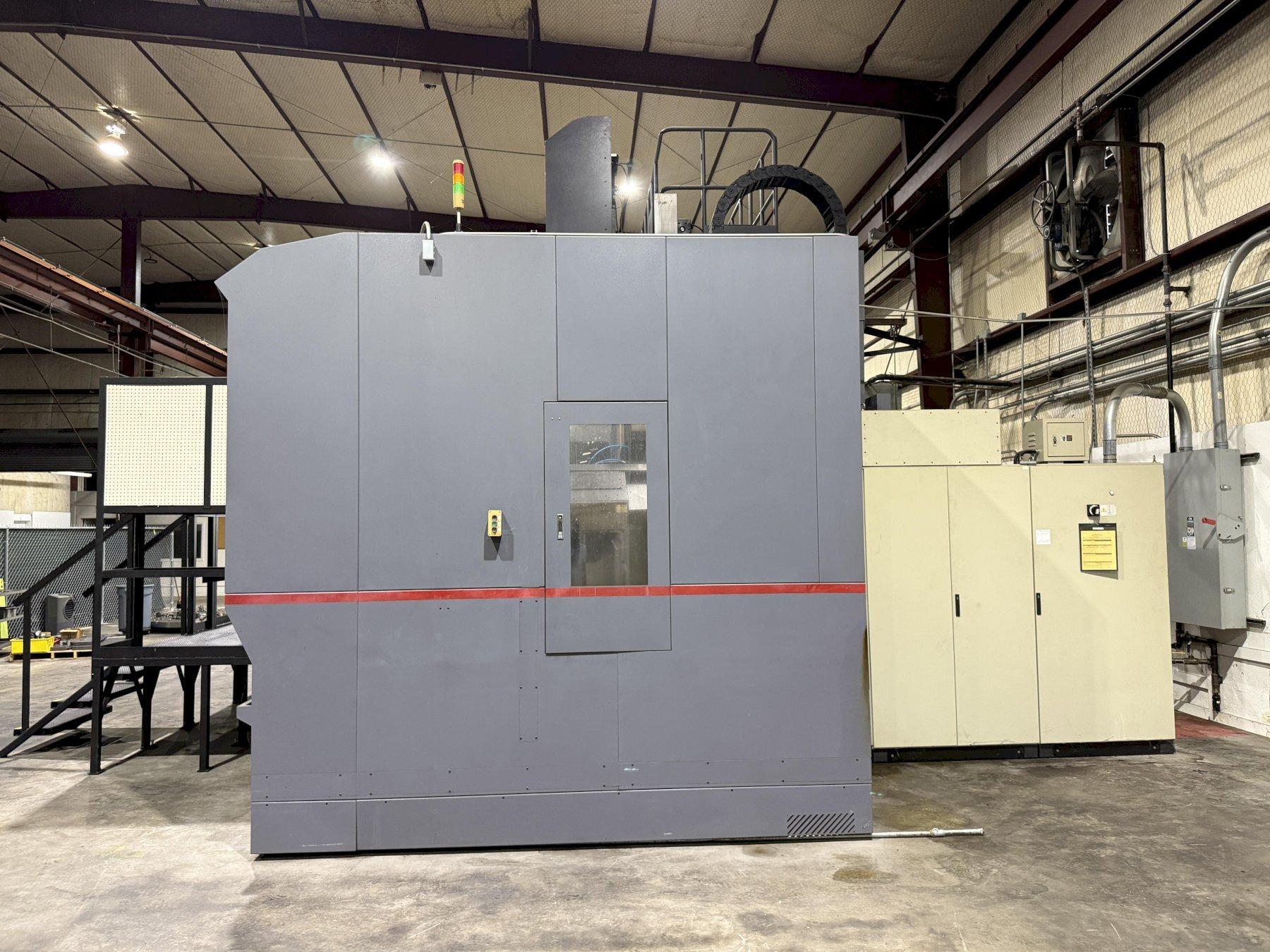

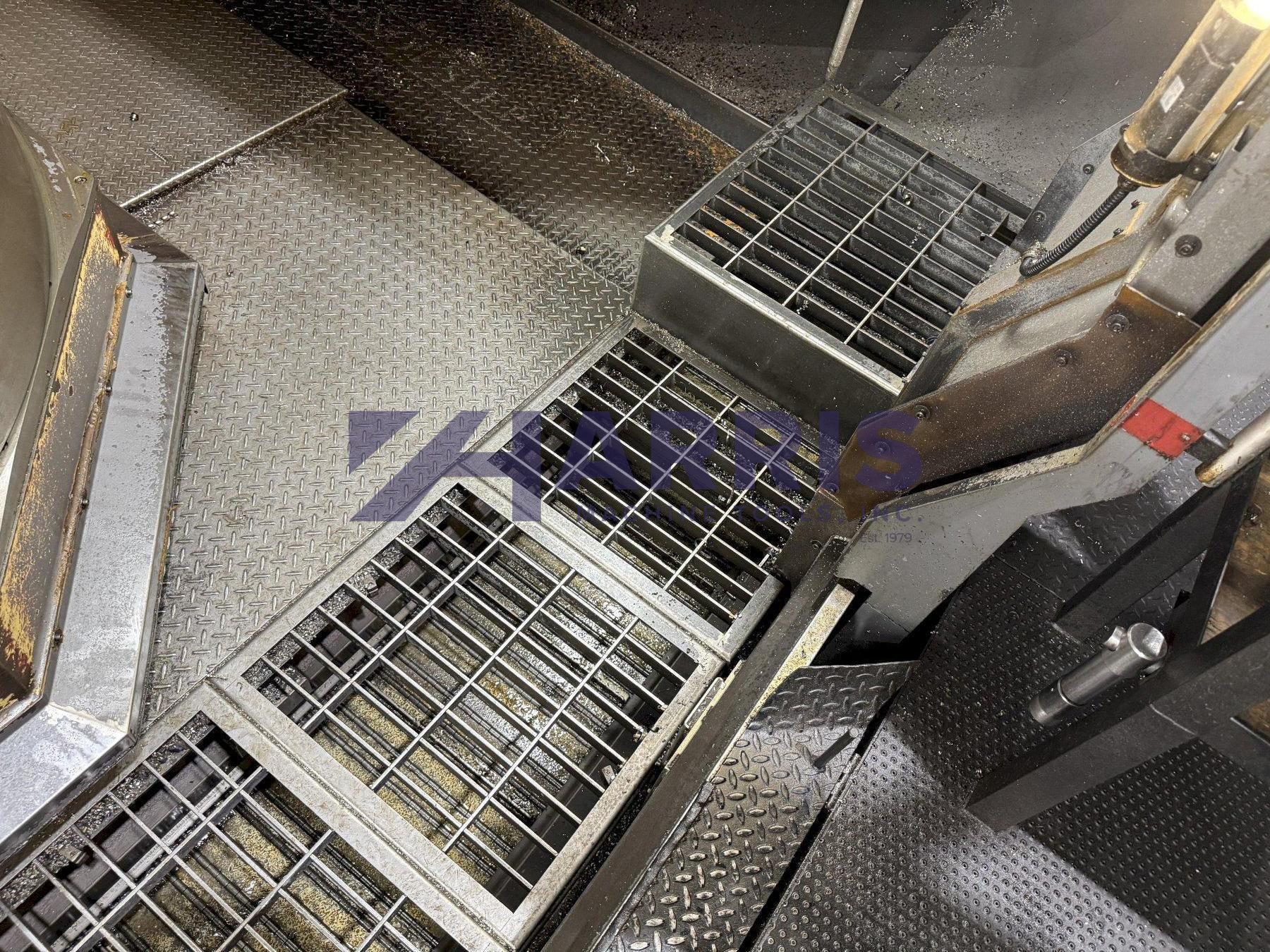

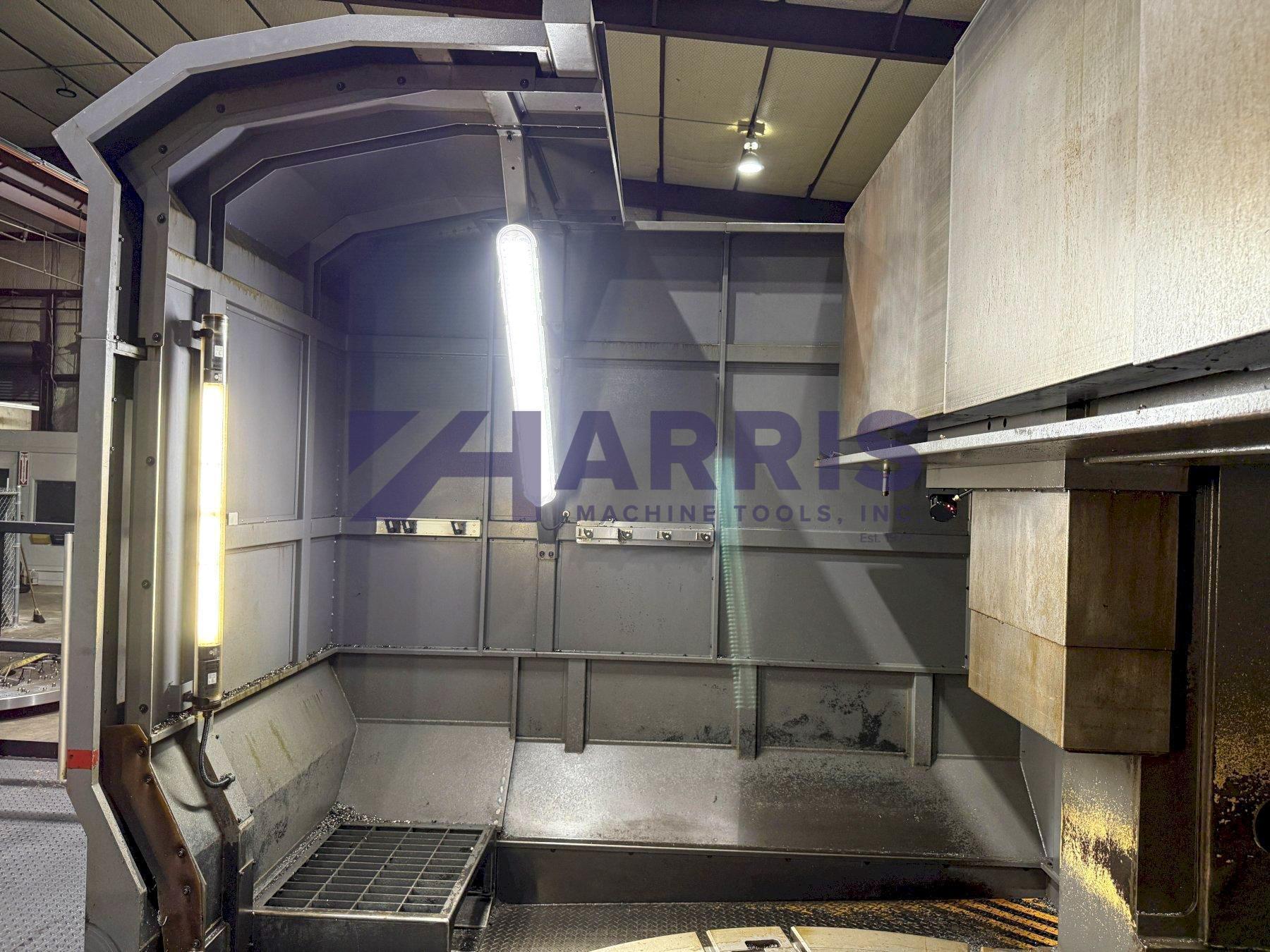

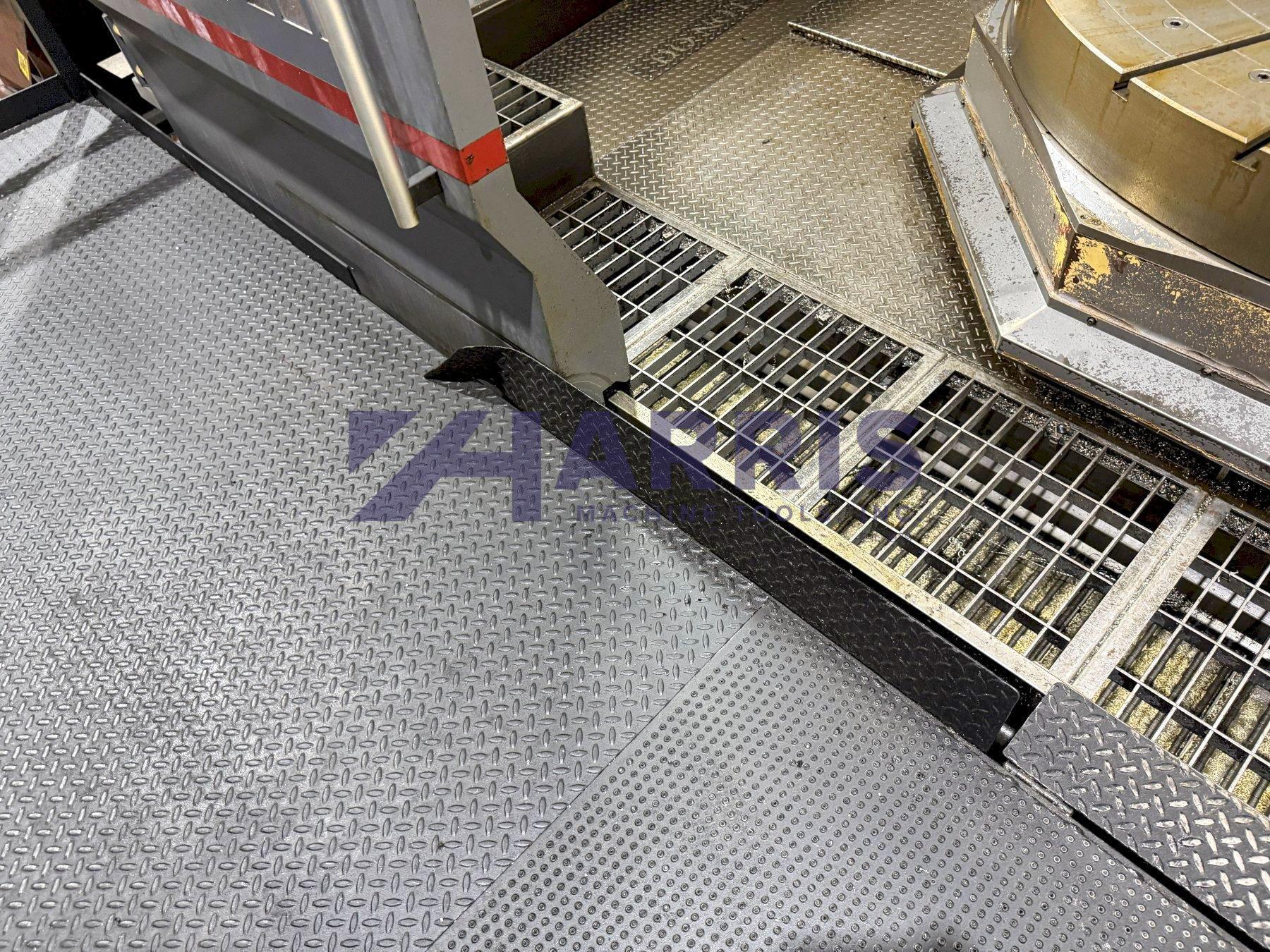

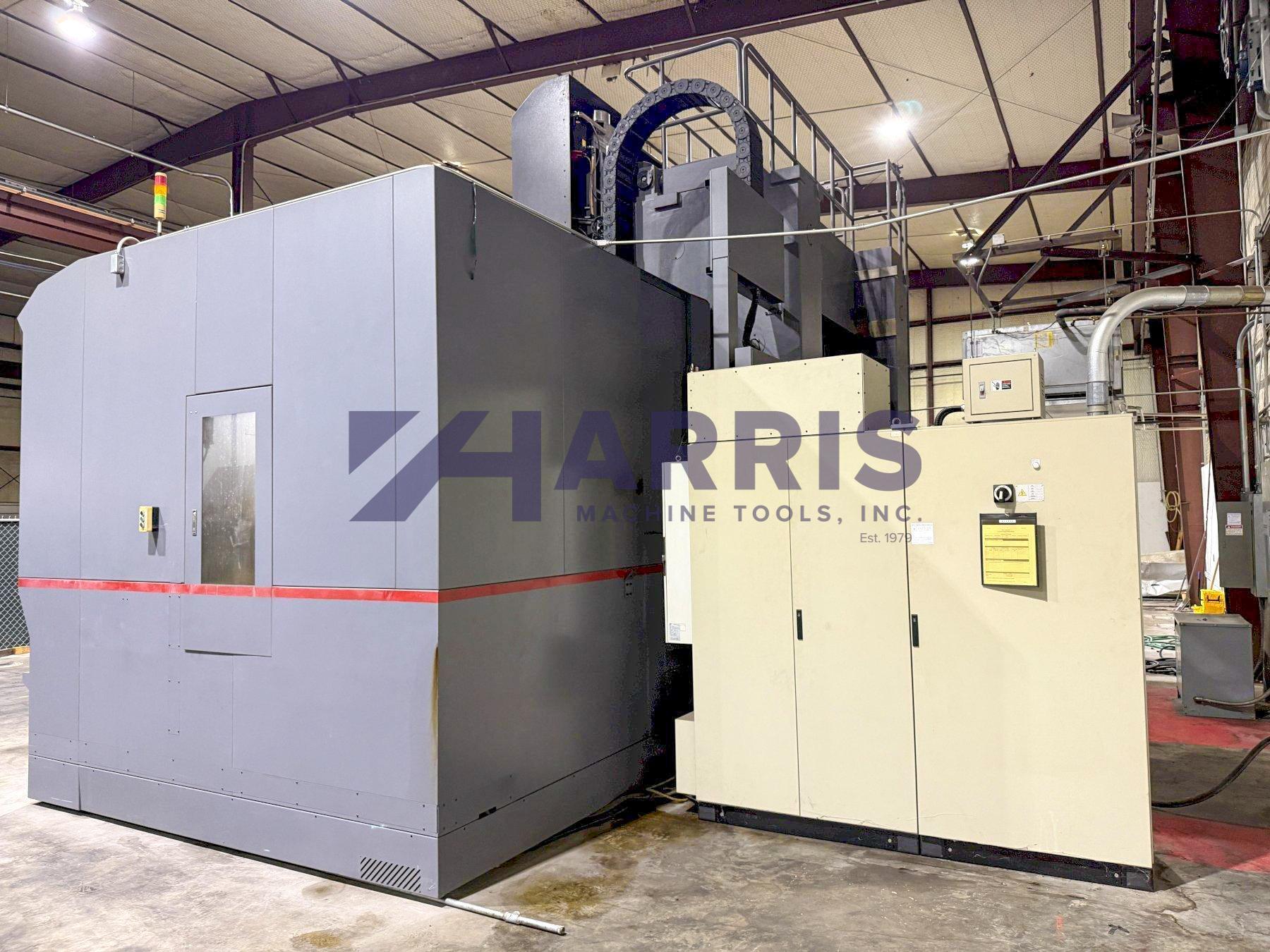

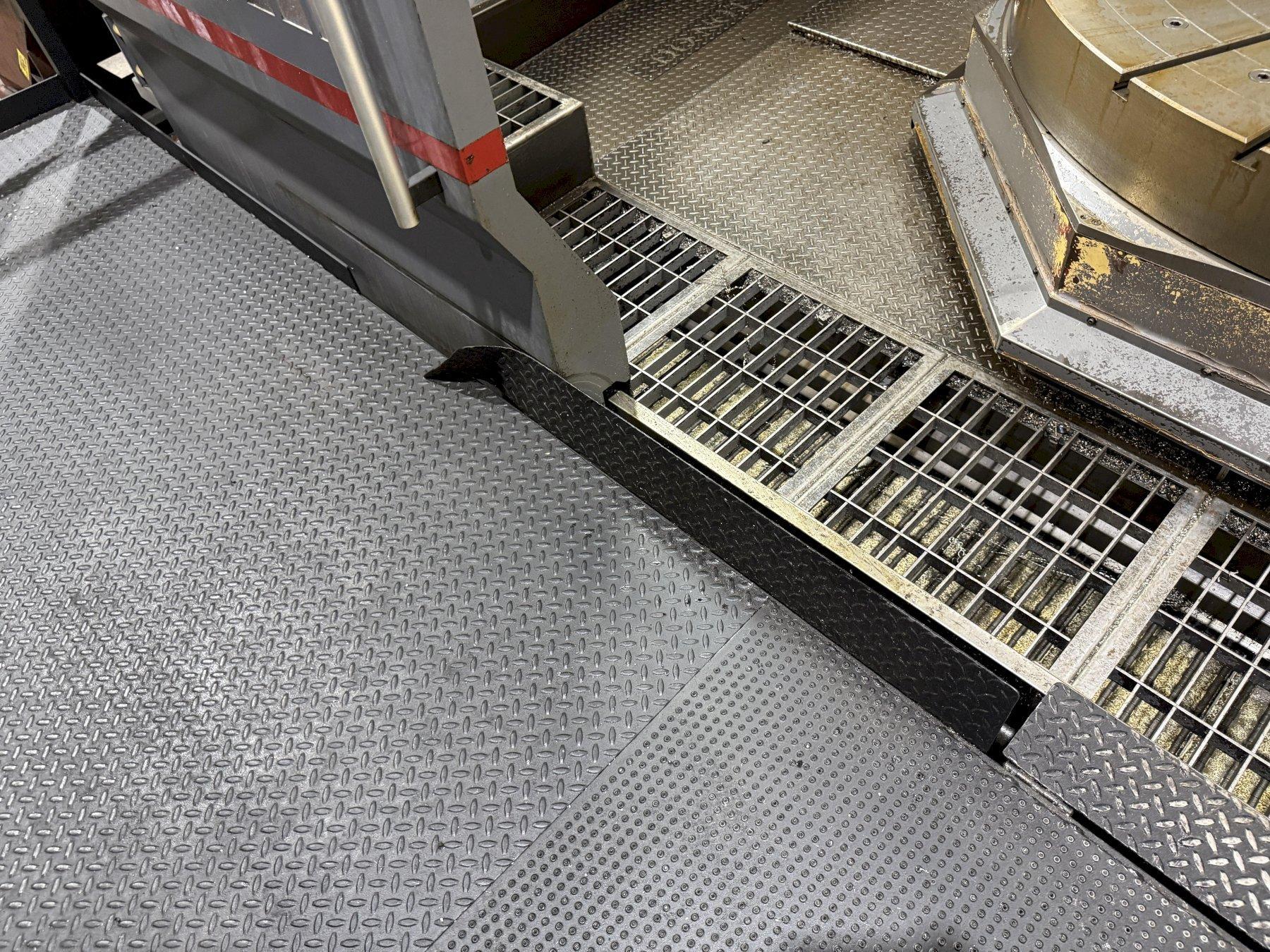

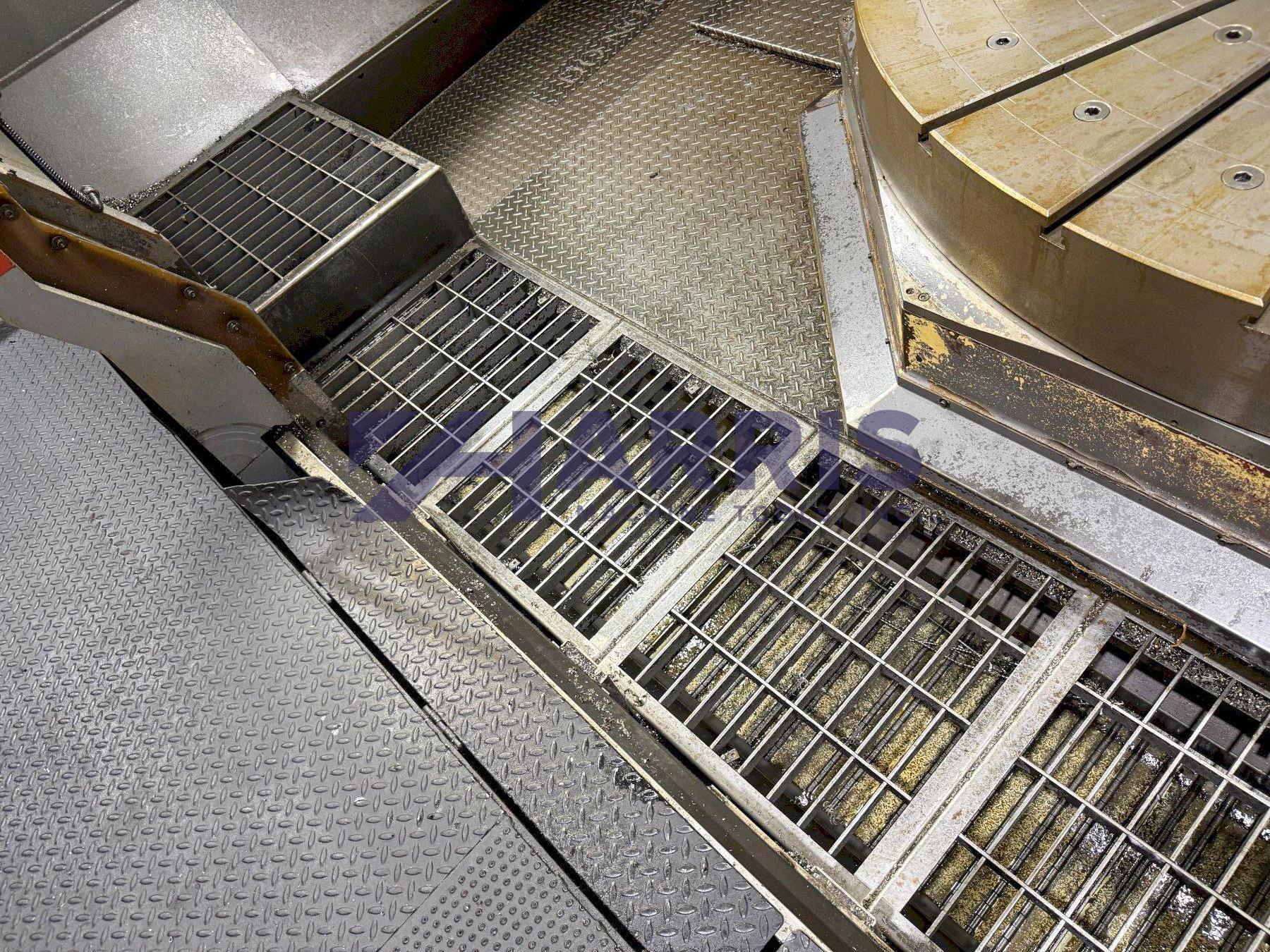

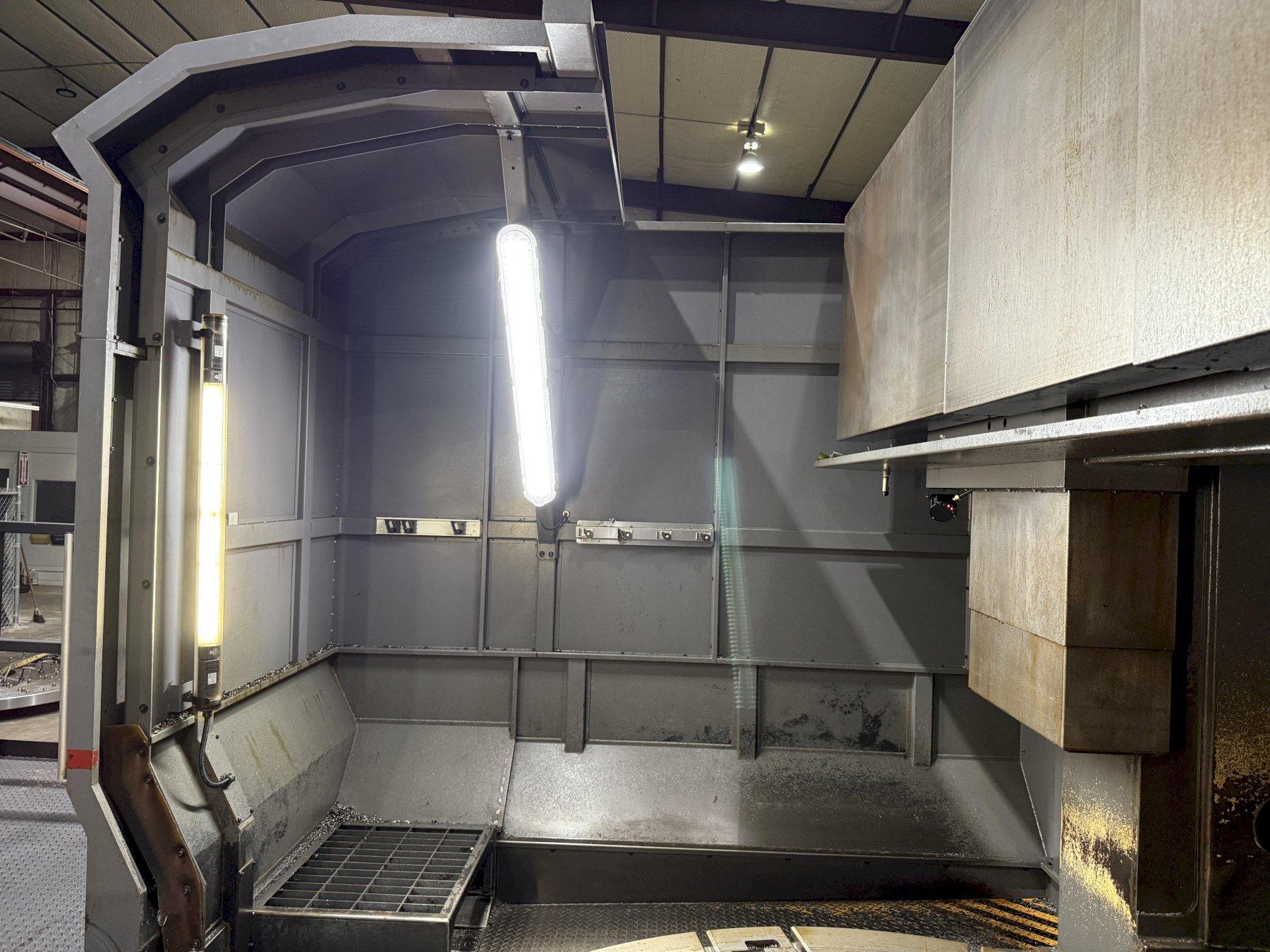

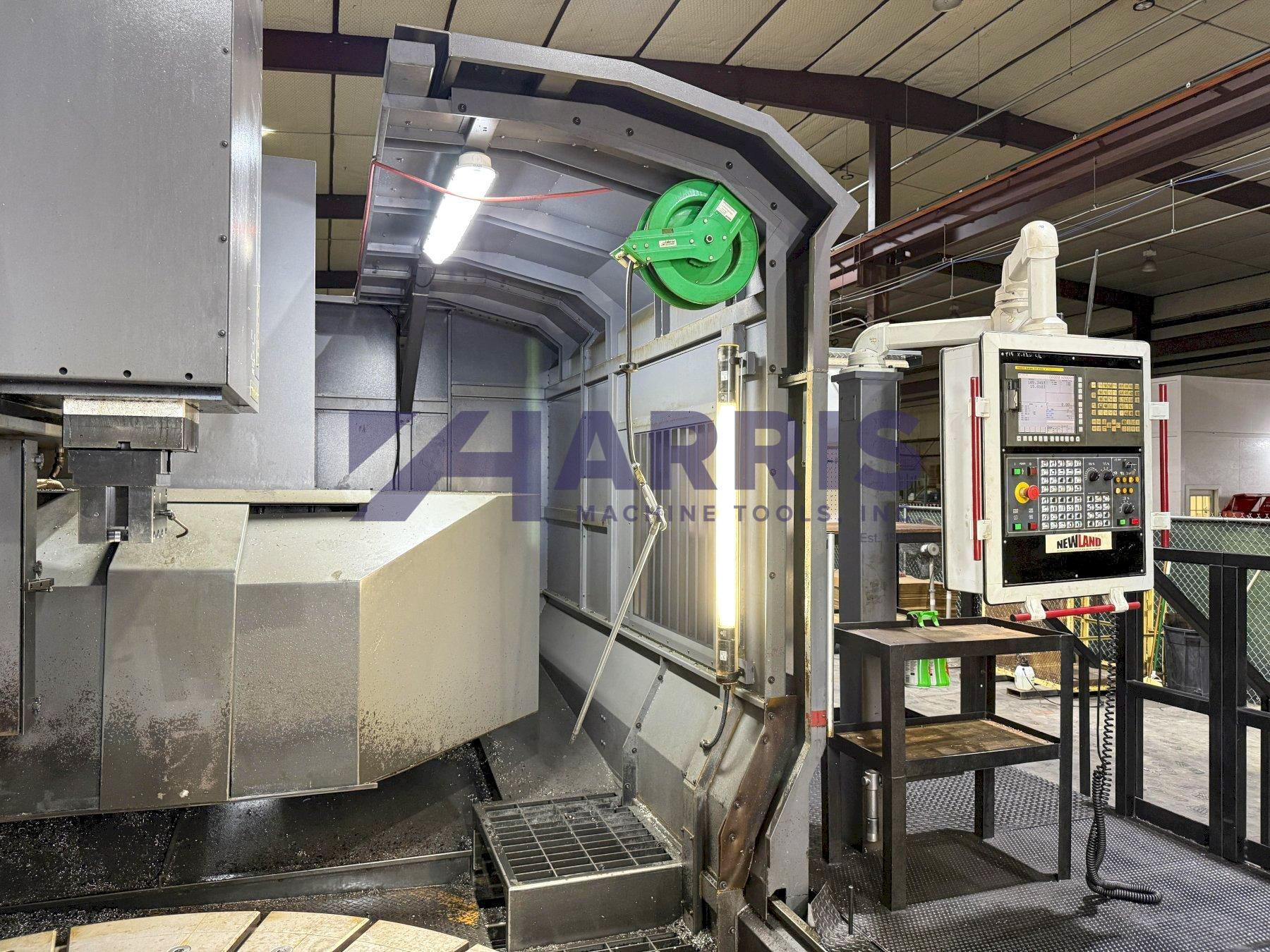

- CUTTING AREA ENCLOSURE, SLOPING FLOOR

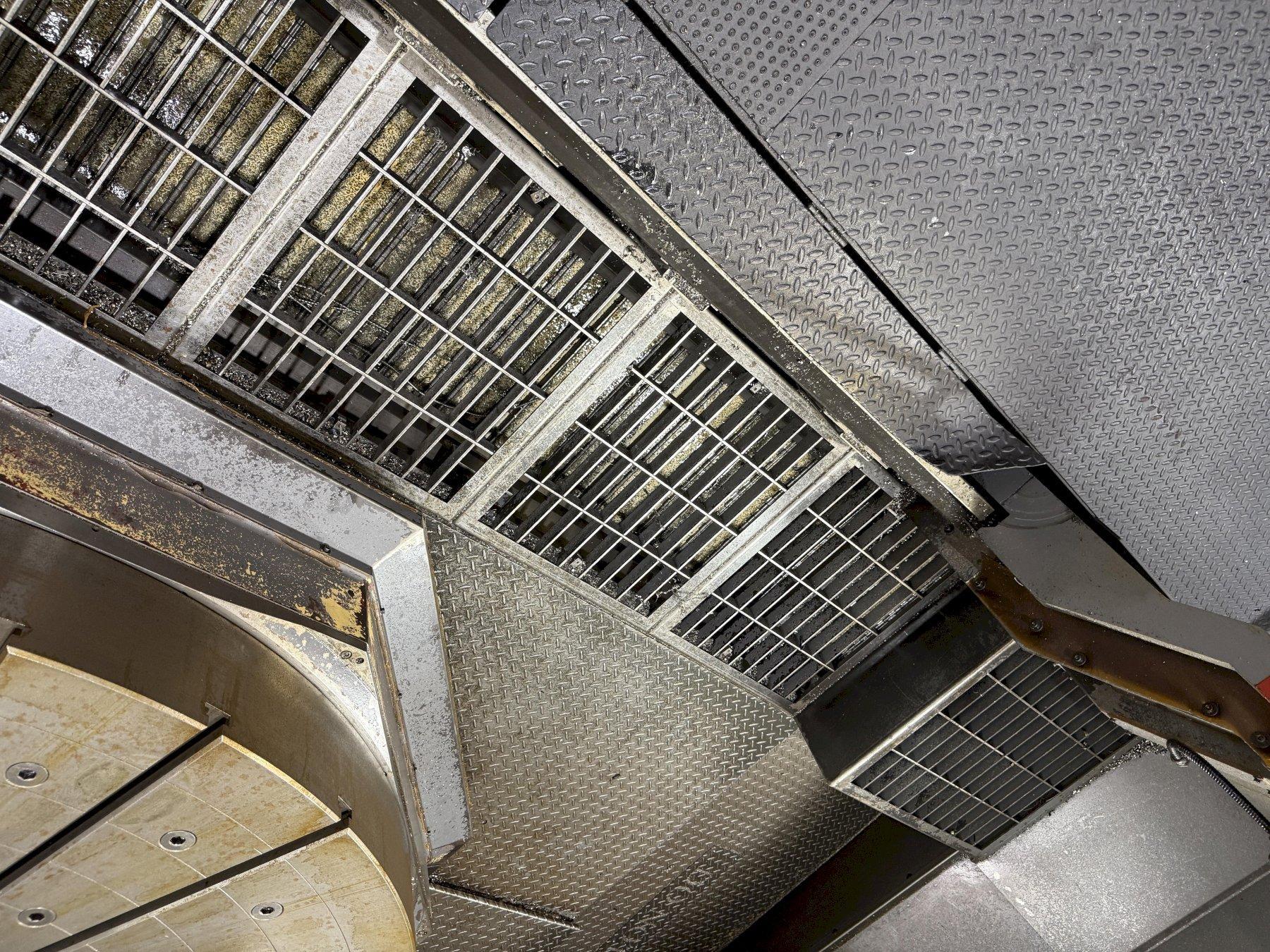

- CHIP CONVEYOR, COMPLETE WITH COOLANT TANK

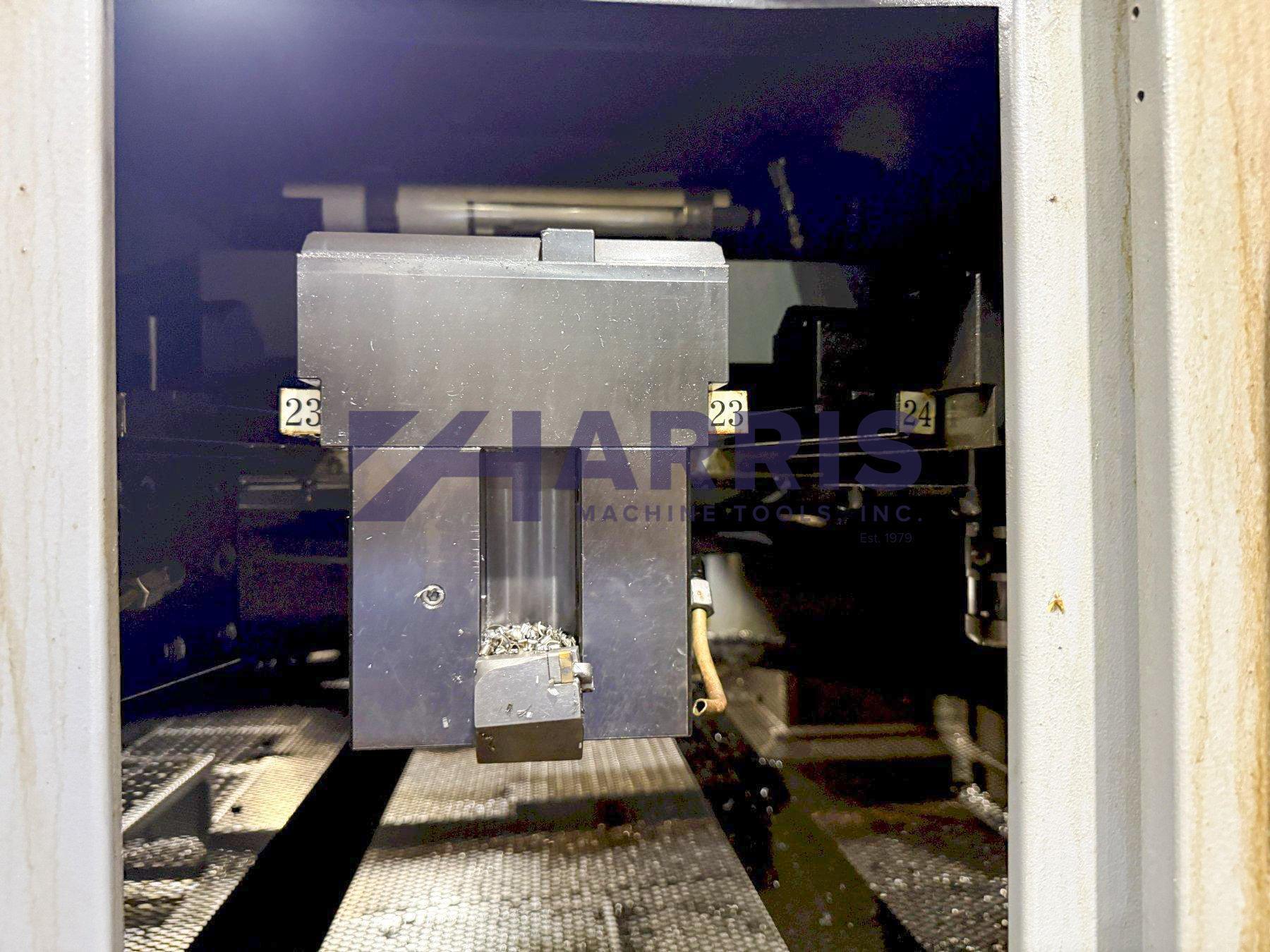

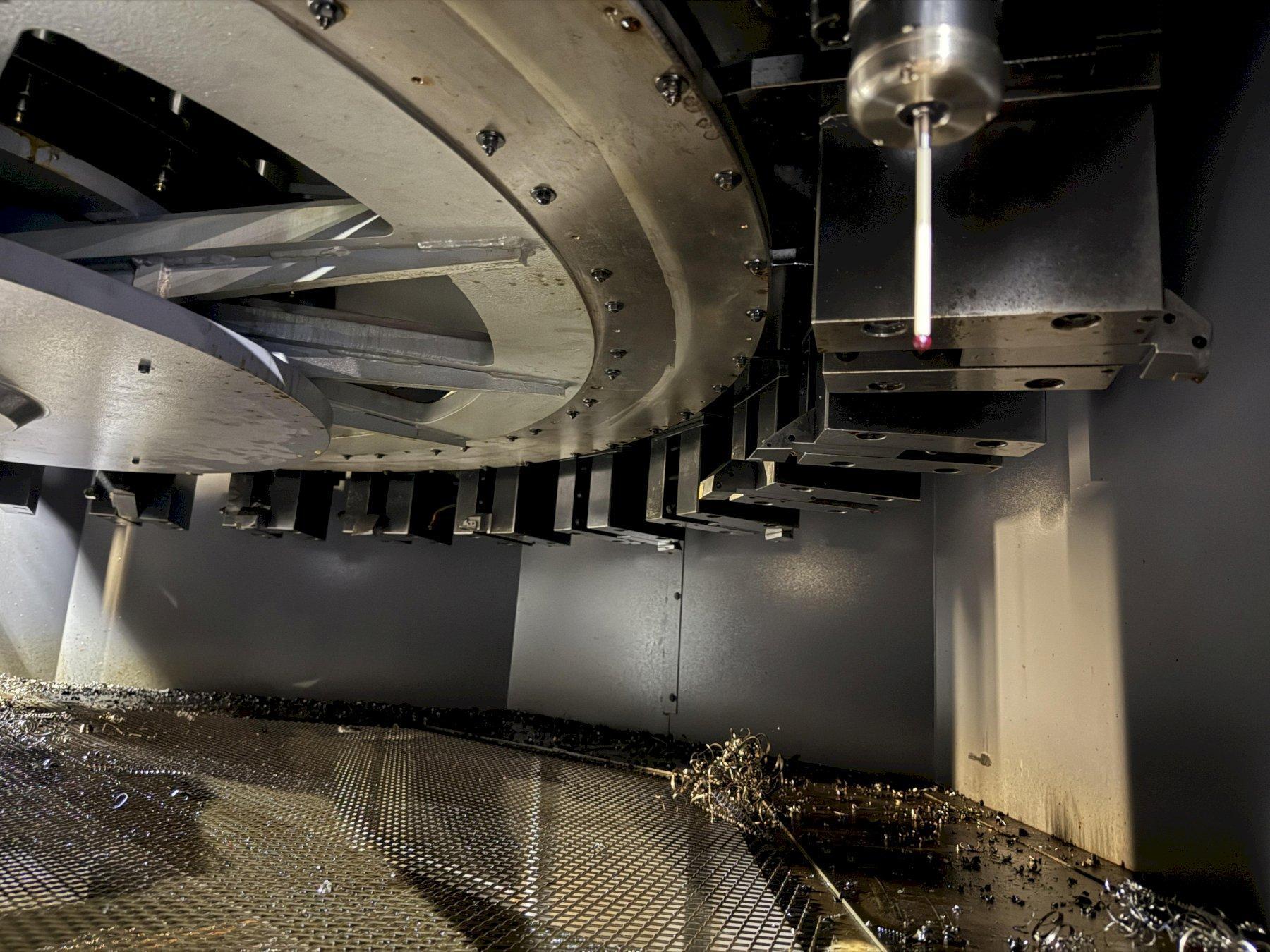

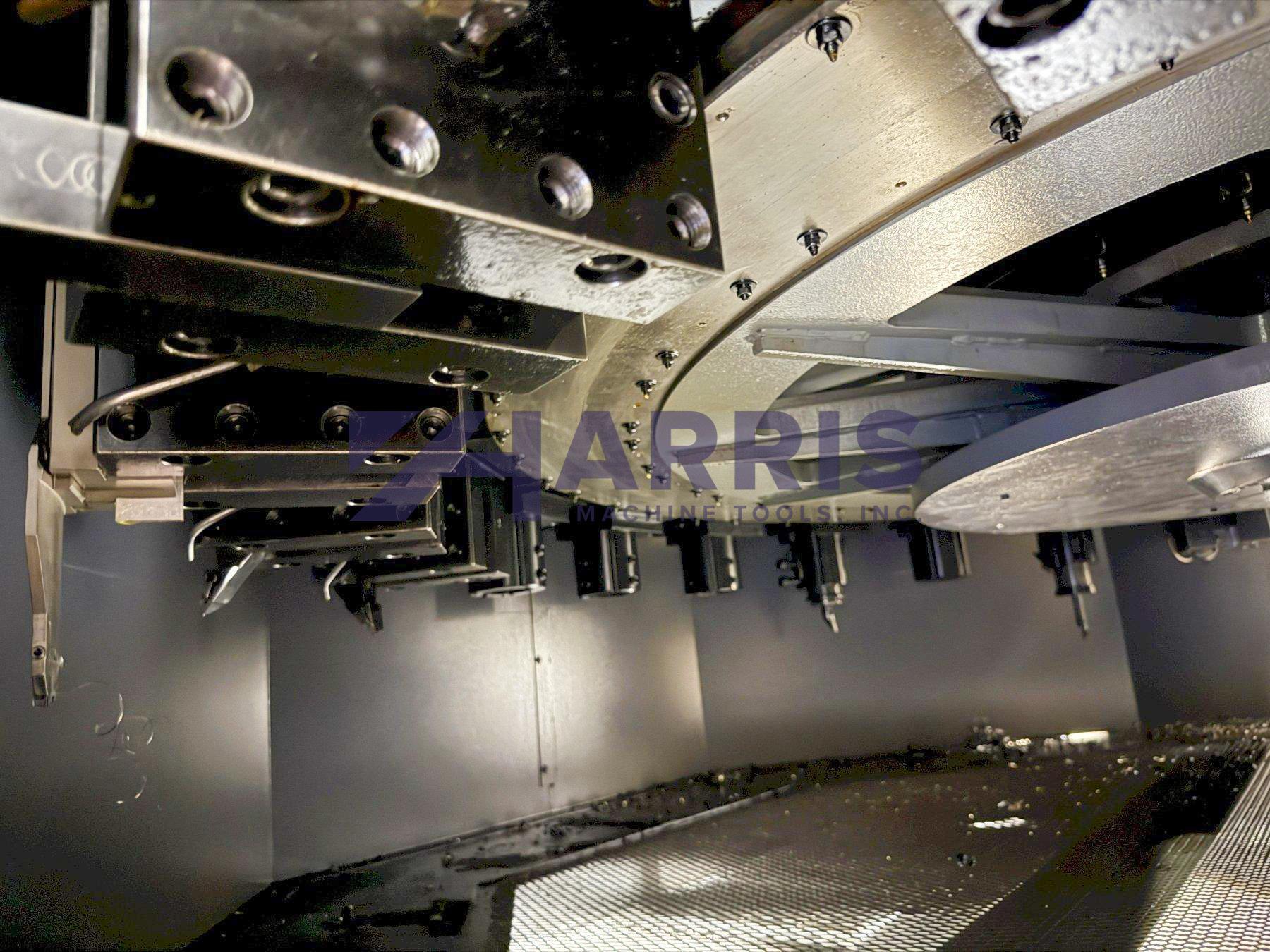

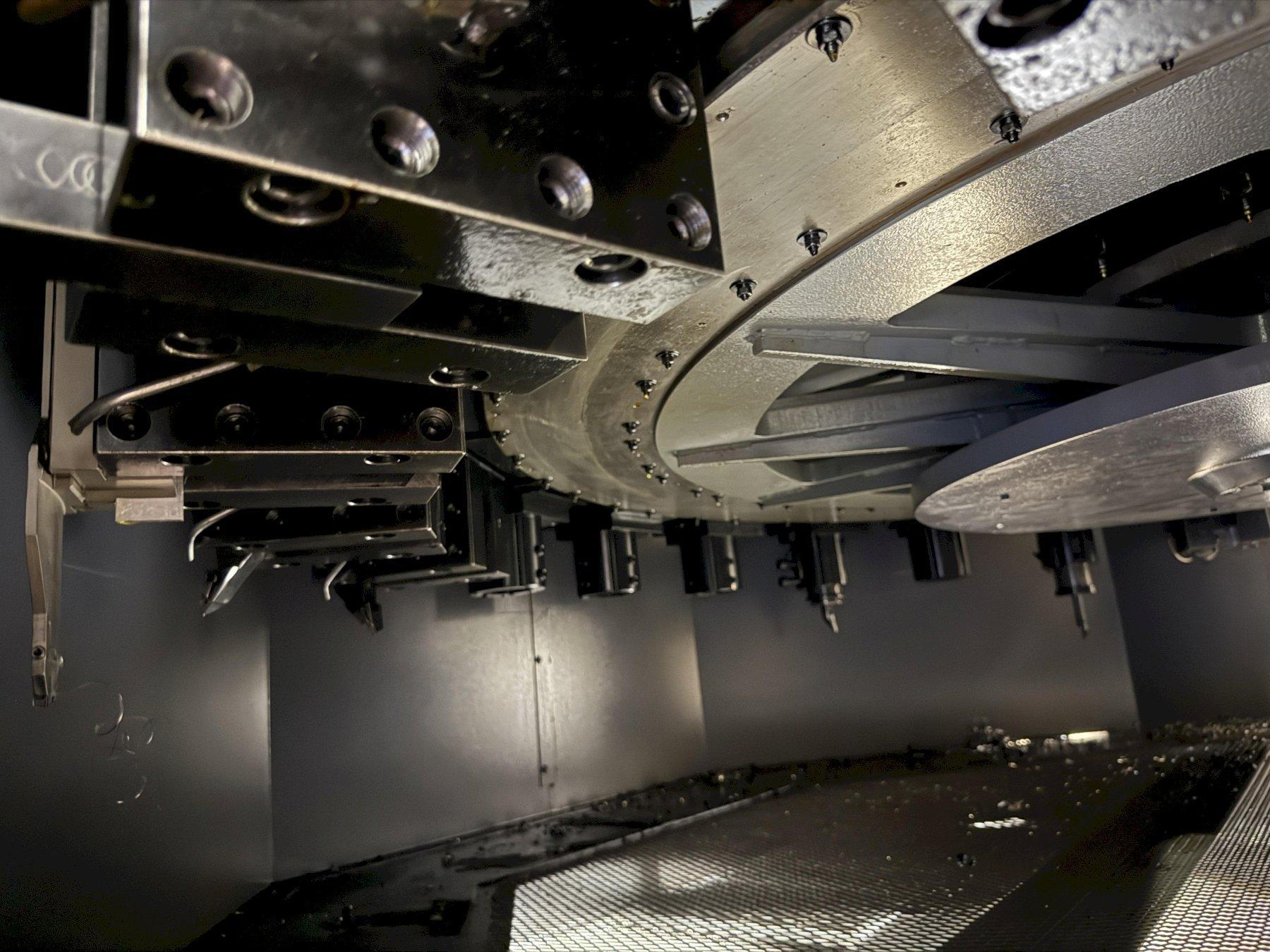

- 24 POSITION TOOL CHANGER
- COOLANT THROUGH TOOL BLOCK

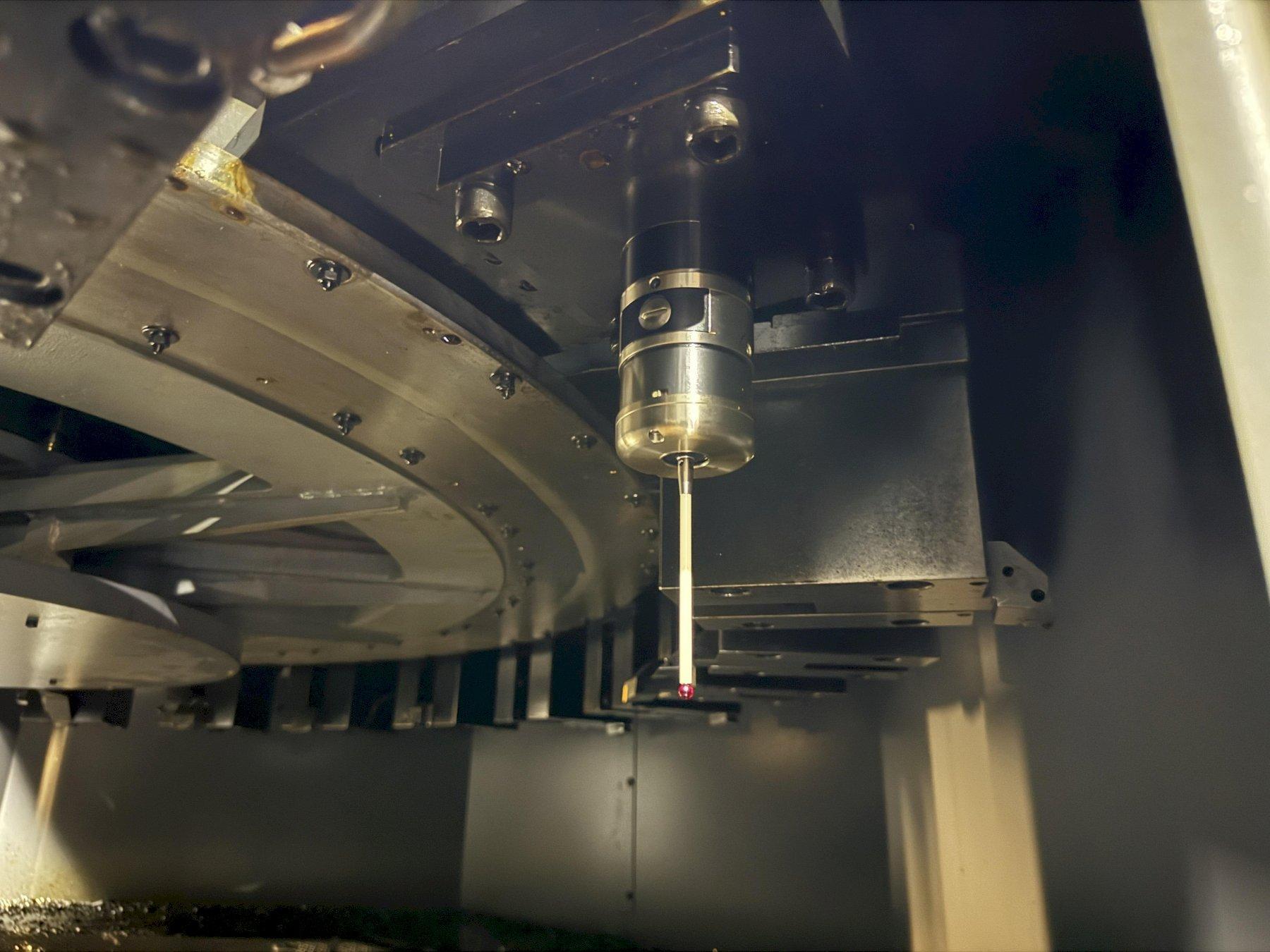

- RENISHAW PART PROBE SYSTEM

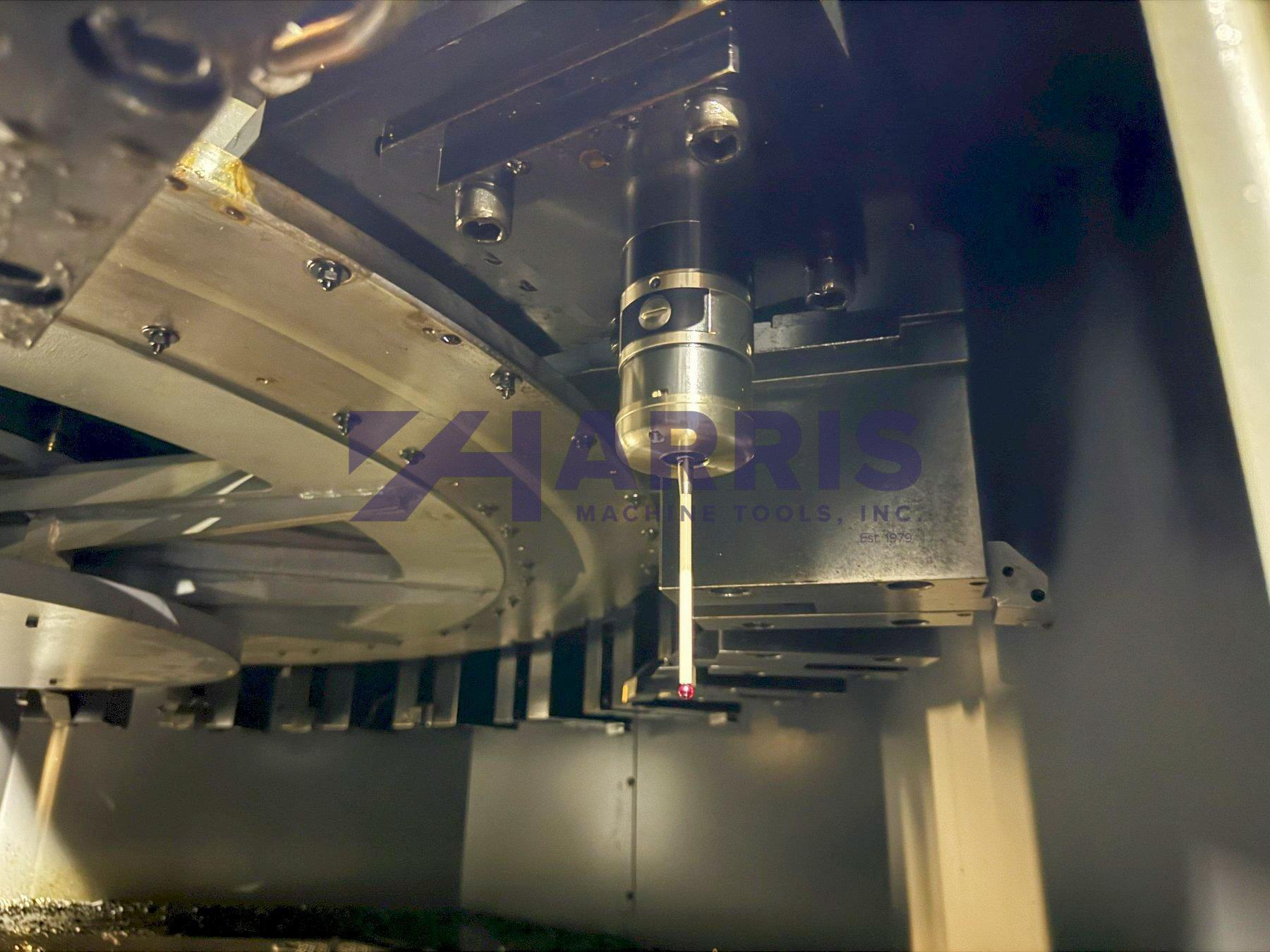

- RENISHAW TOOL PROBE SYSTEM
- LINEAR ENCODER FEEDBACK, “X” AND “Z” AXES
- COMPLETE SET OF ANCHOR BOLTS AND LEVELING SHOES

FULL SET OF TURNING AND BORING TOOL HOLDERS

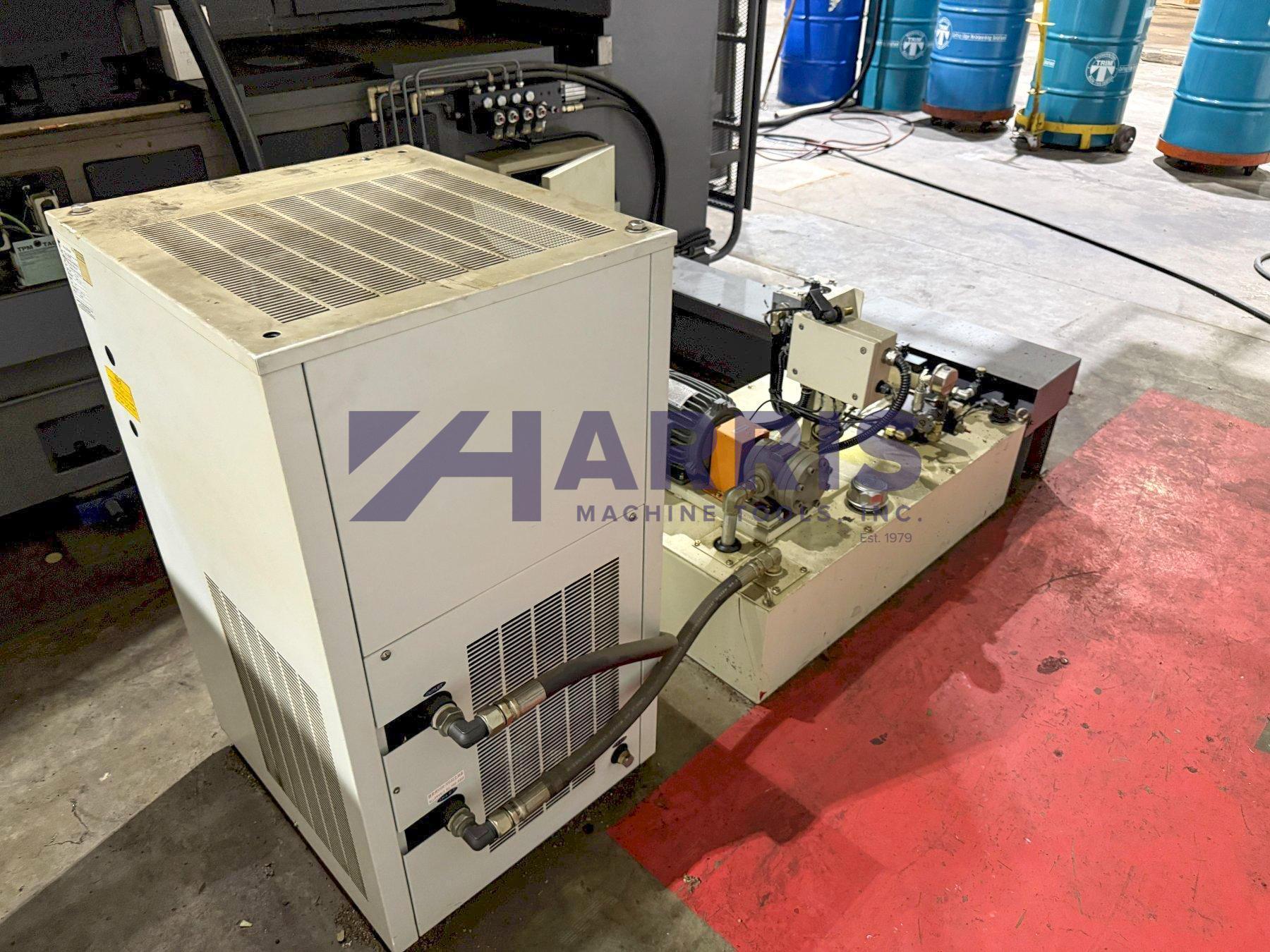

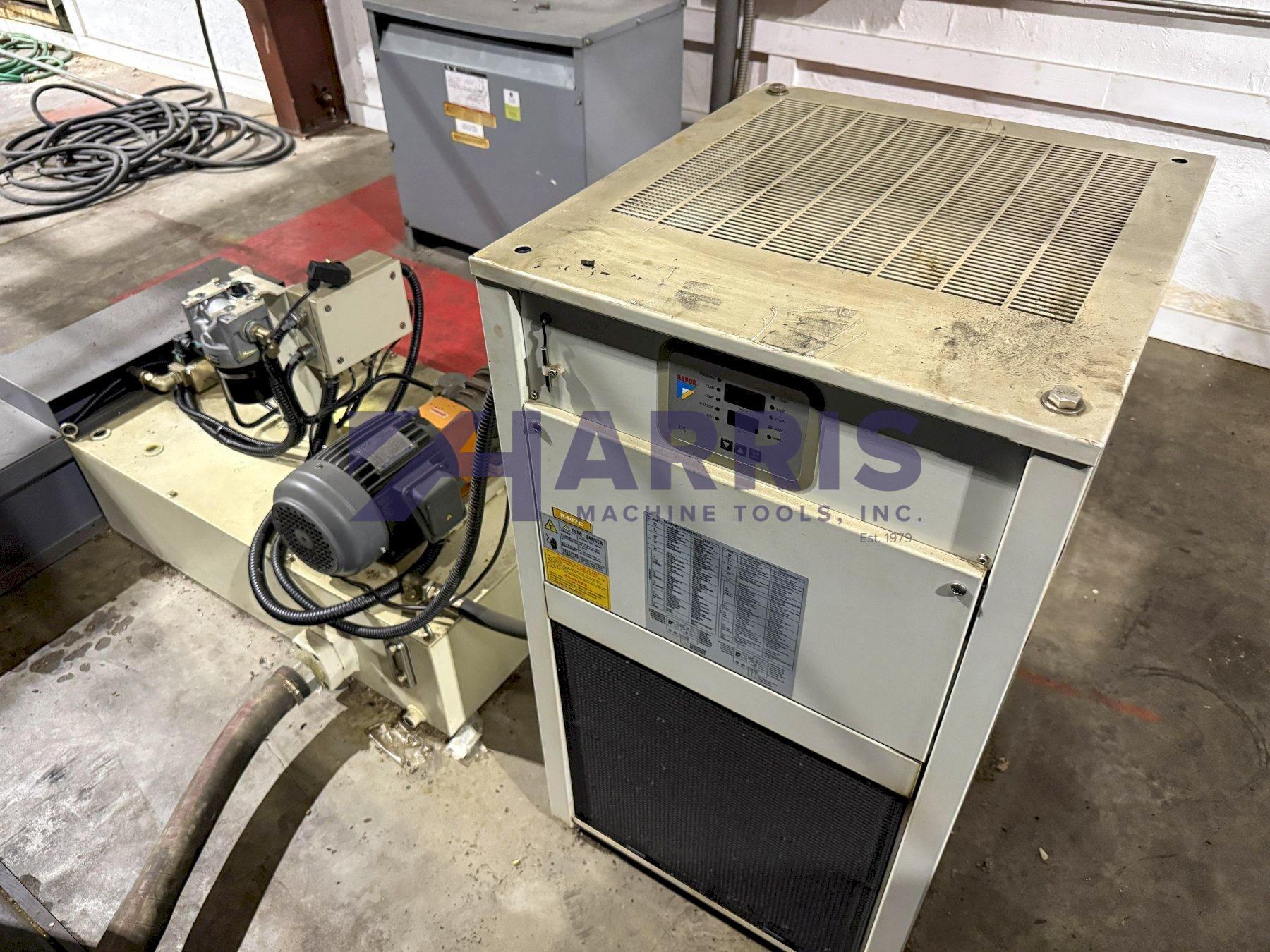

SPINDLE OIL CHILLER

Machine overall dimensions
Length 354.7” 9010mm
Width 259.05” 6580 mm
Height (maximum) 237.79” 6040 mm
Weight 126,700 lbs 57,600 kg
