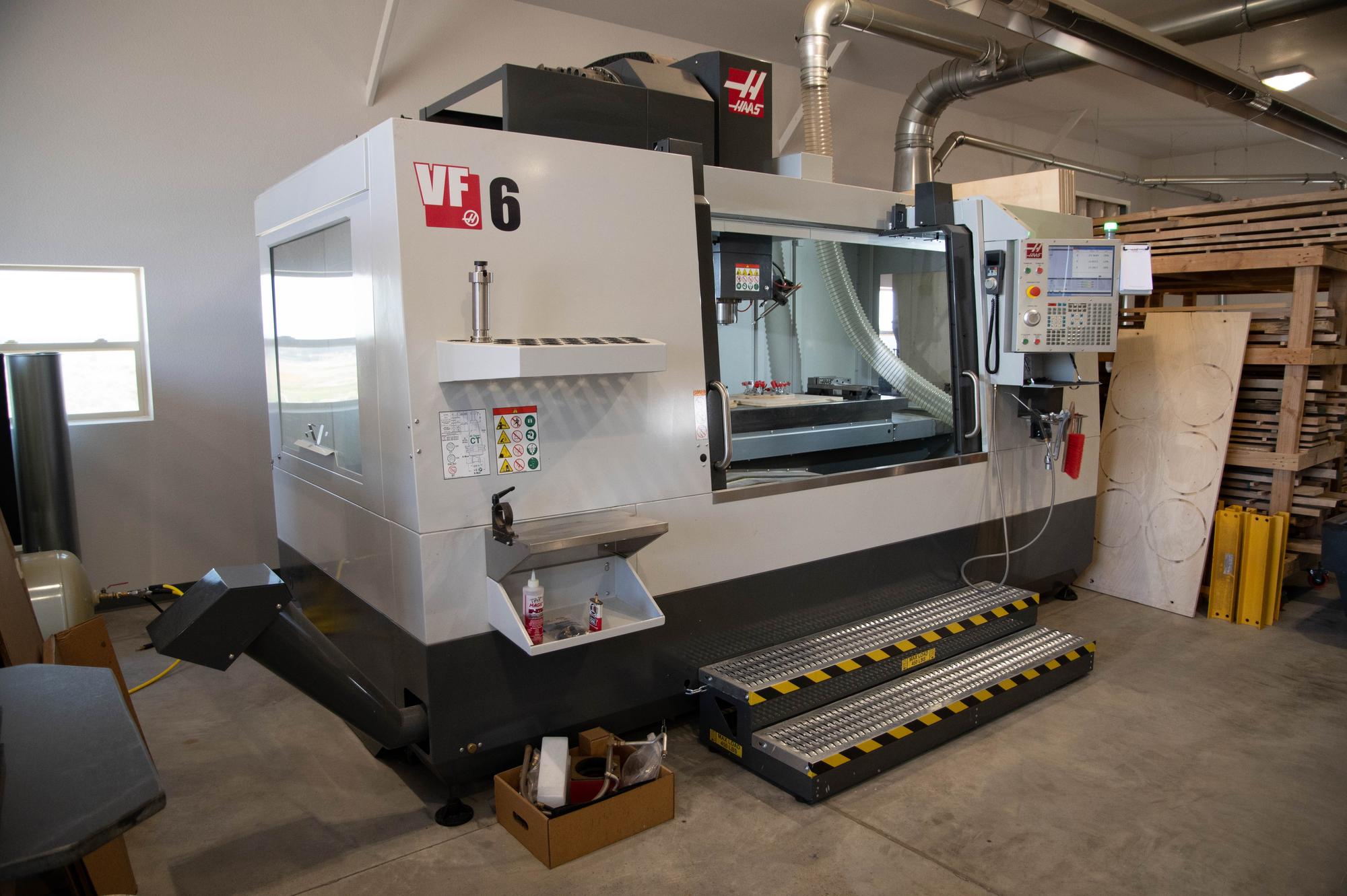

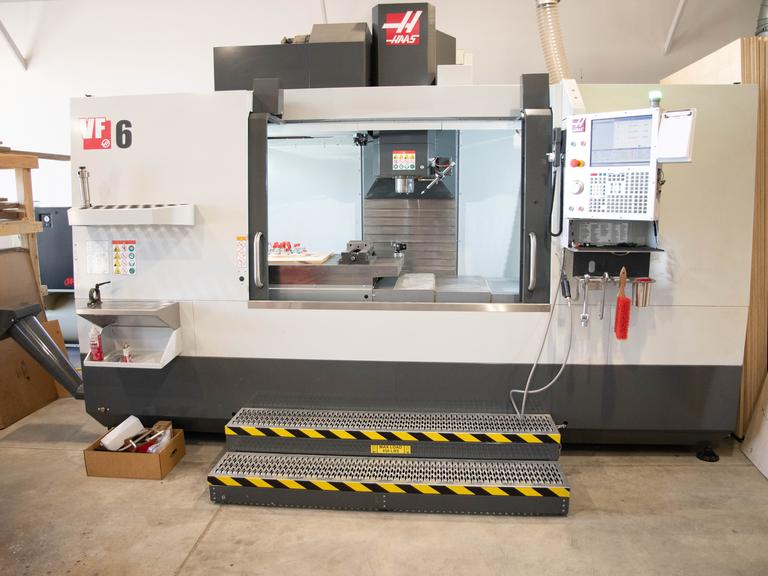

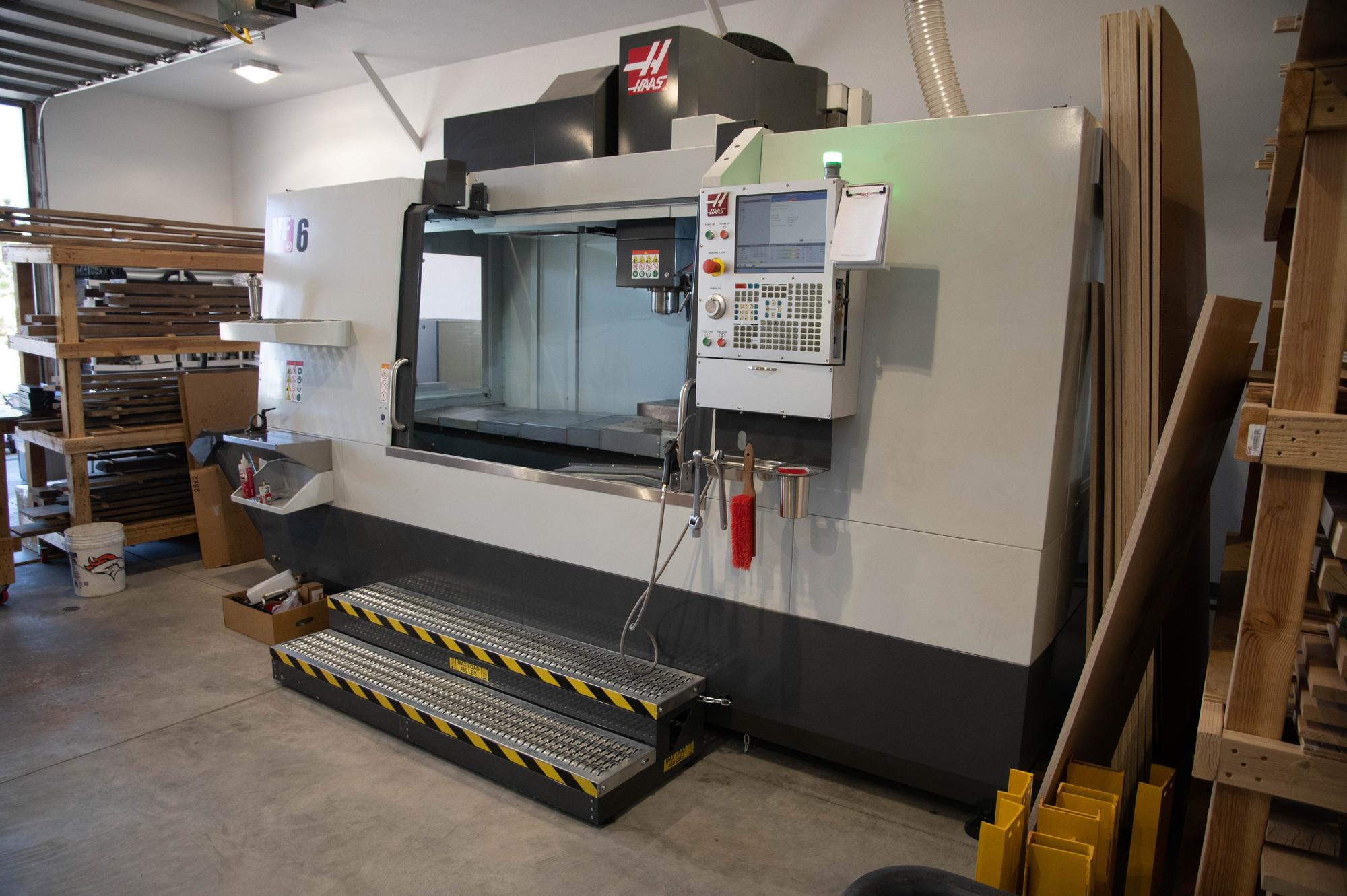

Haas VF-6/40 CNC Vertical Machining Center, Haas NextGen CNC Control, Probing, Thru Spindle Coolant, Auto Doors, 30+1 ATC

Manufacturer

Haas

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

None

Model

VF-6

Dealer Location

Minnesota

Request a Quote
View Contact Information

Spec Sheet

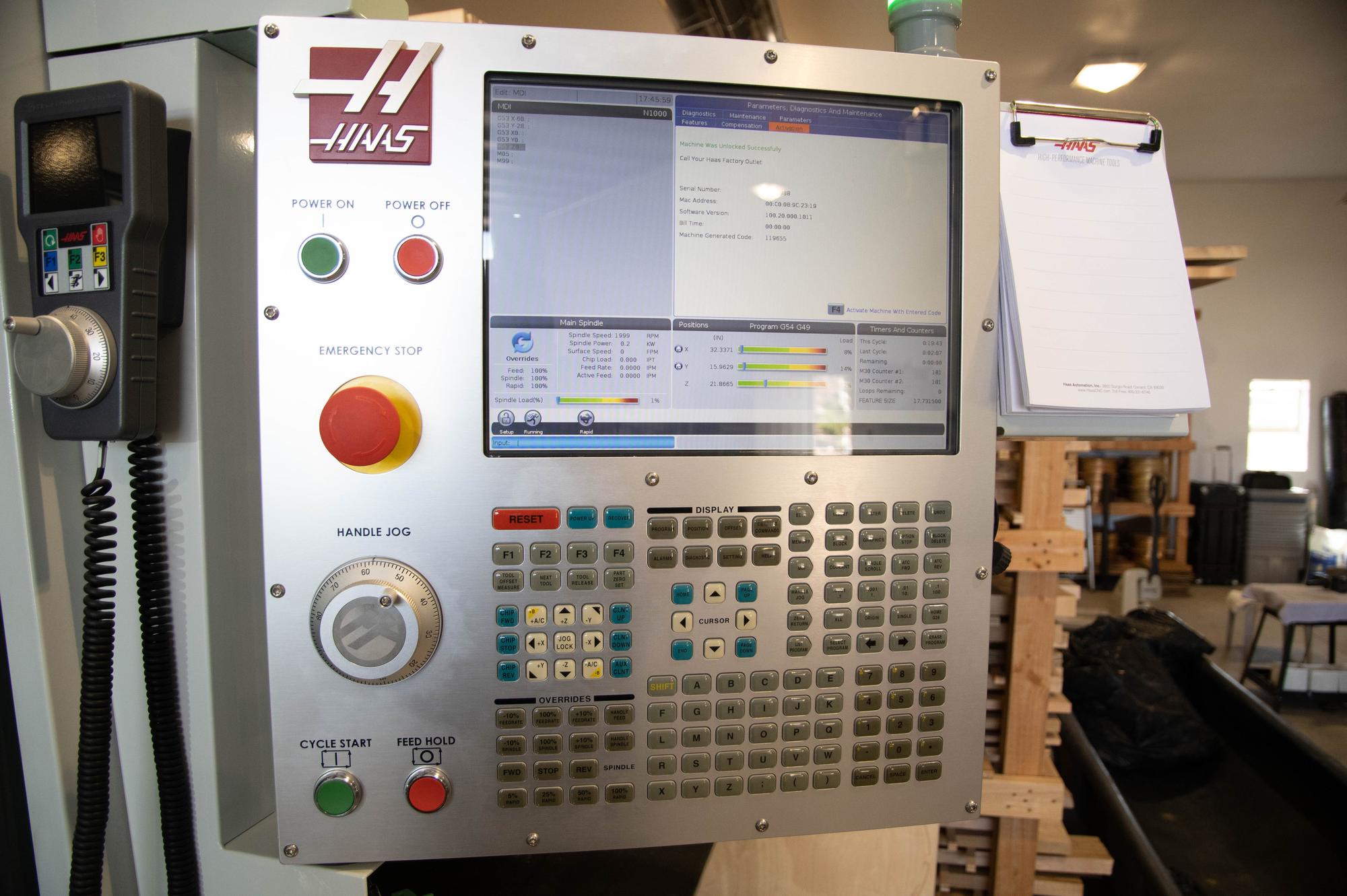

Machine Control: Haas NextGen CNC Control

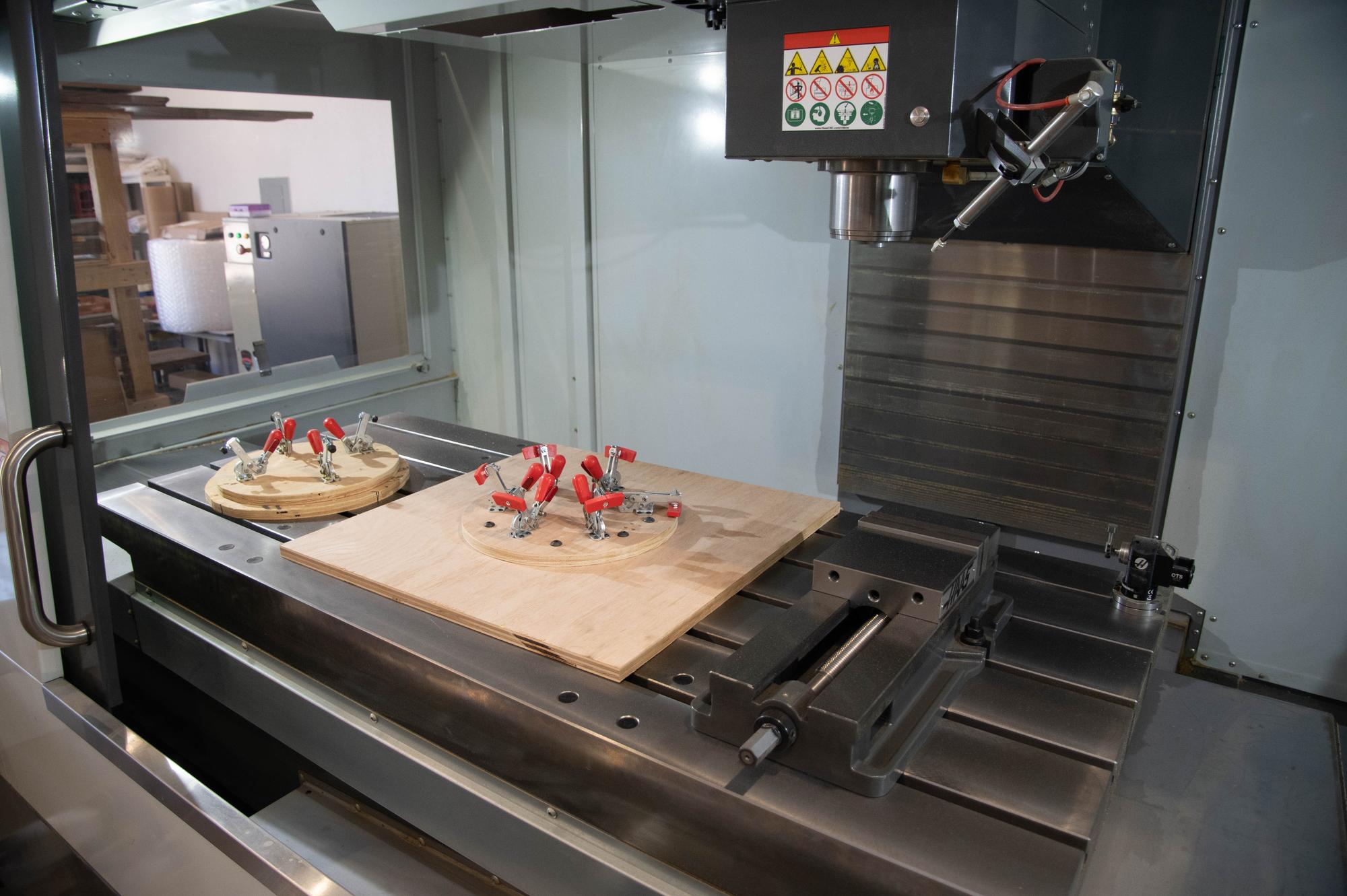

Table Size: 64" x 28"

Machine Travels (X/Y/Z): 64" x 32" x 30"

Table Capacity: 4,000 Lbs.

Spindle Taper: Cat 40

Spindle Speeds: 8,100 RPM

Transmission: Inline Direct-Drive

Rapid Traverse Rate (X/Y/Z): 600 / 600 / 600 IPM

Maximum Cutting Feed Rate: 500 IPM

Tool Changer Style: Side-Mount Twin-Arm

Tool Change Time: 2.8 Seconds Tool to Tool / 3.6 Seconds Chip to Chip

Max Tool weight: 12 Lbs.

Max Tool Length: 16"

Tool Changer Capacity: 30+1 Stations

Spindle Drive: 30 HP Vector Drive

Spindle To Table Distance: 4" - 34"

Equipped With:

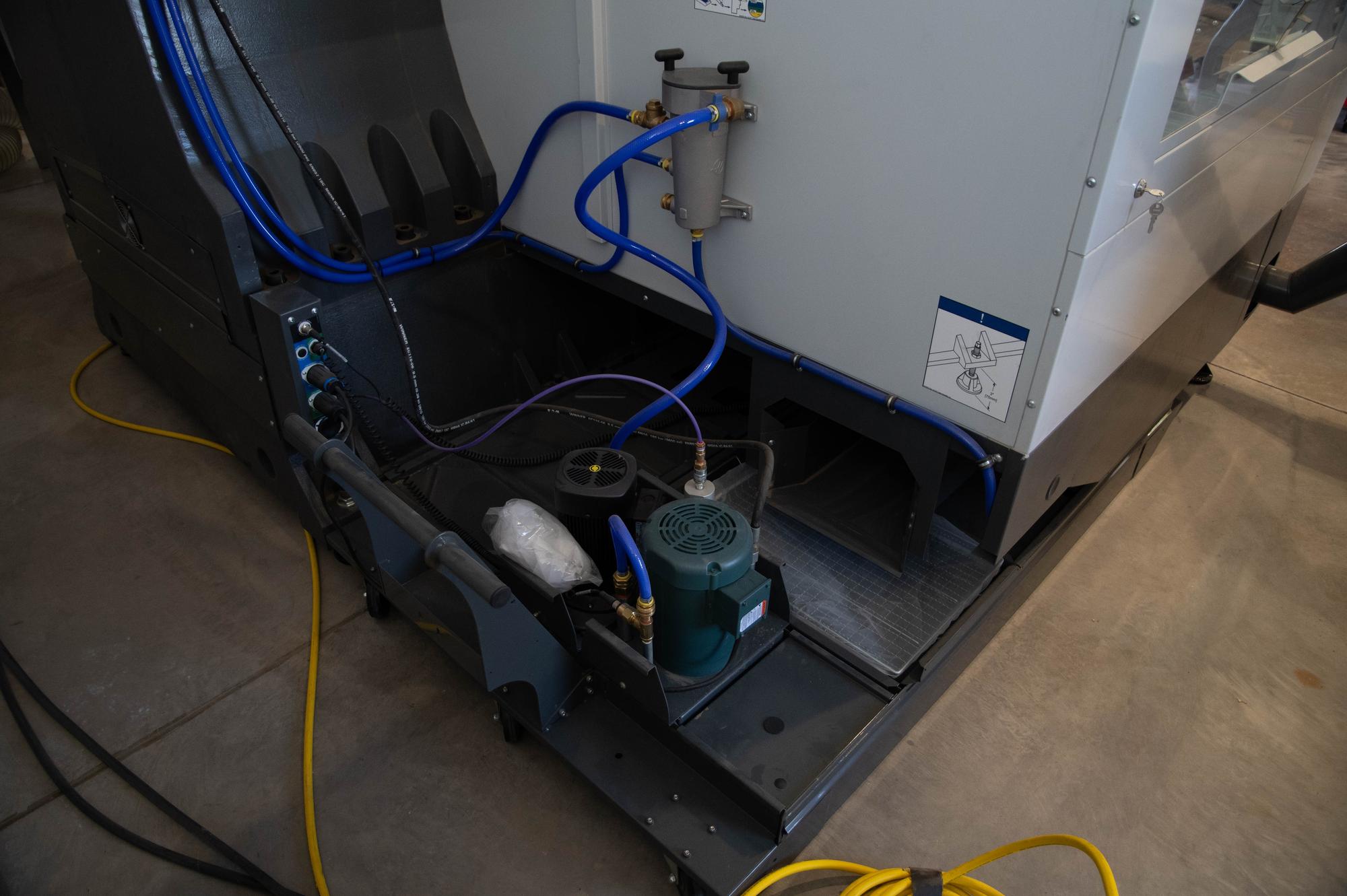

Haas NextGen CNC Control, Wireless Intuitive Probing with Renishaw Part Probe and Tool Setter, 300 PSI Thru Spindle Coolant, Chip Tray Filter Kit, Thru Tool Air Blast, Programmable Coolant, Standard Coolant System, Auto Door for Mill, Auto Air Gun, Remote Jog Handle with Touch Screen, Chip Auger

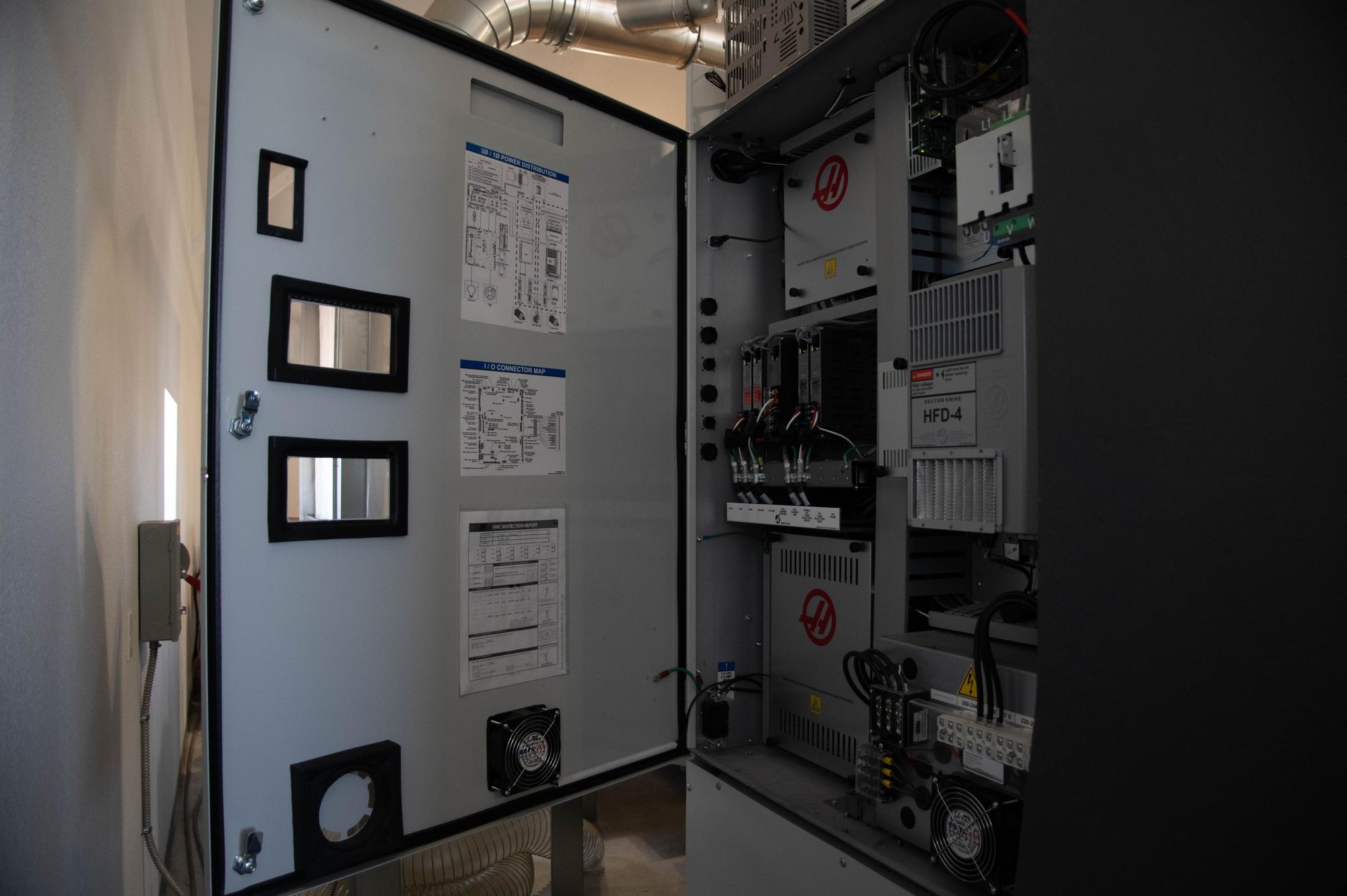

Electrics:

220 Volts, 3 Phase
