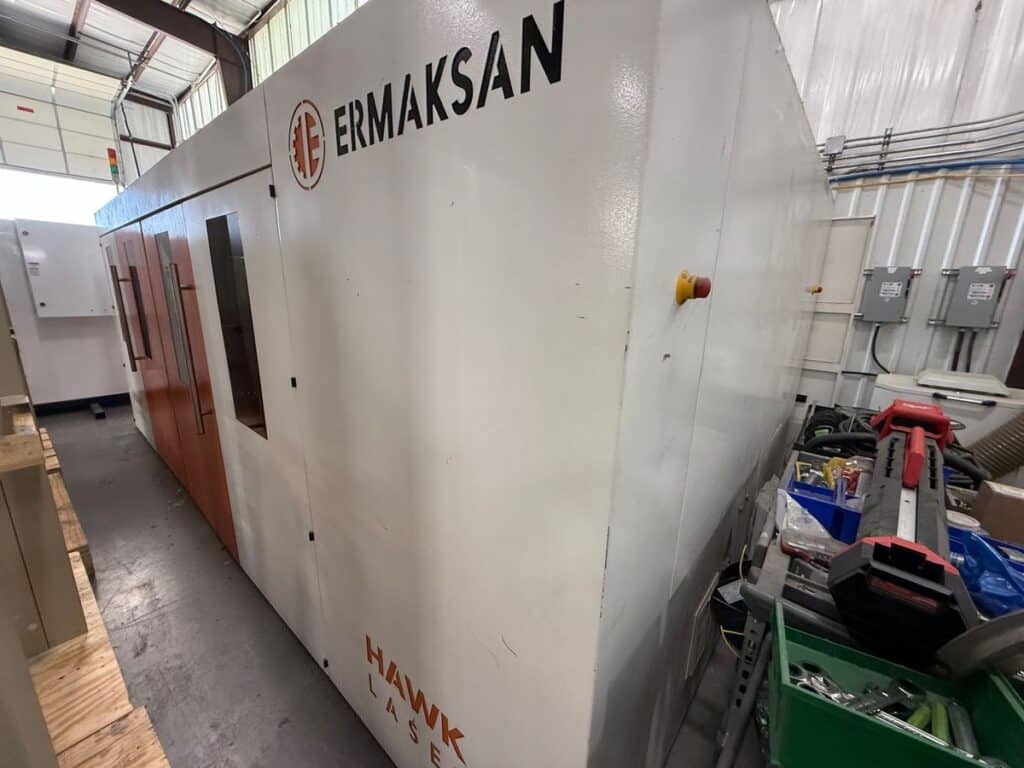

ERMAKSAN FIBERMAK HAWK 5′ x 10′ Fiber Laser Cutting Machine, 2kW (2022)

ERMAKSAN FIBERMAK HAWK 5′ x 10′ Fiber Laser Cutting Machine, 2kW (2022)

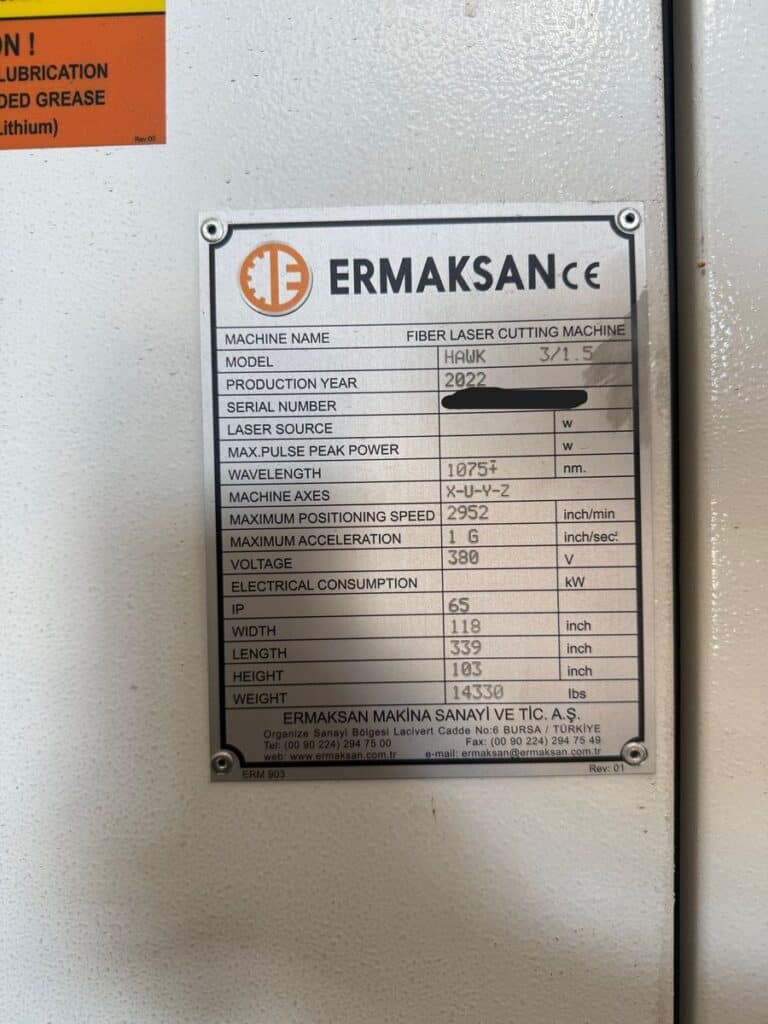

Manufacturer

ERMAKSAN

Spec Sheet

Stock #: 171250029
Location: OK
Brand: ERMAKSAN
Model: FIBERMAK HAWK
Year: 2022
Approx. Shipping Weight: 18,000 LBS
Approx. Shipping Dimensions: 339″L x 118″W x 103″H
Loading Fee: Rigging Required

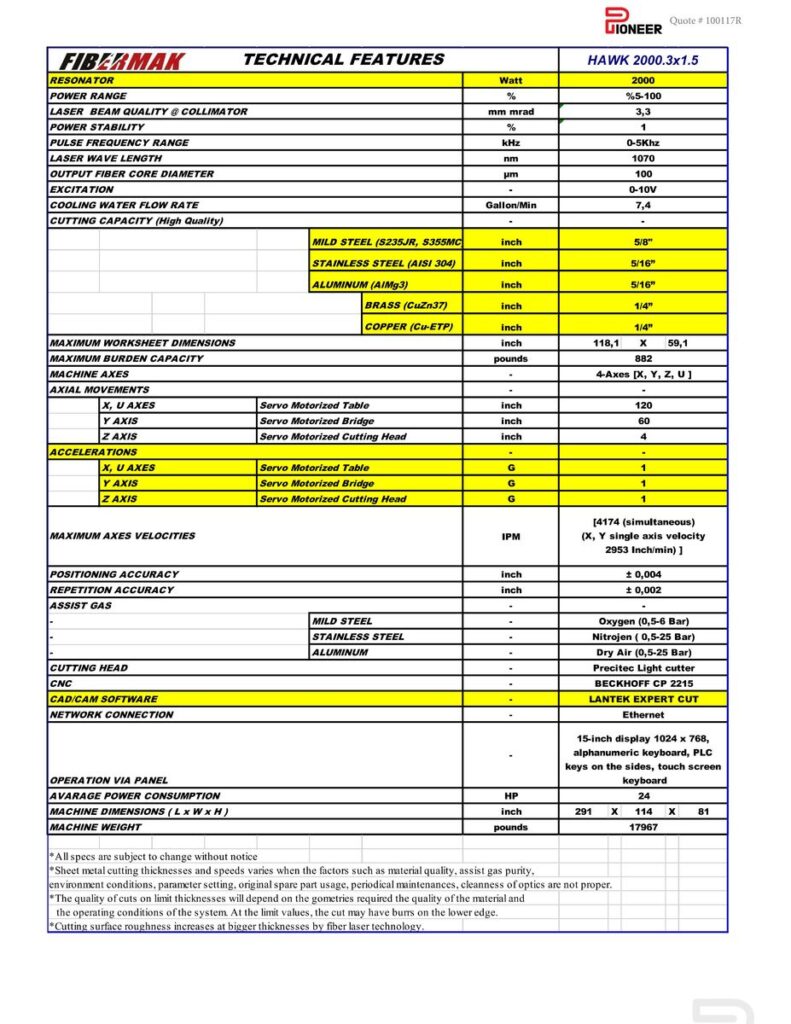

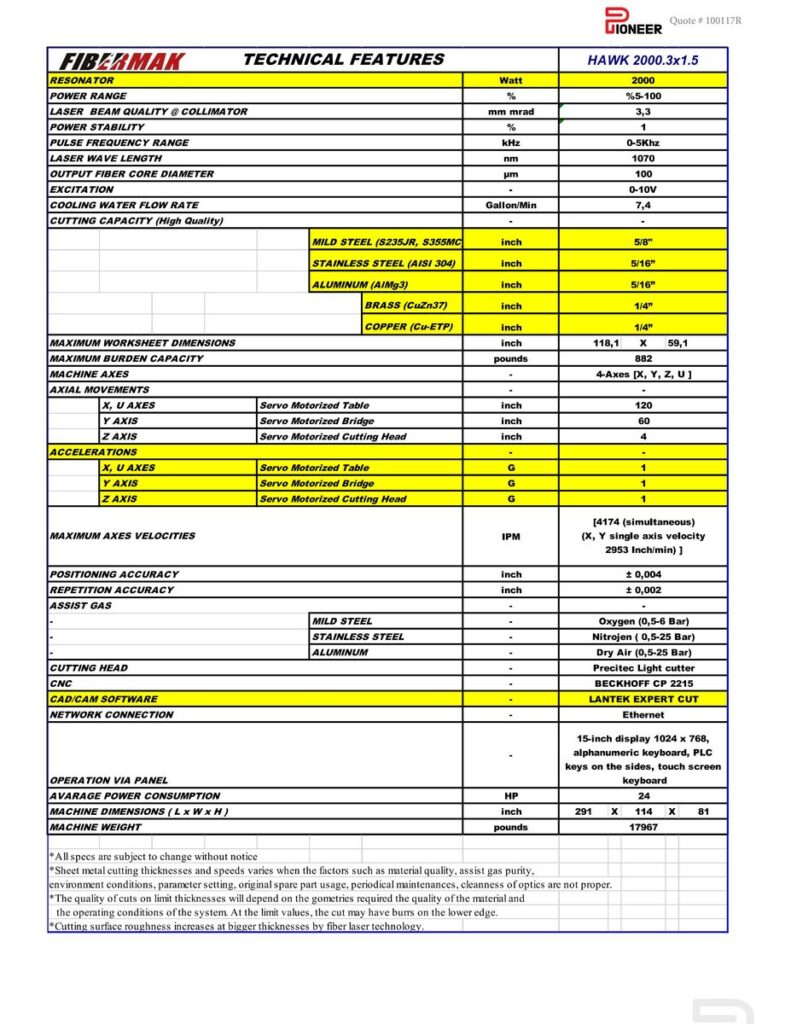

Specifications

Table Size: 5′ x 10′
Maximum Worksheet Dimensions: 118.1″ x 59.1″
Maximum Workpiece Weight: 882 LBS
X-Axis Travel (Servo Motorized Table): 120″
Y-Axis Travel (Servo Motorized Bridge): 60″
Z-Axis Travel (Servo Motorized Cutting Head): 4″
U-Axis Travel (Servo Motorized Shuttle Table): 120″
Mild Steel (S235JR, S355MC) Capacity: 5/8″
Stainless Steel (AISI 304) Capacity: 5/16″
Aluminum (AlMg3) Capacity: 5/16″
Brass (CuZn37) Capacity: 1/4″
Copper (Cu-ETP) Capacity: 1/4″

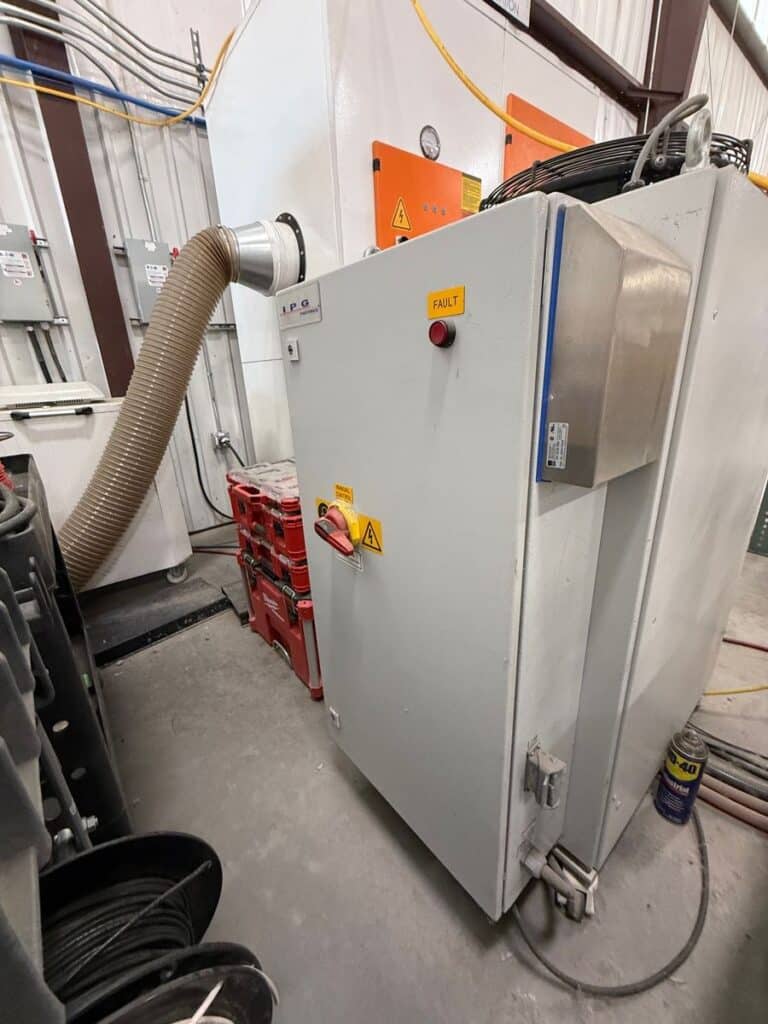

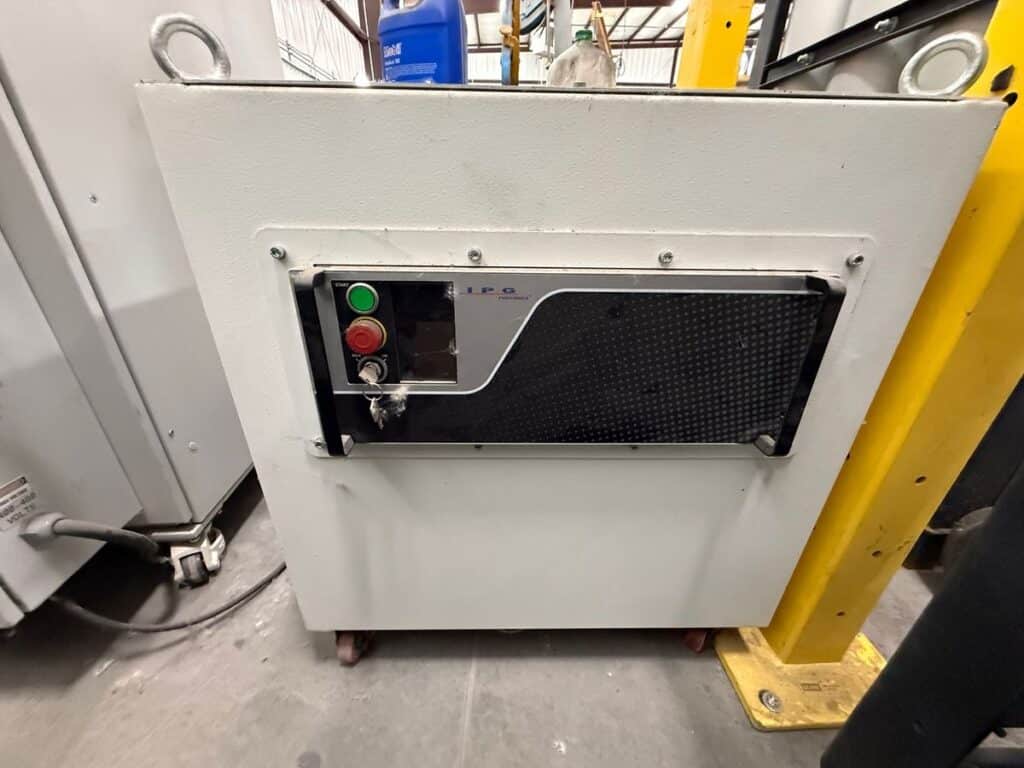

Resonator: 2000 Watt

Equipped With

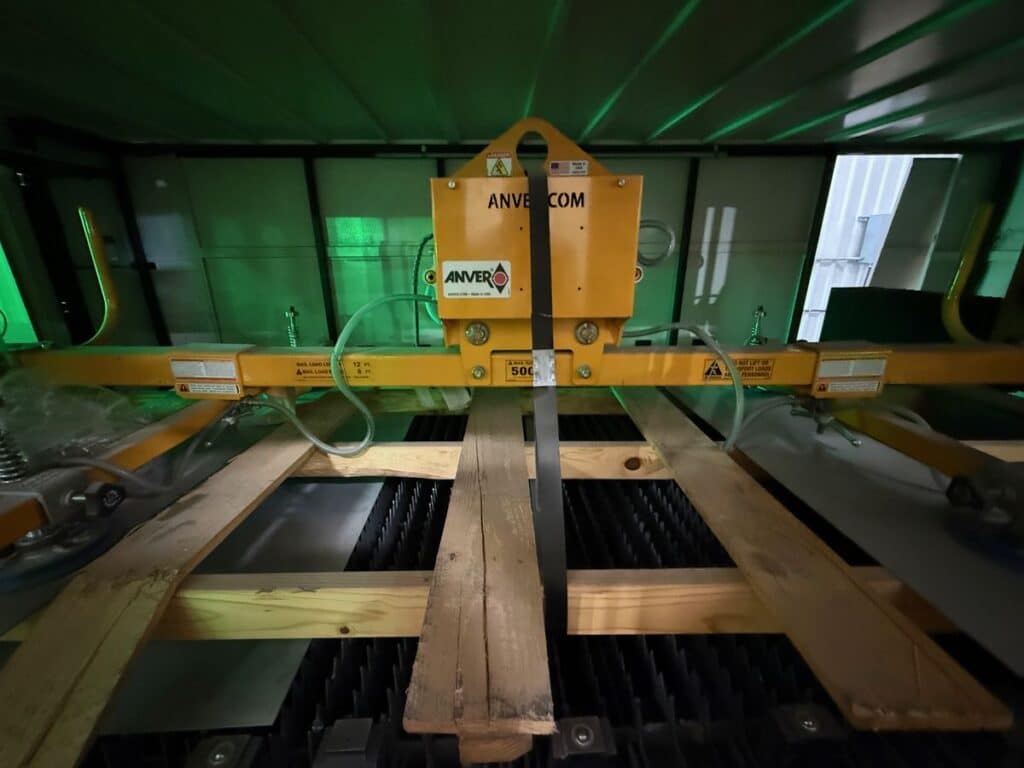

Precitec Light Cutter Head w/ Auto Focus, BECKHOFF CP 2215 Stand Alone and Mobile Controller, 15″ Touch Screen, LANTEK Expert Cut Nesting Software, Ethernet Connection, Anver Vacuum Lift included.

Additional Info

Machine is under power and available to demo.
