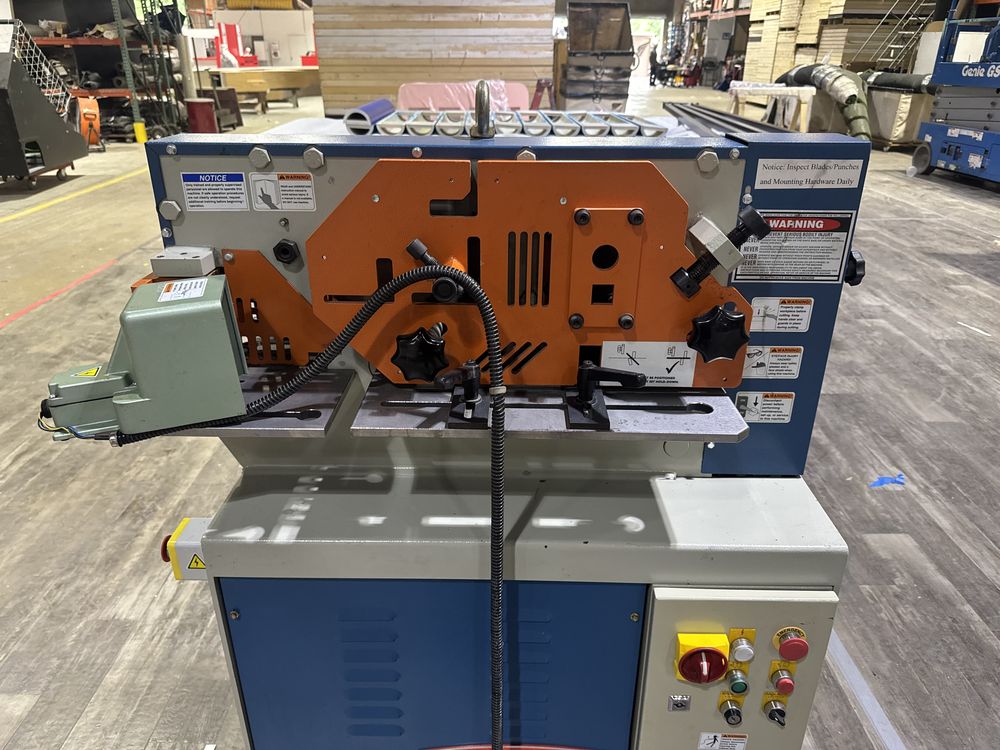

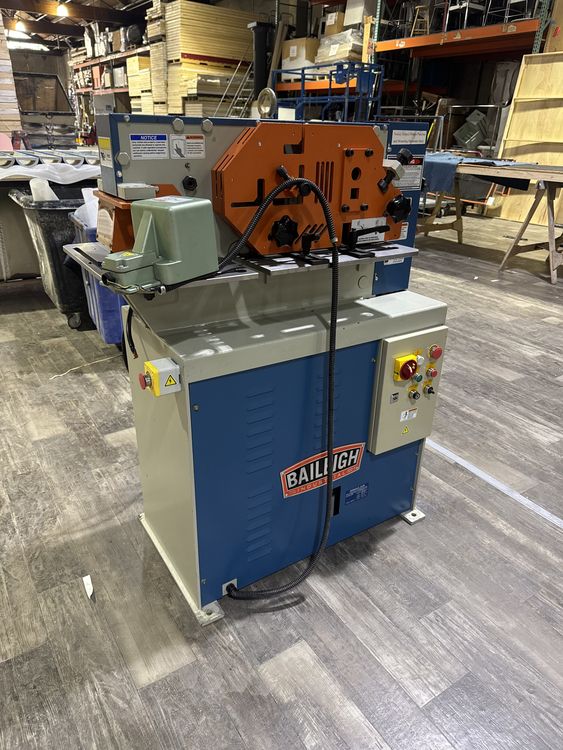

Baileigh SW-443 Hydraulic Ironworker

Manufacturer

Baileigh

Category

Punches

Stock

181250015

Model

SW-443

Dealer Location

Georgia

Spec Sheet

  • Stock #: 181250015
  • Location: Jersey City, NJ
  • Brand: Baileigh
  • Model: SW-443
  • Year: 2021
  • Approx. Shipping Weight: 2,310 Lbs.
  • Approx. Shipping Dimensions: L-45″ x W-30″ x H-68″

Specifications

  • Stations: 4
  • Punching Pressure: 44 Tons
  • Punch Capacity: 0.75″ Diameter x 0.625″ Thickness (19mm x 16mm); Also Supports 1.5″ Diameter x 0.375″ Thickness (38mm x 9.5mm)
  • Throat Depth: 6.88″ (175mm)
  • Maximum Stroke Length: 1.125″ (28.6mm)
  • Flat Bar Shearing Capacity: 7.87″ x 0.5″ (200mm x 12.7mm)
  • Blade Length: 13.87″ (352mm)
  • Round Bar Shear Capacity:: 1.125″ (28.6mm)
  • Square Bar Shear Capacity: 1.125″ (28.6mm)
  • Angle Shearing at 90°: 3″ x 3″ x 0.25″ (76mm x 76mm x 6.35mm)
  • Angle Flange Trim: 3.14″ x 0.393″ (80mm x 10mm)
  • Bar Shearing Working Height: 44.88″ (1140mm)
  • Angle Shearing Working Height: 40″ (1016mm)
  • Flat Shearing Working Height: 42.32″ (1075mm)
  • Cycles per Minute: Up to 23 cycles
  • Power Requirements: 220V, 3-Phase 13.9 Amps
  • Motor Horsepower: 3 HP

Equipped With

Like New, Barely Used

Additional Info

Inspection Upon Request

No Video Available
