60" x 0.135" x 20,000# Pro Eco Cut to Length Line

Manufacturer

PRO ECO

Category

Fabricating Machines

Type

CUT-TO-LENGTH LINES

Stock

11886-HK

Model

None listed

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

60" x 0.135" x 20,000# Pro Eco Cut-to-Length Line

Consisting of the following:

-4 Arm Entry Turnstile: Braner
C-Hook Type Arms
Powered Rotation
16" min ID

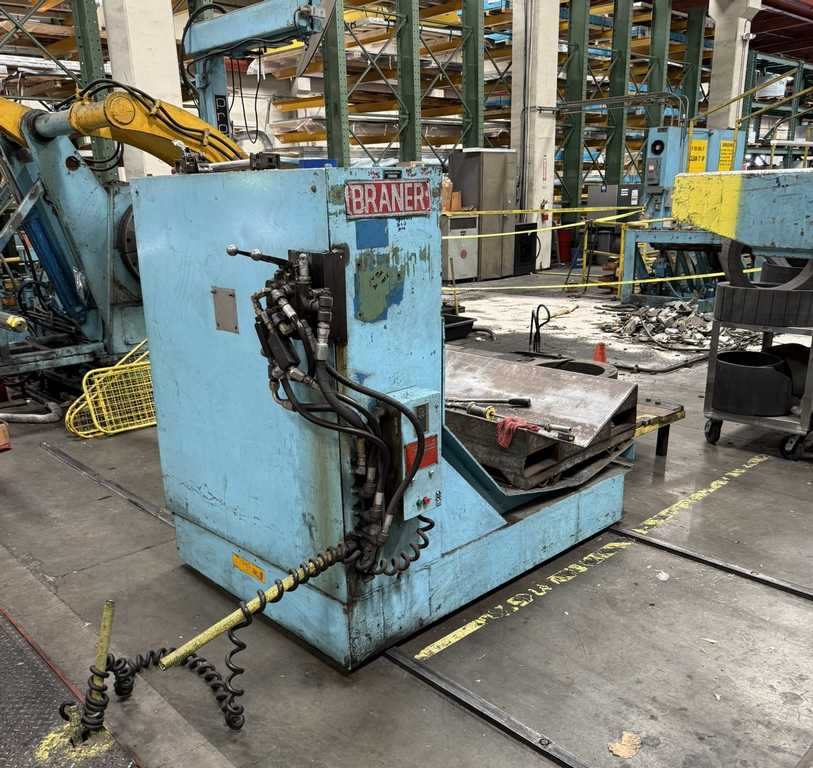

-Entry Coil Car: Braner
Above Floor Type
48" Wide Bed
72" O.D.
Approx. 14" from Floor to bottom of "V" Cradle
Removable Riser for Small Coil O.D.'s
Self-Contained Hydraulics

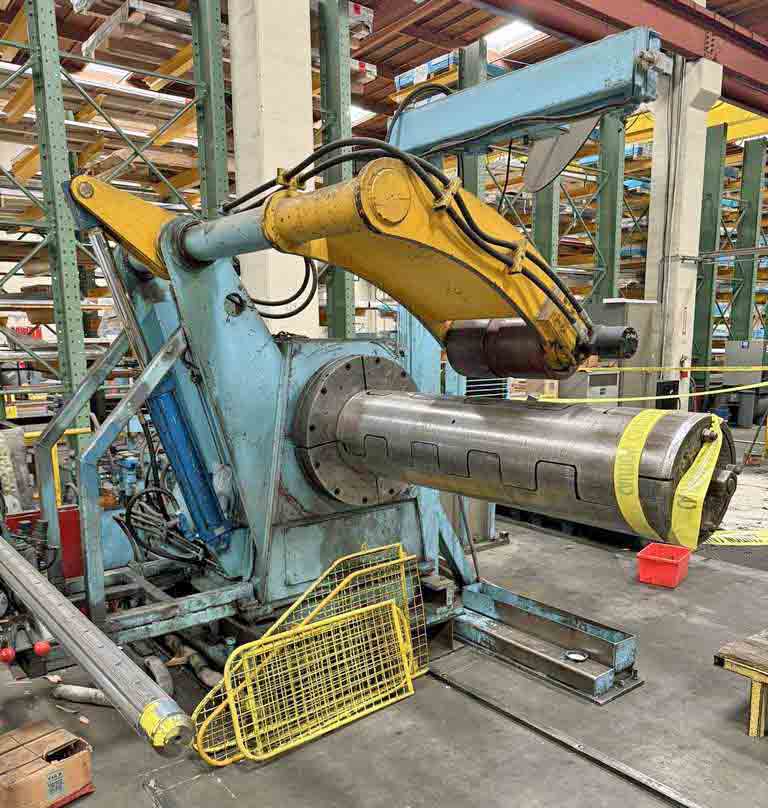

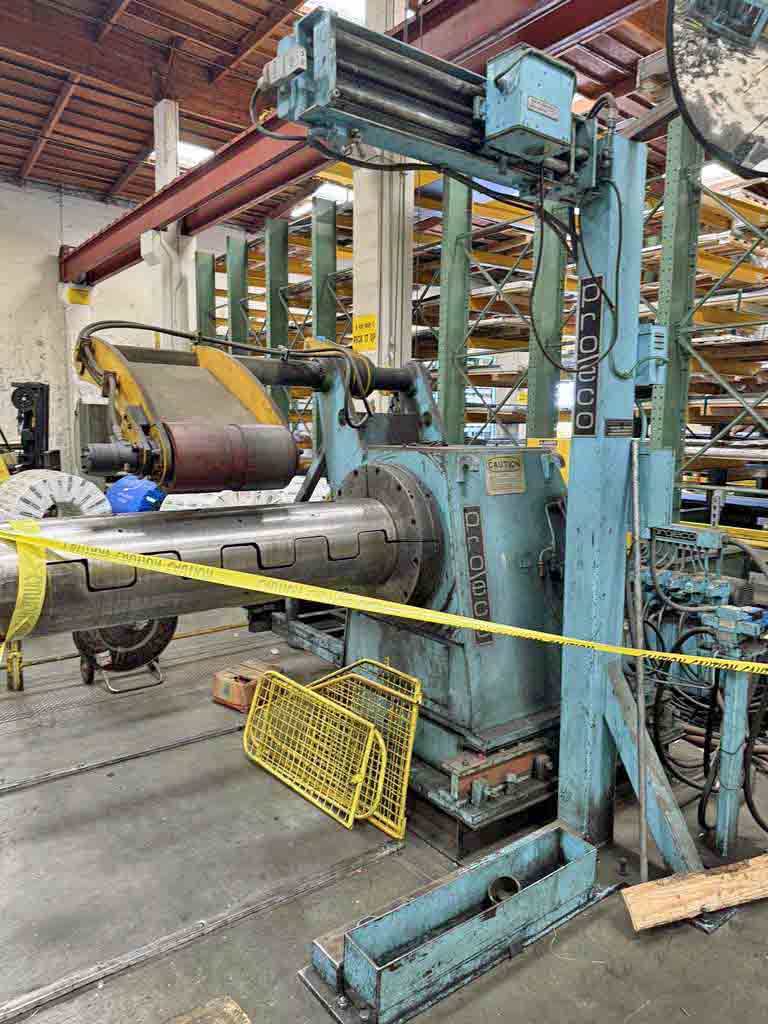

-Uncoiler:
Model: UNC-20-60
S/N: 589-01-81
Hydraulic Expansion
16" - 20" Coil I.D. Range
61" Face Pumpkin Tooth Drum
Wichita Kopper Kool Water Cooled Brake
Sliding Base
Powered Holddown Roll
60" O.D. Capacity
Passline: 50" from Floor to center of Mandrel
Overall Size: 146" L x 72" W x 91" High

-Paper Winder:

-Less Leveler:

-Automatic Edge Control:
Model: EG-FIFE-20-60

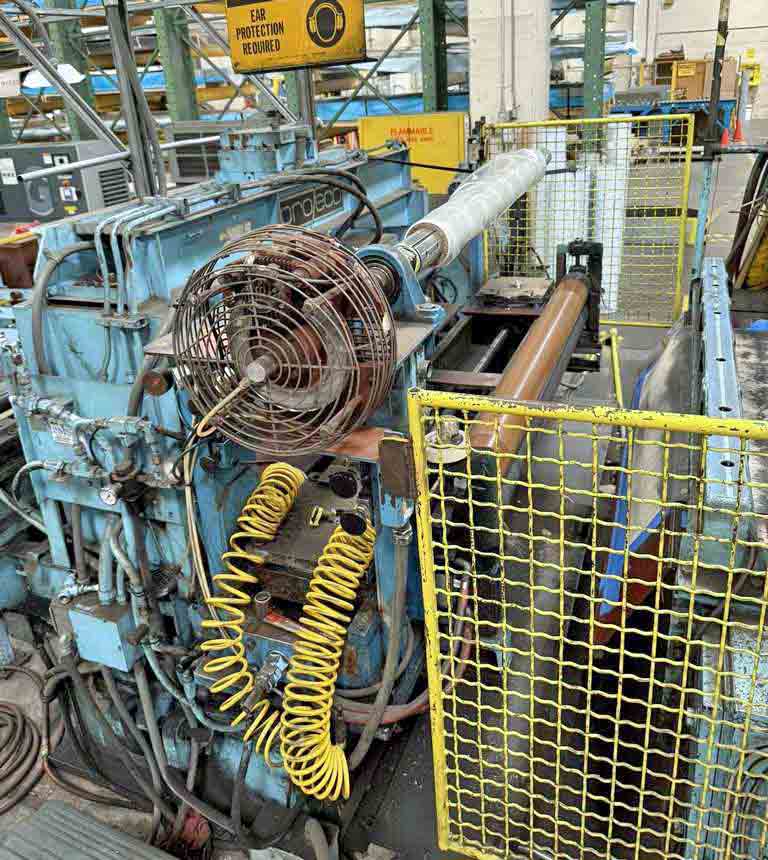

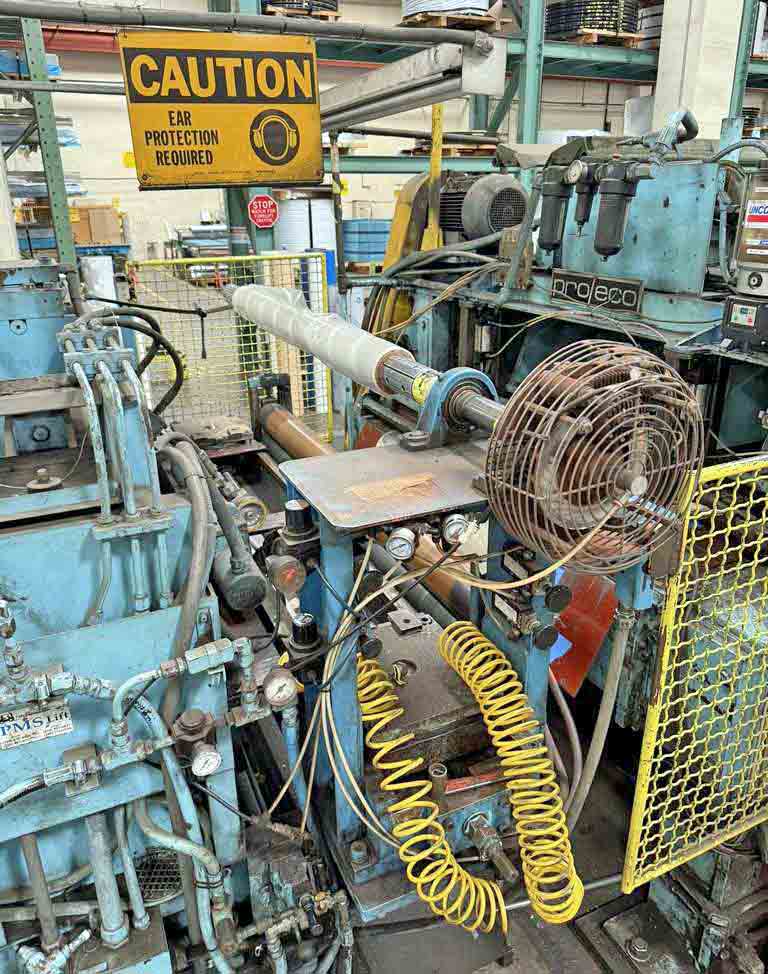

-Roll Feed:
Model: PFR-12-16-60
S/N: 589-11-81
Entry Passline Roll
Entry Side Guides
16" Face x 12" Dia. Drive Rolls
Exit Side Guides
Exit Measuring Encoder Roll
Exit Passline Roll
Unico DC Drive, 32 HP, 1100 RPM, 240 VDC
Film Applicator
Passline: 42"
Overall Size: 171" L x 76" W x 73" High

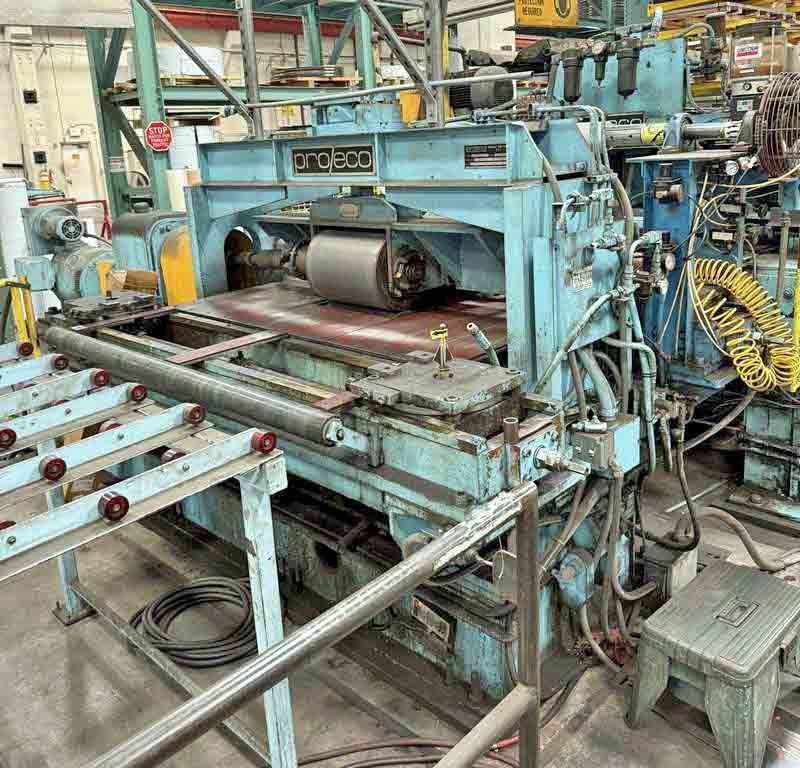

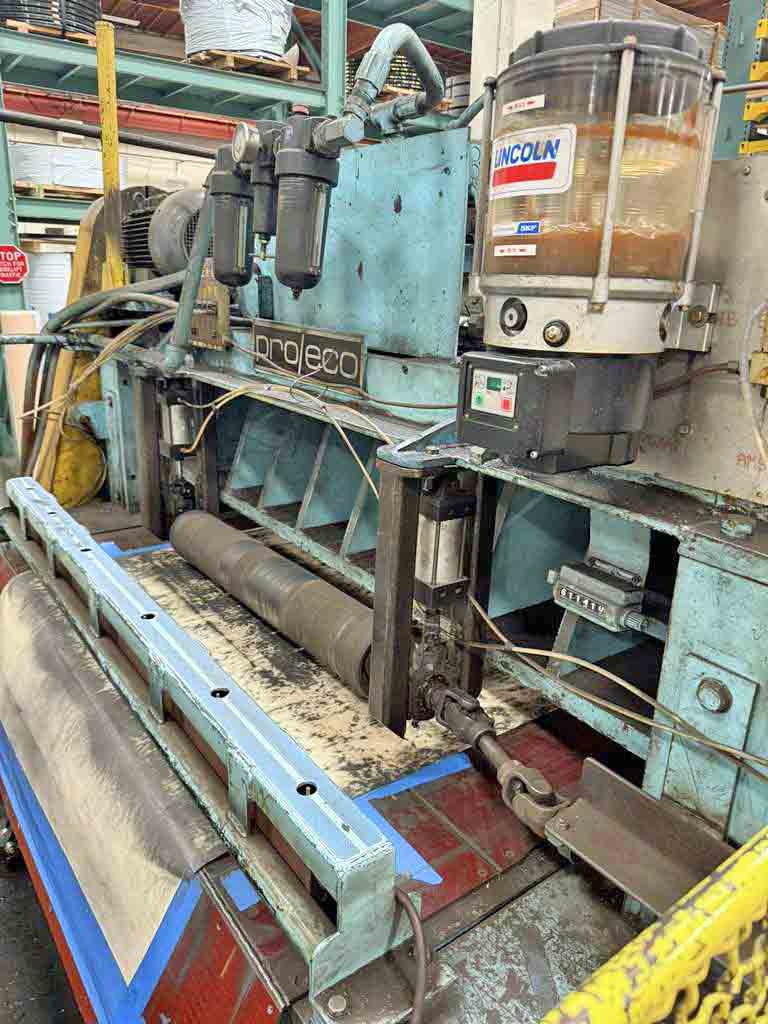

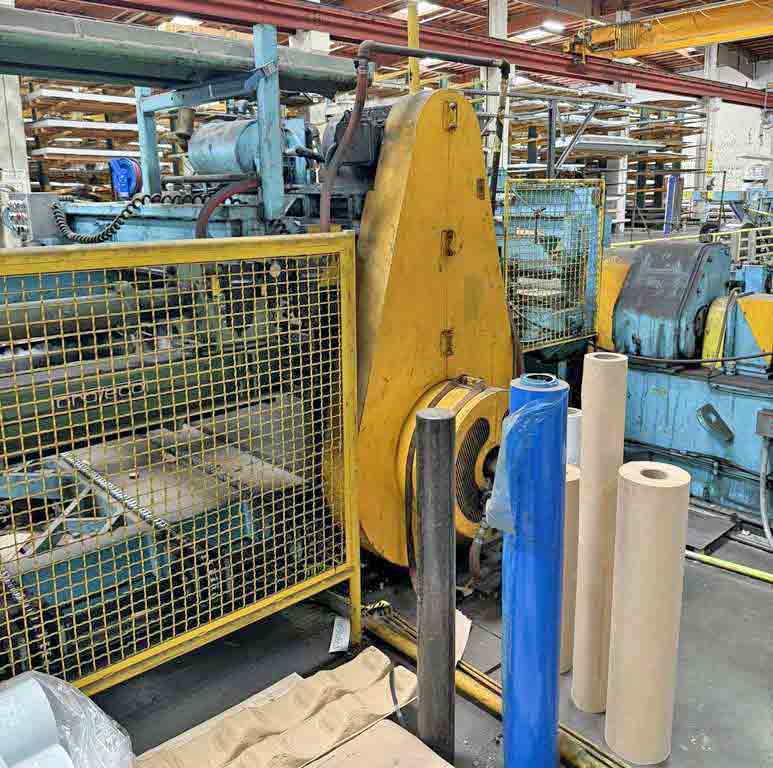

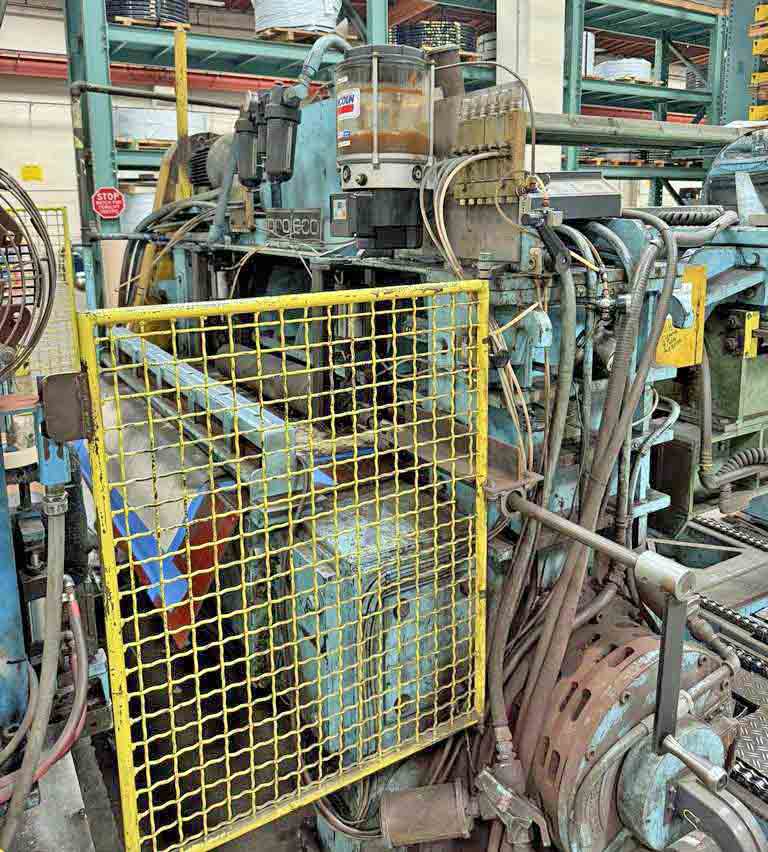

-High Speed Shear:
Model: MCS-0.187-60-250
60" x 0.187" Capacity
Entry Pinch Roll
66" Face Blades w/Straight Rake
30 HP AC Drive Motor, 1745 RPM, 460 V
Air Clutch and Brake
Passline: 42"
Overall Size: 142" L x 57" W x 92" High

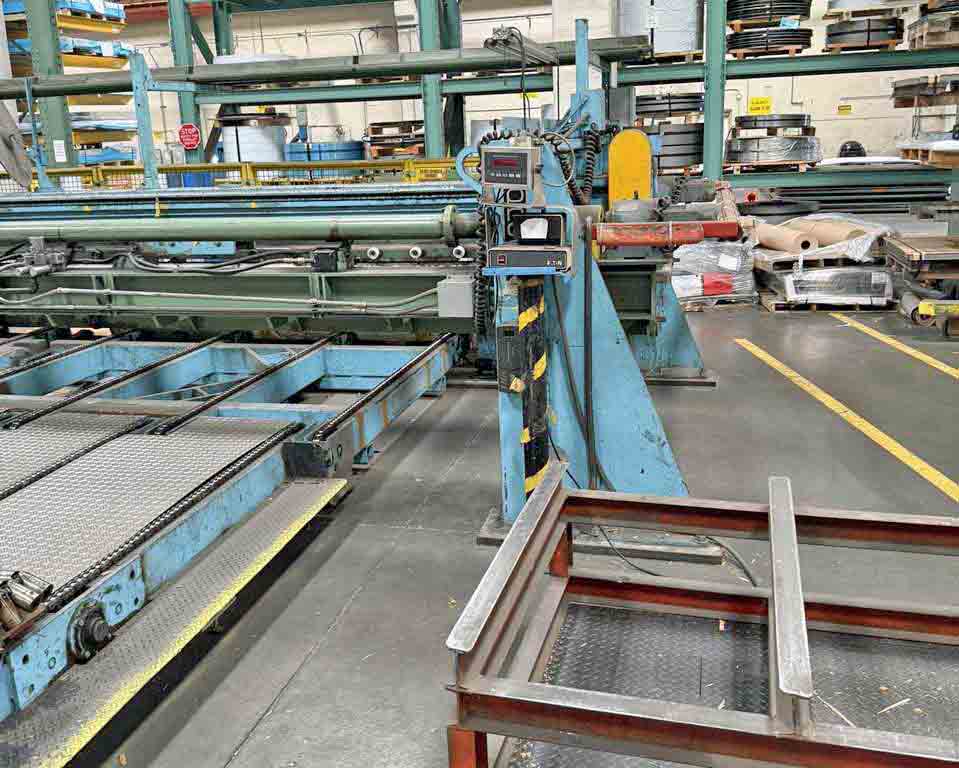

-Automatic Stacker:
10,000# Stack Capacity
Powered Width Adjustment
Powered Length Adjustment

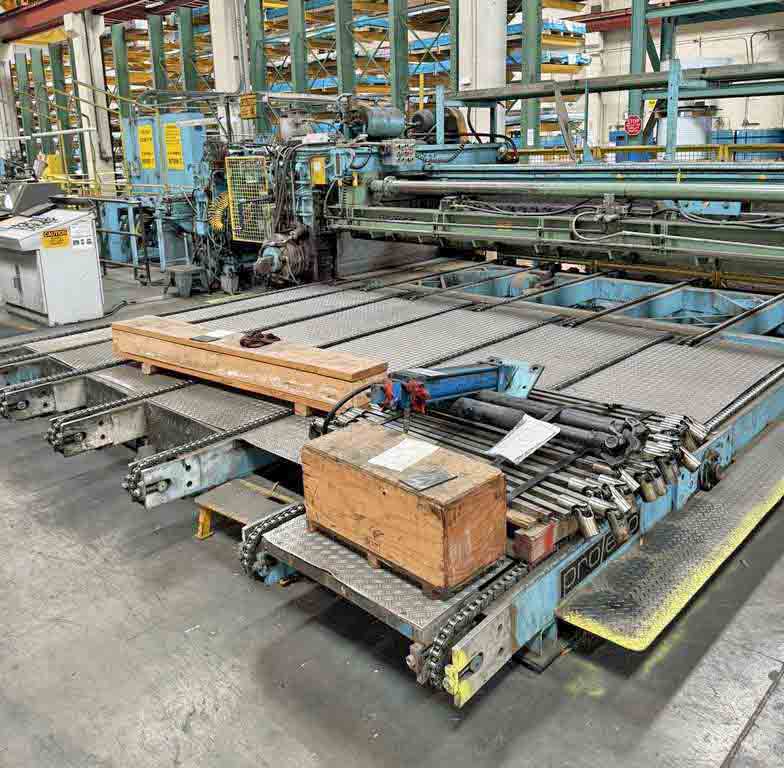

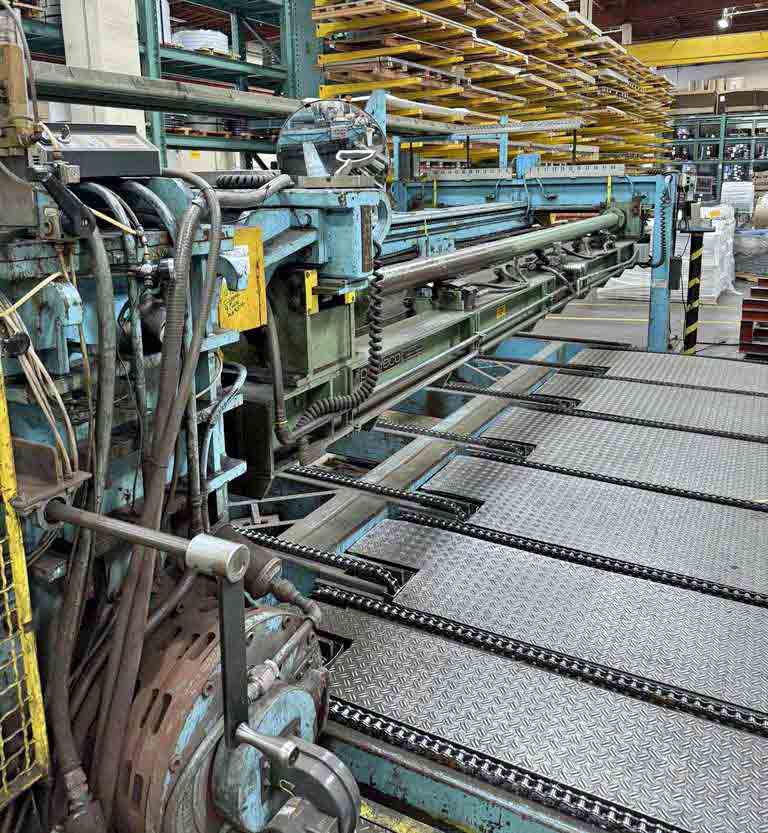

-Side Discharge Chain Conveyor:

-Line Direction: Left to Right

-Removed and in storage: Toledo, OH.
